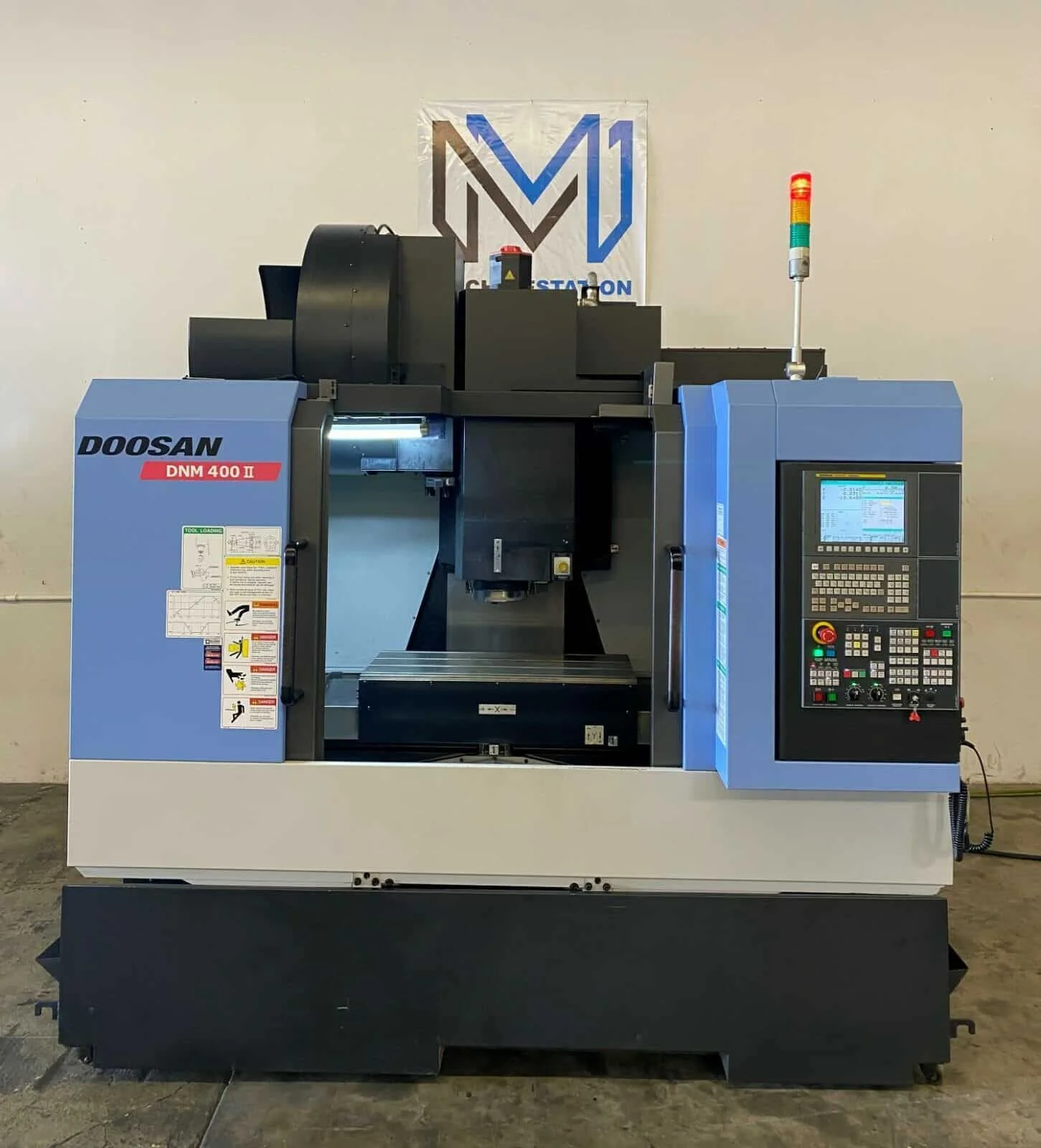

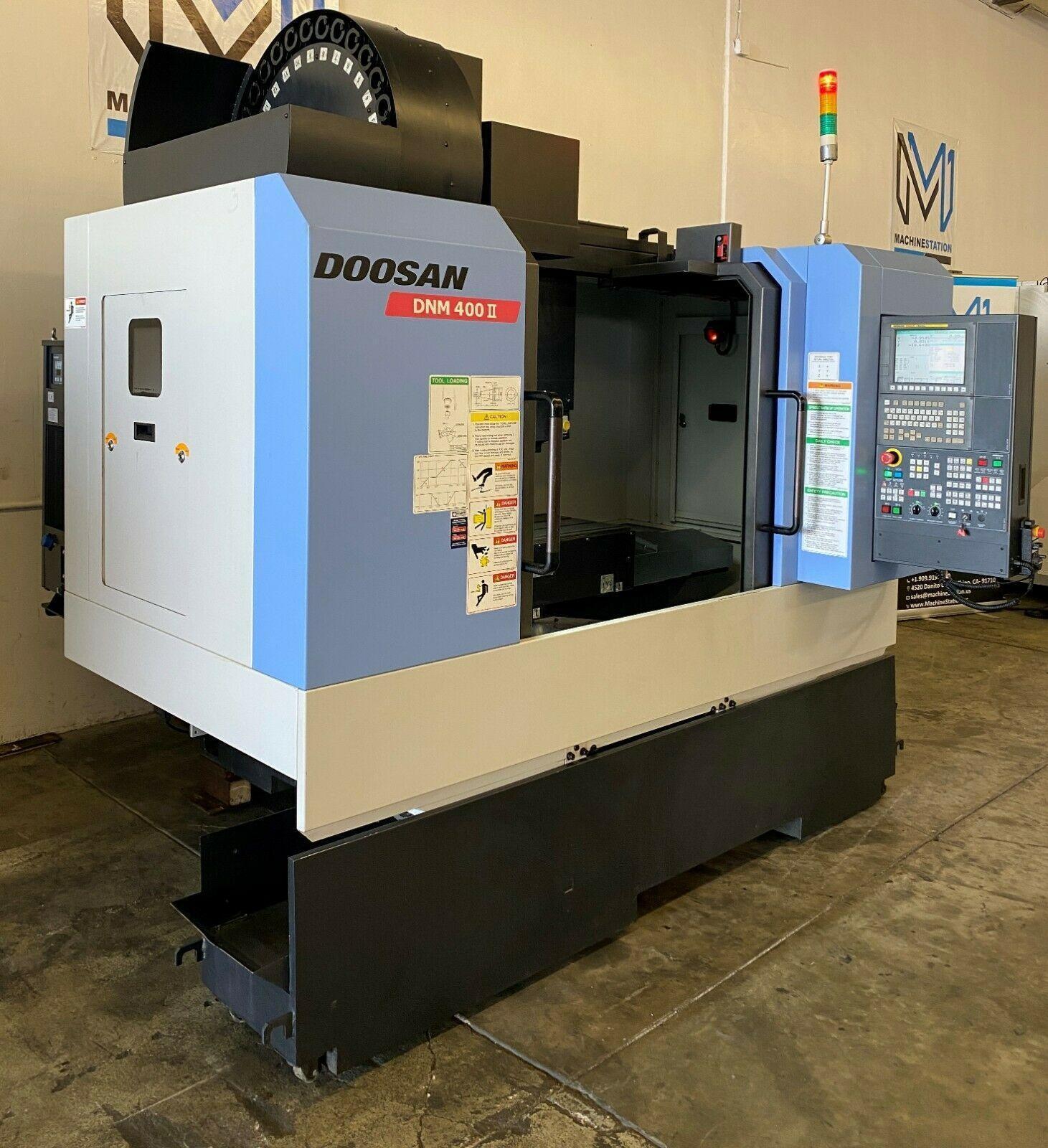

*All specifications are approximations and are subject to verification.
| SKU | 1948 |
| Make | DOOSAN |
| Model No. | DNM-400II |
| Year | 2013/2014 |
| Serial # | MV0009-002256 |
| Condition | Like New |
| Cutting Hours: | 1890 Hours |
| Comes with 15″ Chuck, Tailstock, Live Tool turret & Chip Conveyor. | |
| Doosan Fanuc Oi-series CNC Control: |
|---|
| Through Spindle Coolant |
| 8,000 RPM Big Plus Spindle |
| USB Drive |
| Wireless Probing Ready |
| 1417 Inch Per Min Rapids |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| 30 Automatic high speed tool changer |
| High Pressure Flood Coolant |
| Telescopic way covers |
| Spindle Chiller Unit |
| Dual Chip augers |
| Levelling Pads |
| Brand New Chip Conveyor |
| Travels: |
|---|
| X-Axis: 30.2″ |
| Y-Axis: 17.1″ |
| Z-Axis: 20.1″ |
| Spindle Nose to Table (Min.- Max.): 5.91″ – 24.25 |
| Table: |
|---|
| Length: 36.2″ |
| Width: 17.37″ |
| Number of Std T-Slots: 4 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1300 lbs |
| Spindle: |
|---|
| Spindle: Taper Size: 40 |
| Speed Range: 0 – 8,000 RPM |
| Spindle Type: Belt Drive |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 |
| Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.54″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 1.3 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 35 kva / 3-Phase |
| Overall Dimensions: 120″ x 100″ x 110″ High |
| Weight: 12500 lbs |
“No Charges for loading at list Price”
Comes as shown in pictures….
