*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model No.: | DNM 6700 |
| Year of Manufacture: | 2018 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |

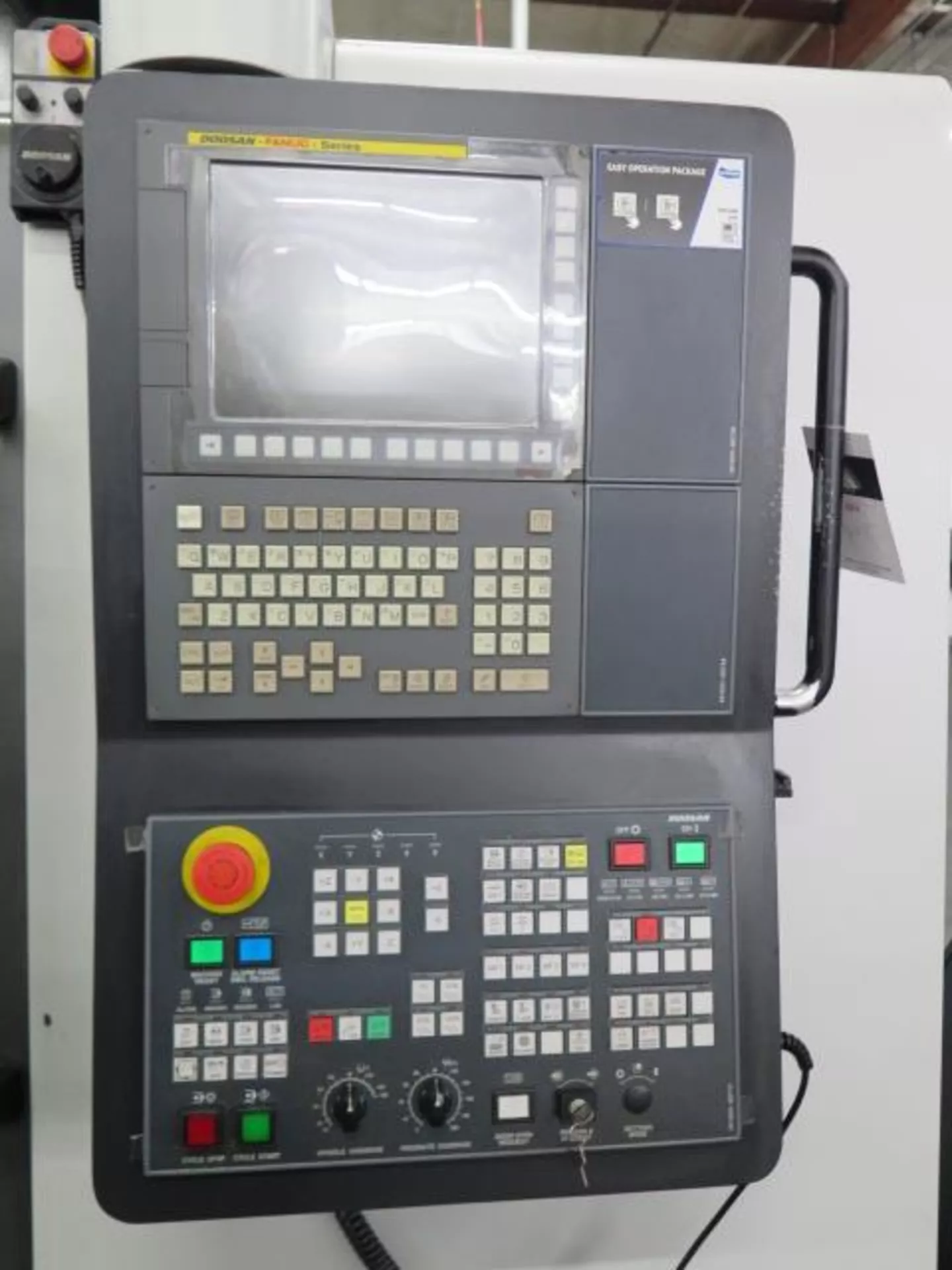

| CNC Control: | Doosan-Fanuc i-Series CNC Control |
| Equipped With: |
|---|
| Doosan-Fanuc i-Series CNC Control |
| 30-Station Side Mount Automatic Tool Changer |
| Through-Spindle Coolant |
| Renishaw Probe Ready |
| CAT-40 Big Plus Spindle |
| High-Pressure Coolant System |
| Spindle Chiller |
| Chip Conveyor |
| Chip Augers |
| Telescopic Way Covers |
| USB Interface |
| PCMCIA Card Slot |
| MPG Handwheel |
| Rigid Tapping |
| Spindle Orientation |
| Capacity: |
|---|
| Table Size: 59.1″ × 26.4″ (1500 × 670 mm) |
| Maximum Table Load: 2,866 lbs (1,300 kg) |
| T-Slots: 5 |
| Travel: |
|---|
| X-Axis Travel: 51.2″ (1300 mm) |
| Y-Axis Travel: 26.4″ (670 mm) |
| Z-Axis Travel: 24.6″ (625 mm) |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Motor Power: 15 – 25 HP (Approx. 18.5 kW) |
| Spindle Taper: CAT 40 Big Plus |
| Tool Changer: |
|---|
| Tool Capacity: 30 Tools |
| Tool Change Type: Side Mount ATC |
| Tool-to-Tool Time: Approx. 1.2 sec |
| Maximum Tool Weight: 17.6 lbs (8 kg) |
| Maximum Tool Length: 11.8″ |
| Feedrates: |
|---|
| Rapid Traverse (X / Y): 1,417 IPM (36 m/min) |
| Rapid Traverse (Z): 1,181 IPM (30 m/min) |
| Cutting Feed Rate: 590 IPM |
| Electrical: |
|---|
| Power Requirement: 220V / 33 kVA |
| Phase: 3-Phase |
| Air Requirement: 80 psi, approx. 4 scfm |
| General: |
|---|
| Machine Dimensions: 102″ × 132″ × 122″ (L × W × H) |
| Machine Weight: Approx. 18,739 lbs (8,500 kg) |
| Features: |
|---|
| High-rigidity Meehanite cast iron structure |
| High-speed 12,000 RPM spindle for precision machining |
| Large travel envelope for medium-to-large workpieces |
| 30-tool side mount ATC for production machining |
| Through-spindle coolant for deep hole machining |
| Fanuc-based CNC control for reliable programming |
| Fast rapid traverse speeds for reduced cycle times |
| Ideal for aerospace, automotive, mold, and precision machining applications |
