*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

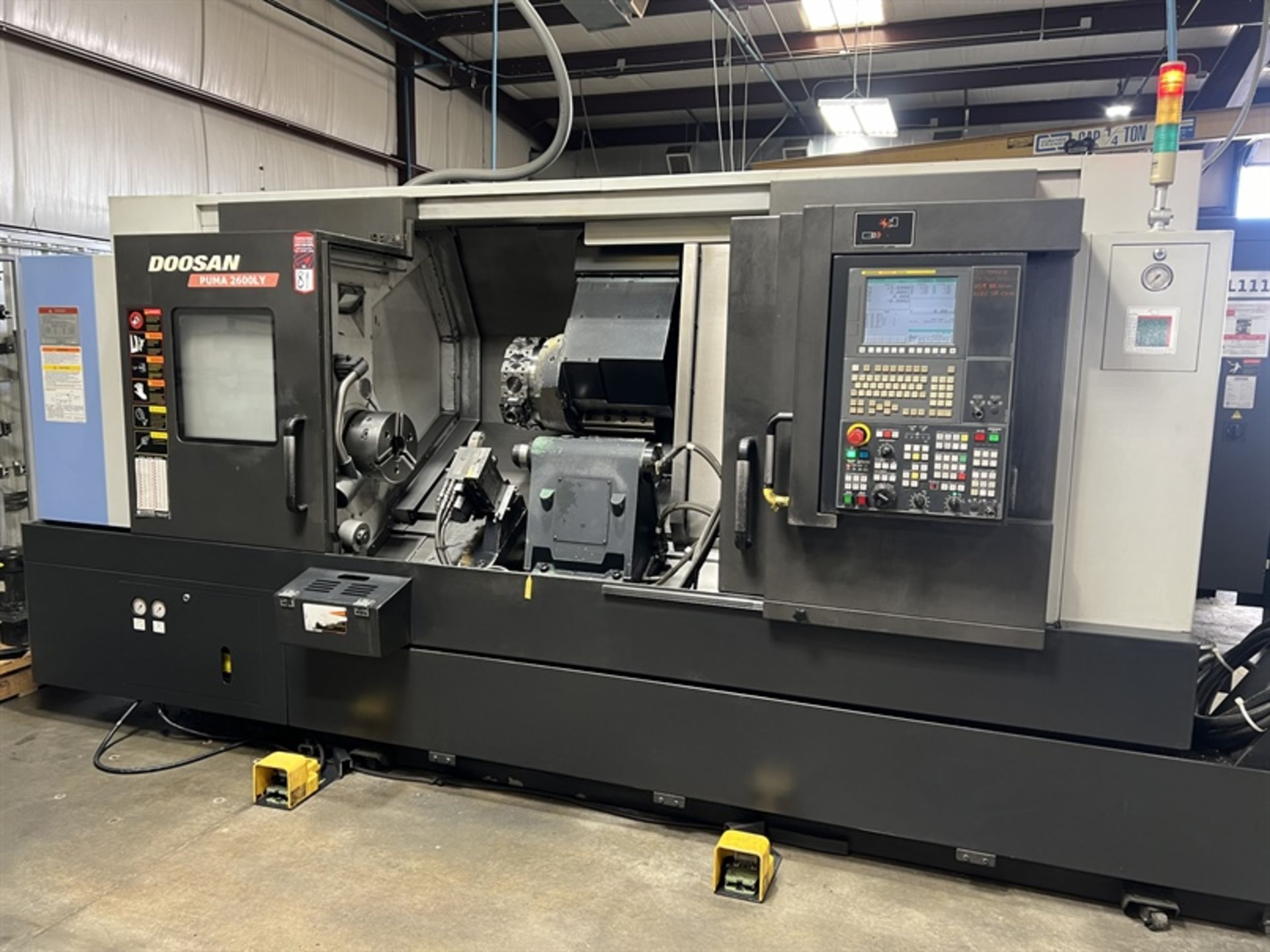

| Make: | Doosan |
| Model: | PUMA 2600LY |
| Condition: | Used |
| Equipped With: |
|---|

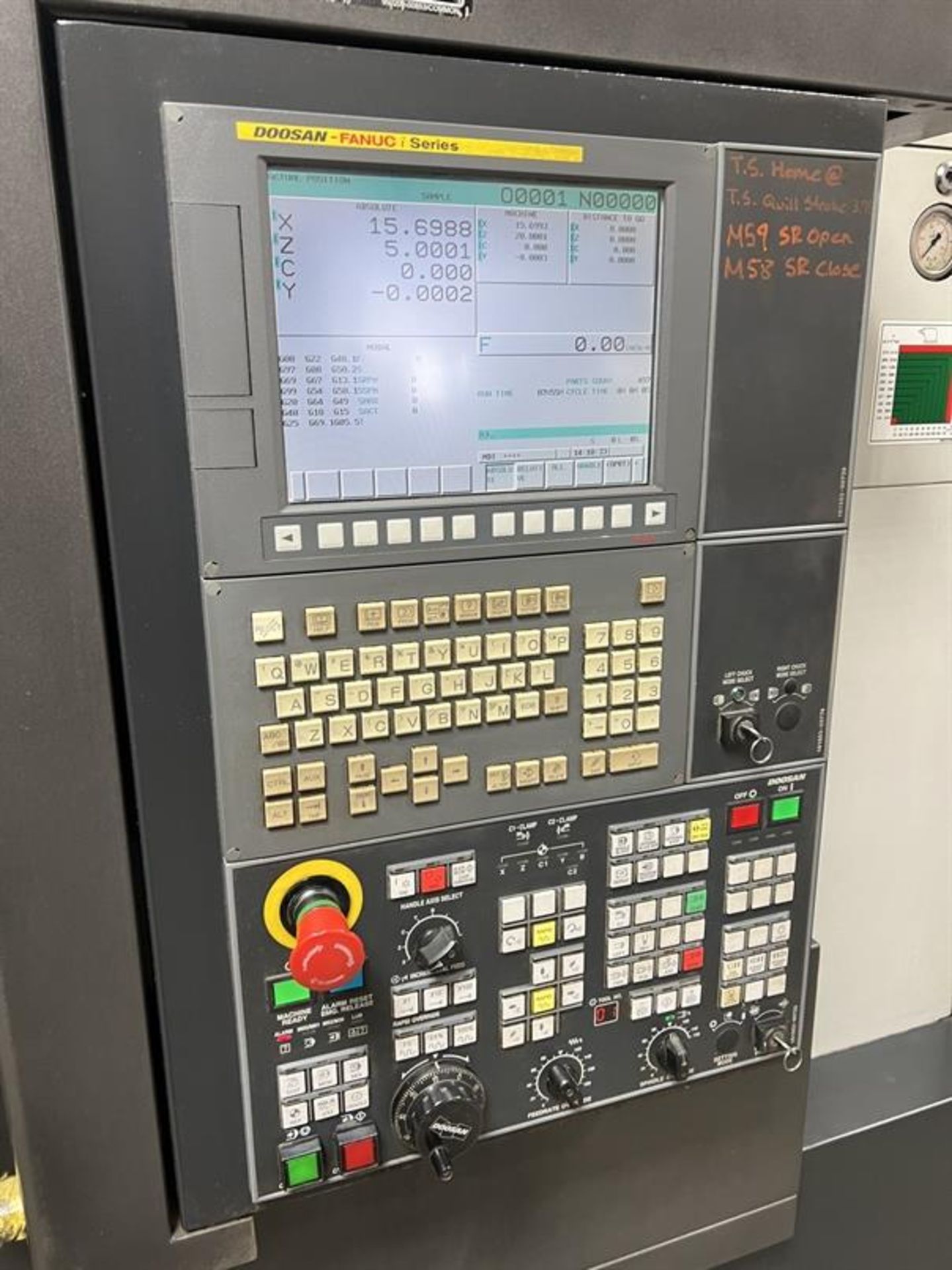

| Fanuc CNC Control |
| Y-Axis Machining Capability |
| Live Tooling |
| C-Axis Control |
| BMT65P Turret |
| Box-Way Construction |
| Hydraulic Chuck |
| Programmable Tailstock |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Swing Over Bed: 30.7″ |
| Swing Over Front Door: 24.8″ |
| Swing Over Saddle: 26.8″ |
| Max Turning Diameter: 18.9″ |
| Max Turning Length: 30.9″ |
| Bar Capacity: 2.6″ |
| Travels: |
|---|
| X-Axis Travel: 10.2″ |
| Y-Axis Travel: ±2.0″ |
| Z-Axis Travel: 32.7″ |
| Feedrates: |
|---|
| Rapid Traverse X-Axis: 1,181 IPM |
| Rapid Traverse Y-Axis: 1,181 IPM |
| Rapid Traverse Z-Axis: 1,181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Speed: 4,500 RPM |
| Spindle Motor: 33.5 HP |
| Spindle Bore: 3.0″ |
| Milling / Y-Axis: |
|---|
| Live Tool Speed: 6,000 RPM |
| Live Tool Motor: 7 HP |
| C-Axis Indexing: 0.001° |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Tool Interface: BMT65P |
| Max OD Tool Size: 1.57″ × 1.57″ |
| Max Boring Bar: 3.15″ |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Machine Weight (Approx.): 11,800 lbs |
| Overall Dimensions (Approx.): 139″ × 73″ × 75″ |
