*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | Puma 400LB |
| Year: | 2007 |
| Machine Type: | CNC Turning Center |
| Control: | Fanuc Series 21i-TB |
| Equipped With: |
|---|

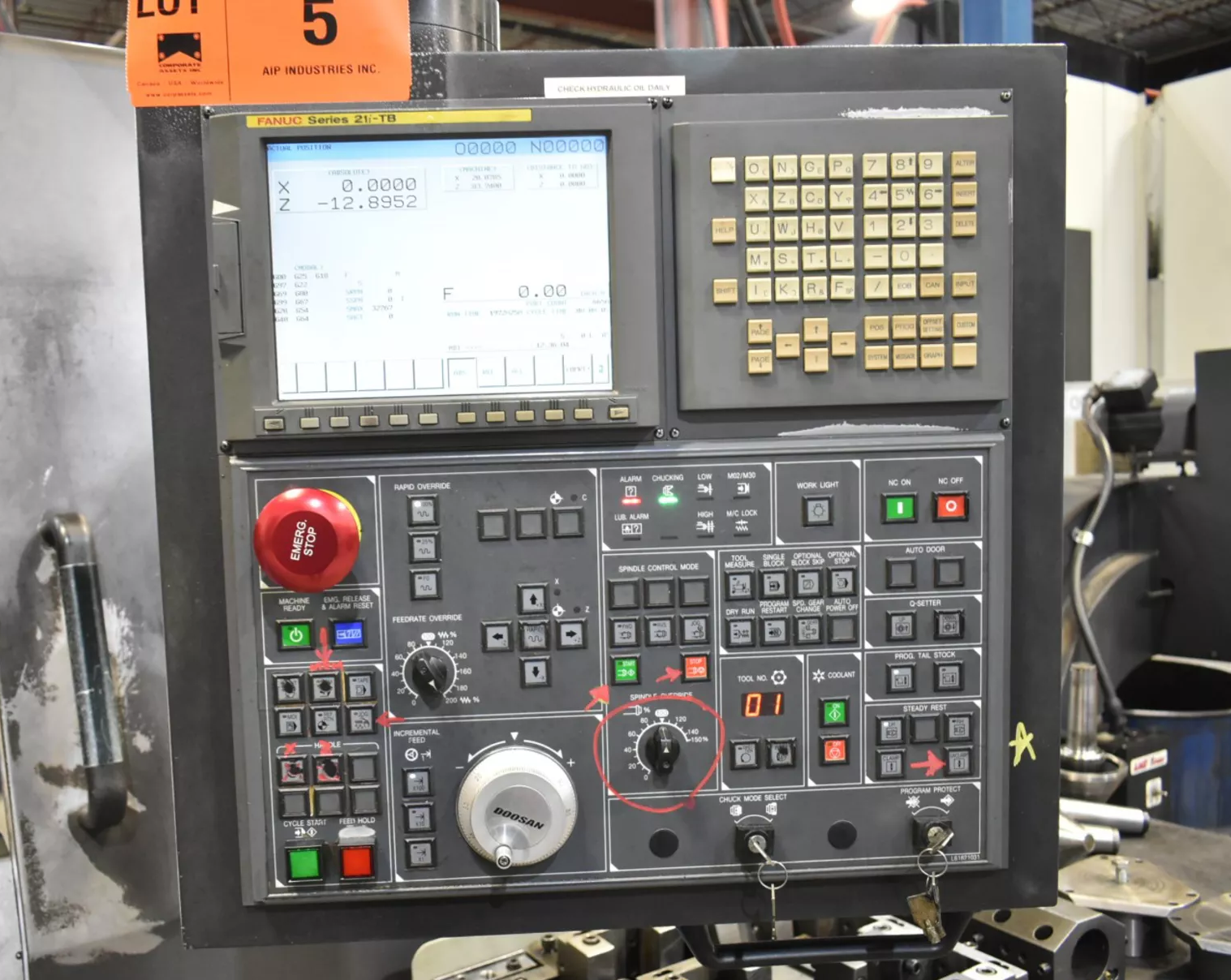

| Fanuc Series 21i-TB CNC Control |

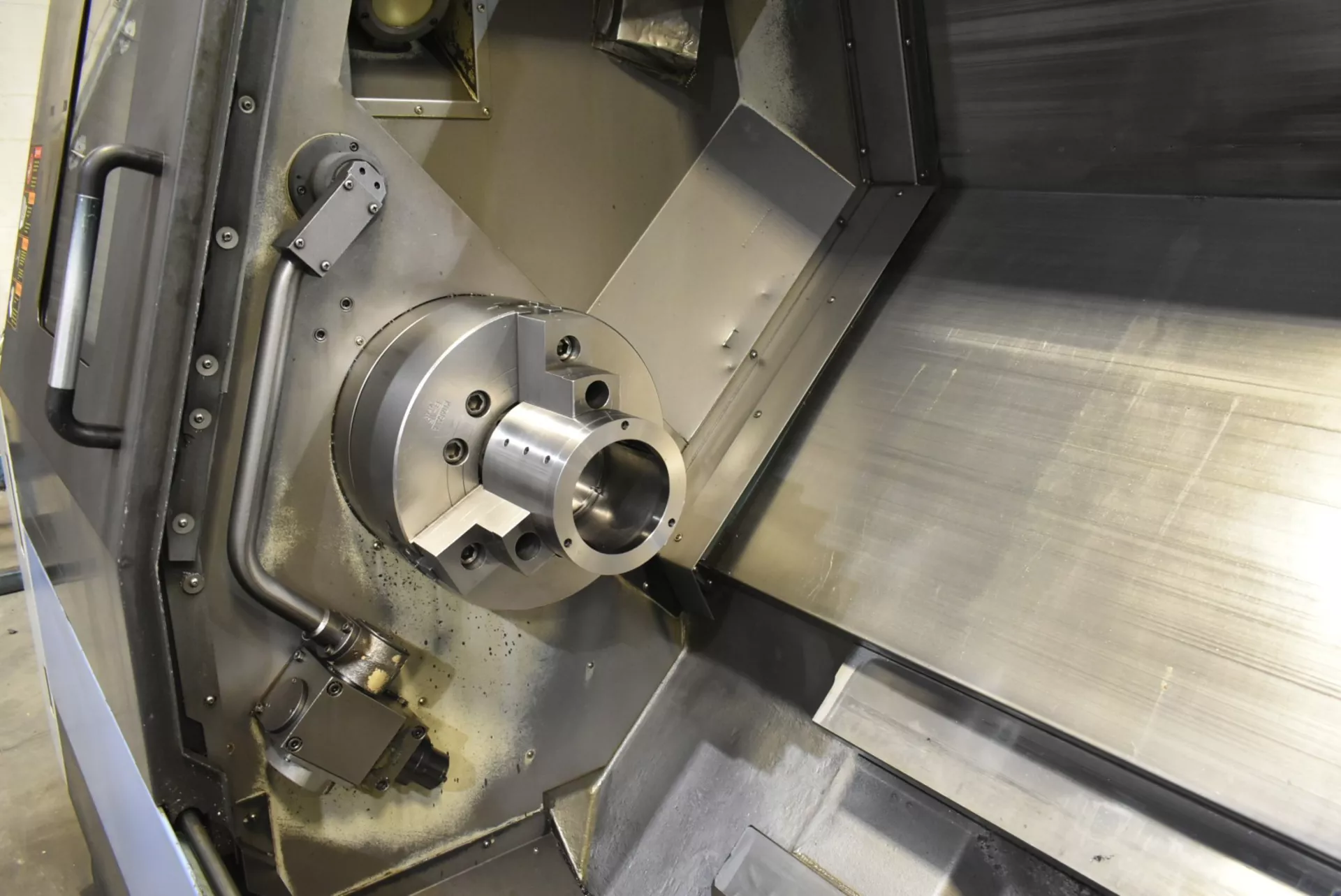

| Kitagawa B15 15″ Hydraulic 3-Jaw Chuck |

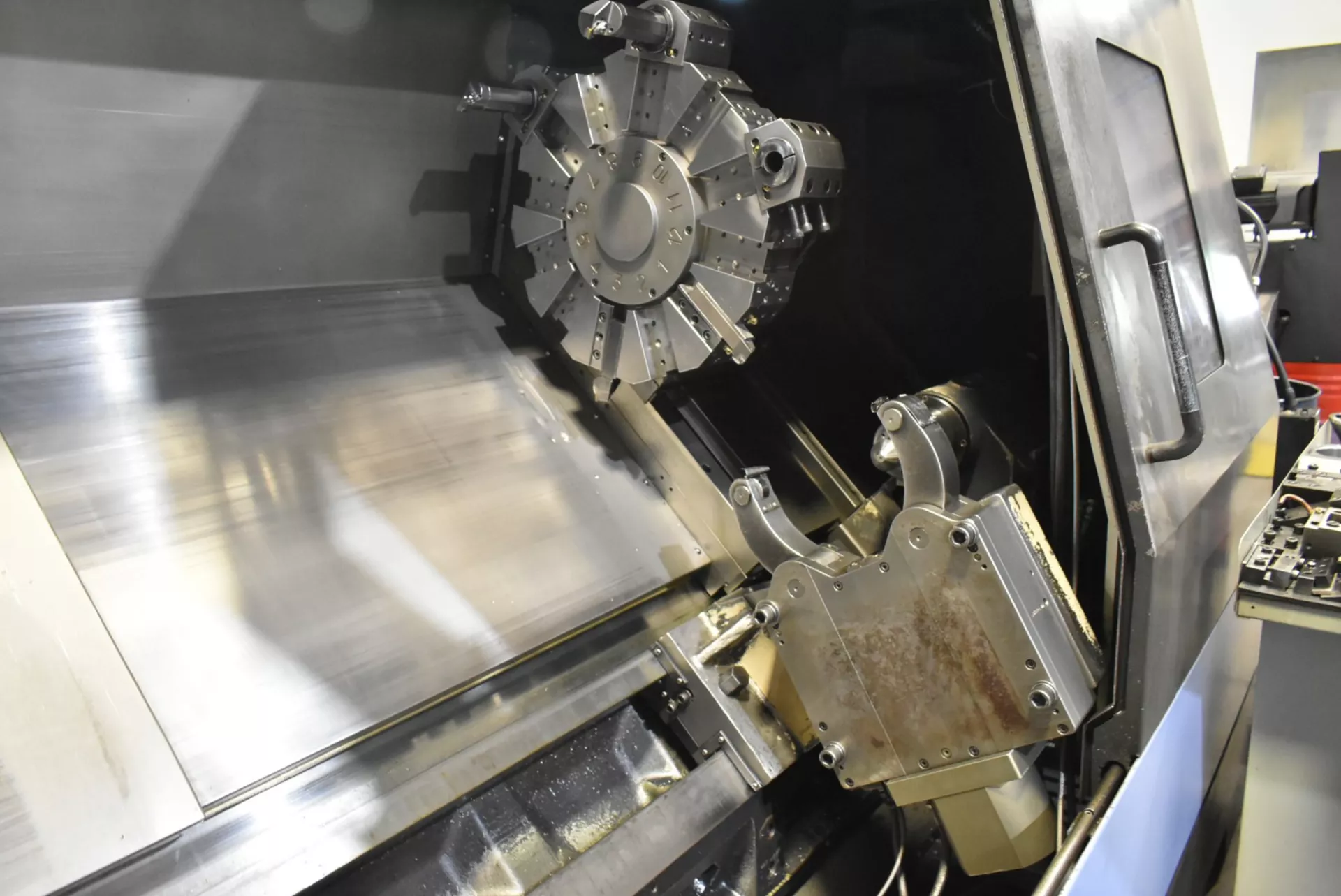

| 10-Station Turret |
| Hydraulic Tailstock |
| Turbo Systems Chip Conveyor |
| Coolant System |
| Rear Splash Guard Enclosure |
| Tooling as Shown |
| Capacity: |
|---|
| Swing Over Bed: 27.55″ |
| Maximum Turning Length: 82.40″ |
| Spindle Bore: 5.19″ |
| Chuck Size: 15″ |
| Travels: |
|---|
| X-Axis Travel: 14.25″ |
| Z-Axis Travel: 84.84″ |
| Feedrate: |
|---|
| Rapid Traverse Rate (X-Axis): 787 IPM |
| Rapid Traverse Rate (Z-Axis): 945 IPM |
| Spindle: |
|---|
| Spindle Speed: 2,000 RPM |
| Spindle Motor: 35 HP |
| Spindle Nose: A2-11 |
| Bar Capacity: 4.50″ |
| Turret: |
|---|
| Number of Stations: 10 |
| Turret Type: Bidirectional Indexing |
| Tailstock: |
|---|
| Tailstock Type: Hydraulic Programmable |
| Quill Diameter: 4.72″ |
| Quill Travel: 5.91″ |
| General: |
|---|
| Air Required: 72 PSI |

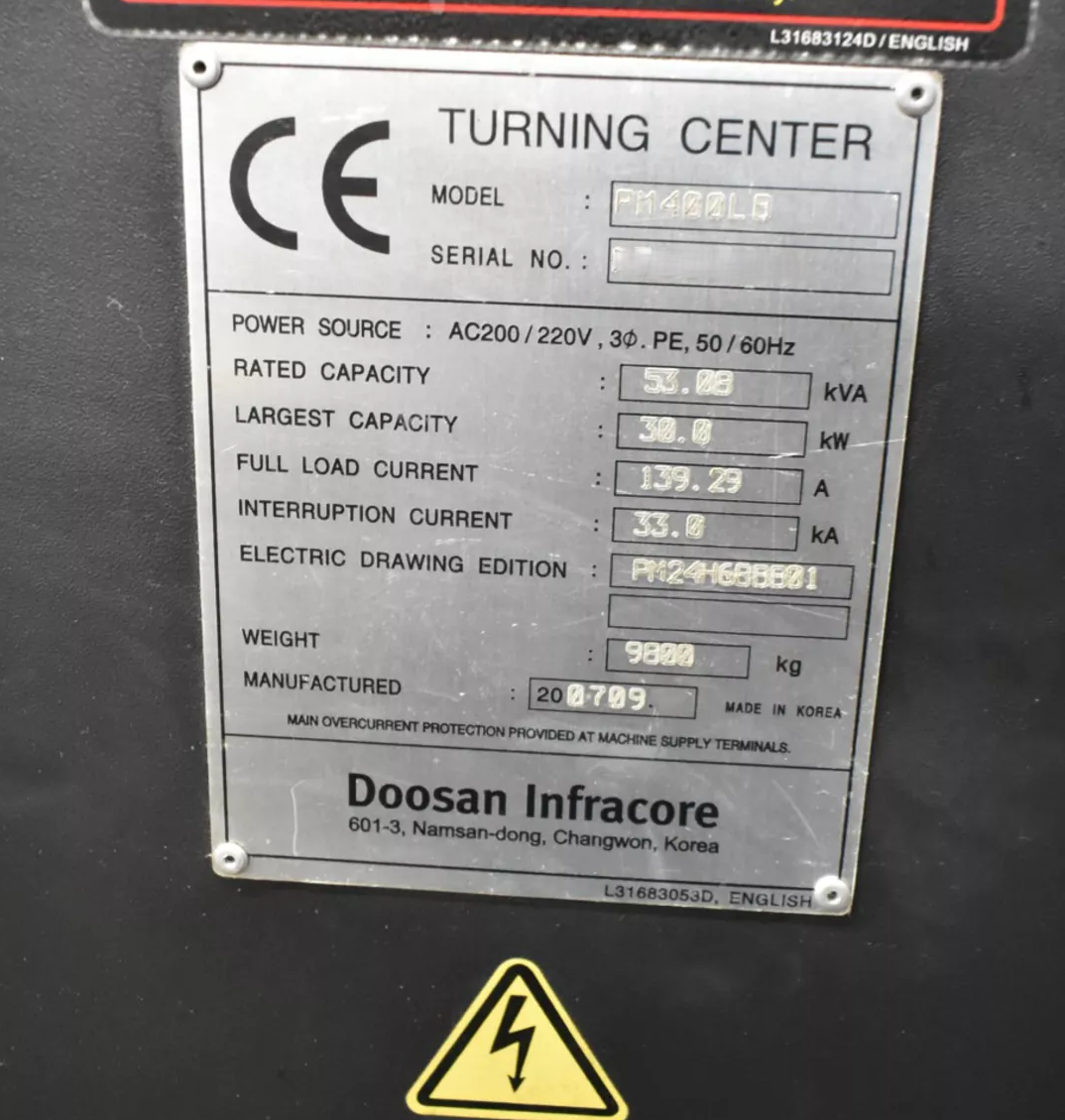

| Power: 220V / 50-60 Hz / 3 Phase / 53.08 KVA |
| Overall Dimensions: 231″ L x 86″ W x 90″ H Approx. |
| Machine Weight: 21,605 Lbs Approx. |
