*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Doosan |
| Model: | PUMA TT1800SY |
| Year: | 2013 |
| Machine Type: | Twin-Spindle, Twin-Turret CNC Turning Center with Y-Axis |
| Country of Origin: | Korea |
| Condition: | Used – Good |
-
Equipped With:

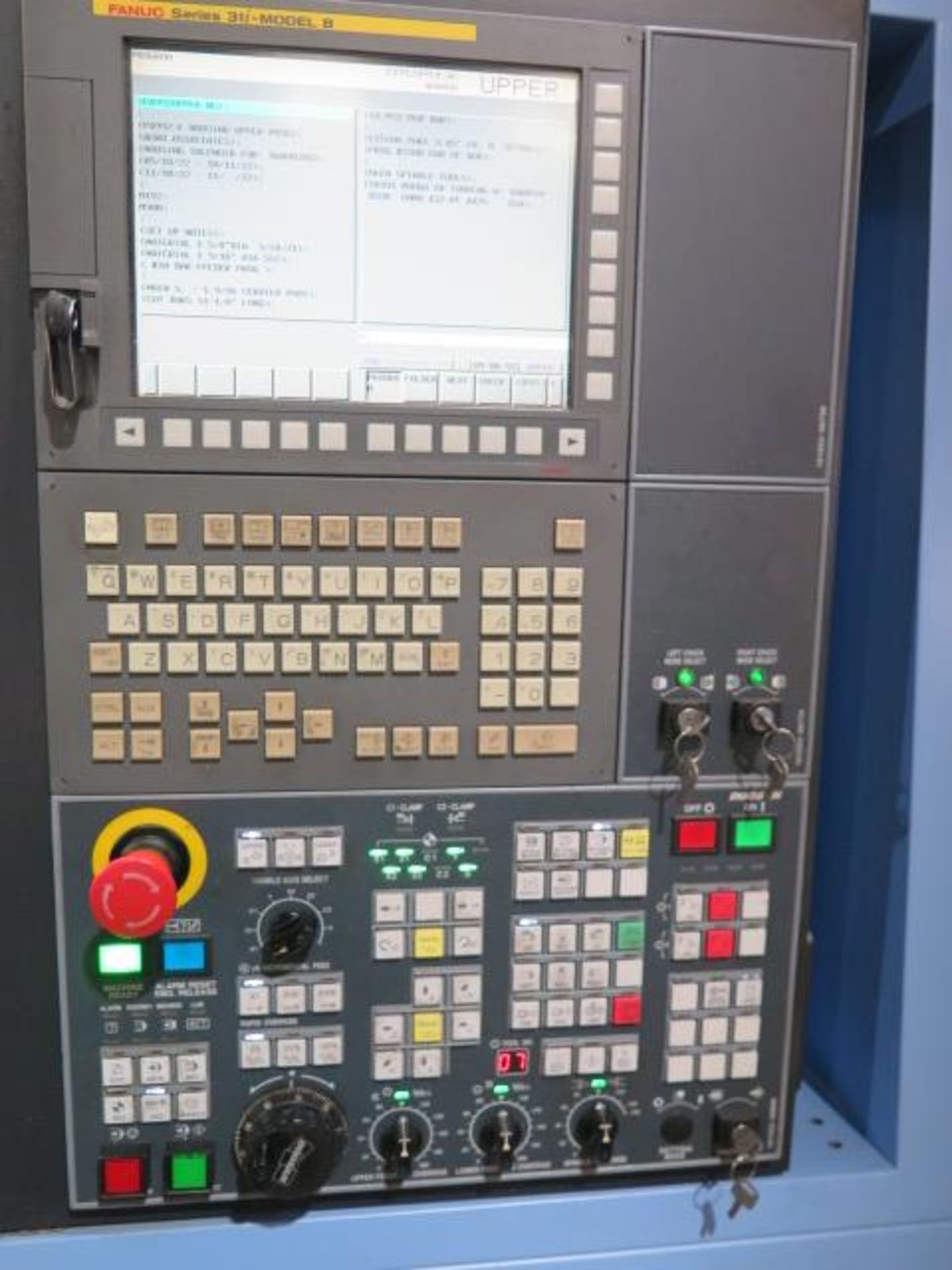

- Doosan FANUC i Plus CNC Control (FANUC 31i Series)
- Twin Opposed Spindles
- Upper & Lower BMT Turrets
- Y-Axis Milling Capability
- C-Axis on Left & Right Spindles
- Live Tooling
- Automatic Part Transfer
- Parts Catcher & Unloader
- Bar Feeder Interface
-
Turning Capacity:
- Swing Over Bed: 9.1″
- Swing Over Saddle: 9.1″
- Recommended Turning Diameter: 8.3″
- Max Turning Diameter (Upper / Lower): 9.1″
- Max Turning Length: 9.1″
- Bar Capacity: 2.6″
-
Axis Configuration & Travels:
- Total Controlled Axes: 8
- X1 Travel: 6.5″
- X2 Travel: 7.5″
- Z1 Travel: 27.6″
- Z2 Travel: 28.3″
- Y-Axis Travel: ±1.97″
- A-Axis (Spindle Distance): 30.3″
-
Rapid Traverse Rates:
- X1 / X2: 787 IPM
- Z1 / Z2: 1,575 IPM
- Y-Axis: 295 IPM
- A-Axis: 1,575 IPM
-
Main & Sub Spindles (Identical):
- Spindle Type: Built-In Motor Spindle
- Chuck Size: 8″ Hydraulic
- Spindle Speed: 5,000 RPM
- Spindle Nose: A2-6
- Spindle Bore: 3.0″
- C-Axis Resolution: 0.001°
- Spindle Power: 25 HP (30-min) / 24.8 HP (Continuous)
- Max Spindle Torque: 153.5 ft-lbs
-
Turrets:
- Upper & Lower BMT 55P Turrets
- 12 Stations per Turret
- 24 Index Positions per Turret
- Total Tool Positions: Up to 48
- Index Time: 0.15 sec
- Max OD Tool Size: 0.79″ × 0.79″
- Max ID Tool Size: 1.3″
-
Live Tooling / Milling:
- Max Live Tool Speed: 5,000 RPM
- Live Tool Power: 7.4 HP (S3 25%) / 1.5 HP (Continuous)
- Live Tool Torque: 34.7 ft-lbs
-
Control & Software:
- Doosan FANUC i Plus CNC Control
- 15″ Color LCD
- EZ-Guide i Conversational Programming
- Dual-Path Machining
- USB / Ethernet / RS-232 Interfaces
- Collision Avoidance & Tool Monitoring
-
Coolant & Chip Management:
- Standard Coolant Pressure: 65 PSI
- Optional High-Pressure Coolant up to 1,015 PSI
- Through-Spindle Coolant (Left & Right)
- Optional Chip Conveyor
- Optional Mist Collector
-
Electrical:
- Power Requirement: 75.21 kVA
- Voltage: 200 / 220V, 3-Phase, 50 / 60 Hz
-
General:
- Overall Dimensions (Approx.): 158.2″ L × 85.1″ W × 82.1″ H
- Machine Weight (Approx.): 19,400 lbs
