*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
EMAG |
| Model No.: |
VL3 DUO |
| Year of Manufacture: |
2018 |
| Condition: |
Used – Good |
| Machine Type: |

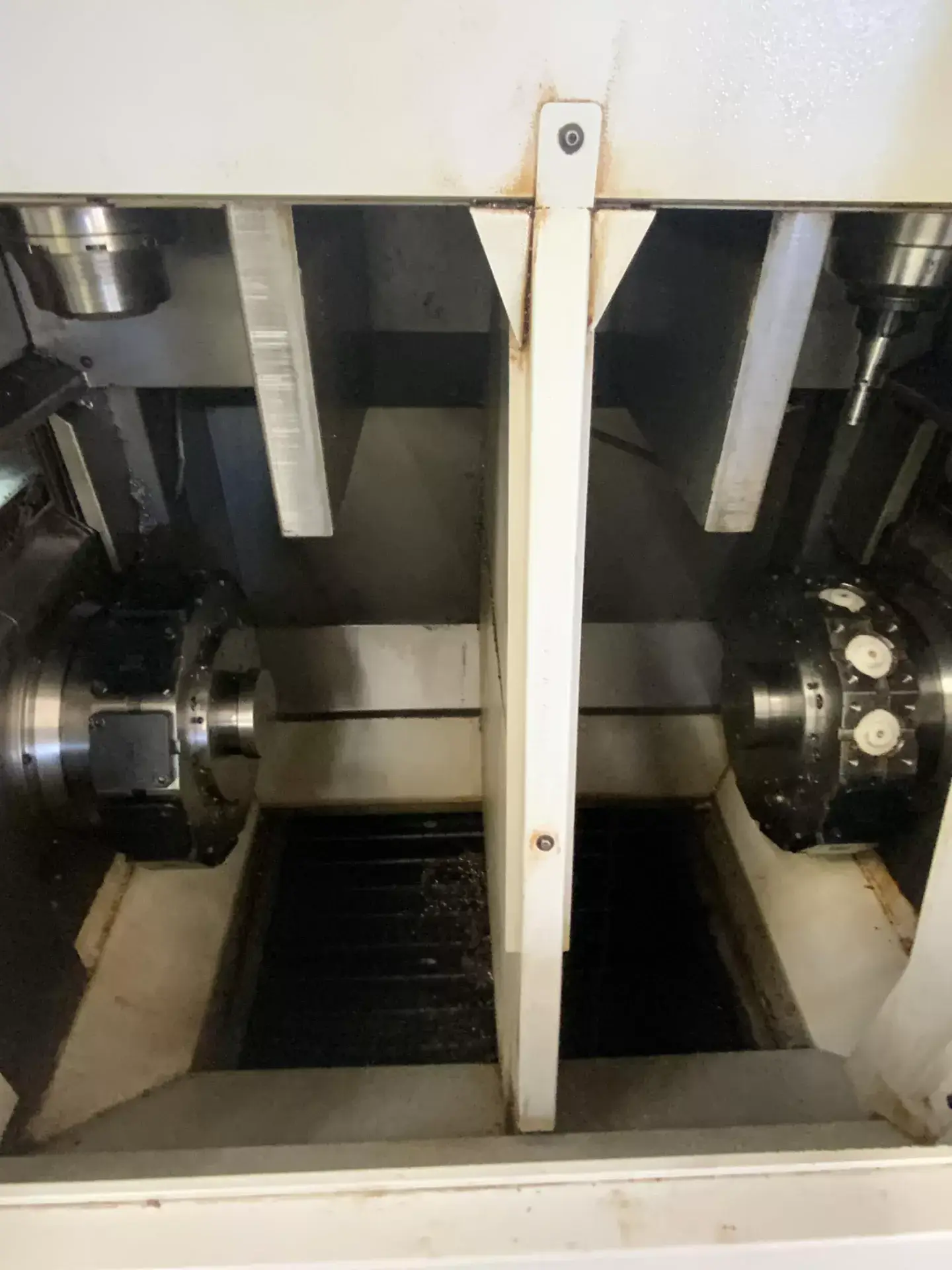

CNC Twin Spindle Vertical Turret Lathe |
| CNC Control: |
Siemens / EMAG Control |
| Country of Origin: |
Germany |
| Equipped With: |
| Twin Vertical Spindles (Left & Right) |
| Dual Turret Configuration |
| Integrated Pick-Up Automation System |
| Part Handling Conveyor System |
| Automatic Loading & Unloading |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
| Max Turning Diameter: Approx. 160 mm (6.3″) |
| Max Turning Length: Approx. 150 mm (5.9″) |
| Spindle: |
| Number of Spindles: 2 |
| Max Spindle Speed: Approx. 6,000 RPM |
| Tooling: |
| Dual Turrets with Multiple Tool Stations |
| Live Tooling Capability: Optional |
| General: |
| Power: 480V, 3-Phase |
| Overall Dimensions: Approx. 160″ x 100″ x 110″ High |
| Weight: Approx. 22,000 lbs |
