*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

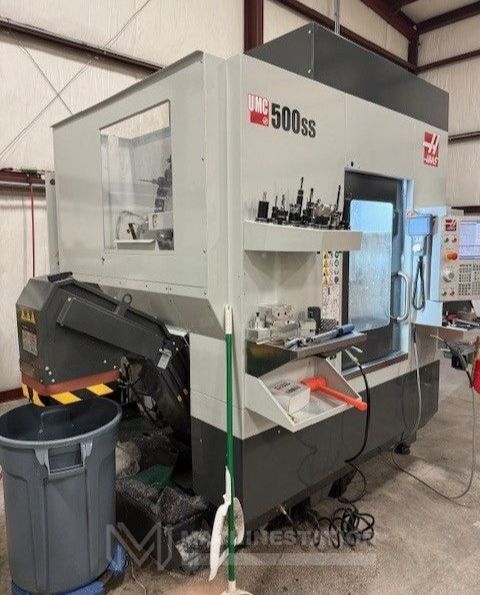

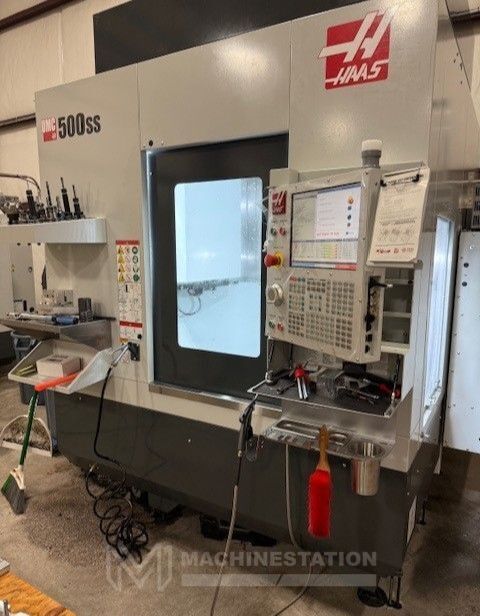

| Make: | Haas |
| Model: | UMC-500SS |
| Year: | 2023 |
| Features: |
|---|

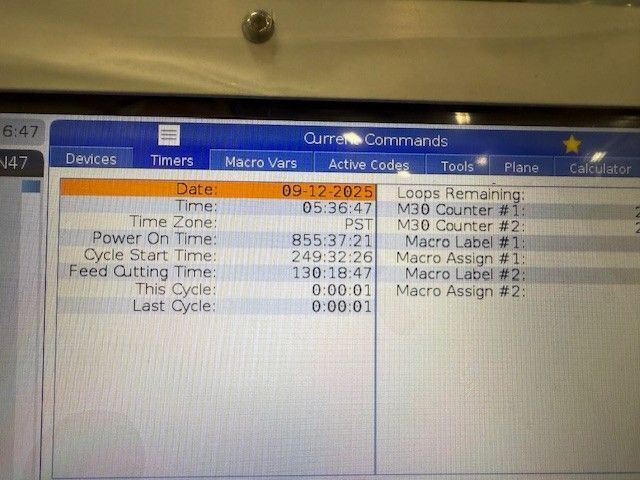

| Haas CNC Control |

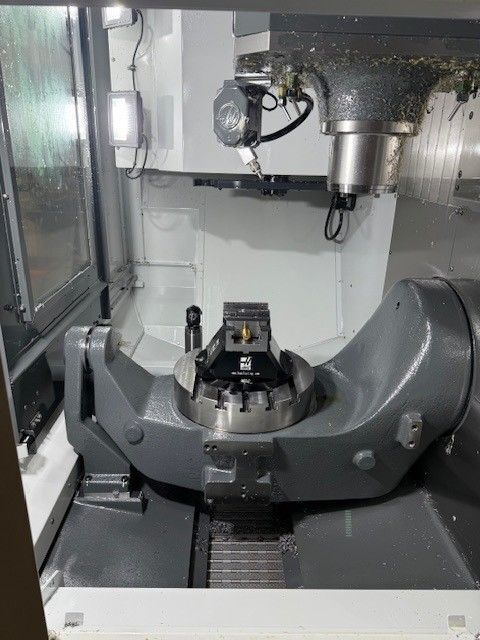

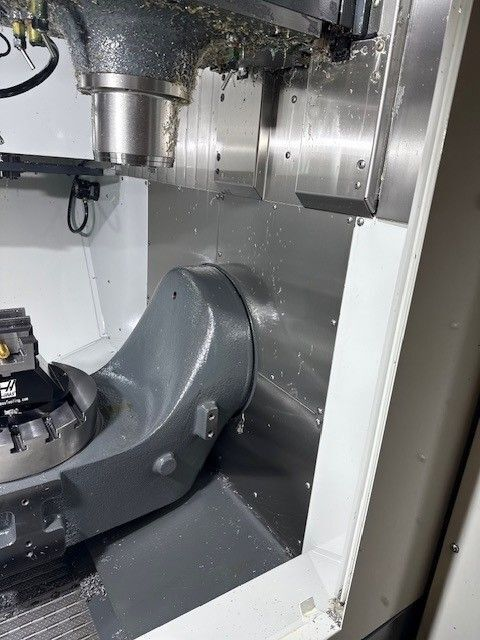

| Haas Trunnion Table |
| 12,000 RPM High Speed Spindle |
| 30 Station Super Speed Automatic Tool Changer |
| High Speed Machining |
| Through Spindle Coolant – 300 psi (Upgraded $7,495 value Included) |
| Renishaw Probing System (Probe Needed) |
| Tool Presetter |
| 30 HP High Torque Spindle |
| Wireless Networking |
| Large Remote Jog Handle |
| Spindle Orientation |
| Rigid Tapping |
| Programmable Coolant Nozzle (Upgraded $2,595 value Included) |
| Coolant System |
| Telescopic Way Covers |
| Belt-Type Chip Conveyor (Upgraded $8,395 value Included) |
| Travels: |
|---|
| X-Axis: 24″ |
| Y Axis: 16″ |
| Z Axis: 16″ |
| B-Axis (Table Tilt): + 120° – 35° |
| C Axis: 360° ( Table Rotate ) |
| Rapid Traverse Rates: 1200 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 20″ |

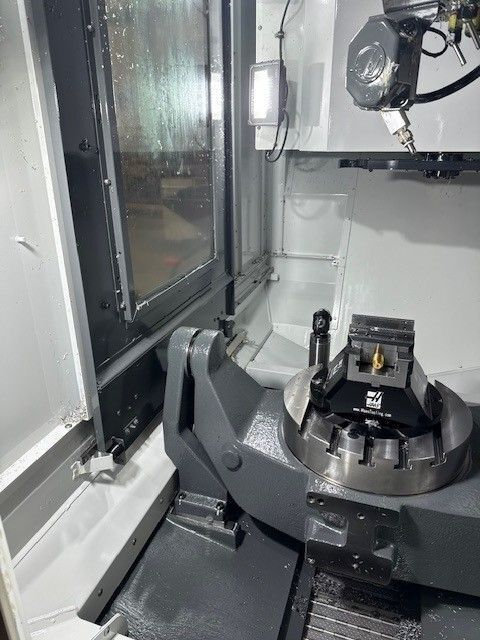

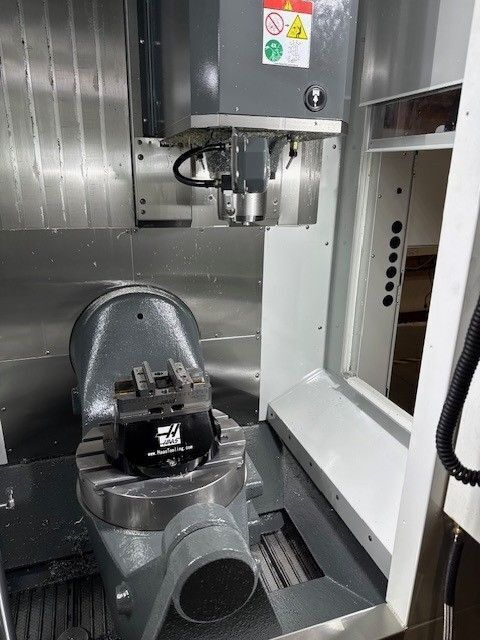

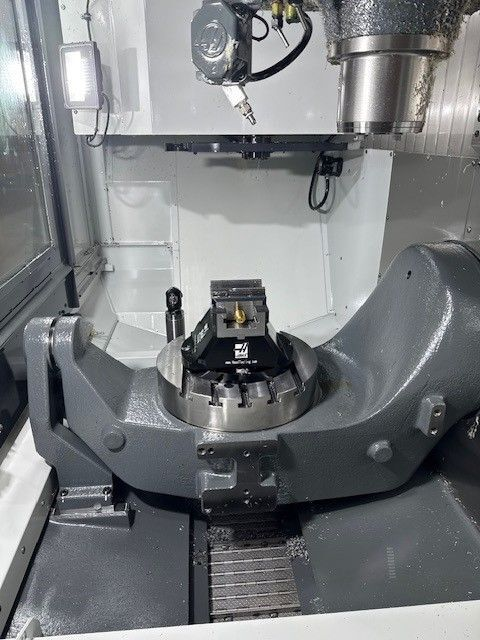

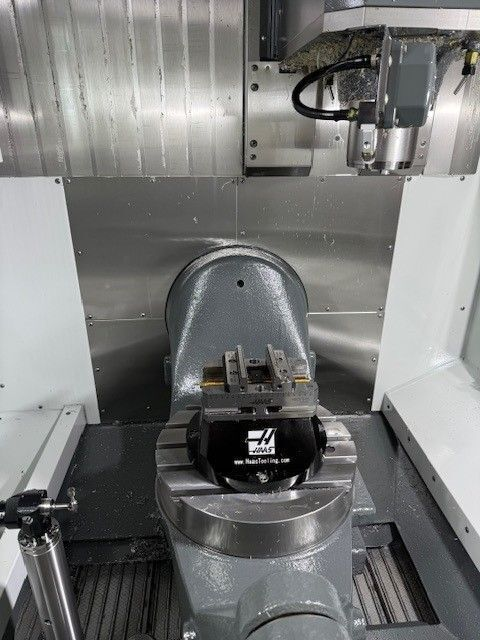

| Trunnion Table: |
|---|
| Platter Diameter: 15.70″ |
| Max Weight on Platter: 500 lbs |
| T-Slot Width: 0.625″ to 0.630″ |
| Number of Std T-Slots: 5 |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Vector Drive Max Torque: 90ft-lb @ 2000 RPM |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (adjacent empty): 5″ |
| Max Tool Length: 12″ |
| Tool-to-Tool Changing Time: 1.8 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 128″ x 101″ x 120″ High |
| Weight: 13,320 lbs. |
