*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Ex-Cell-O |
| Model: | 602 |
| Machine Type: | Ram Turret Milling Machine |
| Equipped With: |
|---|

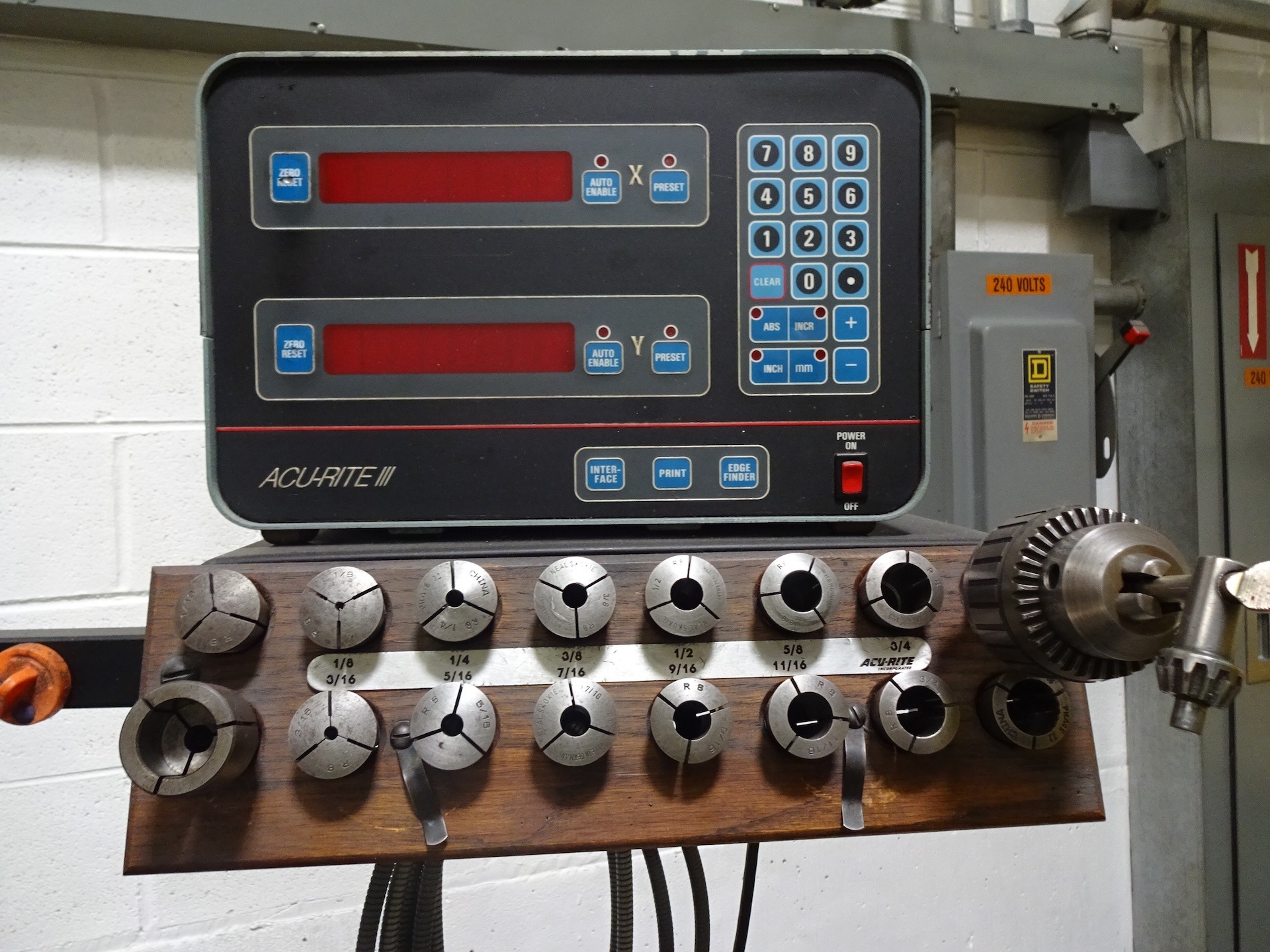

| Acu-Rite III Digital Readout |
| Power Table Feed |
| Variable-Speed Milling Head |
| R-8 Spindle |
| Work Light |
| Manual Quill Feed |
| Quill Power Feed |
| Table: |
|---|
| Table Size: 9″ × 42″ |
| T-Slot Table: Yes |
| T-Slot Size: 0.69″ |
| T-Slot Center Distance: 2-3/8″ |
| Table Cross Travel: 16″ |
| Table Vertical Travel: 16″ |
| Spindle: |
|---|
| Spindle Taper: R-8 |
| Spindle Speed: 85–4,000 RPM |
| Spindle Motor: 2 HP |
| Motor Speed: 1,800 RPM |
| Quill Stroke: 6″ |
| Quill Diameter: 3-9/16″ |
| Head / Ram: |
|---|
| Head Swivel: 45° Forward / 45° Backward |
| Head Rotation: 90° |
| Turret Rotation: 360° |
| Ram Travel: 16″ |
| Power Table Feed: |
|---|
| Power Feed Motor: Approx. 1/4 HP |
| Power Feed: Approx. 1–9.75 IPM |
| General: |
|---|
| Machine Weight (Approx.): 2,700 lbs. |
| Machine Dimensions (Approx.): 70″ L × 65″ W × 80″ H |
