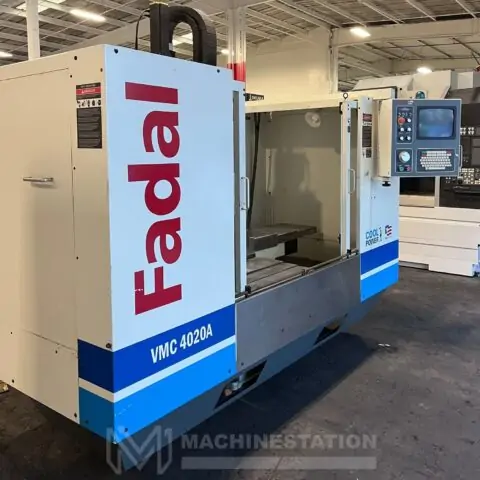

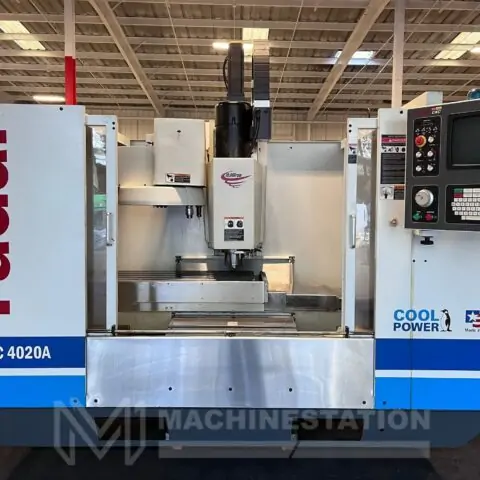

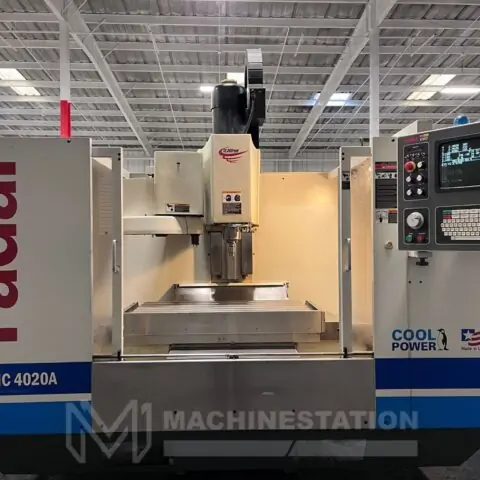

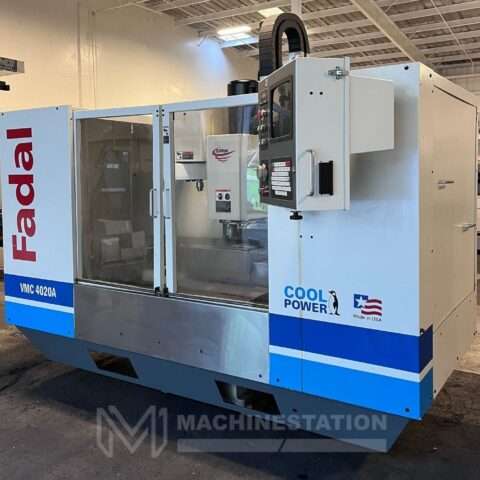

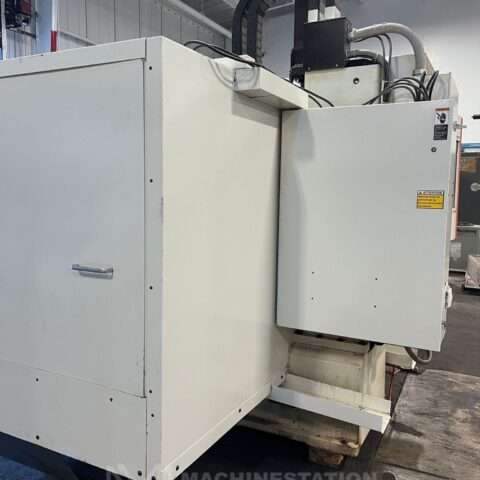

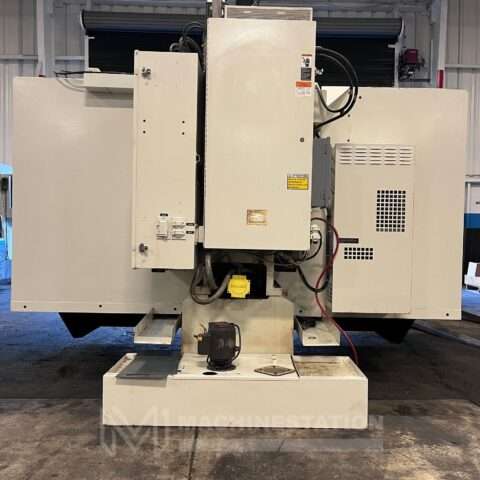

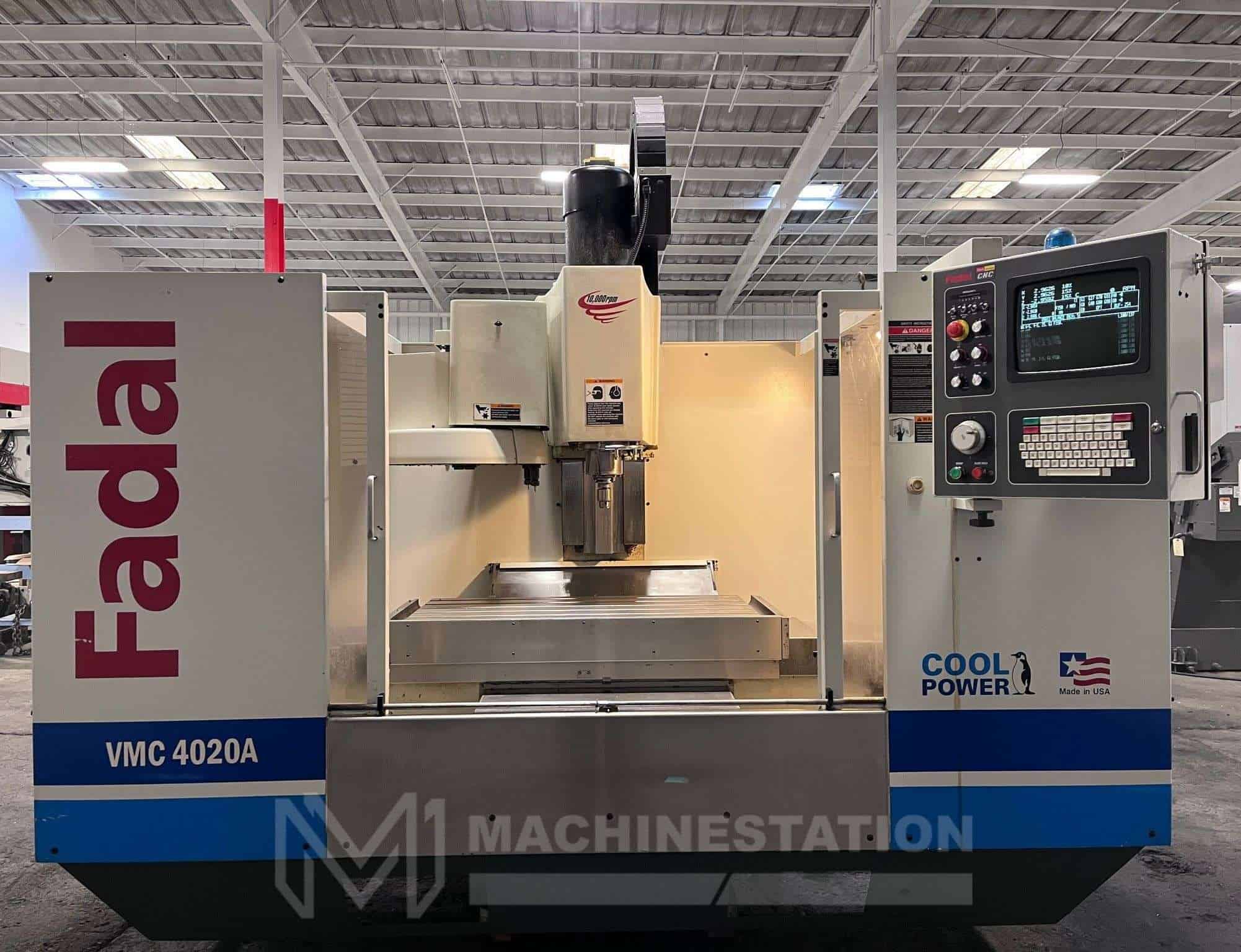

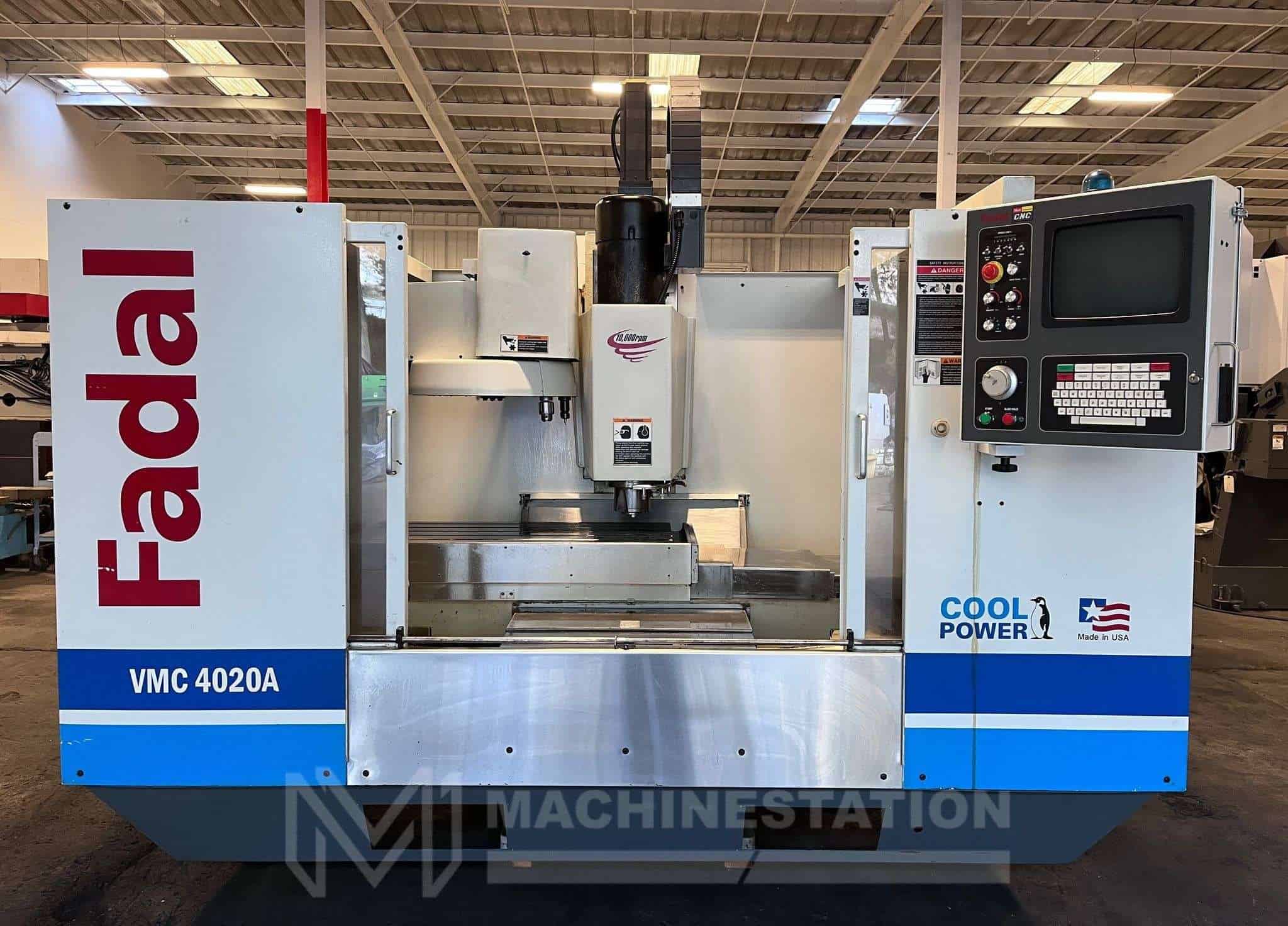

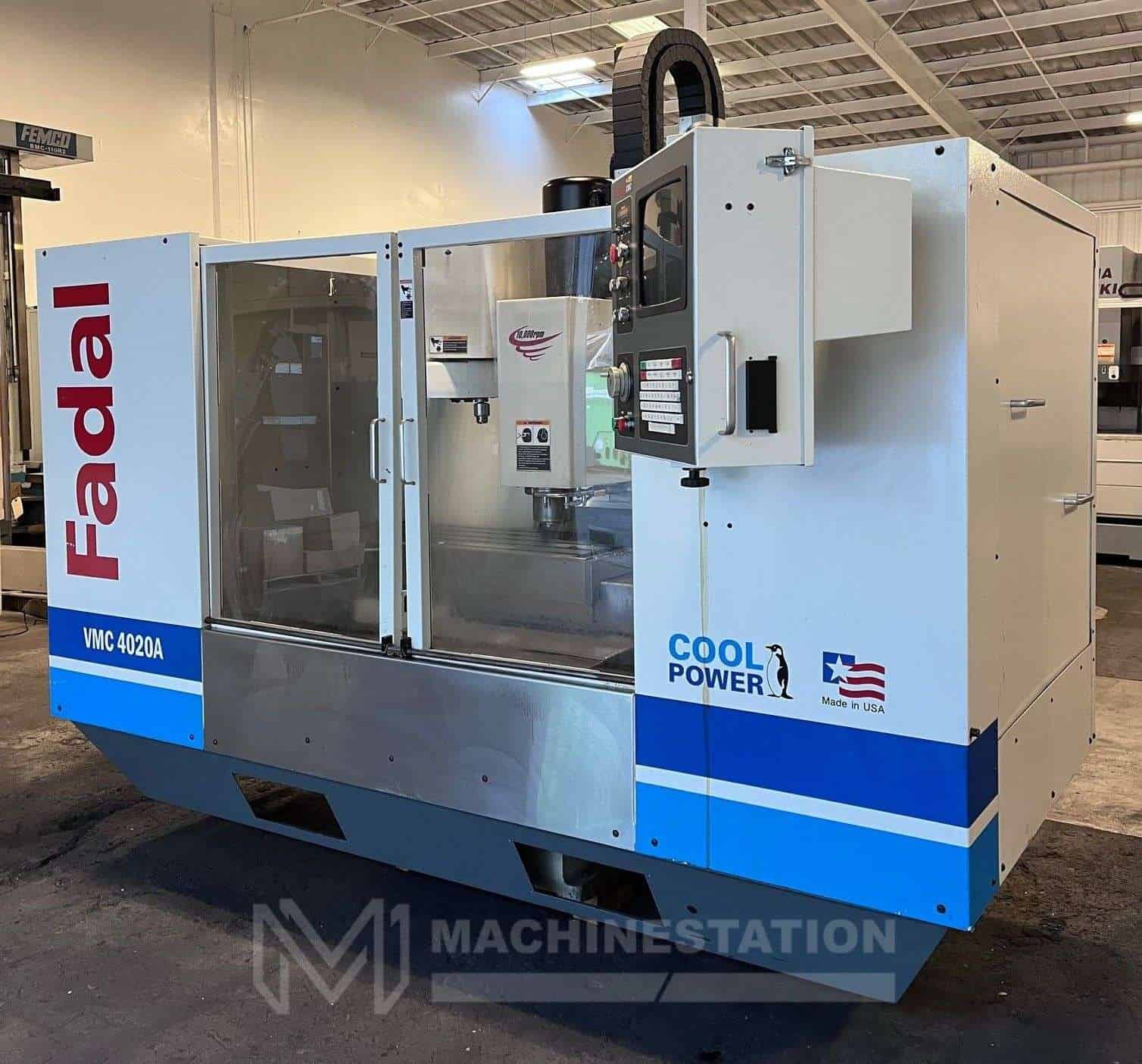

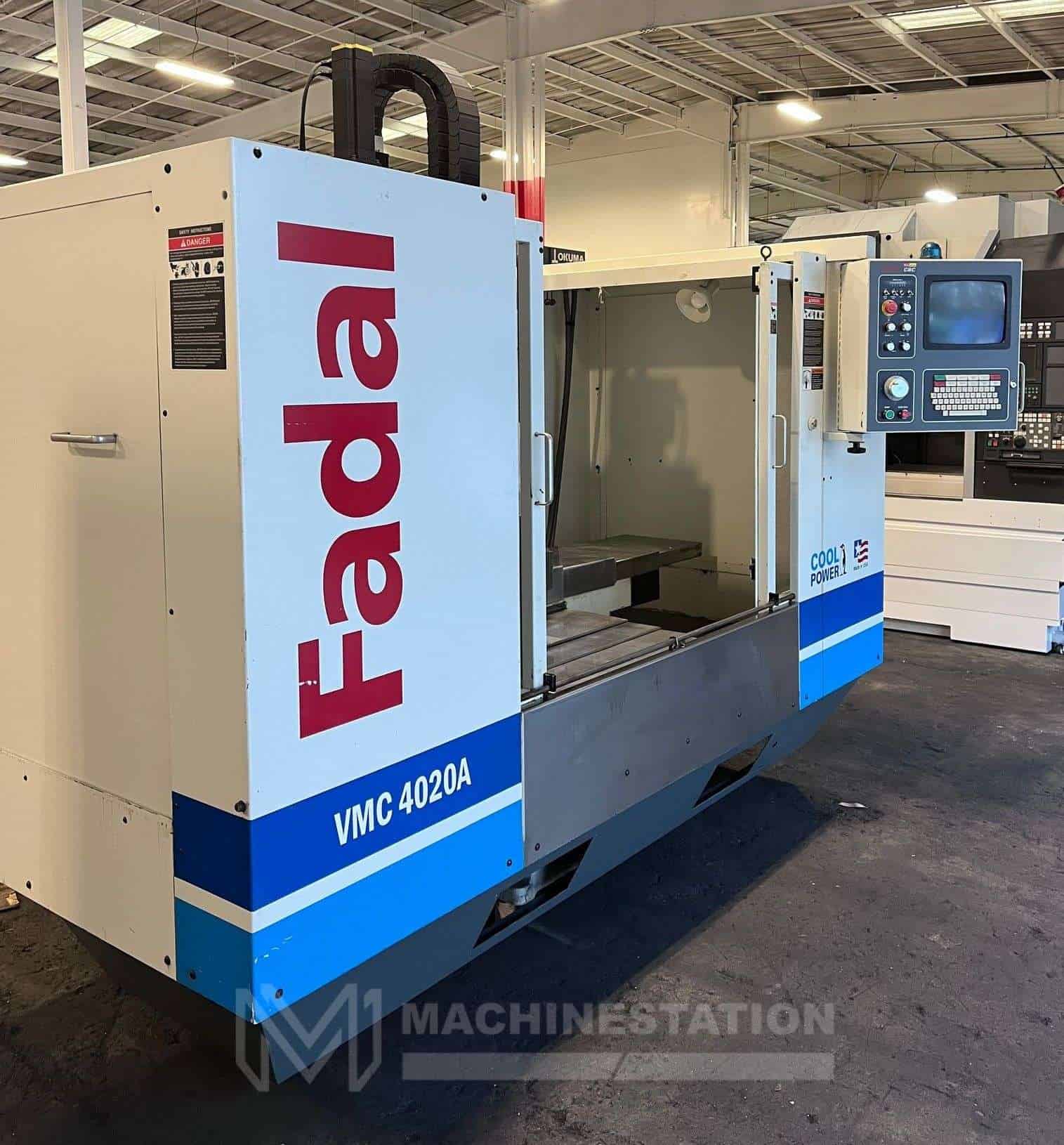

Fadal 4020A HT CNC Vertical Machining Center – 4th Axis Ready

SKU 112671
Make FADAL
Model 4020A HT
Year 2003
Video On Request
Out of stock
SKU: 112671
Make: FADAL
Model: 4020A HT
Year: 2003
Video: On Request
SKU: 112671

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Fadal
Model: 4020A HT
Year: 2003
Condition: Used – Good
Features:

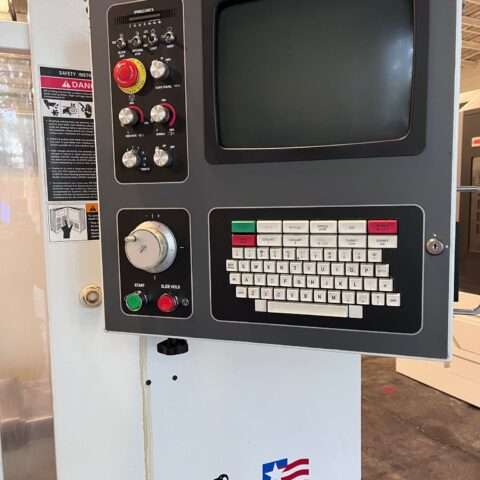

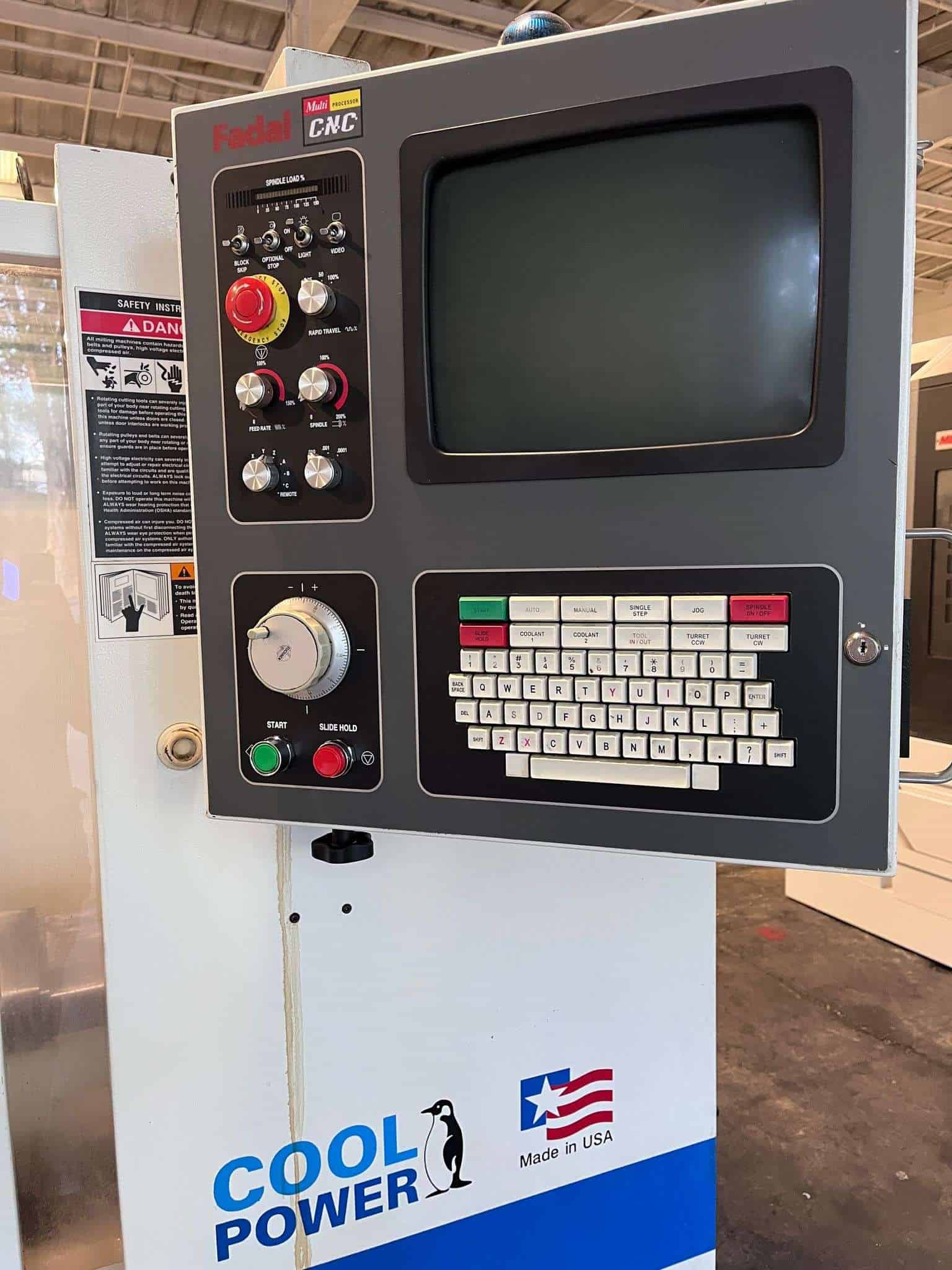

Fadal CNC Control
4th Axis Drive
10,000 RPM High-Speed Spindle
20 Station Umbrella Type Tool Changer
20 HP High Torque Spindle
Floppy Drive
Rigid Tapping
Programmable Coolant
Telescopic Way Covers
Coolant System
Travel:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 20″
Rapid Traverse Rates: 900 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″
Table:
Length: 48″
Width: 20″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 3000 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 10,000 RPM
Spindle Power: 20 HP
Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Weight: 15 lbs
Max Tool Dia: 6″
Max Tool Length: 15″
Tool Changing Time: 4.2 Seconds
General:
Air Required: 100 psi 4 scfm

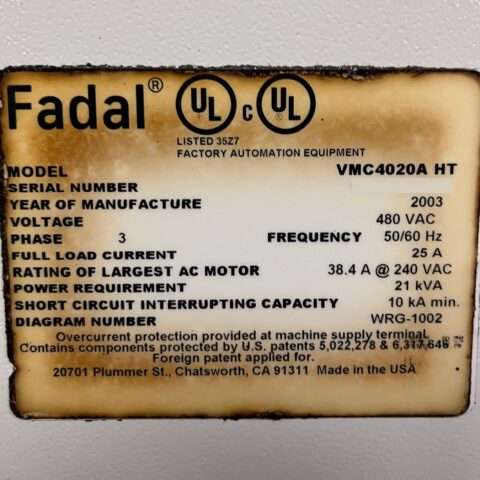

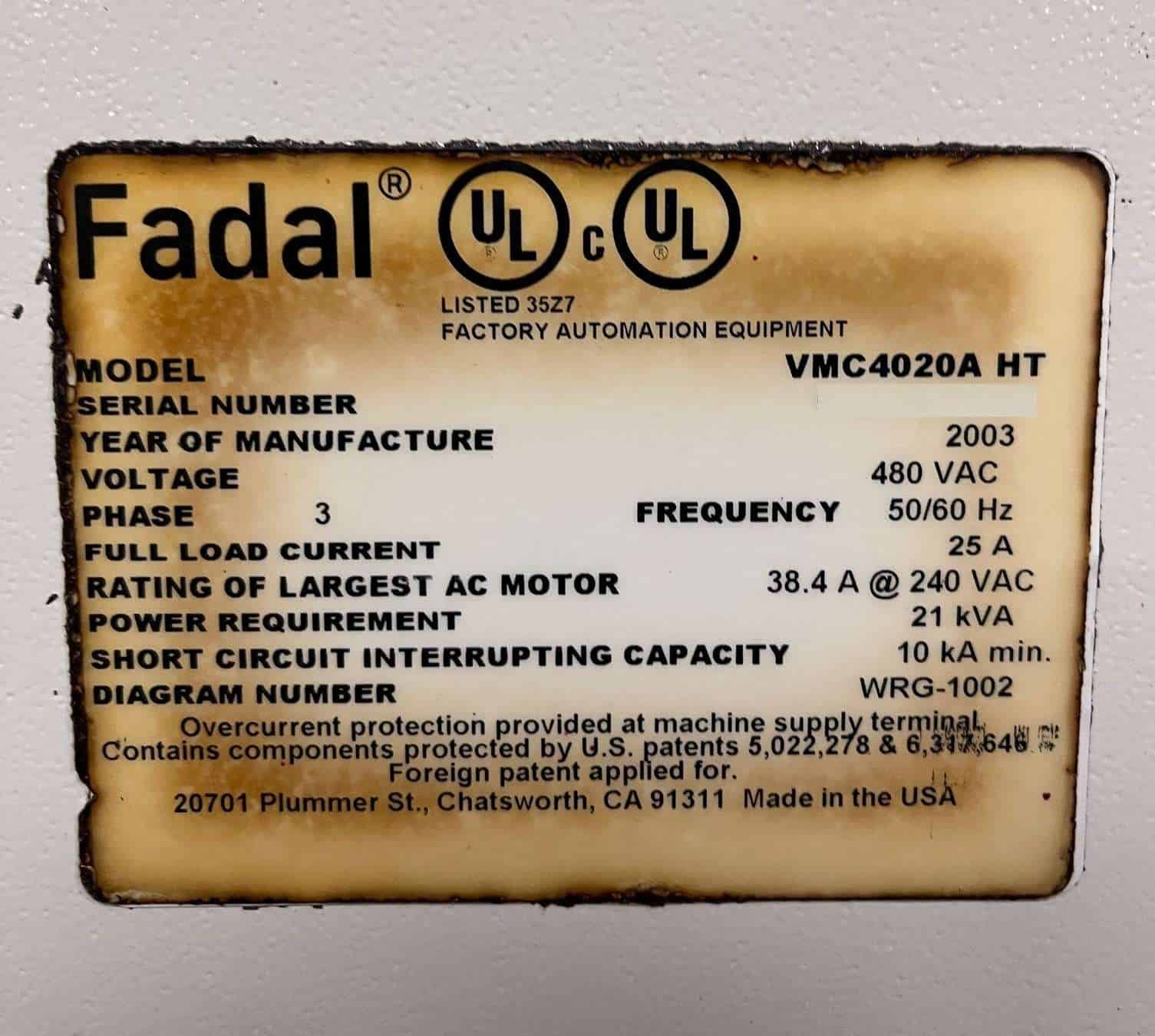

Power: 480v / 21 kva / 3-Phase
Overall Dimensions: 122″ x 100″ x 100″ High
Weight: 12,000 lbs Approx.
Notes:
Machine fully inspected by a certified Fadal technician
Machine was rebuilt in 2016, it holds accuracy tolerance
Ran only 2000 hours after rebuilt.
Travel:
X-Axis: 1,016 mm
Y-Axis: 508 mm
Z-Axis: 508 mm
Rapid Traverse Rates: 900 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 102 mm – 610 mm
Table:
Length: 1,219 mm
Width: 508 mm
Number of Std T-Slots: 5
T-Slot Width: 5/203 mm
Max Weight on Table: 3000 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 10,000 RPM
Spindle Power: 20 HP
Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Weight: 15 lbs
Max Tool Dia: 152 mm
Max Tool Length: 381 mm
Tool Changing Time: 4.2 Seconds
General:
Air Required: 100 psi 4 scfm
Power: 480v / 21 kva / 3-Phase
Overall Dimensions: 3,099 mm x 2,540 mm x 2,540 mm High
Weight: 12,000 lbs Approx.
Notes:
Machine fully inspected by a certified Fadal technician
Machine was rebuilt in 2016, it holds accuracy tolerance
Ran only 2000 hours after rebuilt.
MakeFadal
Model4020A HT
CategoriesCNC Vertical Machining Centers
  • Fadal CNC Control
  • 4th Axis Drive
  • 10,000 RPM High-Speed Spindle
  • 20 Station Umbrella Type Tool Changer
  • 20 HP High Torque Spindle
  • Floppy Drive
  • Rigid Tapping
  • Programmable Coolant
  • Telescopic Way Covers
  • Coolant System
