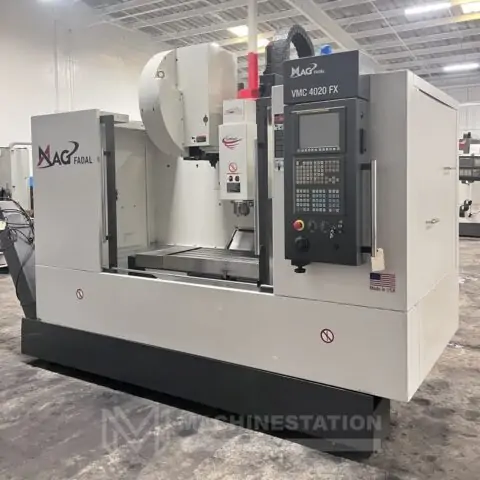

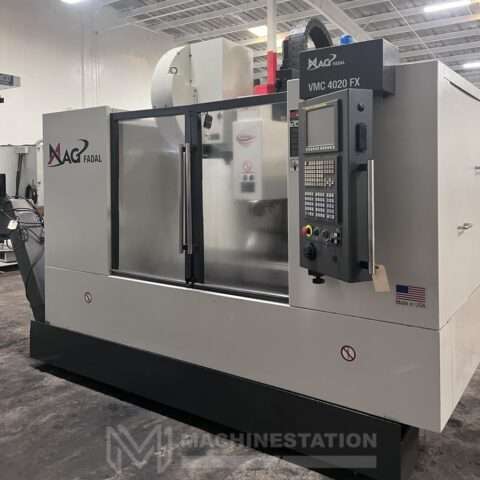

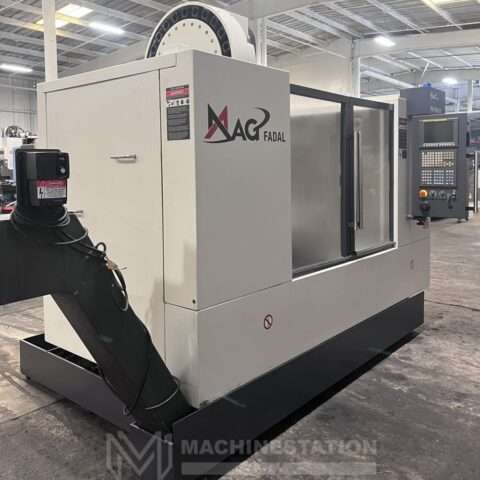

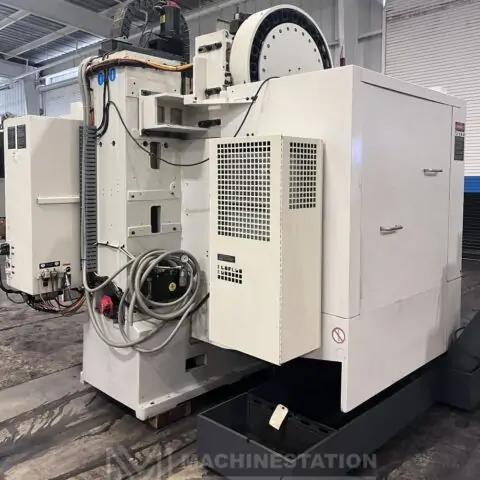

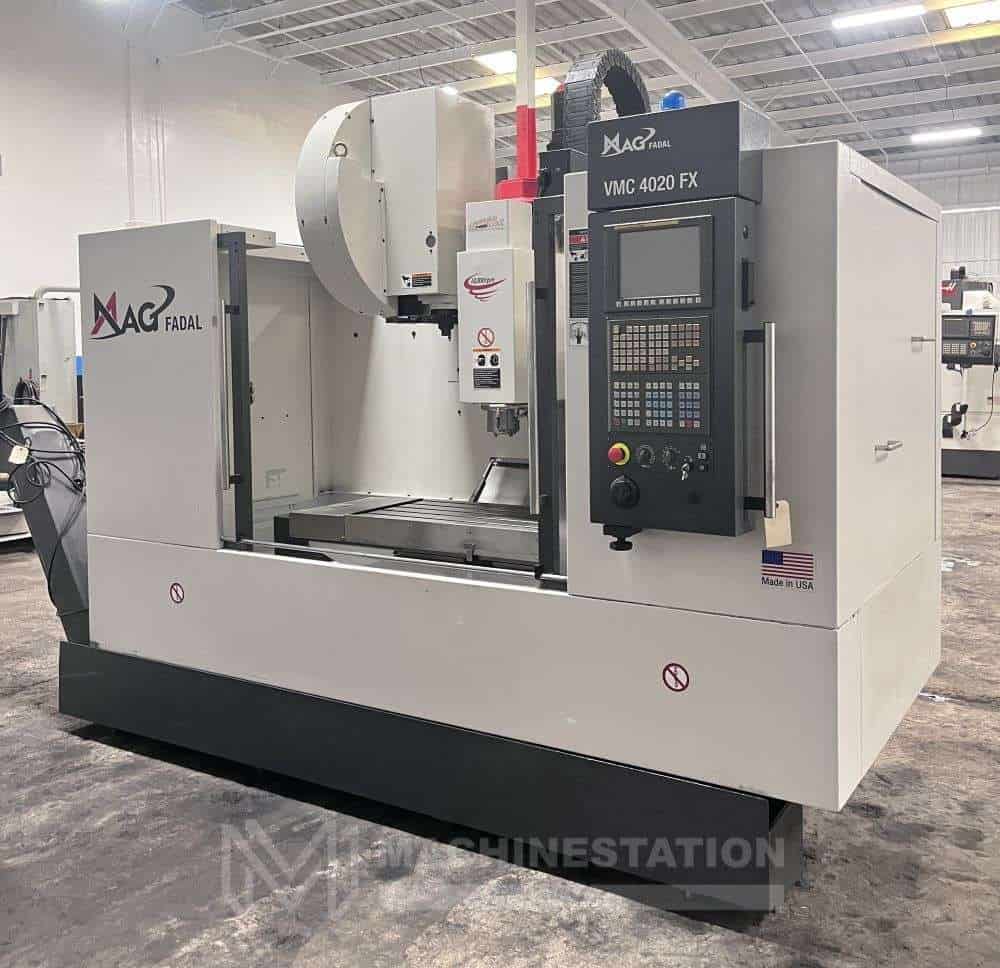

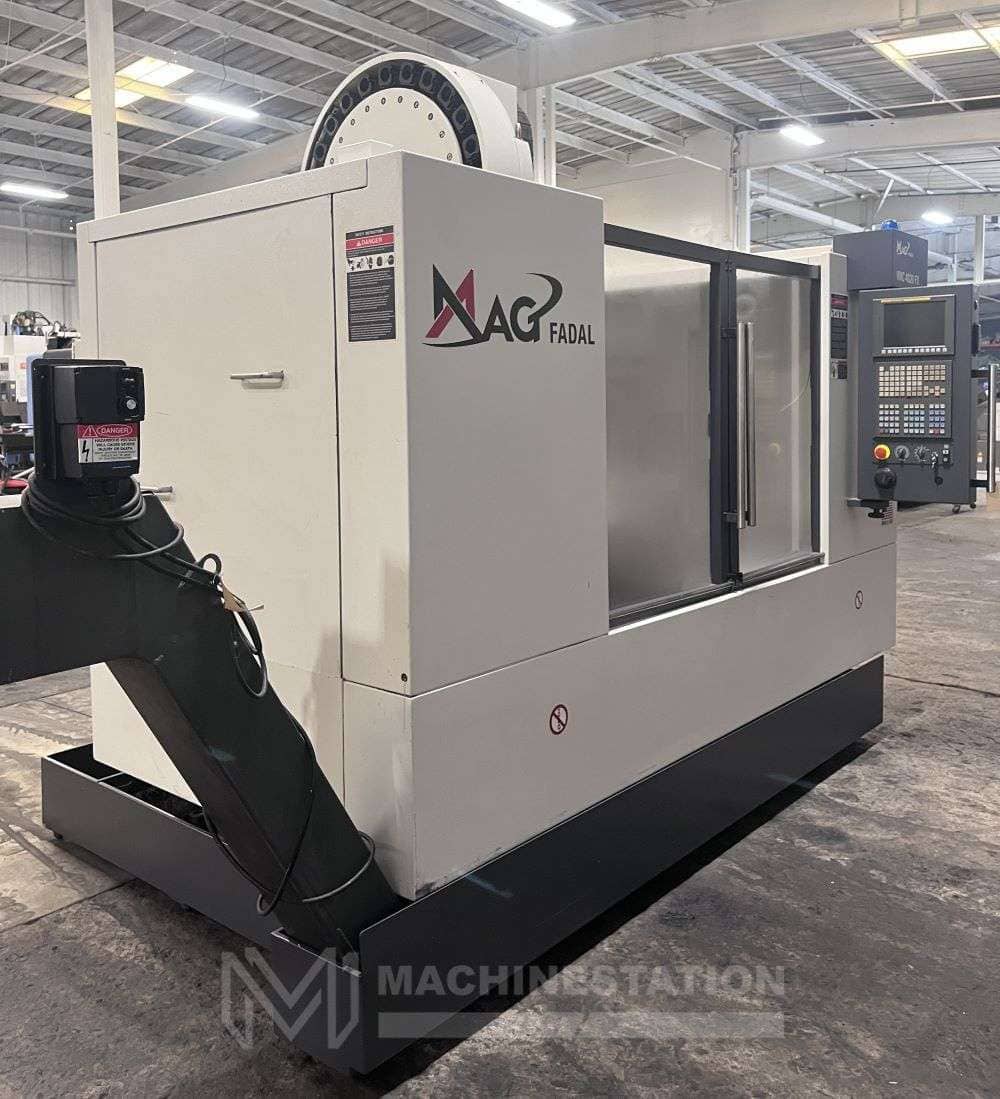

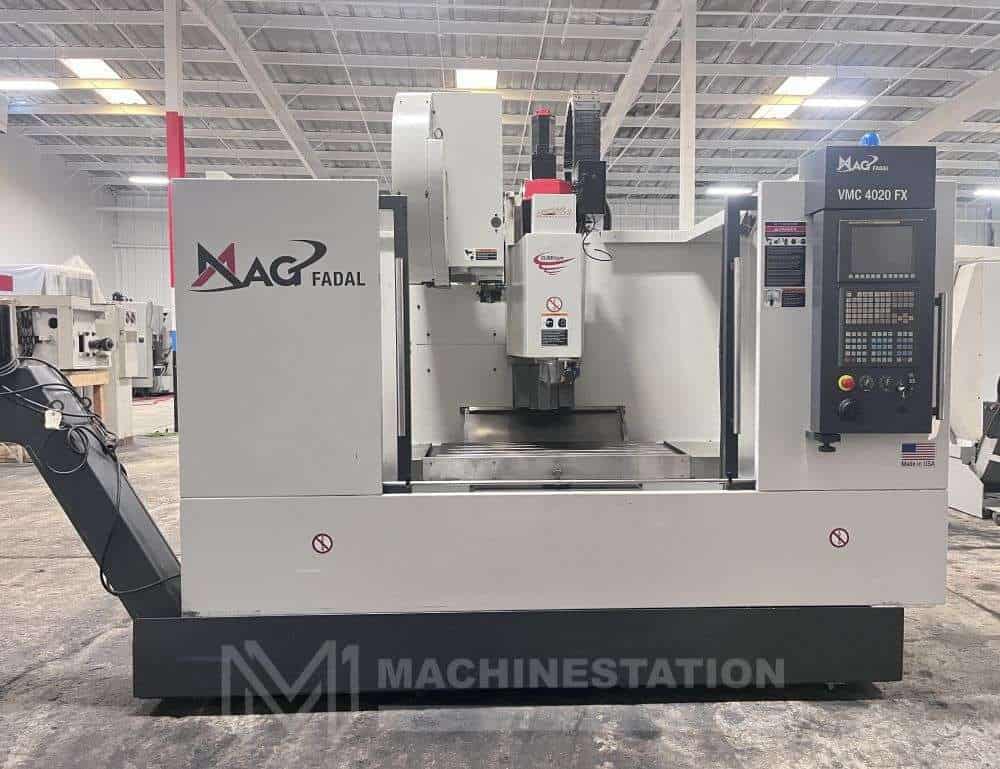

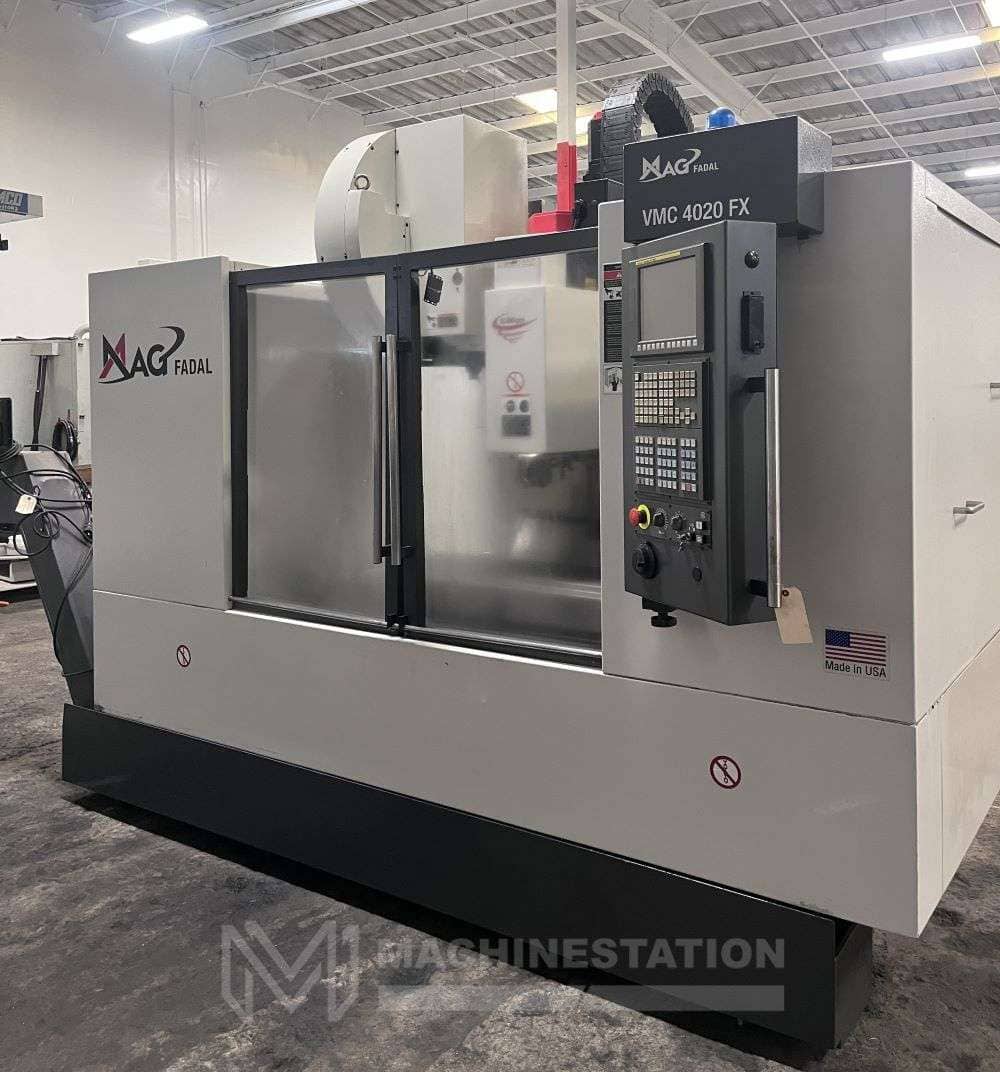

Fadal 4020FX CNC Vertical Machining Center
Location
Lake Elsinore, CA
SKU
112591
Make/Model
FADAL 4020FX
Cutting Time
5,451 Hours
Video
No Video
Out of stock
| Location: | Lake Elsinore, CA |
| SKU: | 112591 |
| Make/Model: | FADAL 4020FX |
| Cutting Time: | 5,451 Hours |
| Video: | No Video |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2591 |
| Make: | Fadal |
| Model: | 4020FX |
| Year: | 2009 |
| Condition: | Used – Good |
| Features: |
|---|
| Box Way construction |

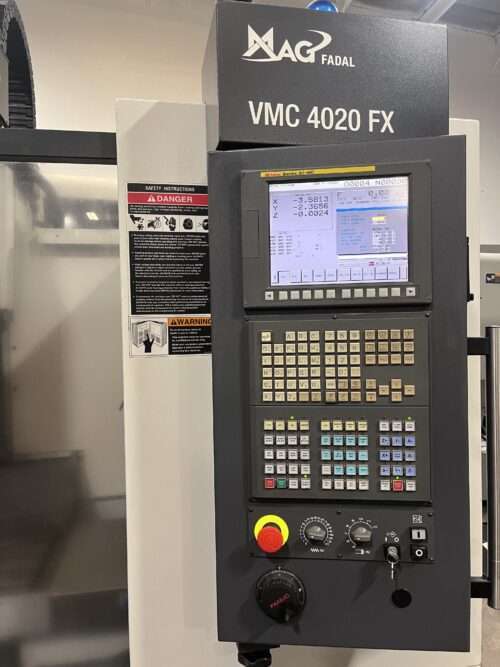

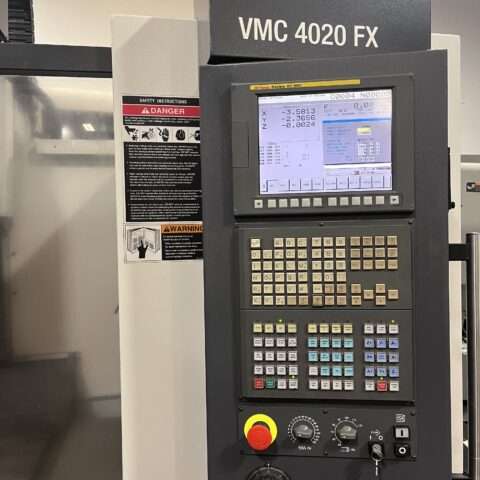

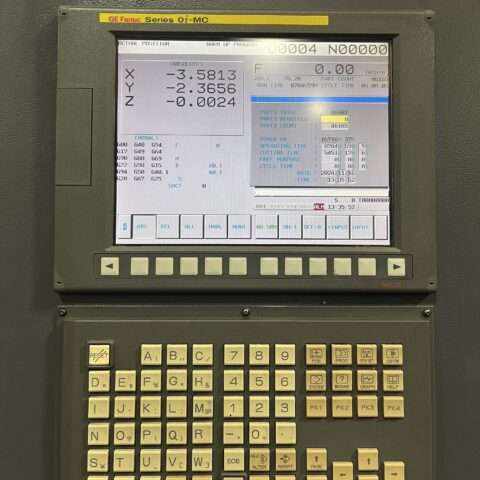

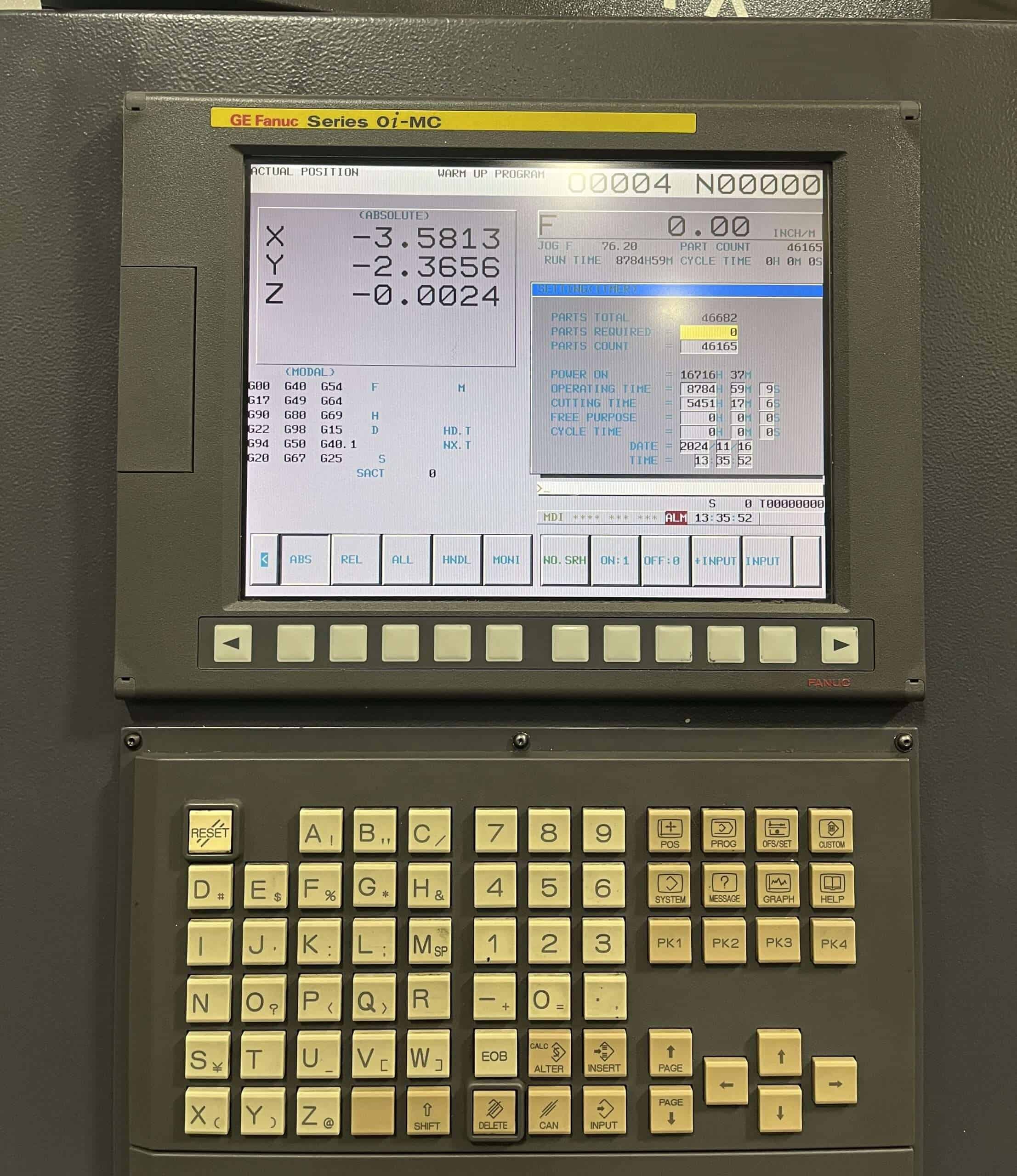

| Fanuc Oi-MC series CNC Control |

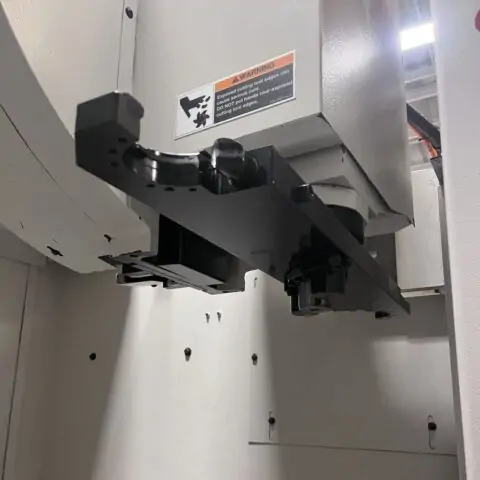

| 24 Station Automatic tool changer |

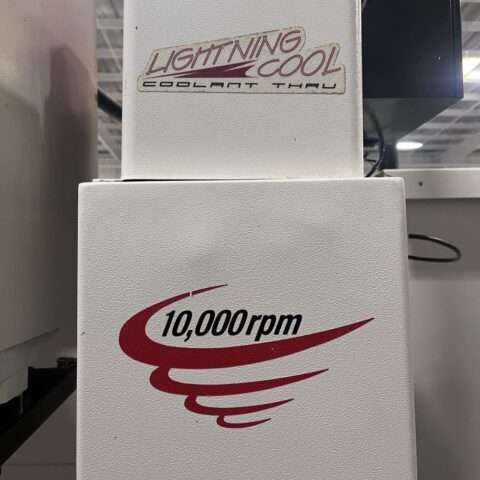

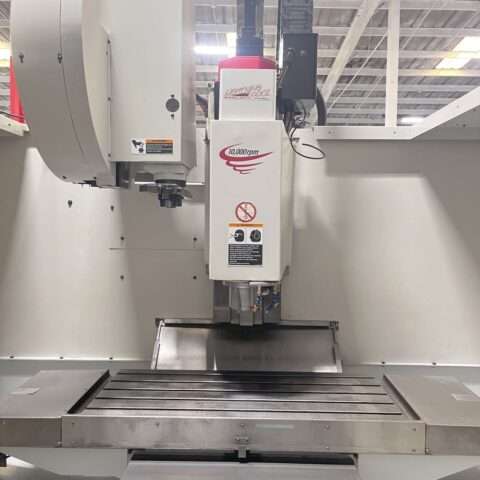

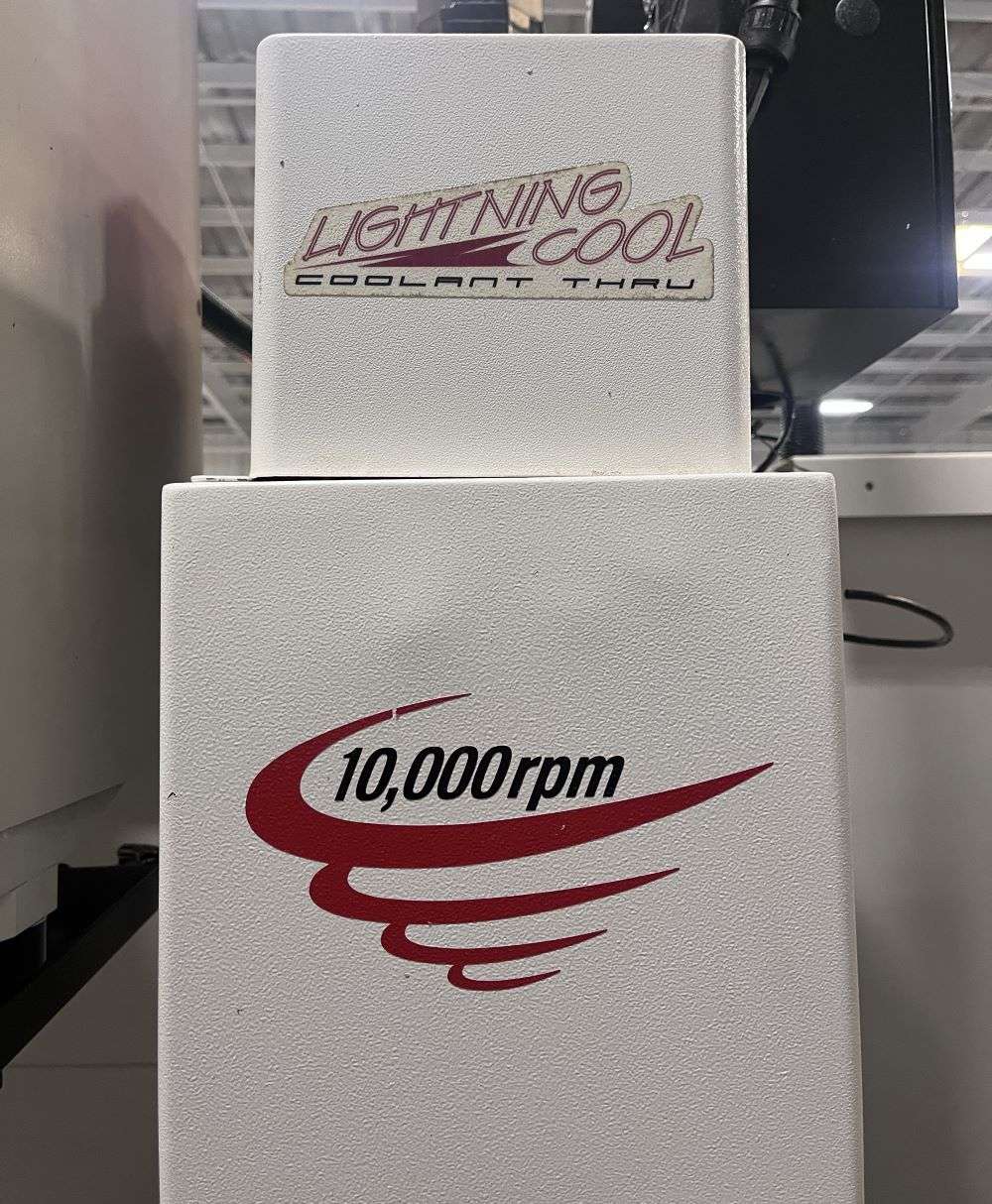

| 10,000 RPM High Torque Spindle |
| Through Spindle Coolant |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Rigid Tapping |
| Telescopic way covers |
| Coolant System |
| Chip Conveyor |

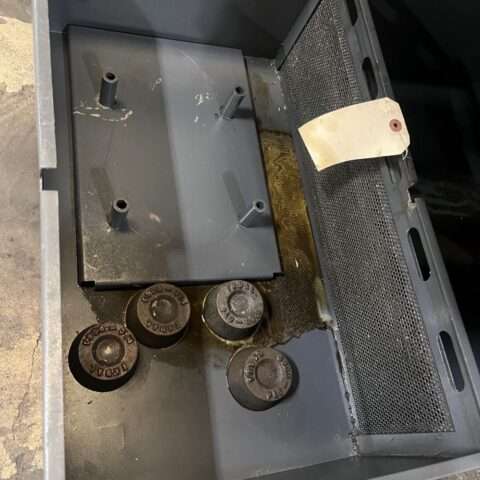

| Levelling Pads |
| Travels: |
|---|
| X-Axis: 40″ |
| Y-Axis: 20″ |
| Z-Axis: 20″ ? |
| Spindle Nose to Table (Min.- Max.): 4.5″ – 24.5″ |
| Rapid Traverse rates: 100 IPM |
| Cutting Feedrate: 800 IPM |

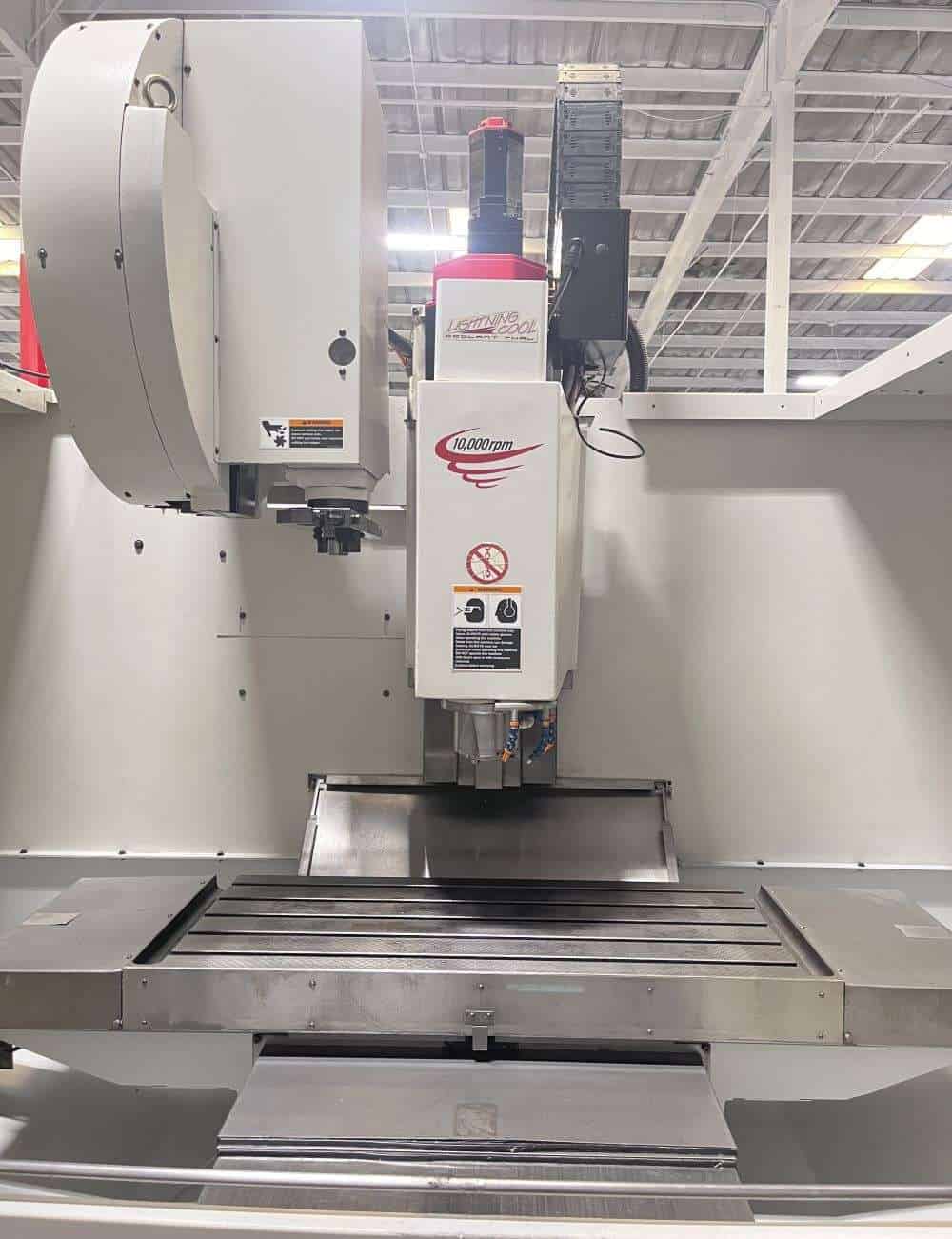

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 15 HP |

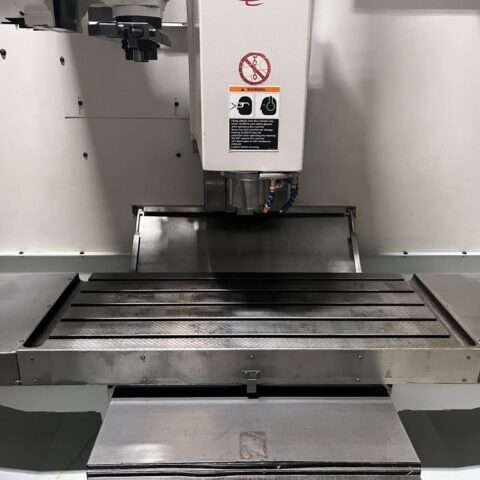

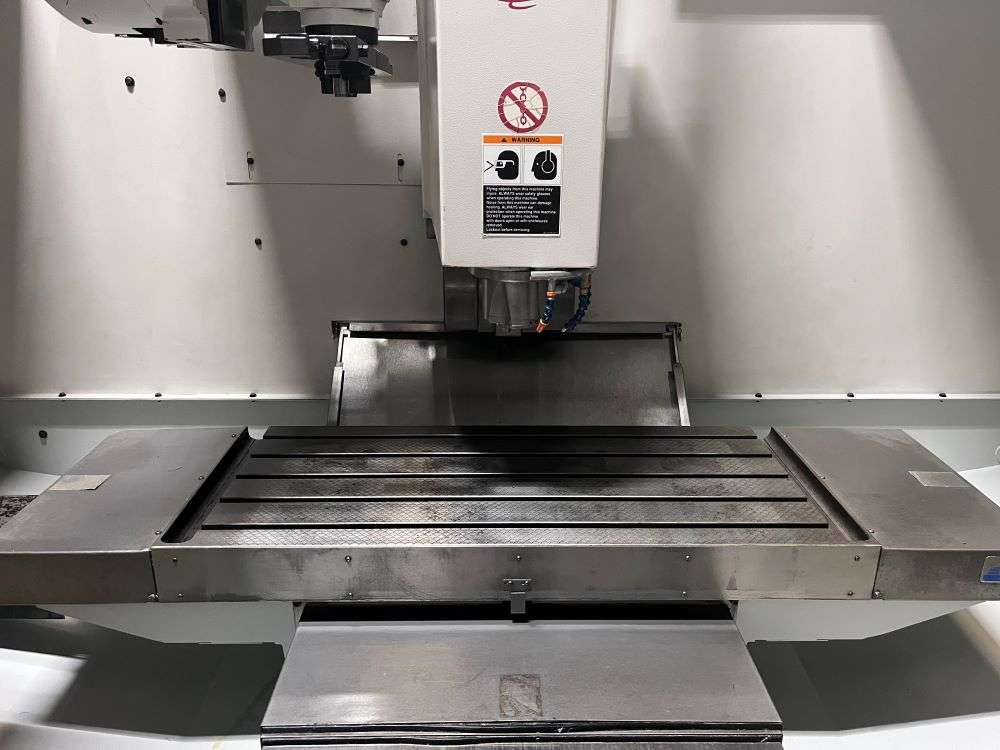

| Table : |
|---|
| Length: 48″ |
| Width: 20″ |
| Max Weight on Table: 3000 lbs |

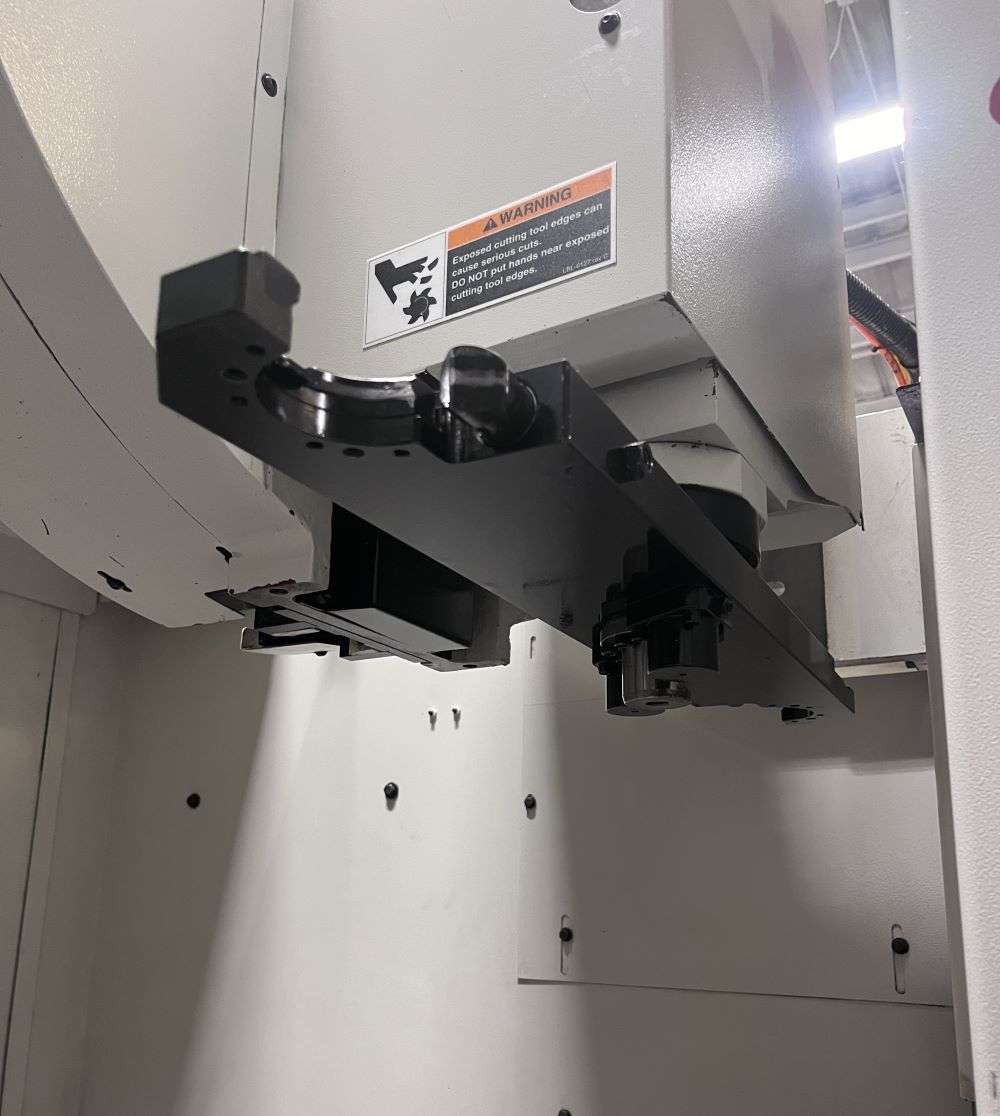

| Automatic Tool Changer: |
|---|
| CAT-40 Taper |

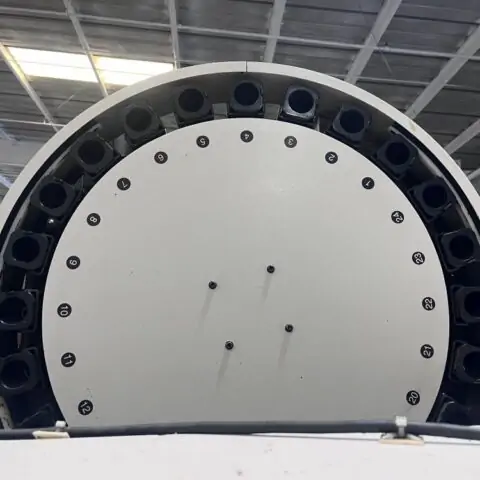

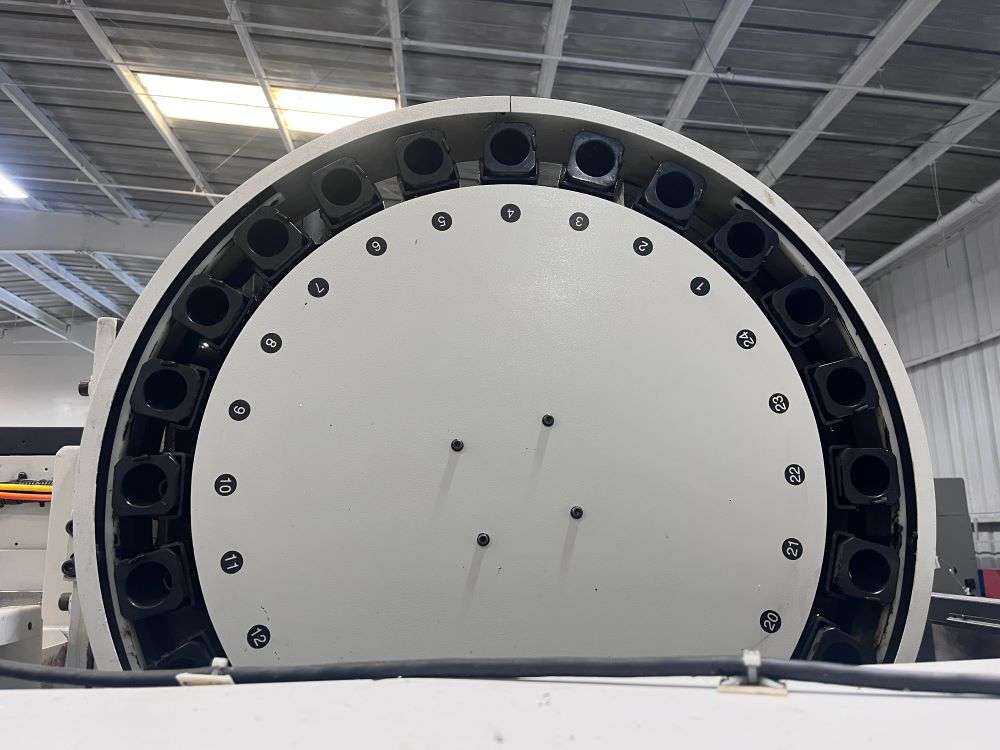

| Capacity: 24 Station Side Mounted |
| Tool Weight: 15 lbs |
| Max Tool Length: 15″ |
| Max Tool Dia.: 4.33″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

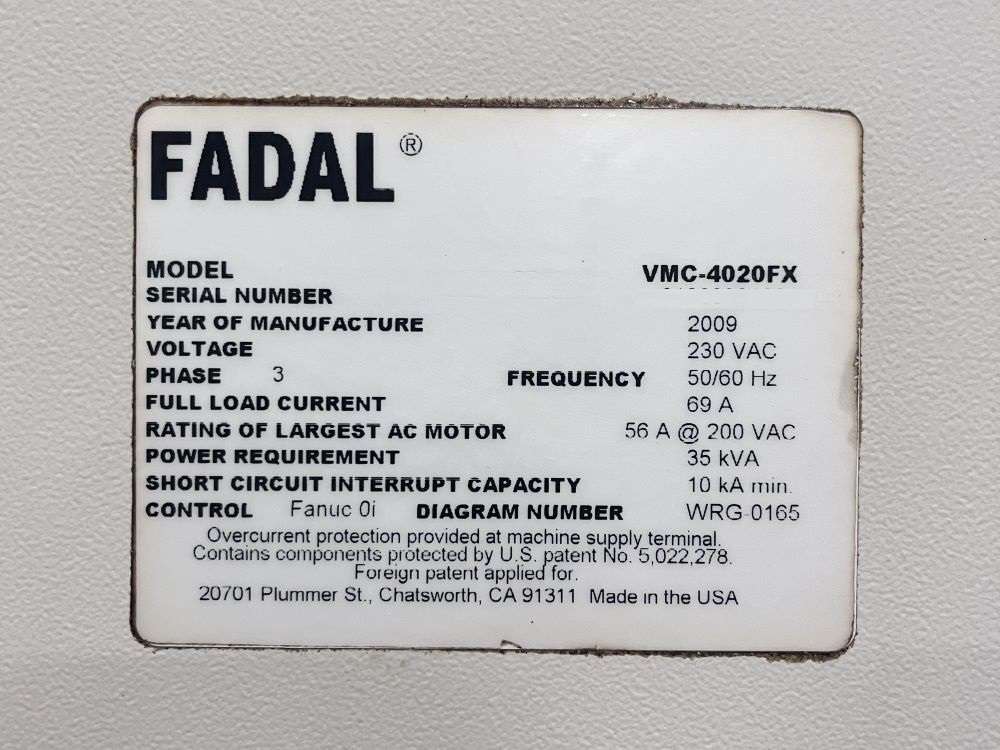

| Power: 220v / 3-Phase, 35 Kva |
| Overall Dimensions: 122″ x 100″ x 100″ High |
| Weight: 12,000 lbs |
| Travels: |
|---|
| X-Axis: 1,016 mm |
| Y-Axis: 508 mm |
| Z-Axis: 508 mm ? |
| Spindle Nose to Table (Min.- Max.): 114 mm – 622 mm |
| Rapid Traverse rates: 100 IPM |
| Cutting Feedrate: 800 IPM |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 15 HP |
| Table : |
|---|
| Length: 1,219 mm |
| Width: 508 mm |
| Max Weight on Table: 3000 lbs |
| Automatic Tool Changer: |
|---|
| CAT-40 Taper |
| Capacity: 24 Station Side Mounted |
| Tool Weight: 15 lbs |
| Max Tool Length: 381 mm |
| Max Tool Dia.: 110 mm |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 3-Phase, 35 Kva |
| Overall Dimensions: 3,099 mm x 2,540 mm x 2,540 mm High |
| Weight: 12,000 lbs |
| Make | Fadal |
|---|
- Box Way construction
- Fanuc Oi-MC series CNC Control
- 24 Station Automatic tool changer
- 10,000 RPM High Torque Spindle
- Through Spindle Coolant
- PCMCIA Card Slot
- MPG Handwheel Control
- Rigid Tapping
- Telescopic way covers
- Coolant System
- Chip Conveyor
- Levelling Pads
