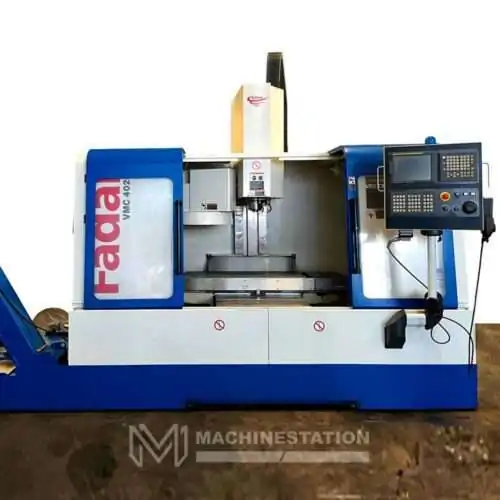

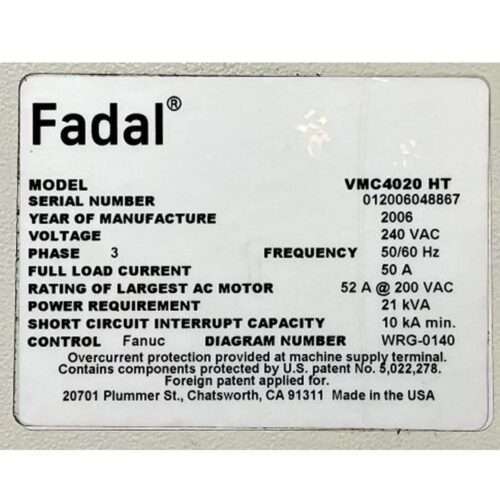

| Make: | Fadal |
| Model: | 4020HT |
| Year: | 2006 |
| Condition: | Good |
| Cutting Hours: | 4324 |
| Equipped With: |
|---|
| Box Way Construction |

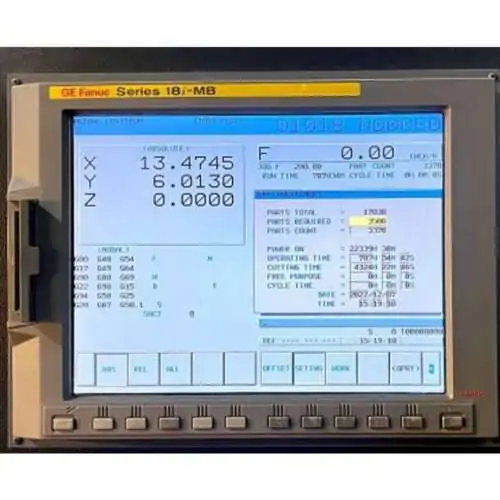

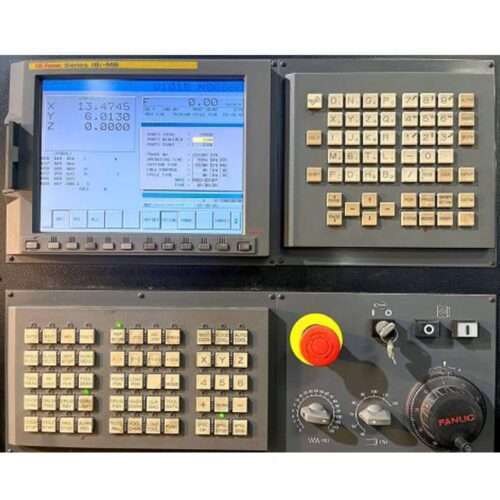

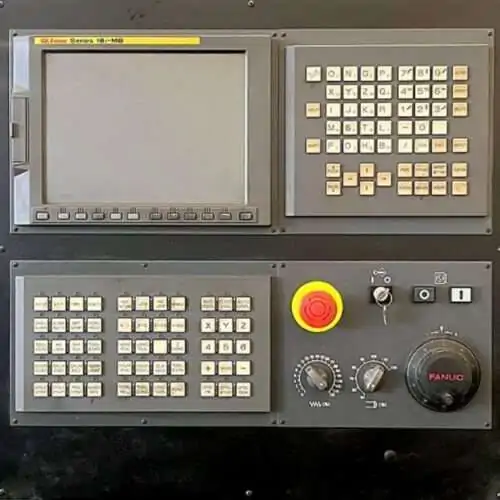

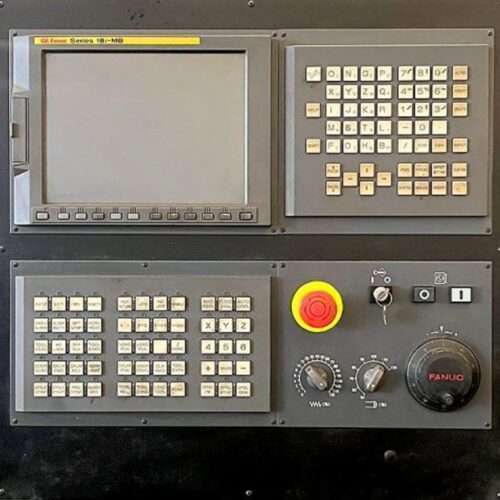

| Fanuc 18iMB Series CNC Control |

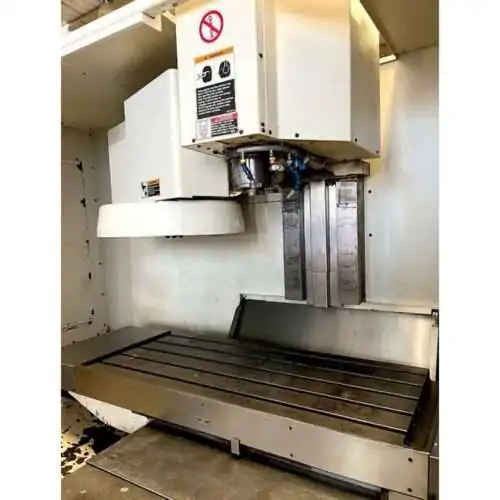

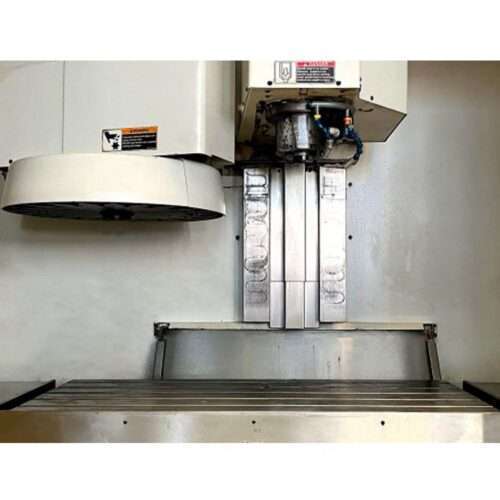

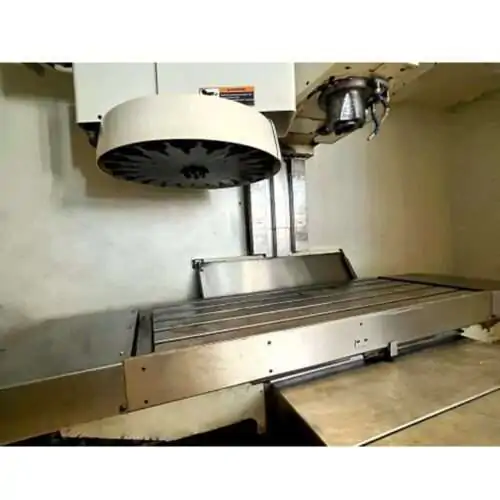

| 20 Station Umbrella Type Tool Changer |
| 10,000 Rpm High Torque Spindle |
| PCMCIA Card Slot |

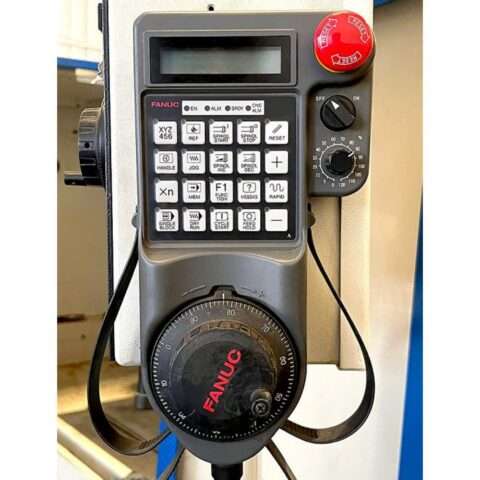

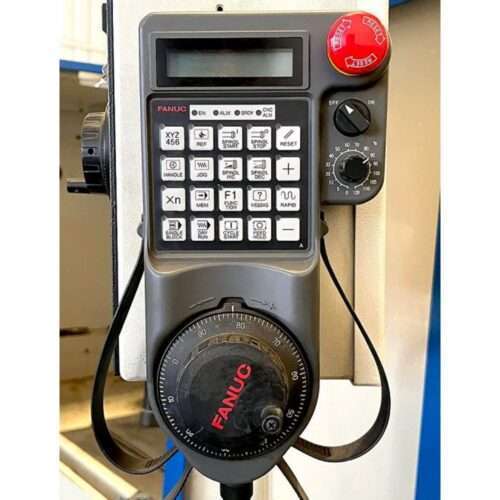

| MPG Control |
| Rigid Tapping |
| Telescopic Way Covers |
| Flood Coolant System |
| Coolant Tank |
| Chip Conveyor |
| Travels: |
|---|
| X-axis: 40″ |
| Y-Axis: 20″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 900 IPM |
| Cutting Feed Rates: 400 IPM |
| Spindle Nose To Table (Min.- Max.): 4.5″ – 24.5″ |

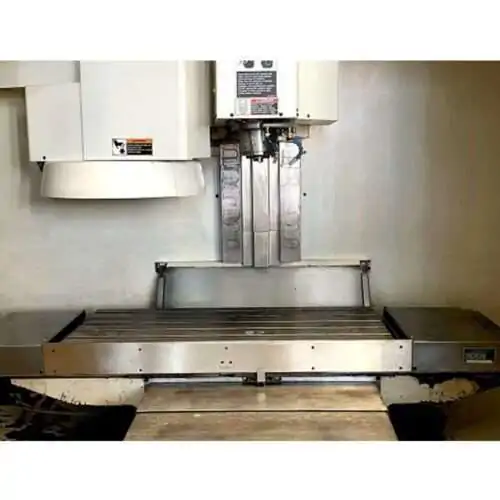

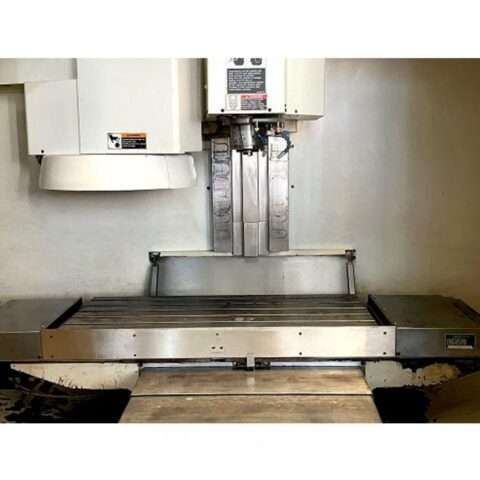

| Table: |
|---|
| Length: 48″ |
| Width: 20″ |
| Number Of Std T-slots: 5 |
| Max Weight On Table: 3000 Lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 10000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 20 Station Umbrella Type |
| Tool Weight: 15 Lbs |
| Max Tool Length: 15″ |
| Max Tool Dia.: 4.33″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 3-phase, 21 Kva |
| Overall Dimensions: 122″ X 100″ X 100″ High |
| Weight: 12,500 lbs Approx. |
