*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*

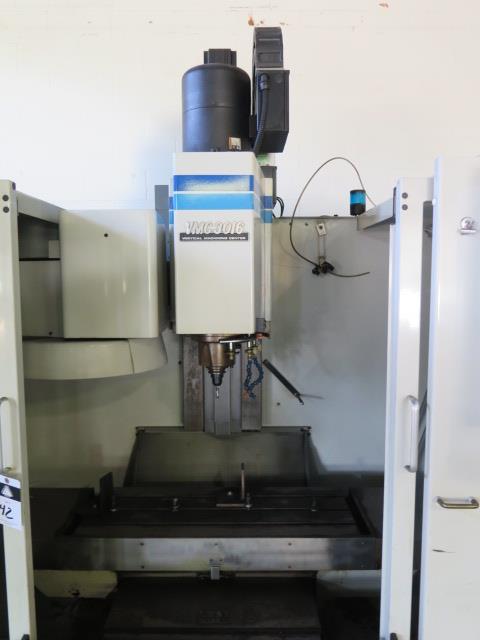

| Make: | Fadal |
| Model: | VMC 3016HT |
| Year: | 1998 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Fadal CNC 88HS |
| Features: |
|---|
| Fadal CNC 88HS CNC Control |
| 21-Station Automatic Tool Changer |
| CAT-40 Taper Spindle |
| 7,500 RPM Spindle |
| M-Function Card |
| 5C Indexer Interface |
| High-Speed CPU |
| Graphics |
| Coolant System |
| Full Enclosure |
| Automatic Tool Changer |
| Table: |
|---|
| Table Size: 39″ × 16″ |
| T-Slots: 3 |
| Maximum Table Load: 2,736 lbs. |
| Travels: |
|---|
| X-Axis Travel: 30″ |
| Y-Axis Travel: 16″ |
| Z-Axis Travel: 28″ |
| Spindle Nose to Table: 4″–24″ |
| Spindle: |
|---|
| Spindle Taper: CAT-40 |
| Maximum Spindle Speed: 7,500 RPM |
| Spindle Type: Vertical |
| ATC Capacity: 21 Stations |
| Tool Change: Automatic |
| Tool Taper: CAT-40 |
| General: |
|---|

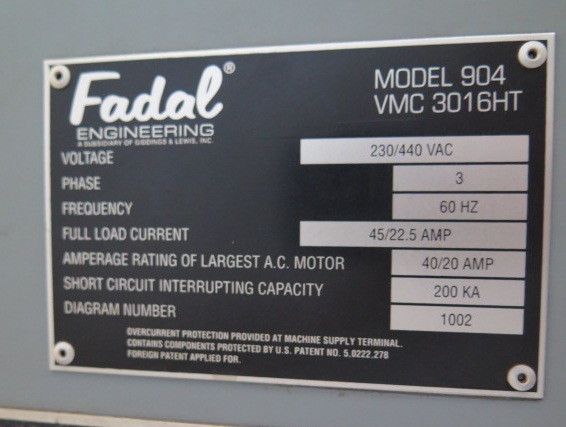

| Power Source: 230–440v / 3-Phase / 60 Hz |
| Machine Dimensions (Approx.): 98″ × 77″ × 103″ |
| Machine Weight (Approx.): 8,550 lbs. |
