*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Fadal |
| Model: | VMC 3016L |
| Year: | 2000 |
| Machine Type: | 4-Axis CNC Vertical Machining Center |
| Control: | Fadal CNC 88HS |
| Features: |
|---|
| Fadal CNC 88HS Control |
| Fadal VH65 Rotary Table |
| VH65 Rotary Table Tailstock |
| Spindle Orientation |
| 21-Station Automatic Tool Changer |
| Full Enclosure |
| Flood Coolant |
| Manuals |

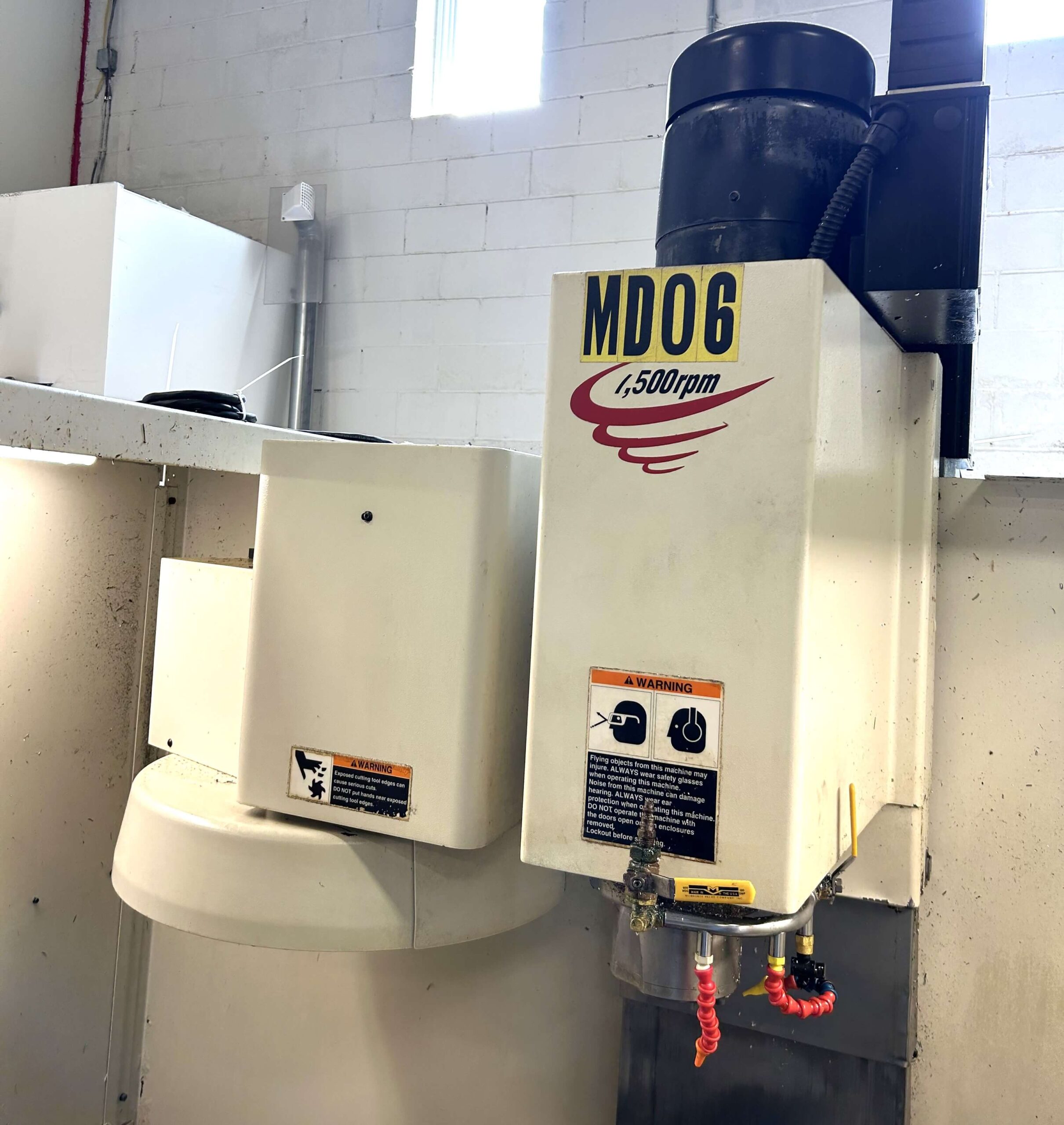

| MDO6 7,500 RPM Spindle Package |
| Travels: |
|---|
| X-Axis Travel: 30″ |
| Y-Axis Travel: 16″ |
| Z-Axis Travel: 20″ |
| Table: |
|---|
| Table Size: 38″ × 16″ |
| T-Slots: 3 |
| T-Slot Width: 0.562″ |
| T-Slot Span: 4.33″ |
| Maximum Table Load: 2,000 lbs |
| Spindle: |
|---|
| Spindle Speed: 7,500 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 15 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 21 Stations |
| Maximum Tool Diameter: 3″ |
| Maximum Tool Length: 15″ |
| Maximum Tool Weight: 15 lbs |
| Feed Rates: |
|---|
| Rapid Traverse X/Y/Z: 500 IPM |
| Cutting Feedrate: 0.01–250 IPM |
| Cutting Feedrate at 150%: 375 IPM |

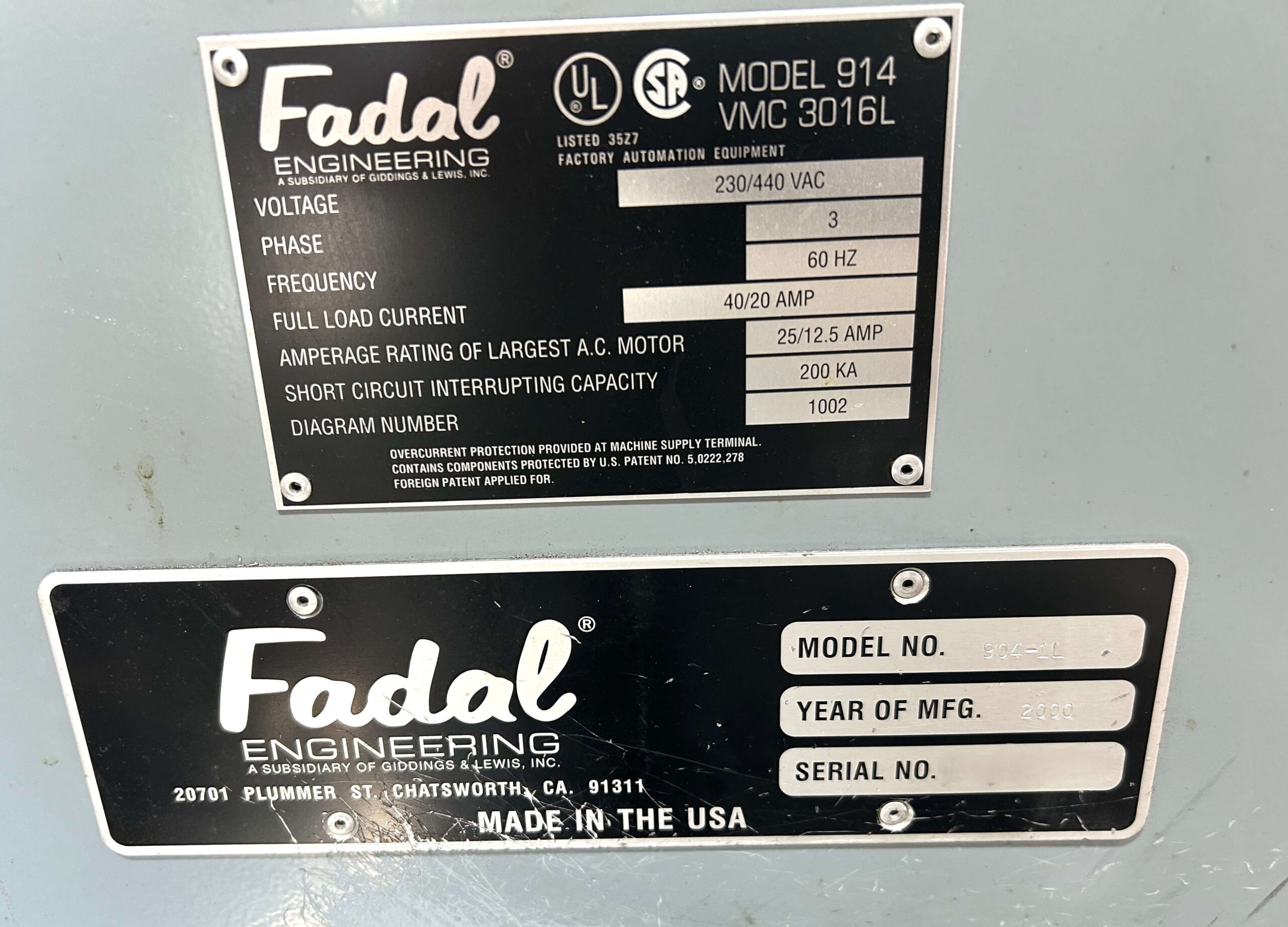

| Electrical: |
|---|
| Voltage: 230/440 VAC |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| General: |
|---|
| Machine Width: 90″ |
| Machine Depth: 77″ |
| Machine Height: 101″ |
| Machine Weight: 6,200 lbs |
| Floor to Table: 30.5″ |
| Air Requirement: 120 PSI / 15 SCFM |
