*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Fanuc |
| Model No.: | Robodrill α-D14MiB5 |
| Year: | 2017 |
| Condition: | Used – Good |

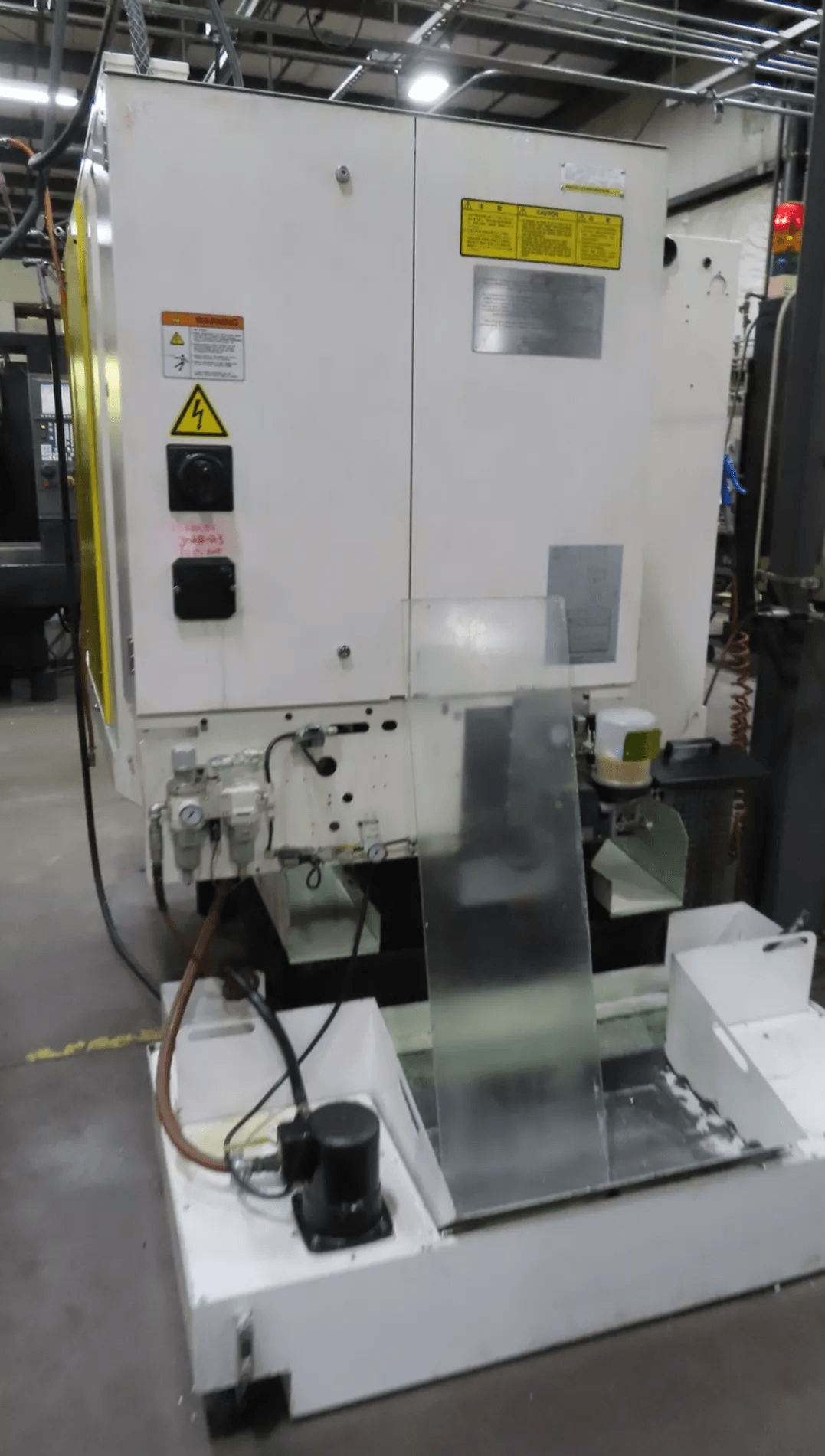

| Machine Type: | CNC Vertical Machining Center |

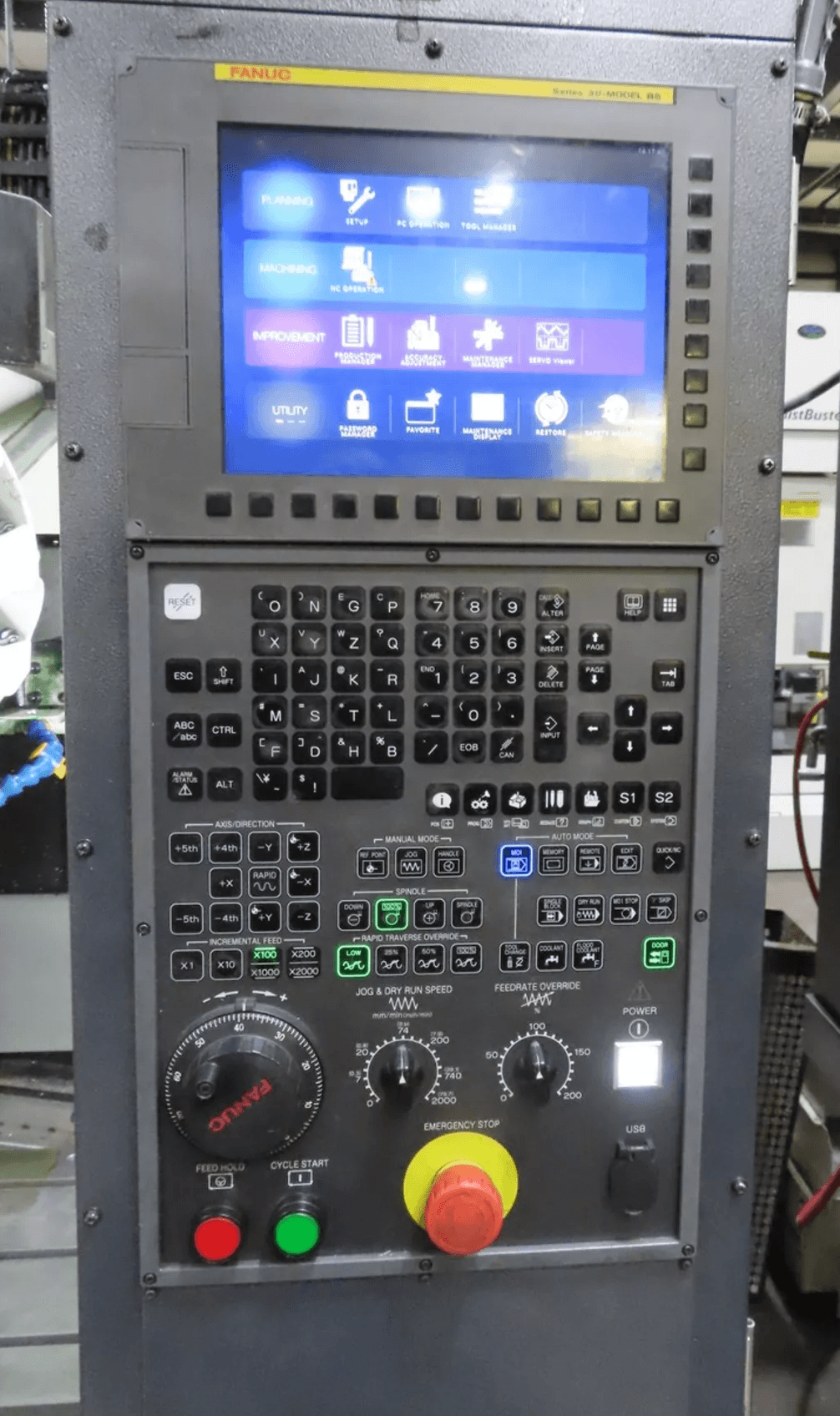

| Control: | Fanuc 31i-B5 CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Fanuc 31i-B5 CNC Control |
| 14-Tool Automatic Tool Changer |
| High-Speed Spindle |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor / Auger |
| Full Enclosure |
| High-Speed Machining Package |
| Travels: |
|---|
| X-Axis Travel: 27.6″ |
| Y-Axis Travel: 15.7″ |
| Z-Axis Travel: 13.8″ |
| Spindle: |
|---|
| Spindle Speed: Up to 24,000 RPM |
| Spindle Taper: BT30 |
| Spindle Motor: ~10 HP |
| Table: |
|---|
| Table Size: 33.5″ x 15.7″ |
| Max Table Load: 660 lbs |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): 2,125 / 2,125 / 2,125 IPM |
| Tool Changer: |
|---|
| Tool Capacity: 14 Tools |
| Tool Change Type: Servo ATC |
| Tool-to-Tool Time: ~1.6 sec |

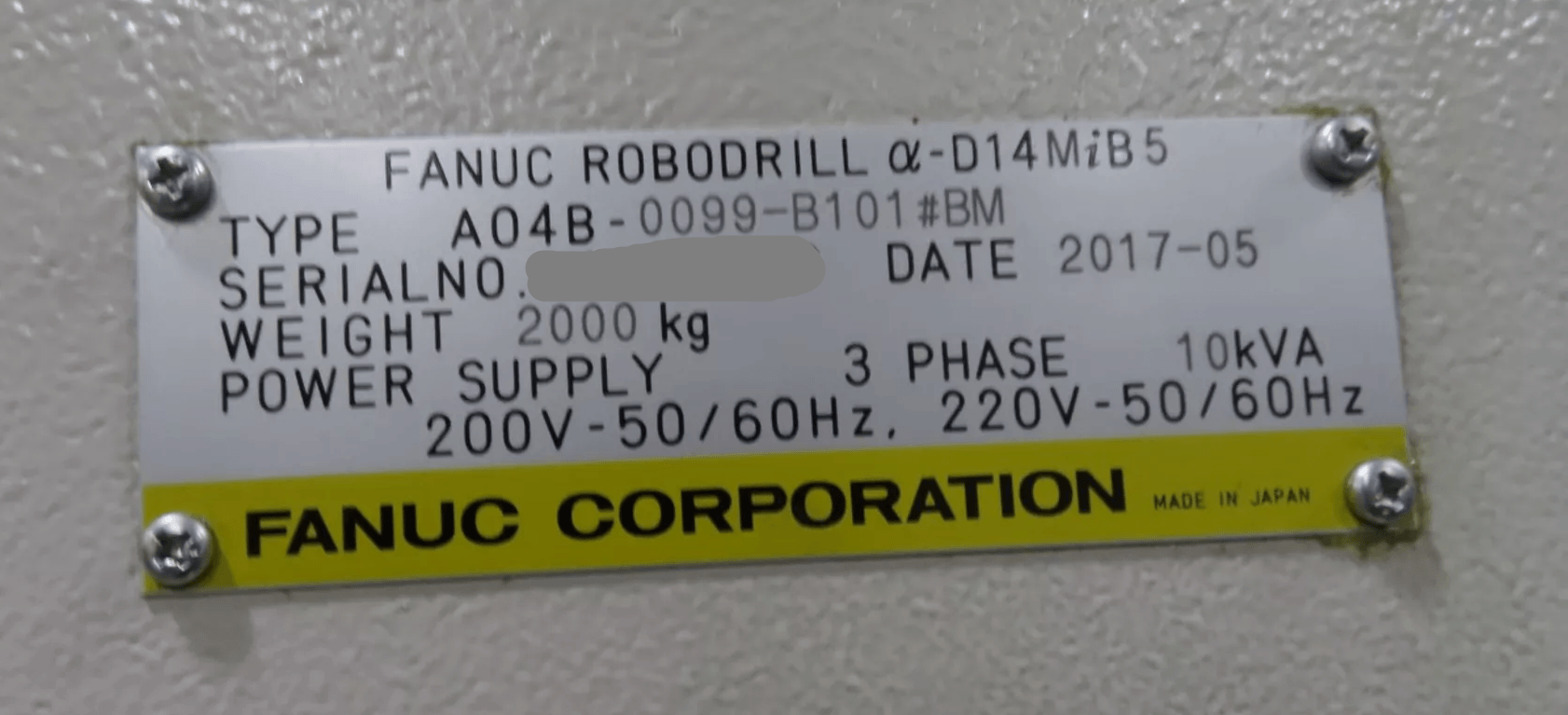

| Electrical: |
|---|
| Voltage: 200 / 220 V |
| Phase: 3 |
| Frequency: 50 / 60 Hz |
| Power Requirement: 10 kVA |
| General: |
|---|
| Air Required: 90 PSI |
| Power: 200-220V / 3-Phase |
| Overall Dimensions: 75″ x 65″ x 90″ High (Approx.) |
| Weight: 4,400 lbs (Approx.) |
