*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

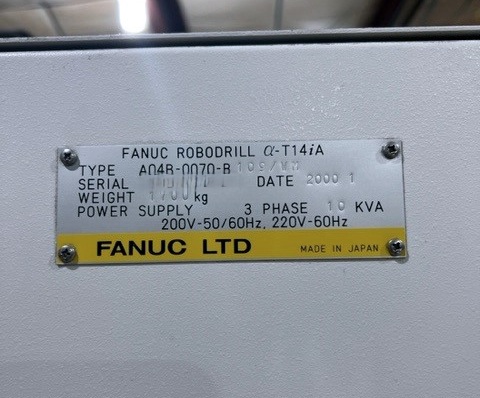

| Make: | FANUC |
| Model: | ROBODRILL T14iA |
| Year: | 2000 |
| Machine Type: | CNC Vertical Machining Center |
| Control: | FANUC CNC |
| Features: |
|---|
| FANUC ROBODRILL T14iA |
| 14-Station Automatic Tool Changer |
| BT30 Spindle Taper |
| 8,000 RPM Spindle |
| Enclosed Machine Guarding |
| Coolant System |
| Chip / Coolant Pan |
| Machine Lighting |
| Travels: |
|---|
| X-Axis Travel: 19.6″ |
| Y-Axis Travel: 14.96″ |
| Z-Axis Travel: 11.81″ |
| Spindle Nose to Table: 5.9″–17.71″ |
| Rapid Traverse X/Y/Z: 1,889 IPM |
| Cutting Feedrate: Up to 878 IPM |
| Table: |
|---|
| Table Size: 25.59″ × 14.96″ |
| Maximum Table Load: 440 lbs |
| T-Slots: 3 |
| T-Slot Width: 0.55″ |
| T-Slot Pitch: 4.92″ |
| Spindle: |
|---|
| Spindle Speed: 8,000 RPM |
| Spindle Speed Range: 80–8,000 RPM |
| Spindle Motor: Approx. 7.5 HP |
| Spindle Taper: BT30 |
| Spindle Type: High-Speed |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Turret-Type Automatic Tool Changer |
| Tool Capacity: 14 Stations |
| Tool Taper: BT30 |
| Maximum Tool Diameter: 3.15″ |
| Maximum Tool Length: 7.87″ |
| Maximum Tool Weight: 4.4 lbs |
| Tool Change Time: 0.9 sec |
| General: |
|---|
| Machine Weight (Approx.): 3,748 lbs |
| Machine Dimensions (Approx.): 61″ W × 72″ D × 90″ H |
| Power Source: 200/220V / 3 Phase / 50/60 Hz |
| Compressed Air: Approx. 73 PSI |
