*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Fanuc |
| Model: | Robodrill T21iD |
| Year: | 2004 |
| Features: |
|---|
| Fanuc 16i-MB CNC Control |
| Tsudakoma RN-150 4th Axis Rotary Table |
| 20,000 RPM High-Speed Spindle |
| 21-Position Automatic Tool Changer (ATC) |
| Flood Coolant System |
| Fully Enclosed Splash Guard |
| Travels: |
|---|
| X-Axis Travel: 19.68″ |
| Y-Axis Travel: 15.75″ |
| Z-Axis Travel: 12.99″ |
| Table: |
|---|
| Table Size: 25.59″ × 15.74″ |
| Maximum Table Load Capacity: 550 lbs |
| Spindle: |
|---|
| Spindle Speed: 20,000 RPM |
| Spindle Motor: 7.5 HP |
| Spindle Taper: BT30 |
| Automatic Tool Changer: |
|---|
| ATC Capacity: 21 Tools |
| Tool Shank: BT30 |
| General: |
|---|

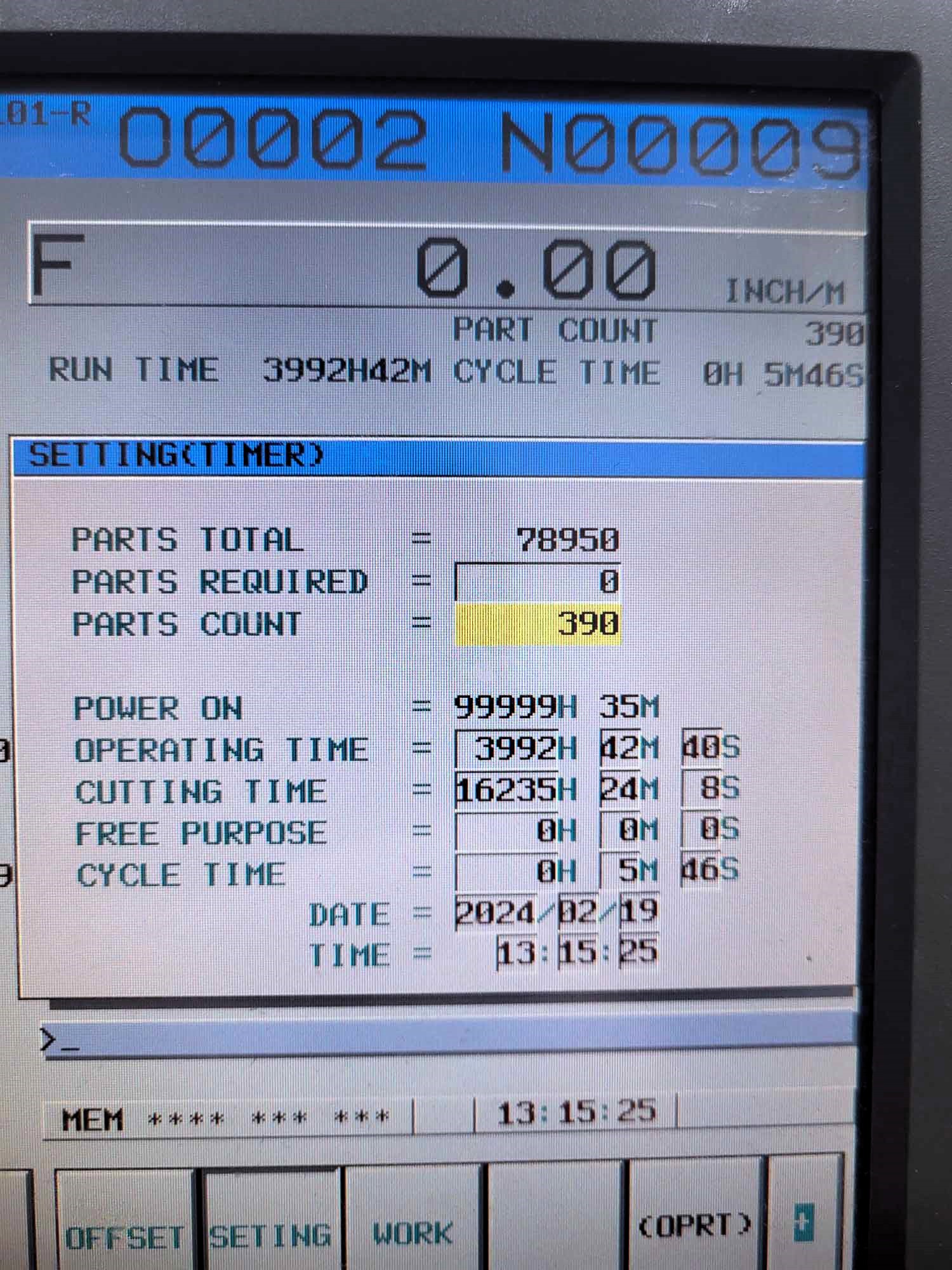

| Cutting Time:16235 Hours |
| Machine Dimensions (Approx.): 67″ × 78″ × 88″ |
| Machine Weight (Approx.): 4,850 lbs |
