*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112860 |
| Make: | Fanuc |
| Model: | Robodrill α-T21iFL |
| Year: | 2009 |
| Features: |
|---|

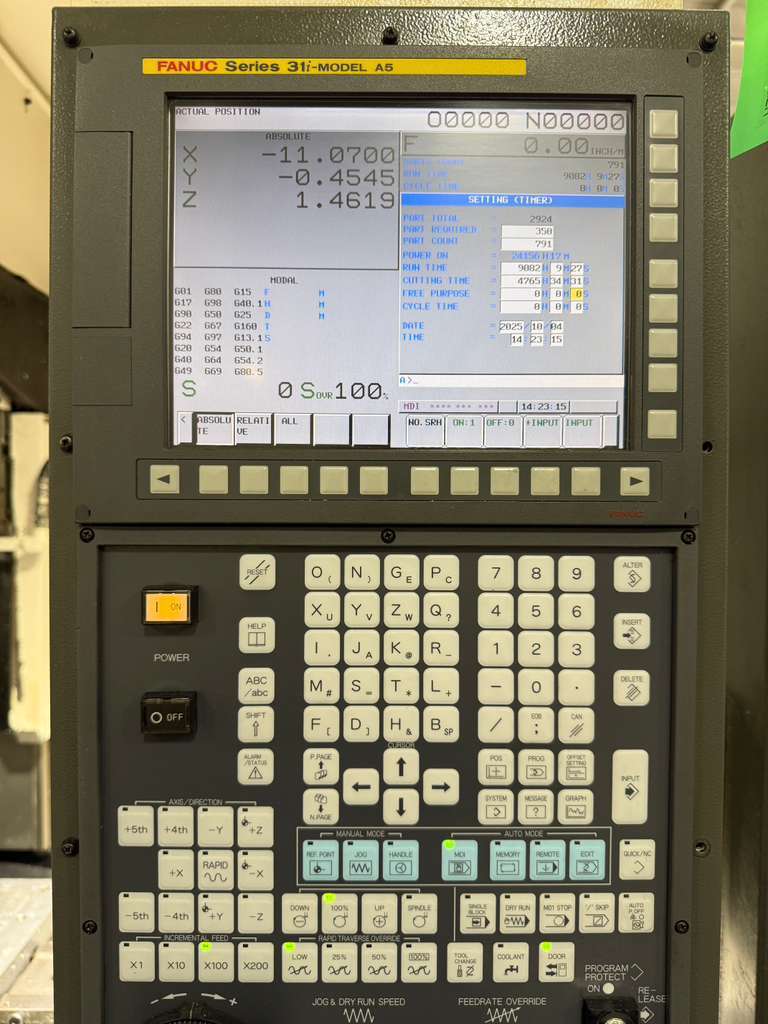

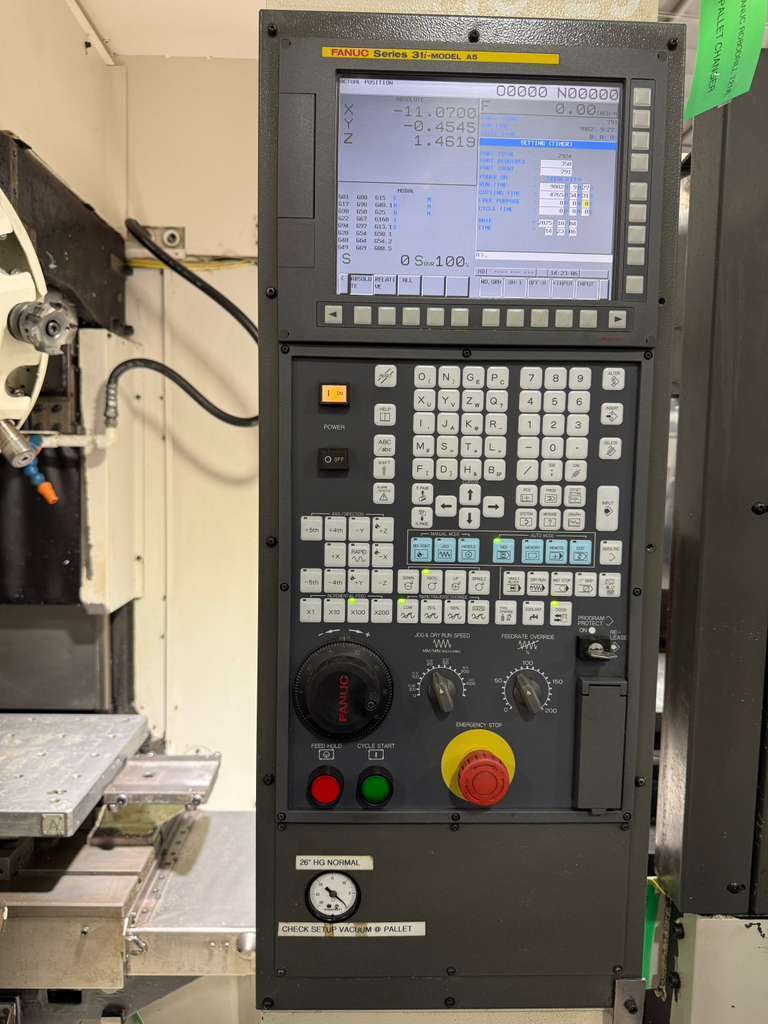

| Fanuc 31i-M A5 5 Axis CNC Control |
| Pallet Changer |
| 10,000 RPM Precision Spindle |
| 21 Station Automatic Quick Tool Changer |
| PCMCIA Card Slot |
| Rigid Tapping |
| MPG Control |

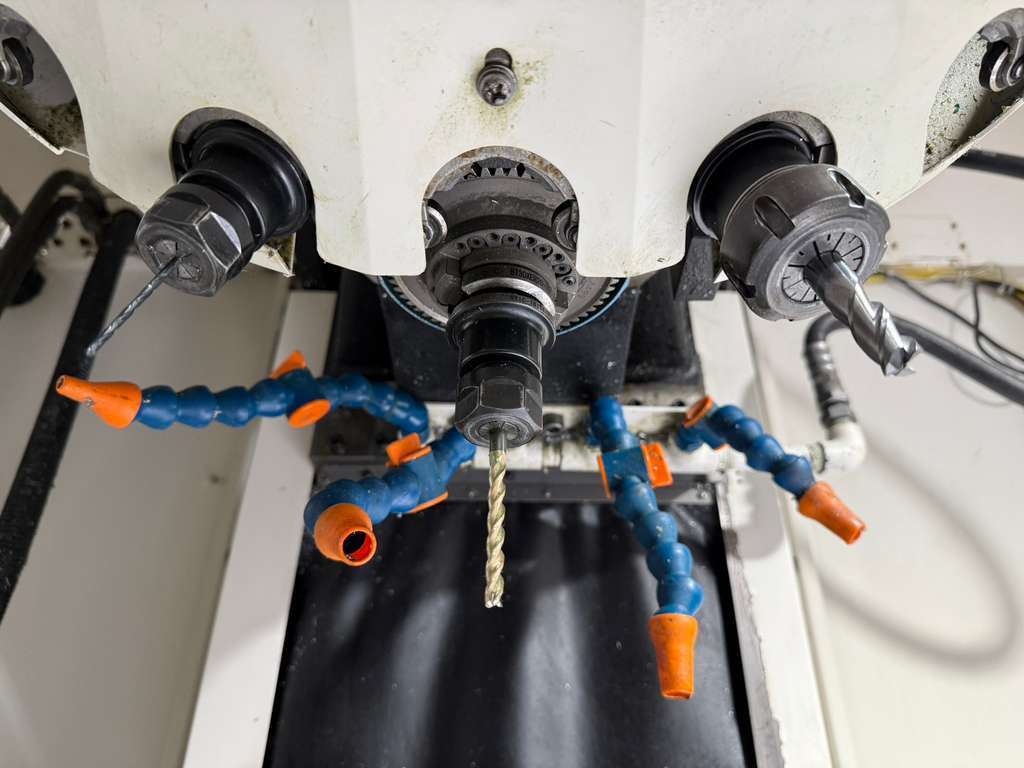

| Coolant System |
| Travels: |
|---|
| X-Axis: 27.5″ |
| Y-Axis: 15.75″ |
| Z-Axis: 13.00″ |
| Rapid Traverse Rates X,Y,Z Axis: 2126 Inch Per Minute |
| Cutting Feed Rates X,Y,Z Axis: 1181 Inch Per Minute |
| Distance From Table Top to Spindle End (Min.- Max.): 5.90″ – 18.90″ |
| Table: |
|---|
| Length: 33.5″ |
| Width: 16.1″ |
| Max Weight on Table: 440 Ibs |
| Spindle: |
|---|
| Spindle: Taper Size: BBT-30 |
| Speed Range: 10,000 RPM |
| Spindle Power: 7.5 HP |

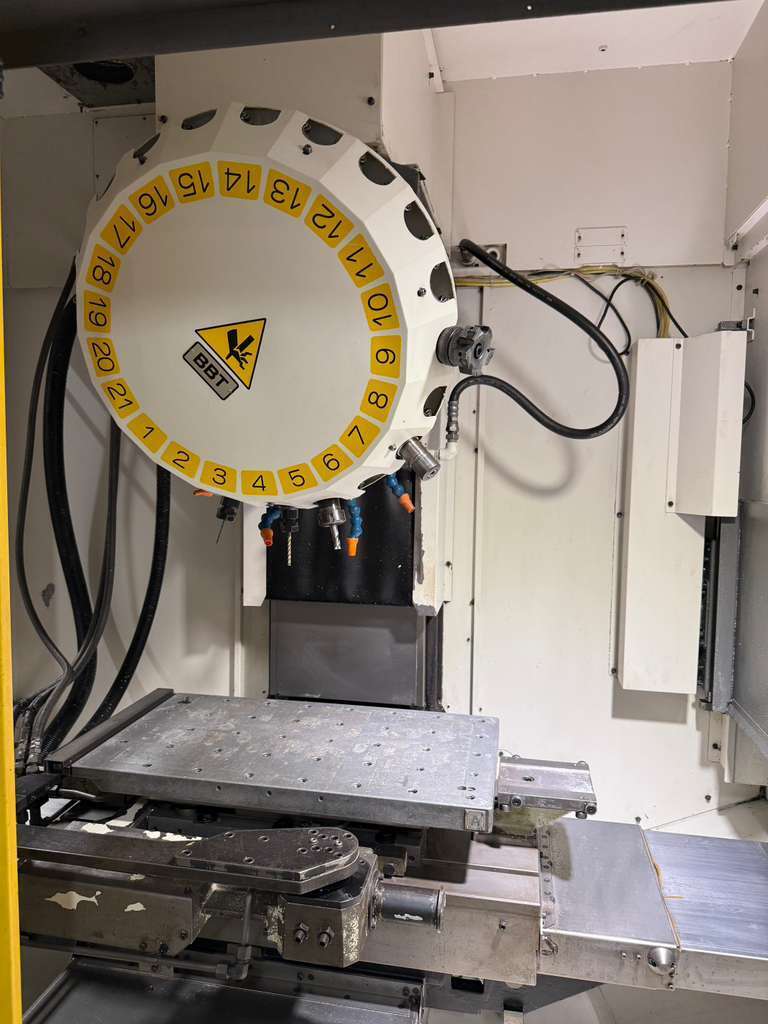

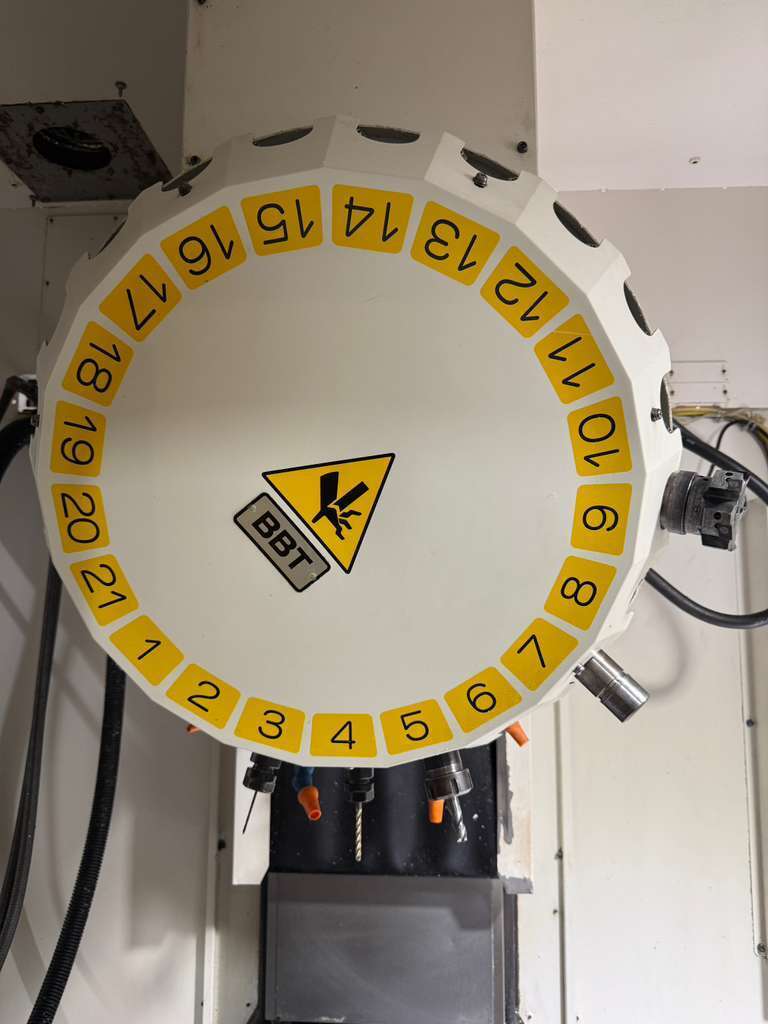

| Automatic Tool Changer: |
|---|
| Capacity: 21 Station |
| Tool Weight: 4.40 lbs |
| Max Tool Dia: 3.14″ |
| Max Tool Length: 7.87″ |
| Tool Changing Time: 1.2 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

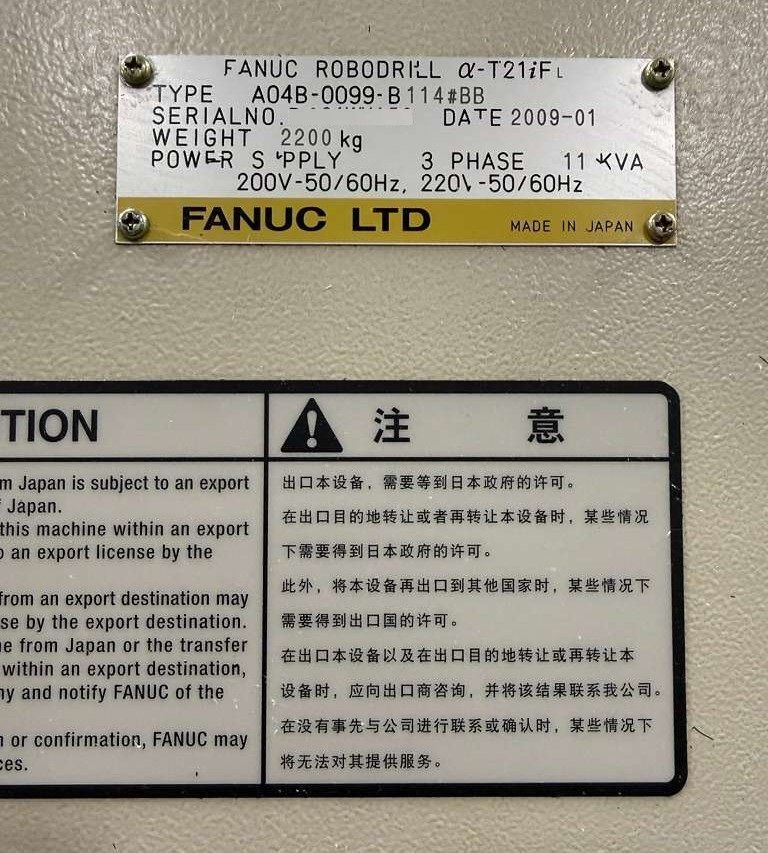

| 220v / 60 Hz / 3-Phase / 11 kva |
| Overall Dimensions: 110″ x 80″ x 96″ High Approx. |
| Weight: 4,850 lbs Approx. |
