Sold
Feeler HV1000 CNC Vertical Machining Center – 2017
Out of stock
| SKU: | 11081 |
| Make/Model: | Feeler HV-1000 |
| Year: | 2017 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Feeler |
| Model: | HV-1000 |
| Year: | 2017 |
| Condition: | Used |
Equipped With:

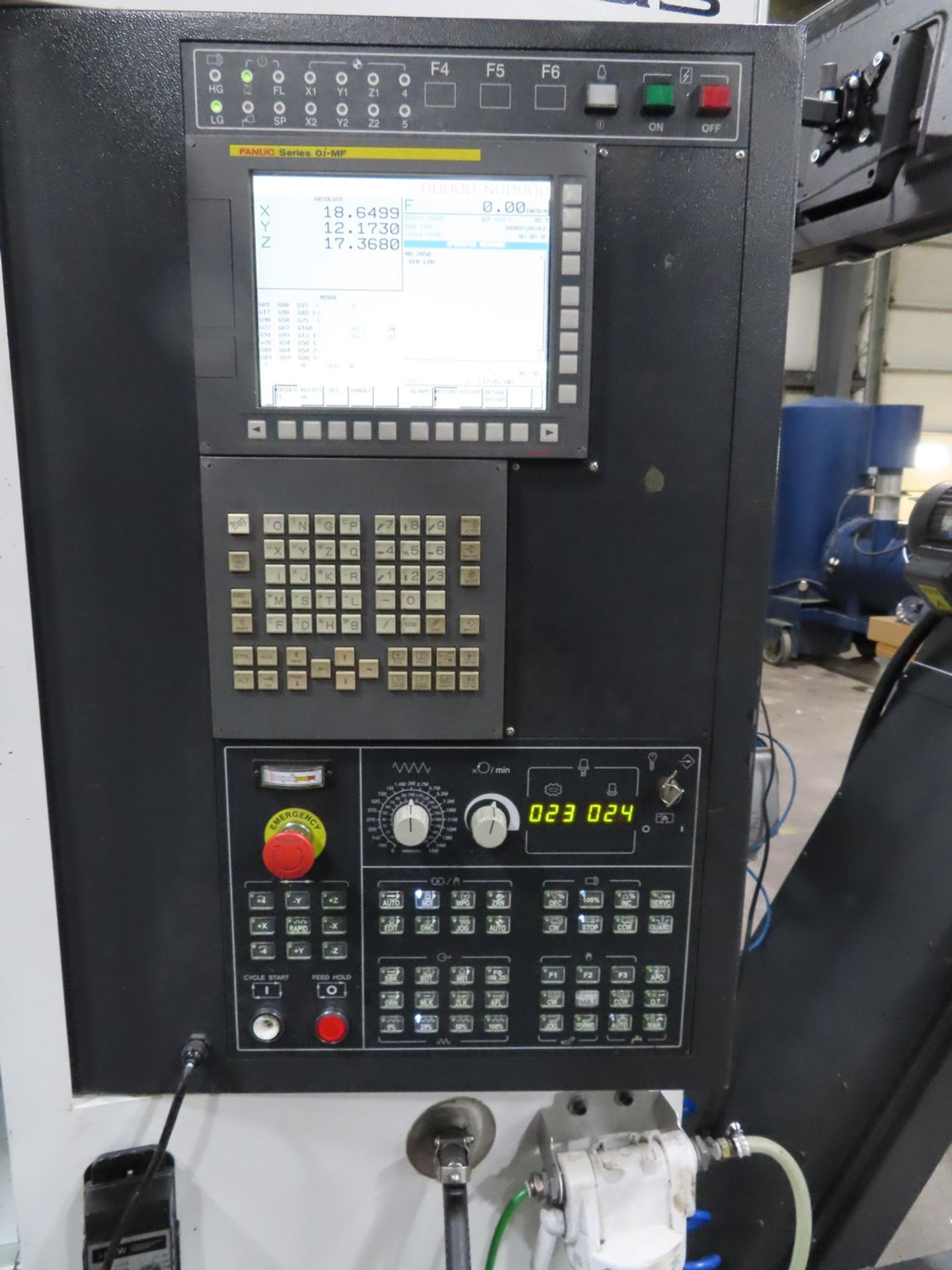

- Fanuc 18i-MB CNC Control
- 15,000 RPM Spindle
- CAT 40 Spindle Taper
- 30 HP Spindle Motor
- 30-Station Automatic Tool Changer
- Chip Conveyor
- Through-Spindle Coolant (500 PSI)
- 4th Axis Drives and Wiring
- Fully Enclosed Guarding
- Coolant System
Travels:
- X-Axis Travel: 39.37″
- Y-Axis Travel: 20.47″
- Z-Axis Travel: 19.82″
- Rapid Traverse X/Y Axis: 2,362 IPM
- Rapid Traverse Z Axis: 1,181 IPM
Table:
- Table Size: 45.0″ × 20.5″
- Max Table Load: 1,100 lbs

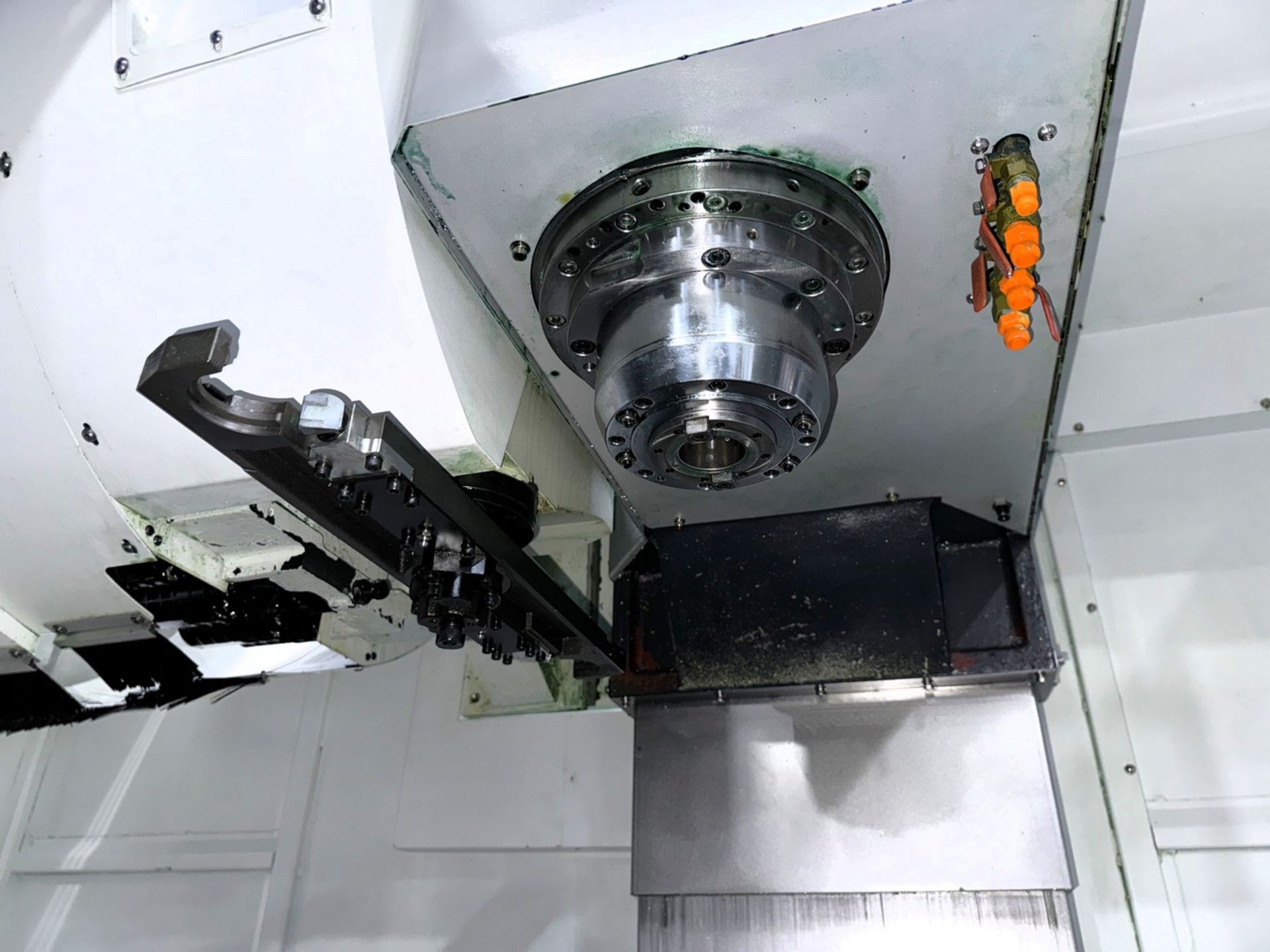

Spindle:
- Spindle Speed: 15,000 RPM
- Spindle Taper: CAT 40
- Spindle Motor: 30 HP
Automatic Tool Changer:
- Tool Capacity: 30 Tools
- Max Tool Length: 11.0″
Electrical:
- Power Requirement: 220V / 3-Phase / 60 Hz
- Main Motor Power: 30 HP
- Air Pressure Required: 6–8 bar
General:
- Overall Dimensions (Approx.): 156″ × 86″ × 110″
- Machine Weight (Approx.): 16,000 lbs
| Make | |
|---|---|
| Categories | CNC Vertical Machining Center |
| Model | HV-1000 |
