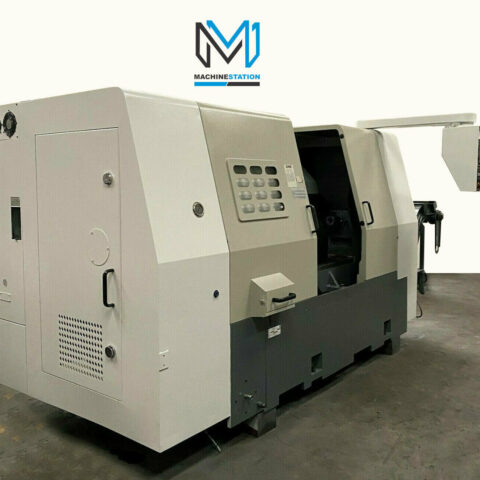

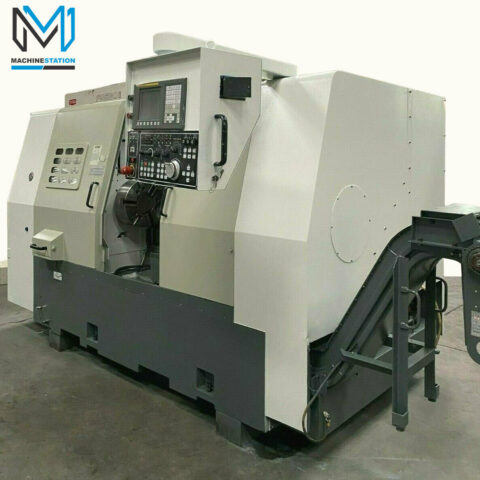

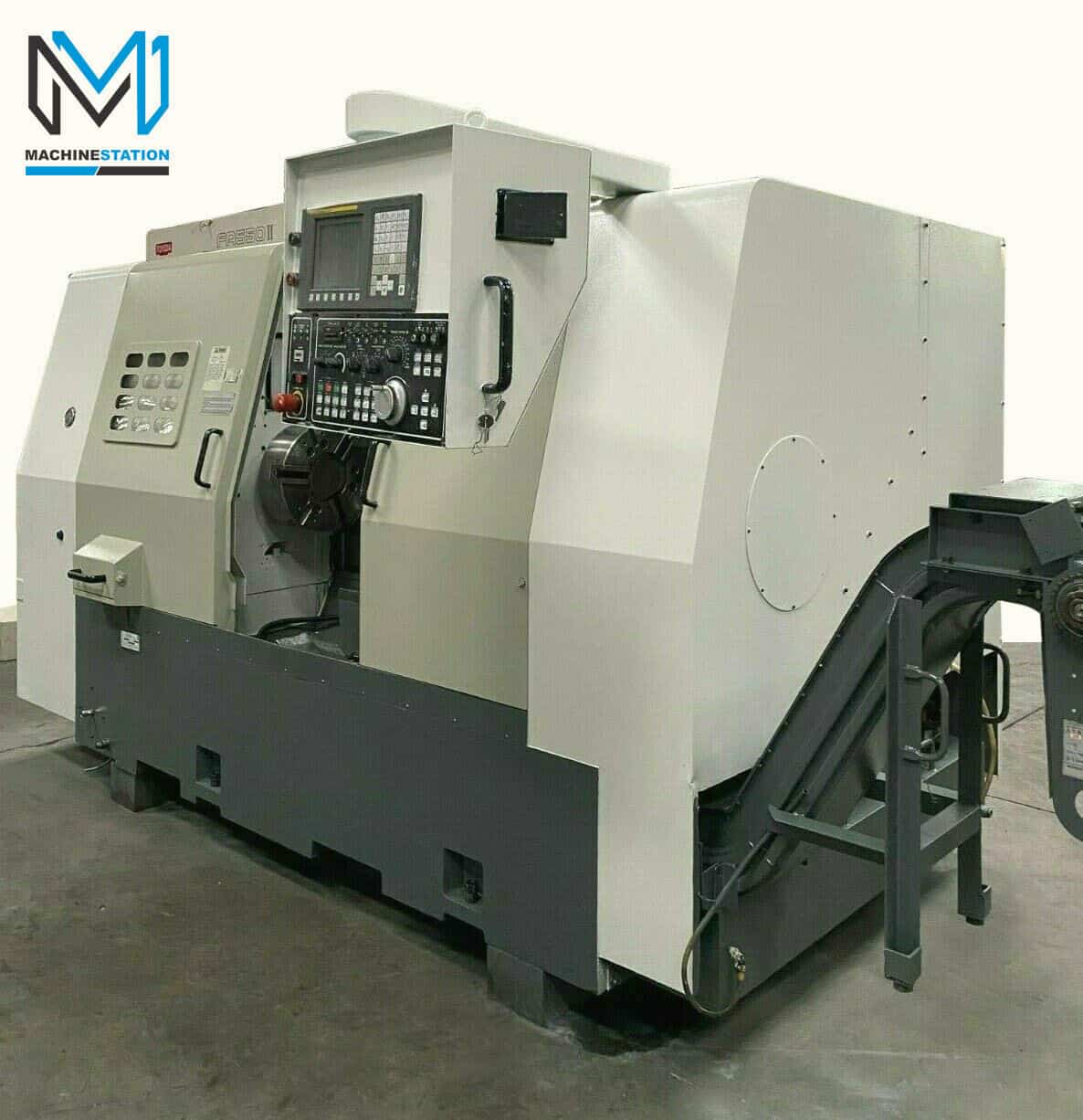

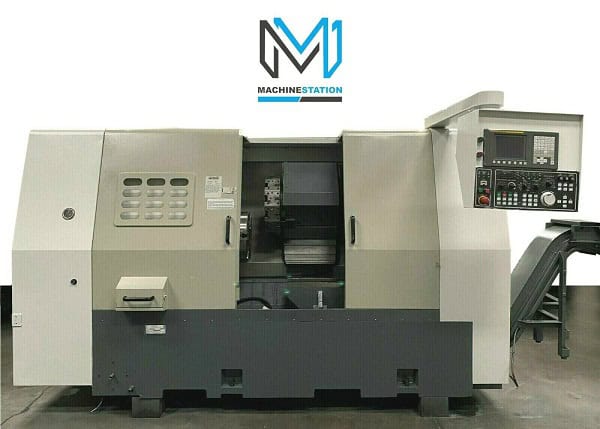

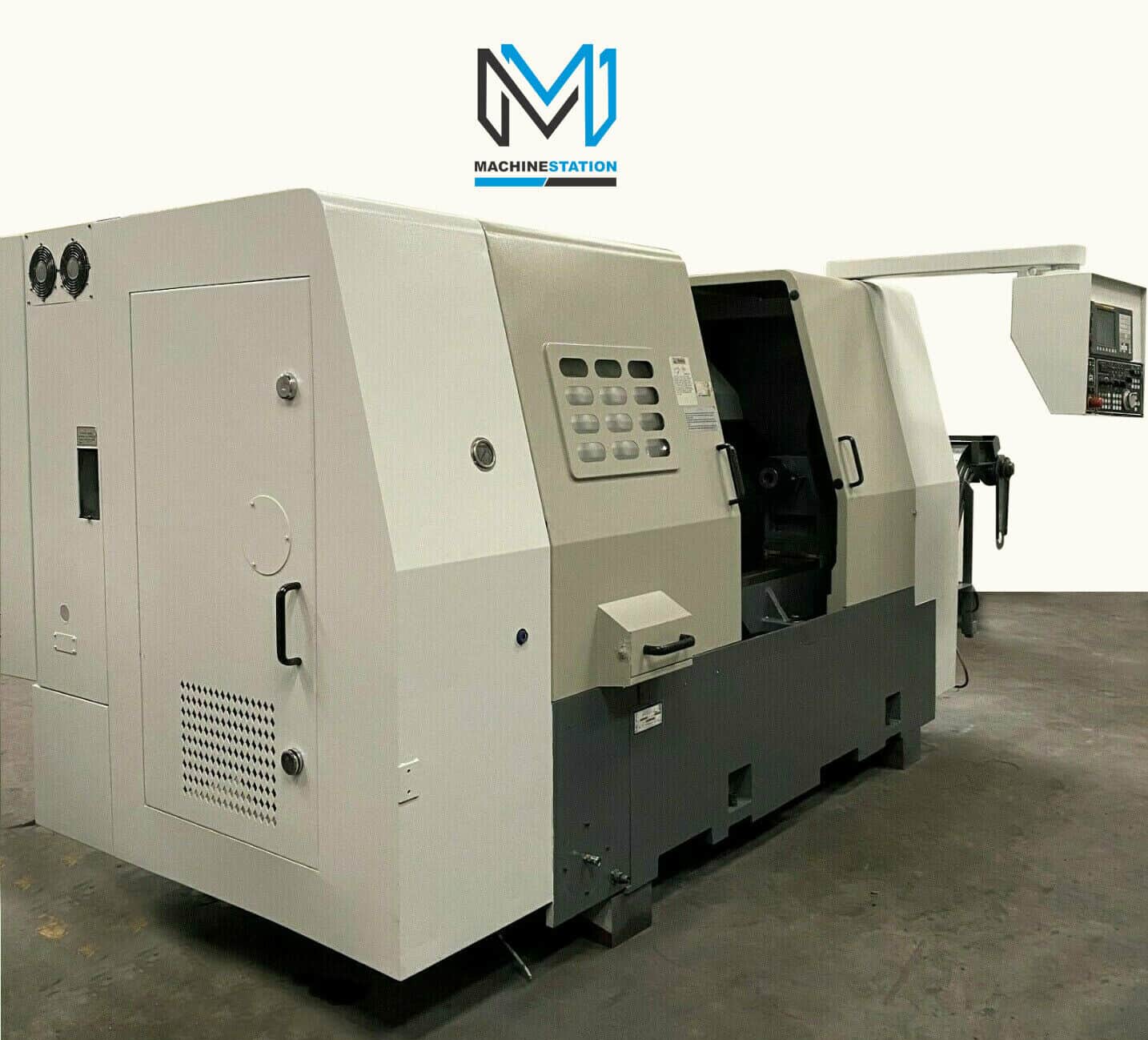

Femco HL-35 CNC Turning Center

All specifications are approximations and are subject to verification.

• Femco HL-35 CNC Turning Center Equipped With:

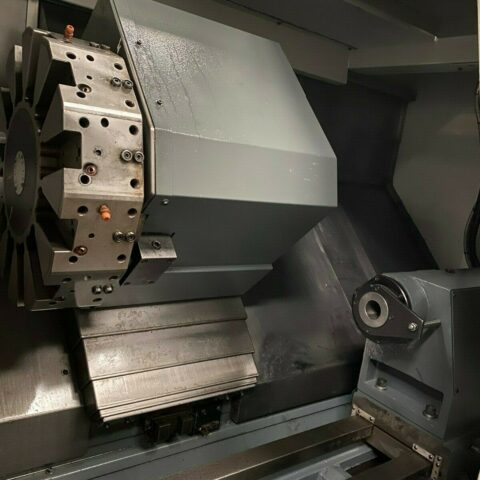

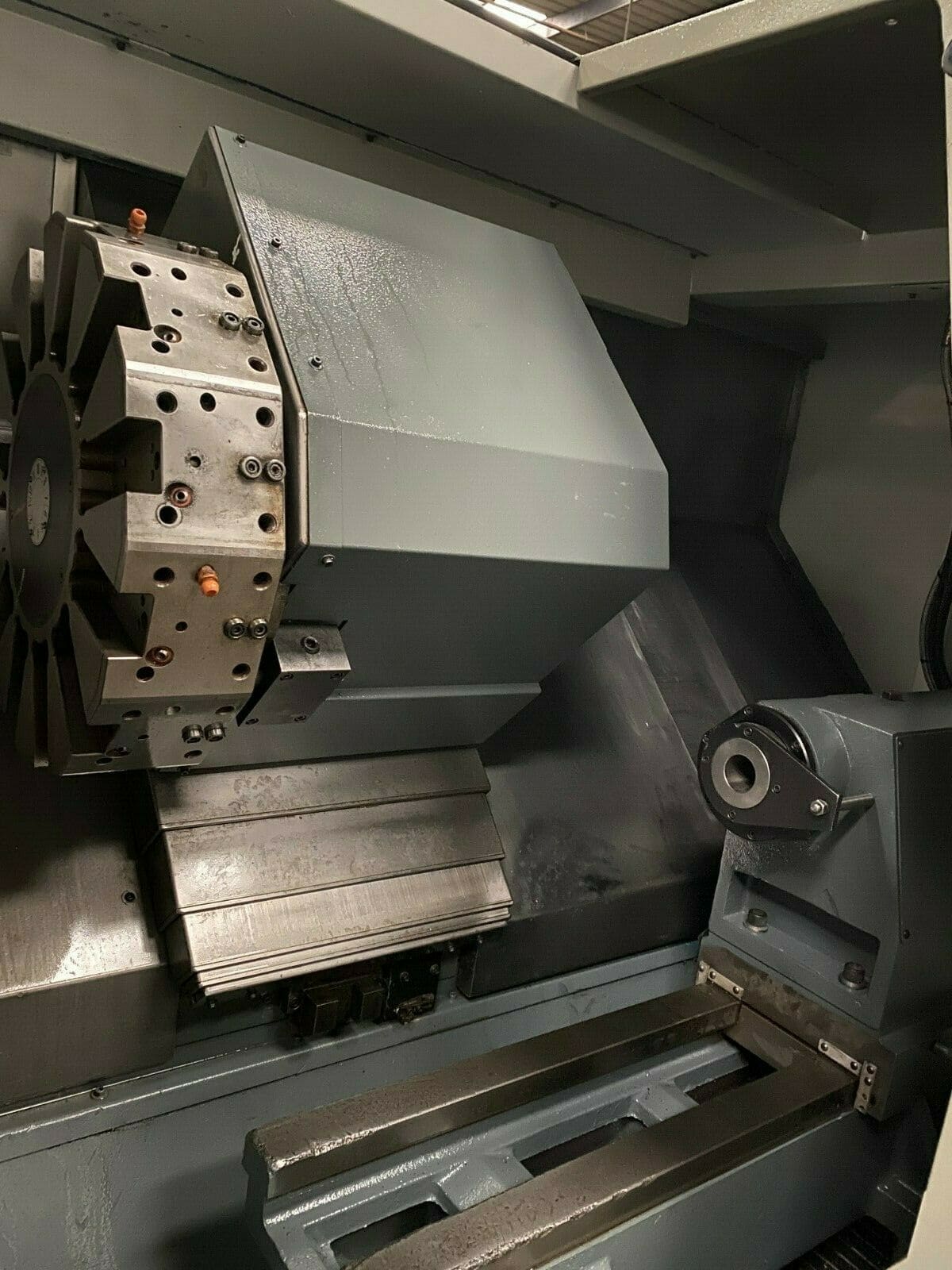

• 12-Station Turret

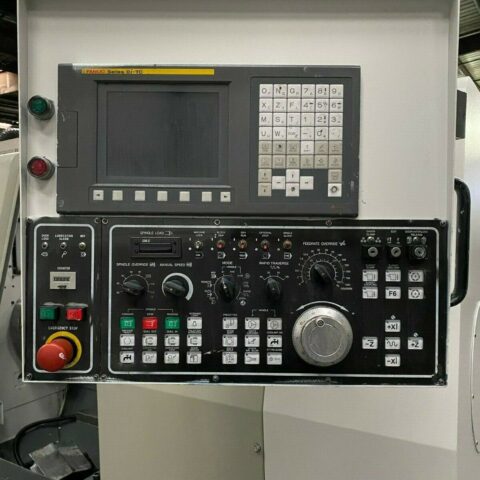

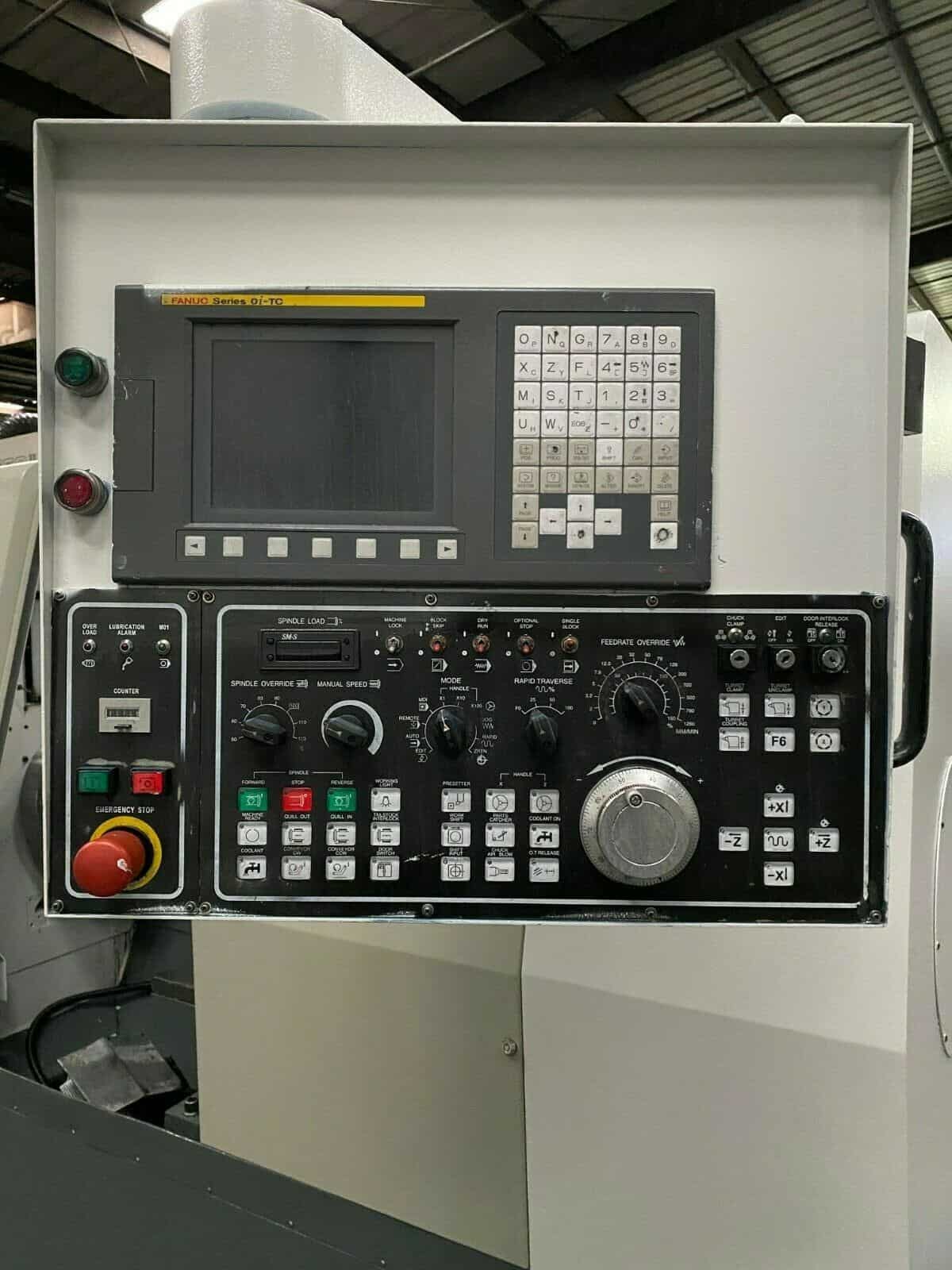

• Fanuc 0i-TC CNC Control
• PCMCIA Card Drive

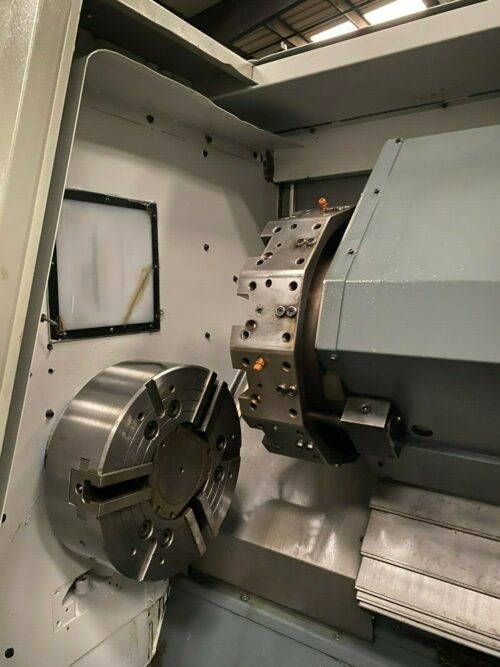

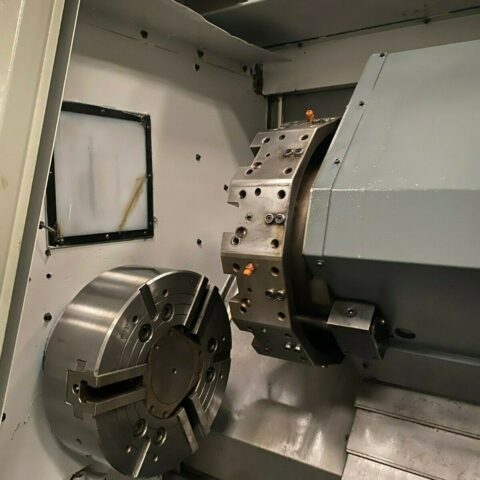

• 15″ Hydraulic Chuck

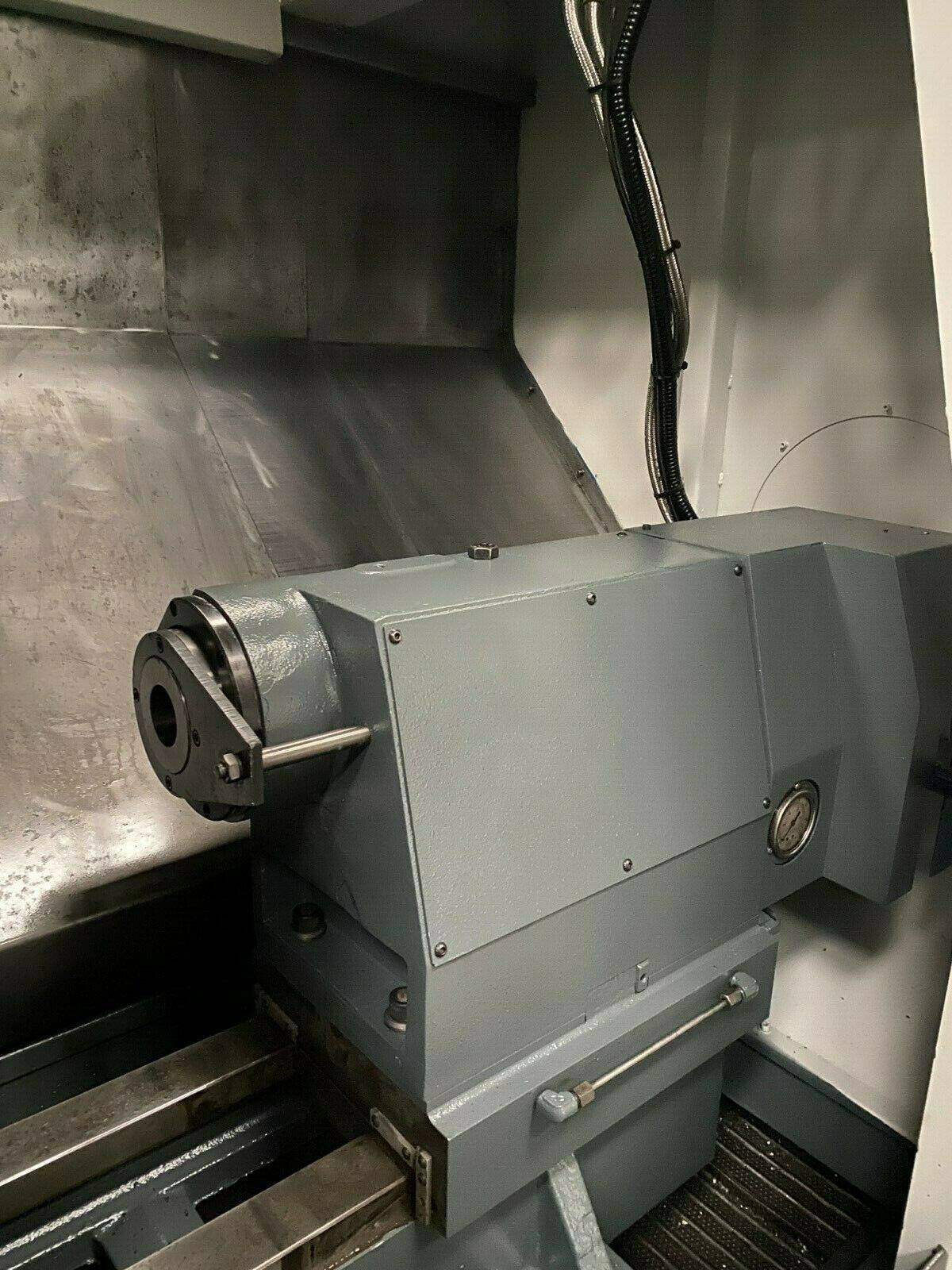

• Hydraulic Tailstock with Power Quill
• Chip Pan and Chip Conveyor
• Coolant System
• Automatic Lubrication system
• Foot Operated Control for Chuck and Tailstock
• Box Way Heavy Duty Construction

• Femco HL-35 CNC Turning Center Specifications:

• Max Turning Diameter: 14.17″
• Max Turning Length: 25.29″
• Max Bar Capacity: 2.95″
• Swing Over Bed: 19.69″
• Distance Between Centers: 26.4″

• Travel:

• X Axis Travel: 9.1″
• Z Axis Travel: 26.59″
• Rapid Traverse X Axis: 472 IPM
• Rapid Traverse Z Axis: 591 IPM

• Spindle:

• Spindle Nose: A2-8
• Spindle Bore: 3.5″
• Spindle Speed: 35-2000 RPM
• Spindle Motor: 25 HP

• Turret:

• Turret Capacity: 12 Stations
• Turret Index Time: 1 Second

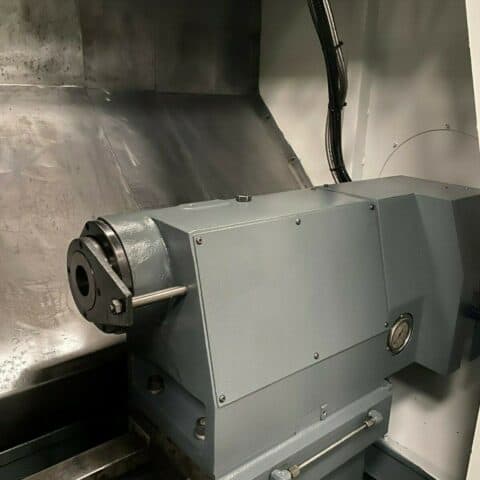

• Tailstock:

• Tailstock Body Travel: 14.3″
• Tailstock Quill Dia.: 3.54″
• Tailstock Quill Stroke: 4.72″
• Tailstock Taper: MT-5

• General:

• Power Source: AC 220 V, Three Phase, 60 Hz
• Power Requirement: 68 Amps
• Overall Dimensions: 126″ x 68″ x 80″ High
• Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
• Weight : 15000 lbs Approx.
