*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Femco |
| Model: | HL-55S |
| Year: | 2014 |
| Machine Type: | CNC Turning Center |

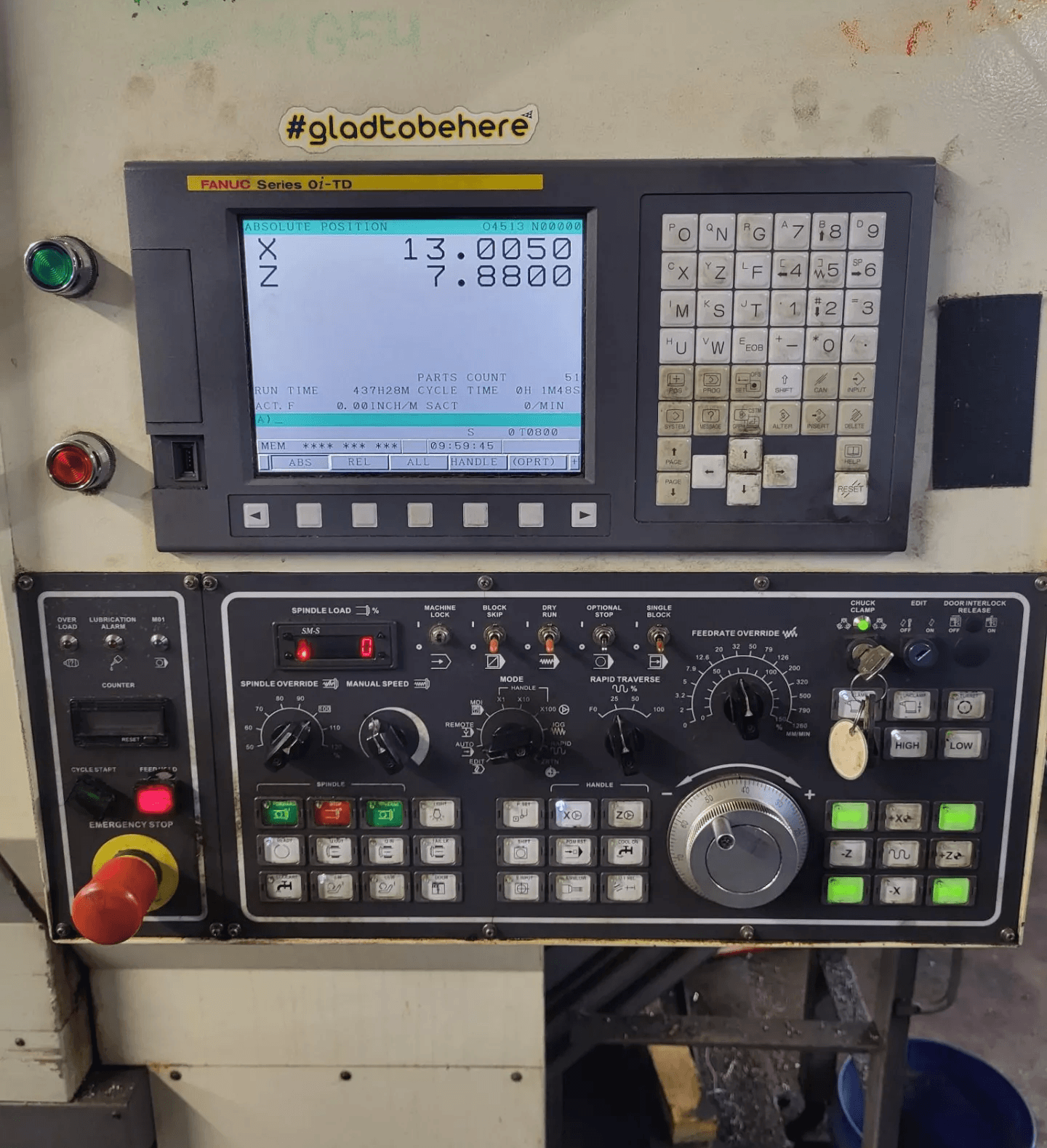

| Control: | Fanuc Series 0i-TD CNC Control |
| Equipped With: |
|---|
| Fanuc Series 0i-TD CNC Control |
| 15″ 3-Jaw Hydraulic Chuck |
| 12 Position Automatic Turret |
| Programmable Tailstock |
| Chip Conveyor |
| Coolant System |
| Automatic Lubrication System |
| Hydraulic System |
| Rigid Tapping |
| Thread Cutting Capability |
| Work Light |
| Foot Pedal Chuck Control |
| Heavy Duty Box Way Construction |
| Manual Guide i |
| MPG Handwheel |
| Tool Holders Included |
| Tooling Included |
| Accessories Included |
| Capacity: |
|---|
| Max Swing Over Bed: 28.6″ |
| Distance Between Centers: 42.0″ |
| Max Turning Diameter: 21.0″ |
| Max Turning Length: 40.0″ |
| Bar Capacity: 4.0″ |
| Spindle Bore: 4.1″ |
| Travels: |
|---|
| X Axis Travel: 12.0″ |
| Z Axis Travel: 43.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 4.1″ |
| Spindle Speed: 2,500 RPM |
| Spindle Motor: 30 HP |
| Chuck Size: 15″ |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Type: Automatic Indexing |
| Tooling Style: Bolt-On Tooling |
| Tailstock: |
|---|
| Tailstock Type: Programmable |
| Tailstock Included: Yes |
| Tailstock Taper: MT-5 |
| General: |
|---|
| Power Source: 220V / 3-Phase / 60 Hz |
| Machine Dimensions: Approx. 145″ x 80″ x 82″ High |
| Machine Weight: Approx. 15,500 lbs |
