*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

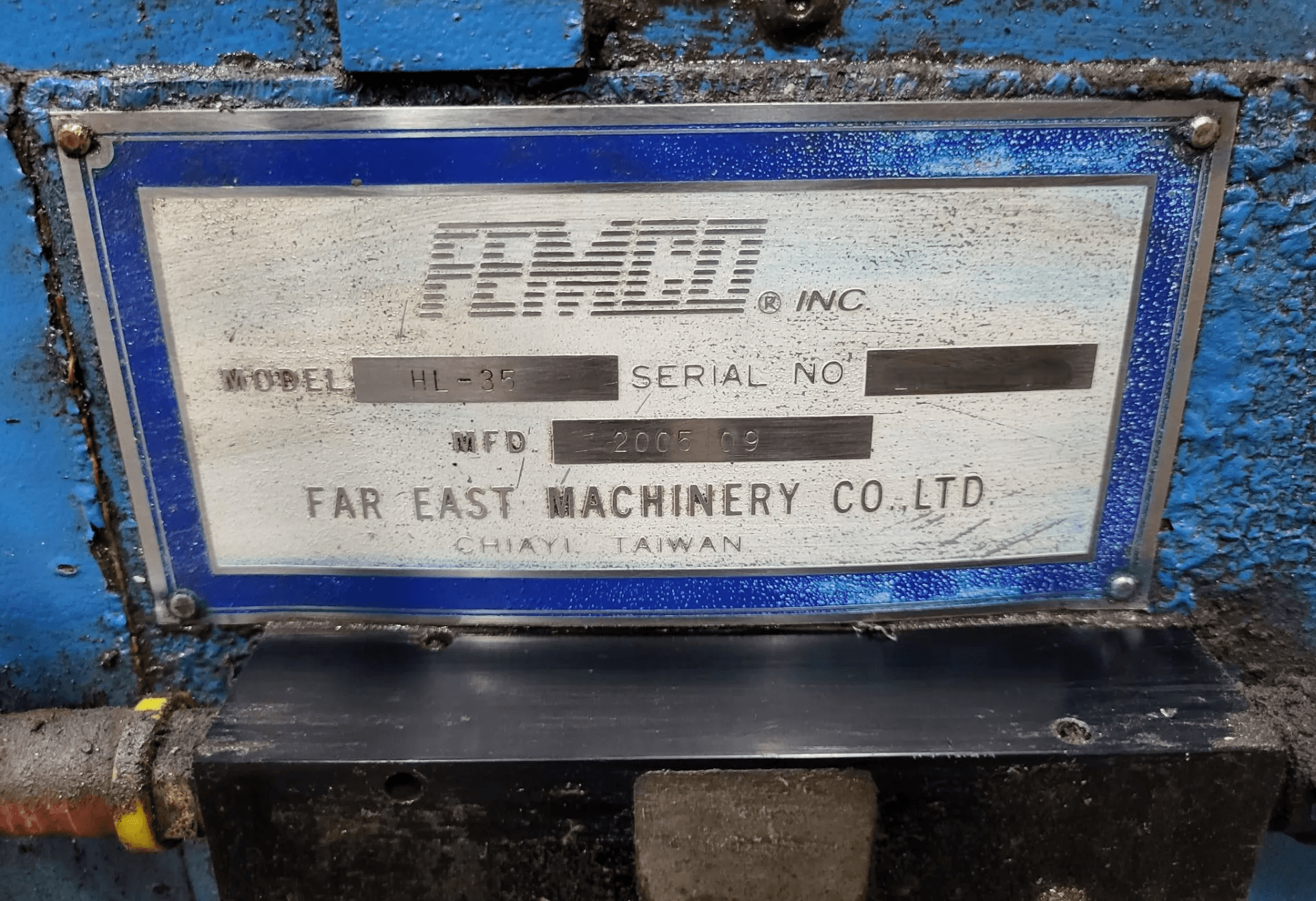

| Make: | Femco |
| Model: | HL-35 |
| Year: | 2005 |
| Machine Type: | CNC Turning Center |

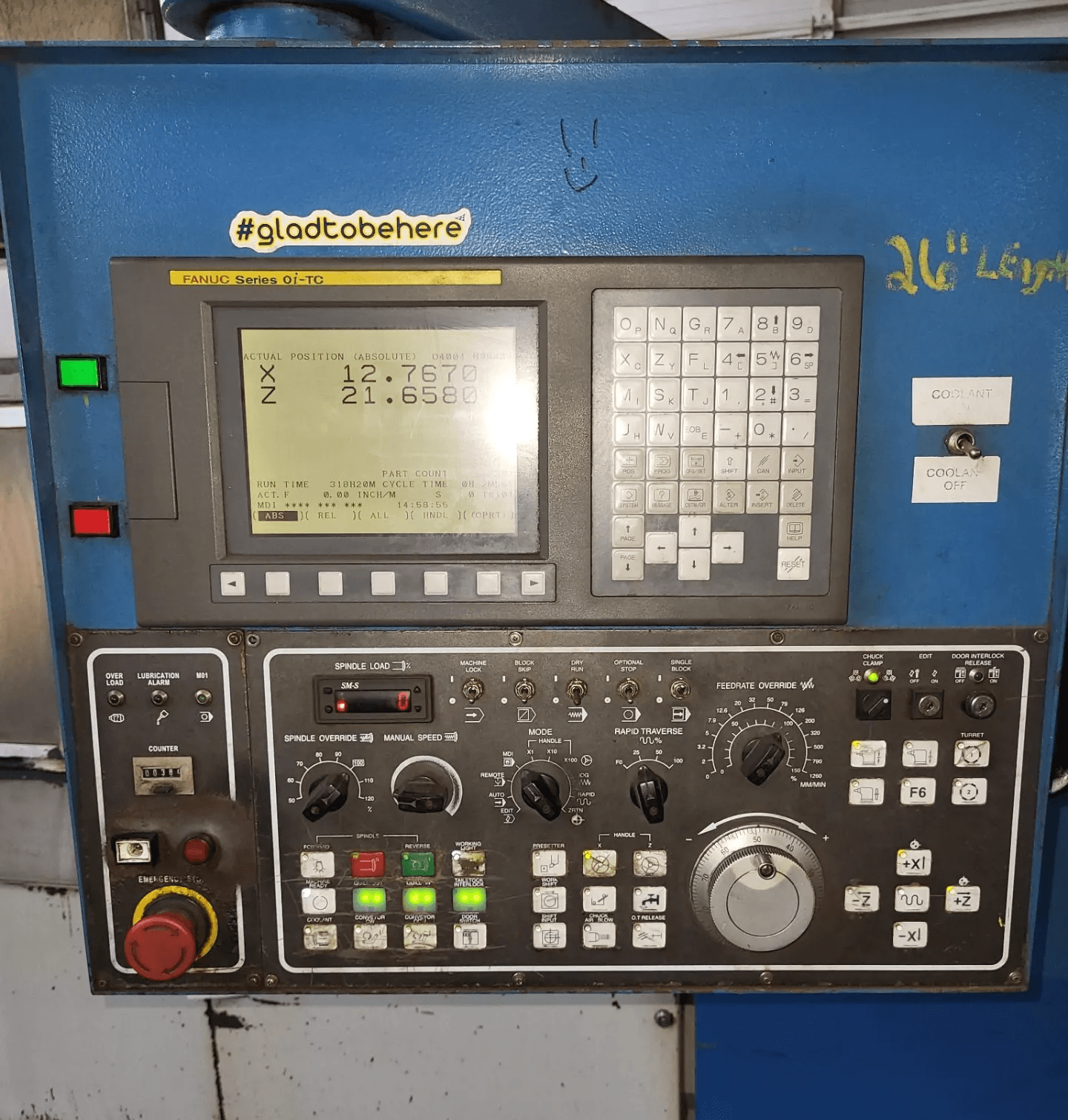

| Control: | FANUC Series Oi-TC CNC Control |
| Equipped With: |
|---|
| FANUC Series Oi-TC CNC Control |

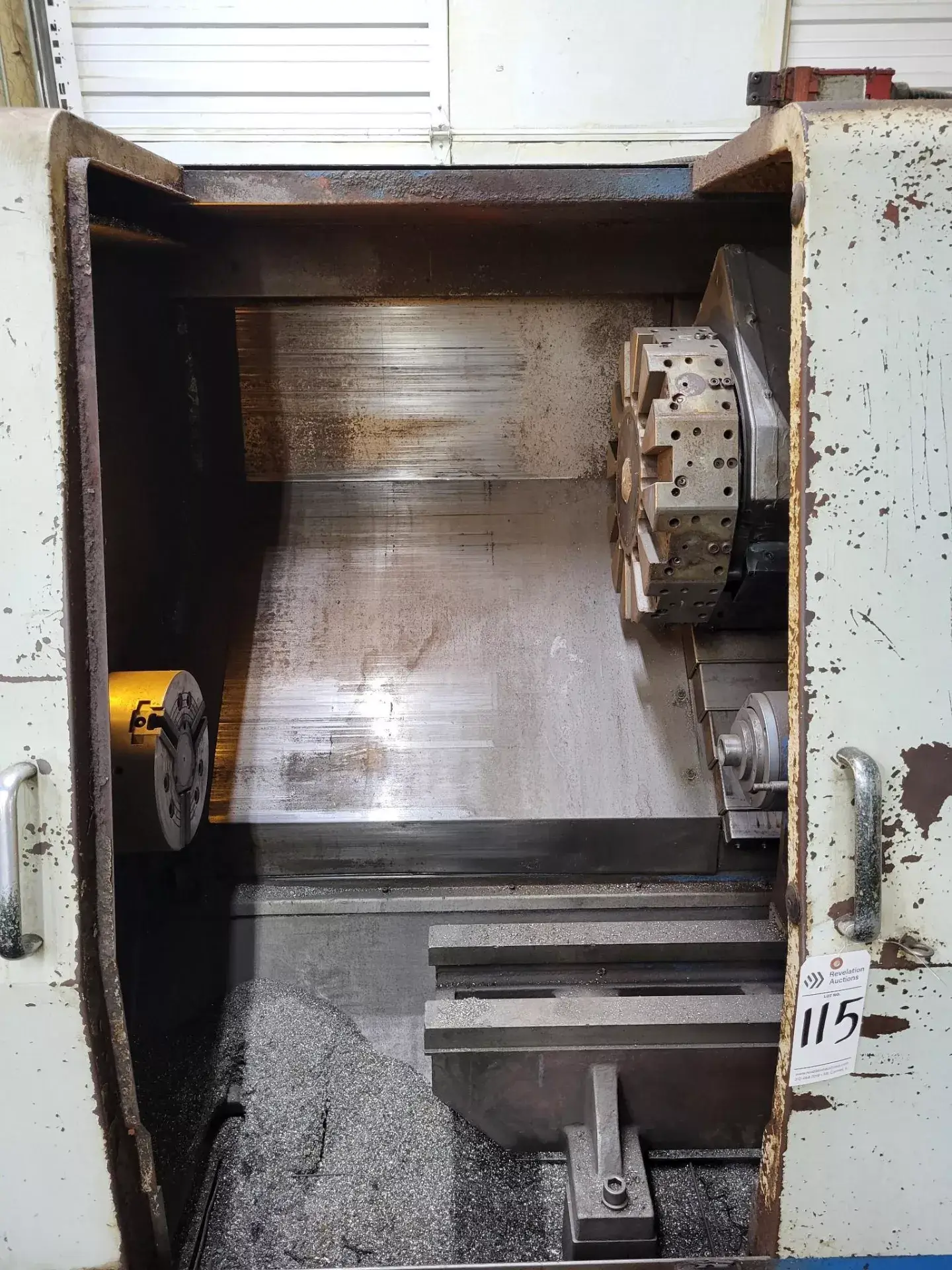

| 12-Position Turret |
| 10″ 3-Jaw Hydraulic Chuck |
| Tailstock |
| Chip Conveyor |
| Coolant System |
| Foot Pedal Control |
| Automatic Lubrication System |
| Fully Enclosed Guarding |
| Work Light |
| Capacity: |
|---|
| Max Turning Diameter : 14.17″ |
| Max Turning Length : 25.29″ |
| Max Bar Capacity : 2.95″ |
| Swing Over Bed : 19.69″ |
| Distance Between Centers : 26.4″ |
| Travels: |
|---|
| X Axis Travel : 9.1″ |
| Z Axis Travel : 26.59″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis : 472 IPM |
| Rapid Traverse Z Axis : 591 IPM |
| Spindle: |
|---|
| Spindle Nose : A2-8 |
| Spindle Bore : 3.5″ |
| Spindle Speed : 35 – 2000 RPM |
| Spindle Motor : 25 HP |
| Chuck Size : 10″ |
| Turret: |
|---|
| Turret Capacity : 12 Stations |
| Turret Index Time : 1 Second |
| Tailstock: |
|---|
| Tailstock Body Travel : 14.3″ |
| Tailstock Quill Diameter : 3.54″ |
| Tailstock Quill Stroke : 4.72″ |
| Tailstock Taper : MT-5 |
| General: |
|---|
| Power Source : AC 220V / 3-Phase / 60 Hz |
| Power Requirement : 68 Amps |
| Machine Dimensions : 126″ x 68″ x 80″ High |
| Machine Weight : 15,000 LBS Approx. |
| Machine Origin : Taiwan |
