*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Femco |
| Model No.: |
HL-55S |
| Year of Manufacture: |
2008 |
| Machine Type: |
CNC Turning Center |

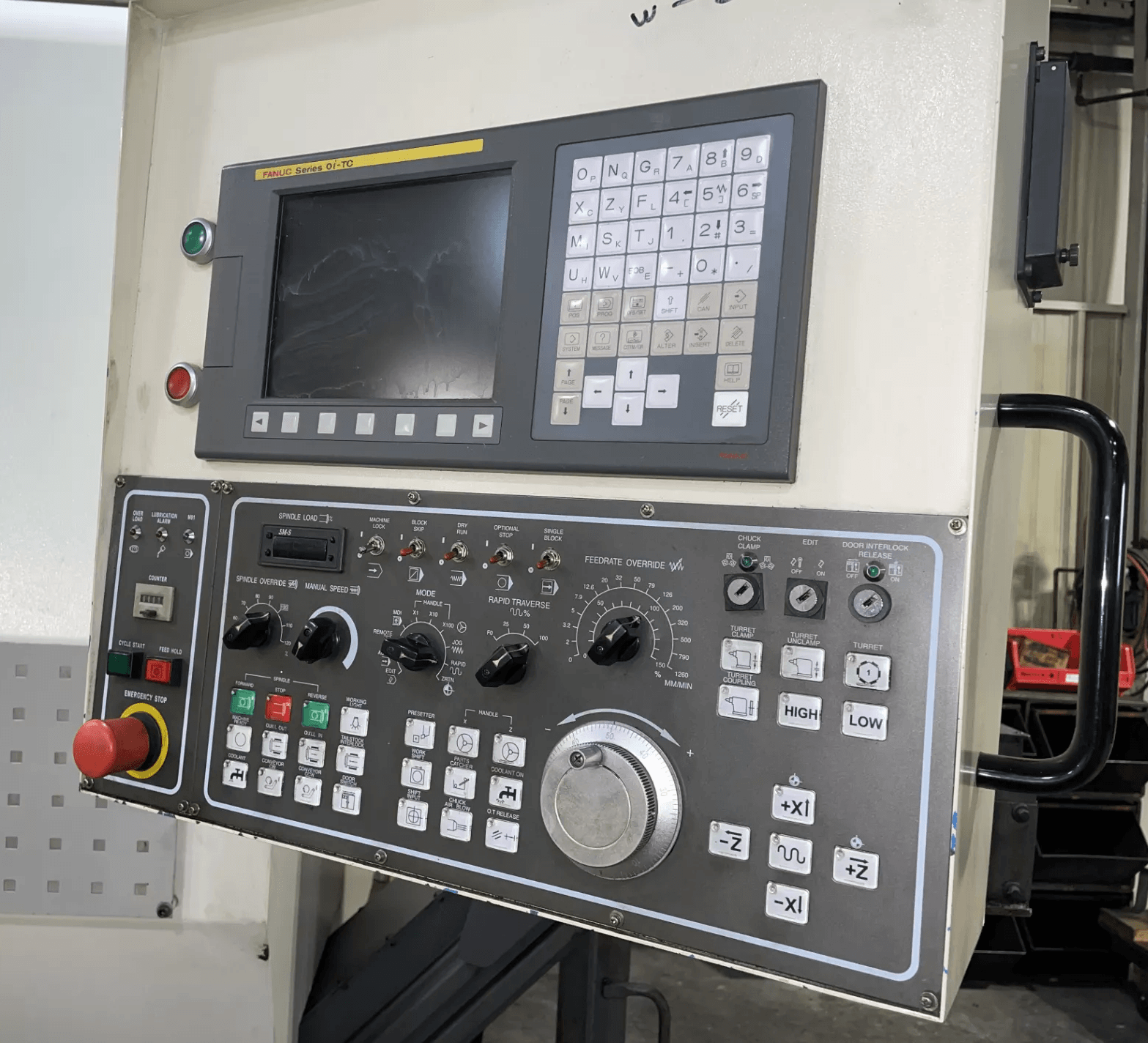

| CNC Control: |
Fanuc 0i-TC / 0i-TD |
| Country of Origin: |
Taiwan |
| Equipped With: |
| Fanuc 0i-TC CNC Control |
| 15″ Hydraulic 3-Jaw Chuck |
| 12-Station Turret |
| Programmable Hydraulic Tailstock |
| Heavy Duty Box Way Construction |
| Two-Speed Gearbox |
| Chip Conveyor System |
| Flood Coolant System |
| Manual Pulse Generator (Handwheel) |
| Fully Enclosed Guarding |
| High Torque Turning Capability |
| Capacity: |
| Max Swing Over Bed: ~28″ (711 mm) |
| Max Turning Diameter: ~24–25″ (610–635 mm) |
| Max Turning Length: ~42″–78″ |
| Bar Capacity: ~4.5″–4.7″ |
| Spindle: |
| Spindle Speed: Up to 2,500 RPM |
| Spindle Motor: ~30–35 HP |
| Spindle Nose: A2-11 |
| Spindle Bore: ~5.0″–5.2″ |
| Turret: |
| Turret Capacity: 12 Stations |
| Travels: |
| X-Axis Travel: ~13.3″ |
| Z-Axis Travel: ~49″–78″ |
| Electrical: |
| Power Requirement: 220V / 3 Phase / 60 Hz |
| General: |
| Machine Weight: ~17,000–18,000 lbs |
