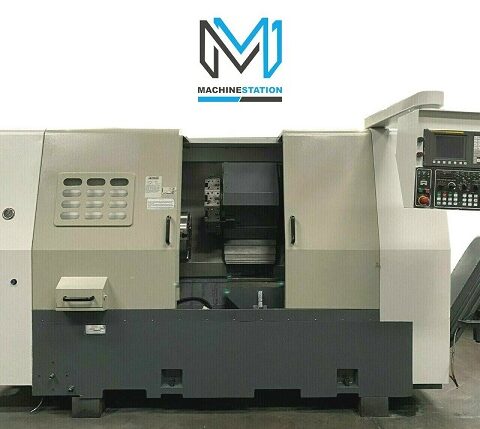

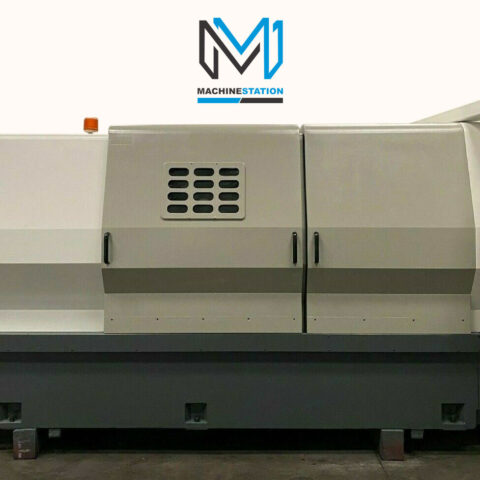

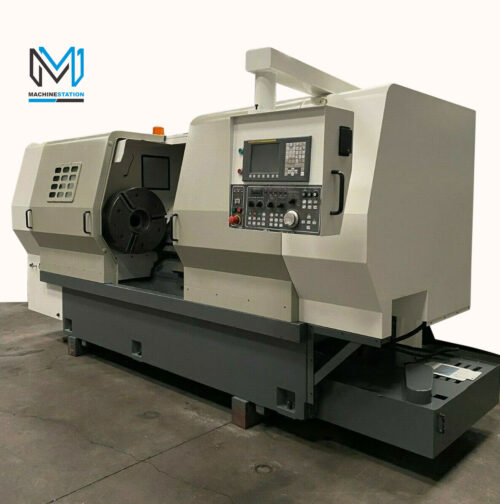

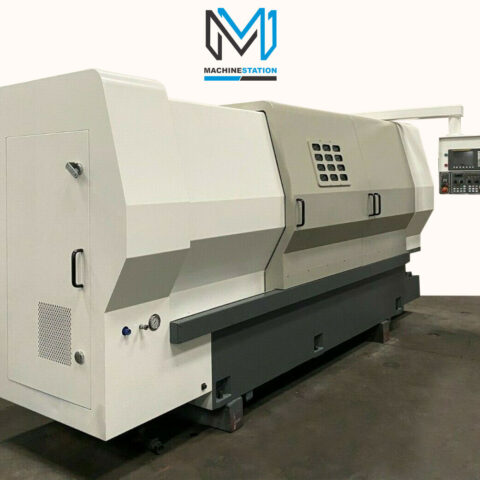

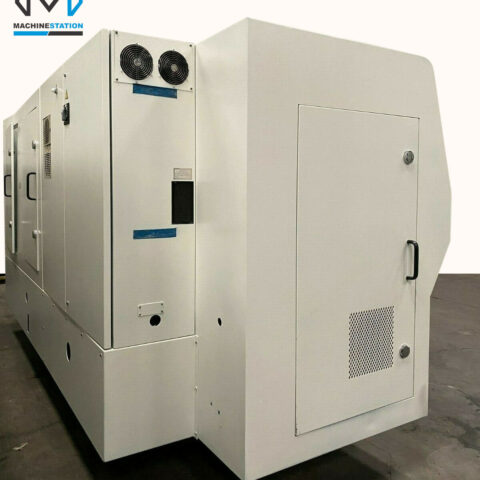

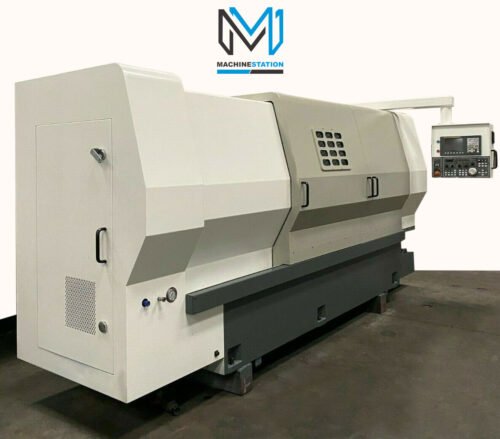

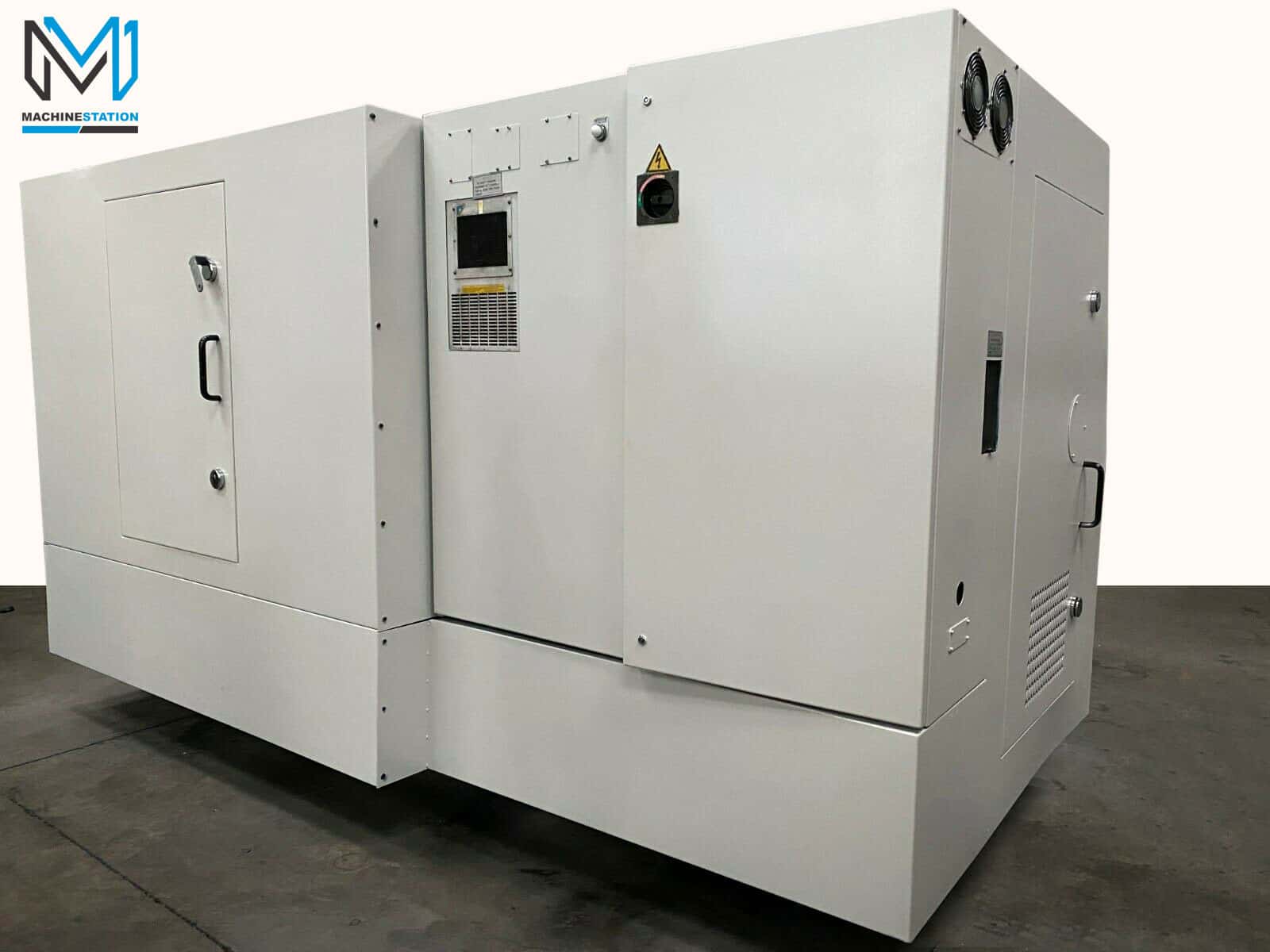

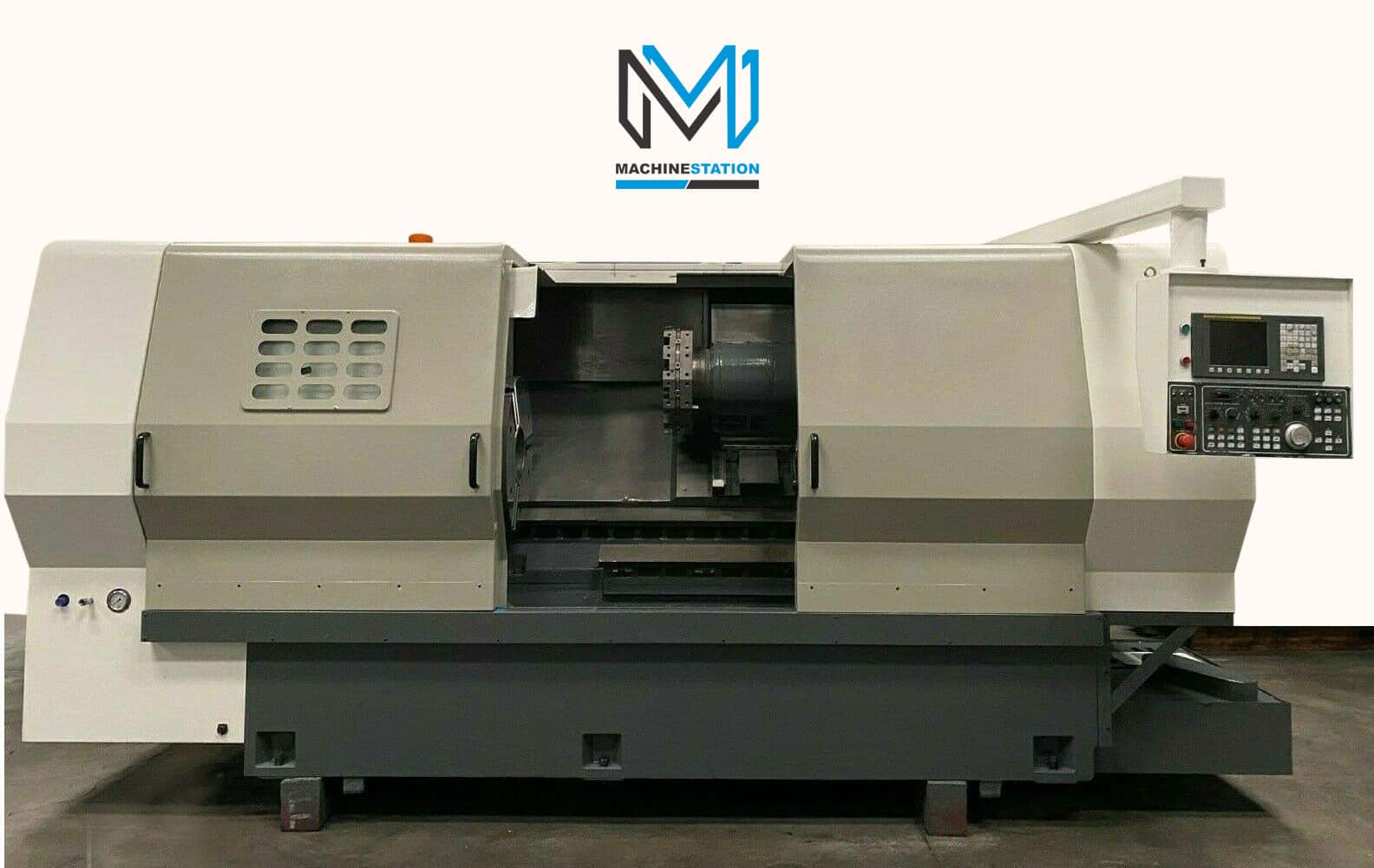

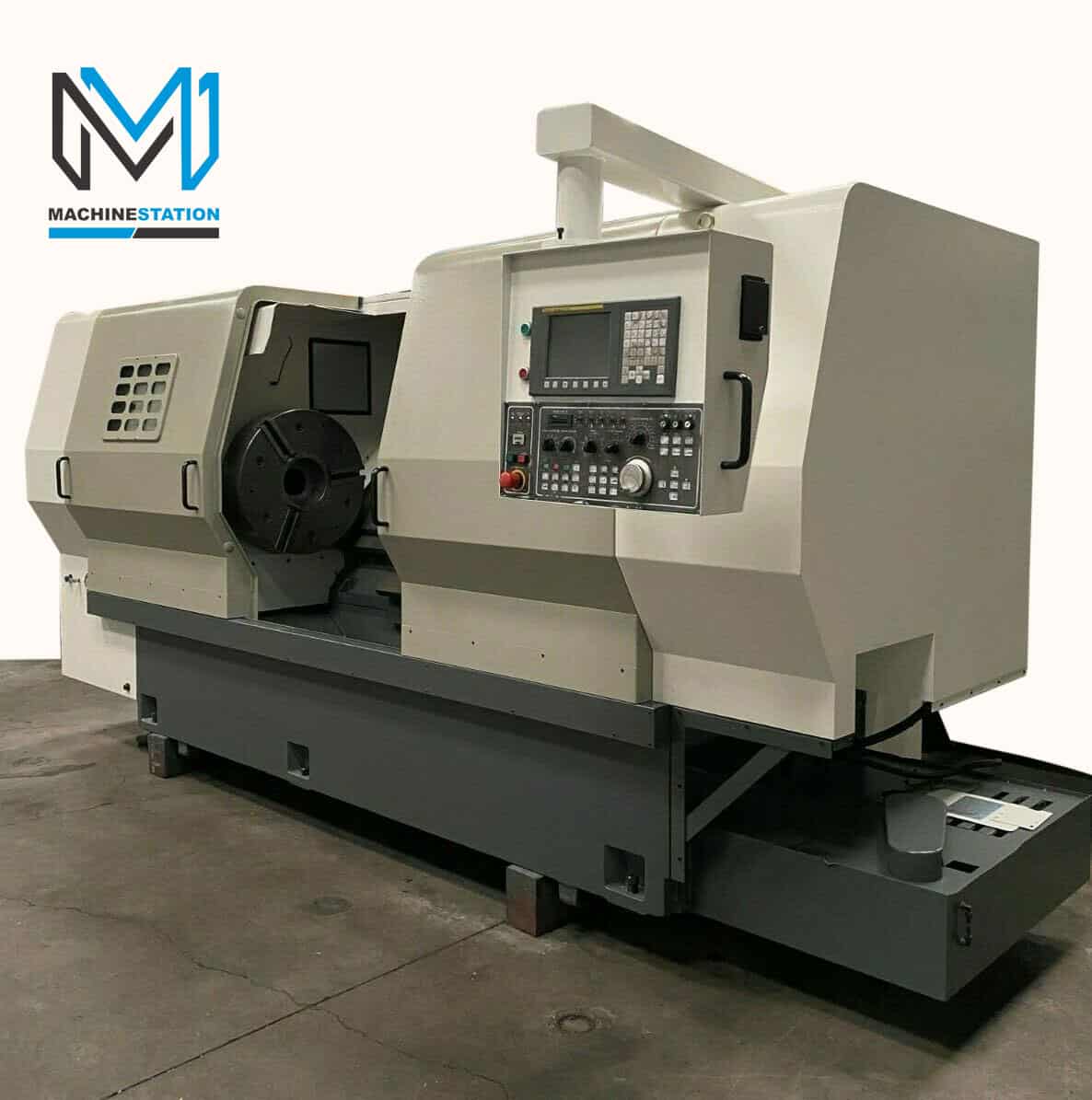

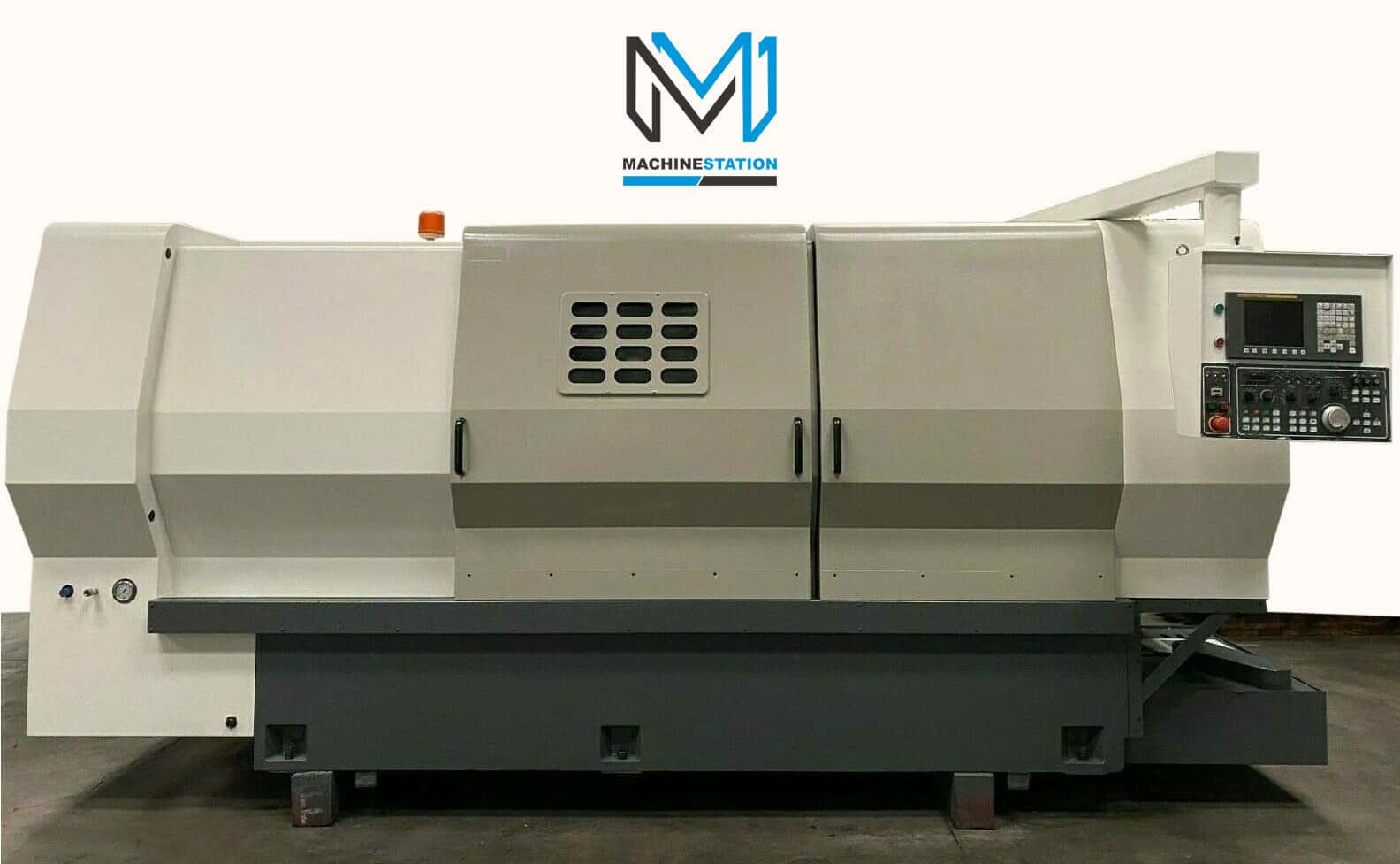

Femco HL-55S CNC Turning Center

All specifications are approximations and are subject to verification.

• Femco HL-55S CNC Turning Center  Equipped With:

• 12-Station Turret

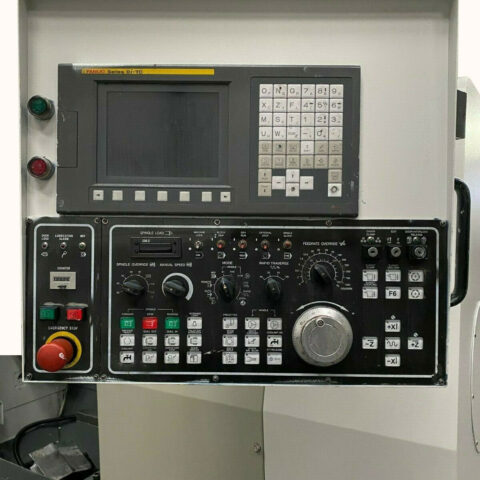

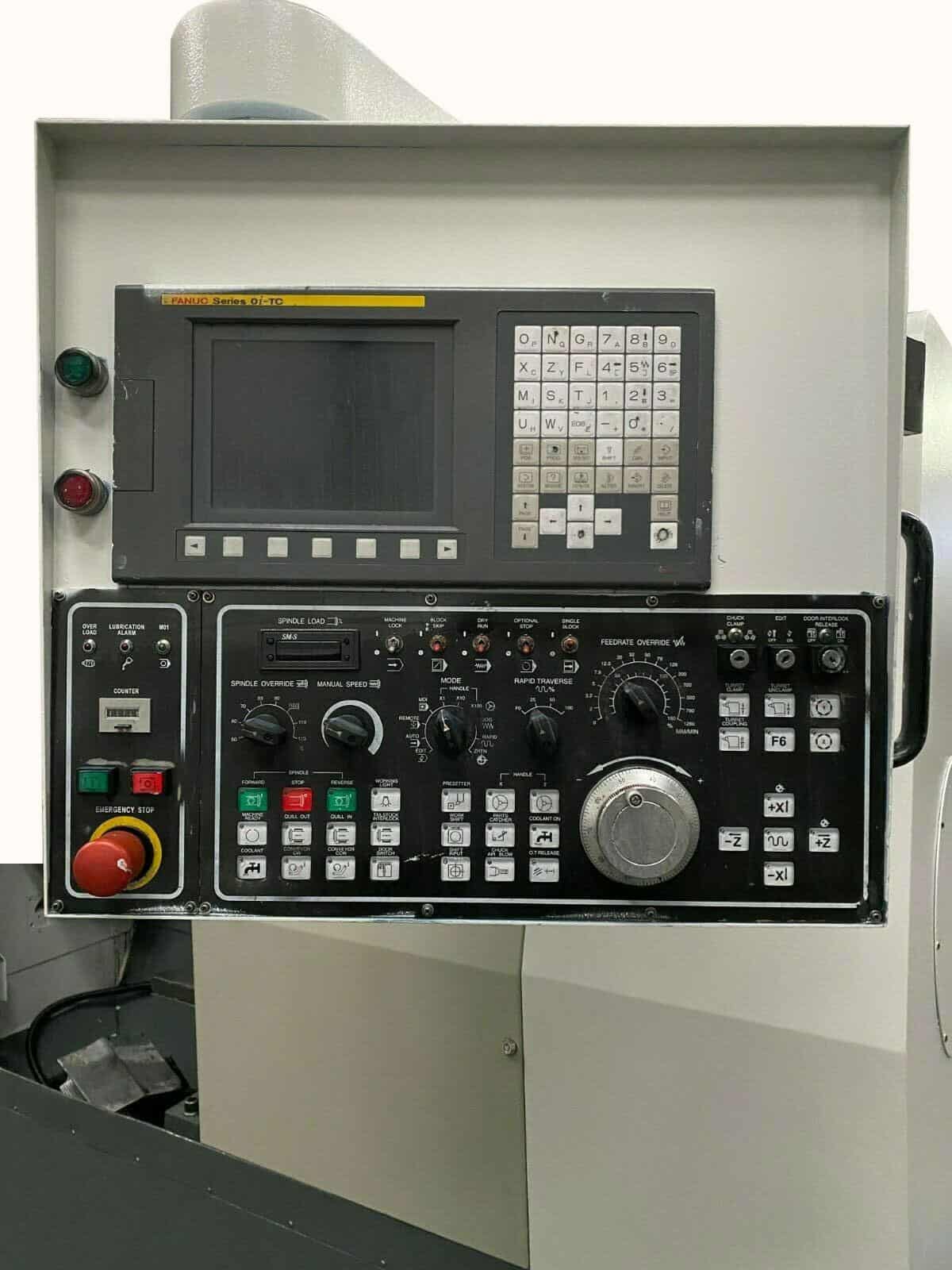

• Fanuc 0i-TC CNC Control
• PCMCIA Card Drive
• 24″ Hydraulic Chuck
• Hydraulic Tailstock with Power Quill
• Chip Pan
• Coolant System
• Automatic Lubrication system
• Foot Operated Control for Chuck and Tailstock
• Box Way Heavy Duty Construction

• Femco HL-55S CNC Turning Center Specifications:

• Max Turning Diameter: 25.4″
• Max Turning Length: 42.12″
• Max Bar Capacity: 4.65″
• Swing Over Bed: 28.4″
• Distance Between Centers: 46.4″

• Travel:

• X Axis Travel: 13.4″
• Z Axis Travel: 47.6″
• Rapid Traverse X Axis: 472 IPM
• Rapid Traverse Z Axis: 591 IPM

• Spindle:

• Spindle Nose: A2-11
• Spindle Bore: 5.2″
• Spindle Speed: 25-2000 RPM
• Spindle Motor: 35 HP

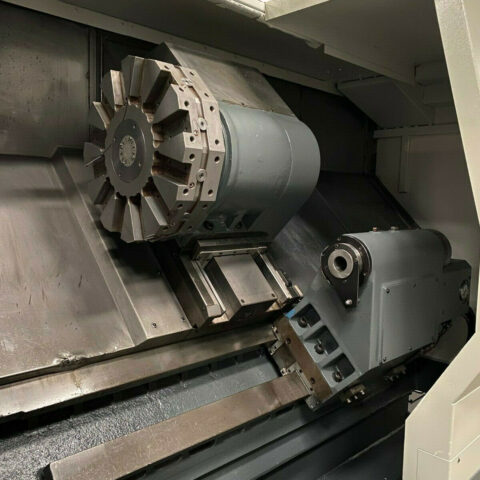

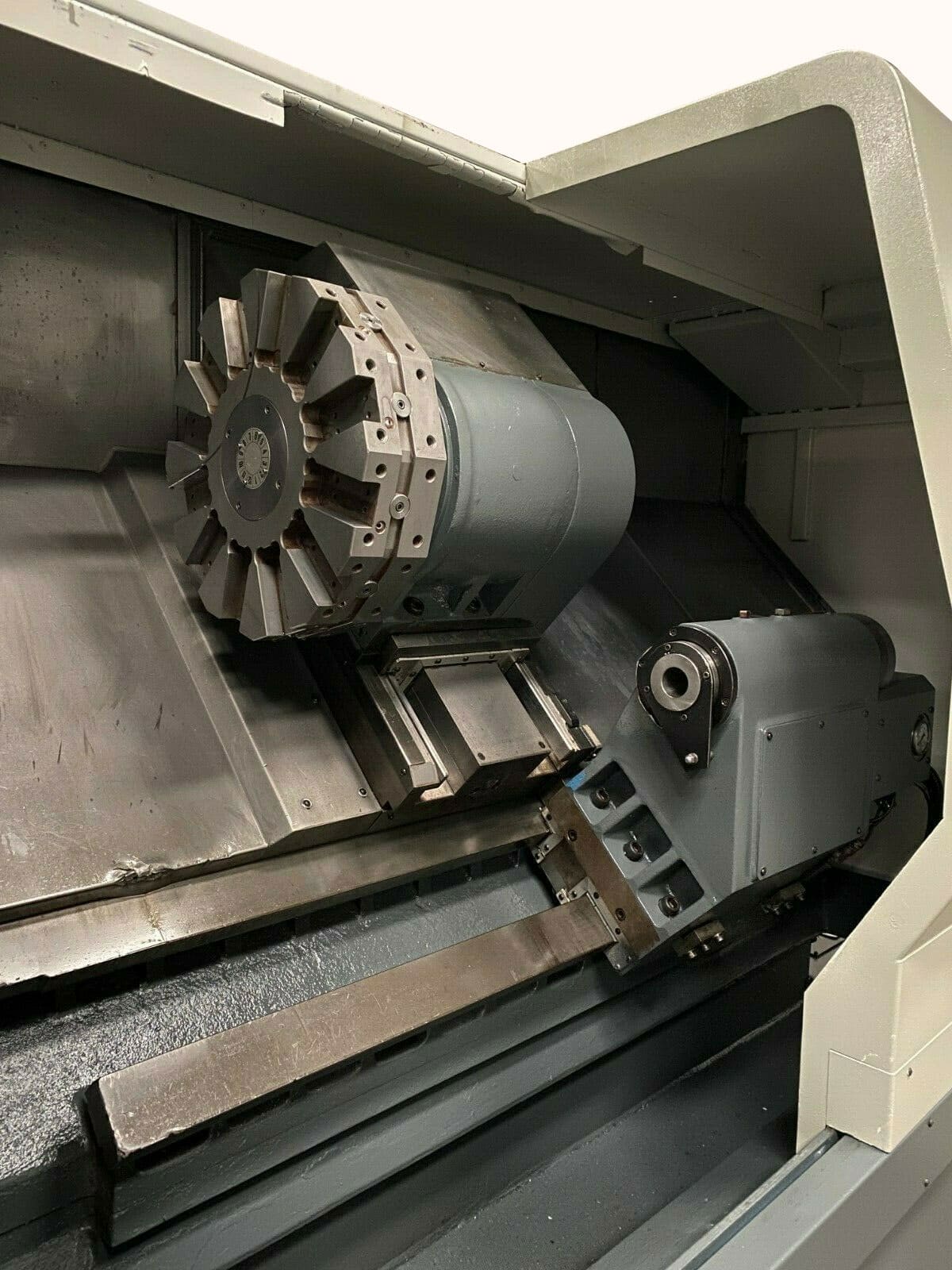

• Turret:

• Turret Capacity: 12 Stations
• Turret Index Time: 1 Second

• Tailstock:

• Tailstock Body Travel: 14.3″
• Tailstock Quill Dia.: 3.54″
• Tailstock Quill Stroke: 4.72″
• Tailstock Taper: MT-5

• General:

• Power Source: AC 220 V, Three Phase, 60 Hz
• Power Requirement: 68 Amps
• Overall Dimensions: 126″ x 68″ x 80″ High
• Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
• Weight : 17500 lbs Approx.
