*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

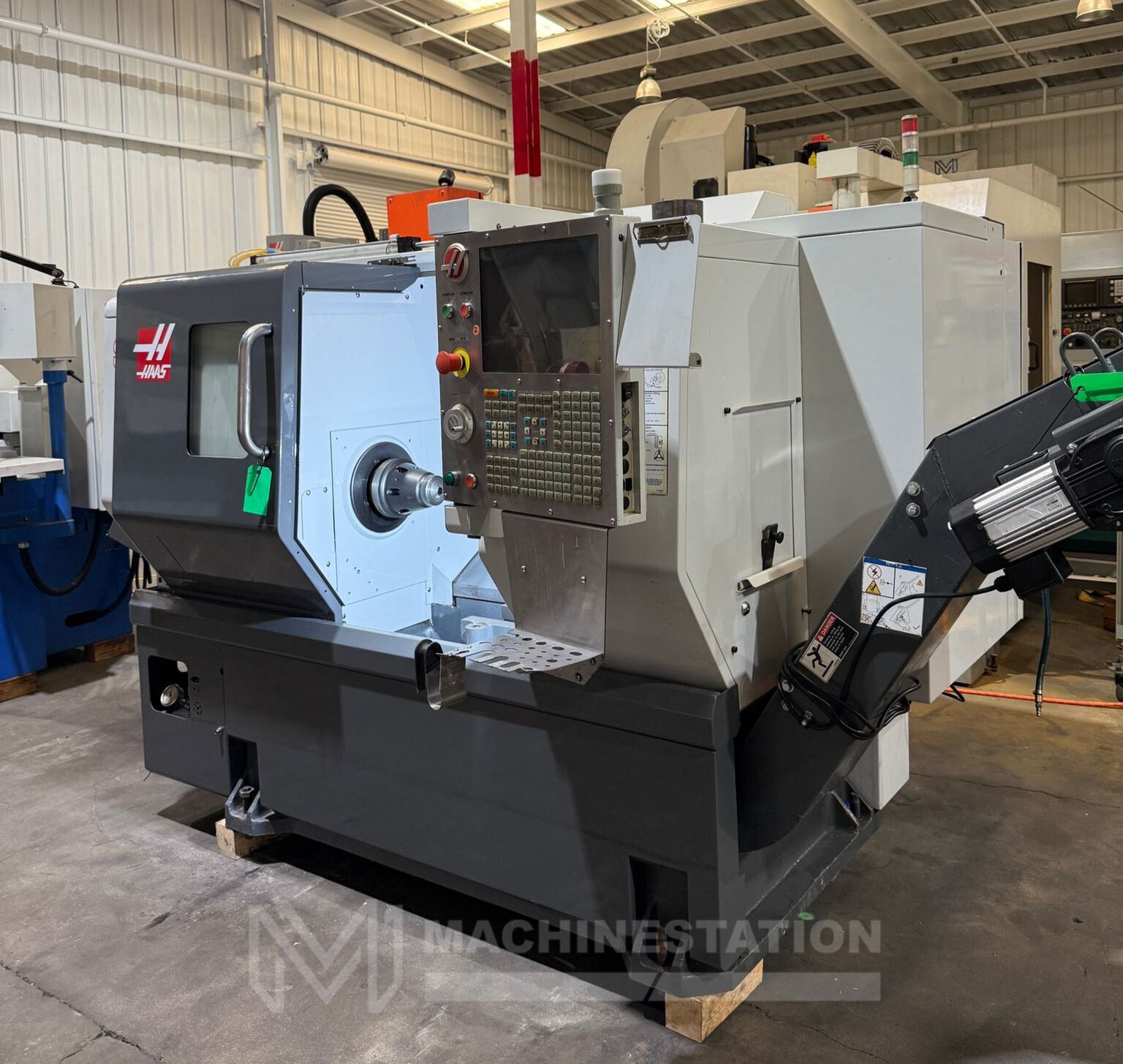

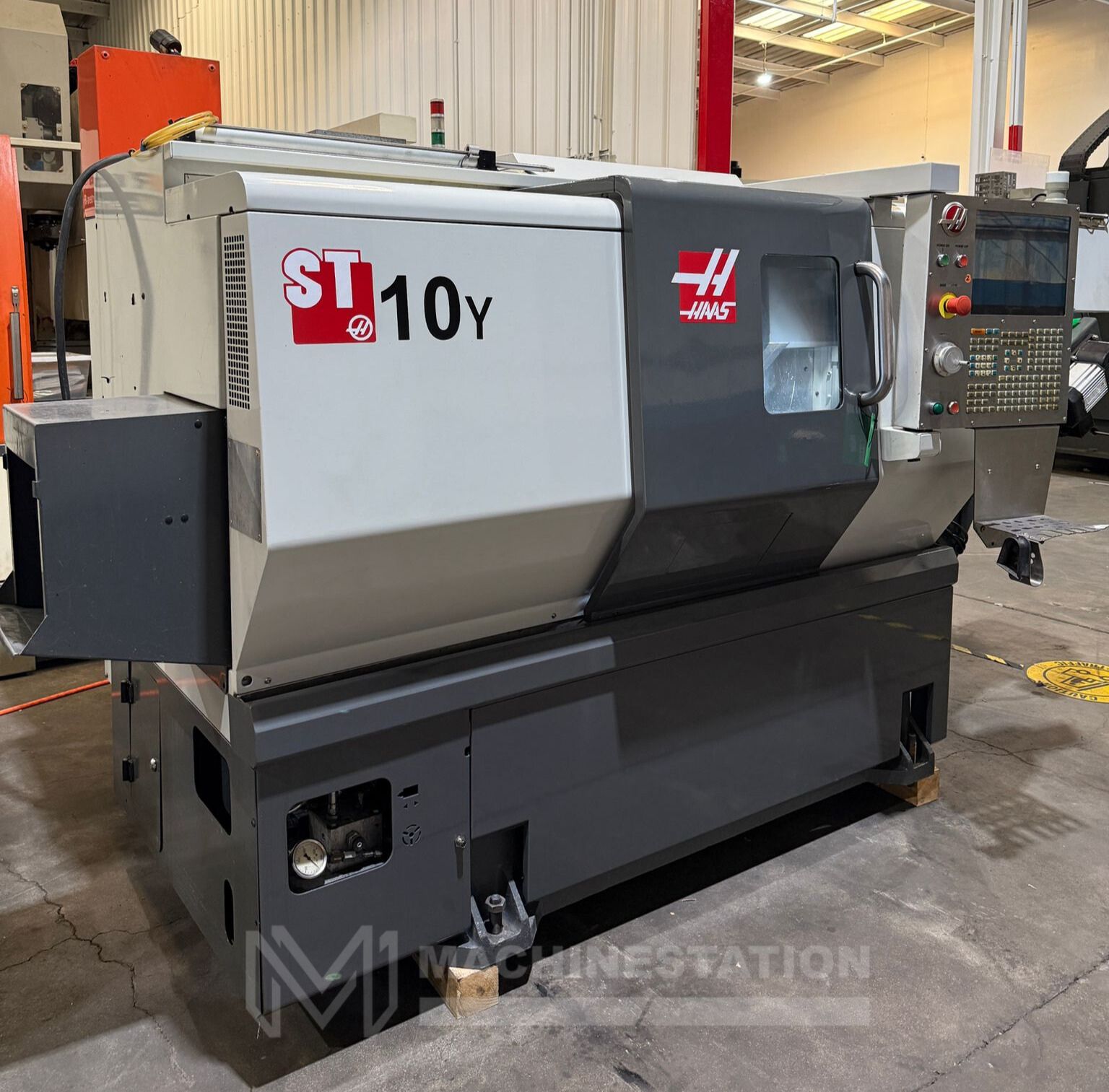

| Make: | Haas |
| Model: | ST-10Y |

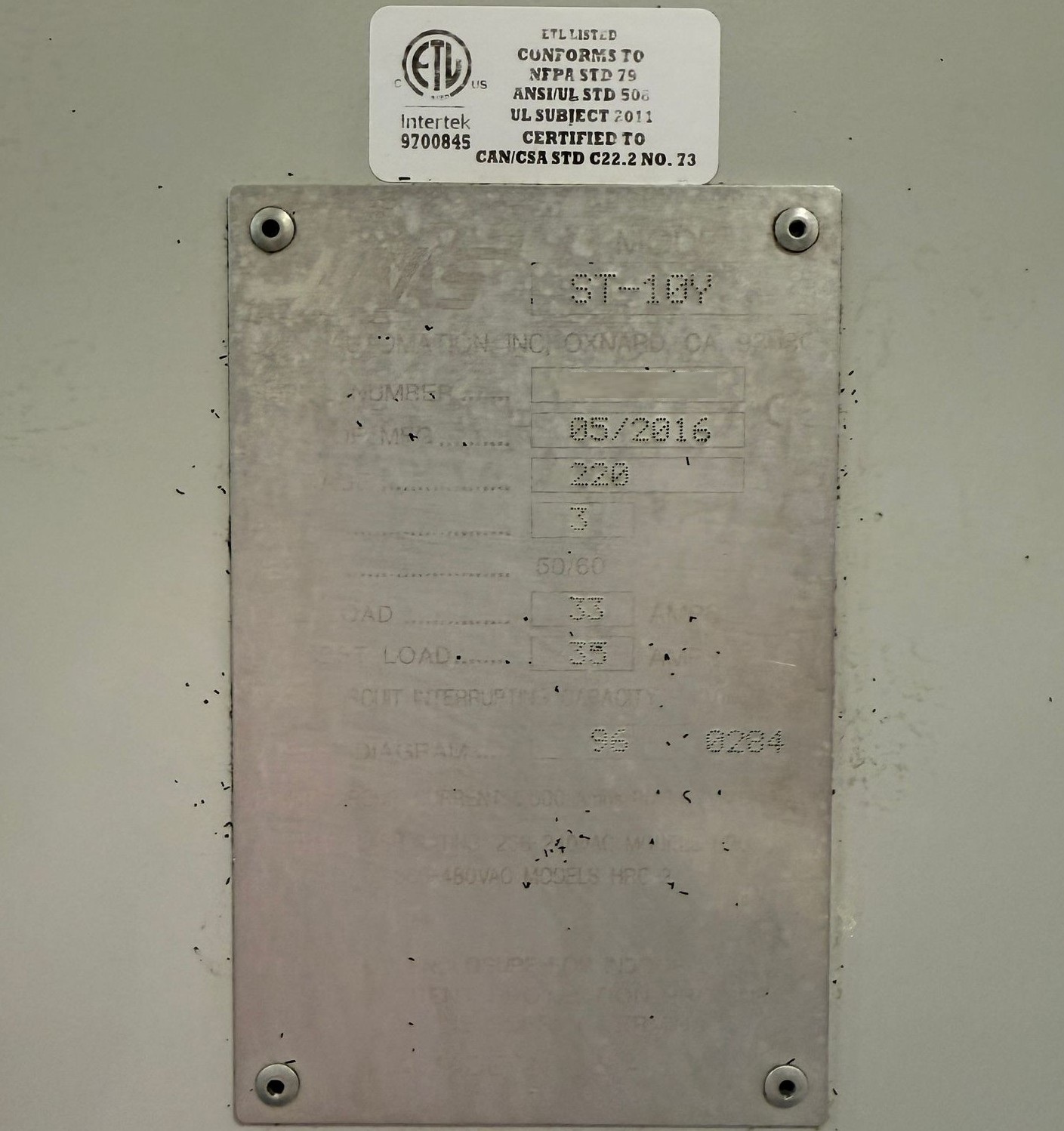

| Year: | 2016 |
| Condition: | Used – Good |
| Equipped With: |
|---|

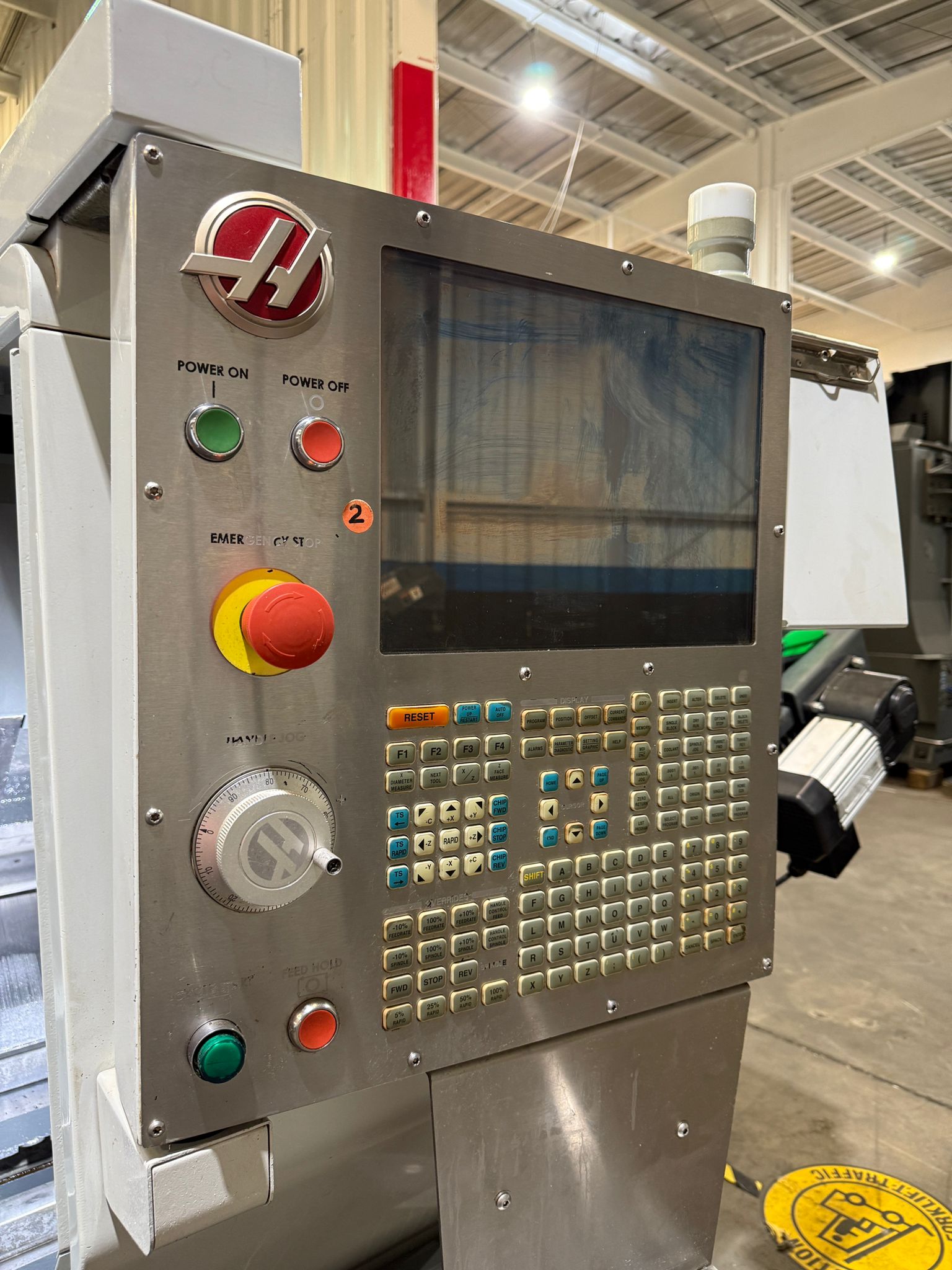

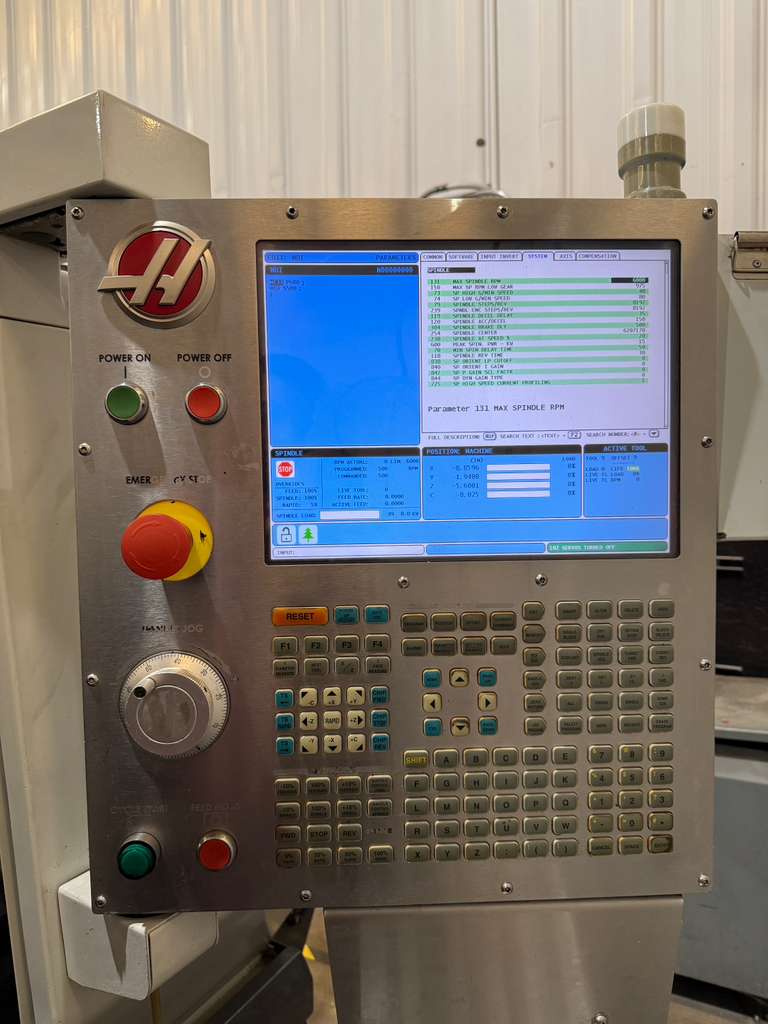

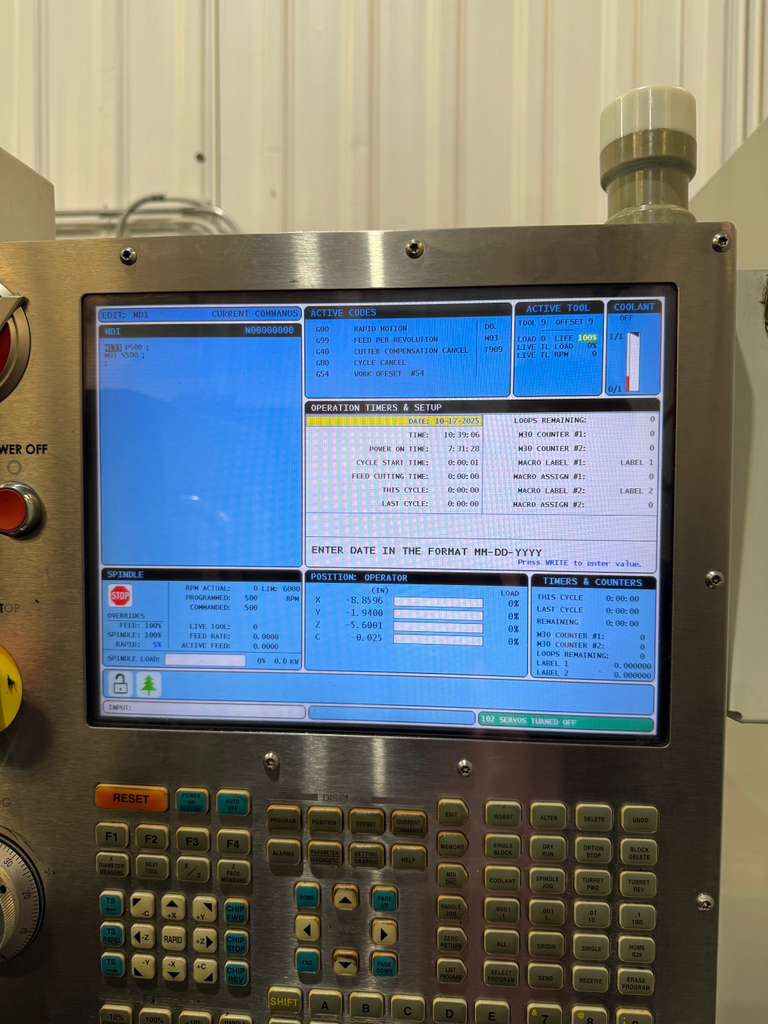

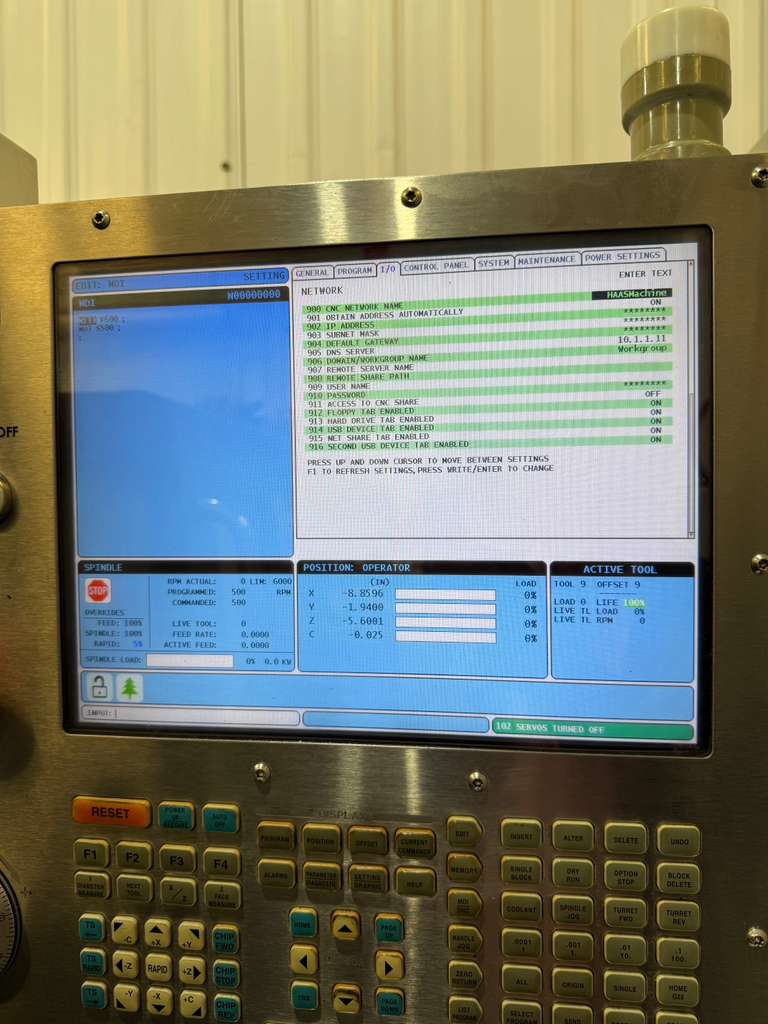

| Haas CNC Control |

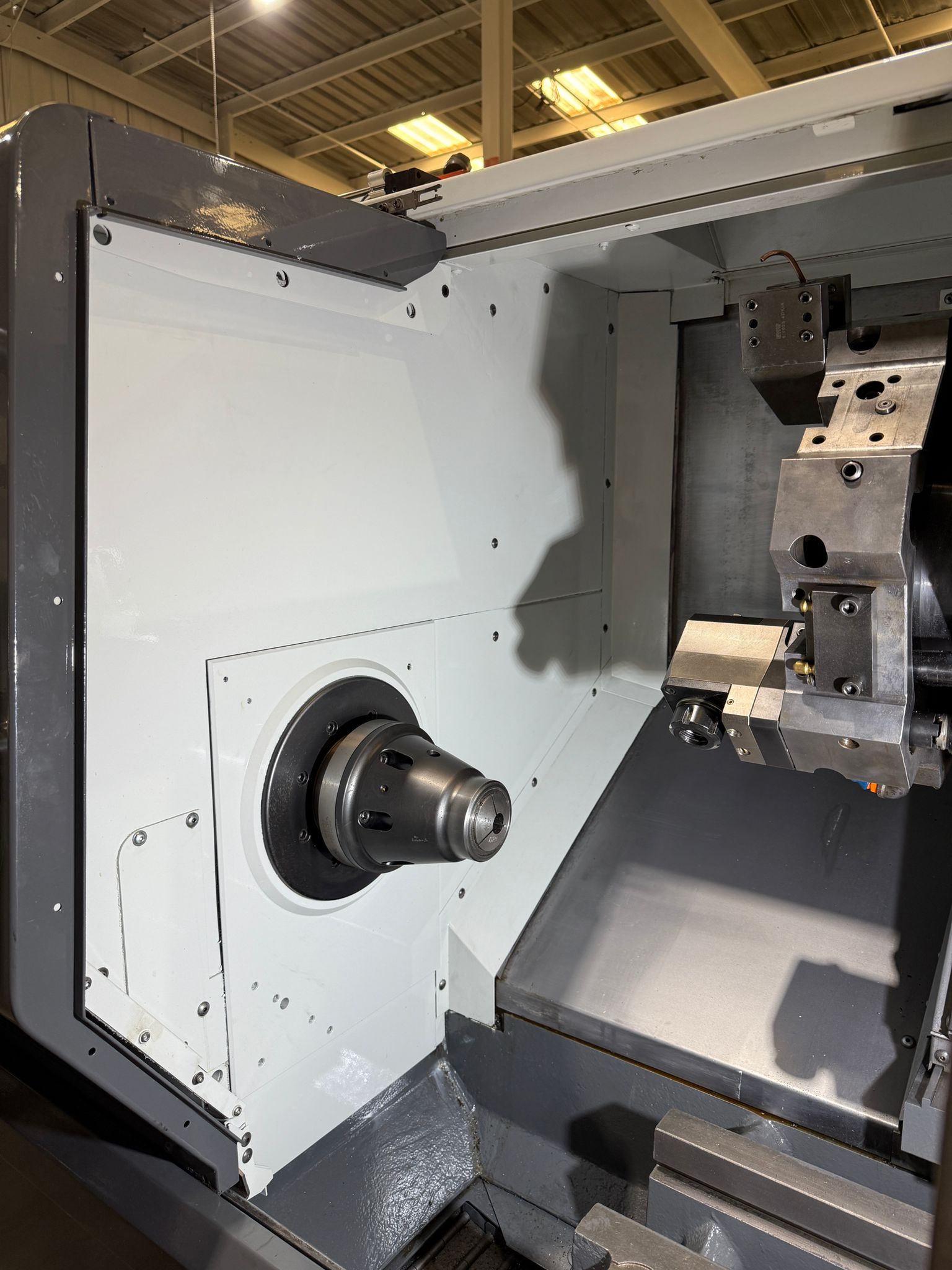

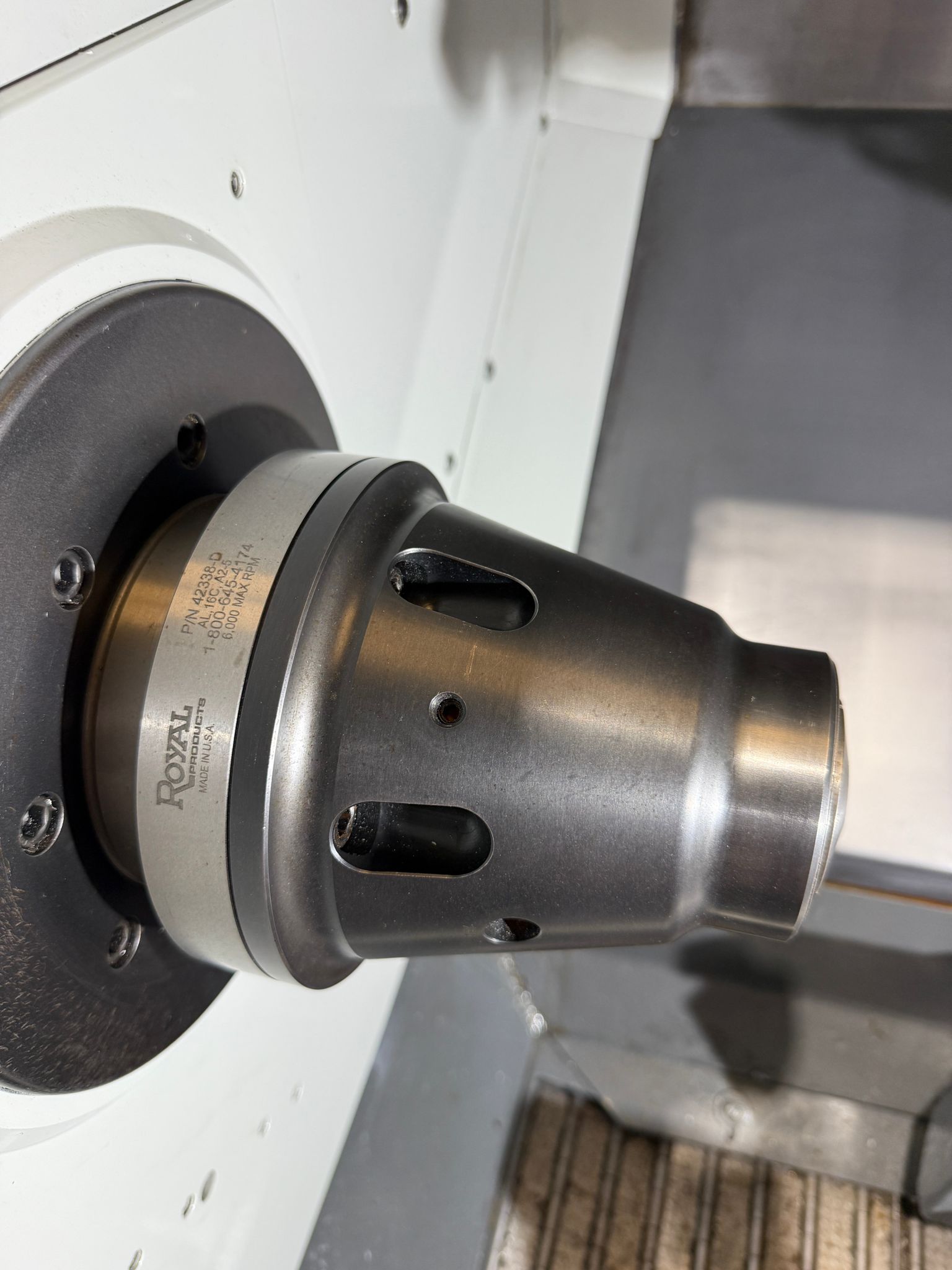

| Royal AL 16C A2-5 Collet Nose (Capable 6″ Chuck) |

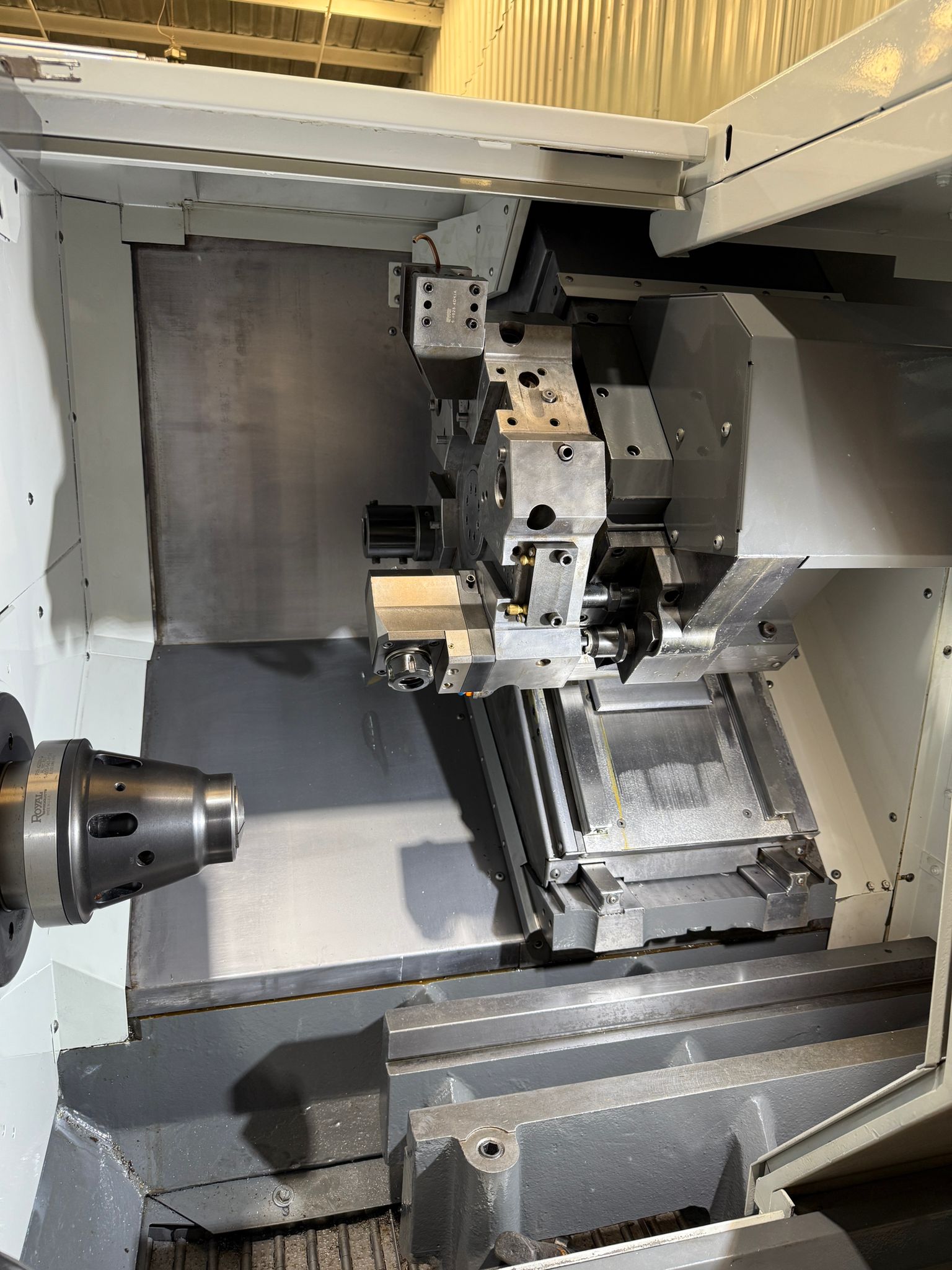

| 12 Station Live Tool Turret |
| Y Axis on Turret |
| C Axis on Spindle |
| Visual Part Programming System |
| User Definable Macros |
| Rigid Tapping |
| Coolant System |

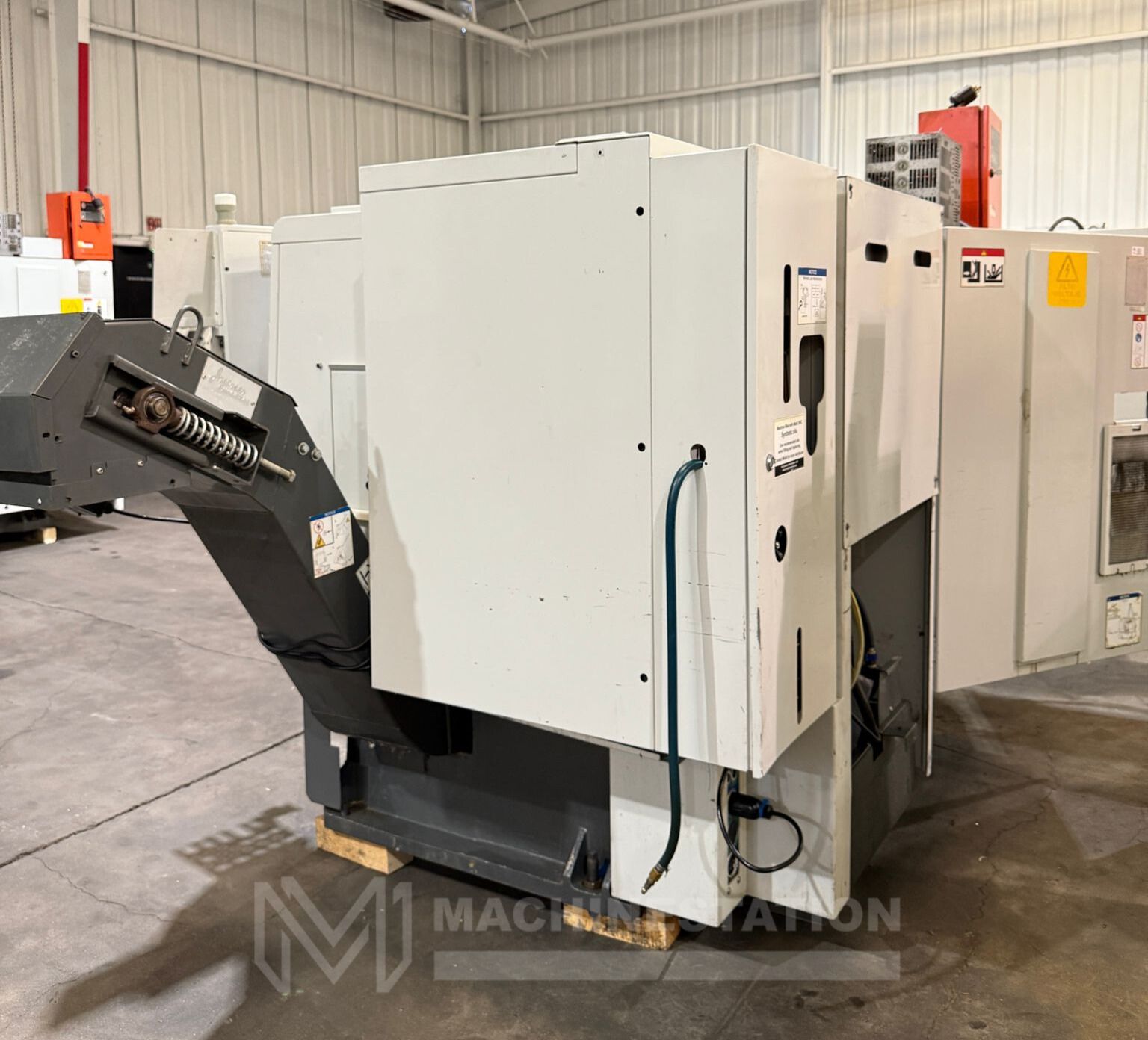

| Belt Type Chip Conveyor (Upgraded $5,895 value Included) – For Efficient Chip Removal |

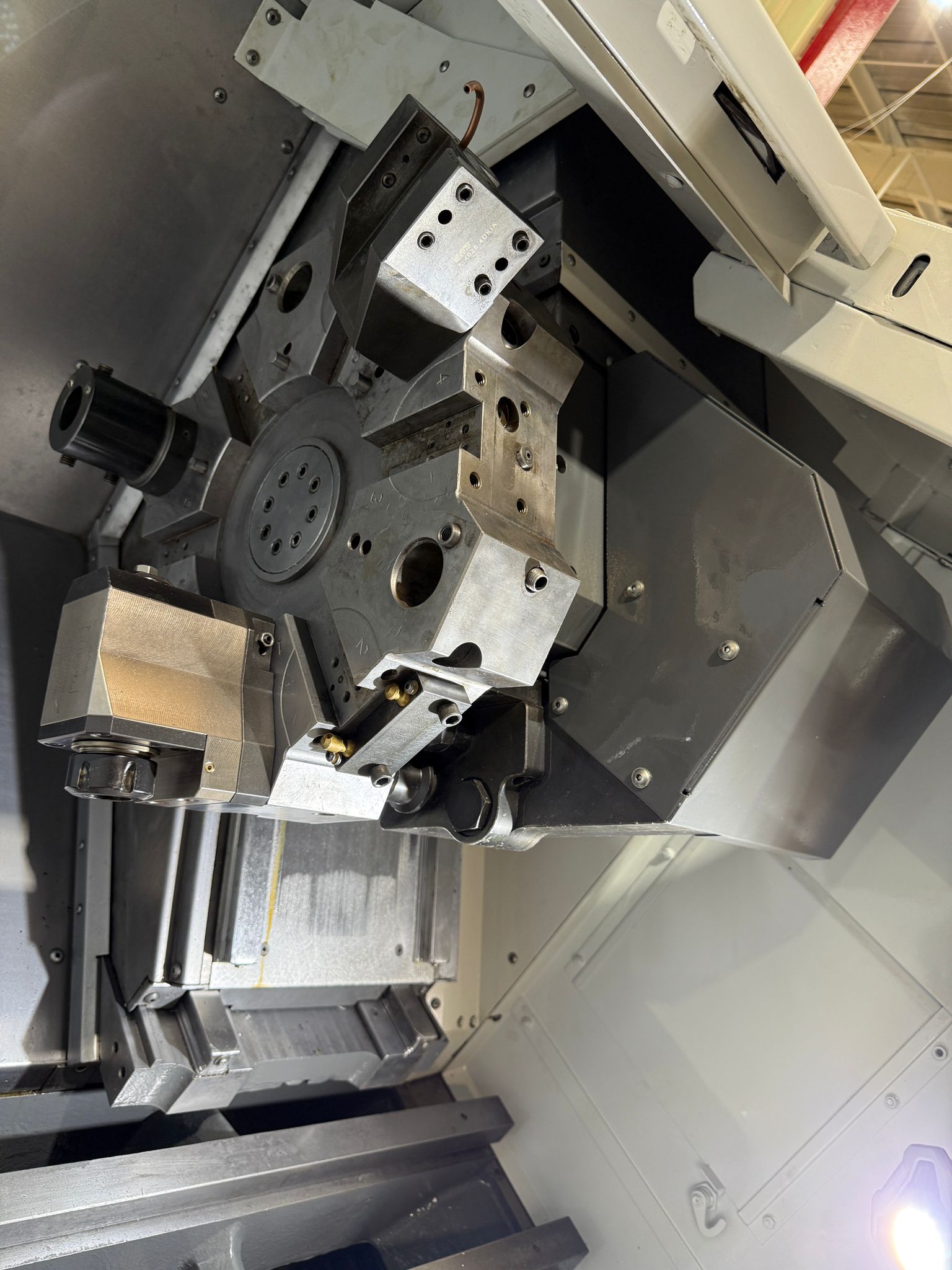

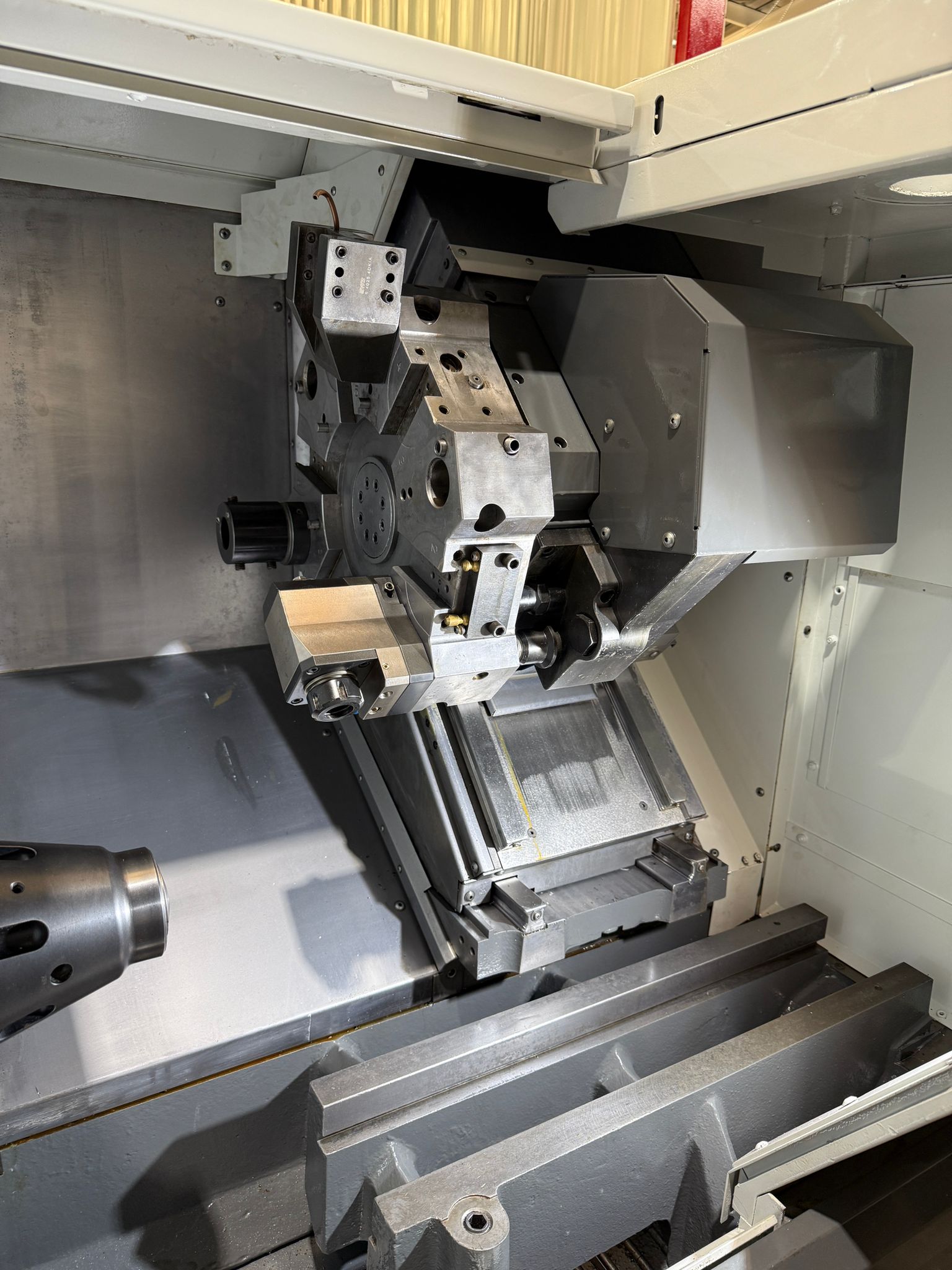

| (1) Live Tool Holder, (2) Statics Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter : 11.0″ |
| Max Swing Over Bed : 16.5″ |
| Max Turning Length: 16.0″ |
| Max Bar Capacity : 1.75″ |
| Travels: |
|---|
| X Axis Travel : 7.88″ |
| Y Axis Travel : ± 2.0″ |
| Z Axis Travel : 16.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Y Axis: 472 IPM |
| Rapid Traverse Z Axis: 1200 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 2.31″ |
| Spindle Speed: 6000 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Holders Type: BMT |
| Live Tool Speed: 4,000 RPM |
| General: |
|---|
| Air Requirement: 4 scfm @ 100 psi |
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 126″ x 70″ x 81″ High |
| Machine Weight: 7,900 lbs Approx. |
