*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

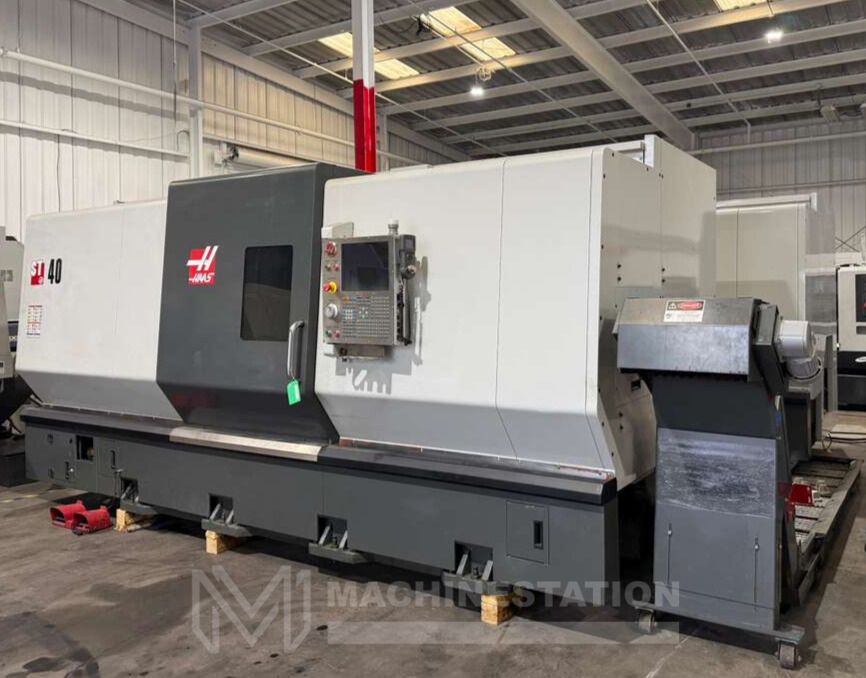

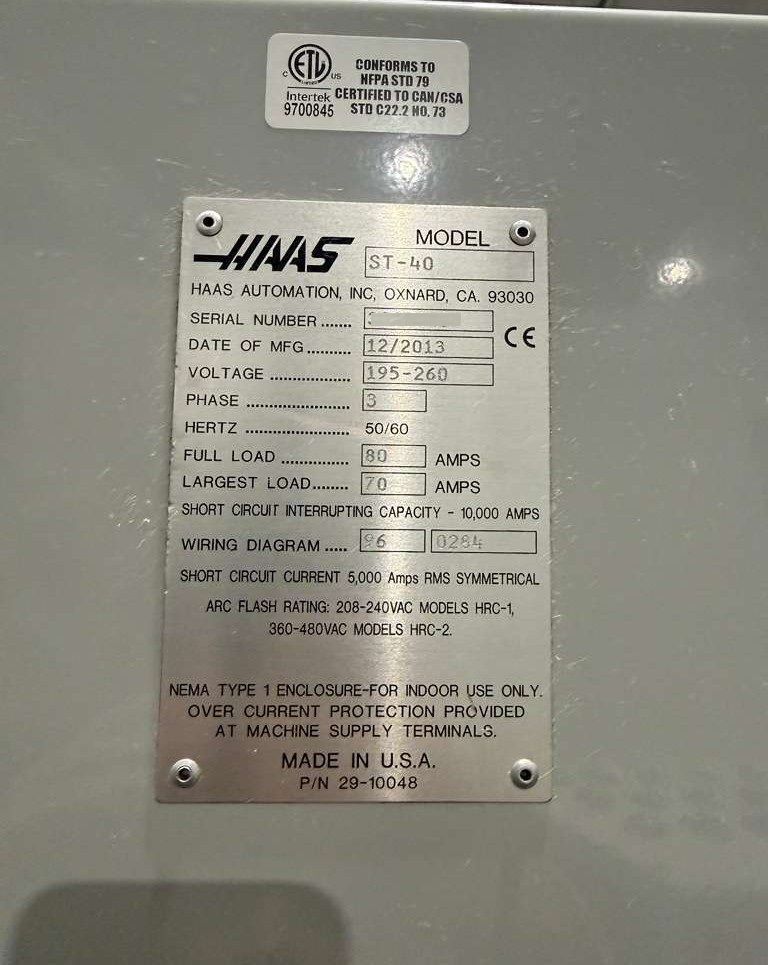

| Make: | Haas |
| Model: | ST40 |
| Year: | 2013 (Sold & Installed in 2014) |
| Condition: | Used – Good |
| Equipped With: |
|---|

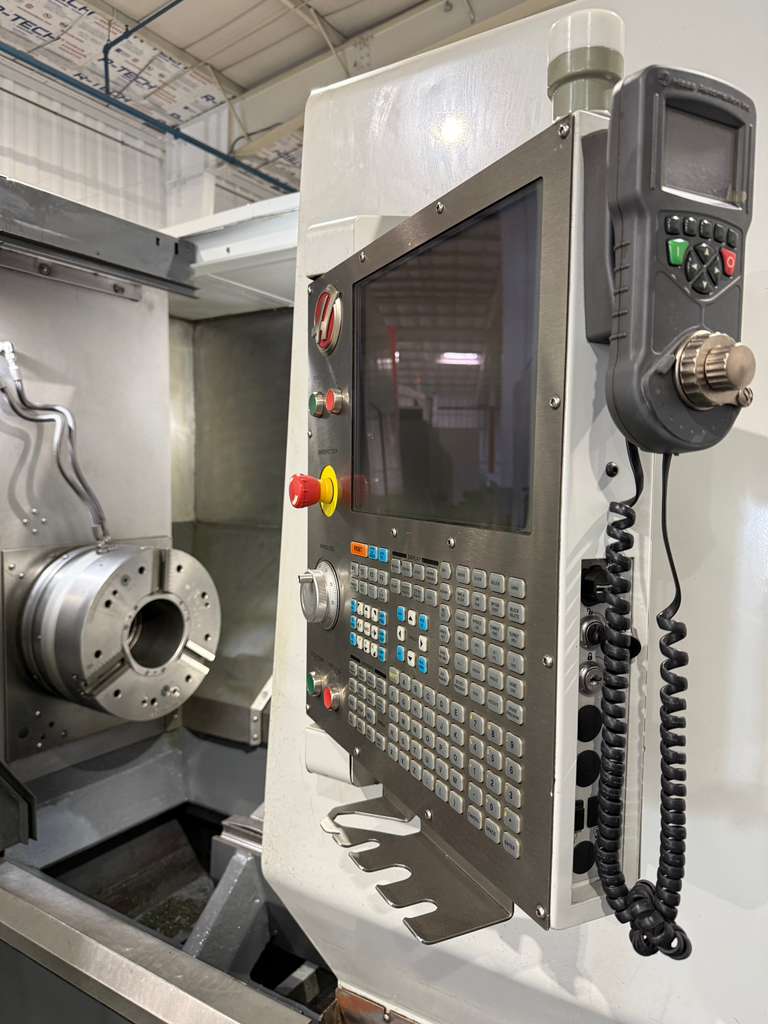

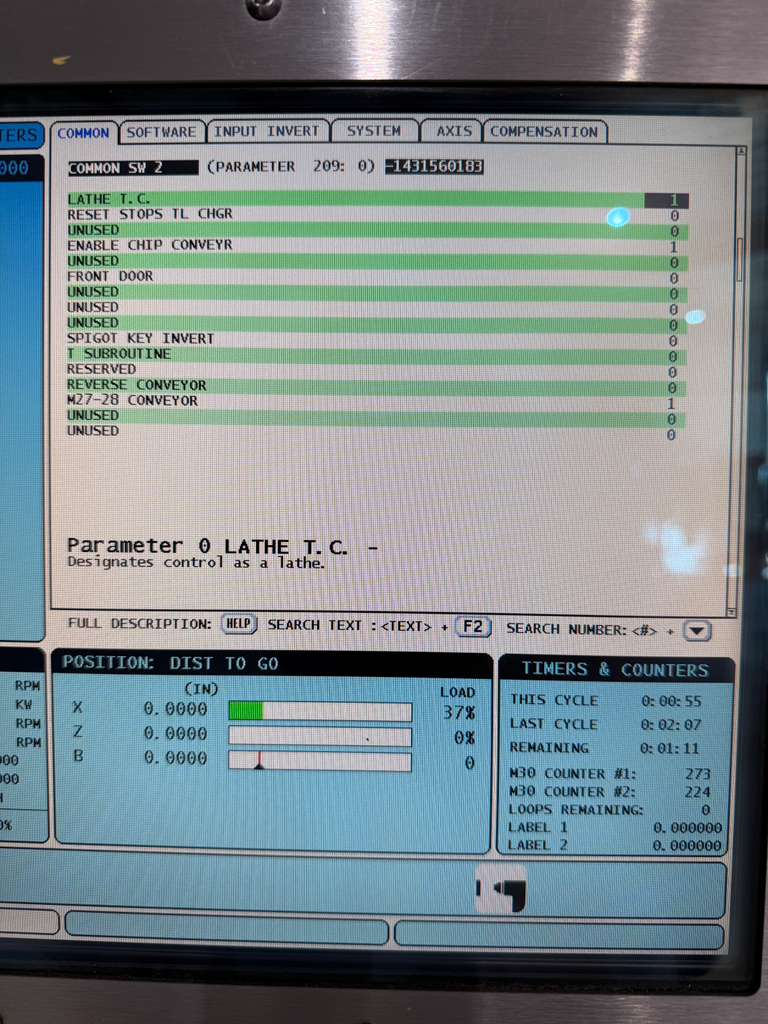

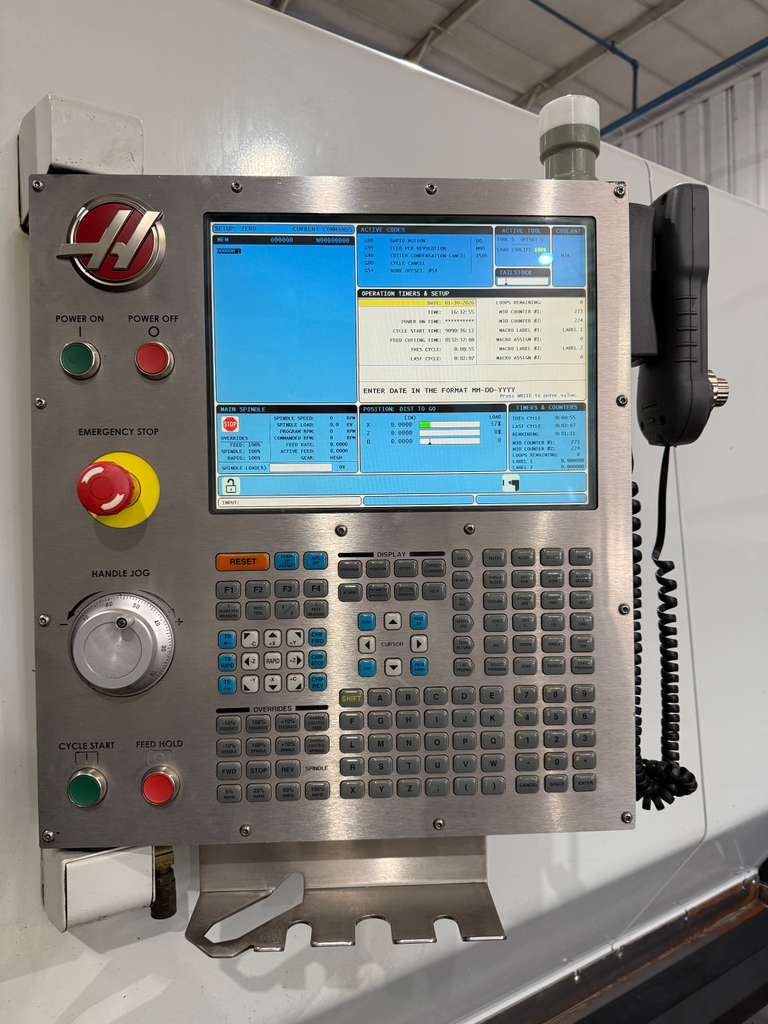

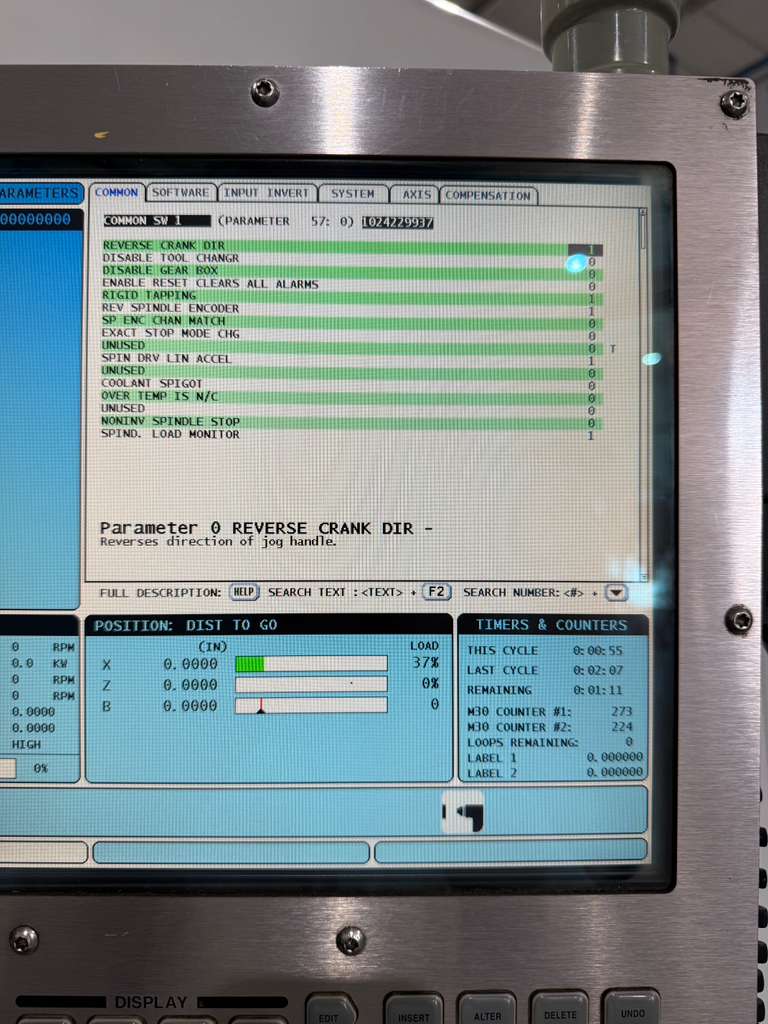

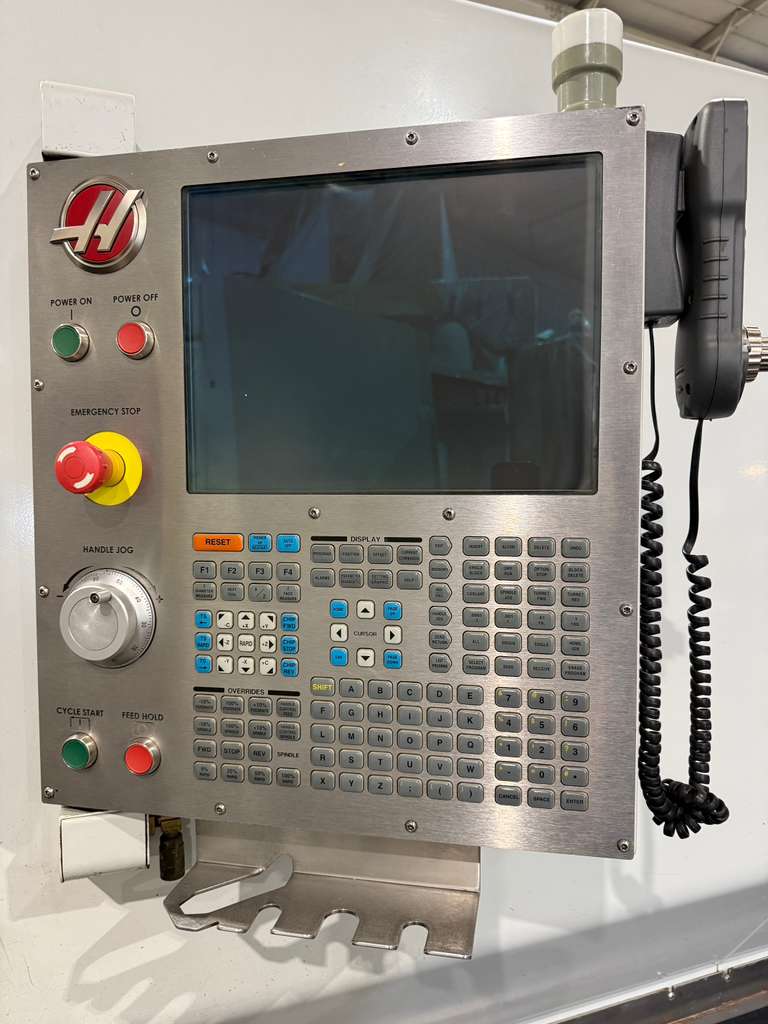

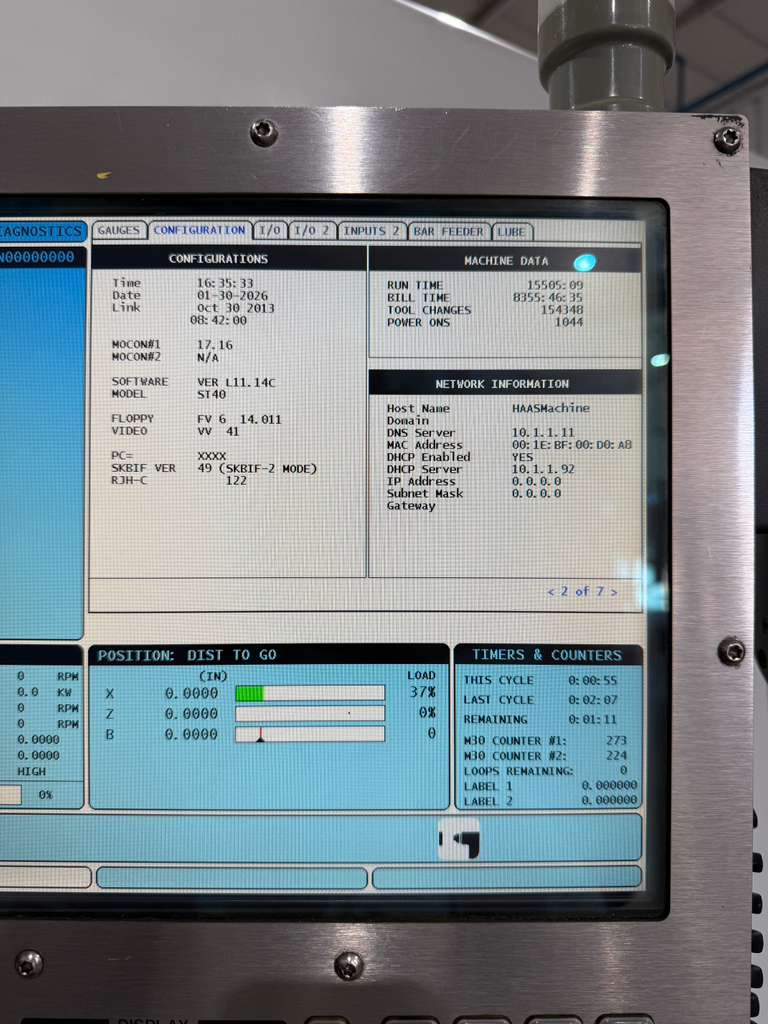

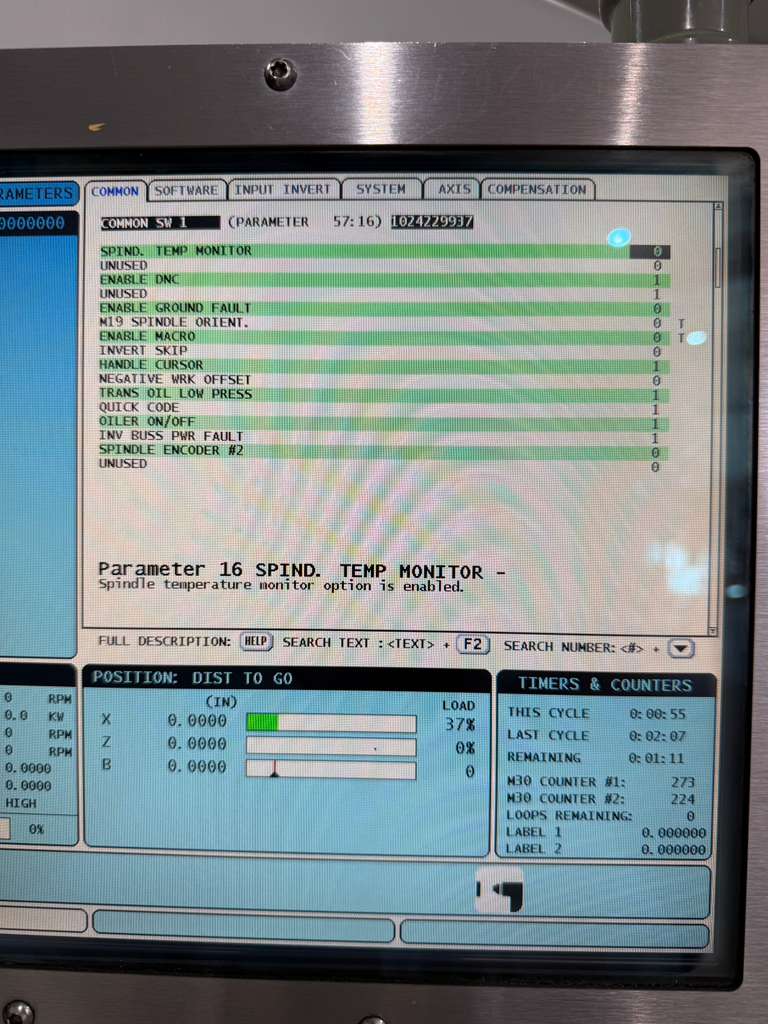

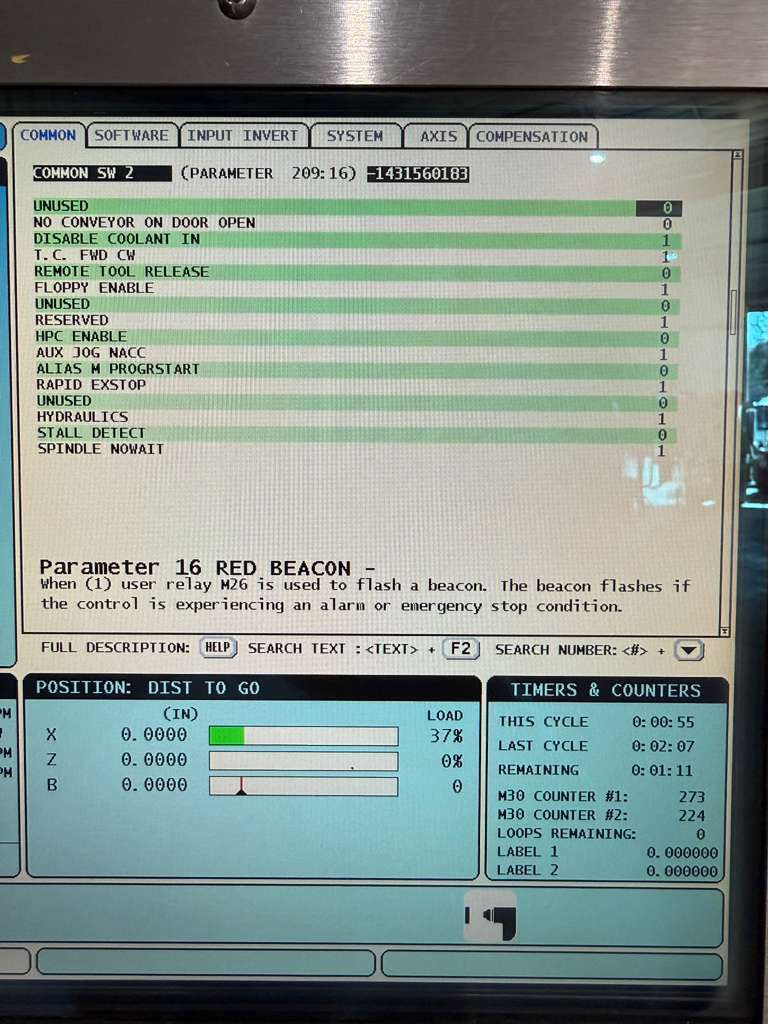

| Haas CNC Control |

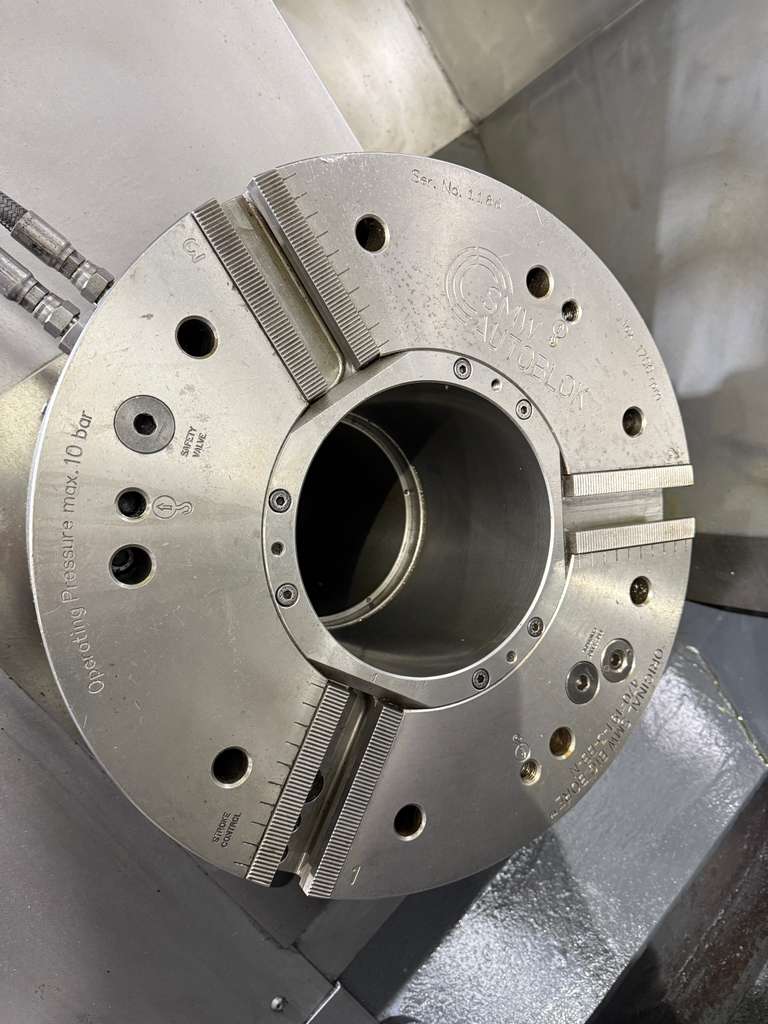

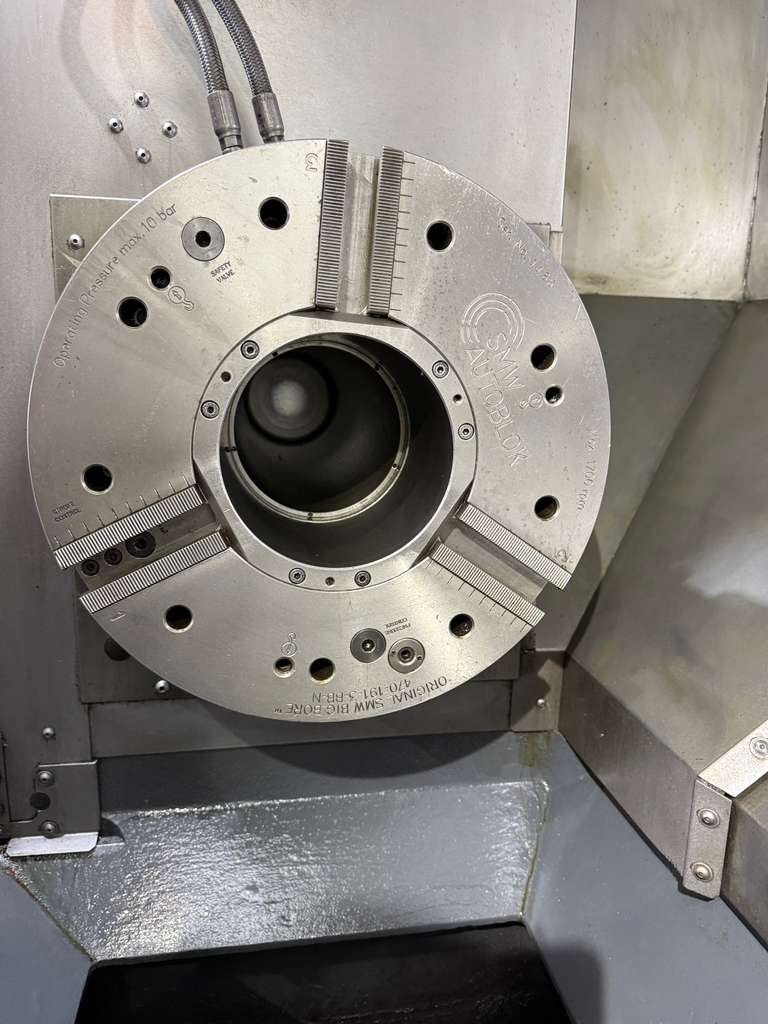

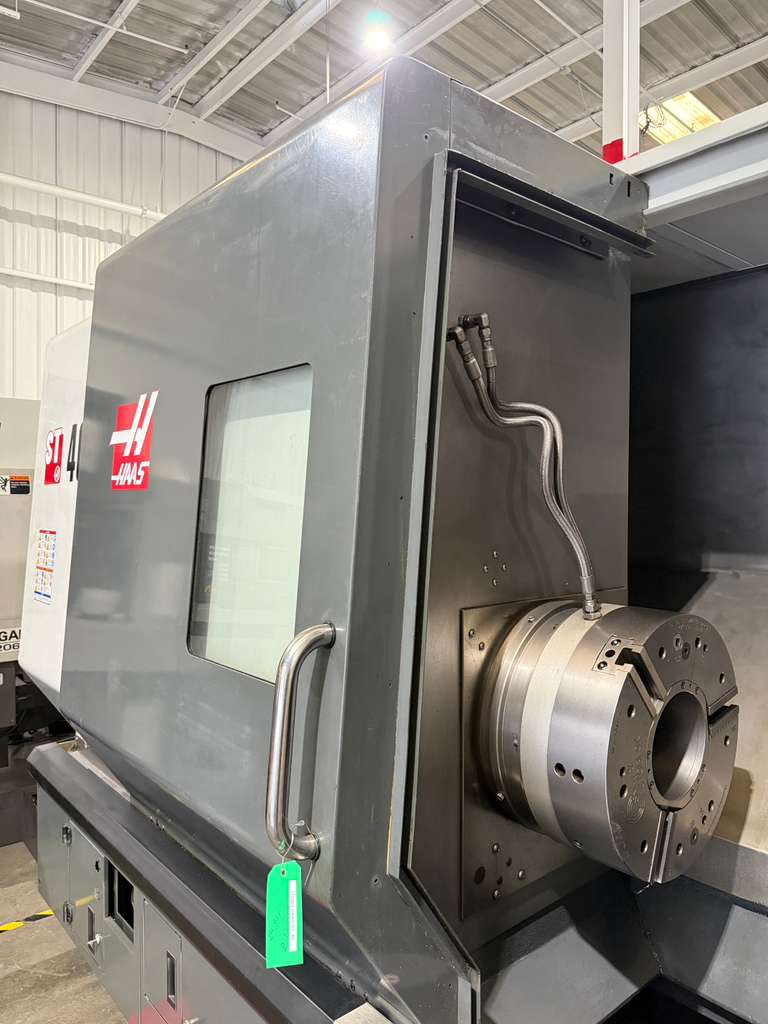

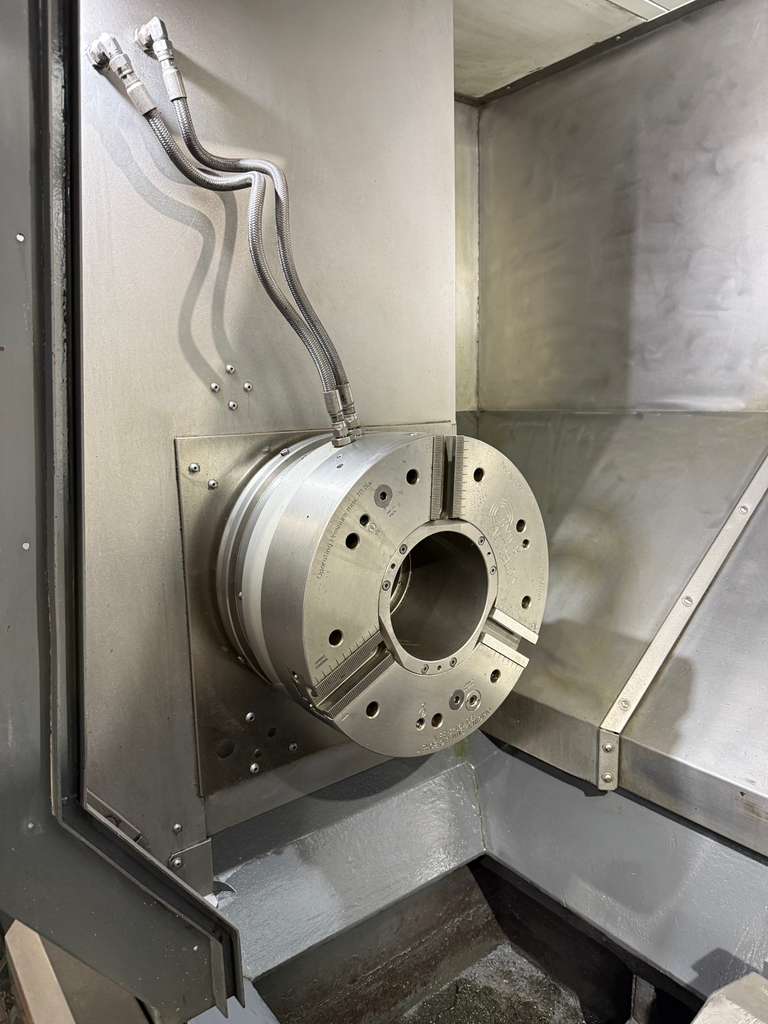

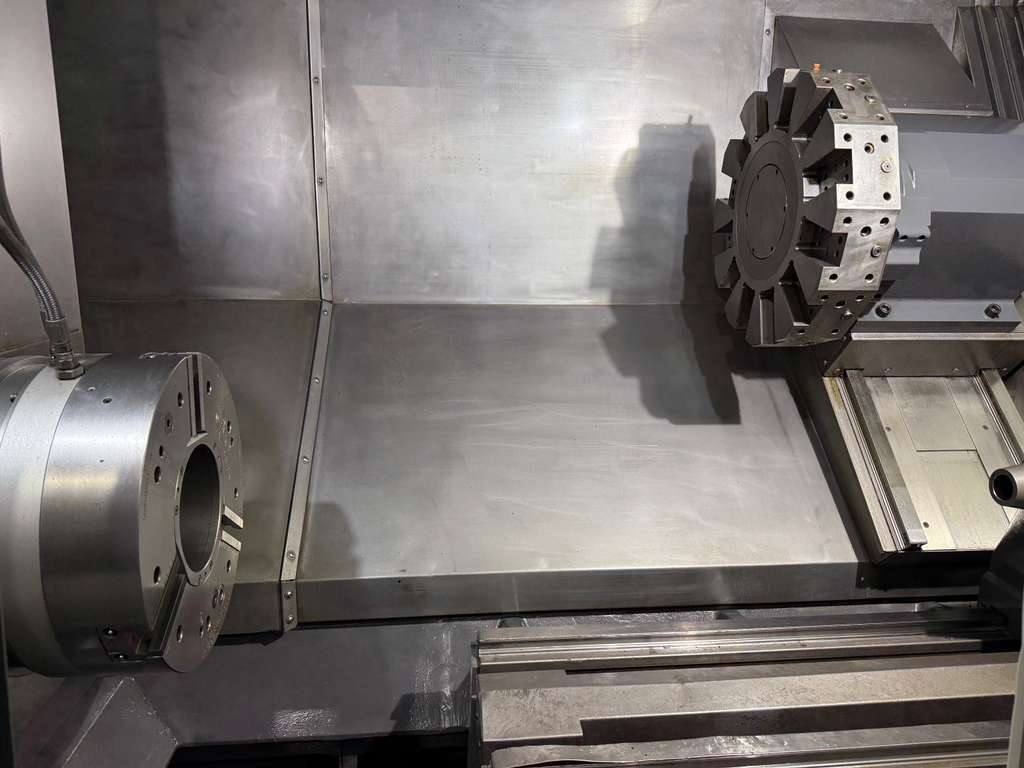

| 18.5″ 3-Jaw SMW Autoblok 470-191-3-BB-N Chuck (Upgraded $8,995 Approx. value Included) |
| 7.5″ Big Bore Spindle |
| 2400-rpm Spindle w/Rear A2-8 Spindle Nose (Upgraded $2,995 value Included) ? |

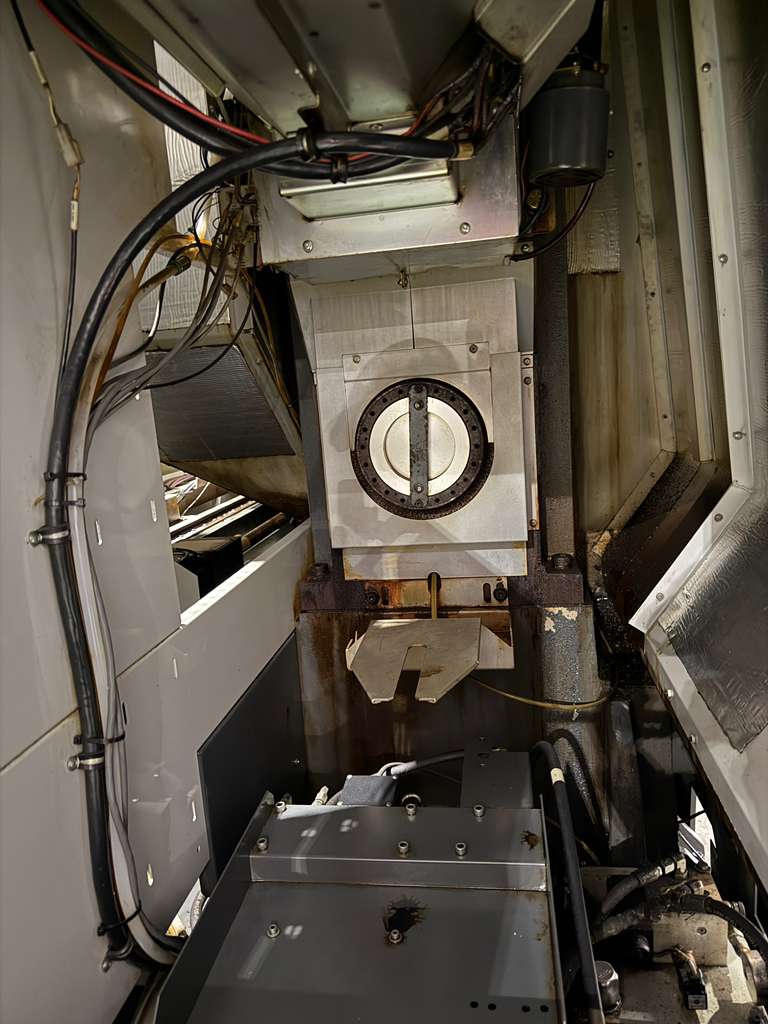

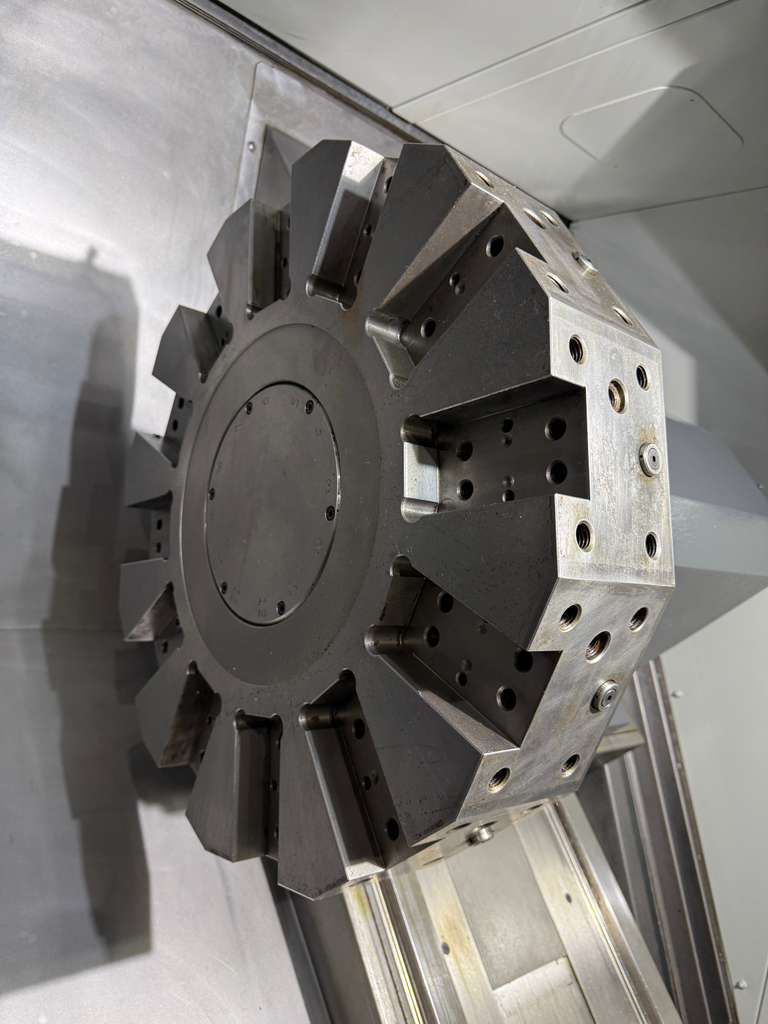

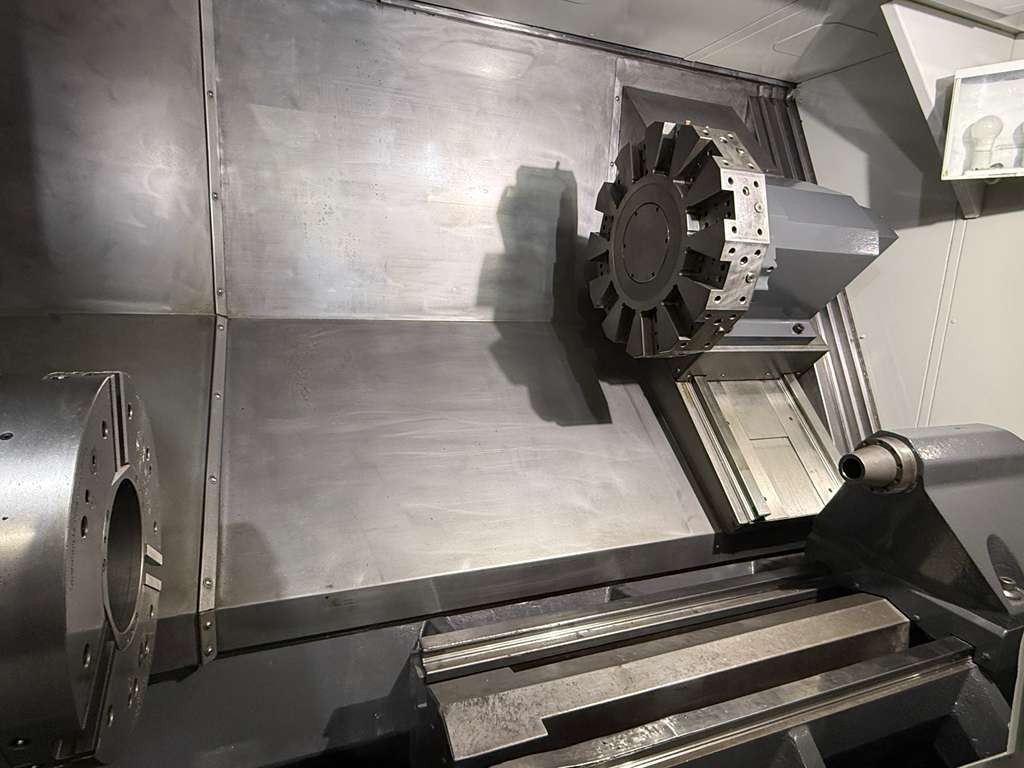

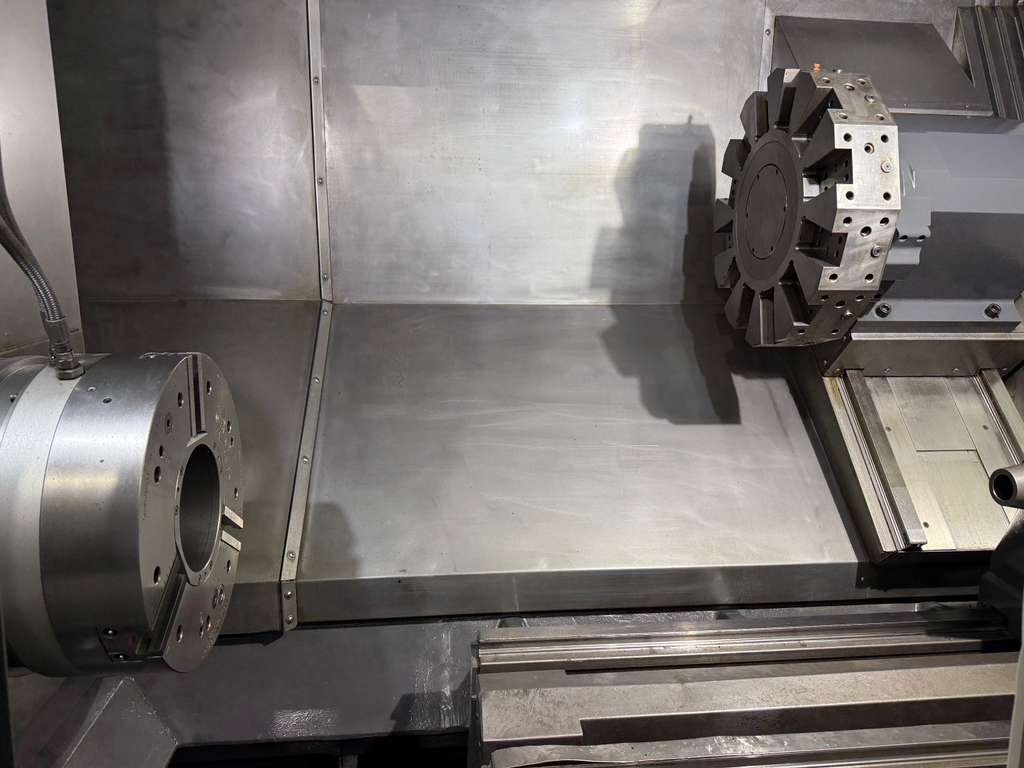

| 12 Station Automatic Turret |
| 40 HP Vector Drive |

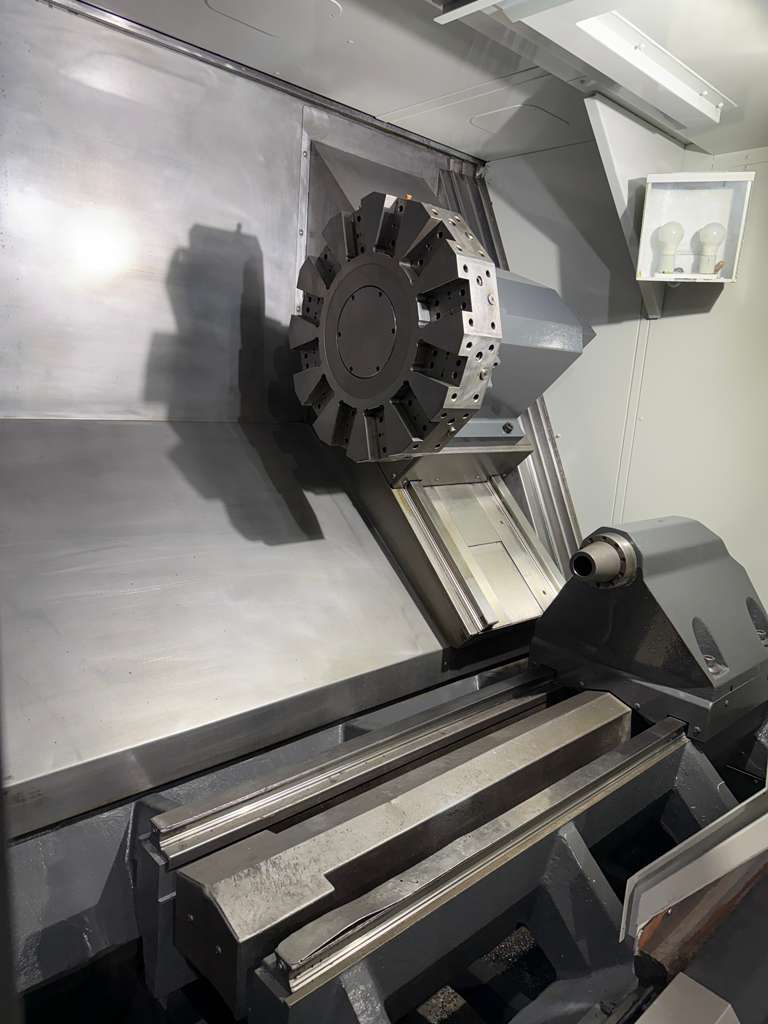

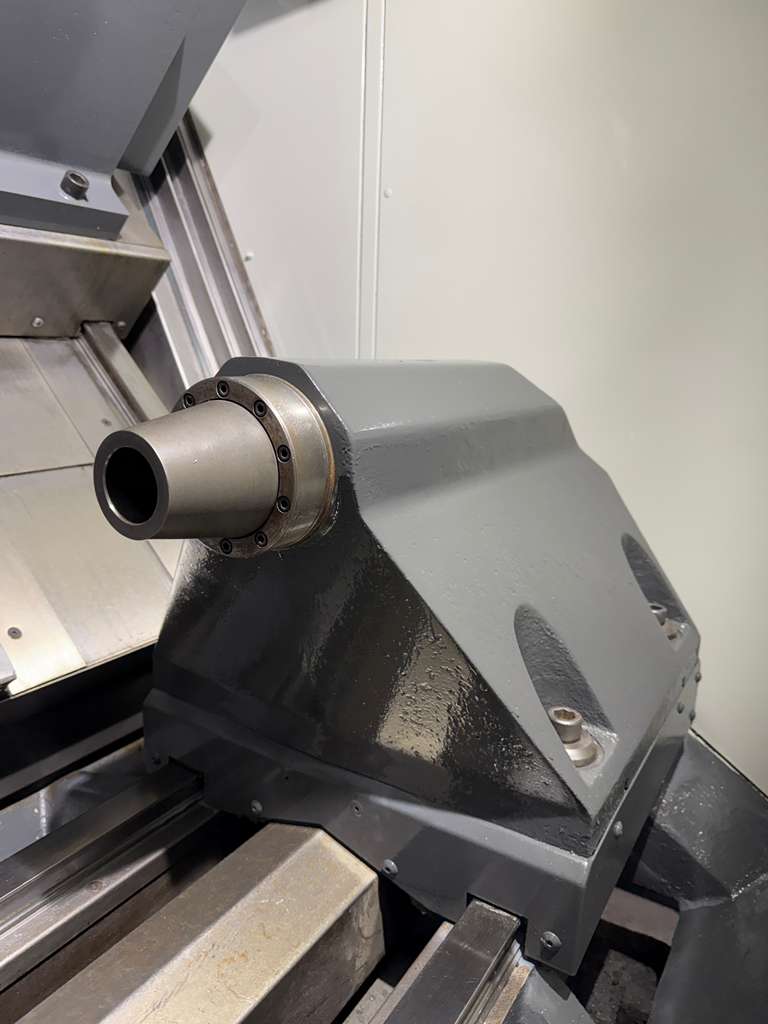

| Programmable Servo Tailstock, MT-5 (Upgraded $16,695 value Included) |
| Remote Jog Handle |
| USB Port |
| Automatic Lubrication system |
| Rigid Tapping |

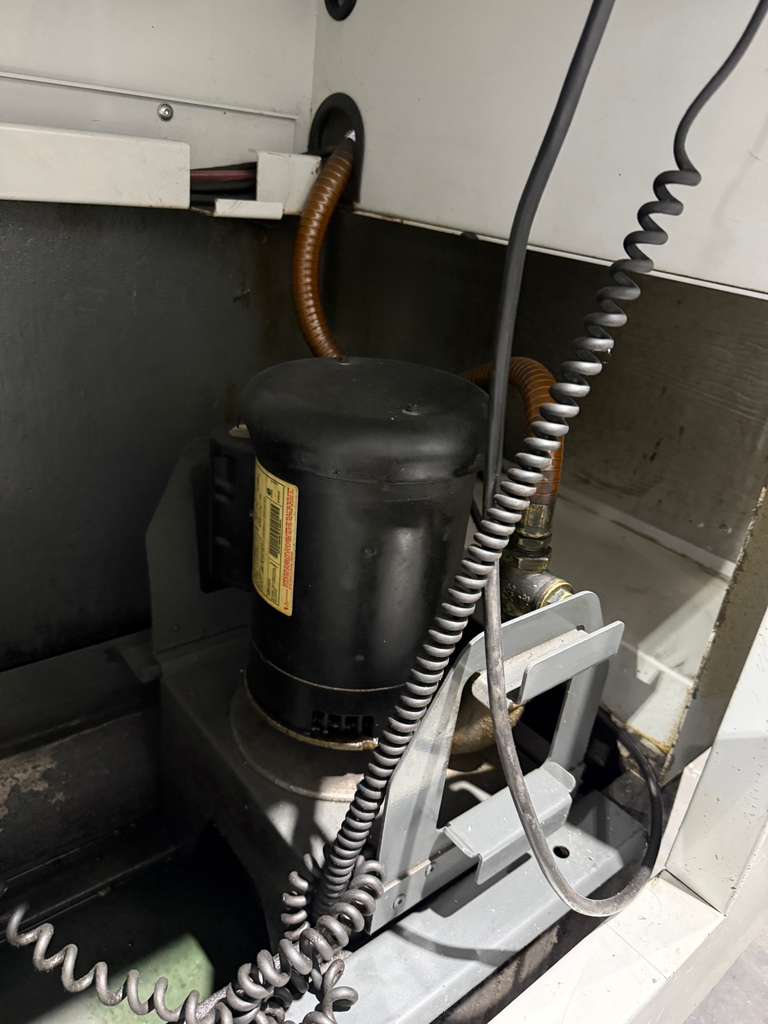

| Coolant System |

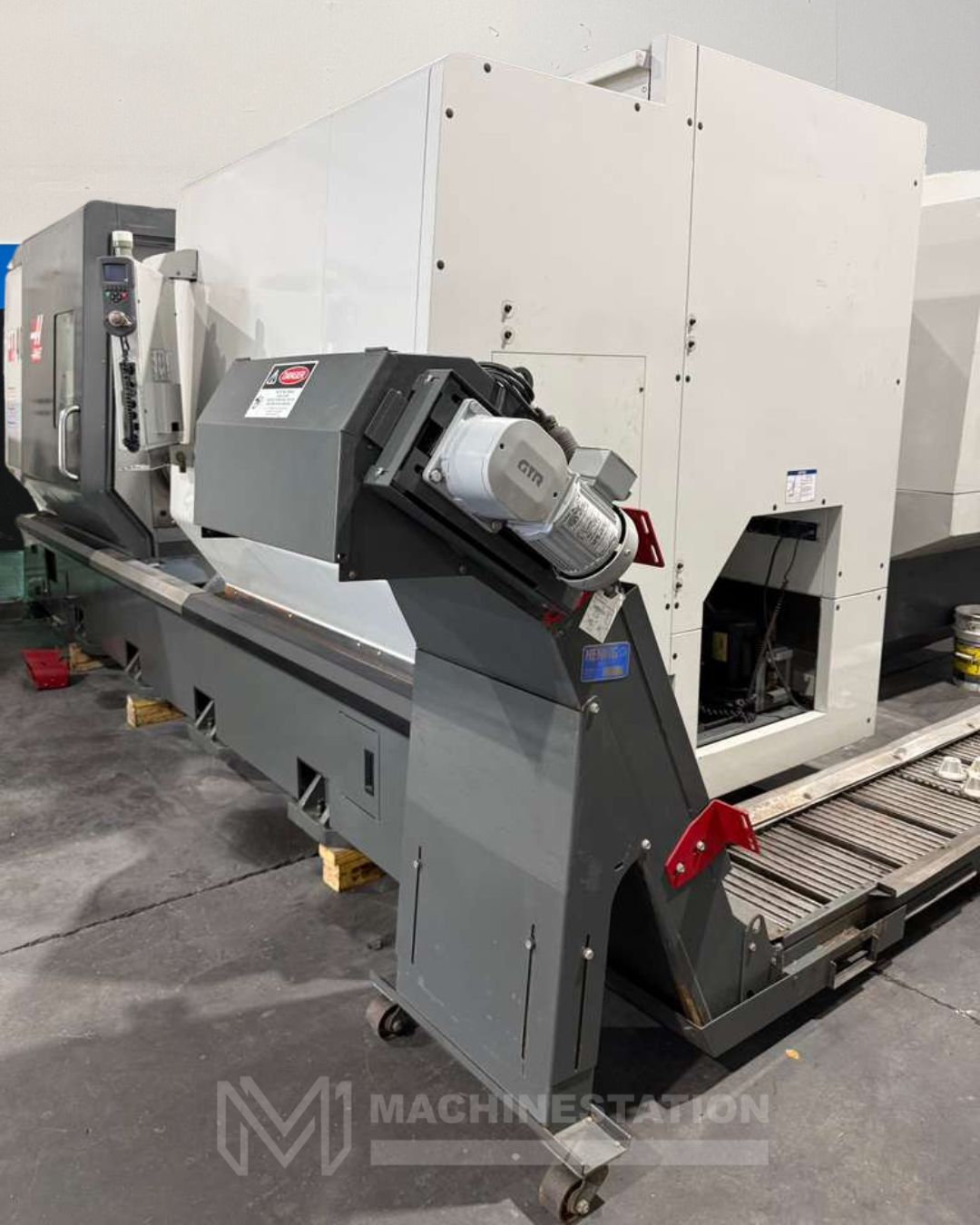

| Chip Conveyor (Upgraded $7,095 value Included) |

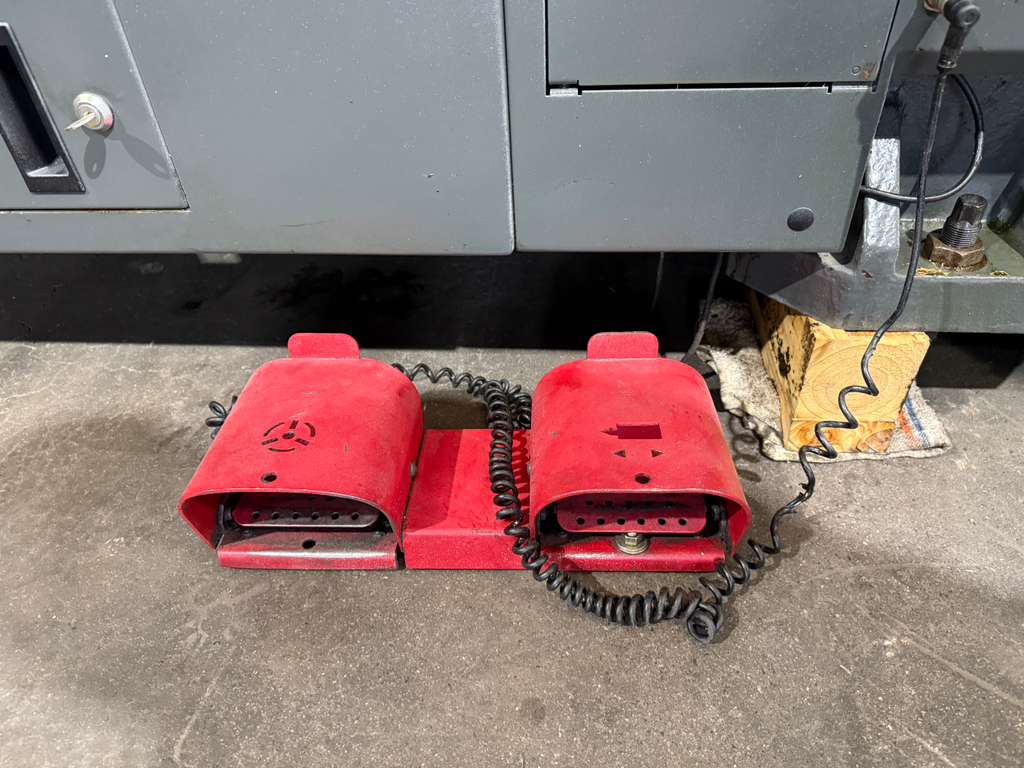

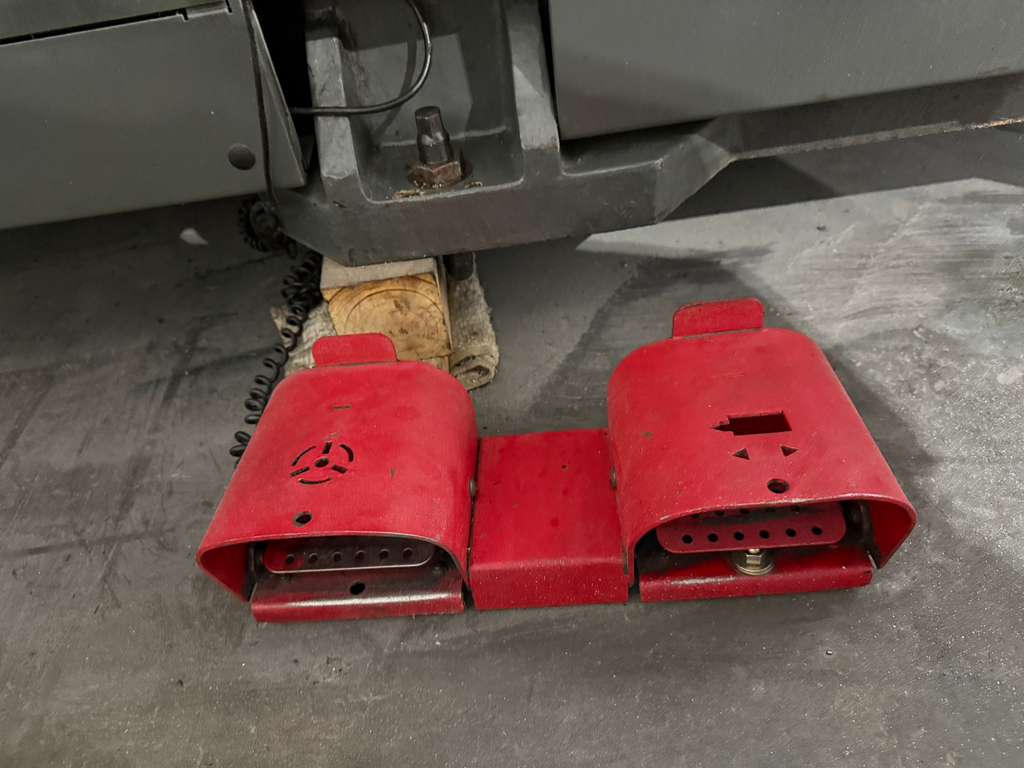

| Foot Switches |
| Levelling Pads |
| Capacity: |
|---|
| Max Turning Diameter : 30.0″ |
| Max Swing Over Bed : 35.5″ |
| Max Turning Length: 44.0″ |
| Max Bar Capacity : 7.0″ ? |
| Travels: |
|---|
| X Axis Travel : 20.0″ |
| Z1 Axis Travel : 44.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 710 IPM |
| Rapid Traverse Z Axis: 710 IPM |

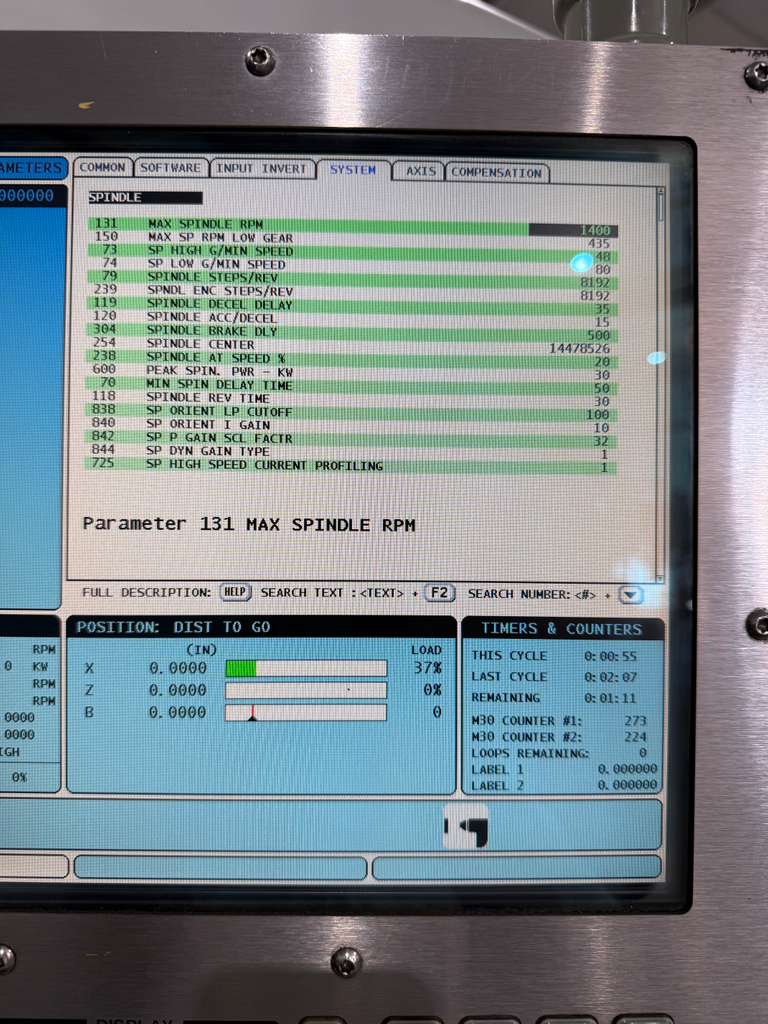

| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 7.5″ |
| Spindle Speed: 2400 RPM |
| Spindle Motor: 40 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Tailstock: |
|---|
| Tailstock Type: Programmable |
| Tailstock Taper: MT-5 |
| Tailstock Travel: 42″ |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 216″ x 95″ x 110″ High |
| Machine Weight: 21,740 lbs Approx. |
