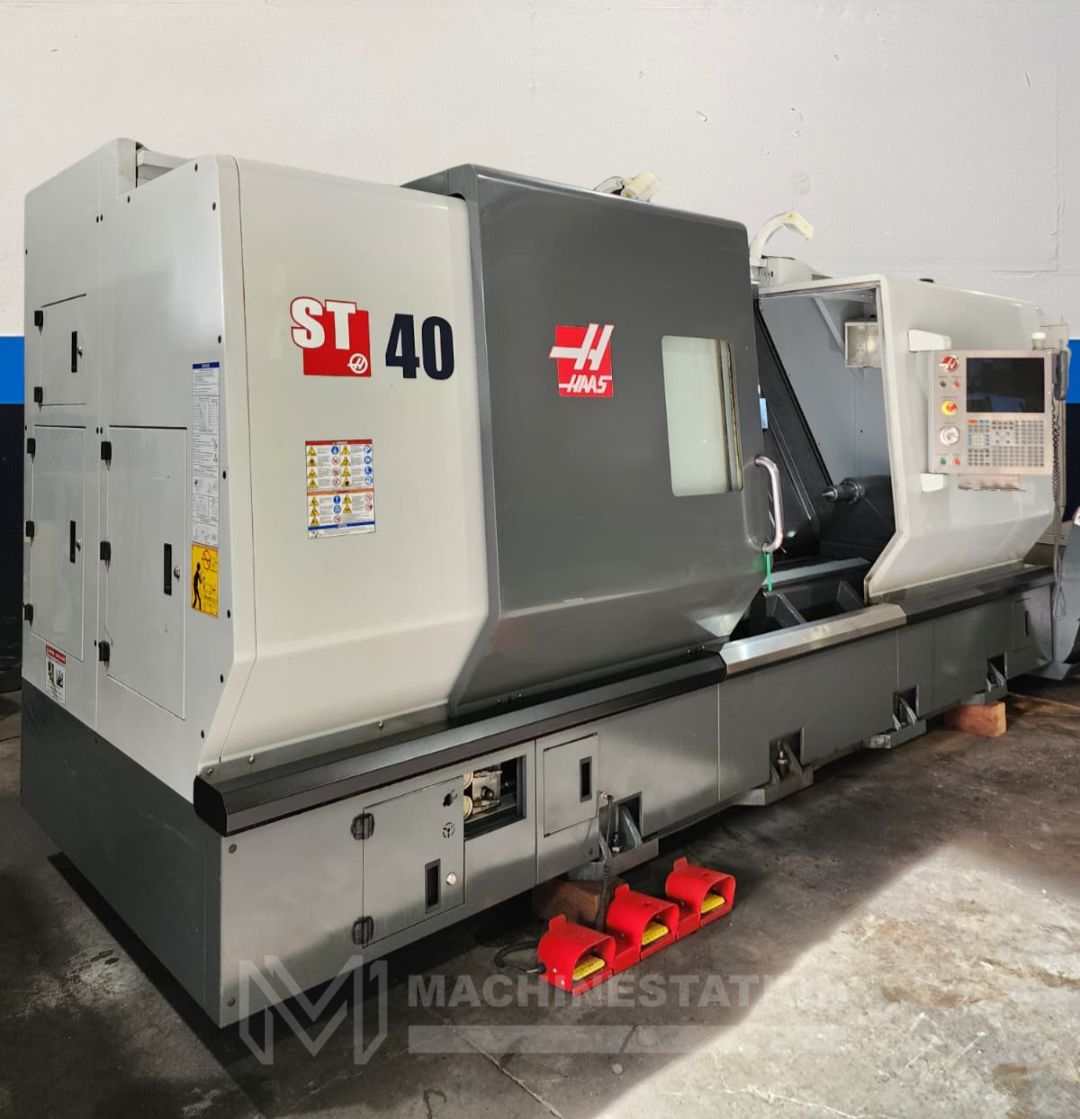

Haas ST-40 CNC Turning Center – C Axis Live Tool Lathe
Reserve your machine by paying: $999 (Refundable)
(We’ll hold it for 7 business days while you inspect or finalize your purchase)
$999
1 in stock
Used Haas ST-40 CNC Turning Center for Sale.
Replacement Cost Over $225,000 with Similar Options
| Location: | Lake Elsinore, CA |
| SKU: | 112921 |
| Make & Model: | Haas ST-40 |
| Year: | 2013 |
| Condition: | Used Good |

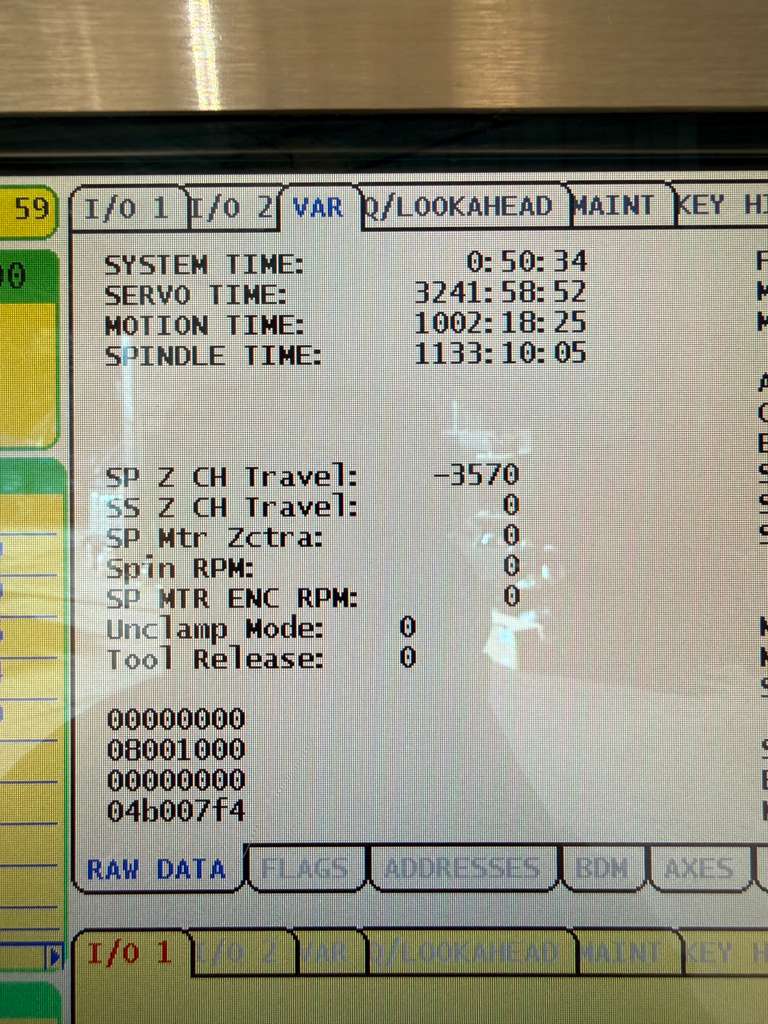

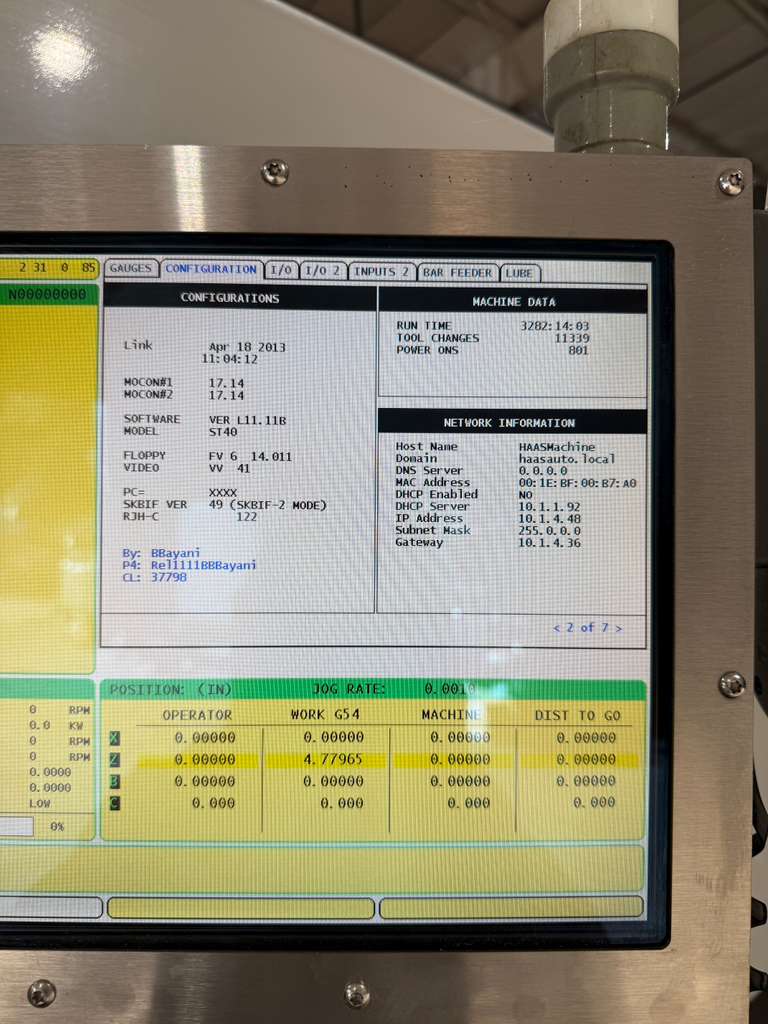

| Run Time: | 3,282 Hours |
| Video: | On Request |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | ST-40 |
| Year: | 2013 |
| Condition: | Used – Good |
| Equipped With: |
|---|

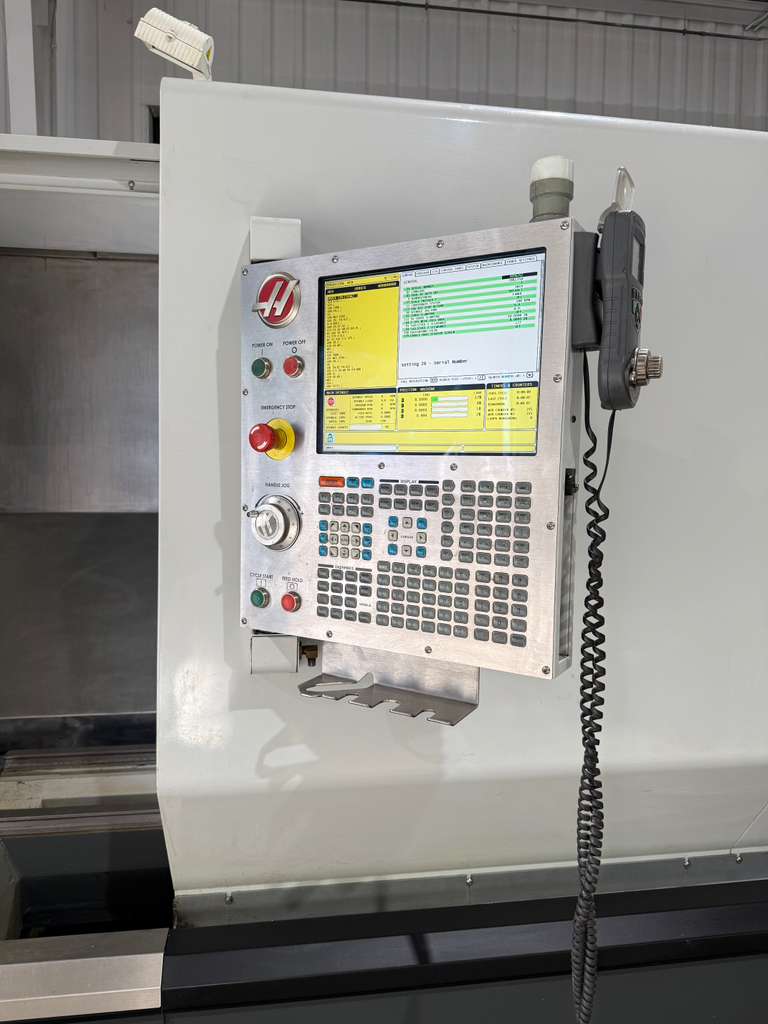

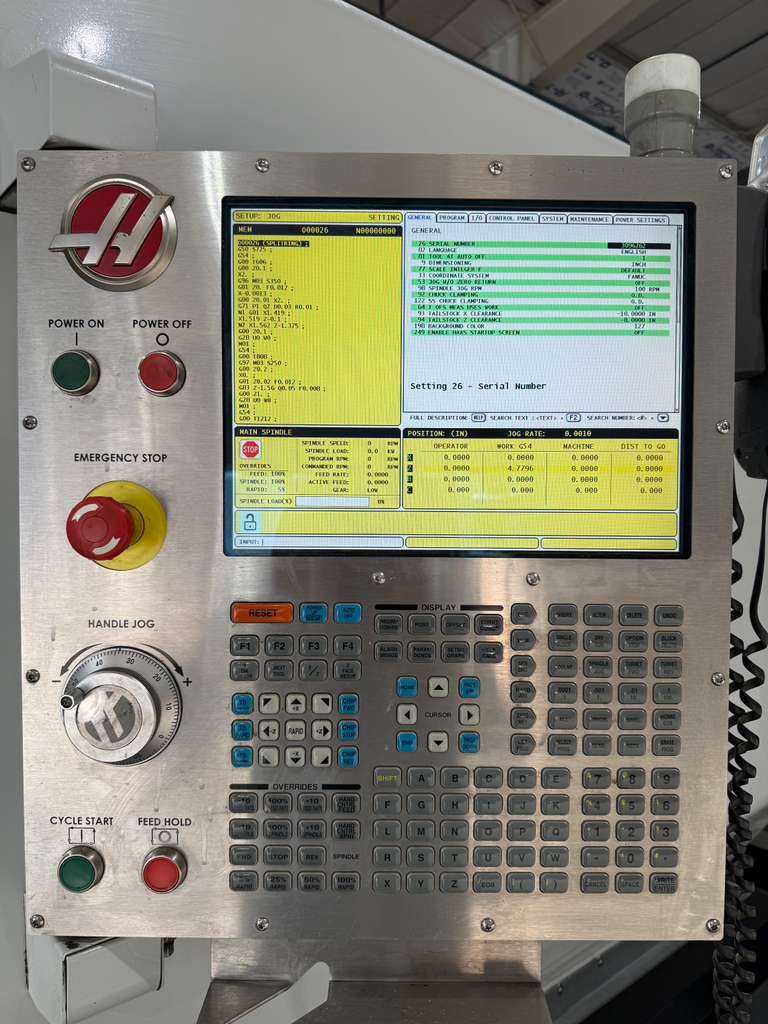

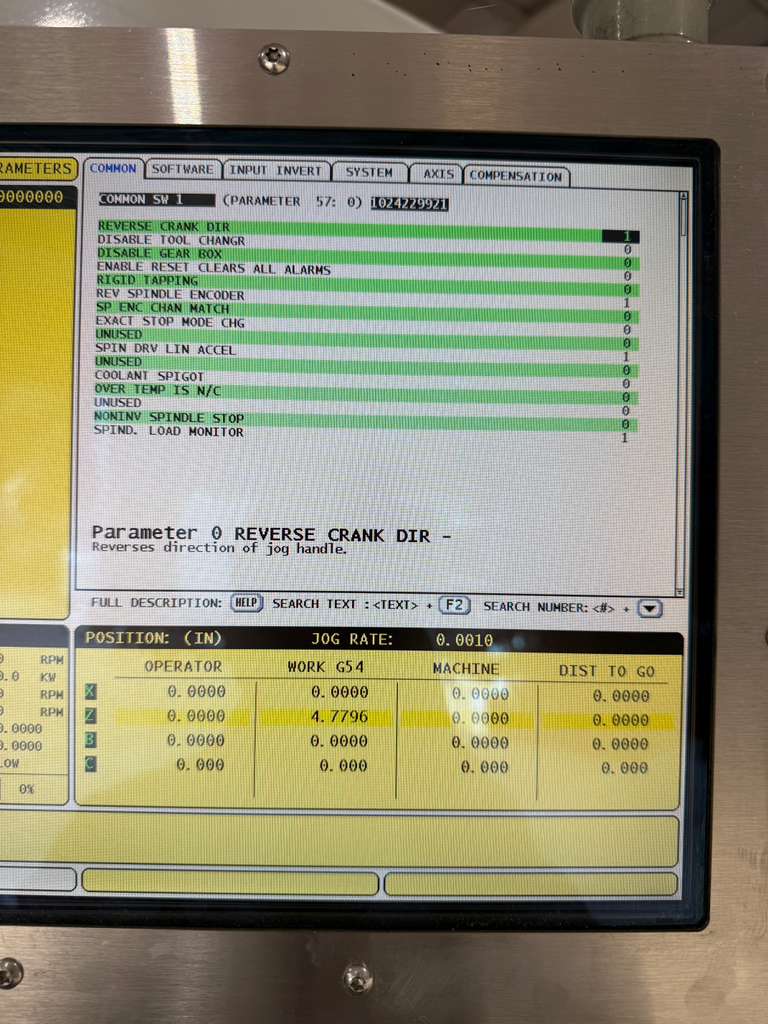

| Haas CNC Control |

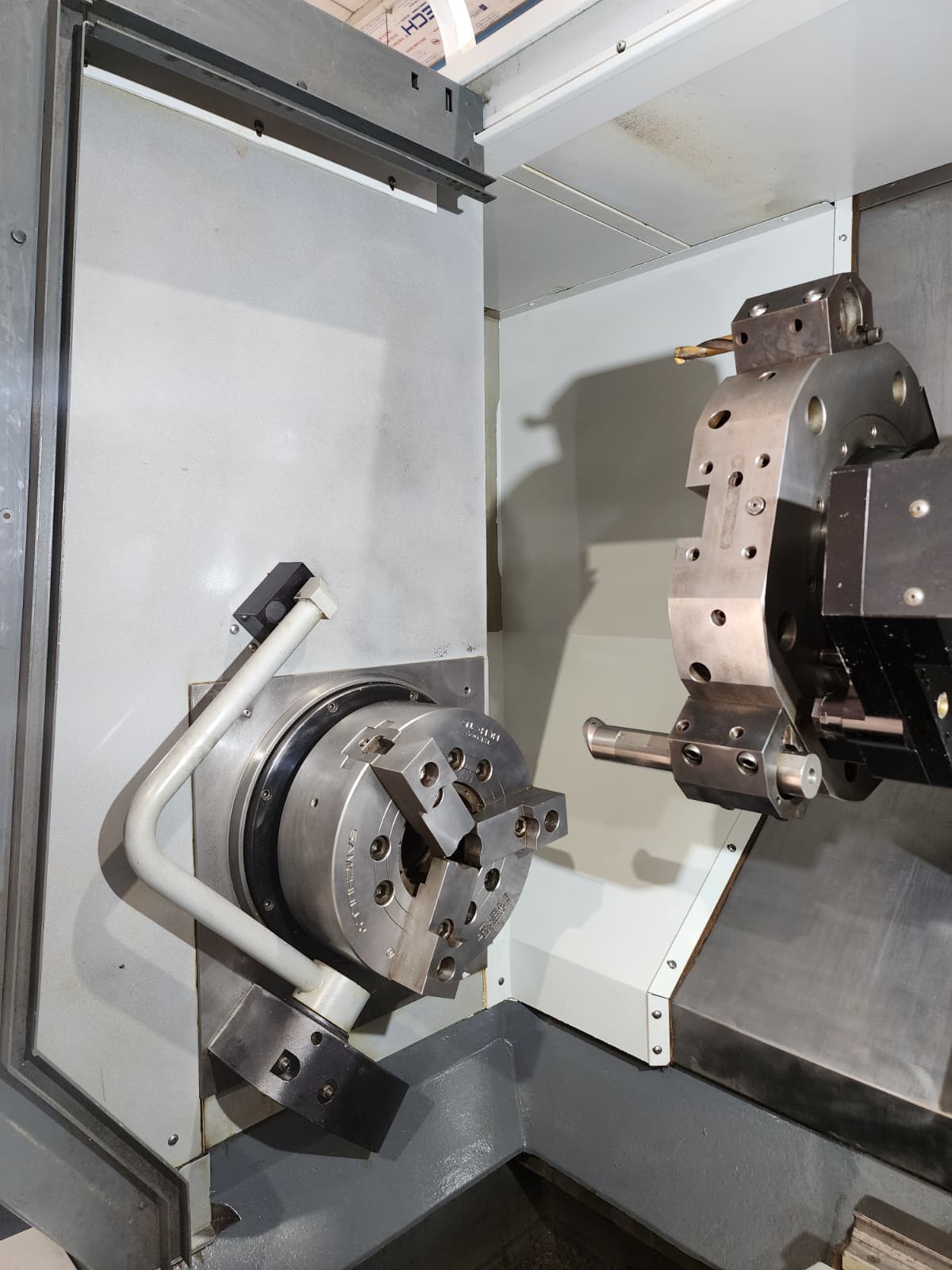

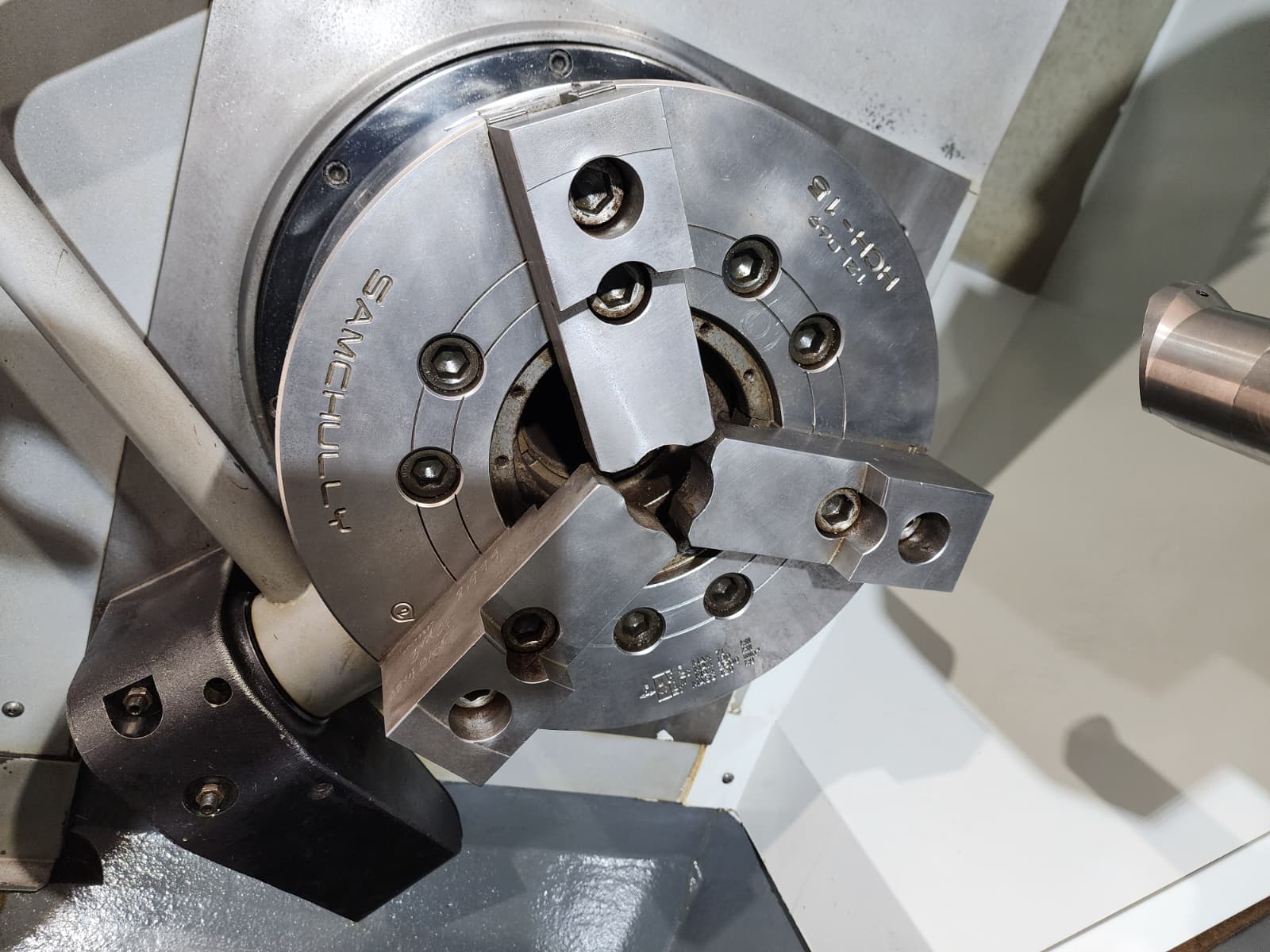

| 15″ 3-Jaw Samchully HCH-15 Hydraulic Chuck |
| 4.62″ Bore Spindle |
| A2-8 Gear Head Spindle |
| Servo Controlled C Axis on Spindle |

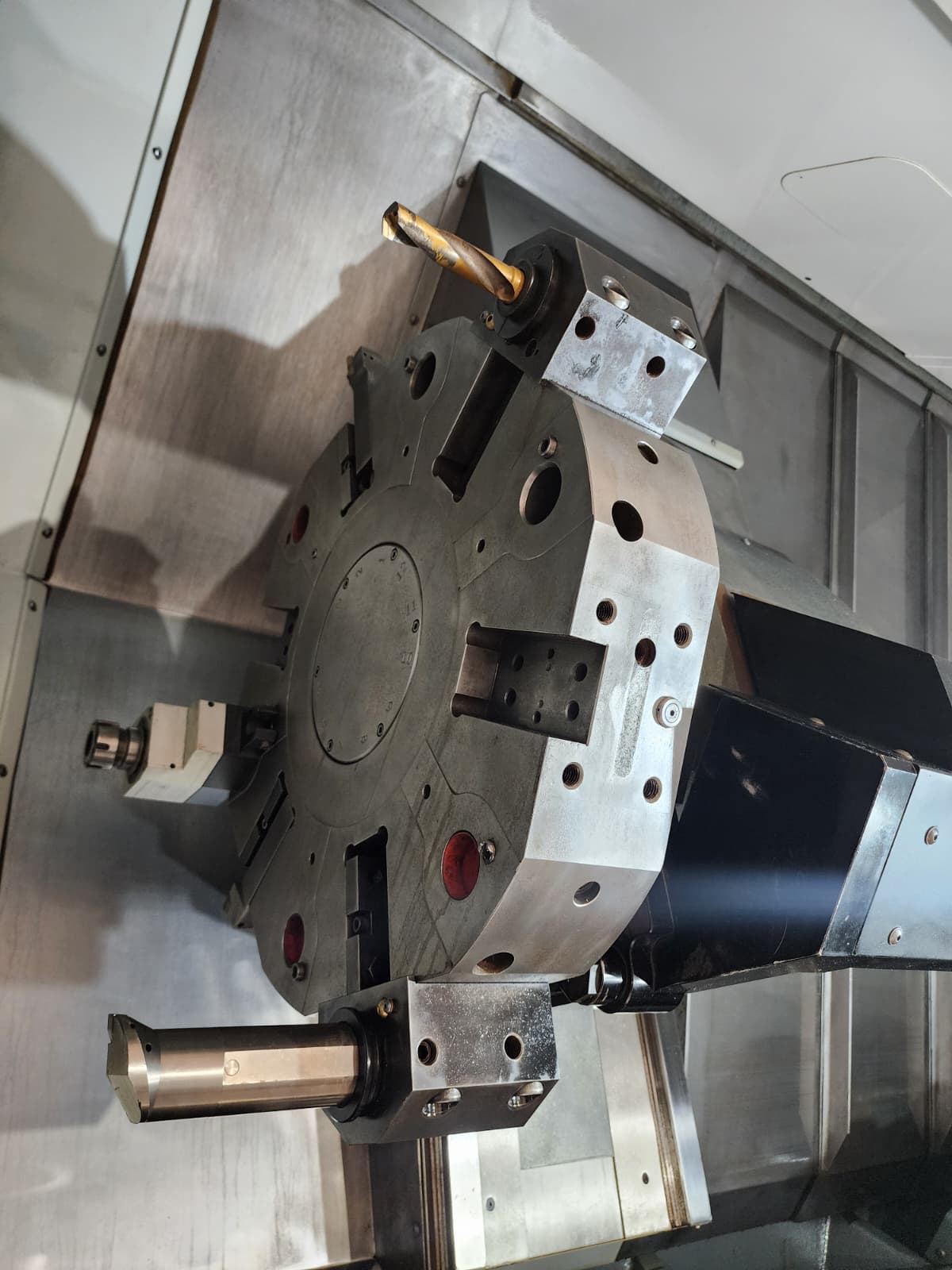

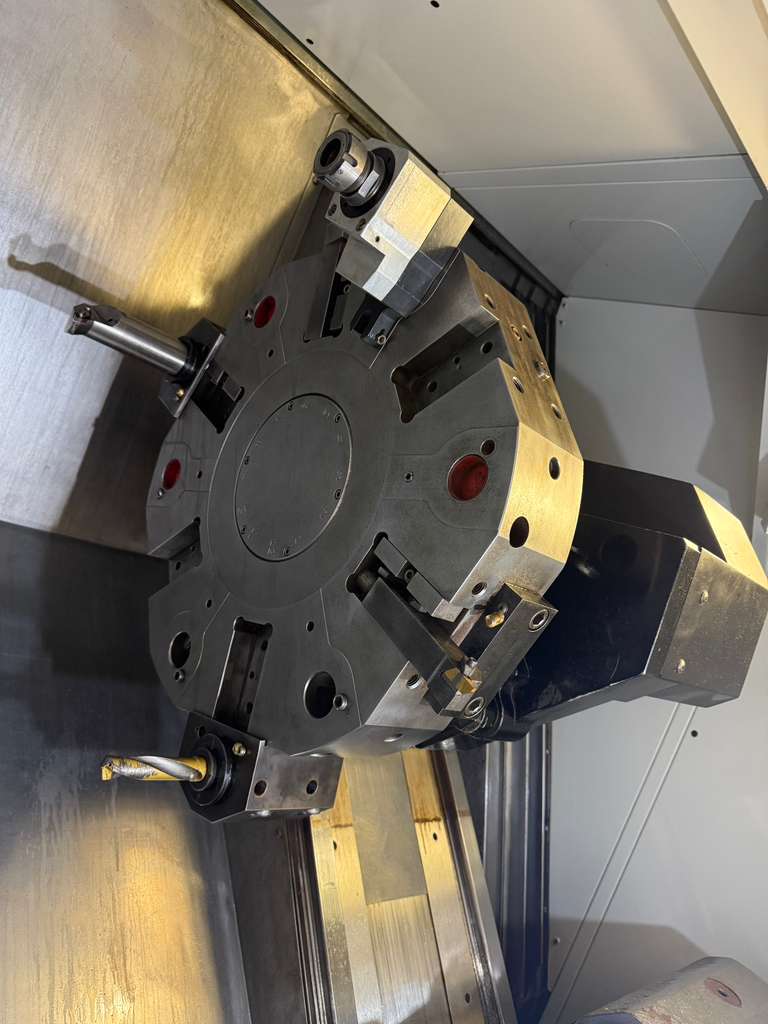

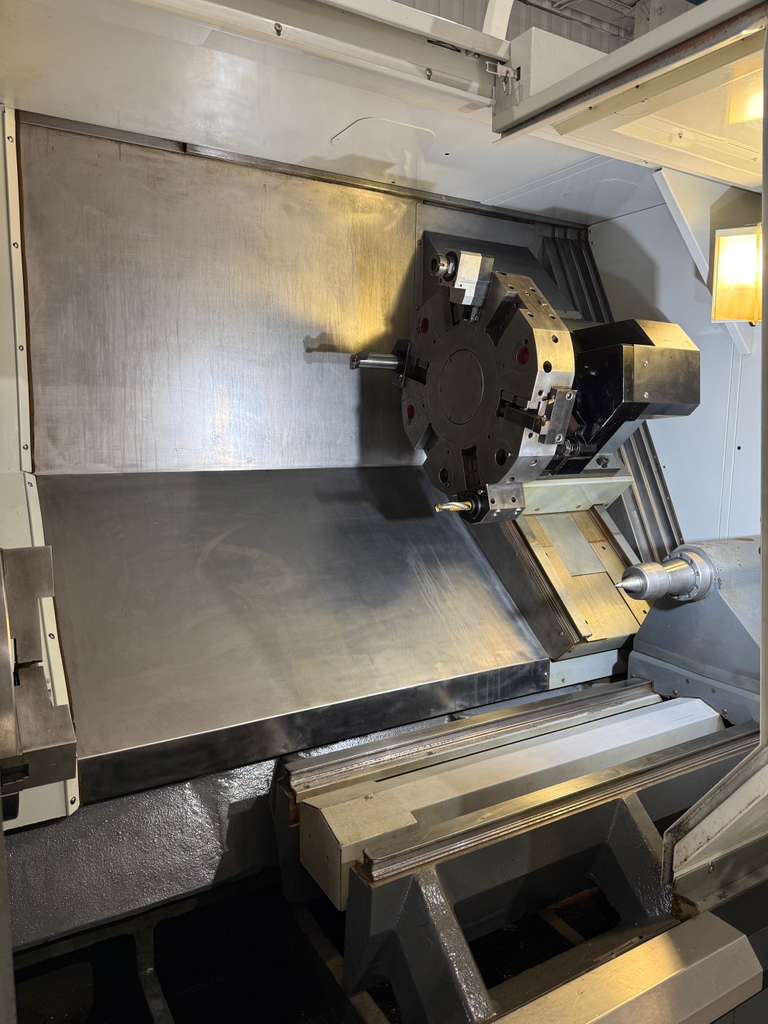

| 12 Station Live Tool Turret (Upgraded $22,195 Approx. value Included) |

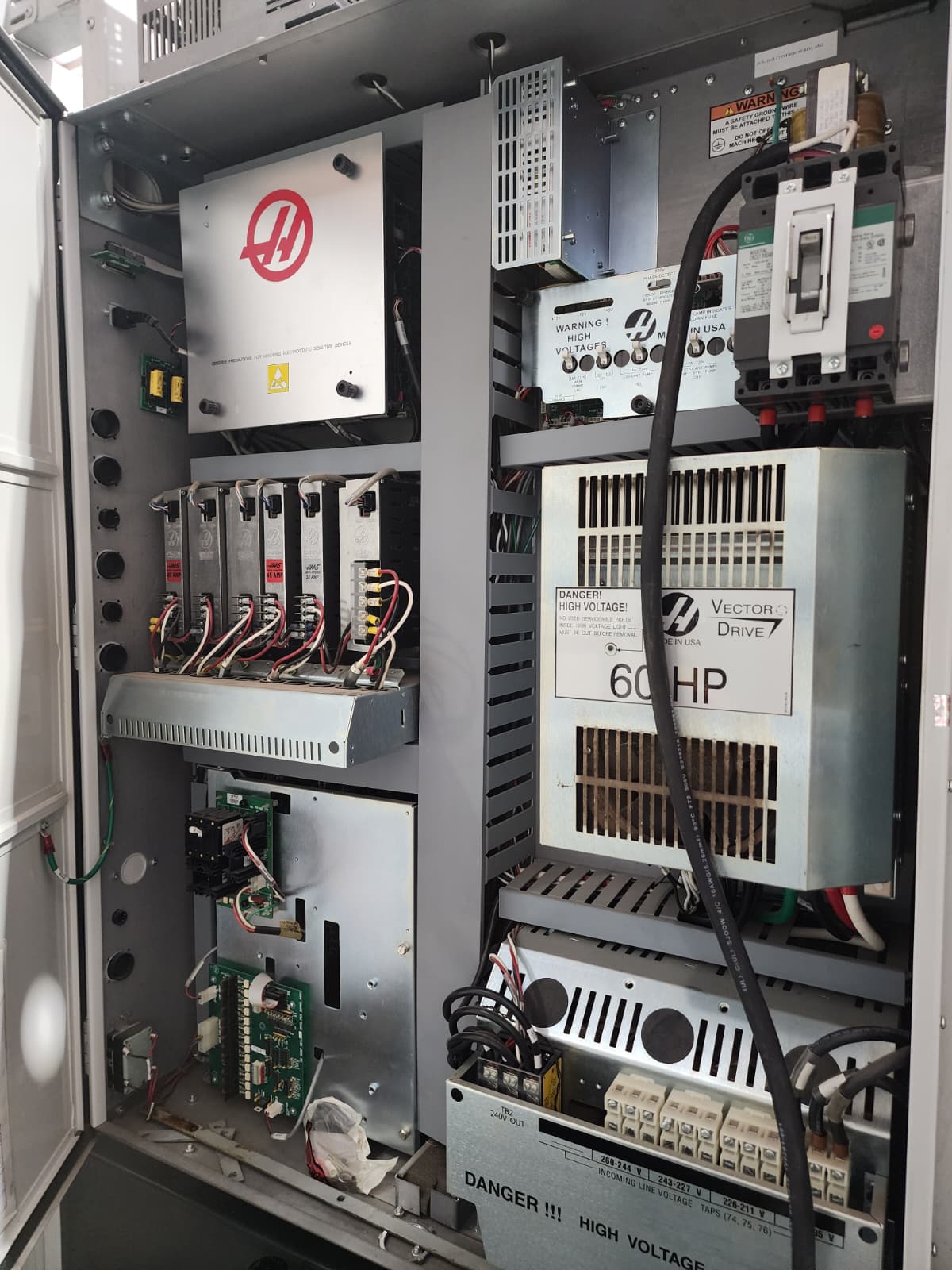

| 60 HP Vector Drive (Upgraded $18,095 value Included) |
| Automatic Tool Presetter (Upgraded $5,895 Approx. value Included) |

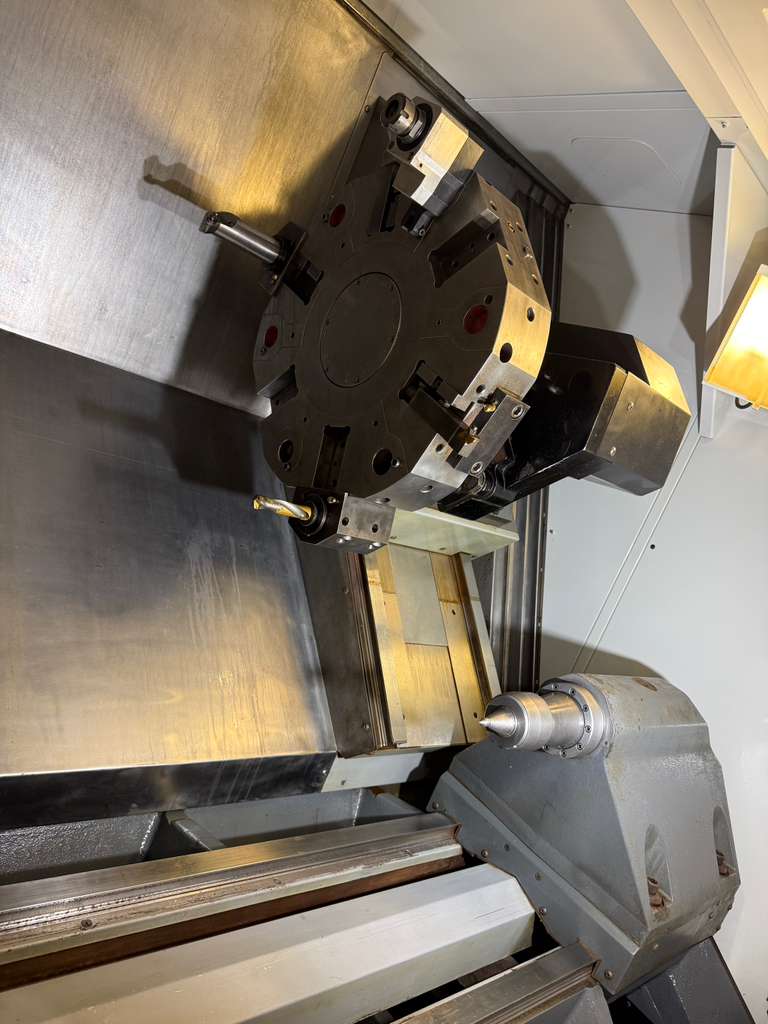

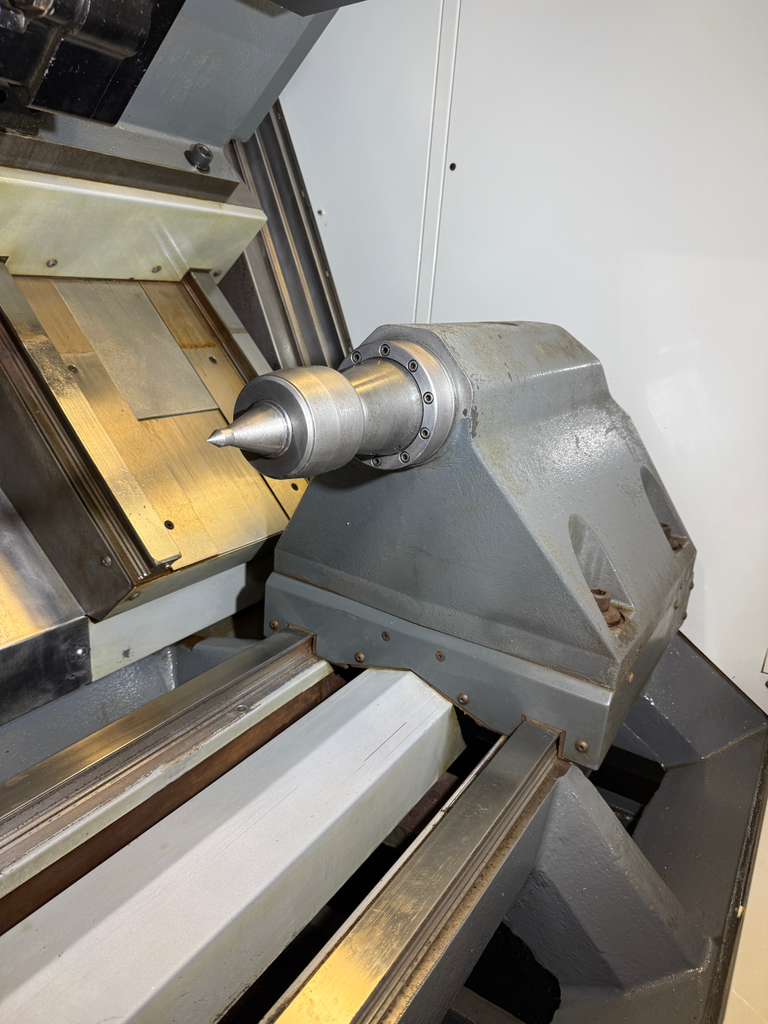

| Programmable Servo Tailstock, MT-5 (Upgraded $16,695 Approx. value Included) |
| Remote Jog Handle |
| Automatic Lubrication system |
| DNC Enabled |
| Qick Code |
| Floopy Enable |
| Rigid Tapping |

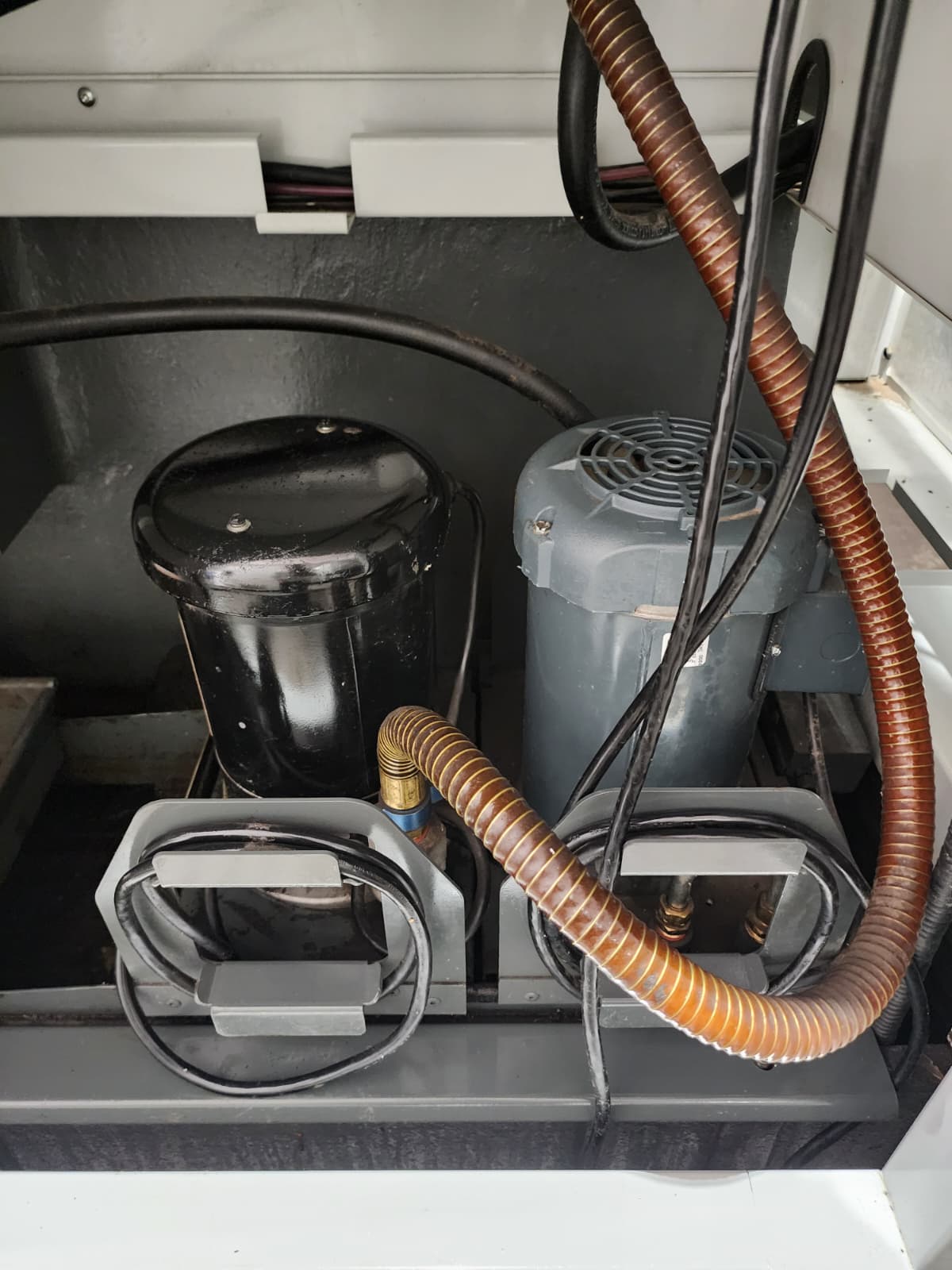

| High Pressure Coolant System (Upgraded $8,695 Approx. value Included) |

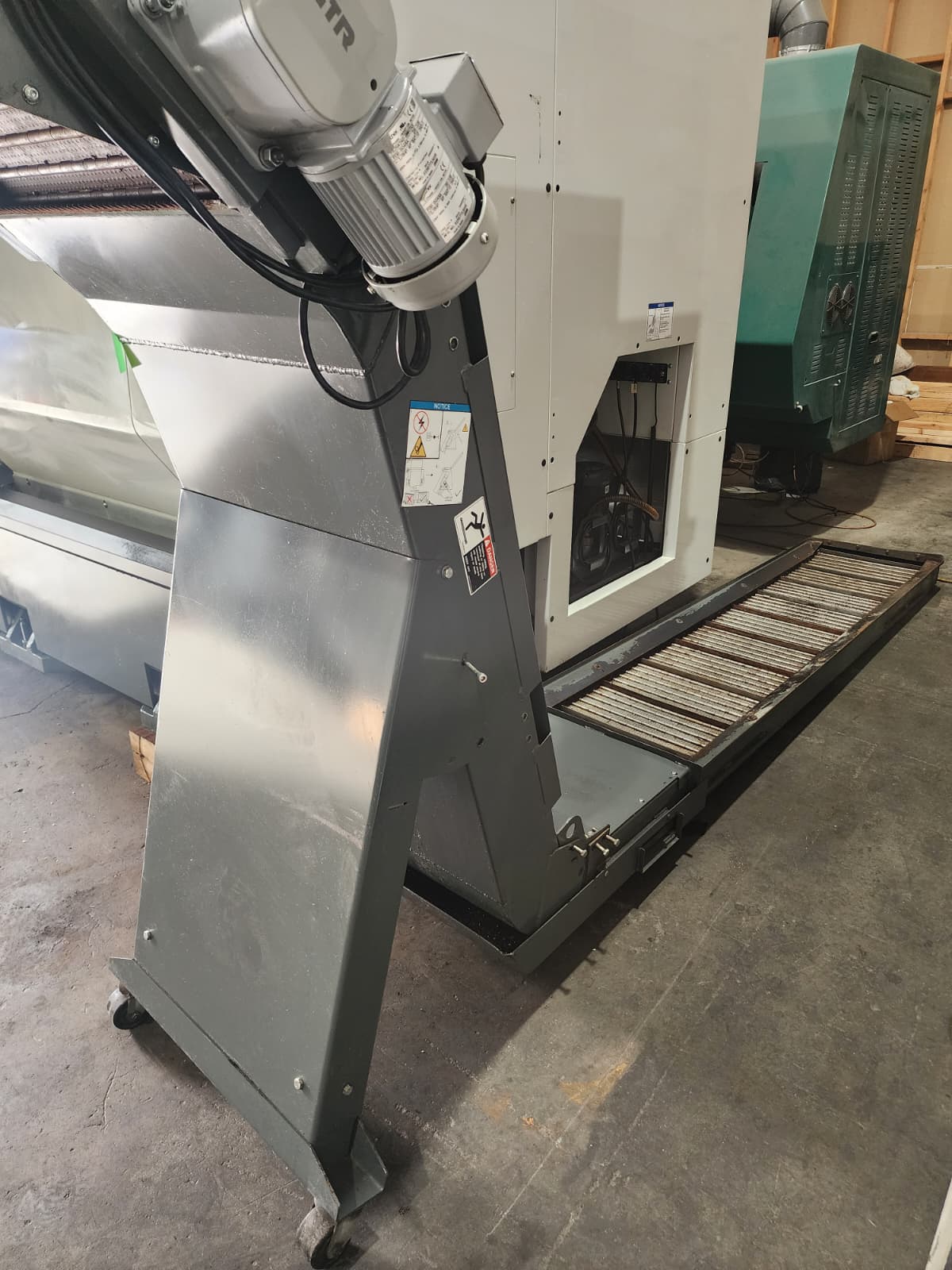

| Chip Conveyor (Upgraded $7,095 value Included) |

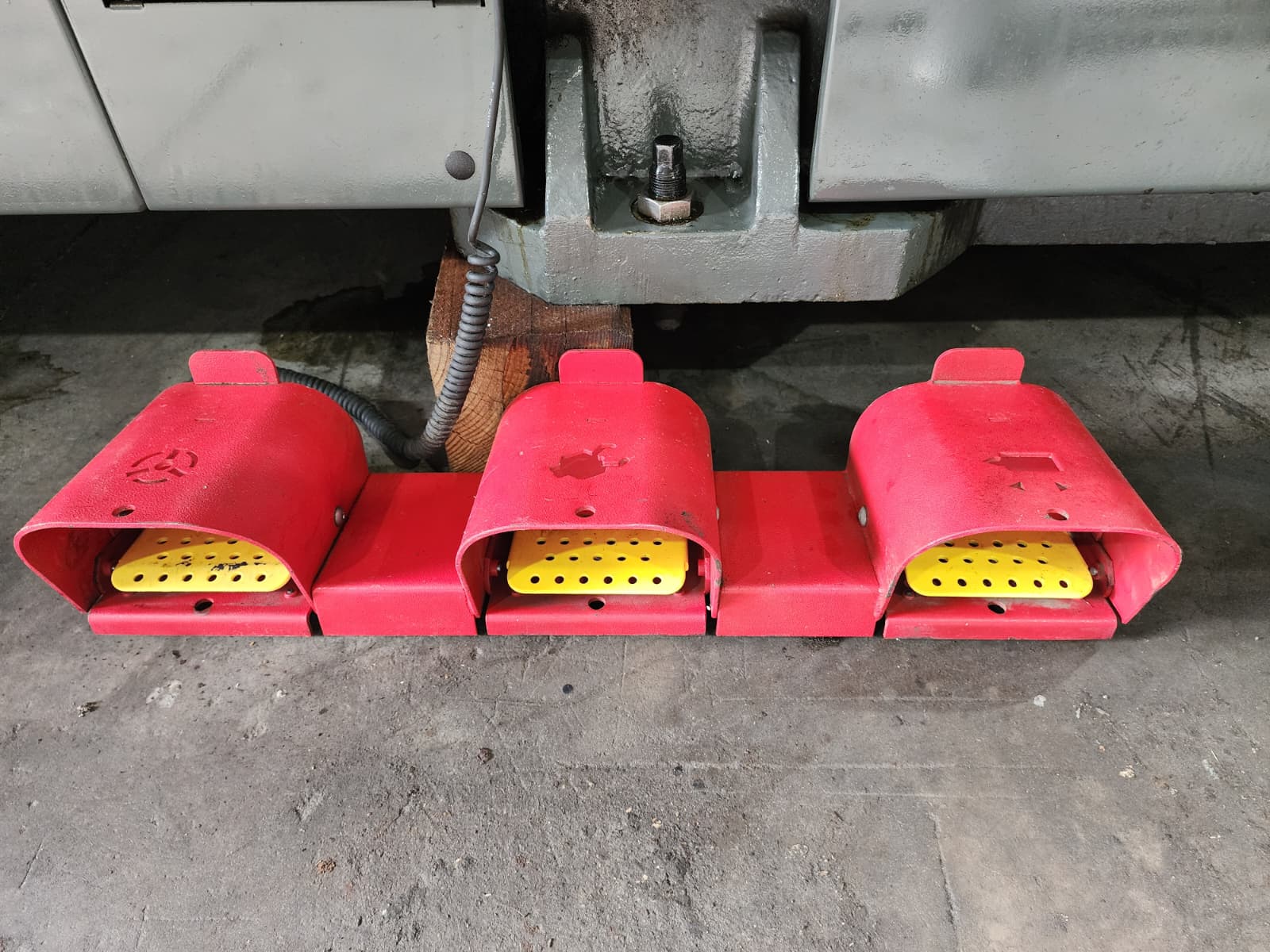

| Foot Switches |
| (1) Live Tool Holder (2) Boring Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter : 30.0″ |
| Max Swing Over Bed : 35.5″ |
| Max Turning Length: 44.0″ |
| Max Bar Capacity : 4.0″ |
| Travels: |
|---|
| X Axis Travel : 20″ |
| Z1 Axis Travel : 44.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 710 IPM |
| Rapid Traverse Z Axis: 710 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 4.62″ |
| Spindle Speed: 2400 RPM |
| Spindle Motor: 60 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Tailstock: |
|---|
| Tailstock Type: Programmable |
| Tailstock Taper: MT-5 |
| Tailstock Travel: 42″ |
| General: |
|---|

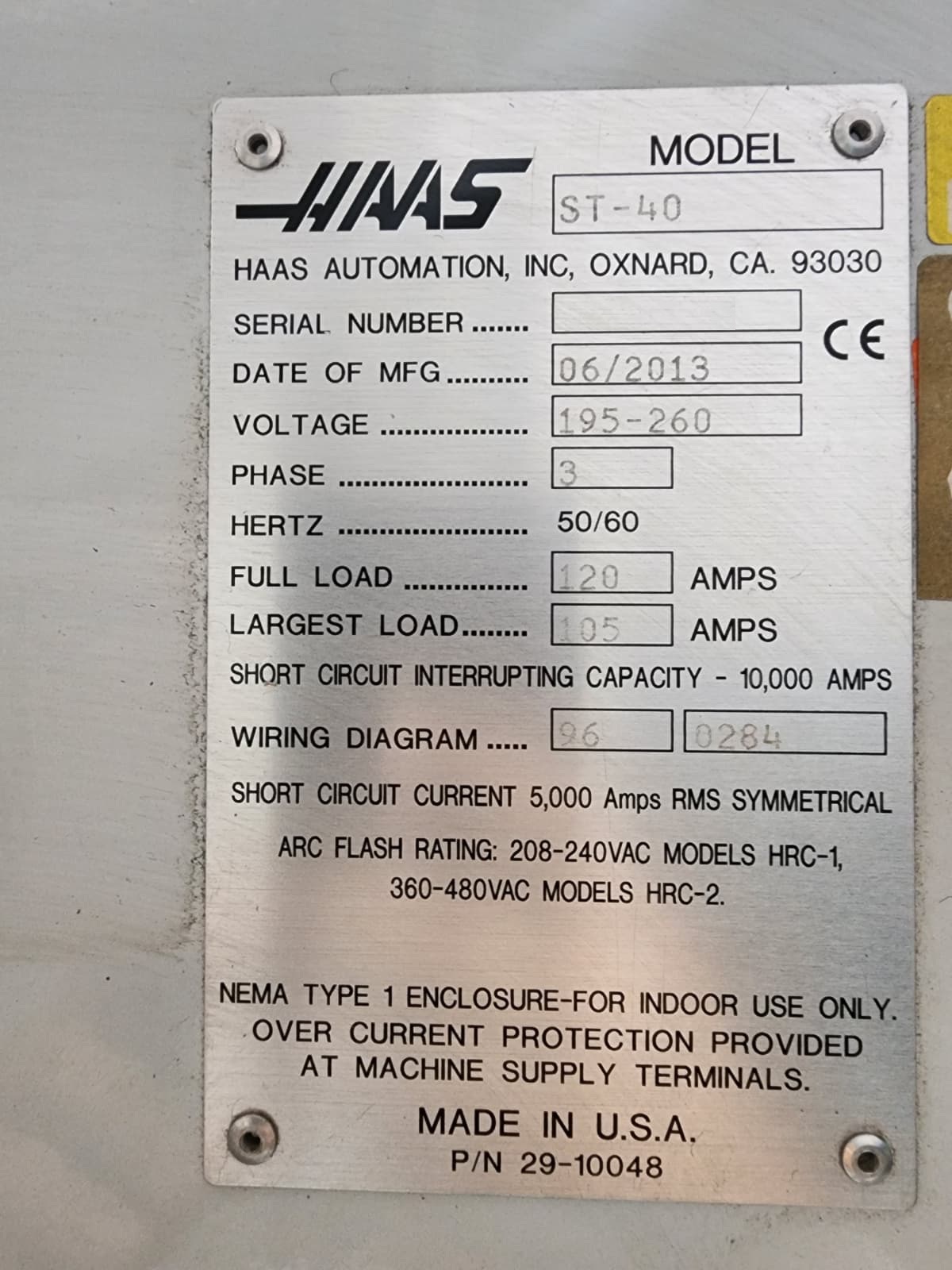

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 216″ x 95″ x 110″ High |
| Machine Weight: 21,740 lbs Approx. |
| Make | |
|---|---|
| Model | ST-40L |
| Categories | CNC Lathes & Turning Centers |
