*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model No.: | Super Mini Mill 2 |
| Year of Manufacture: | 2016 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center (Toolroom) |
| CNC Control: | Haas CNC Control |
| Country of Origin: | USA |
| Equipped With: |
|---|

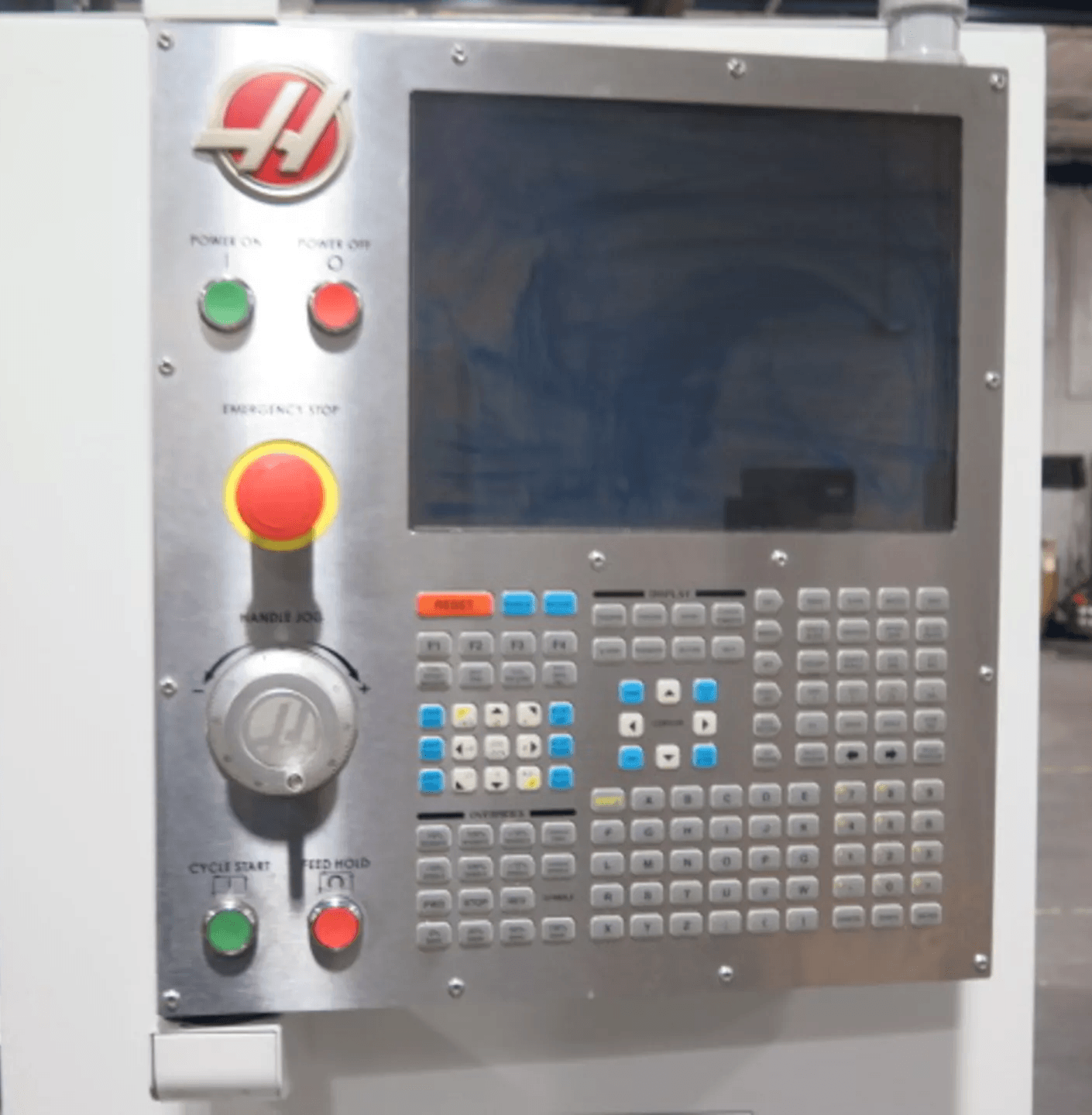

| Haas CNC Control |
| 4th Axis Ready / 4-Axis Capability |

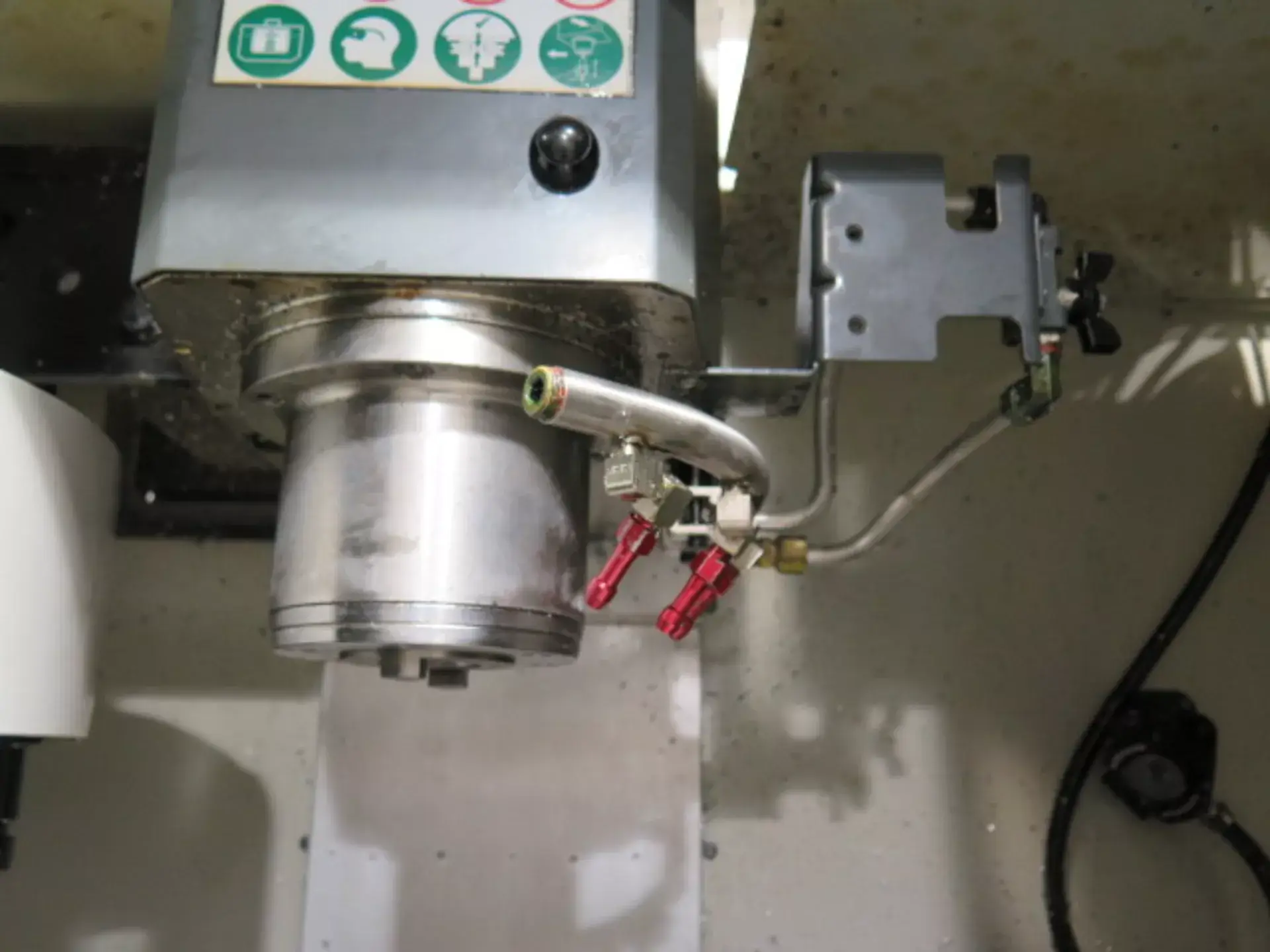

| High-Speed Spindle |
| Automatic Tool Changer |
| Coolant System |
| Chip Tray |
| Full Enclosure |
| Capacity: |
|---|
| Table Size: 36″ x 12″ |
| Max Table Load: 1,000 lbs |
| Travels: |
|---|
| X-Axis Travel: 20″ |
| Y-Axis Travel: 16″ |
| Z-Axis Travel: 14″ |
| Spindle: |
|---|
| Spindle Speed: 10,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 15 HP |
| Tooling: |
|---|
| ATC Capacity: 20 Tools |
| General: |
|---|
| Power Source: AC 220 V, 3-Phase, 50/60 Hz |
| Machine Dimensions (L x W x H): 78″ x 70″ x 95″ |
| Machine Weight: 4,000 lbs Approx. |
