*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

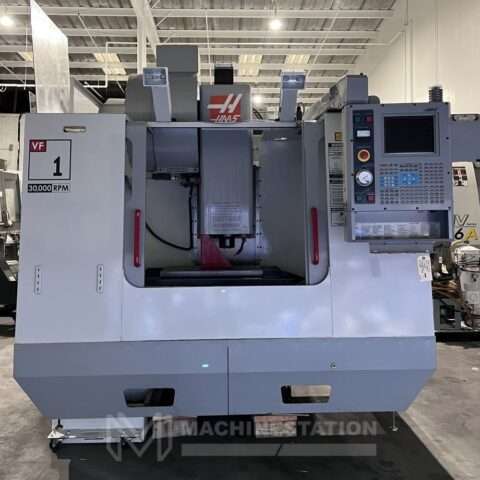

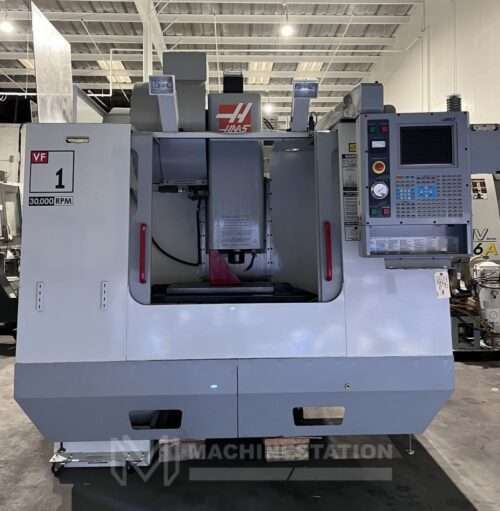

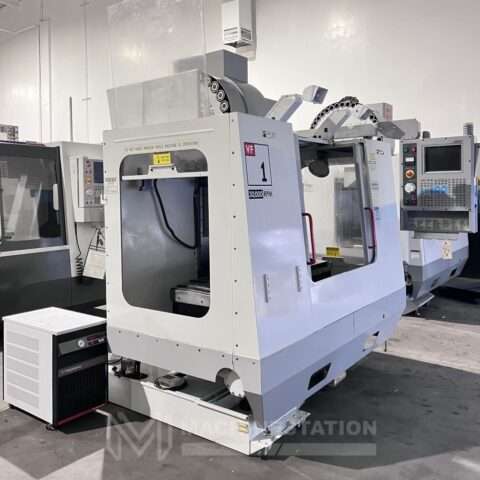

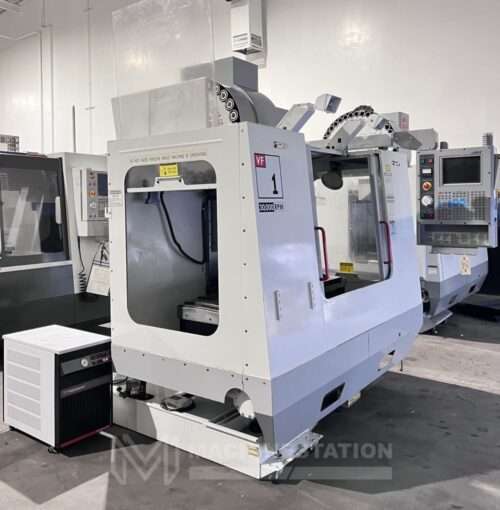

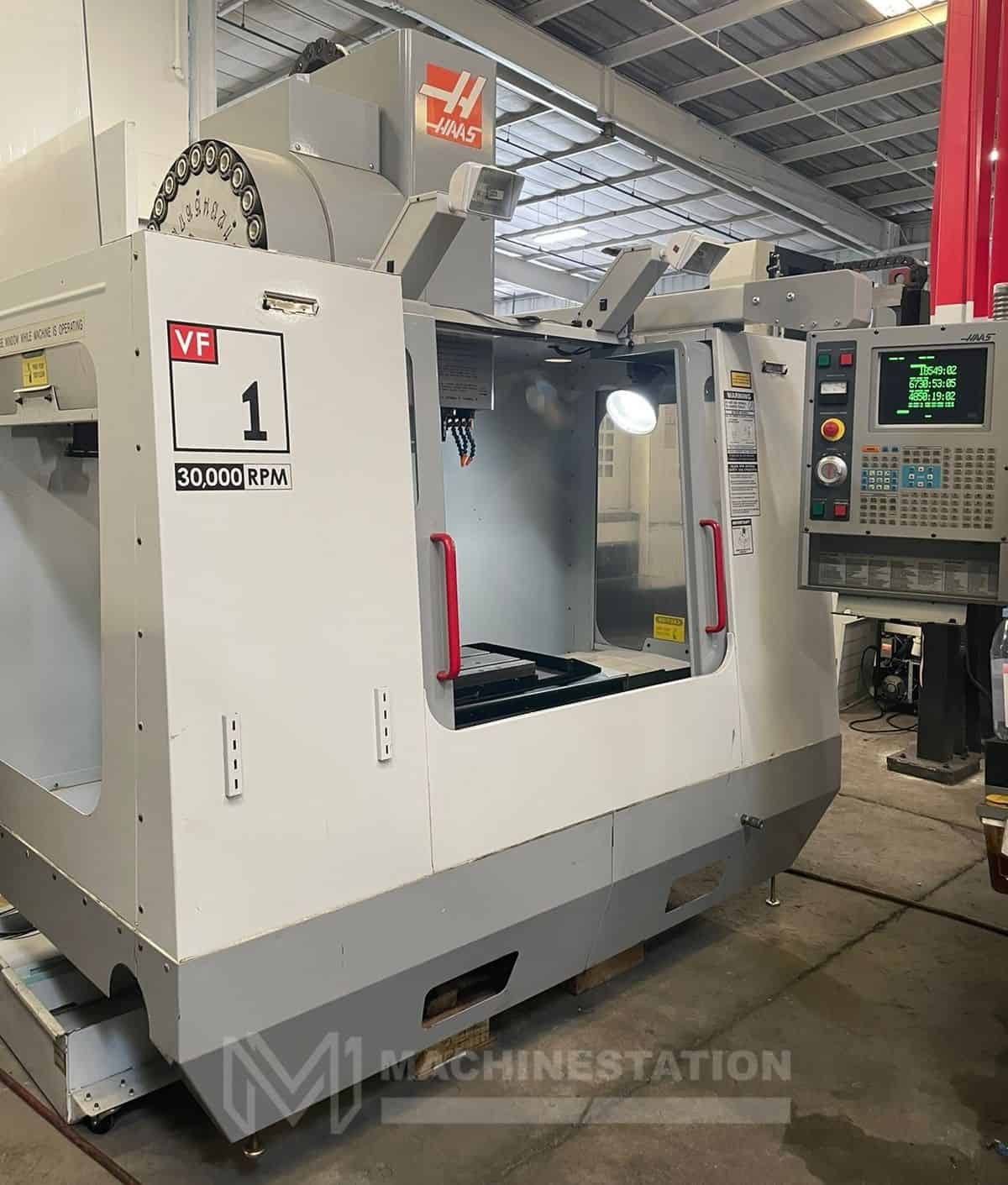

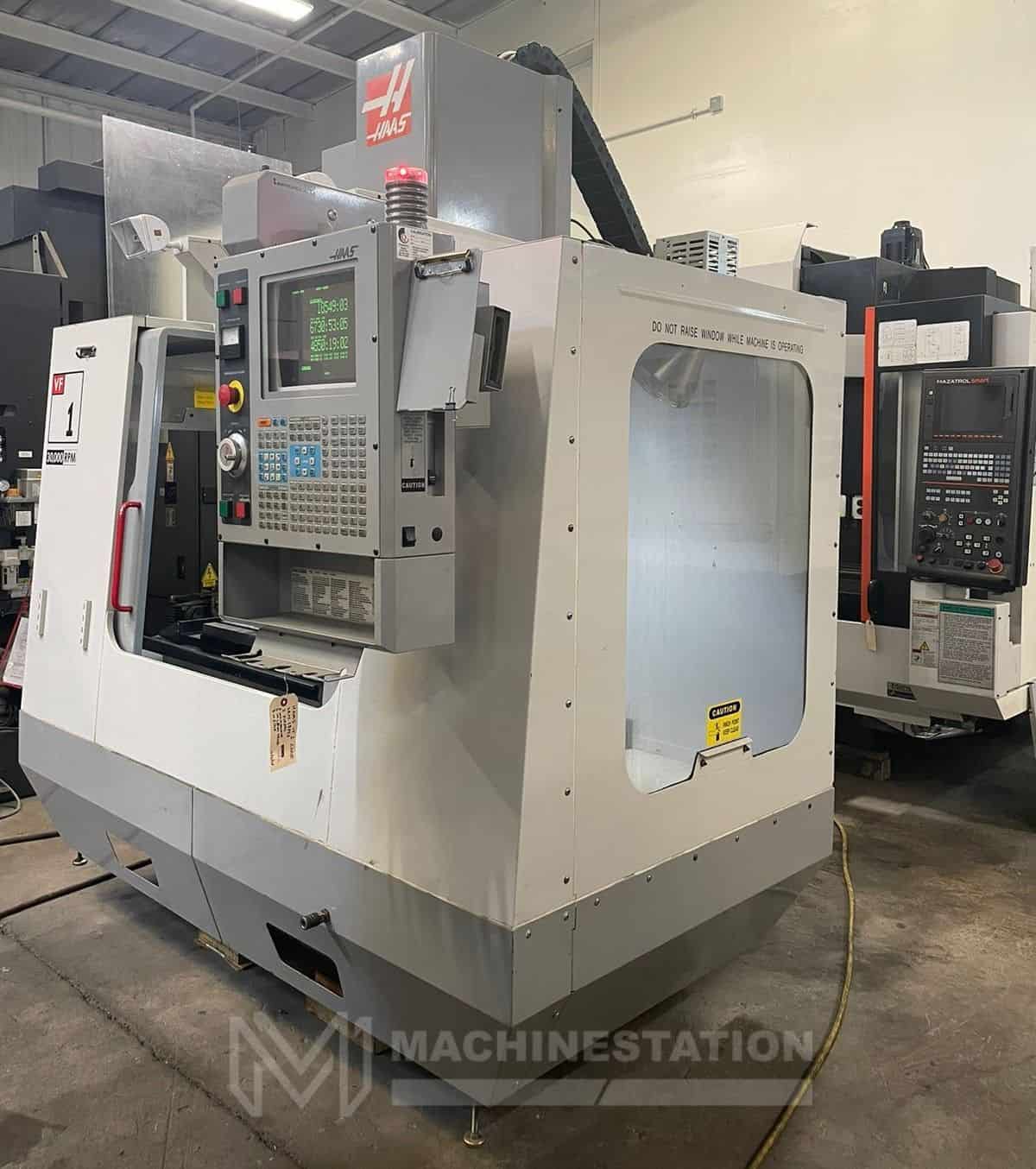

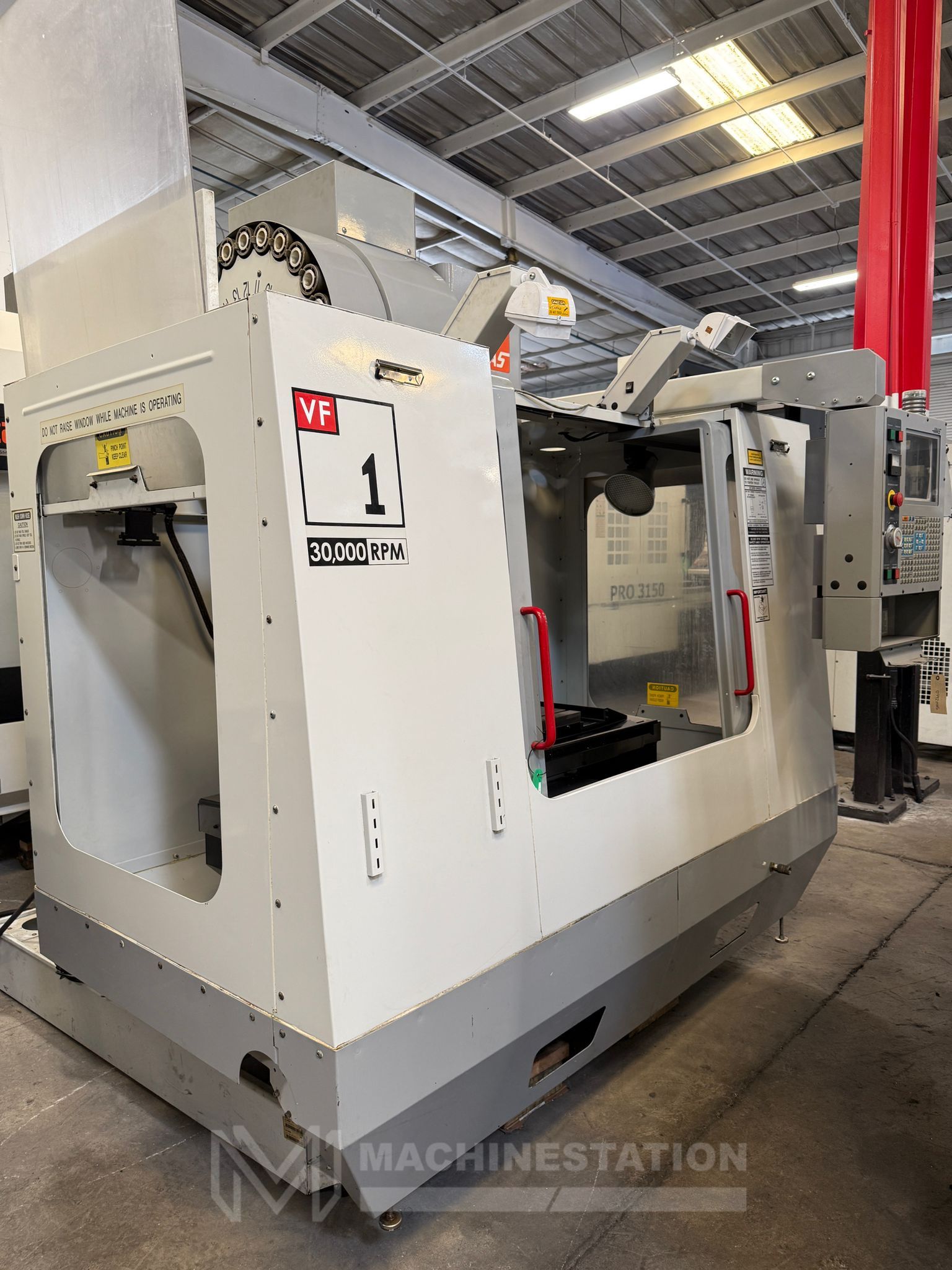

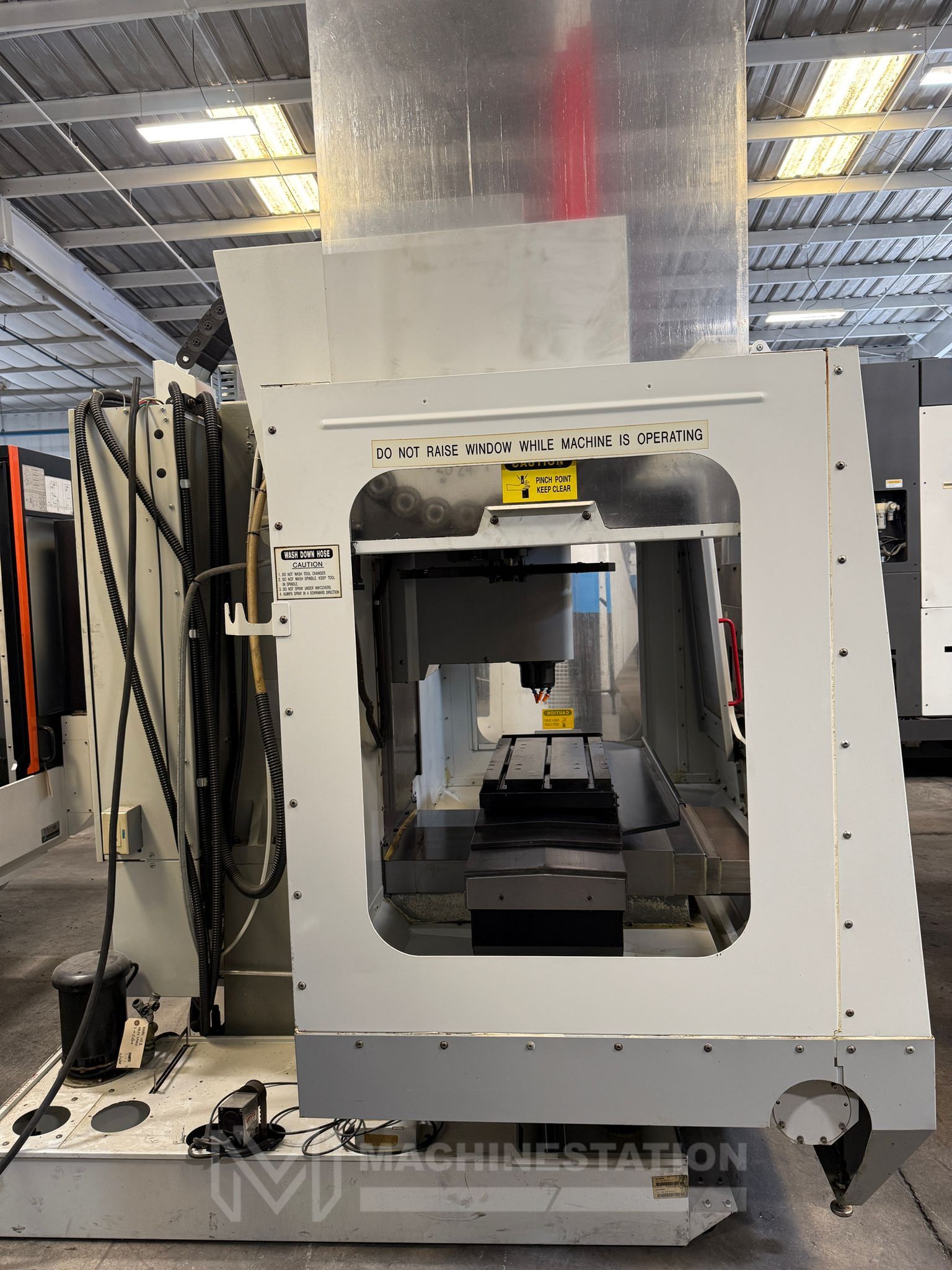

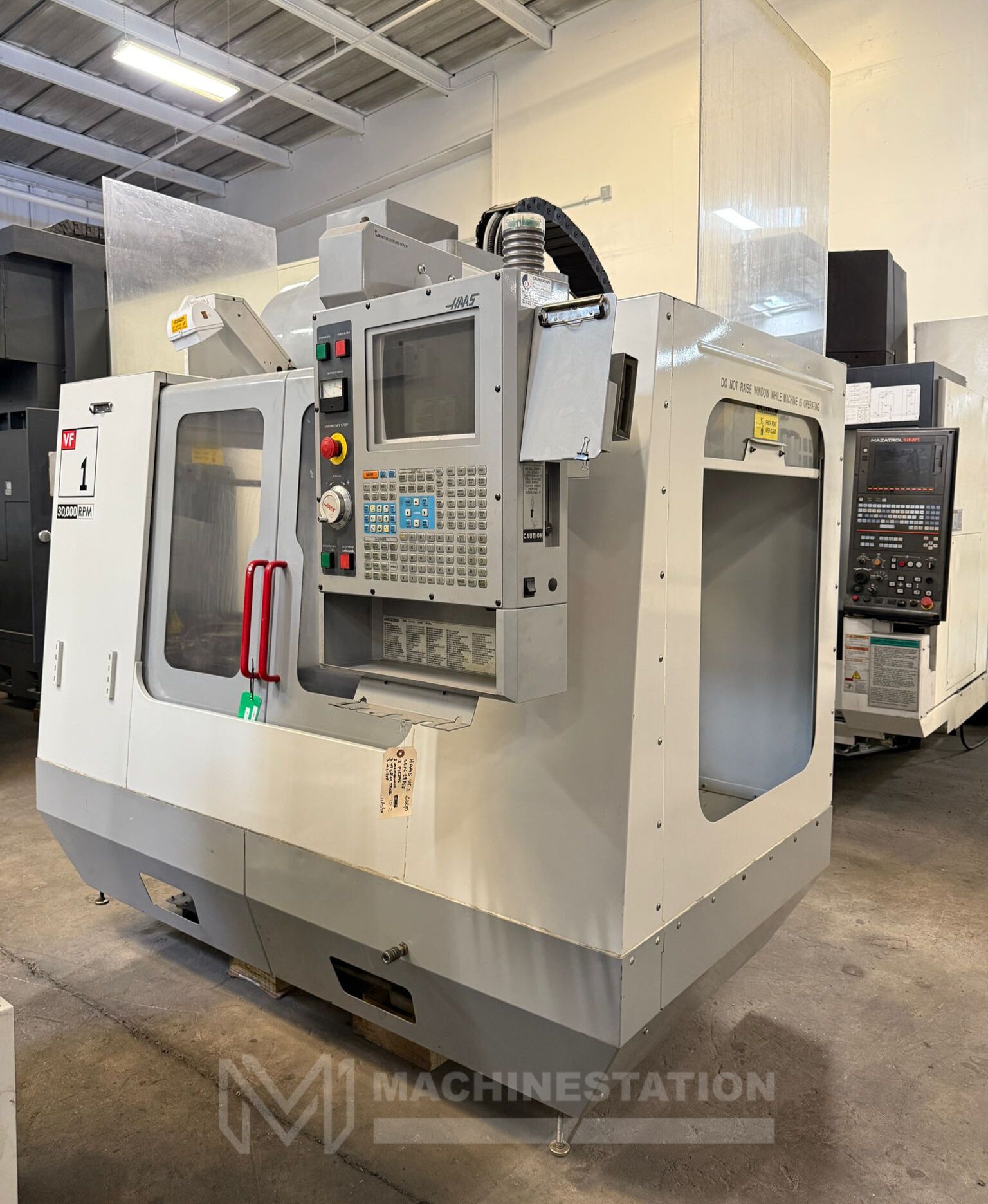

| Make: | HAAS |
| Model: | VF1D |
| Year: | 2002 |
| Condition: | Used – Good |
| Features: |
|---|

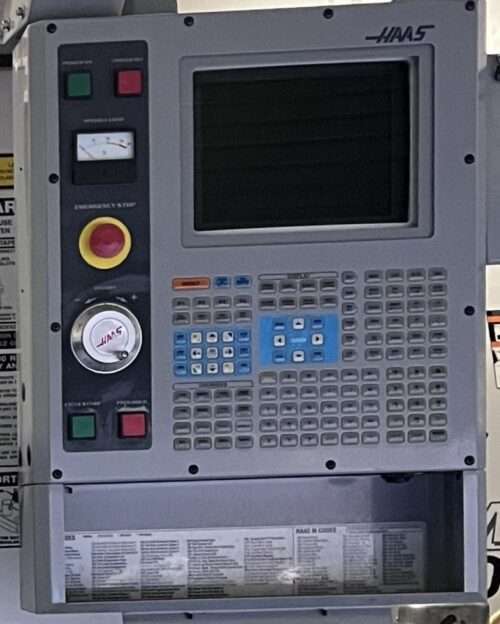

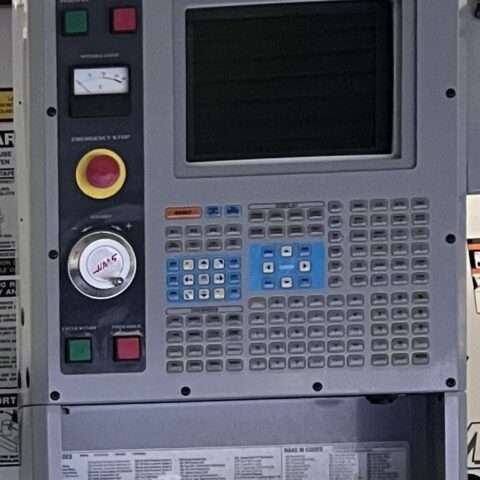

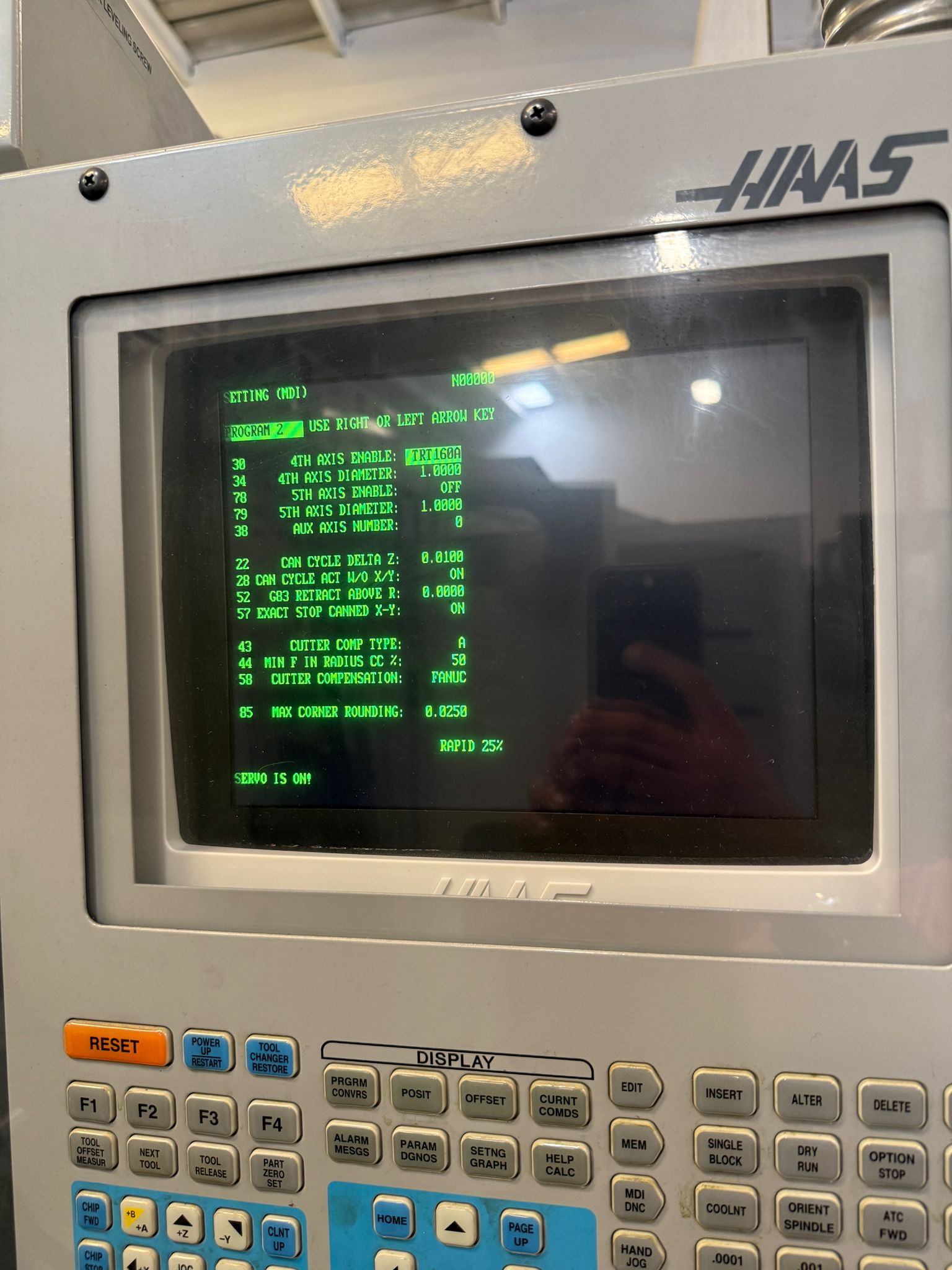

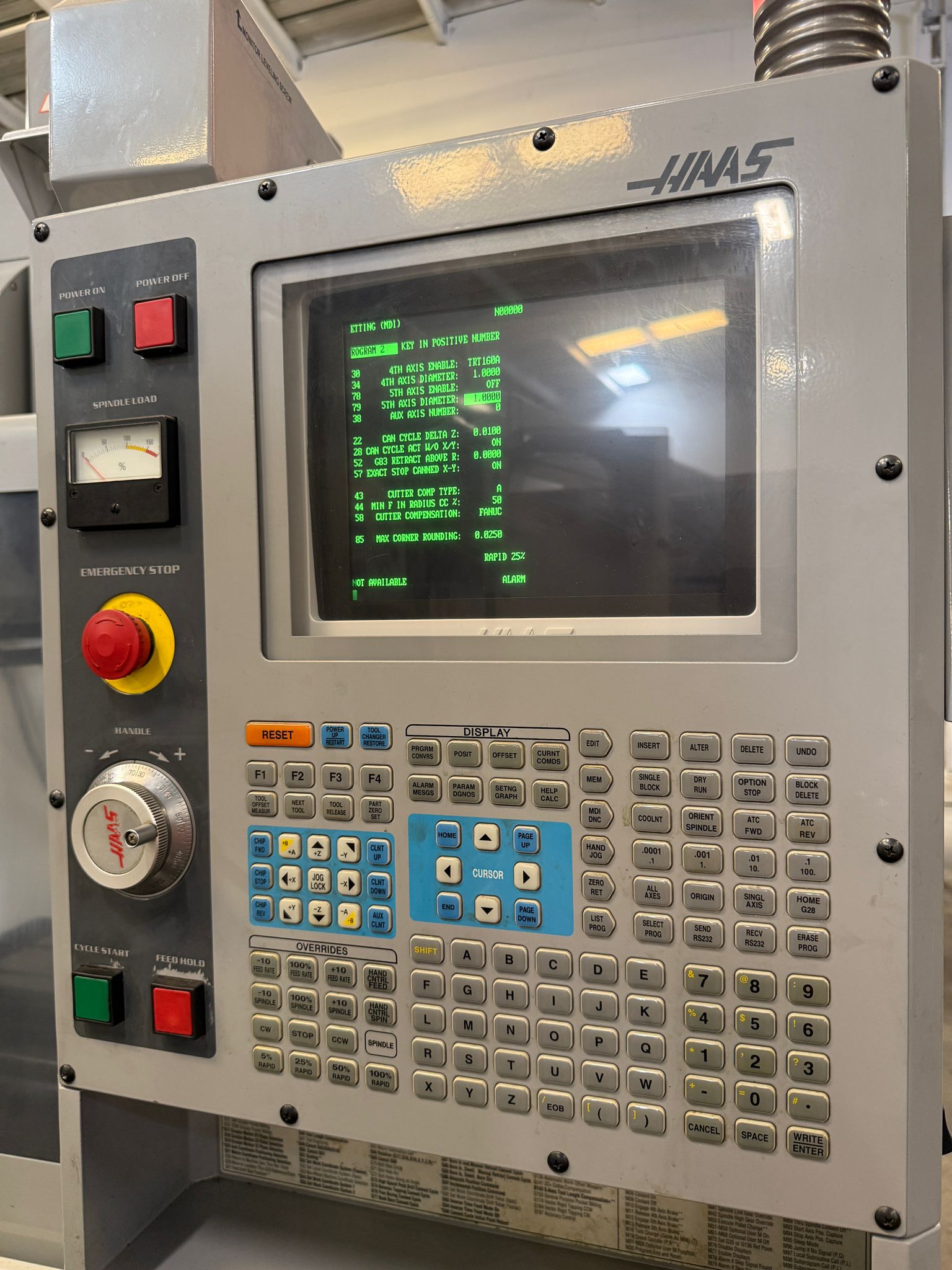

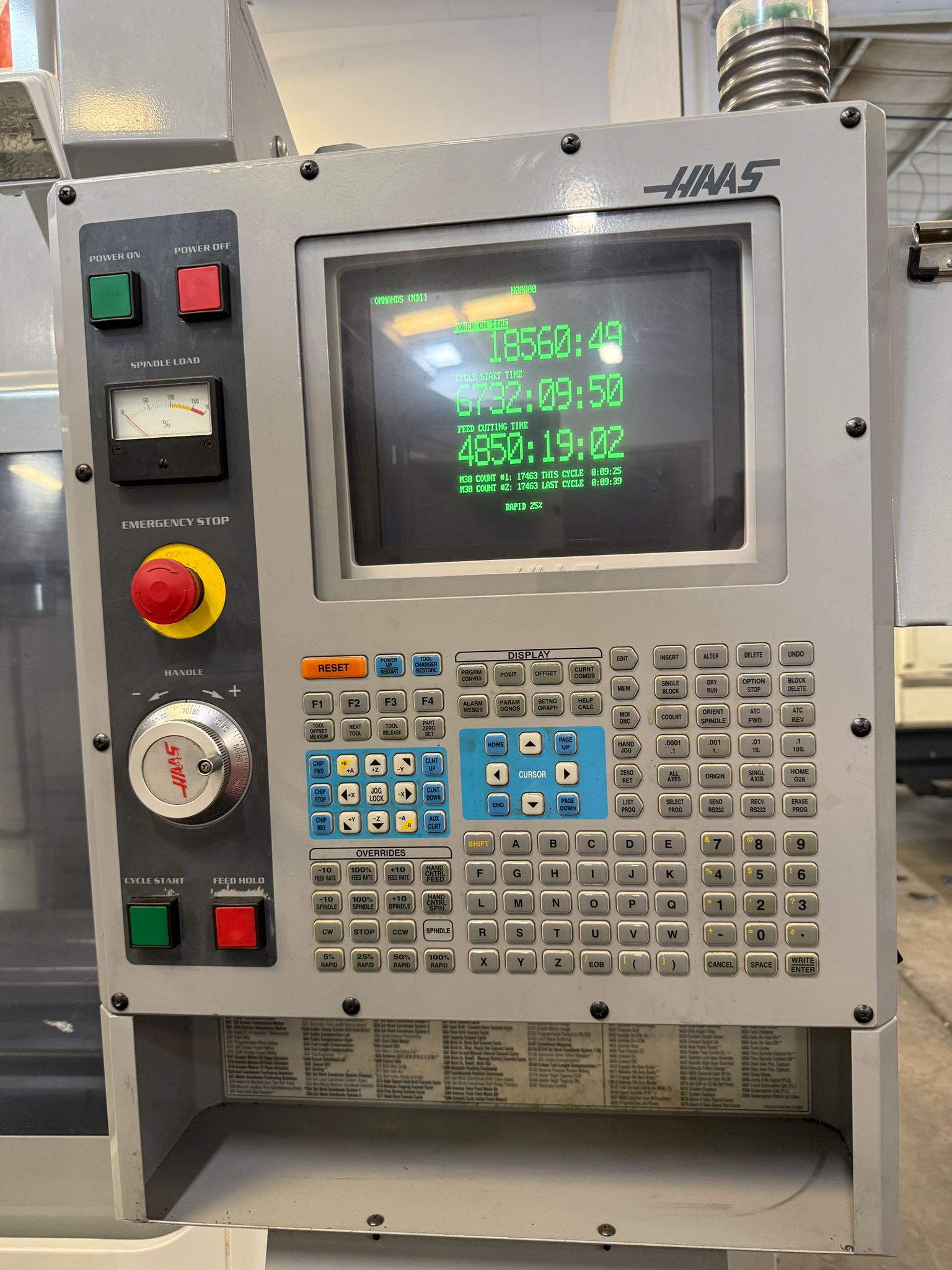

| Haas CNC Control |

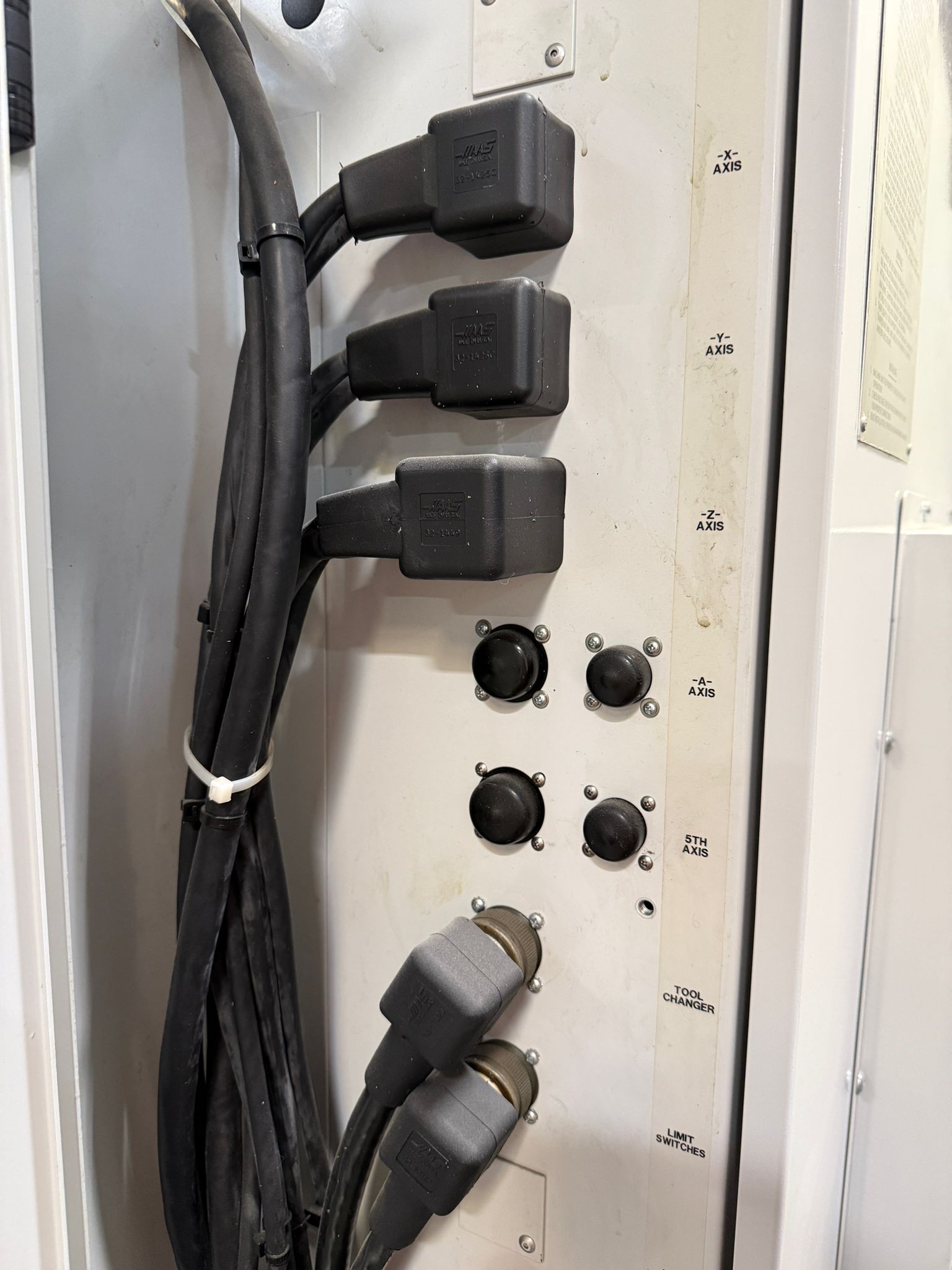

| 4th & 5th Axis Ready |

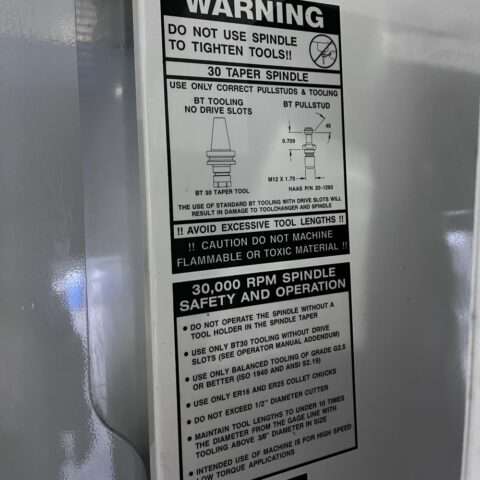

| 30,000 RPM High Speed Spindle (Upgraded $41,295 value Included) |
| BT-30 Spindle Taper |

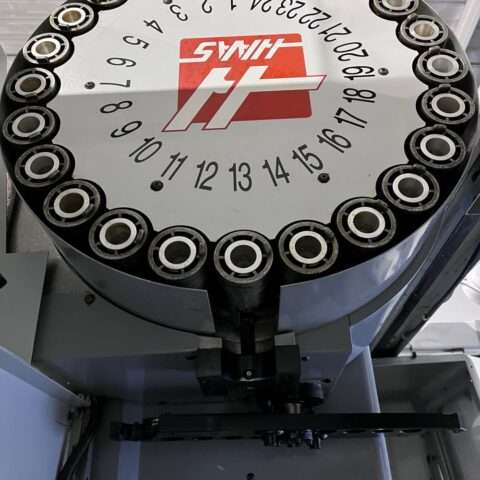

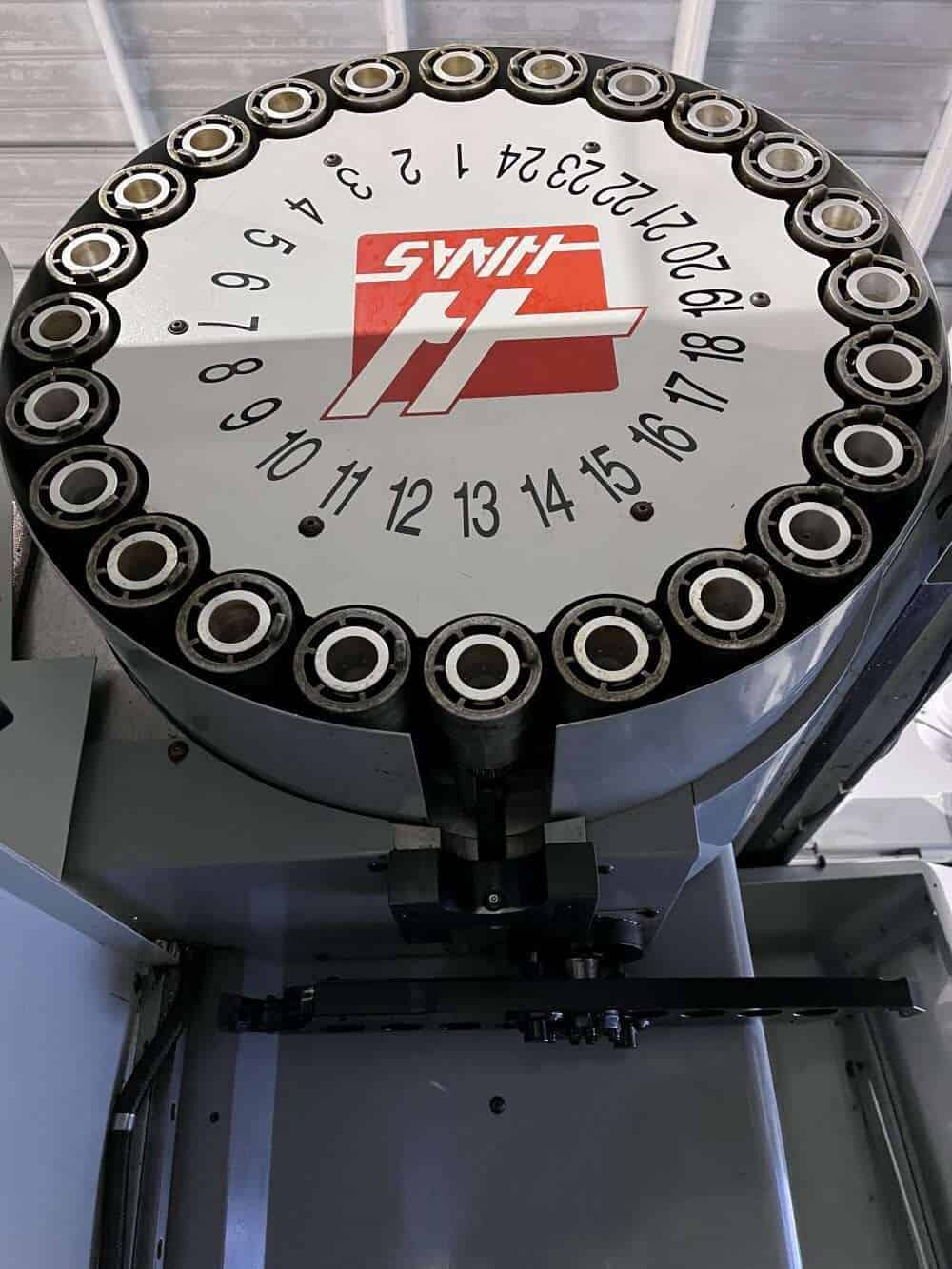

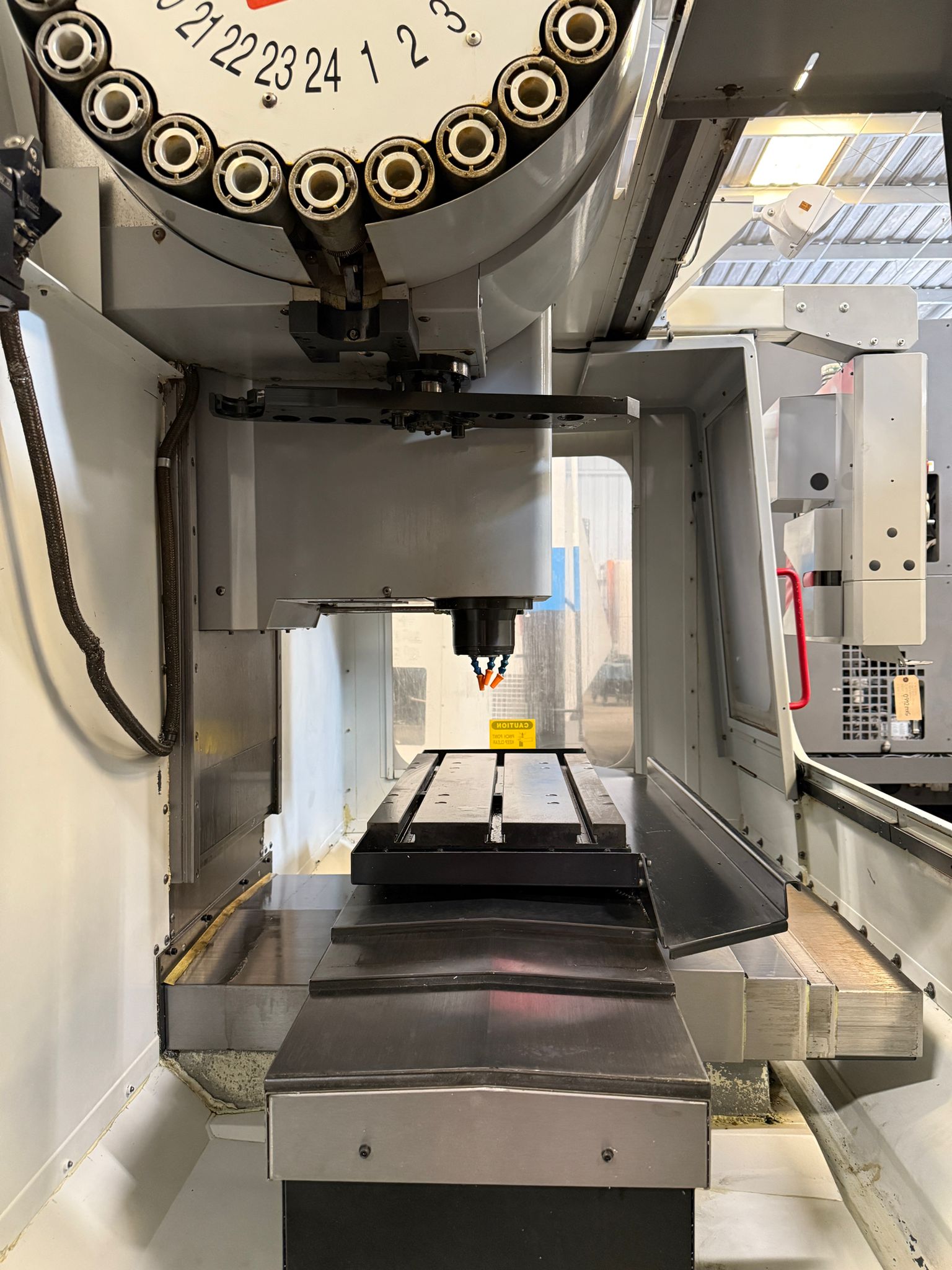

| 24 Station Side Mounted Automatic Tool Changer |
| High Speed Machining |

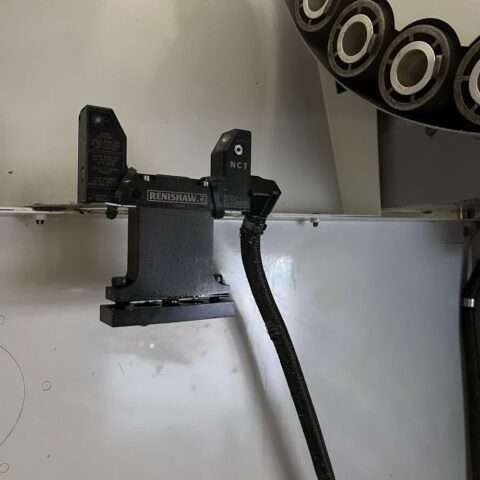

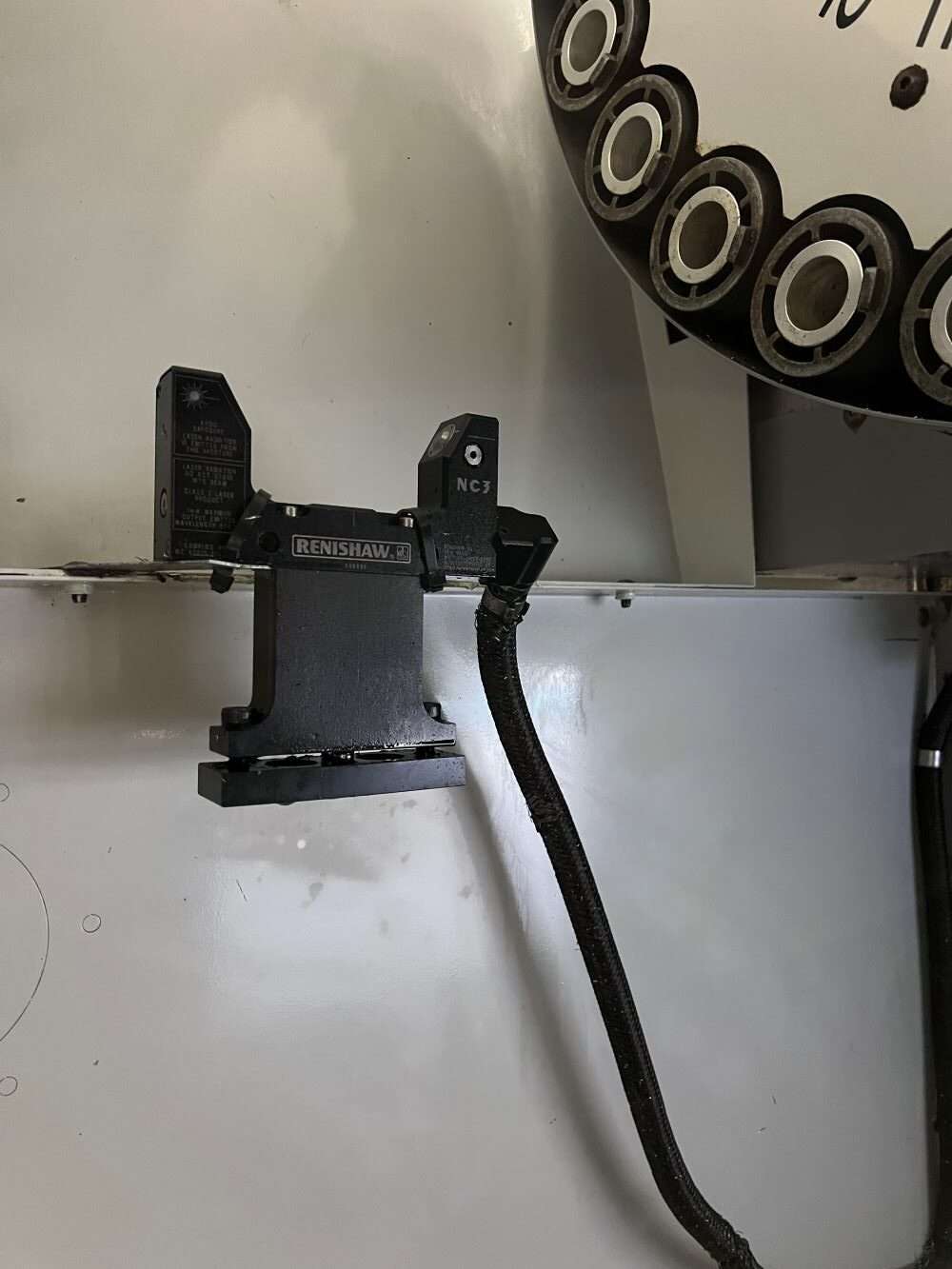

| Renishaw NC3 Non Contact Tool Setting System |
| 20 HP High Torque Spindle |
| USB Port |
| Quick Code Programming |
| 1MB Extended Memory |

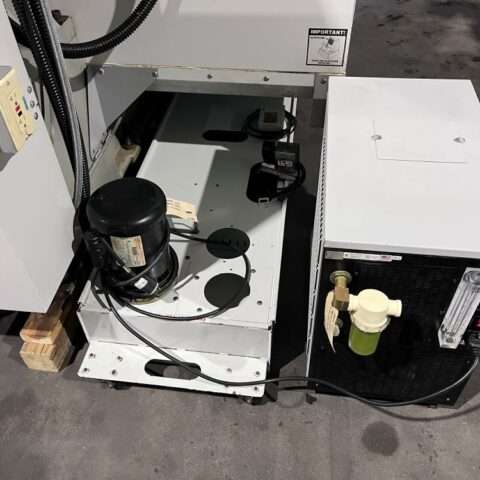

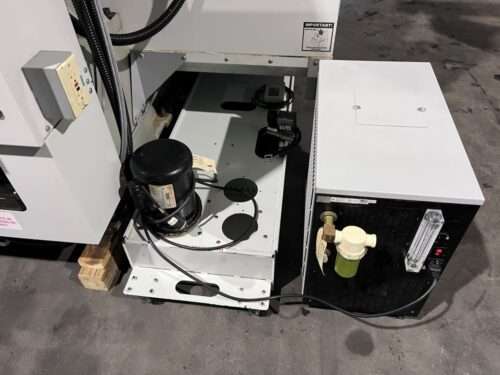

| Coolant System |
| Travels: |
|---|
| X-Axis: 20″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |

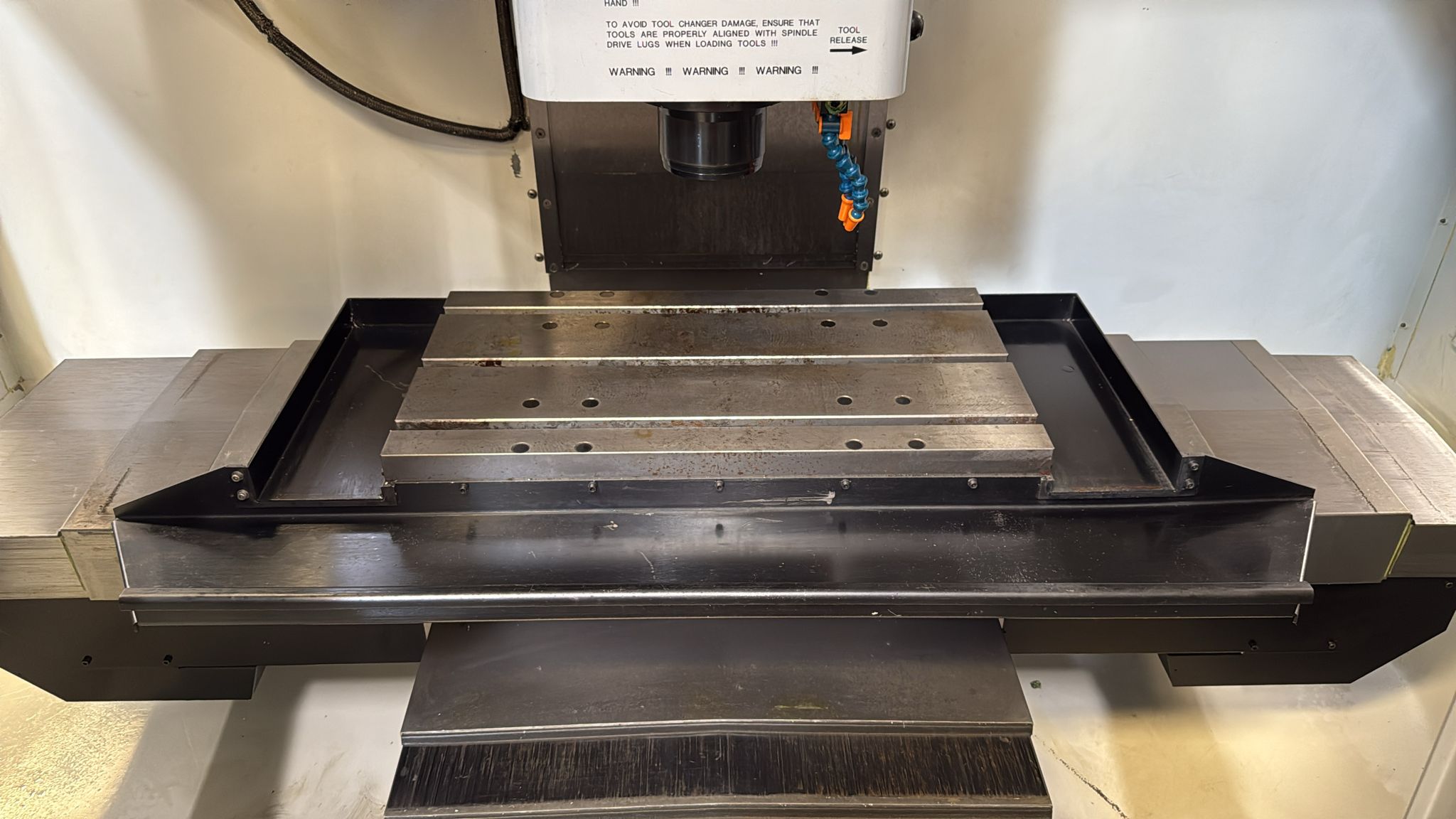

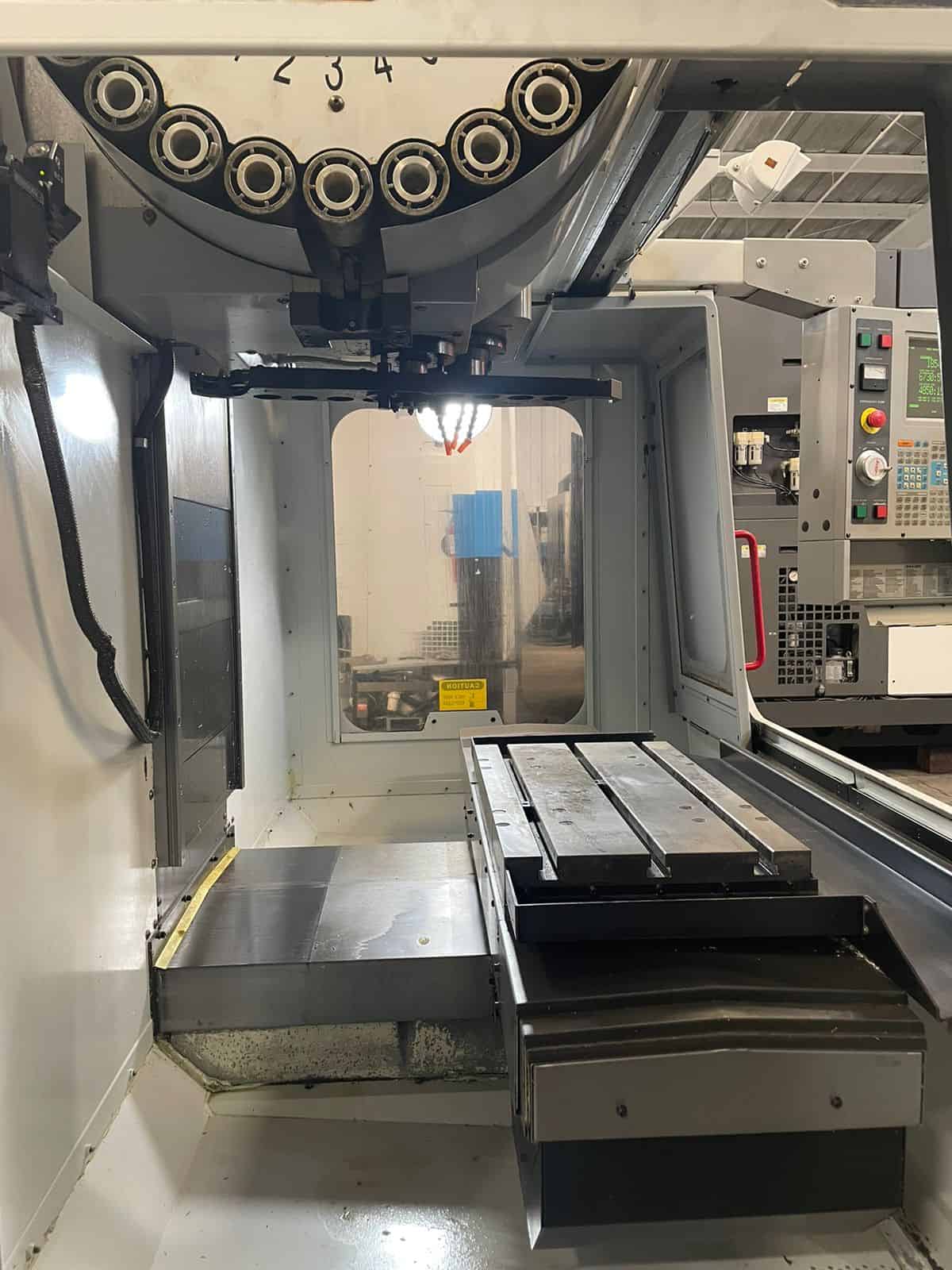

| Table: |
|---|
| Length: 26.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 3000 lbs |

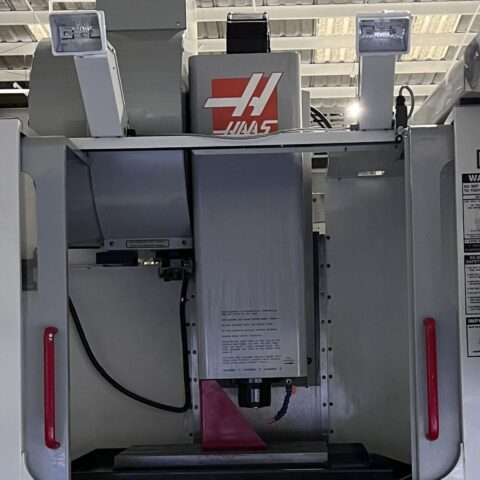

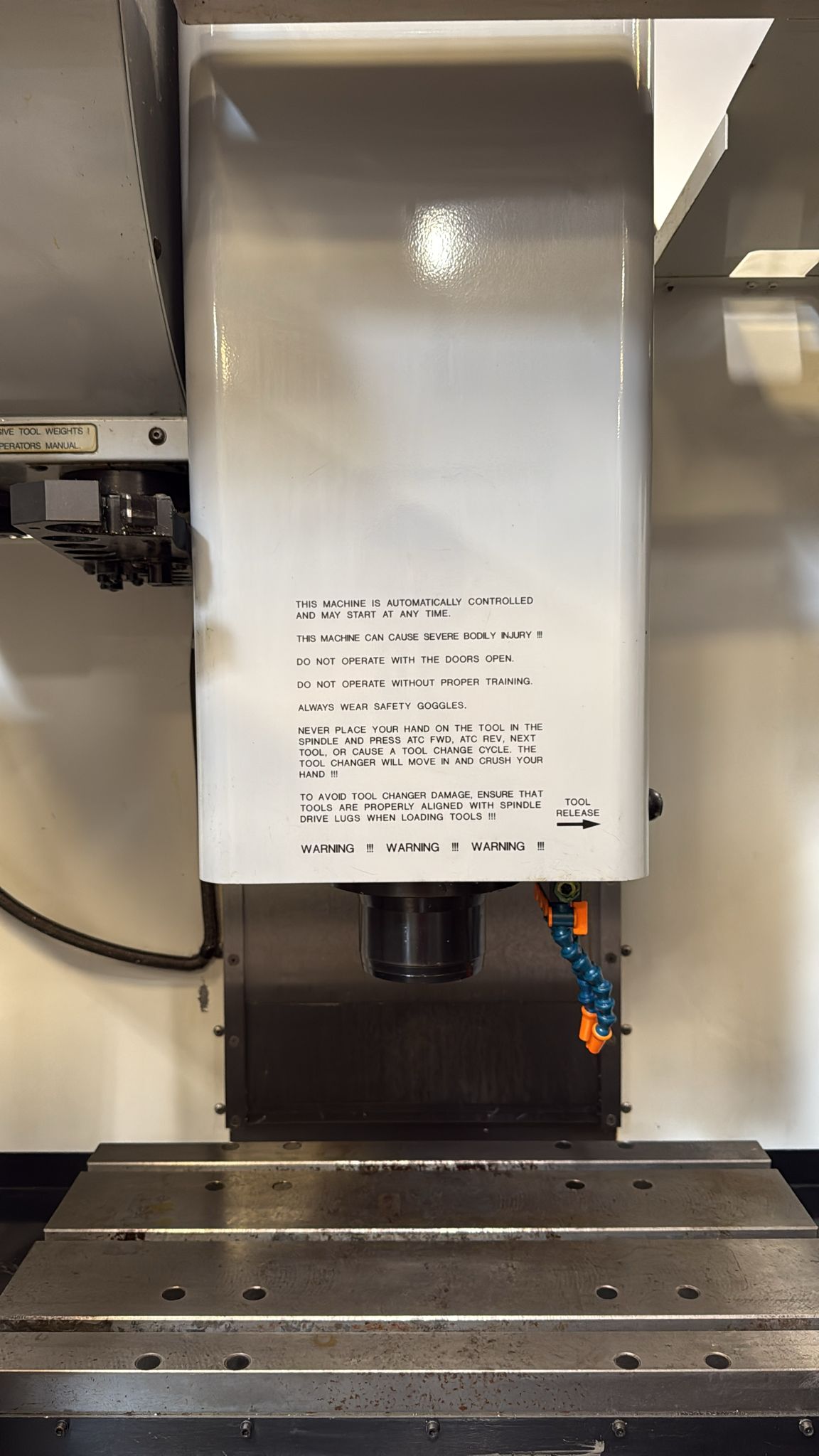

| Spindle: |
|---|
| Taper Size: BT-30 |
| Speed Range: 30,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Max Tool Weight: 5.5 lbs |
| Max Tool Dia: 2.0″ |
| Max Tool Length: 7″ |
| Tool Changing Time: 2 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 101″ x 99″ x 101″ High |
| Weight: 7800 lbs |
