*All specifications are approximate and for reference only, based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

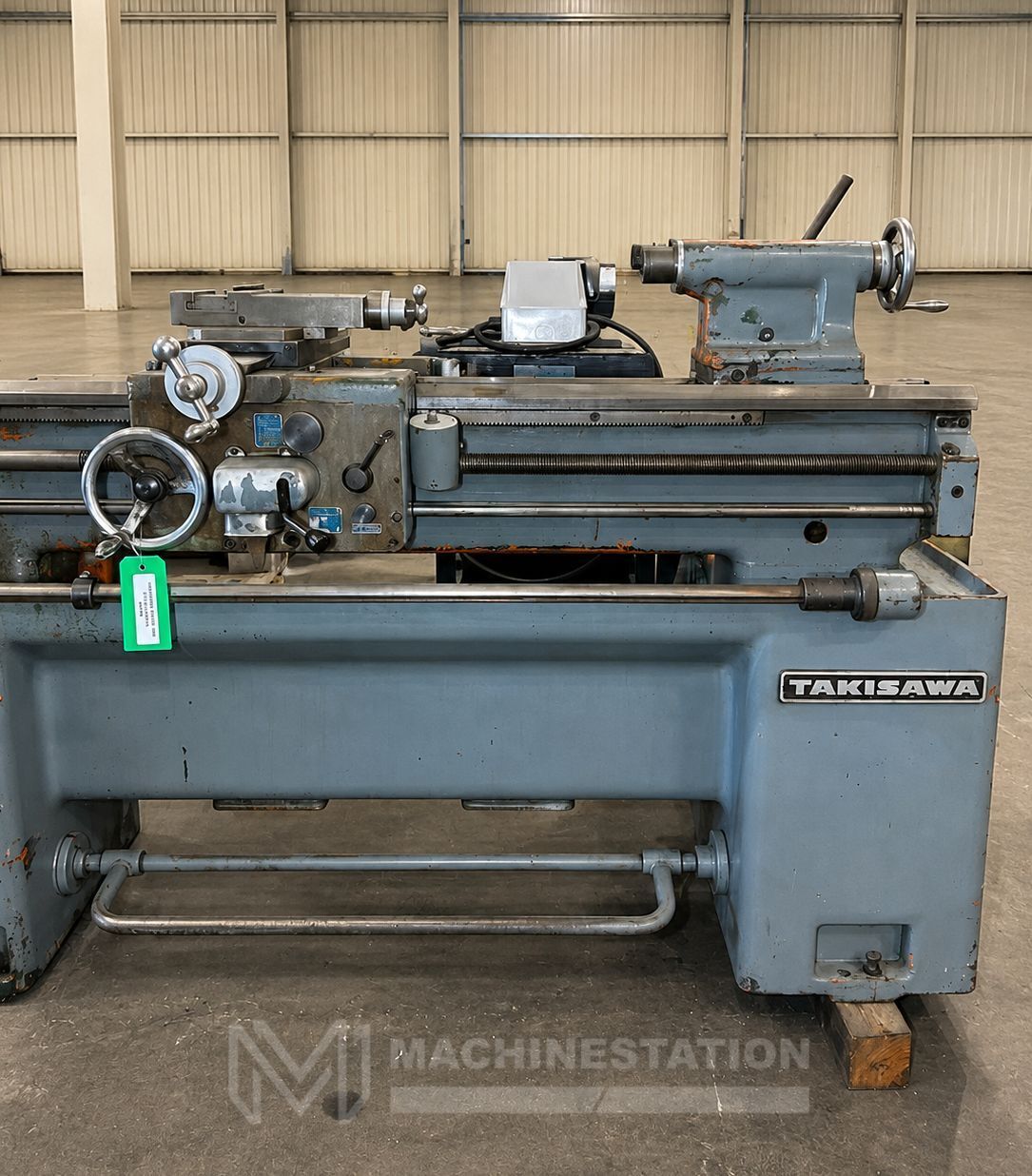

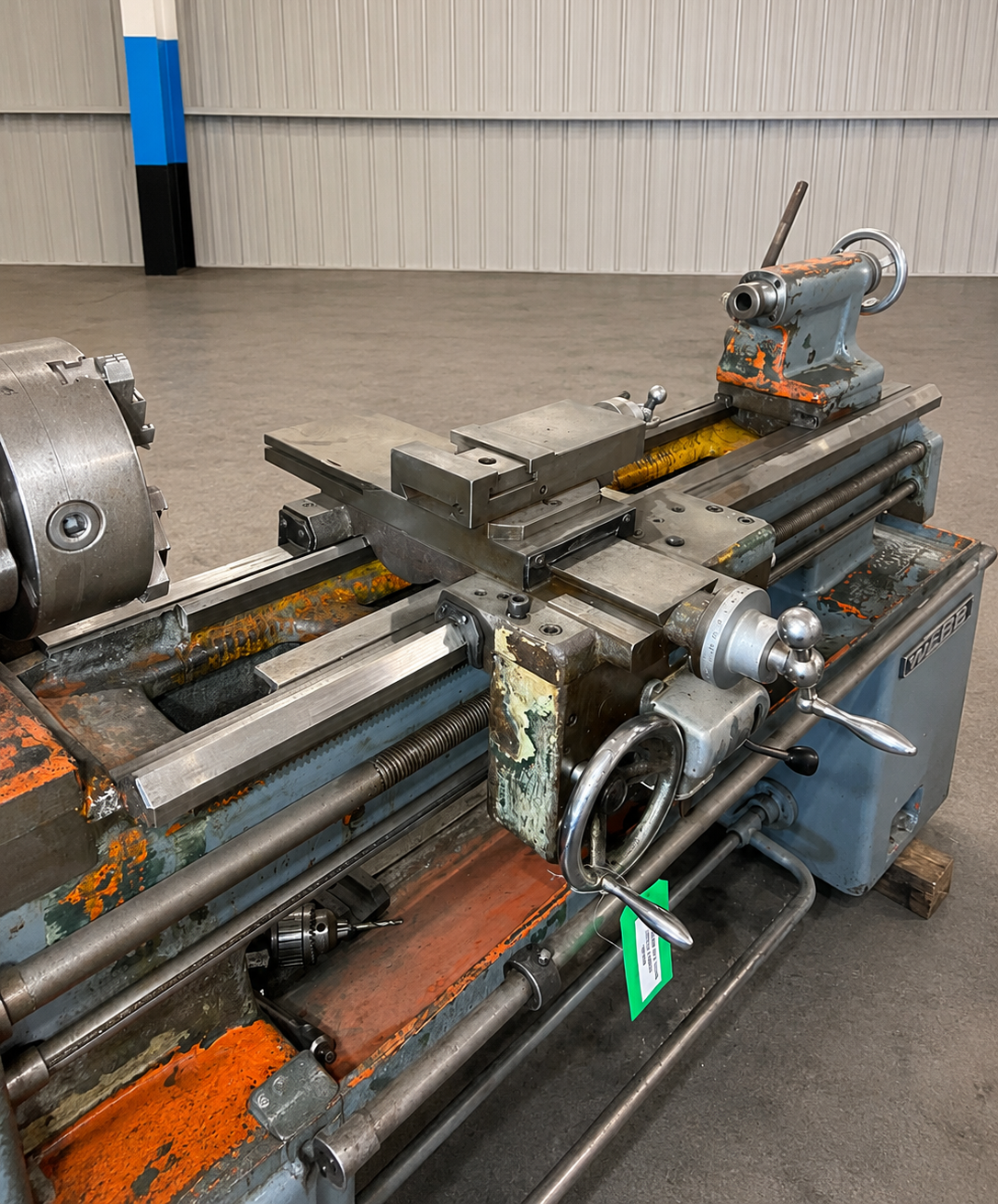

| Make: | TAKISAWA |

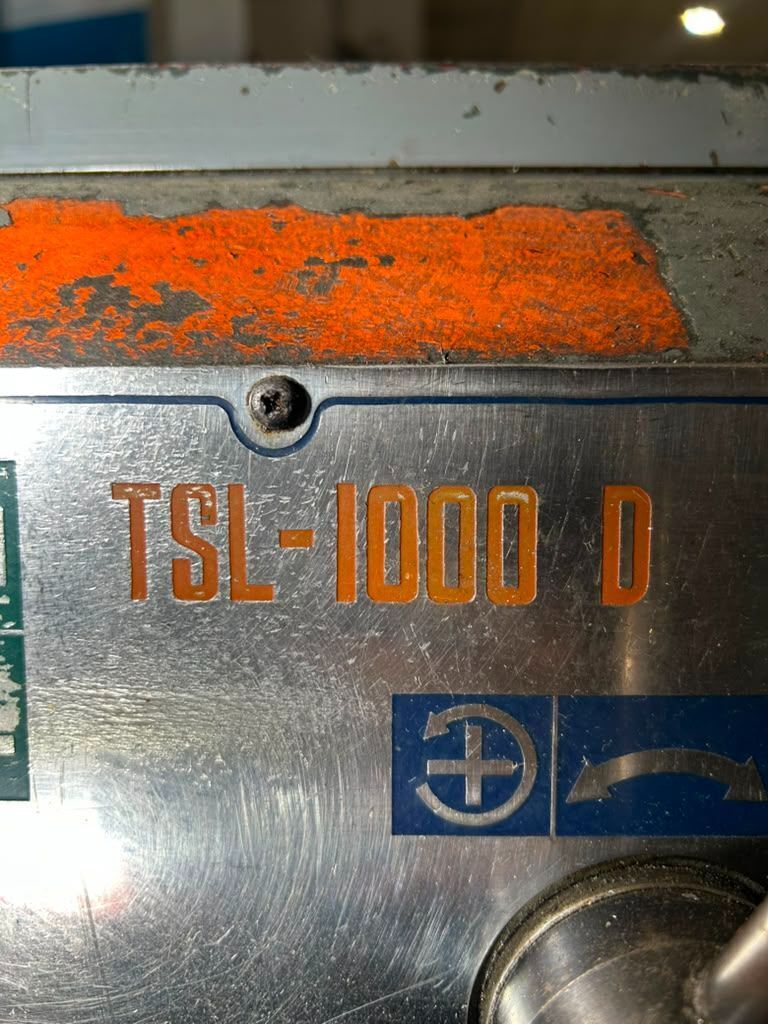

| Model: | TSL-1000D |
| Equipped With: |
|---|

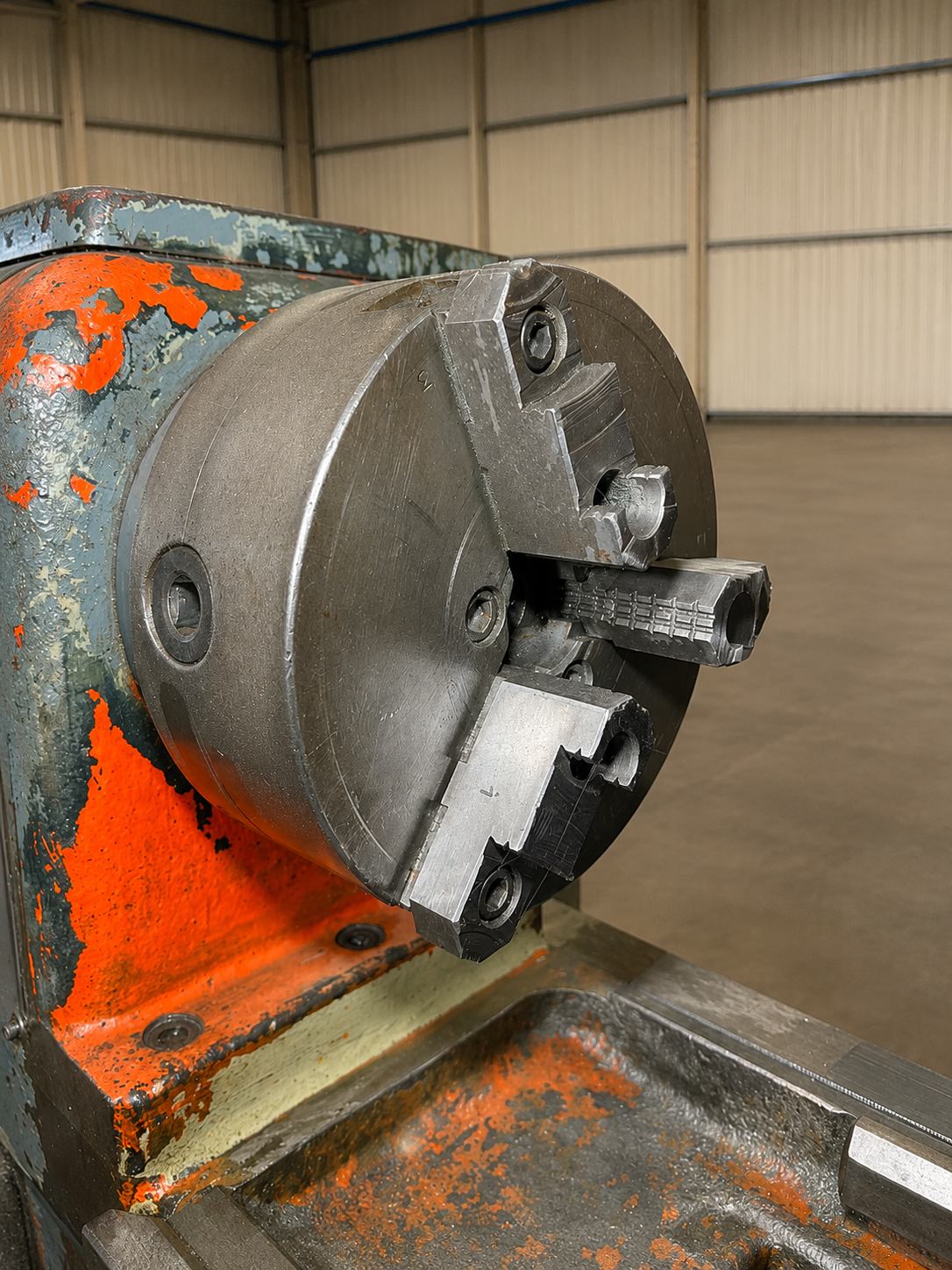

| 8″ 3-Jaw Chuck |
| Hardened & Ground Bed Ways |

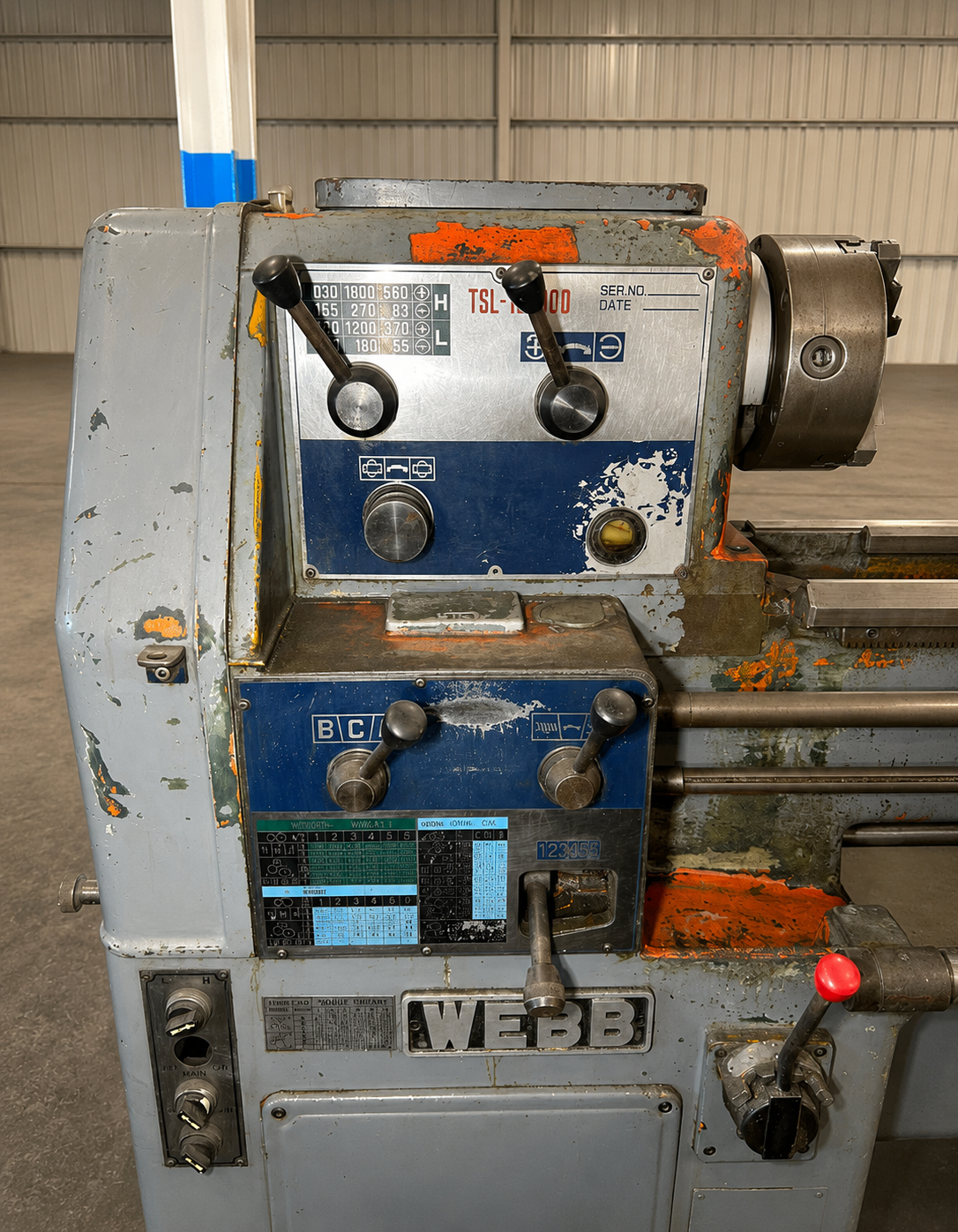

| 6-Speed Geared Headstock |

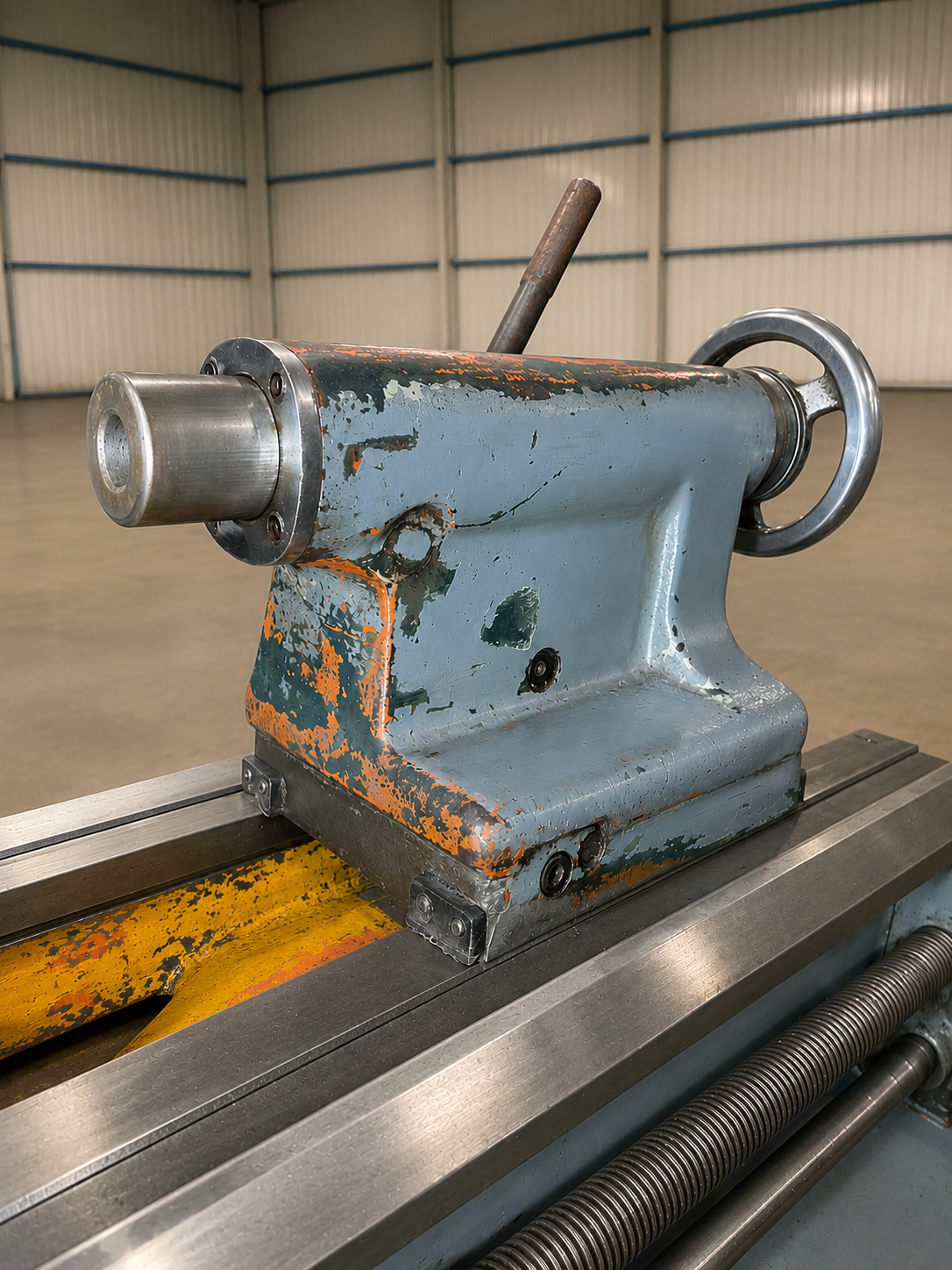

| Manual Tailstock |
| Power Longitudinal & Cross Feeds |
| Inch & Metric Thread Cutting |
| Capacity: |
|---|
| Swing Over Bed: 14.18″ |
| Swing Over Cross Slide: 8.27″ |
| Swing Over Gap (from Face Plate to 4″): 16.00″ |
| Distance Between Centers: 40.00″ |
| Height of Centers: 7.09″ |
| Bed: |
|---|
| Bed Length: 71.26″ |
| Bed Width: 10.83″ |
| Floor to Work Center: 41.54″ |
| Spindle: |
|---|
| Spindle Bore: 1.38″ |
| Spindle Nose: ASA A1-5 |
| Spindle Taper: MT No. 5 |
| Spindle Speed Range: 83 – 1,800 RPM |
| Number of Spindle Speeds: 6 |
| Main Spindle Motor: 5 HP |
| Tailstock: |
|---|
| Tailstock Taper: MT No. 3 |
| Feed Rates: |
|---|
| Number of Longitudinal Feeds: 36 |
| Longitudinal Feed Range: 0.0020″ – 0.1417″ per Revolution |
| Cross Feed: ½ of Longitudinal Feed |
| Number of Inch Threads: 31 |
| Inch Thread Range: 2 – 56 TPI |
| Number of Metric Threads: 18 |
| Metric Thread Range: 0.5 – 9.0 mm |
| General: |
|---|
| Overall Dimensions (L × W): 82″ × 28.5″ |
| Machine Weight: Approx. 2,645 lbs |
