Sold Out

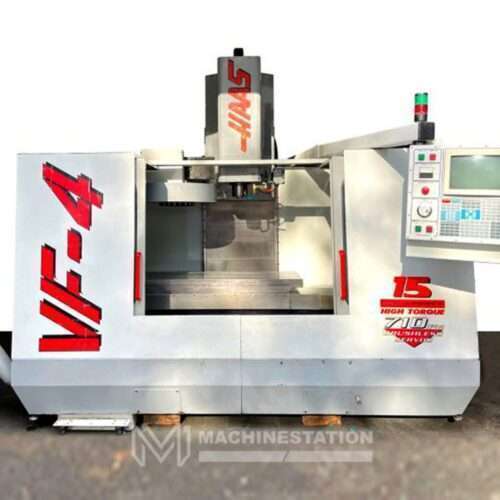

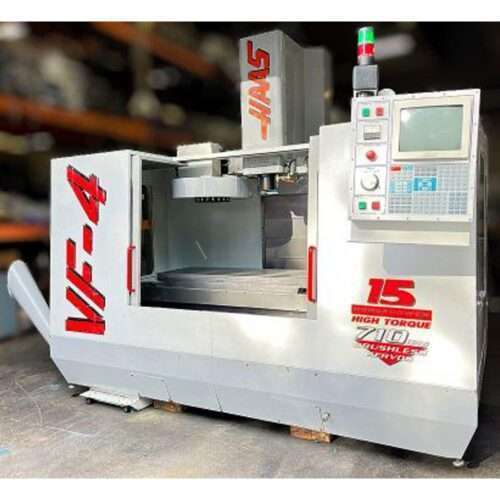

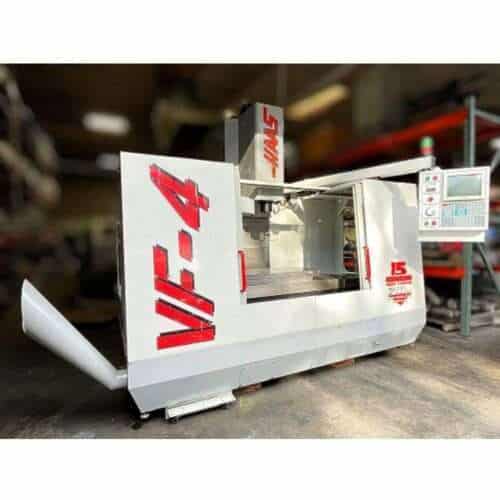

Haas VF-4 CNC Vertical Machining Center
Out of stock
| Location: | Lake Elsinore, CA |
| SKU: | 2402 |
| Make/Model: | Haas VF-4 |
| Video: | No Video |
| Make: | Haas |
| Model: | VF-4 |
| Year: | 1997 |
| Condition: | Good |
| Equipped With: |
|---|

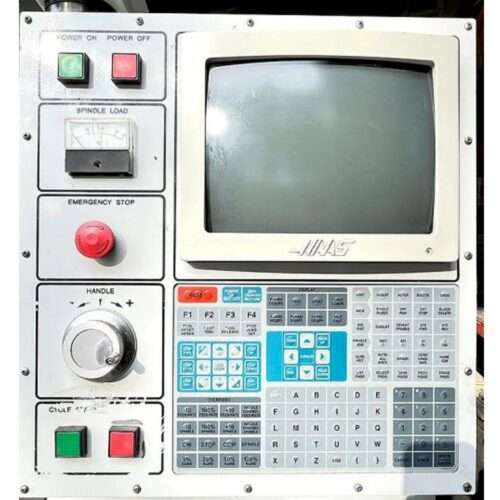

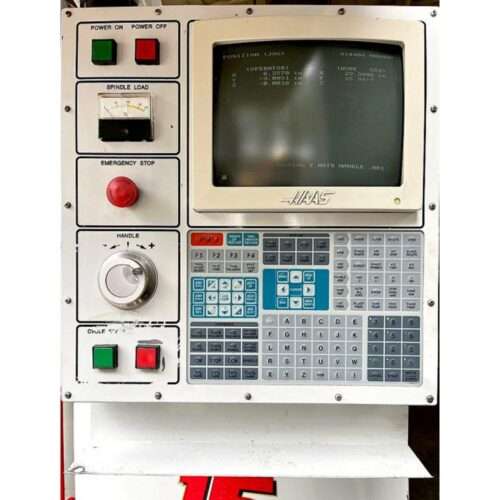

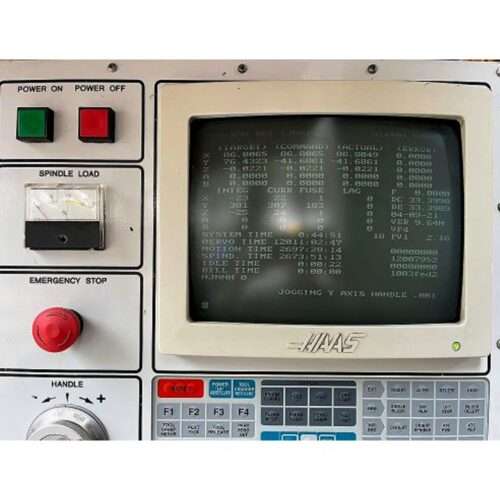

| Haas CNC Control |
| 7500 RPM Spindle |
| 15 HP High Torque Spindle |

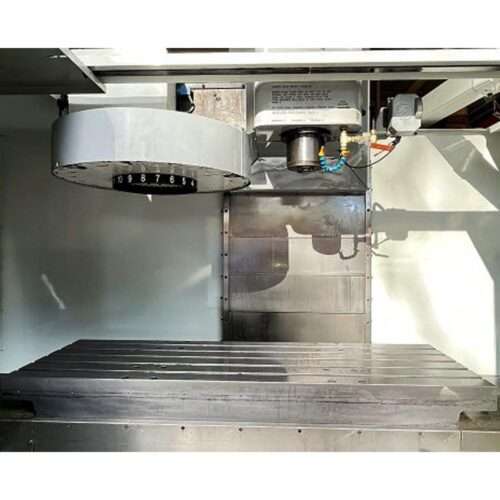

| 20 Station Umbrella Type Tool Changer |
| 4th Axis Ready |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant |
| Coolant Tank and Pump |
| Chip Auger |
| Travels: |
|---|
| X-axis: 50″ |
| Y-Axis: 20″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 710 IPM |
| Cutting Feed Rates: 650 IPM |
| Spindle Nose To Table (Min.- Max.): 4.2″ – 29.2″ |

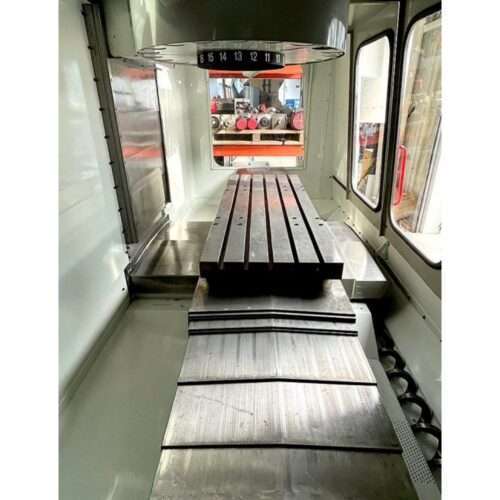

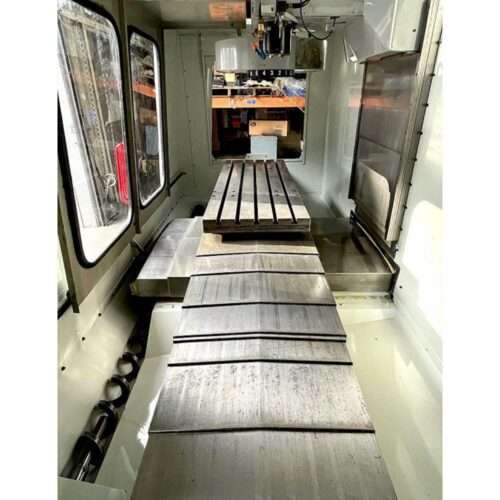

| Table: |
|---|
| Length: 52″ |
| Width: 19.5″ |
| Number Of Std T-slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight On Table: 3500 Lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 7500 RPM |
| Spindle Power: 15 HP |

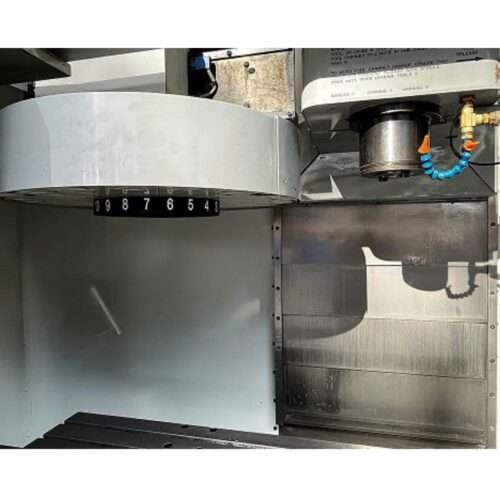

| Automatic Tool Changer: |
|---|
| Capacity: 20 Station Umbrella Type |
| Tool Weight: 12 Lbs |
| Max Tool Length: 11″ |
| Max Tool Dia.: 3.5″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

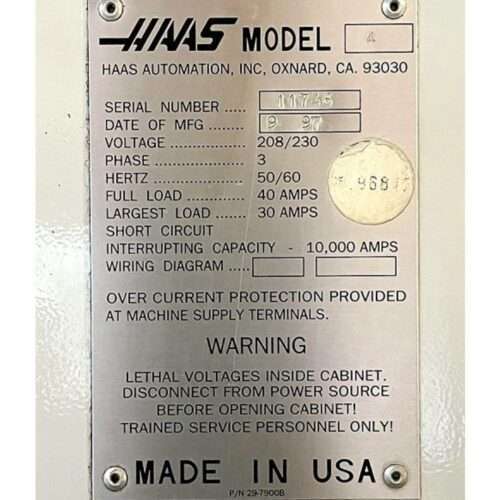

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 152″ x 99″ x 106″ High |
| Weight: 12,500 lbs Approx. |
