Description

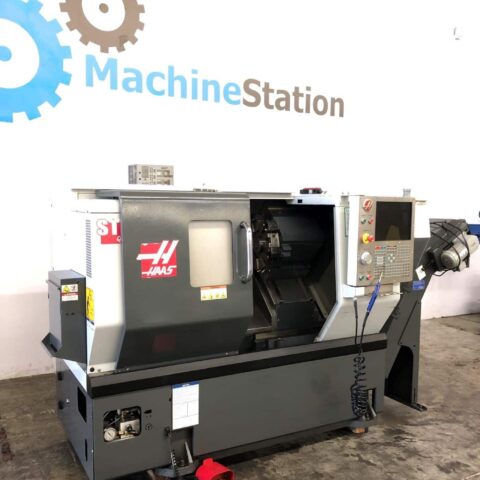

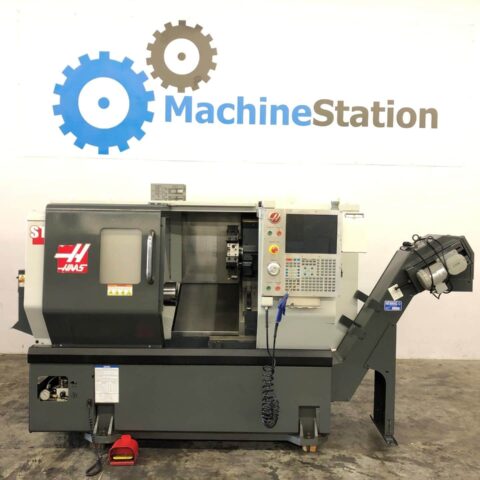

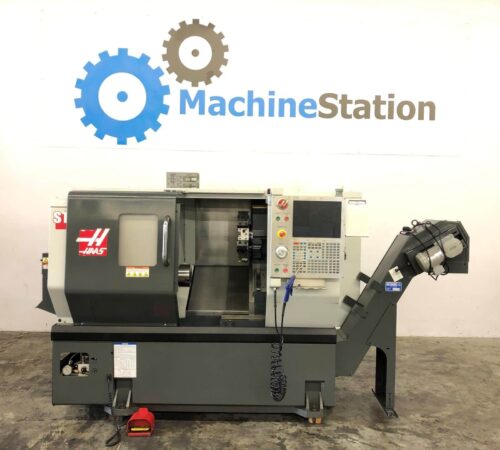

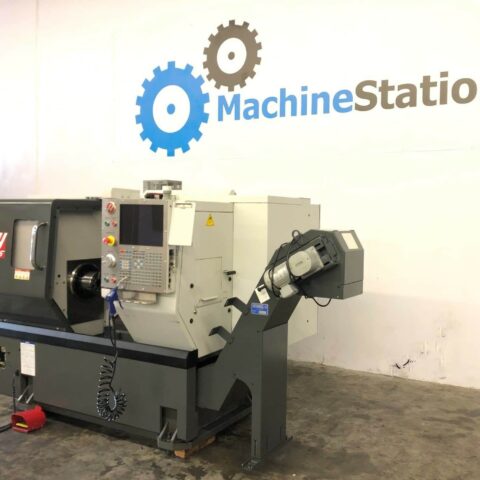

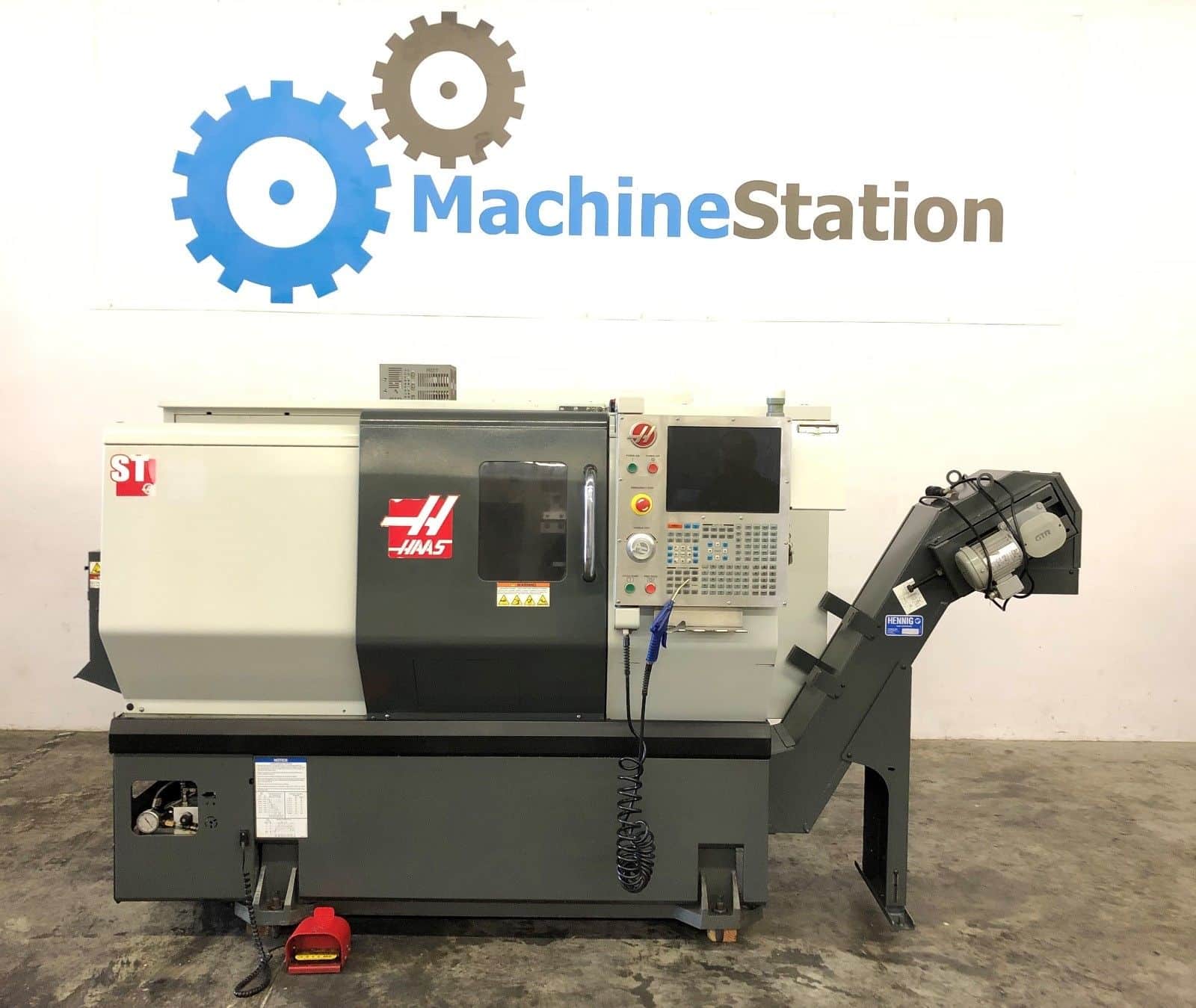

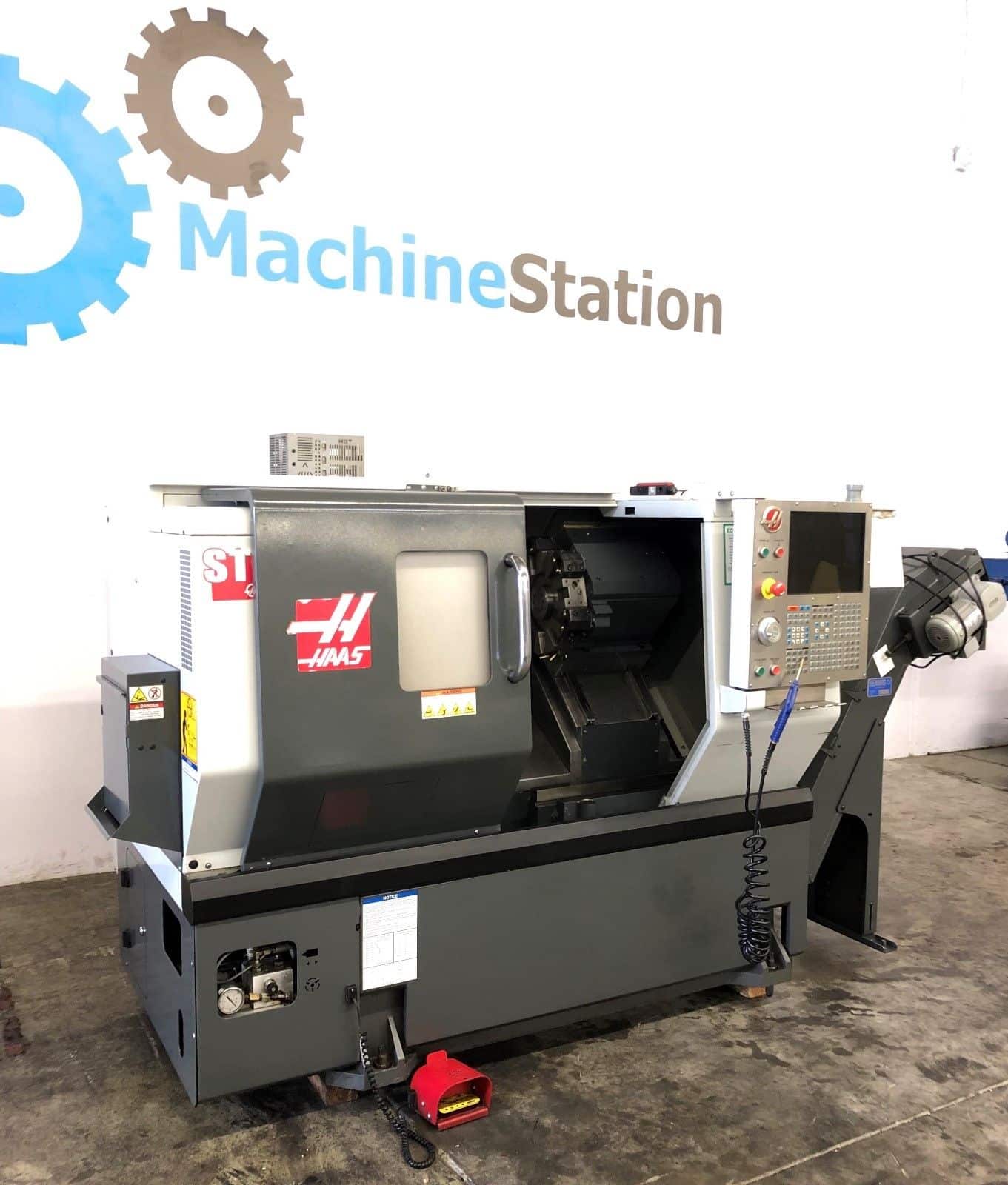

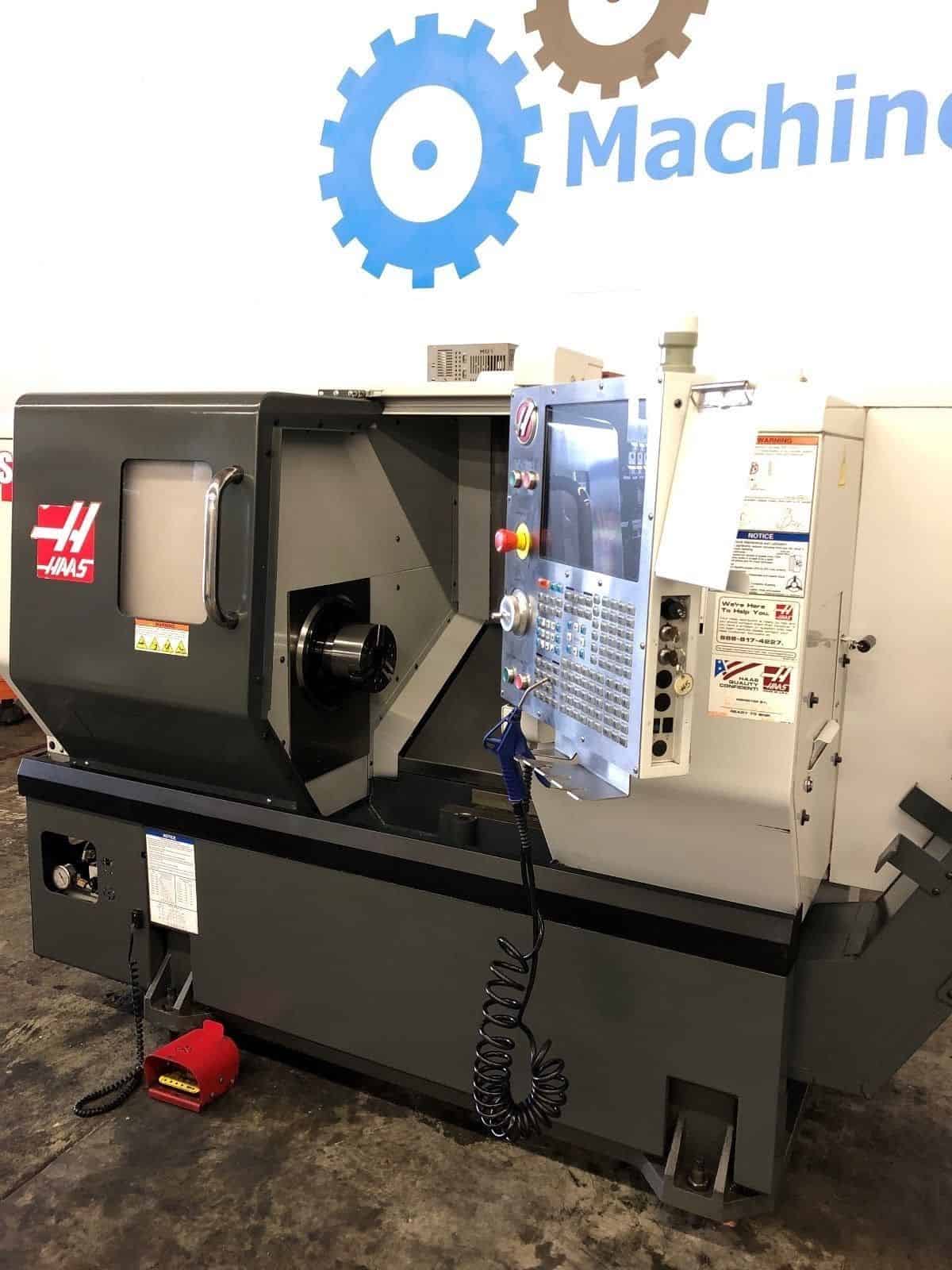

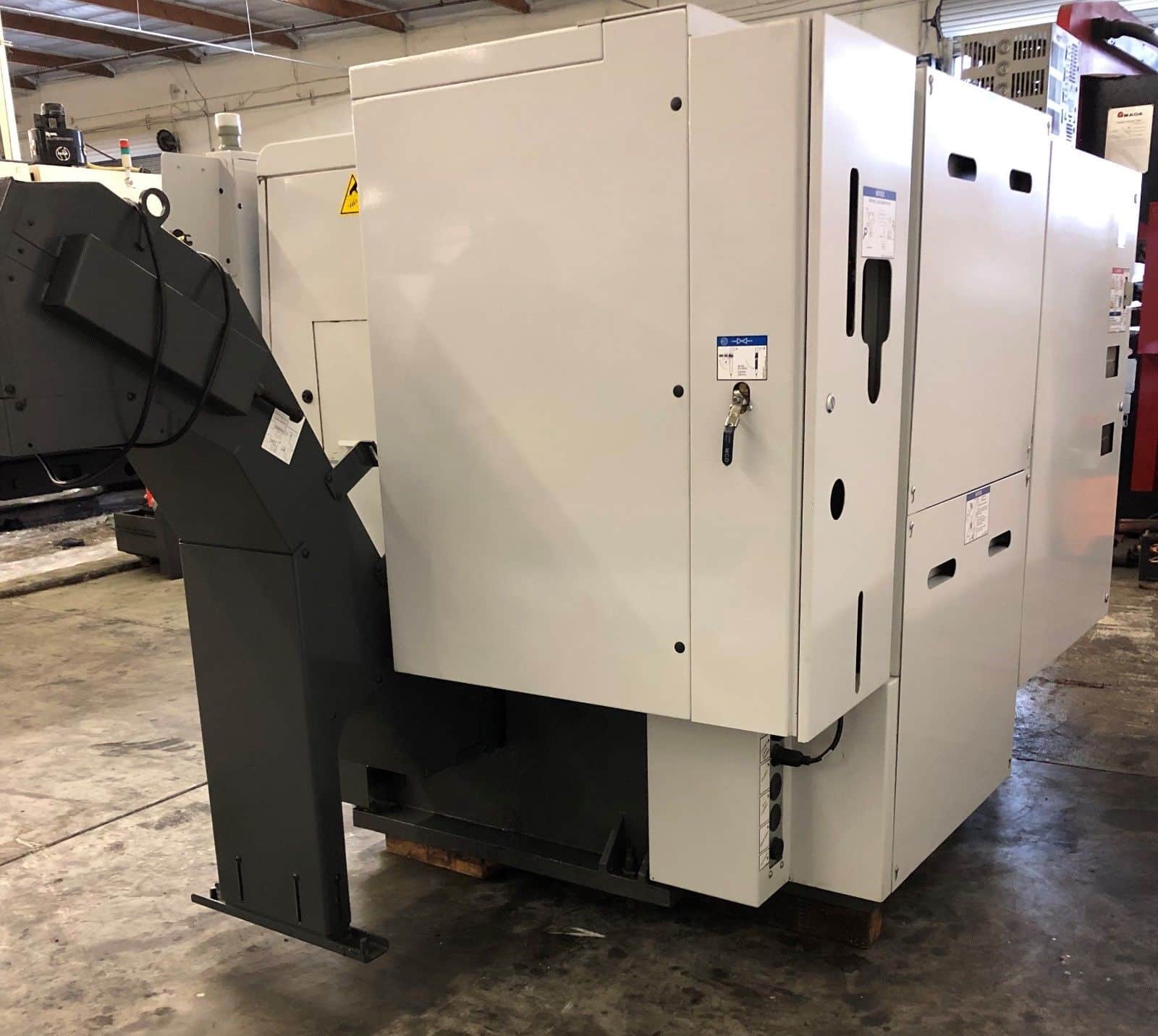

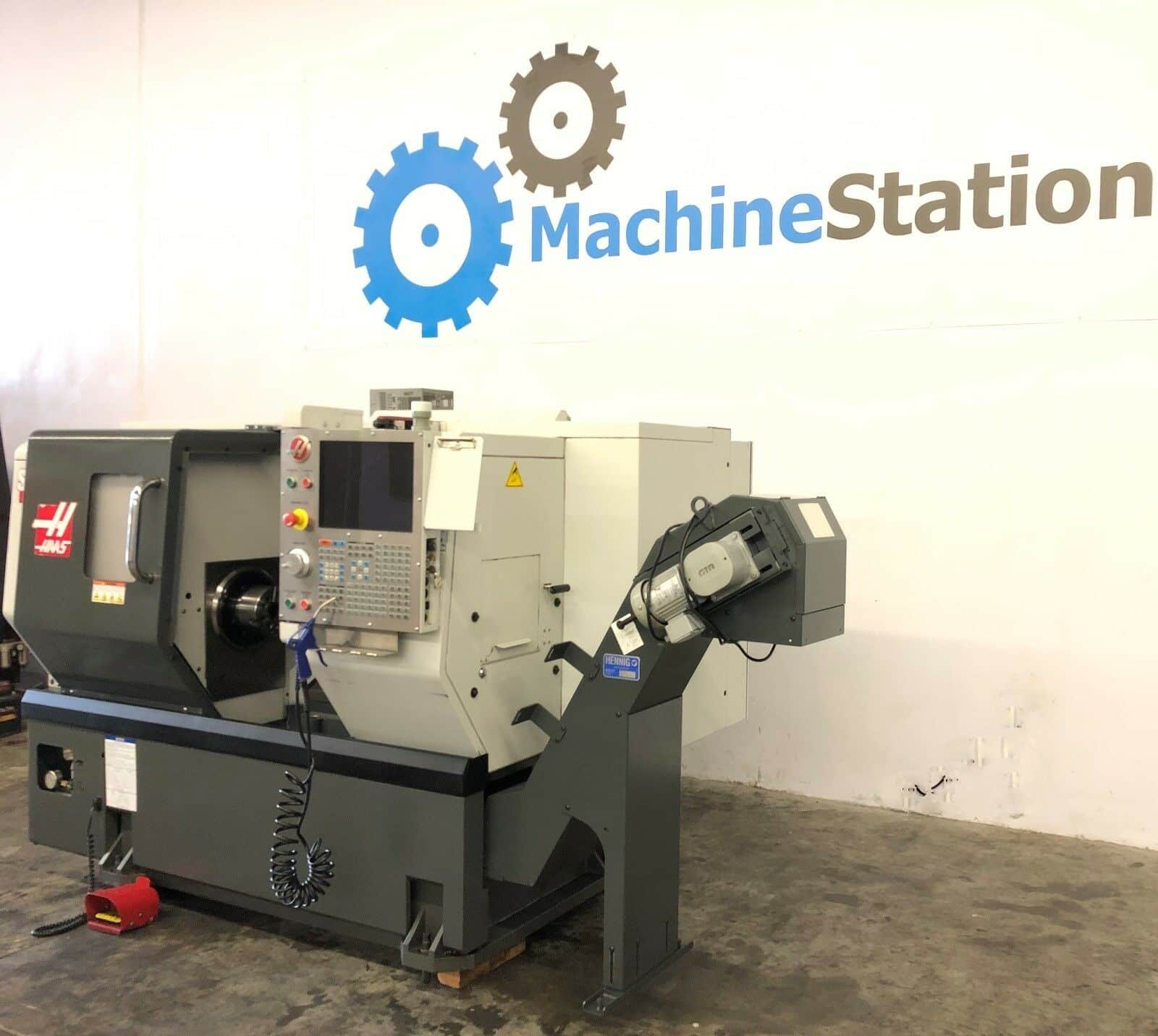

HAAS ST-10 CNC TURNING CENTER
MakeHAAS
Model No.ST-10
Year Installed:2012

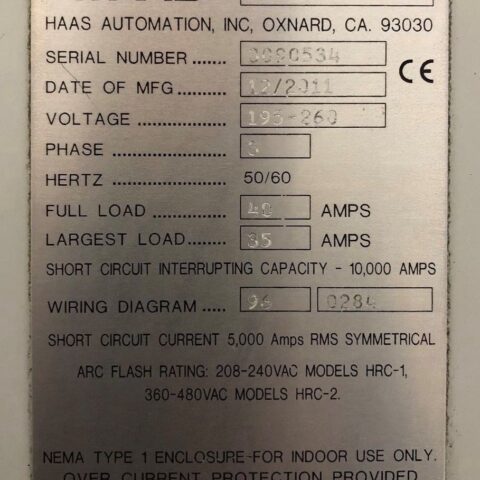

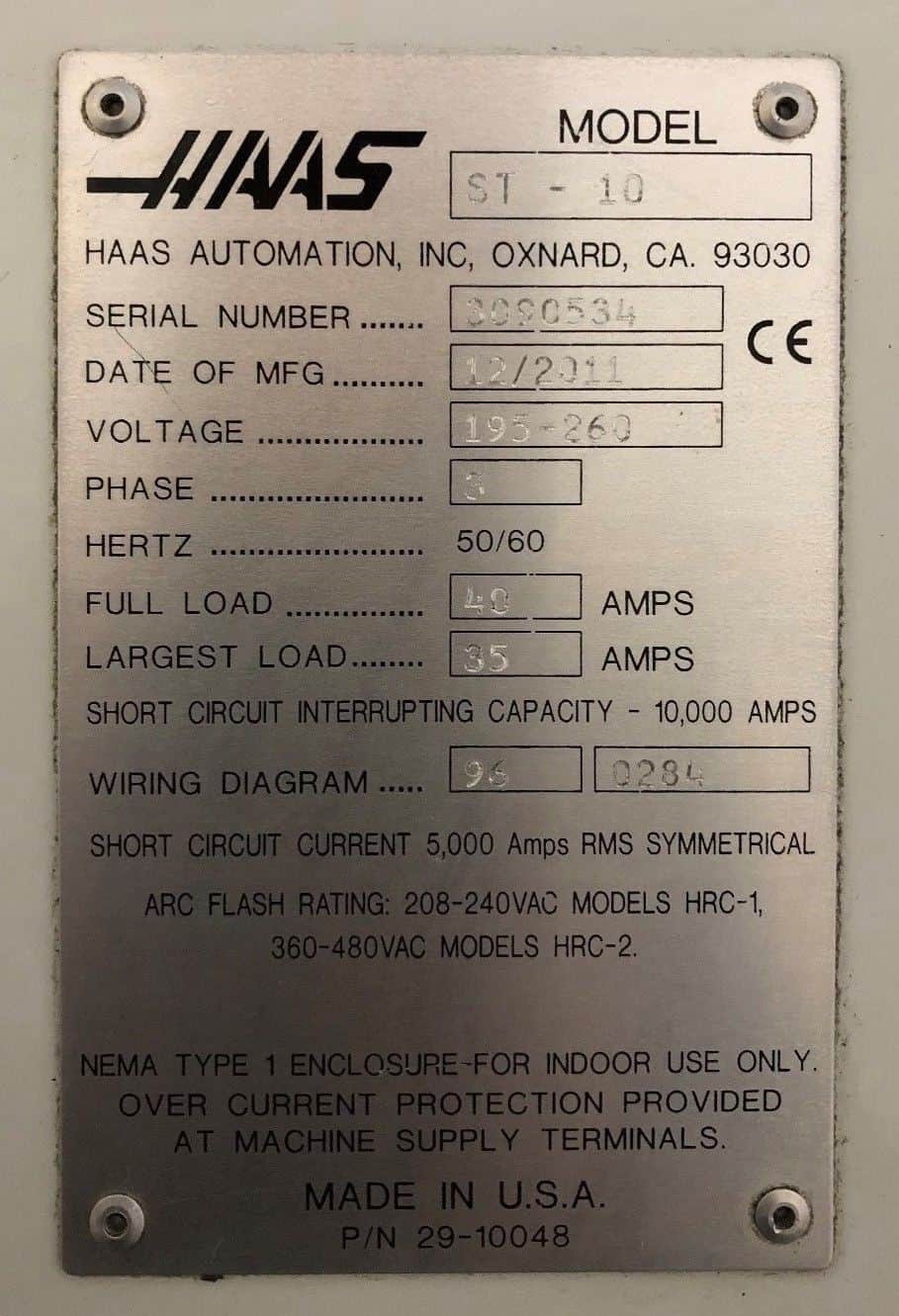

Serial #3090534
ConditionVery Good
Country of Origin:USA
  • HAAS ST-10 Equipped With:
  • 6000 RPM Spindle

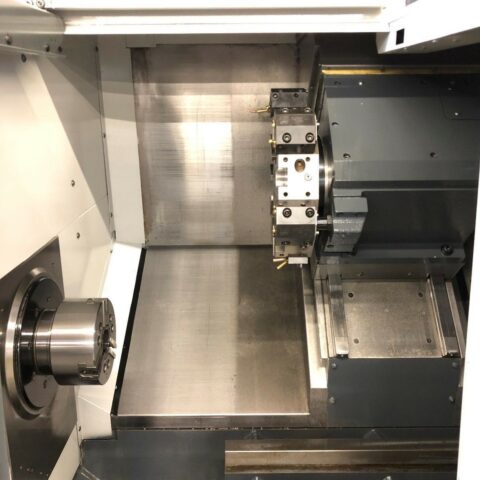

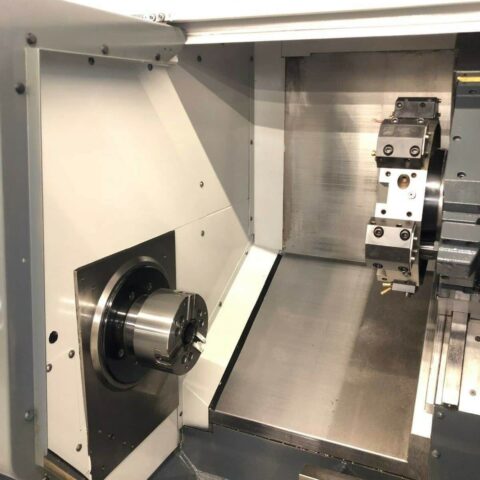

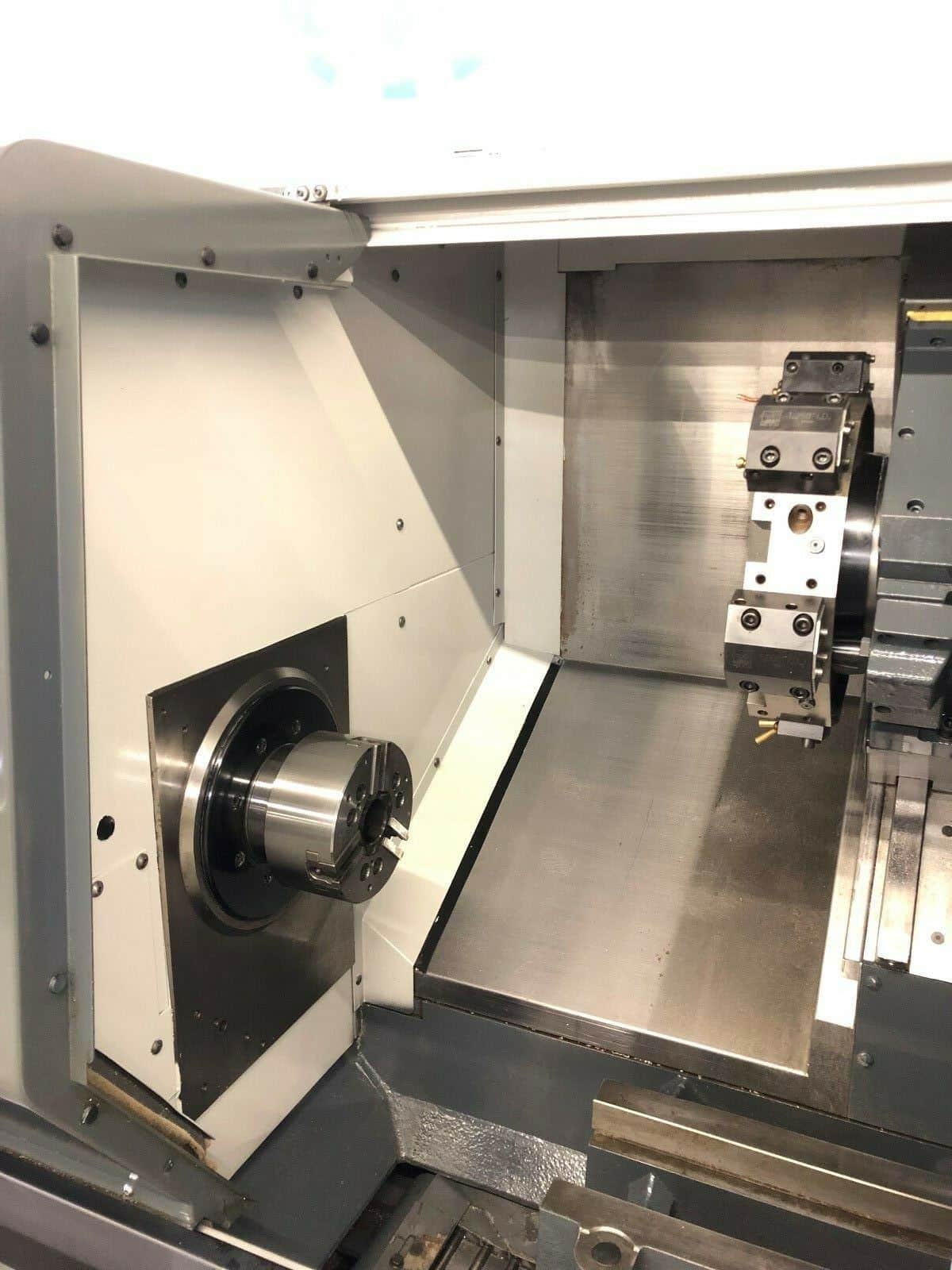

  • 6.5″ 3 Jaw Hydraulic Chuck
  • 1 GB Memory
  • Rigid Tapping
  • Barfeed Interface

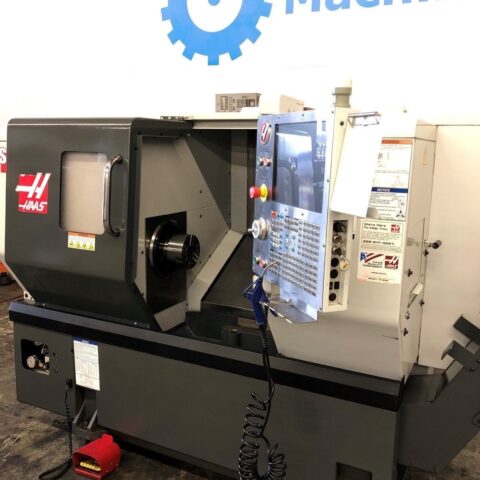

  • 12″ Color TFT
  • RS-232 ports
  • USB

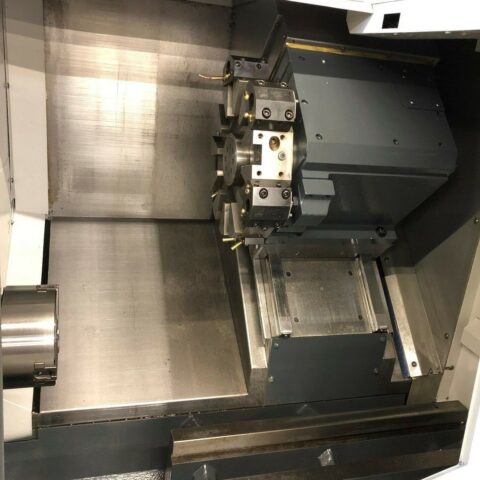

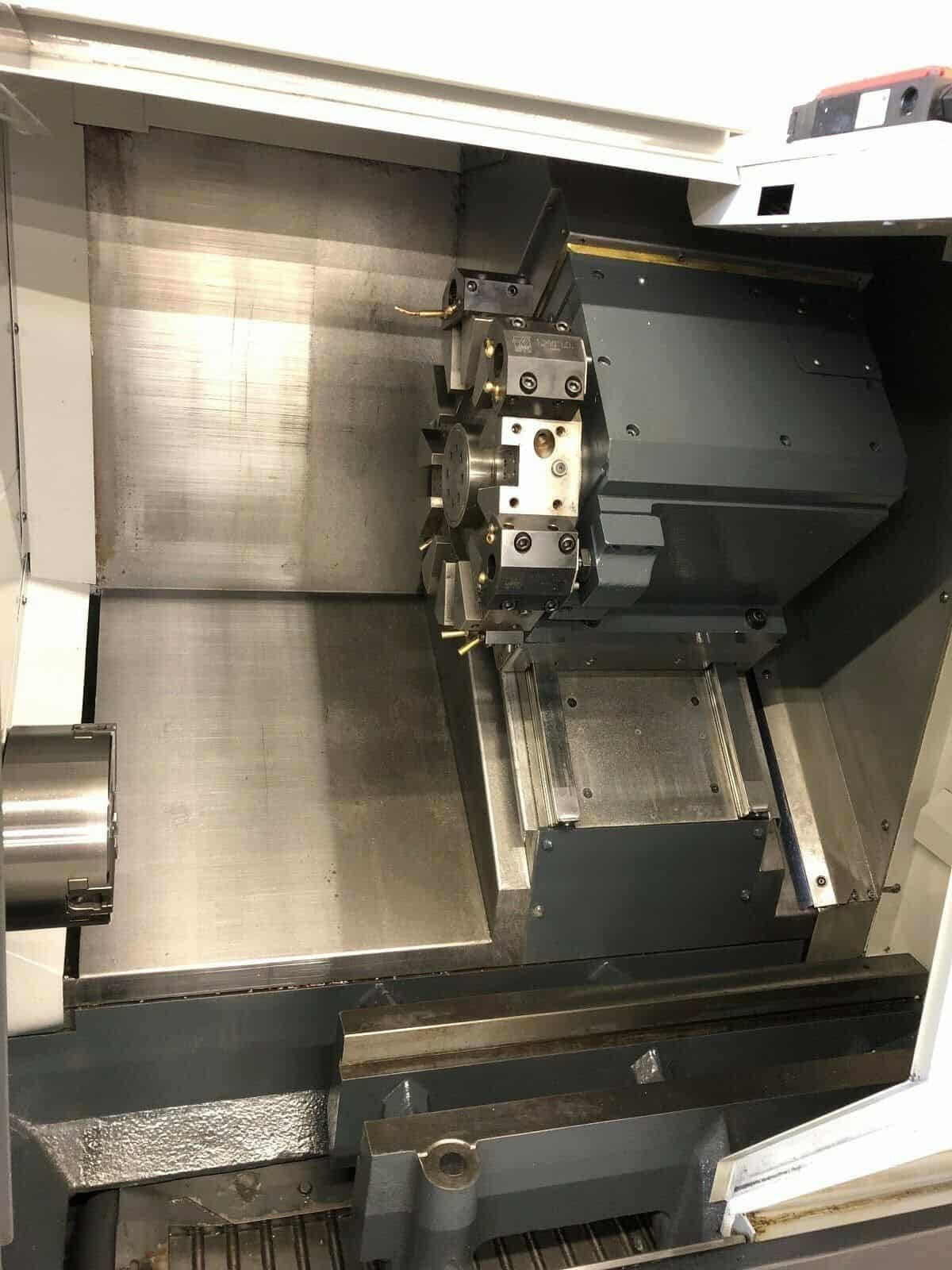

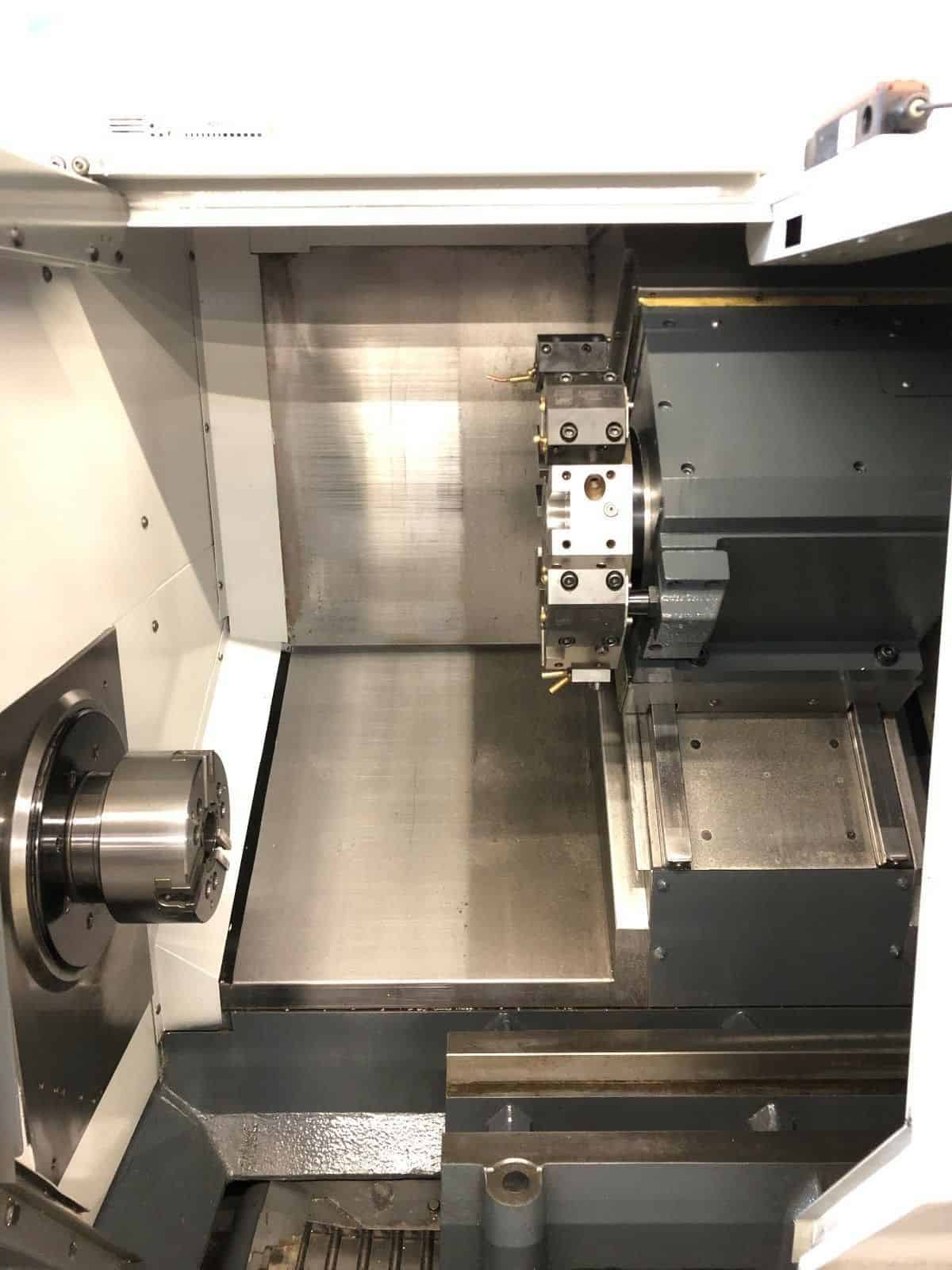

  • 12 Station Automatic Turret

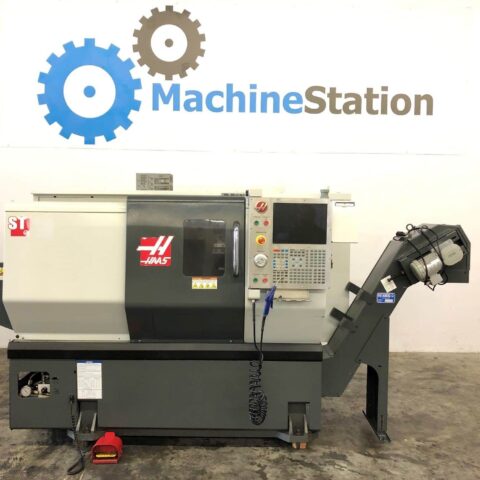

  • Chip Conveyor
  • Comes with 3 Jaw Chuck, foot switch , levelling pads & Chip Conveyor.
  • General:

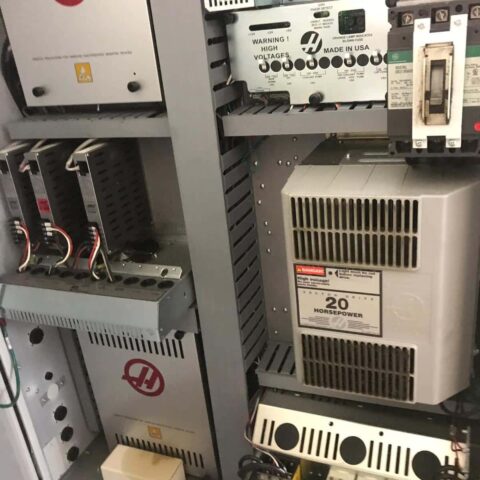

  • Power: 220v / 3-Phase
  • Overall Dimensions: 92″ x 64″ x 72″ High
  • Weight: 6,000 lbs
  • HAAS ST-10 Specifications:
  • Capacity:
  • Max Turning Diameter: 14″
  • Max Turning Length: 16″
  • Max Bar Capacity: 1.75″
  • Swing Over Bed: 16.5″
  • Swing Over Cross Slide: 16.5″
  • X Axis Travel: 7.9″
  • Z Axis Travel: 16.0″
  • Rapid Traverse X Axis: 1200 IPM
  • Rapid Traverse Z Axis: 1200 IPM
  • Spindle Nose: A2-5
  • Spindle Bore: 2.31″
  • Spindle Speed: 60 – 6000 RPM
  • Spindle Motor: 15 HP
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.15 Second
