*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

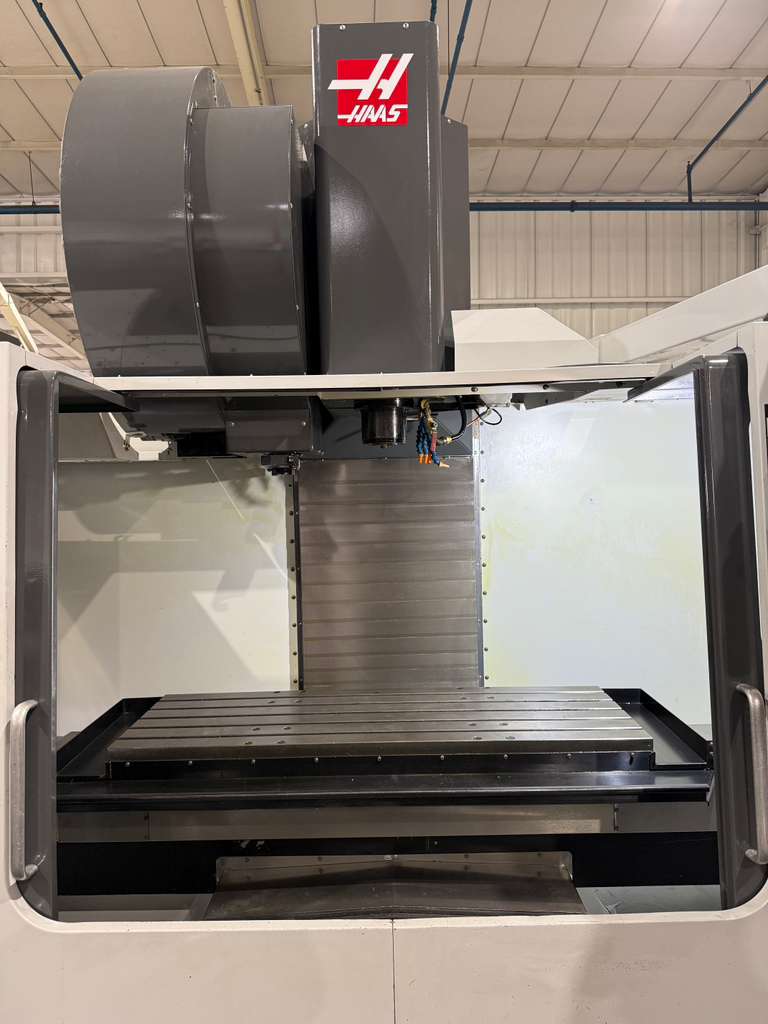

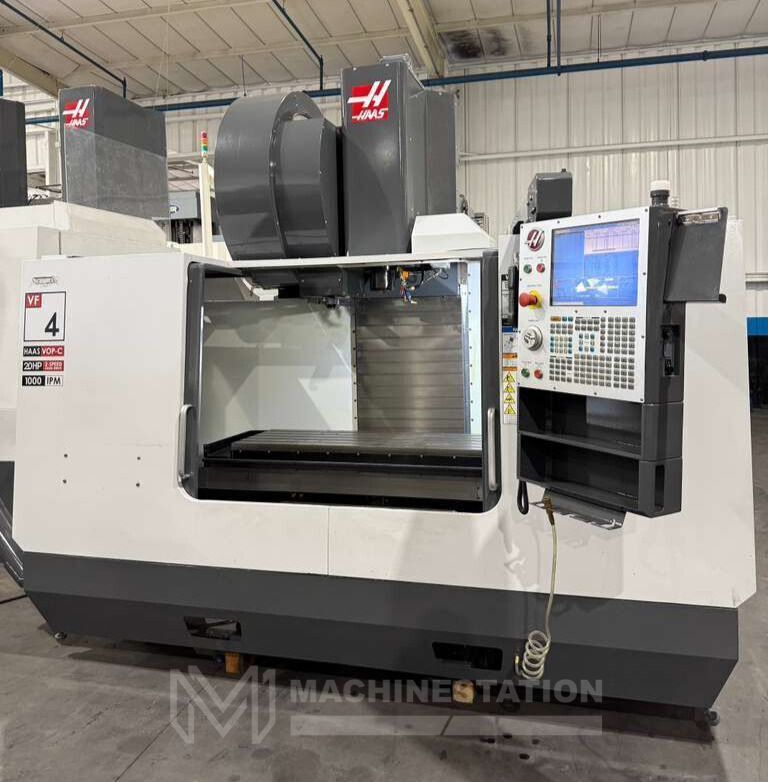

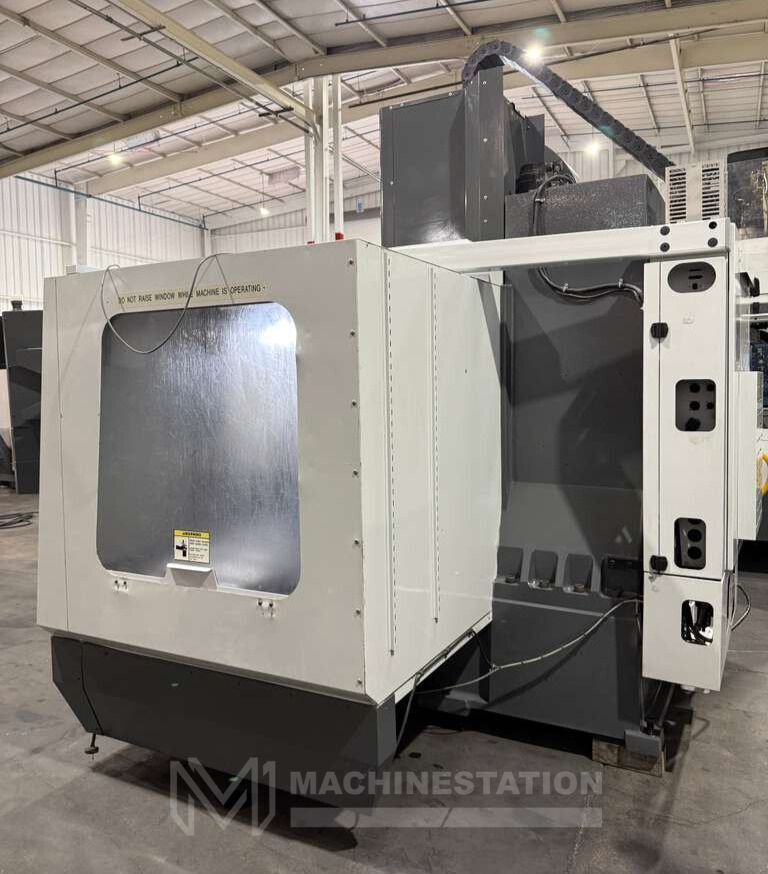

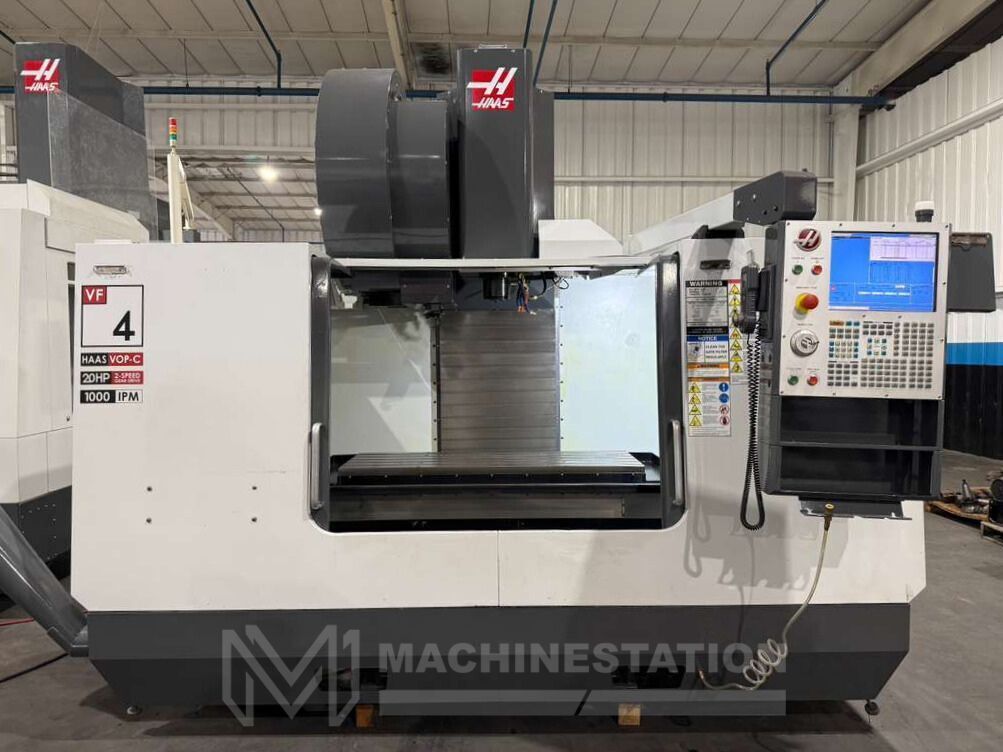

| Make: | Haas |
| Model: | VF-4B |
| Year: | 2004 |
| Condition: | Used – Good |
| Equipped With: |
|---|

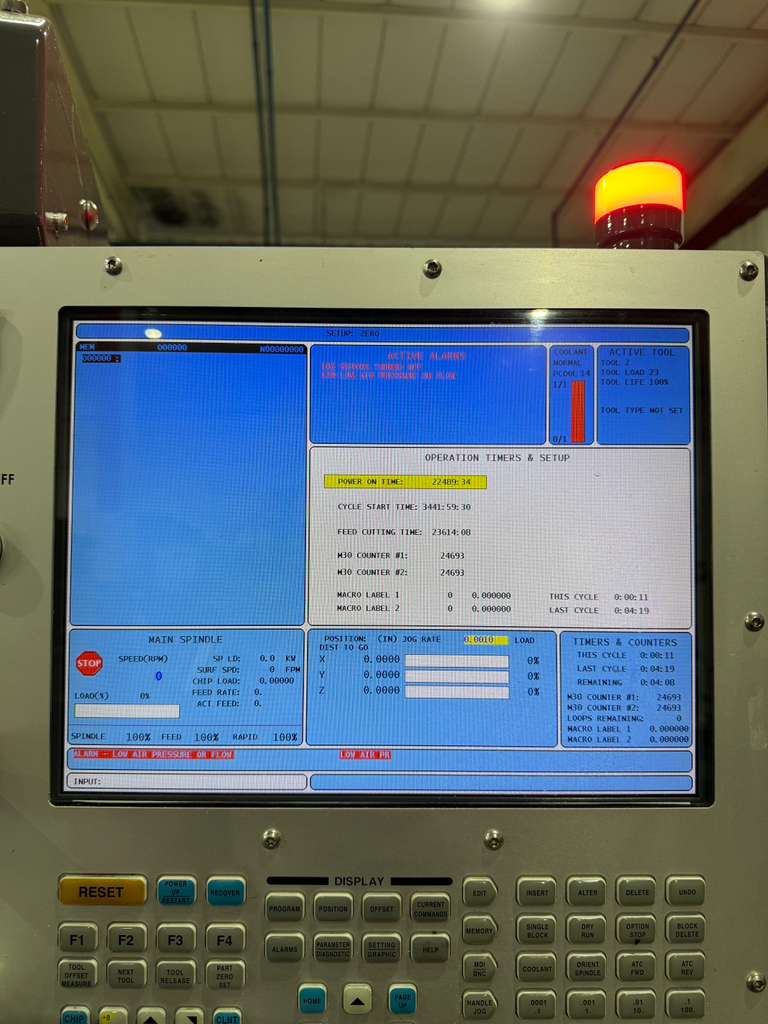

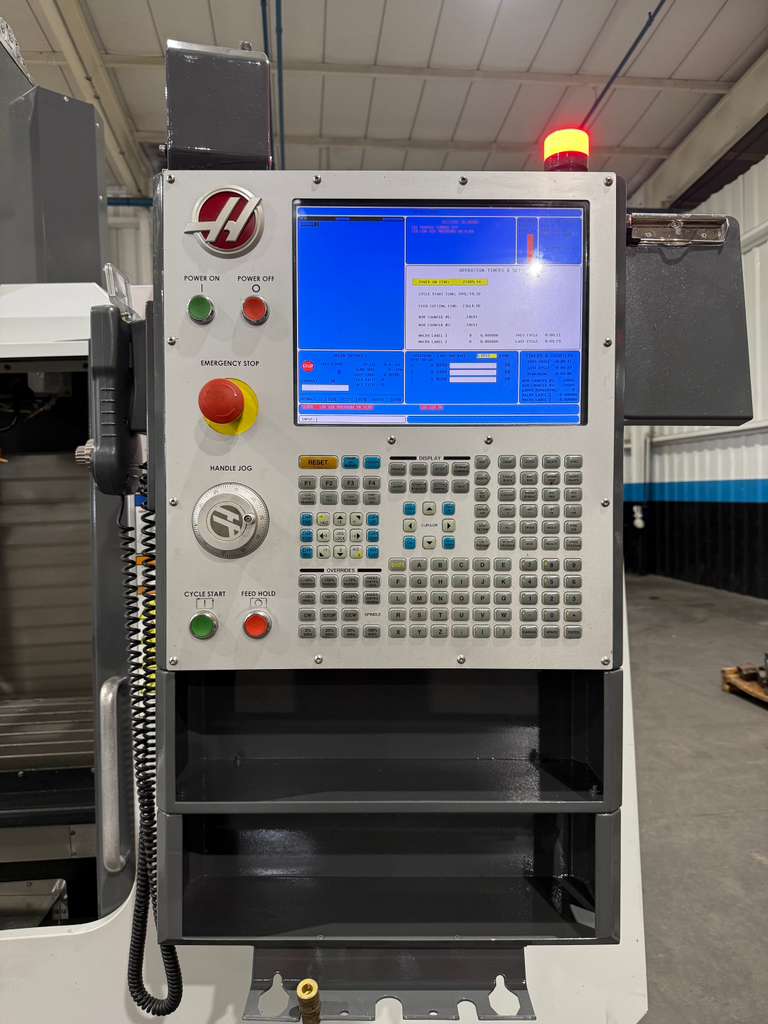

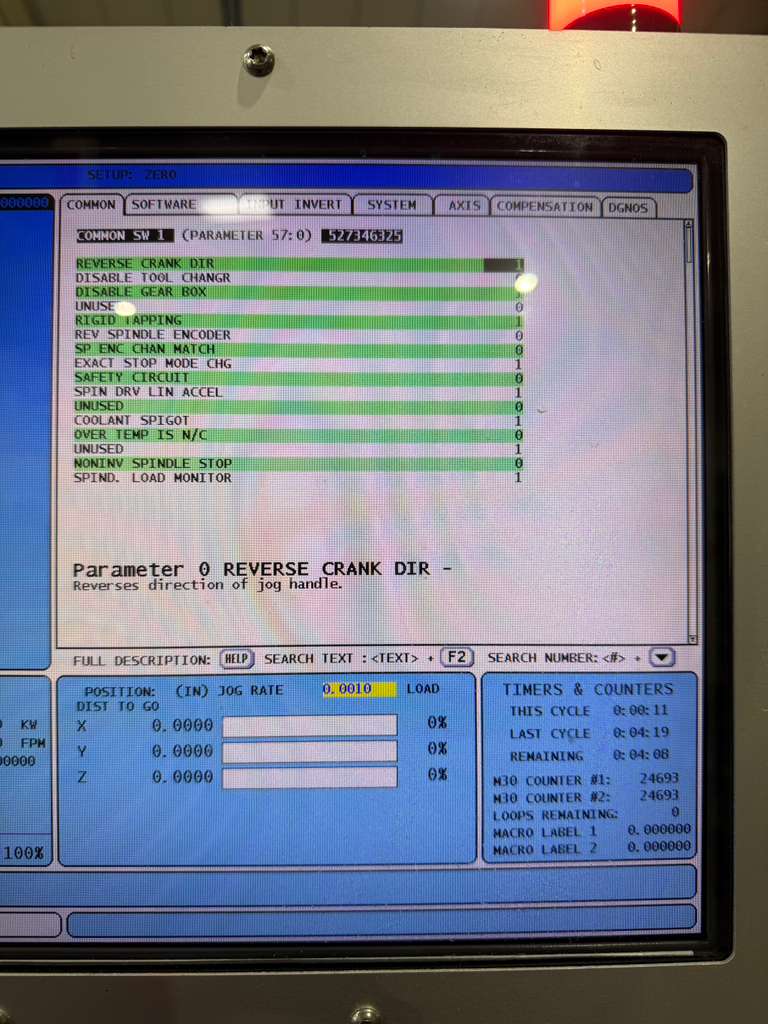

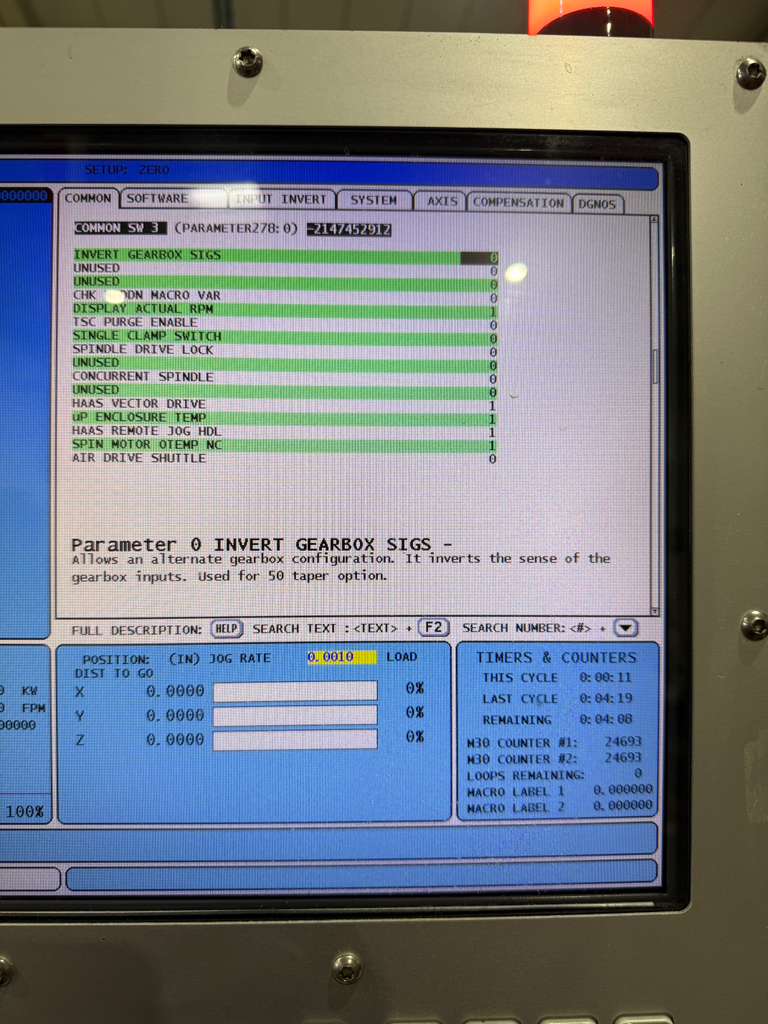

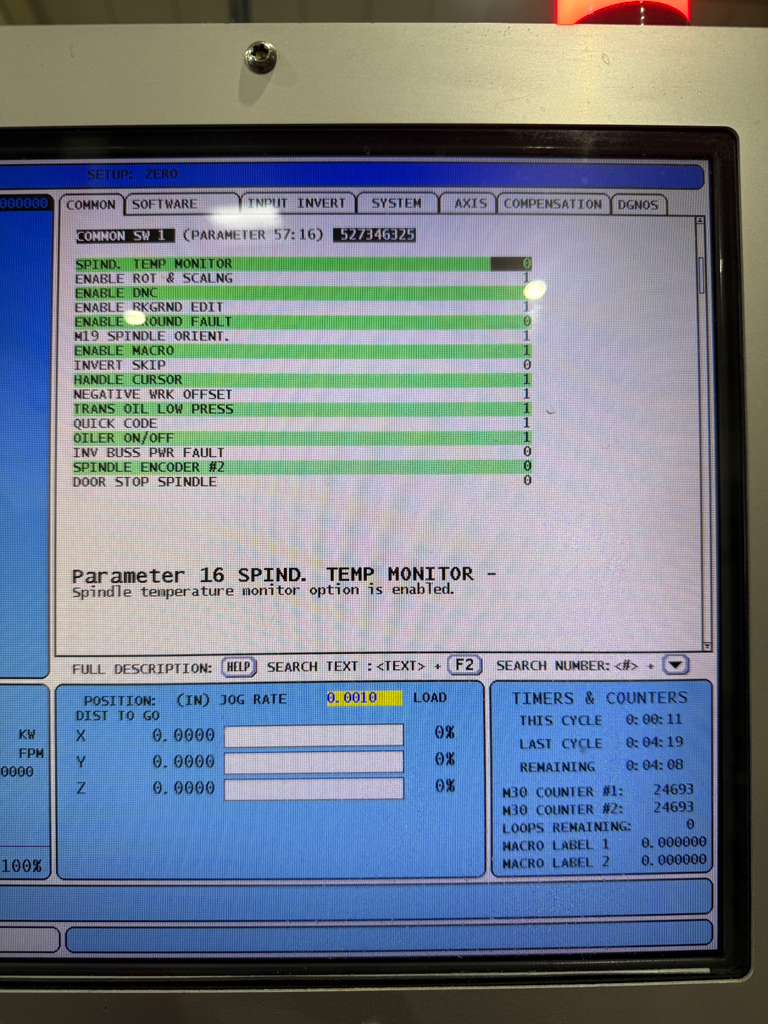

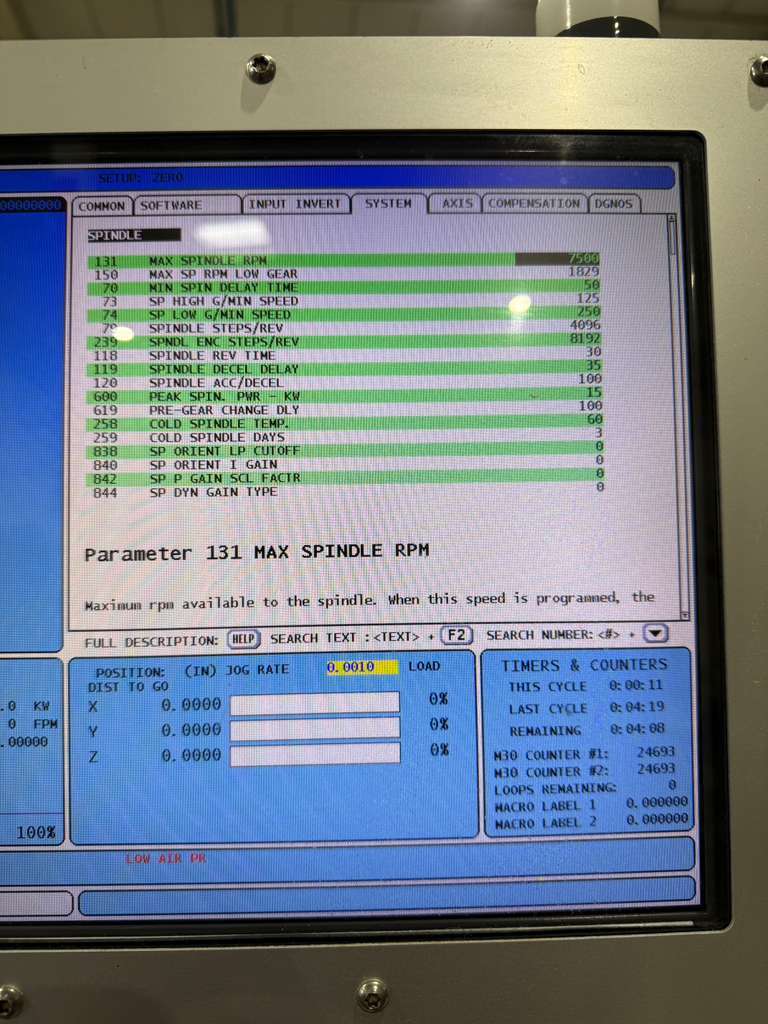

| Haas CNC Control (Control was Upgraded in 2016) |

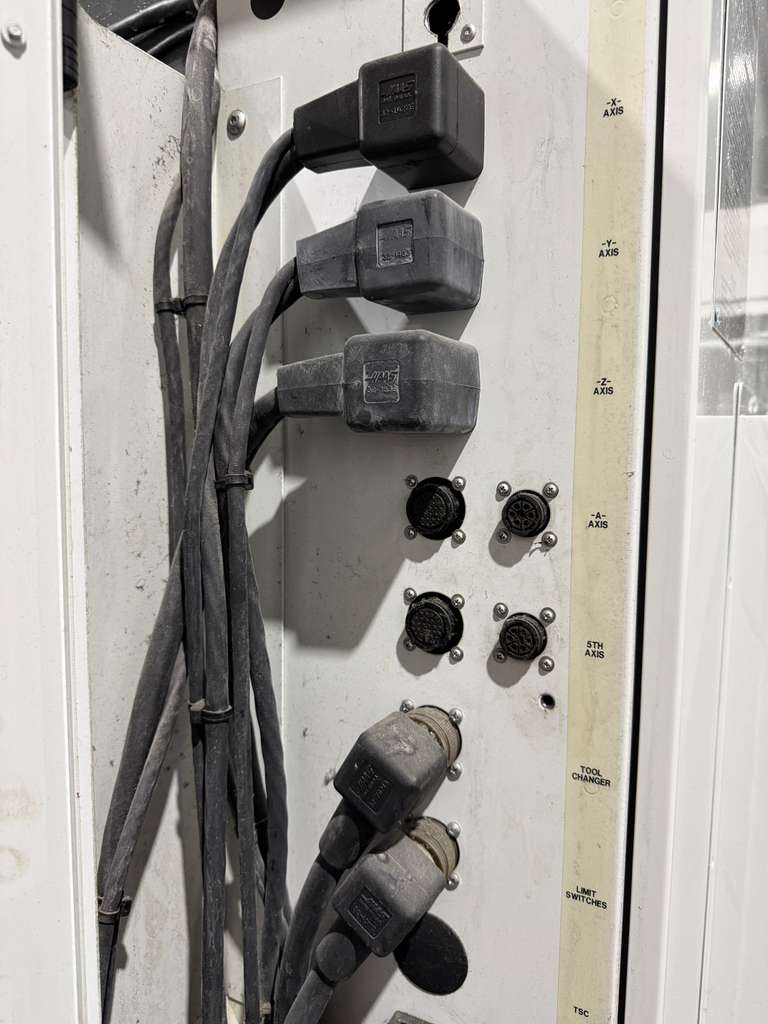

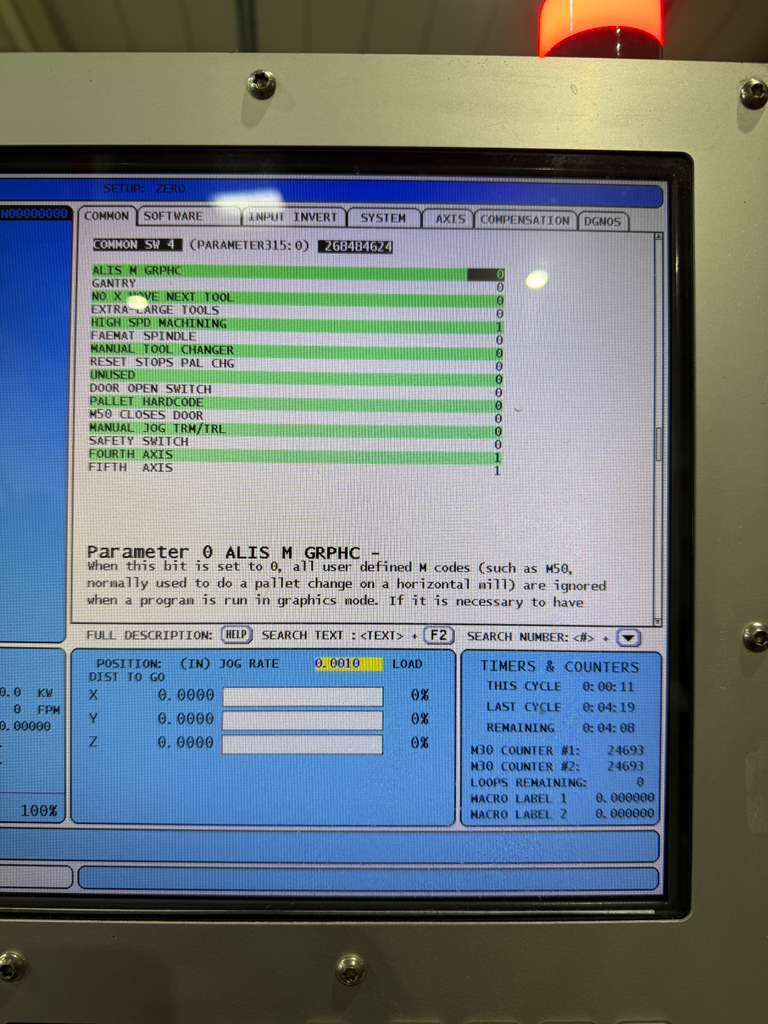

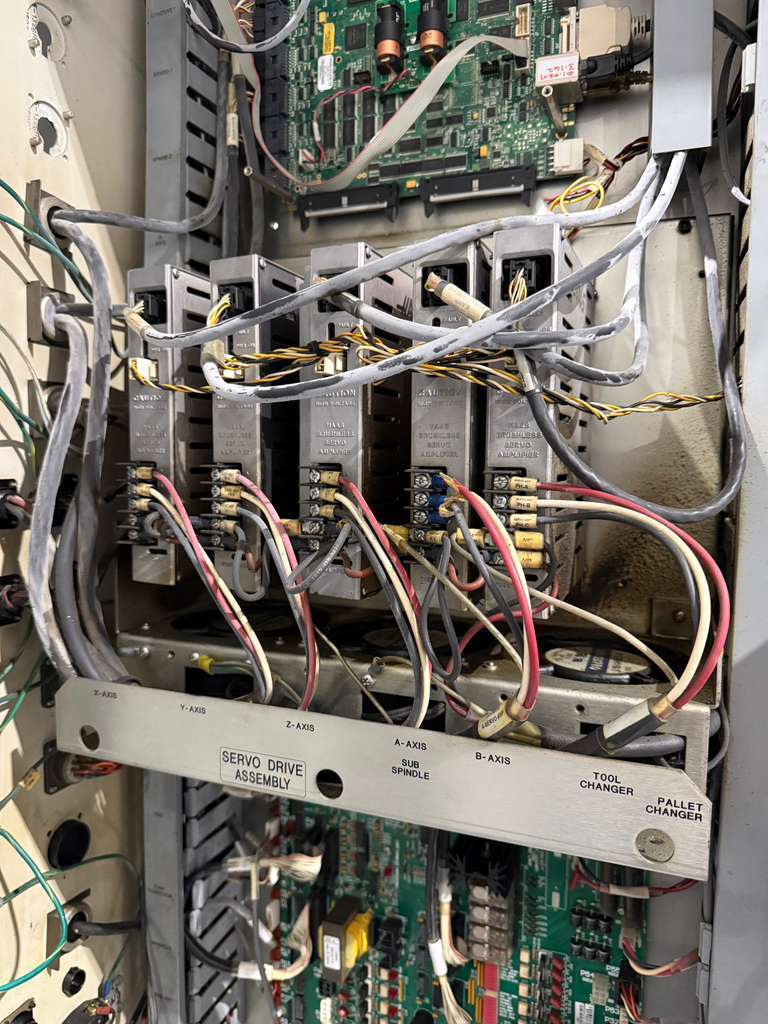

| 5th Axis Drive and Wiring |
| 5th Axis Drive and Wiring |
| Haas VOP-C Package |
| 20 HP 2 Speed Gear Drive |
| 1000 IPM |
| 7500 RPM Spindle |

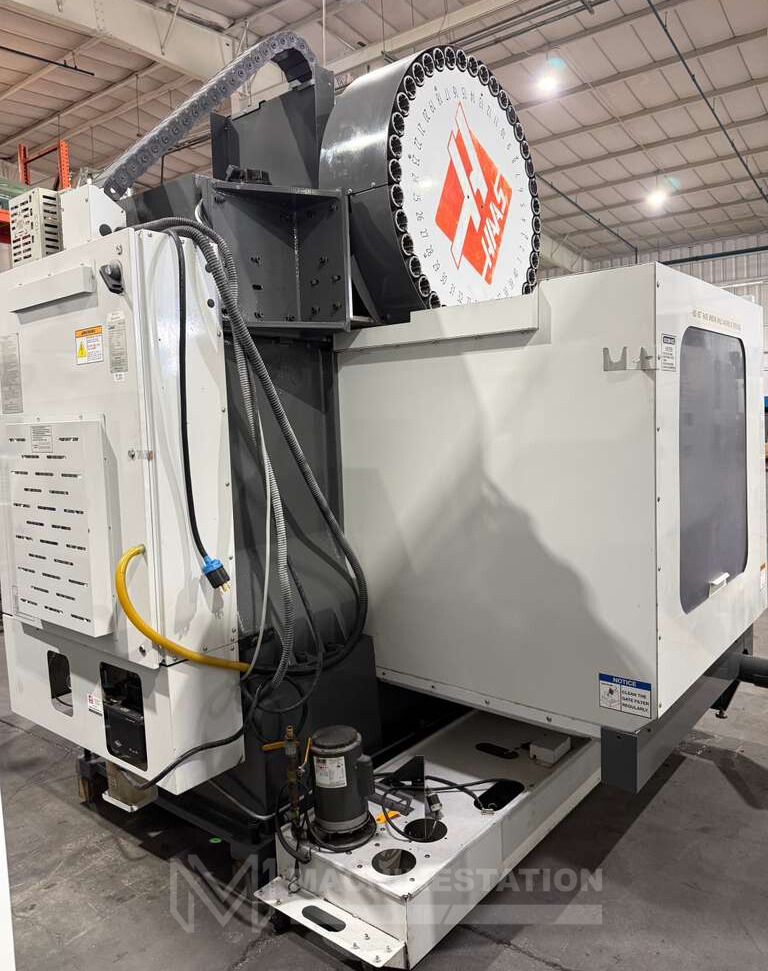

| 40 Station Automatic Tool Changer |
| High Speed Machining |

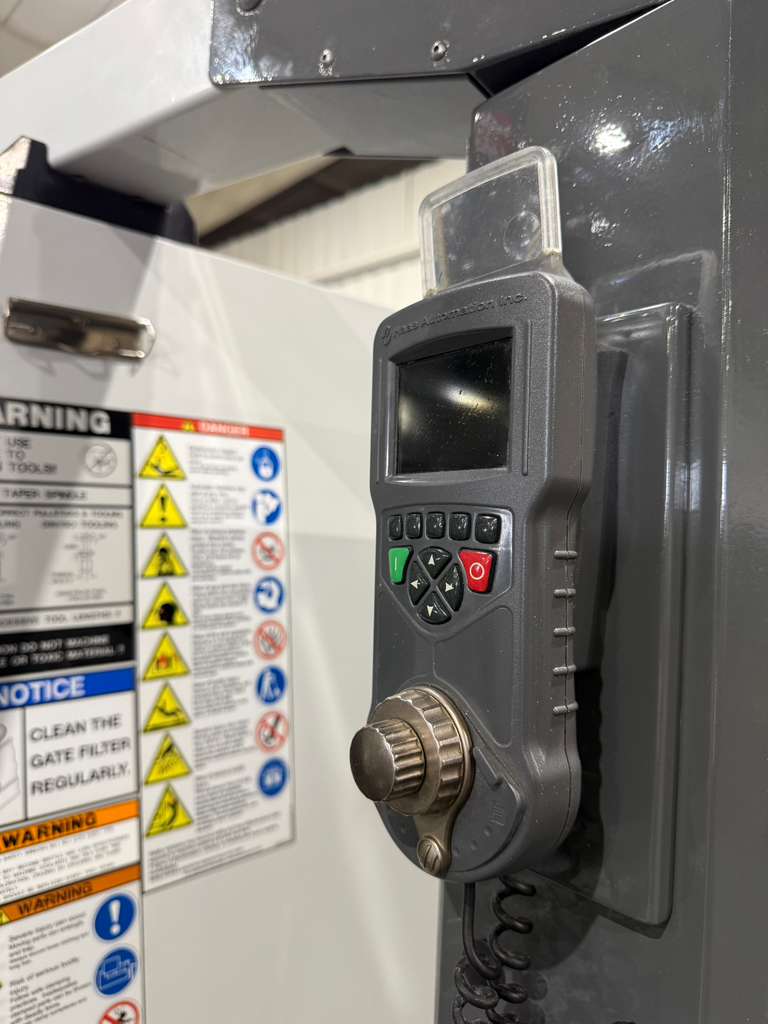

| Remote Jog Handle |
| Rigid Tapping |
| Spindle Orientation |
| Rotation and Scaling |
| Macros |
| Quick Code |
| Advace Tool Management |
| DNC Enabled |

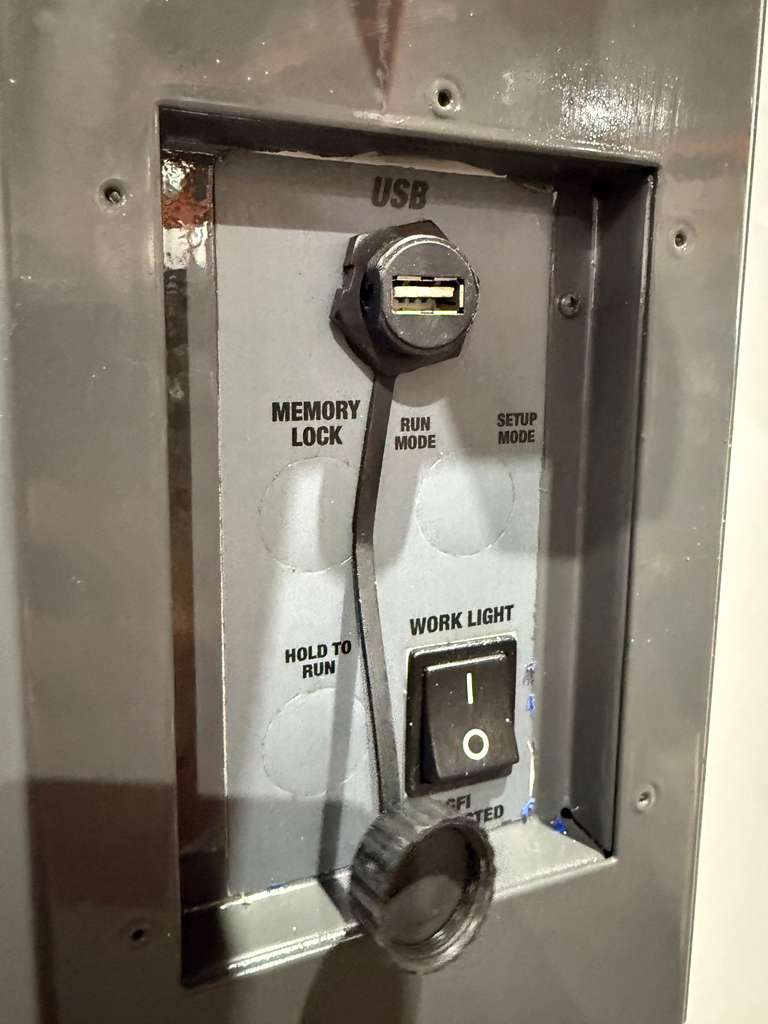

| USB Port |
| Coolant System |
| Chip Auger |
| Travels: |
|---|
| X-axis: 50″ |
| Y-Axis: 20″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 1000 IPM |
| Cutting Feed Rates: 650 IPM |
| Spindle Nose To Table (Min.- Max.): 4.2″ – 29.2″ |

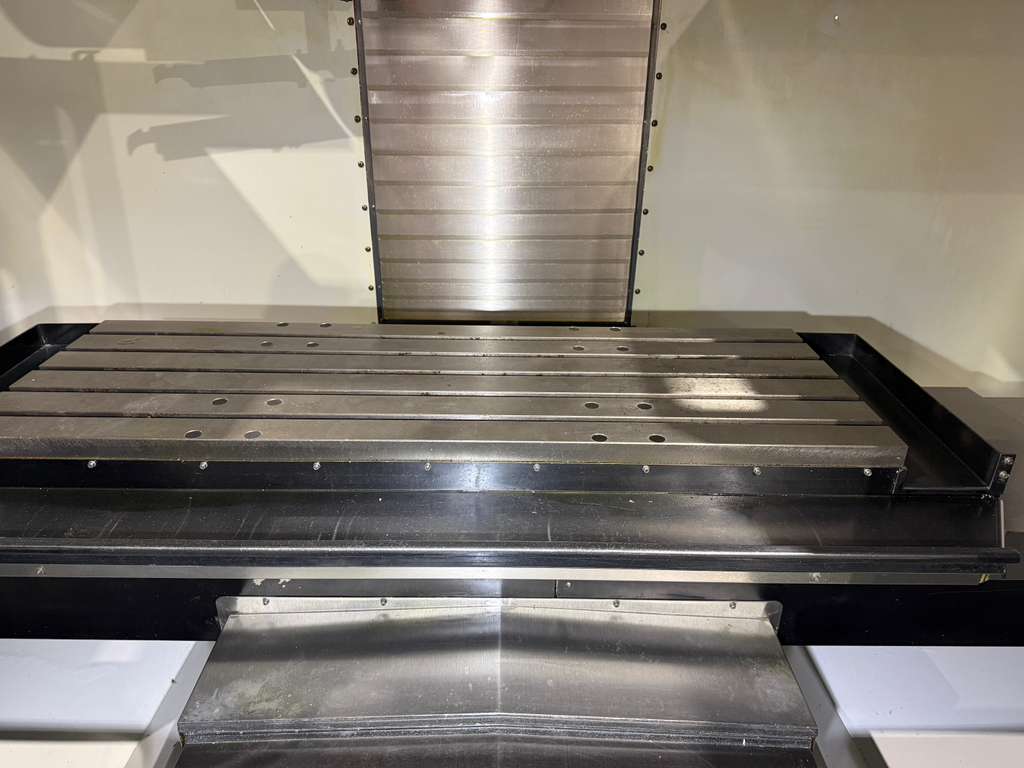

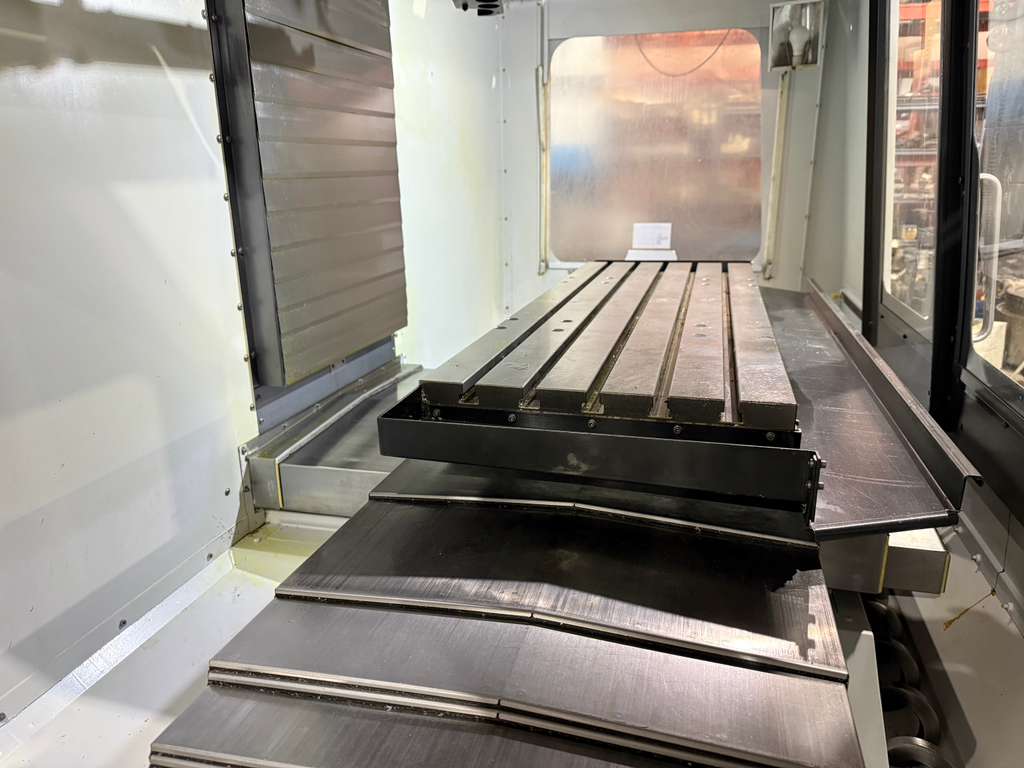

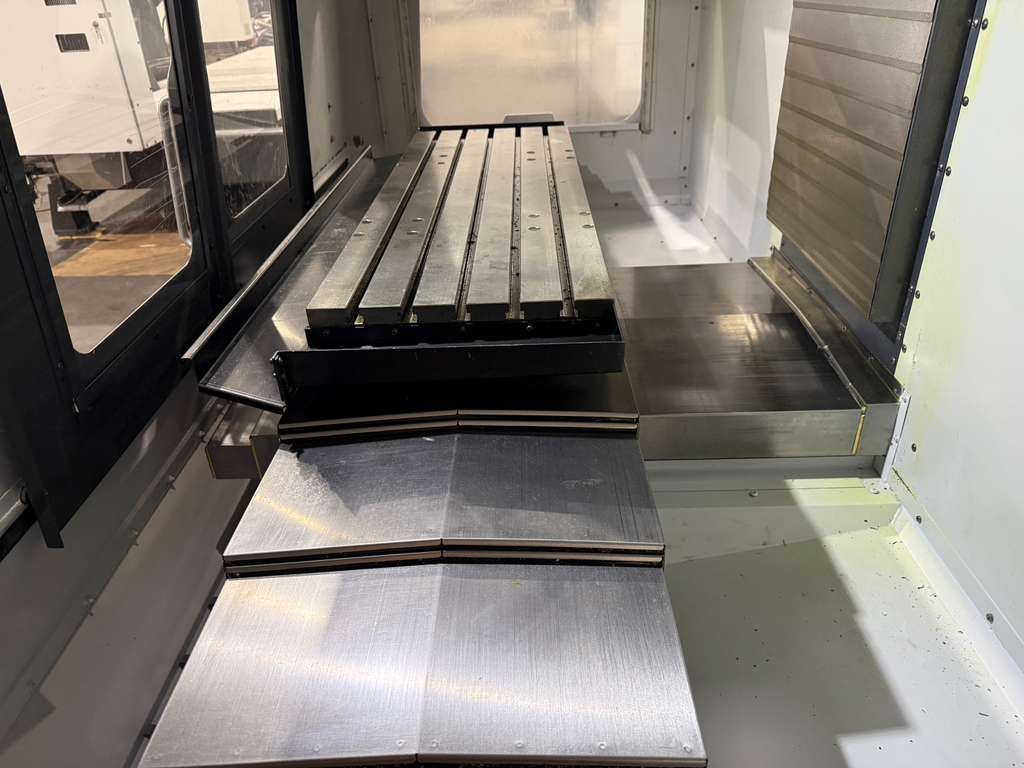

| Table: |
|---|
| Length: 52″ |
| Width: 19.5″ |
| Number Of Std T-slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight On Table: 3500 Lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 7500 RPM |
| Spindle Power: 20 HP |

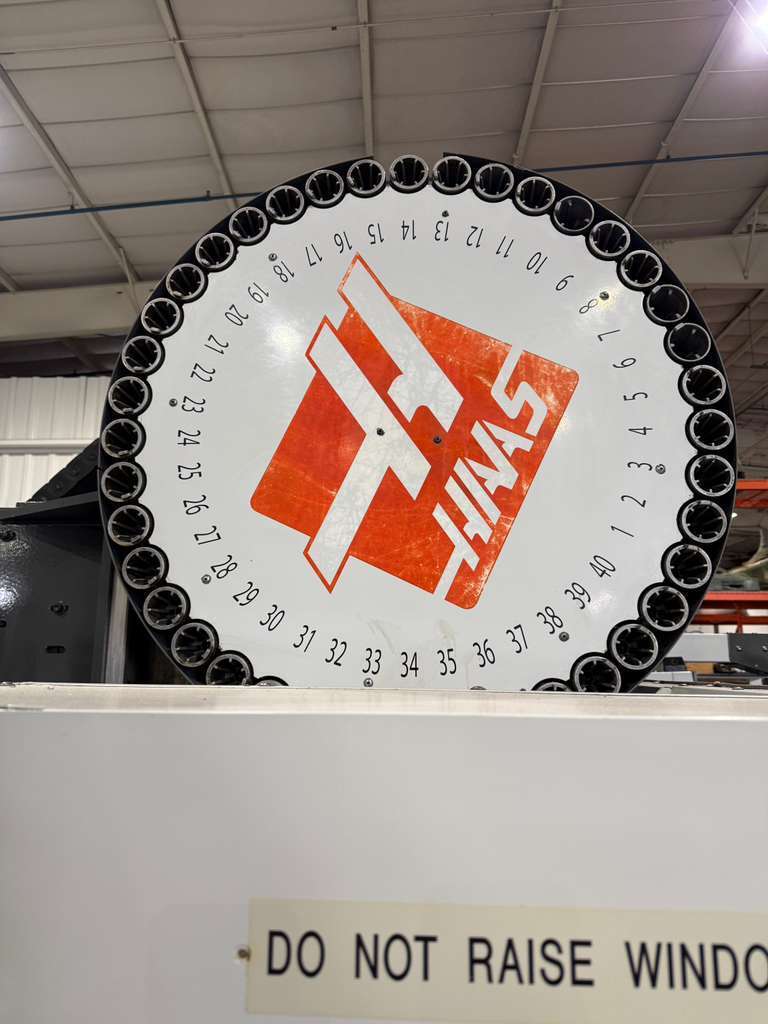

| Automatic Tool Changer: |
|---|
| Capacity: 40 Station Side Mounted |
| Tool Weight: 12 Lbs |
| Max Tool Length: 13″ |
| Max Tool Dia.: 3.5″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

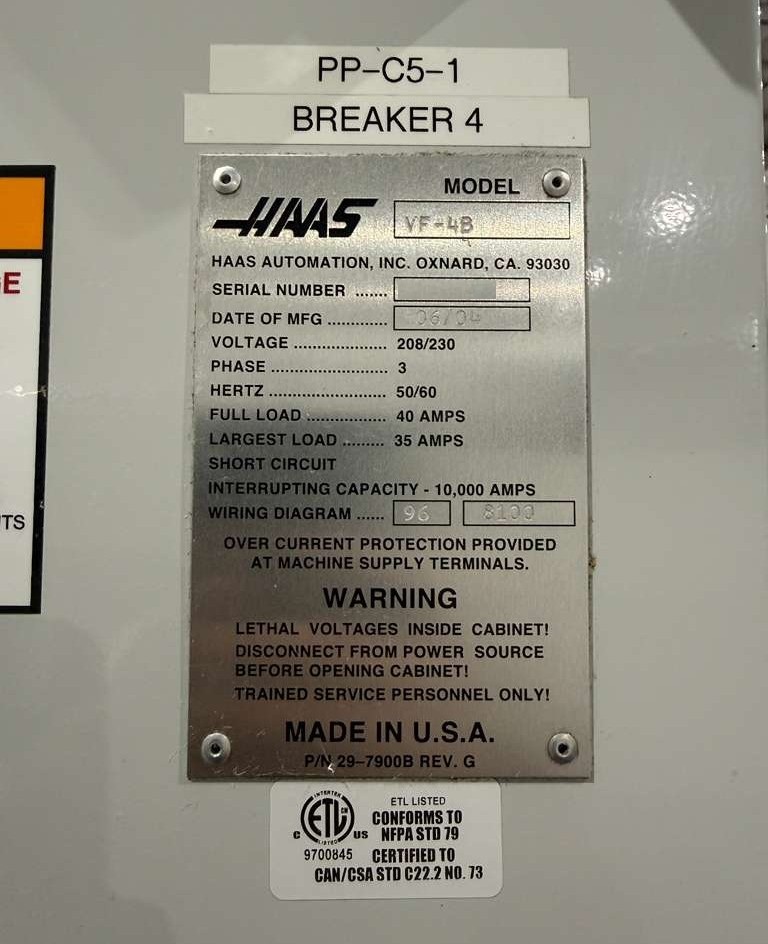

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 152″ x 99″ x 106″ High Approx. |
| Weight: 13,500 lbs Approx. |
