*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

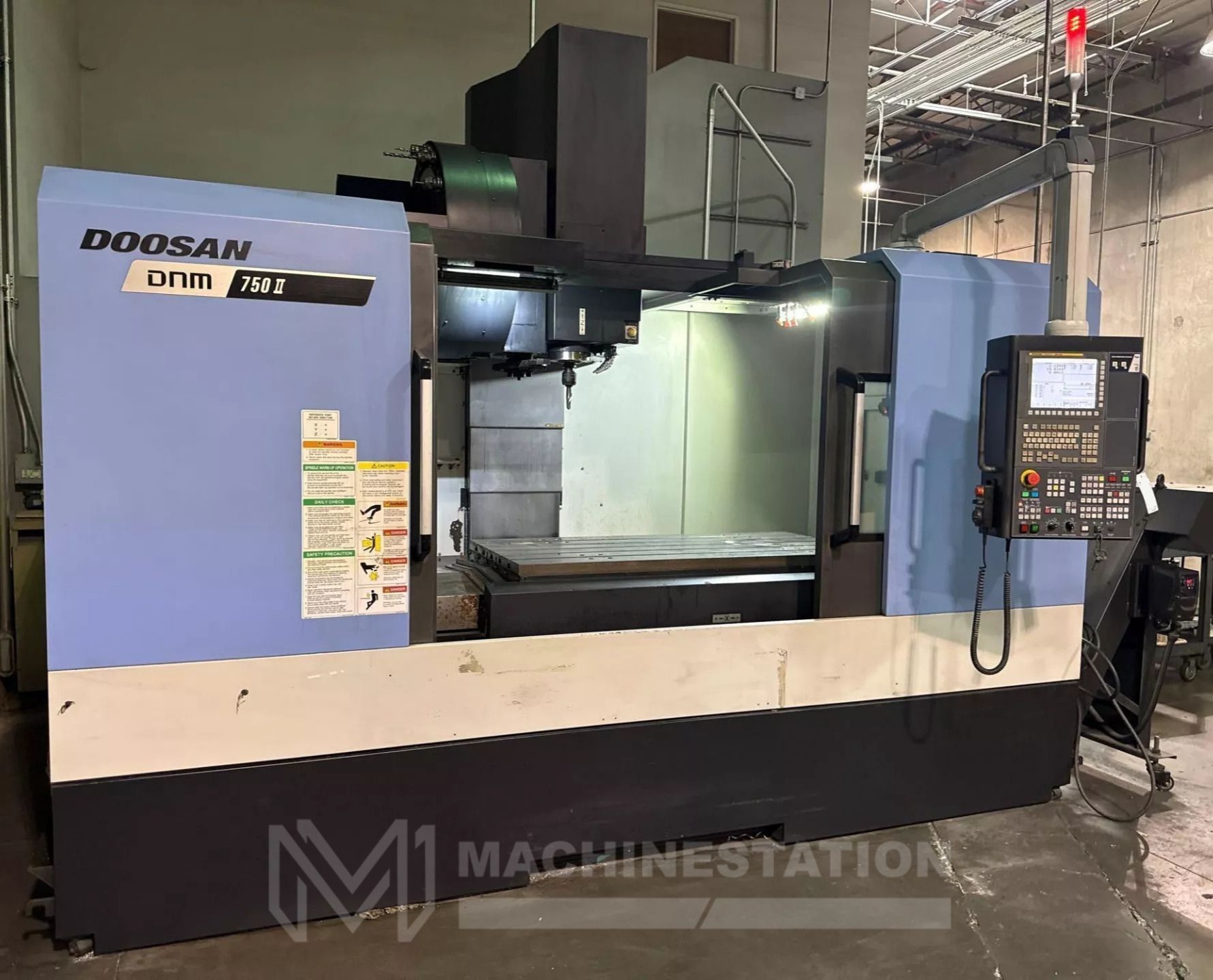

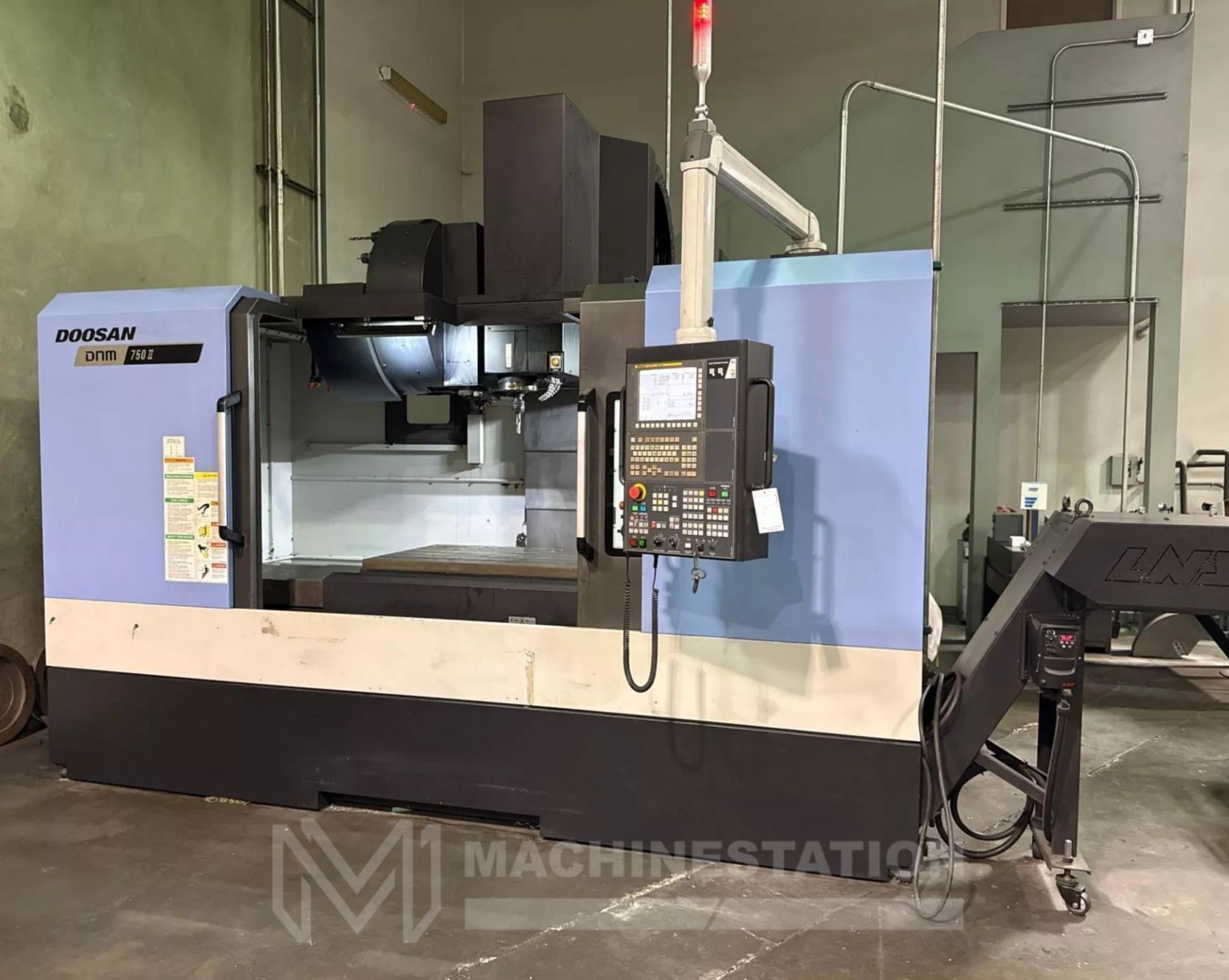

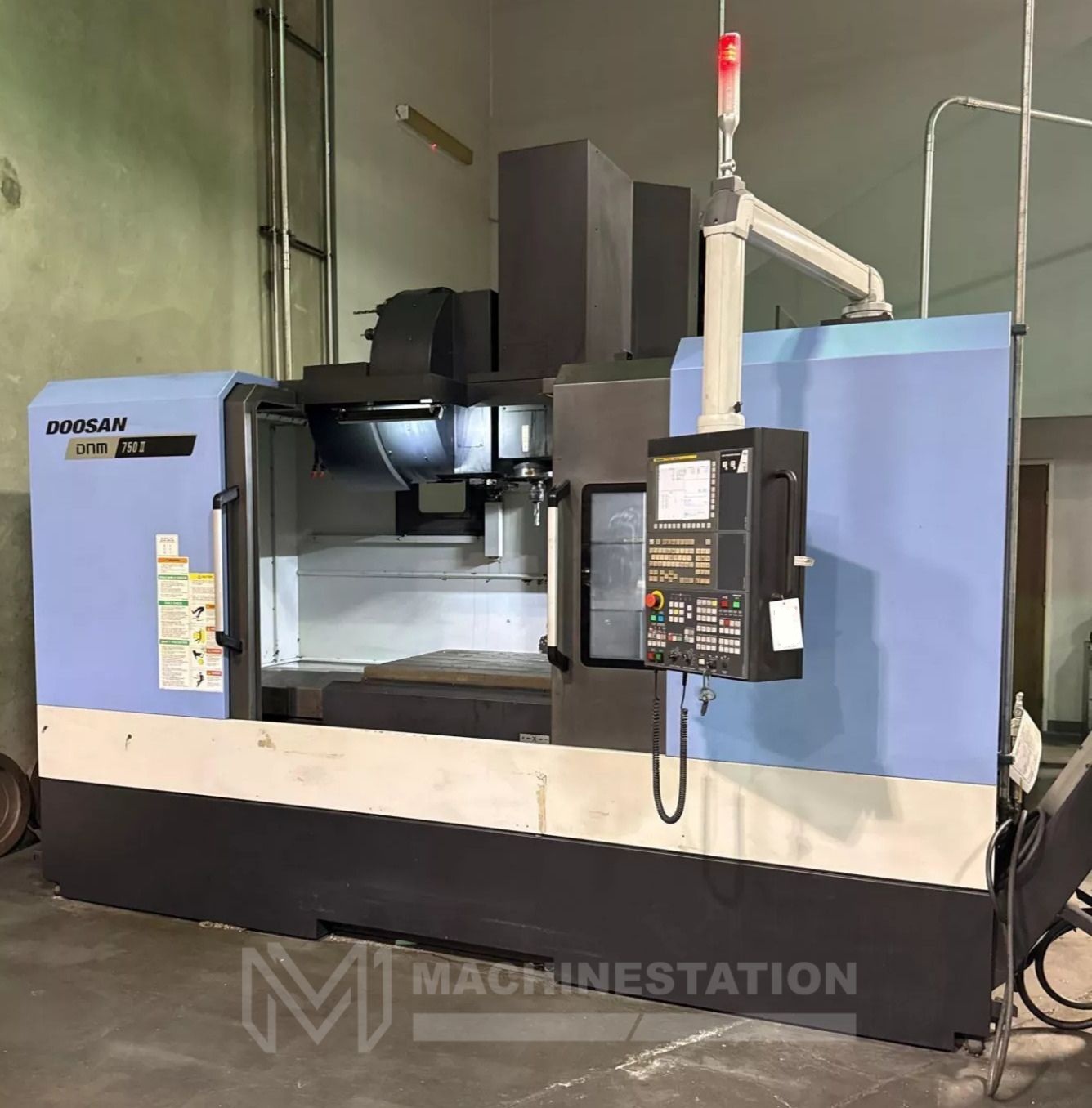

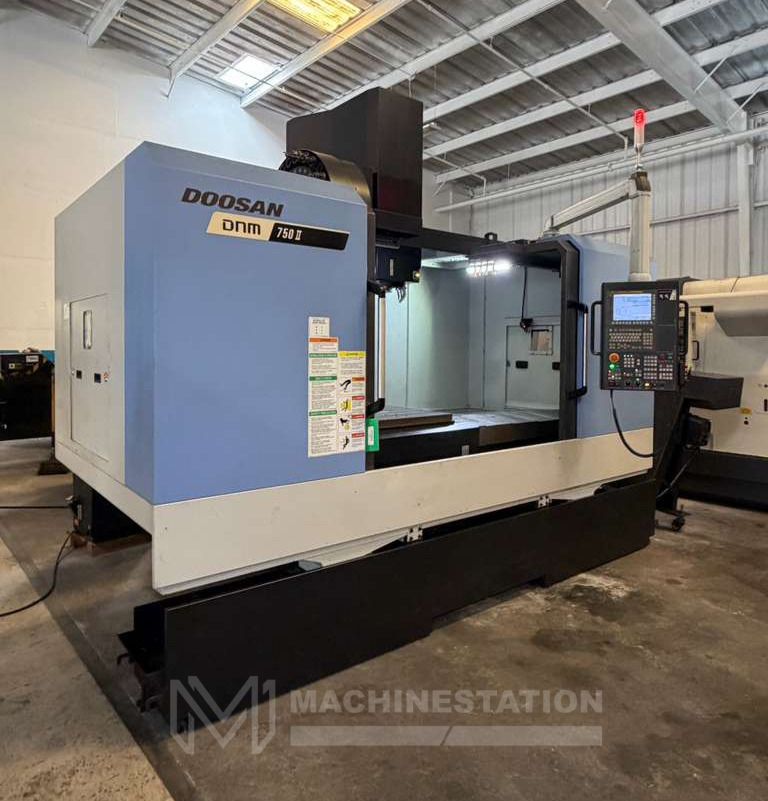

| Make: | Doosan |
| Model: | DNM-750II |
| Year: | 2018 |
| Features: |
|---|

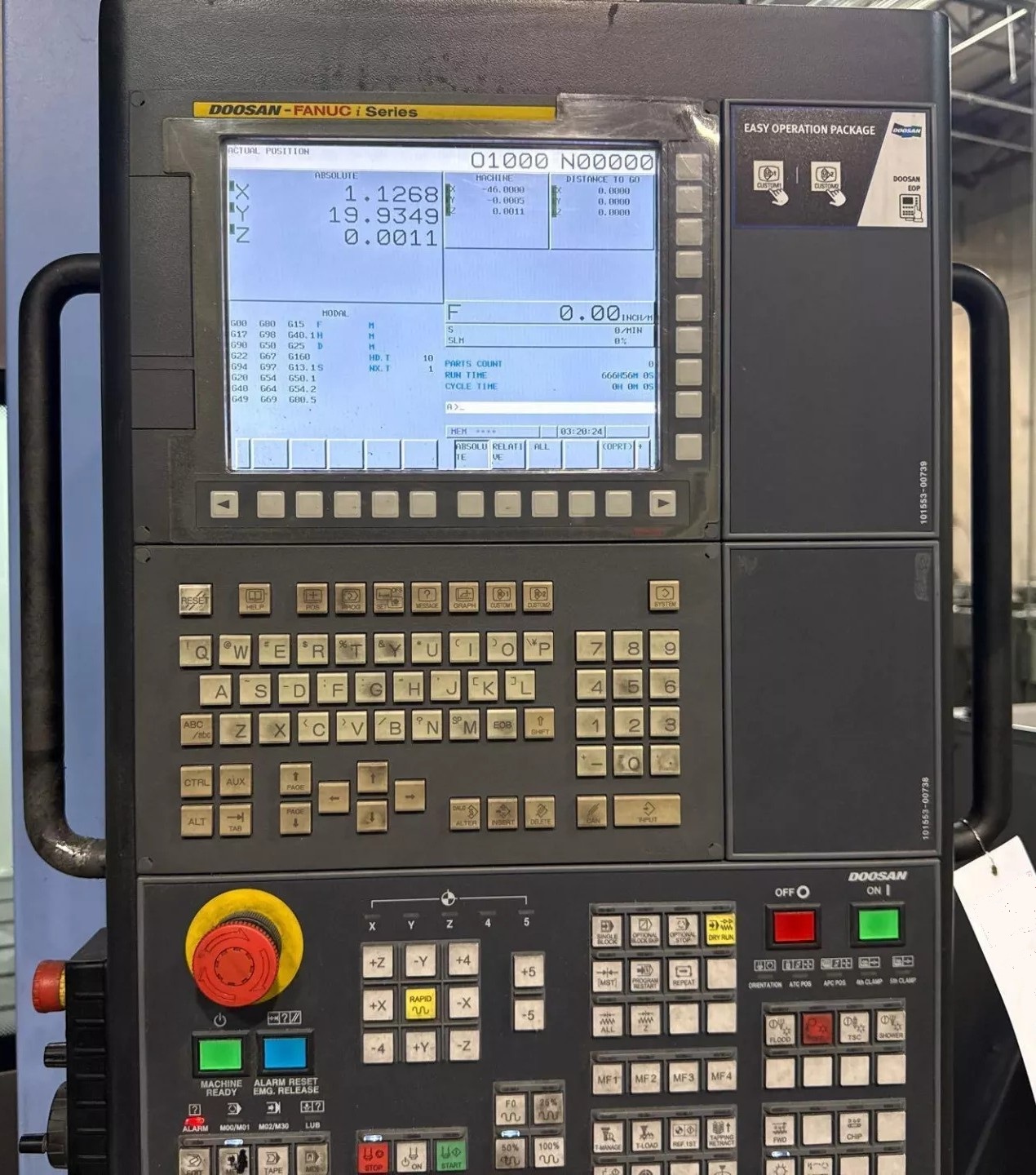

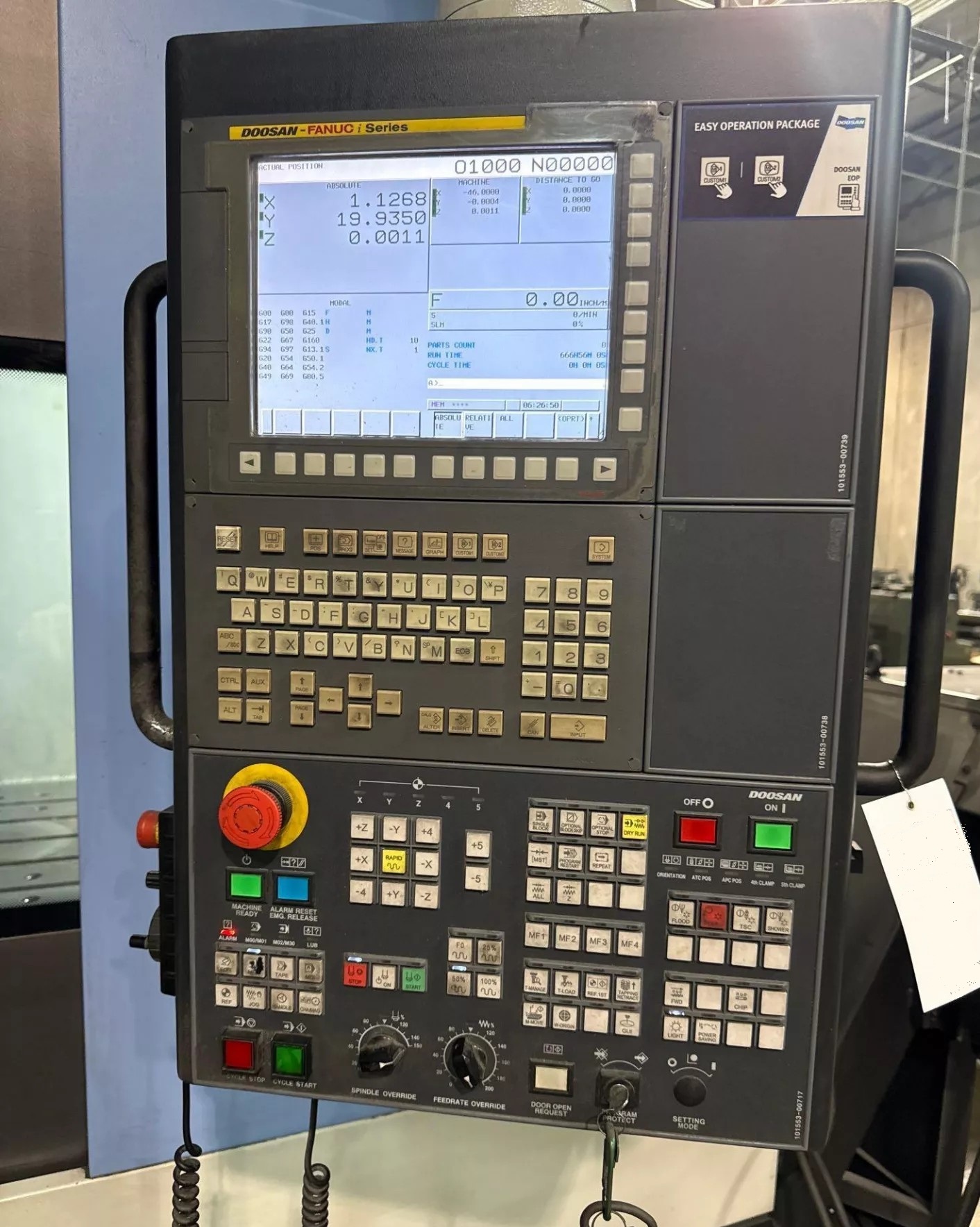

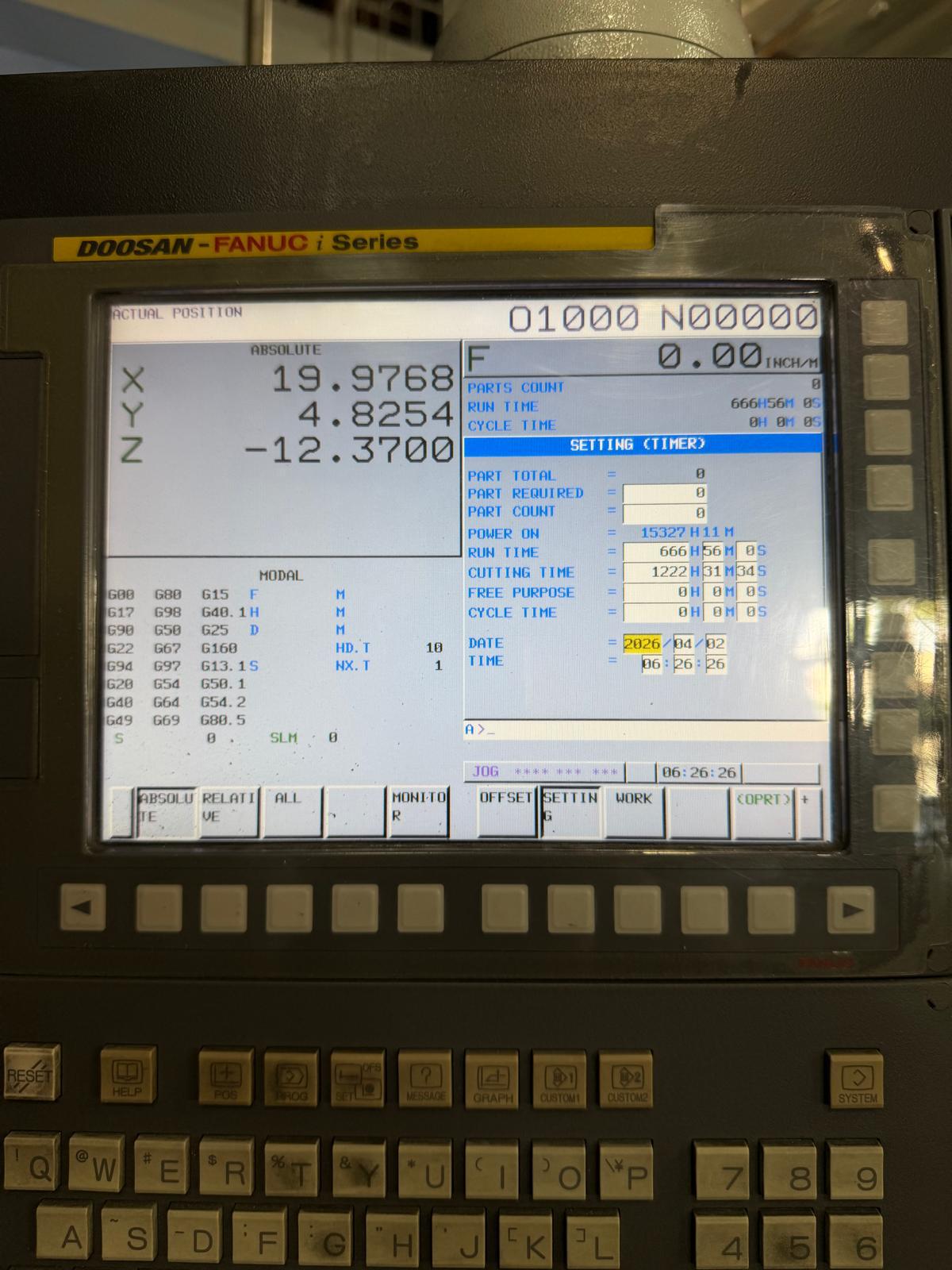

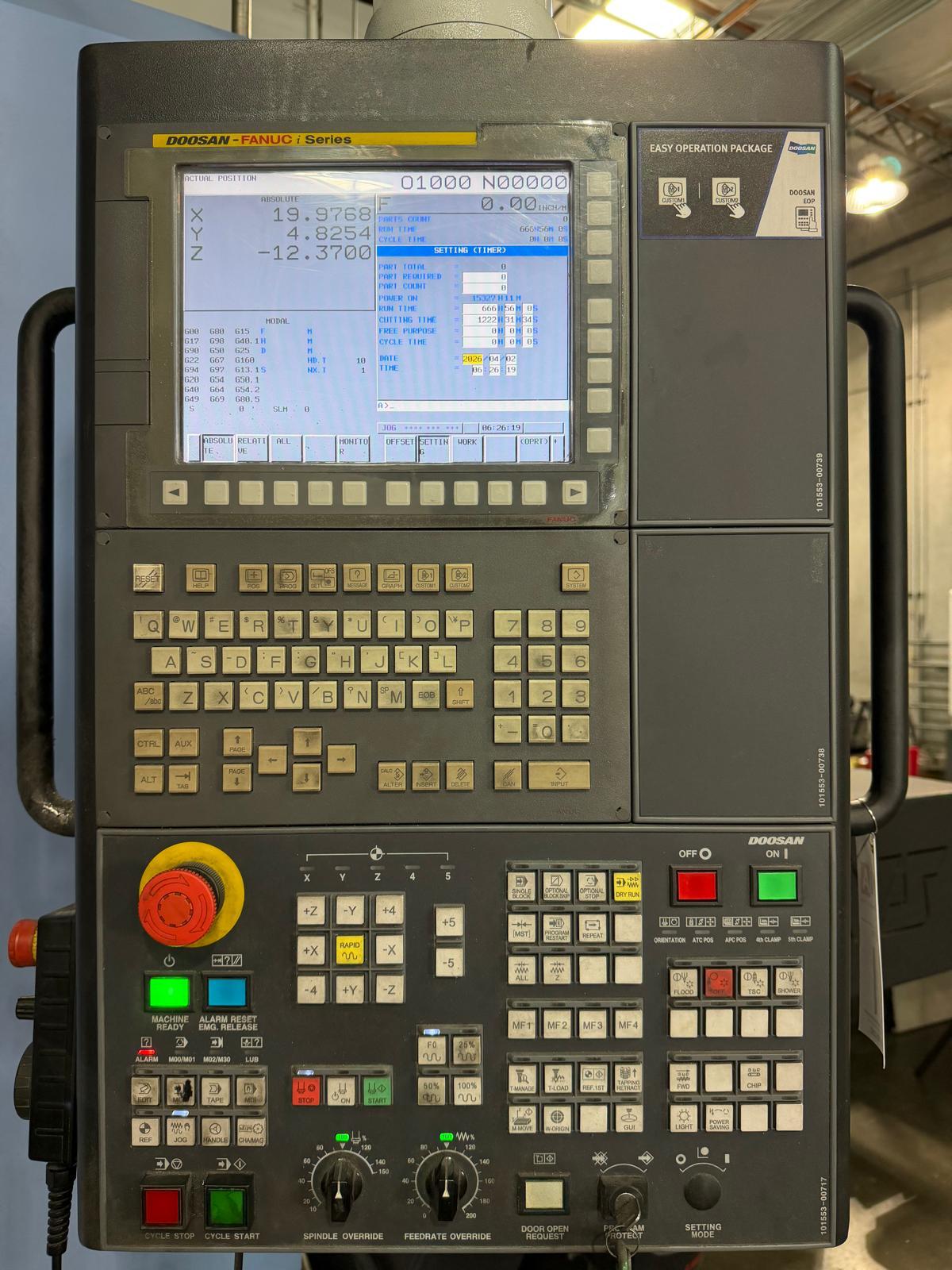

| Doosan Fanuc i-Series CNC Control |
| 12,000 RPM High Speed Spindle |
| Through Spindle Coolant |
| 30 Station Automatic Tool changer |
| Big Plus CAT-40 Taper Spindle |
| USB Drive |
| PCMCIA Card Slot |
| MPG Hand Wheel Control |

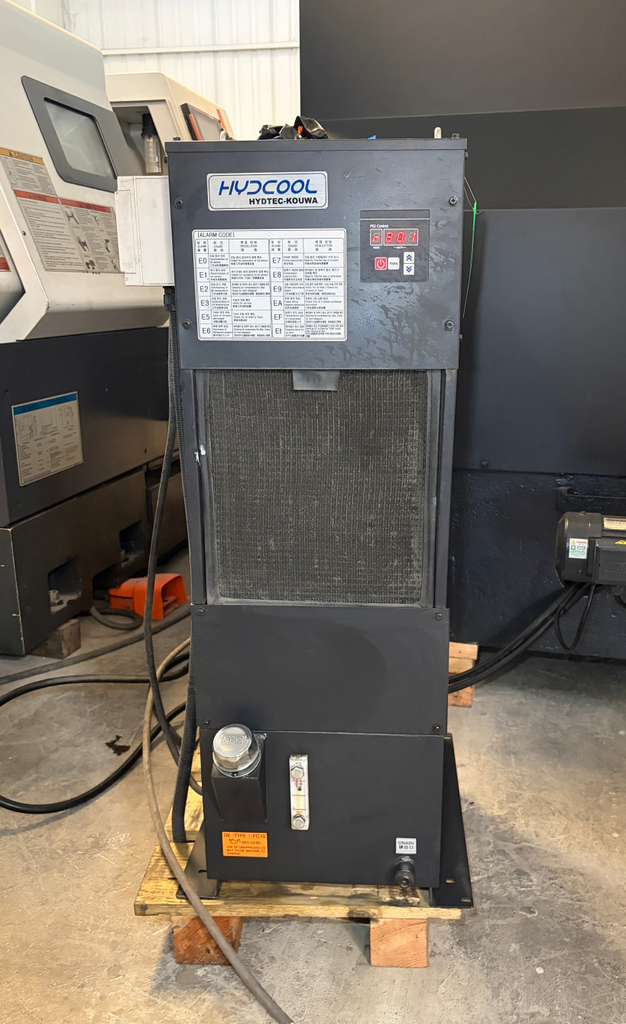

| Spindle Chiller Unit |
| Automatic Lubrication System |
| Rigid Tapping |

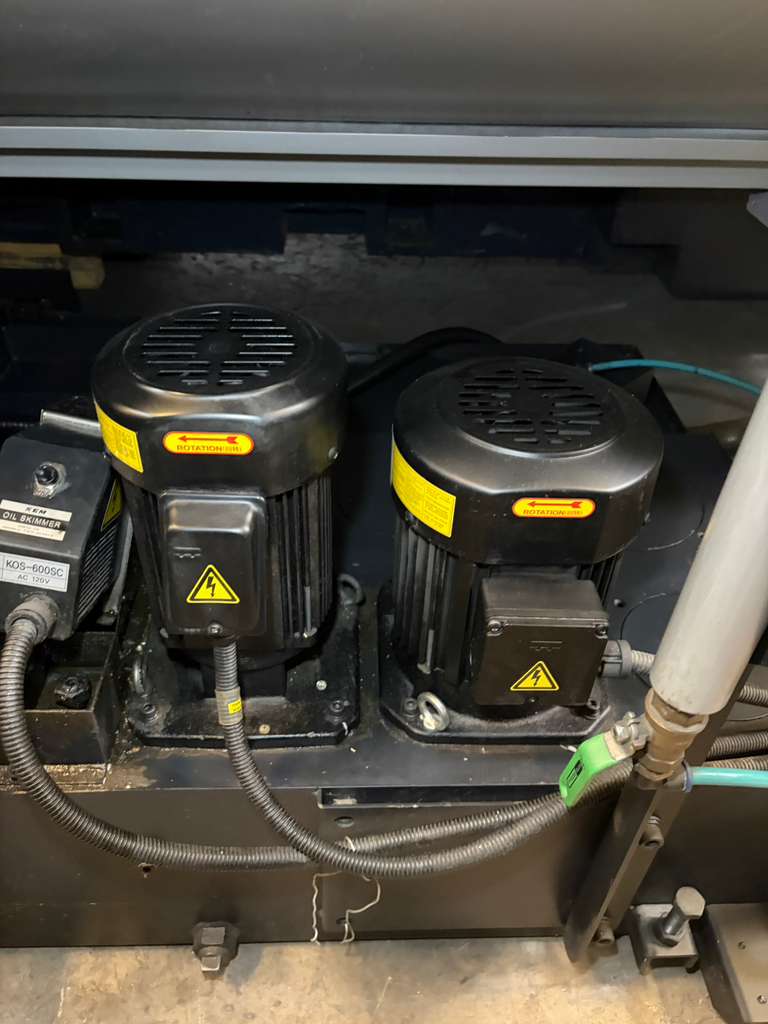

| Coolant System |

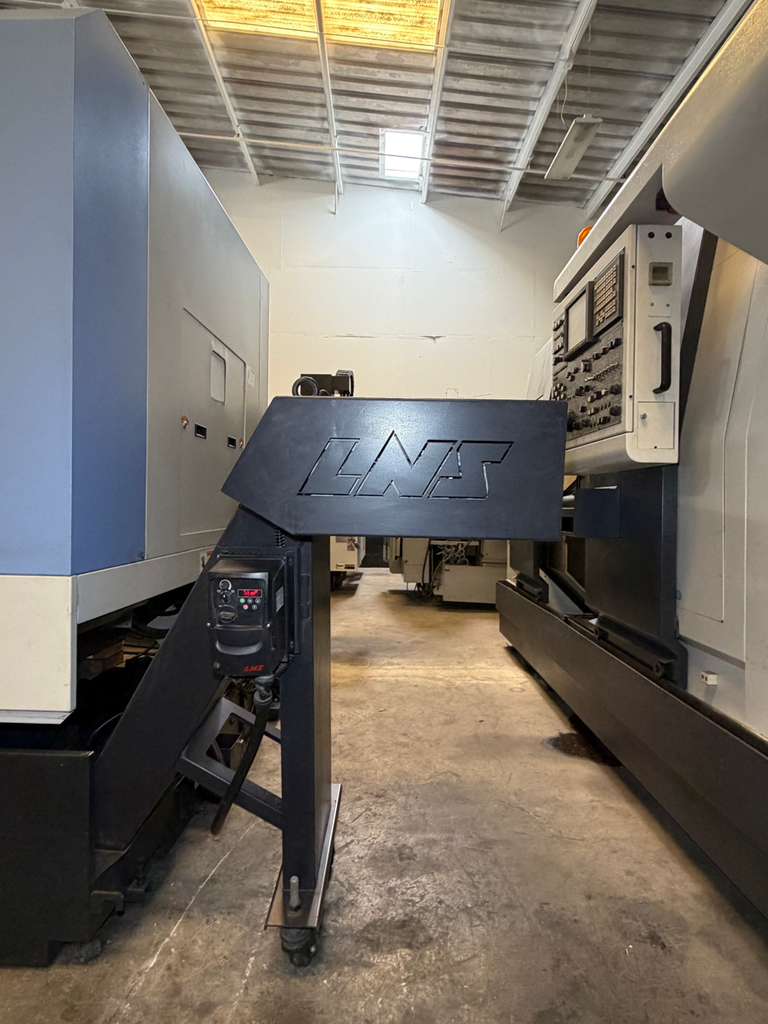

| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 64.2″ |
| Y-Axis: 30.0″ |
| Z-Axis: 25.6″ |
| Rapid Traverse Rates X & Y Axis: 1181 IPM |
| Rapid Traverse Rates Z Axis: 945 IPM |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 31.5″ |

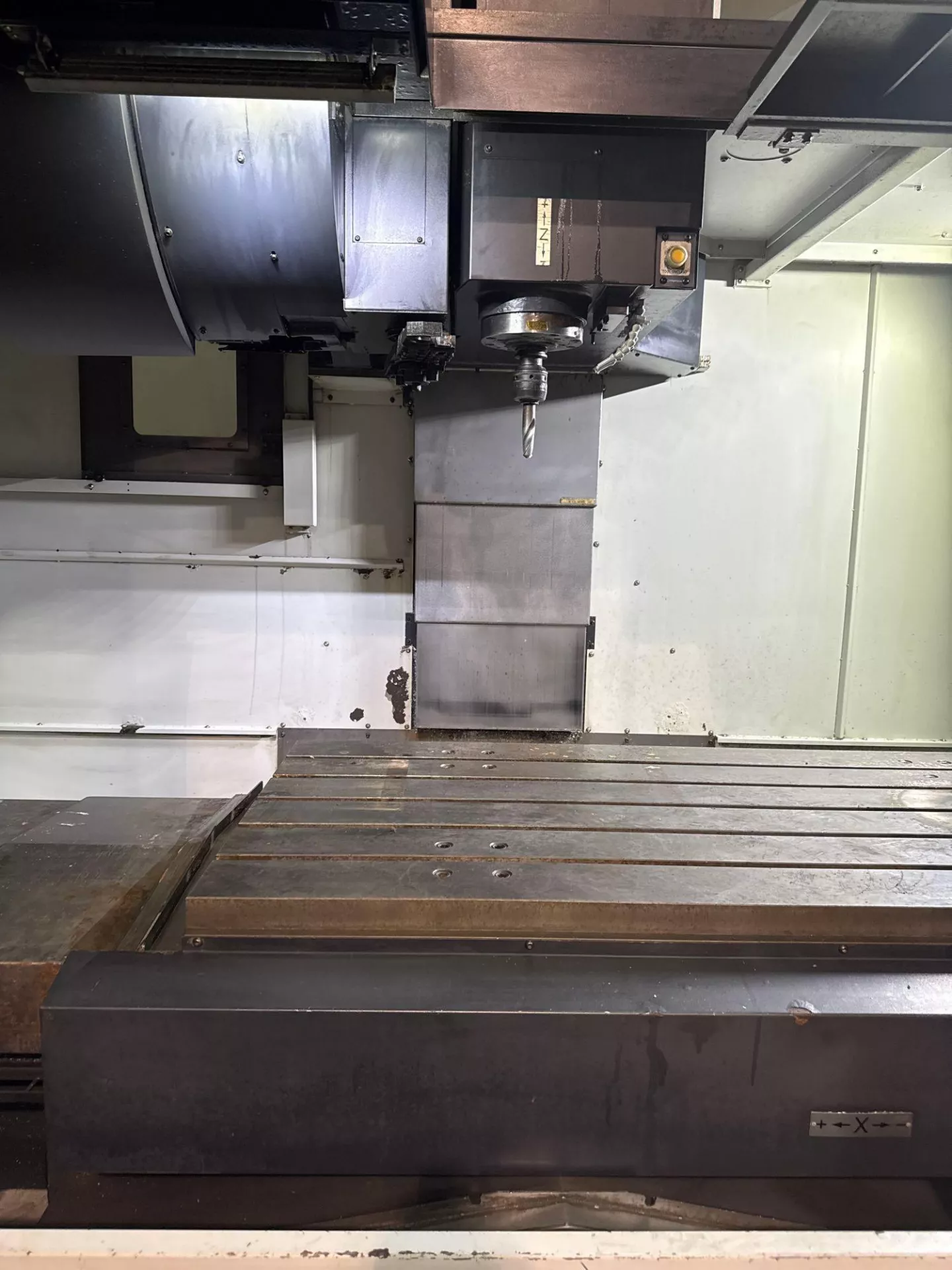

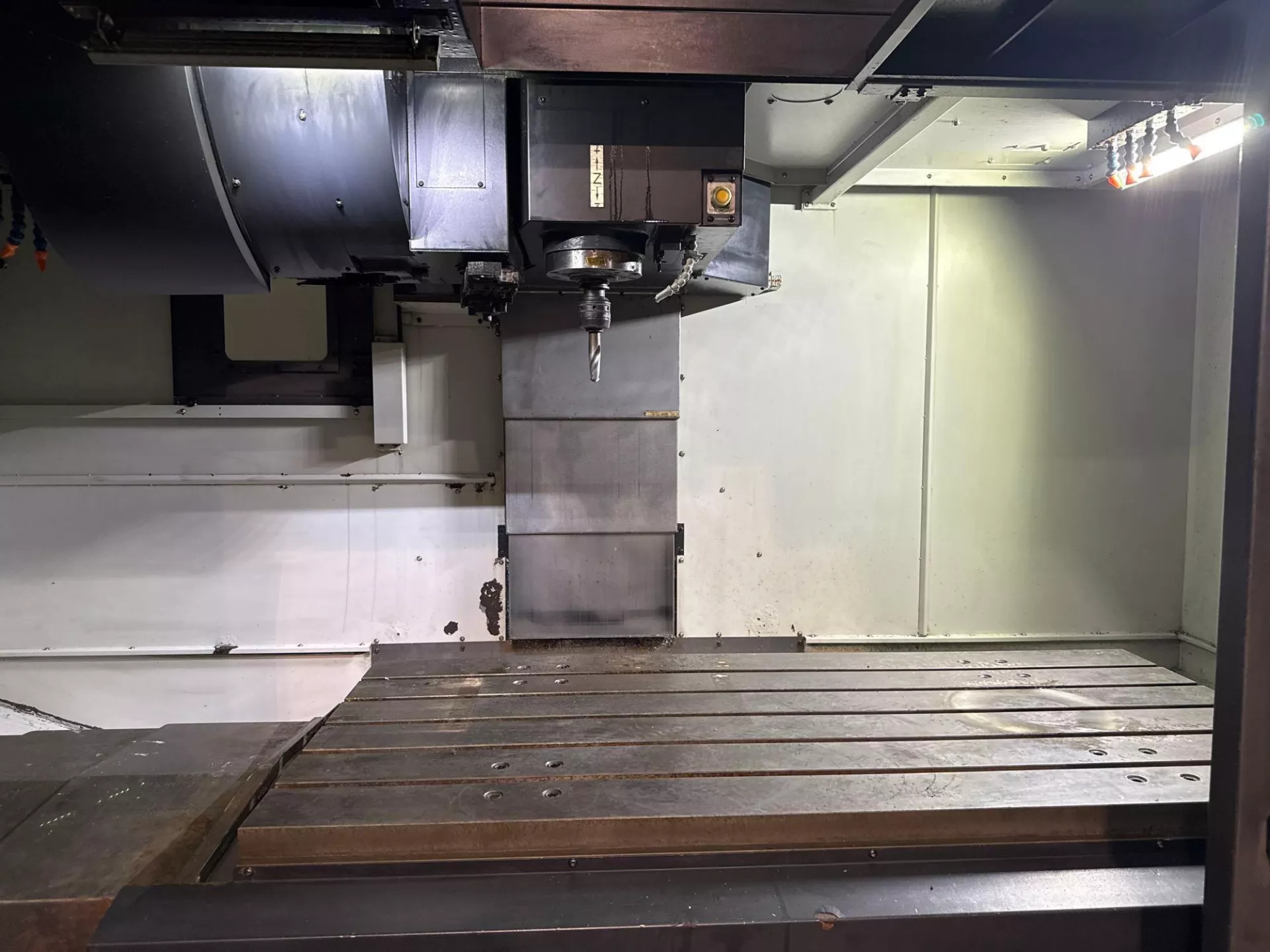

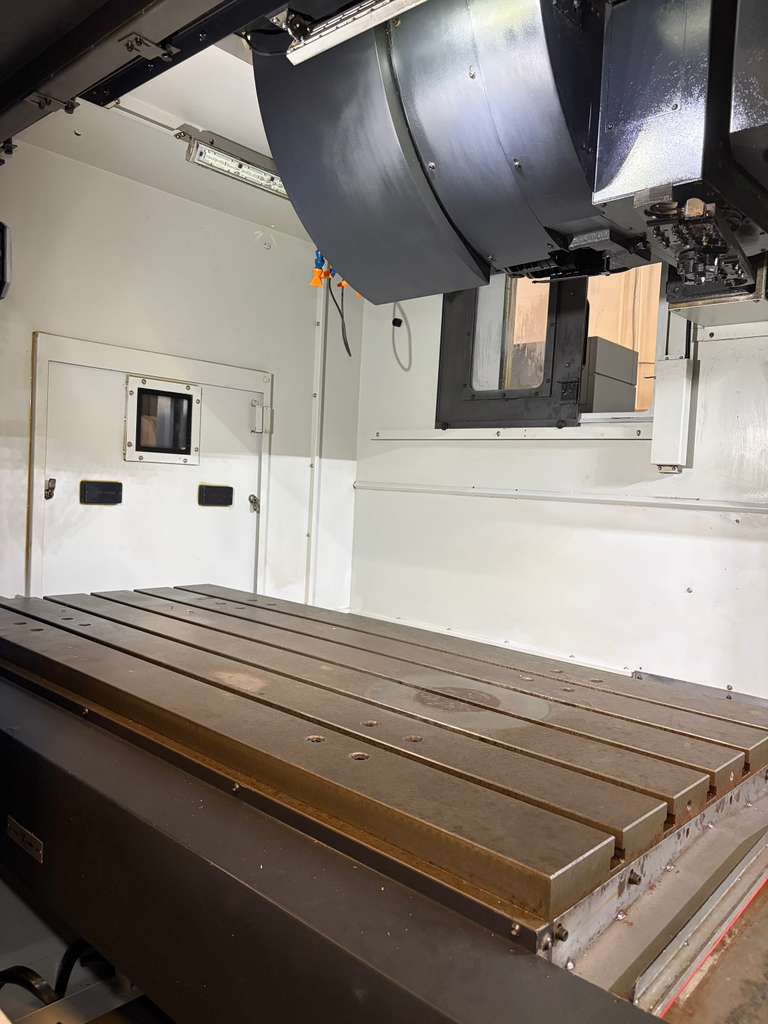

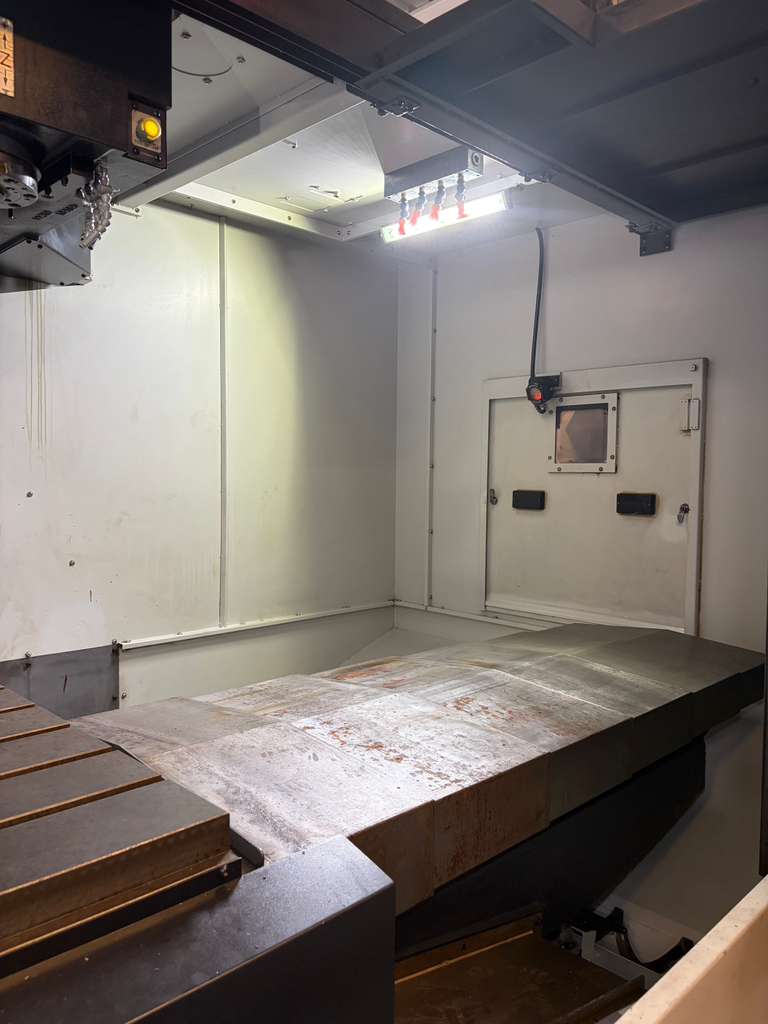

| Table: |
|---|
| Length: 64.2″ |
| Width: 29.9″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 4.9″ x 0.7″ |
| Max Weight on Table: 3306 lbs |

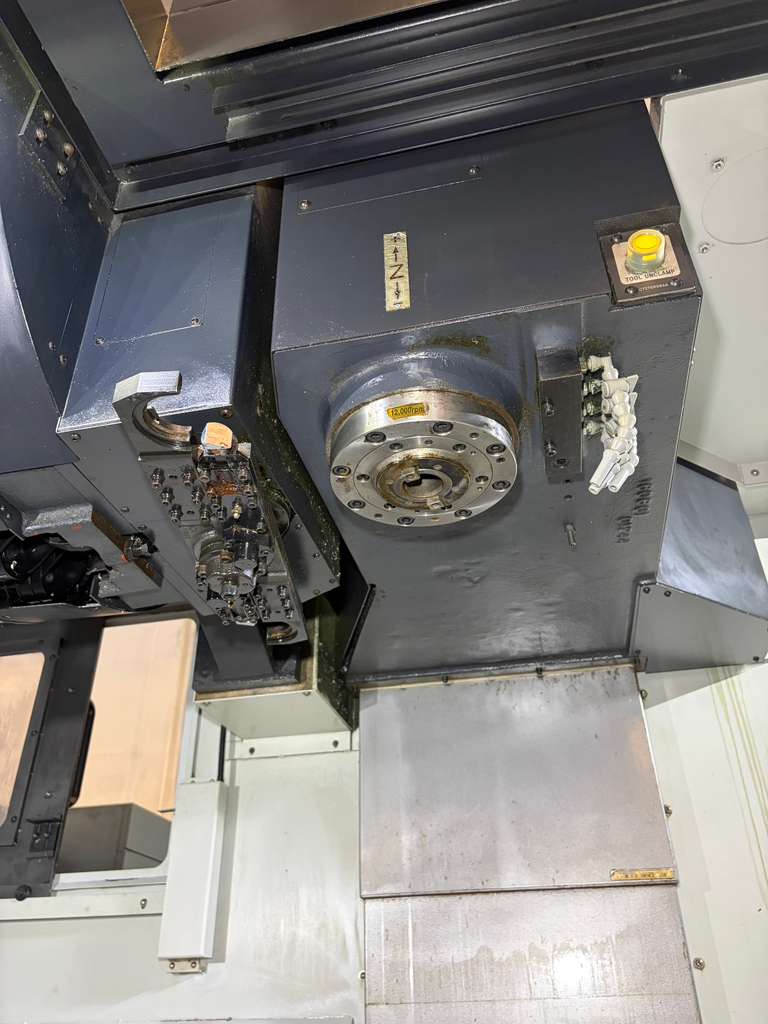

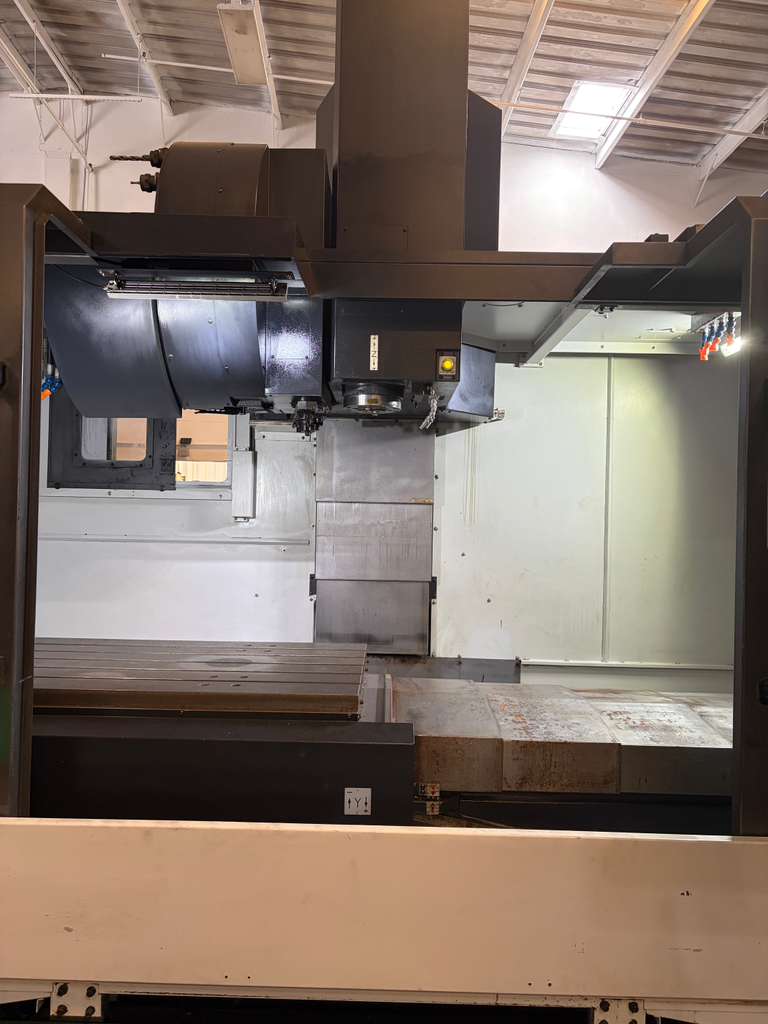

| Spindle: |
|---|
| Taper Size: Big Plus CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.1″ -4.9″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time : 1.3 Seconds |
| General: |
|---|
| Air Required: 90 psi 4 scfm |

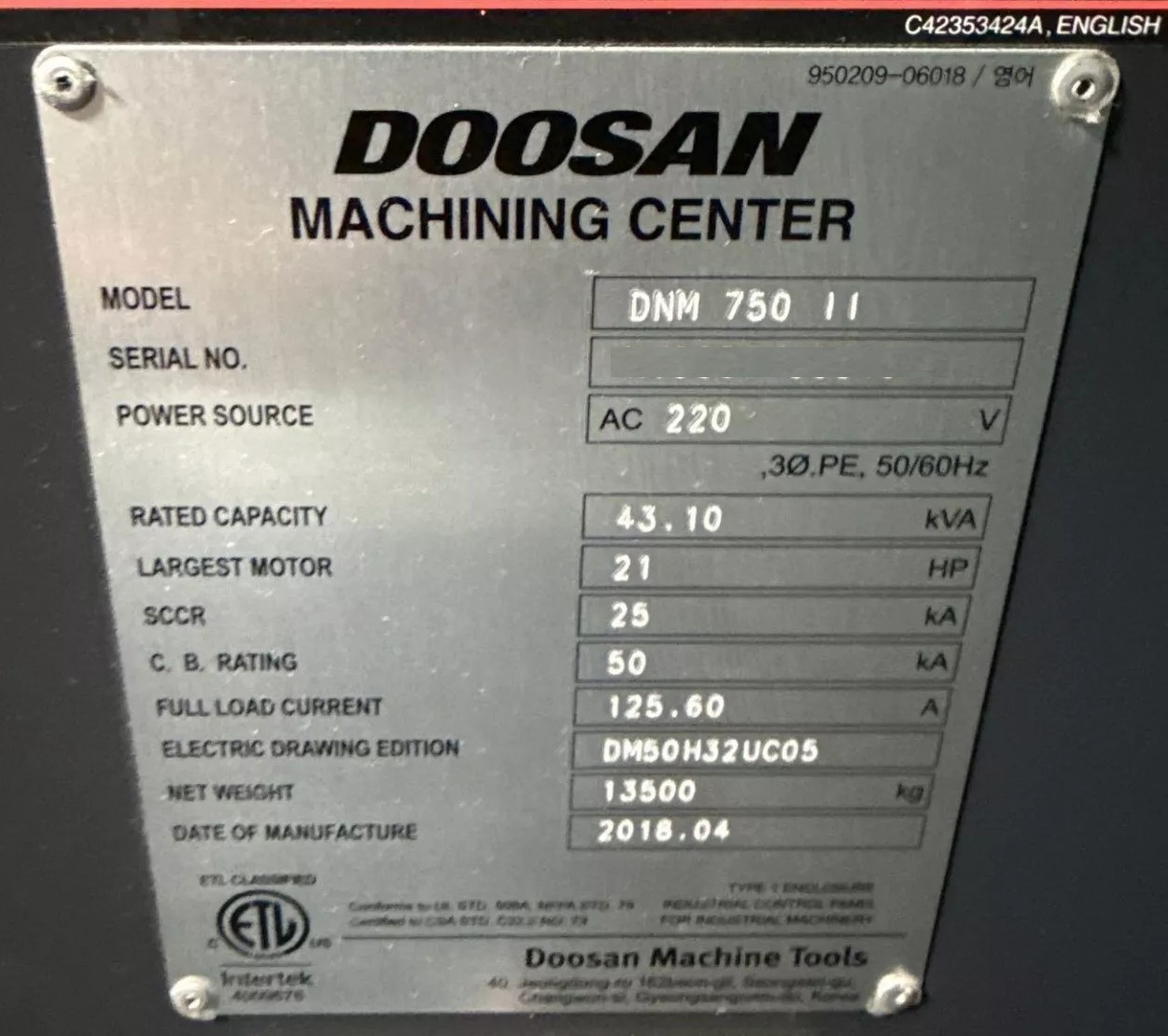

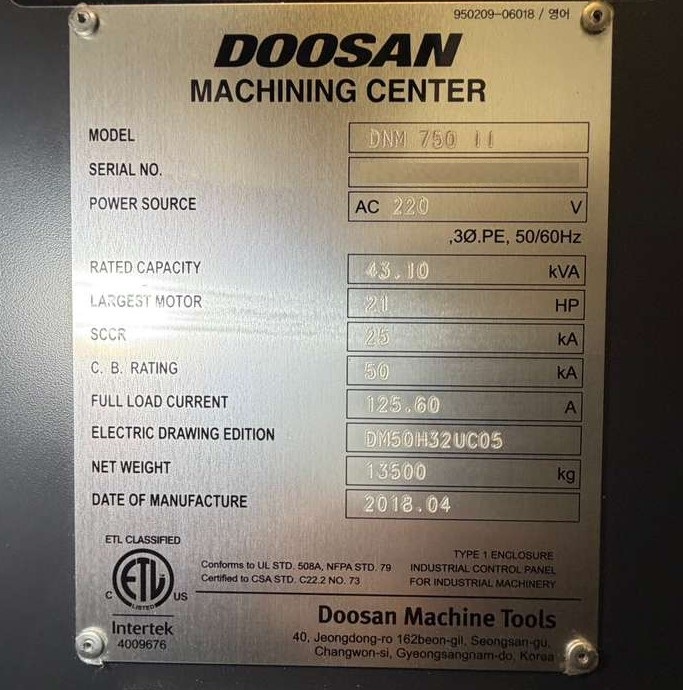

| Power: 220v / 43.1 kva / 3-Phase / 50/60 Hz |
| Overall Dimensions: 151″ x 137″ x 125″ High Approx. |
| Weight: 29,760 lbs |
