*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

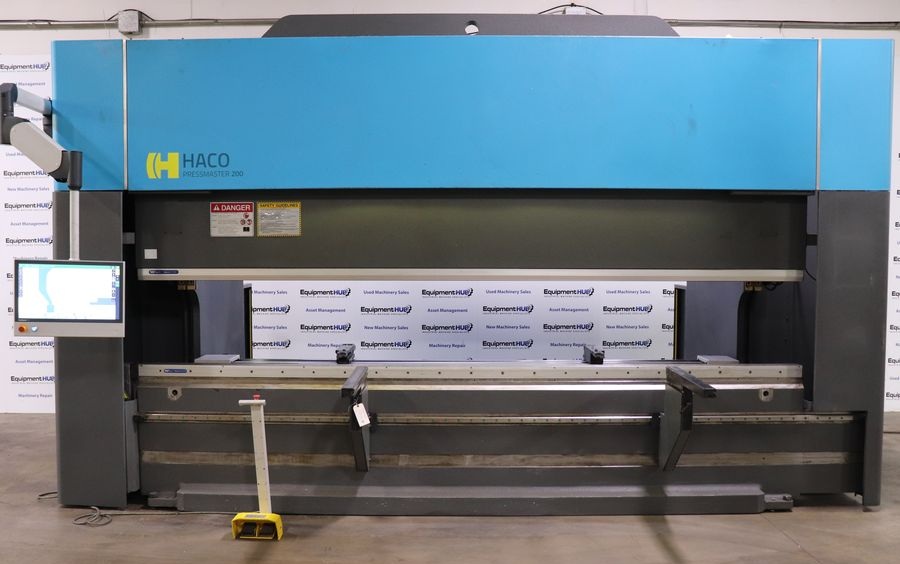

| Make: | Haco |
| Model: | EN43200 |
| Year: | 2018 |
| Machine Type: | CNC Press Brake |
| Equipped With: |
|---|
| FastBEND-3D MT Premium CNC Control |
| High-Speed X-R-Z1-Z2 Backgauge |
| Wilson Tool ExpressRAIL 2000 Top Tool Clamping |
| CNC-Controlled Wilson Tool ExpressCROWNING Anti-Deflection Table |
| 2 Manual Sheet Supports |
| LED Illumination of Bending Area |
| Iris Plus Integrated Angle Measuring System |
| SICK Rear-Mounted Light Curtains |
| Capacity: |
|---|
| Bending Capacity: 224 US Tons / 203 Metric Tons |
| Bending Length: 167.3″ |
| Distance Between Housings: 147.6″ |
| Throat Depth / Gap: 15.75″ |
| Daylight Opening: 21.26″ |
| Stroke: |
|---|
| Stroke Length: 14.56″ |
| Fast Approach Speed: 6.3″ / Sec |
| Maximum Bending Speed: 0.31″ / Sec |
| Fast Return Speed: 6.7″ / Sec |
| Backgauge: |
|---|
| Backgauge: High-Speed X-R-Z1-Z2 |
| Configuration: 4-Axis CNC Backgauge |
| General: |
|---|
| Power Source: 480V / 3-Phase |
| Shipping Dimensions: Approx. 216″ L × 106″ W × 120″ H |
| Shipping Weight: Approx. 40,000 lbs. |
