*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Hardinge Bridgeport |
| Model No.: |
VMC-760XP-3 |
| Year of Manufacture: |
2006 |
| Machine Type: |
CNC Vertical Machining Center |
| CNC Control: |

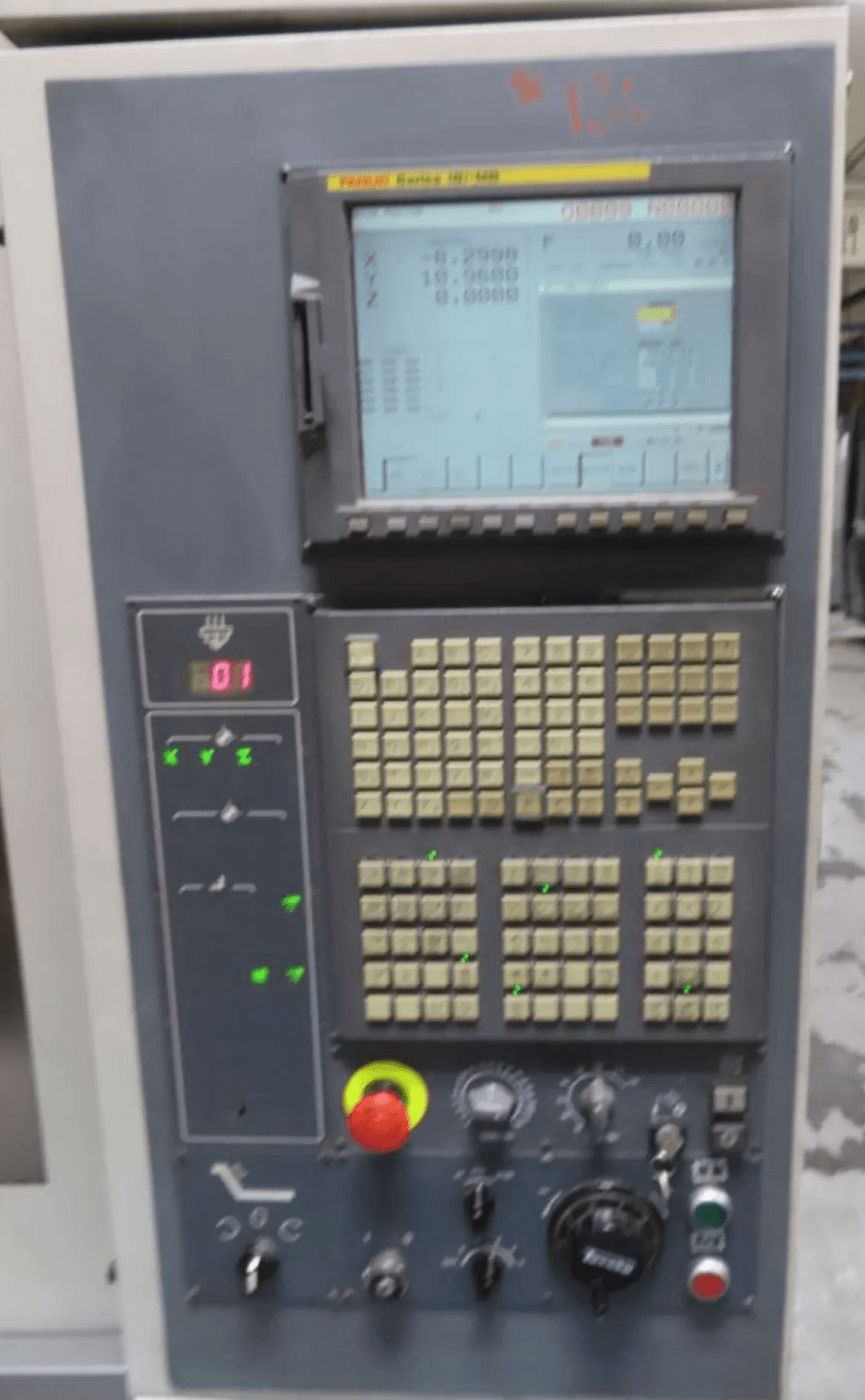

Fanuc 18i-MB |
| Country of Origin: |
USA |
| Equipped With: |
| Fanuc 18i-MB CNC Control |
| 12,000 RPM High-Speed Spindle |
| 30-Station Side Mount Tool Changer |
| CAT 40 / BT 40 Spindle |
| Rigid Tapping |
| Chip Conveyor |
| Coolant System with Pump |
| Through-Spindle Coolant (Chip Blaster Ready) |
| Renishaw Probe (if equipped) |
| High-Speed Rapids (1,600+ IPM) |
| Fully Enclosed Splash Guard |
| Manual Pulse Generator (MPG) |
| Ethernet / Program Transfer Capability |
| Capacity: |
| Table Size: 35″ × 23.6″ |
| Max Table Load: 2,000 lbs |
| Travels: |
| X-Axis Travel: 30″ |
| Y-Axis Travel: 24″ |
| Z-Axis Travel: 24″ |
| Rapid Traverse (X/Y): 1,692 IPM |
| Rapid Traverse (Z): 1,417 IPM |
| Spindle: |
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 25 HP |
| Spindle Taper: CAT 40 / BT 40 |
| Spindle to Table Distance: 3.9″ – 27.9″ |
| Tooling System: |
| Tool Capacity: 30 Tools |
| Type: Side Mount ATC |
| Tool Change Time: ~4 sec (chip-to-chip) |
| Electrical: |
| Power Requirement: 220V / 3 Phase / 60 Hz |
| General: |
| Machine Weight: ~14,500 – 16,000 lbs |
| Dimensions: ~155″ × 92″ × 92″ |
