*Machine Builder Specifications and Equipped With details are for reference only and may change without notice. All specifications and features — including tooling and accessories — are approximate and subject to buyer verification. Equipement Comes as shown in the images. All sales final.*
| SKU: | 112930 |

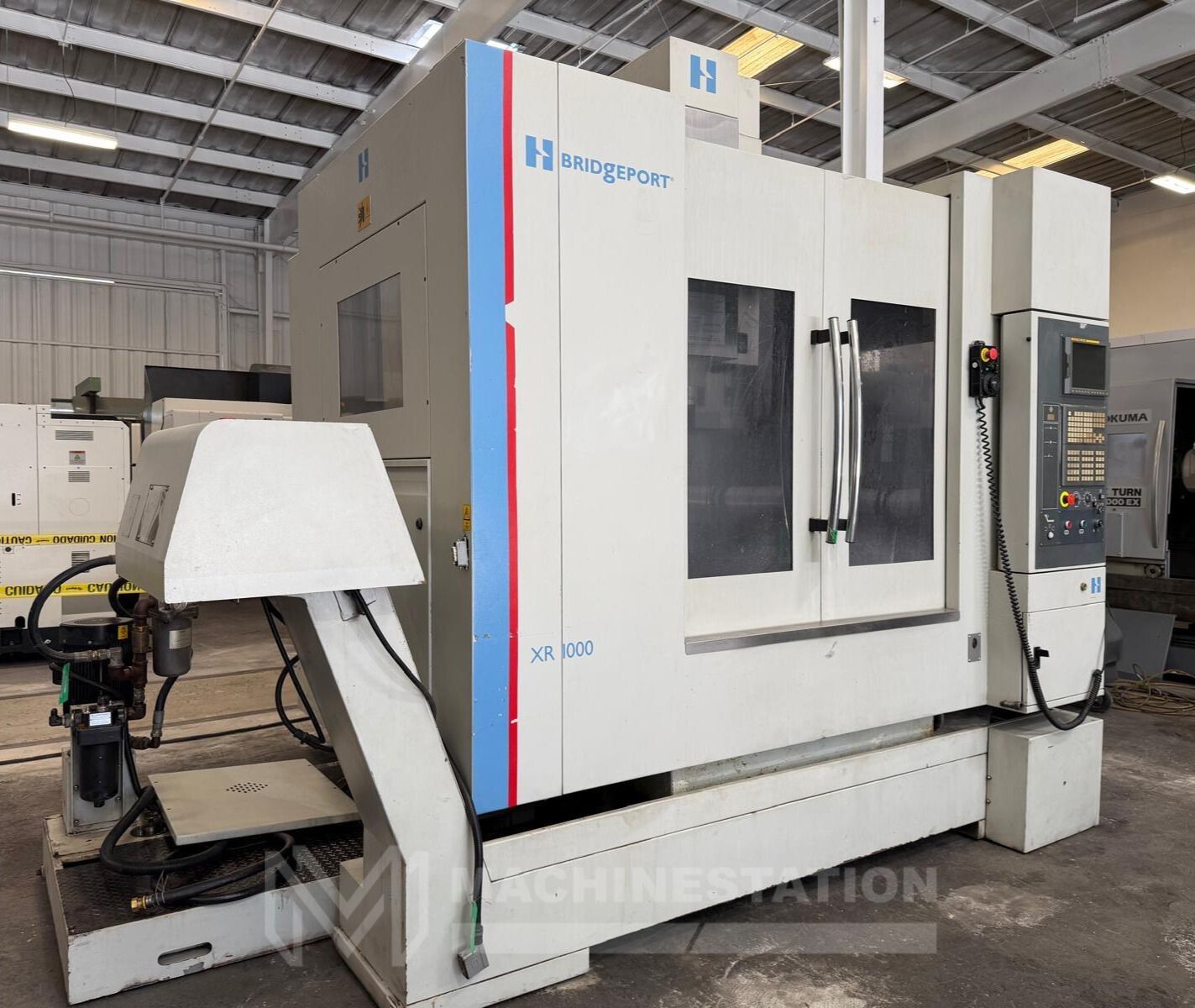

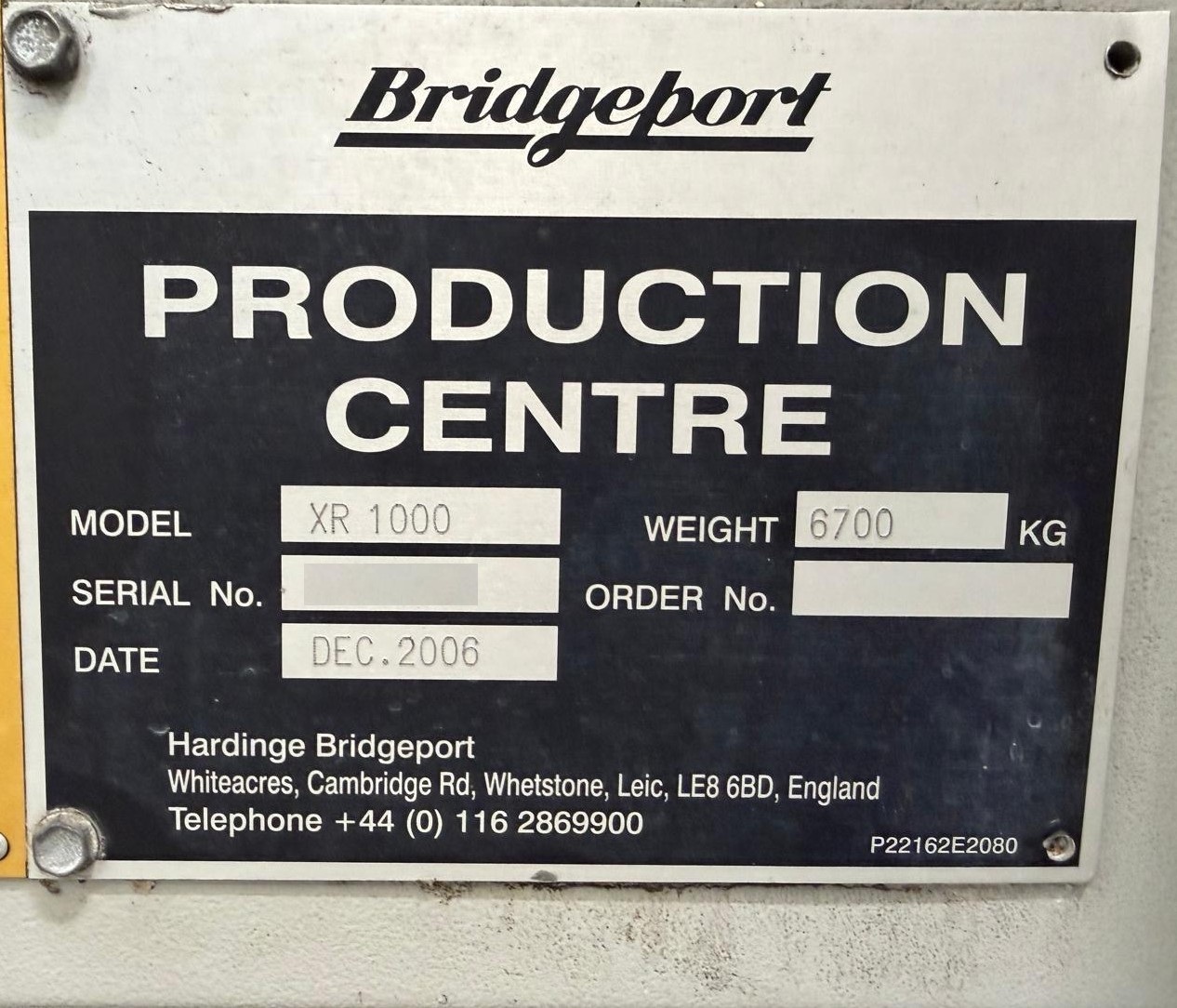

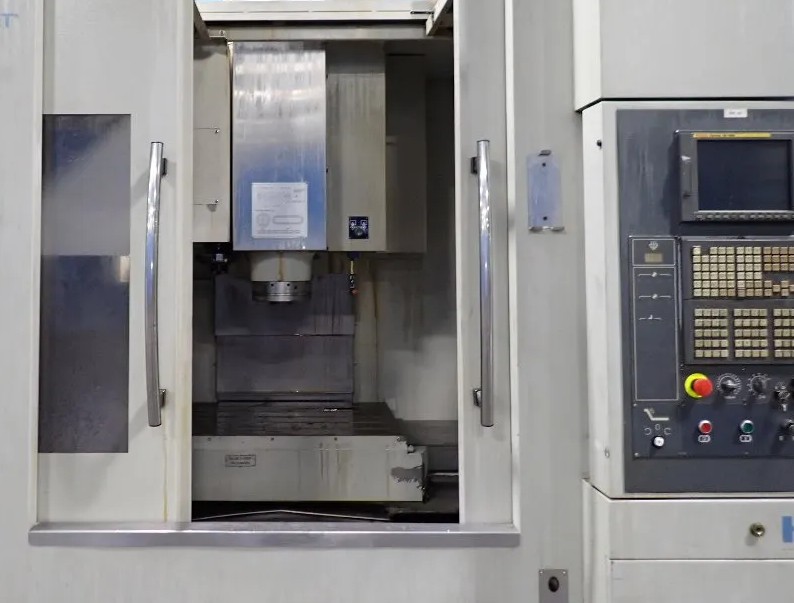

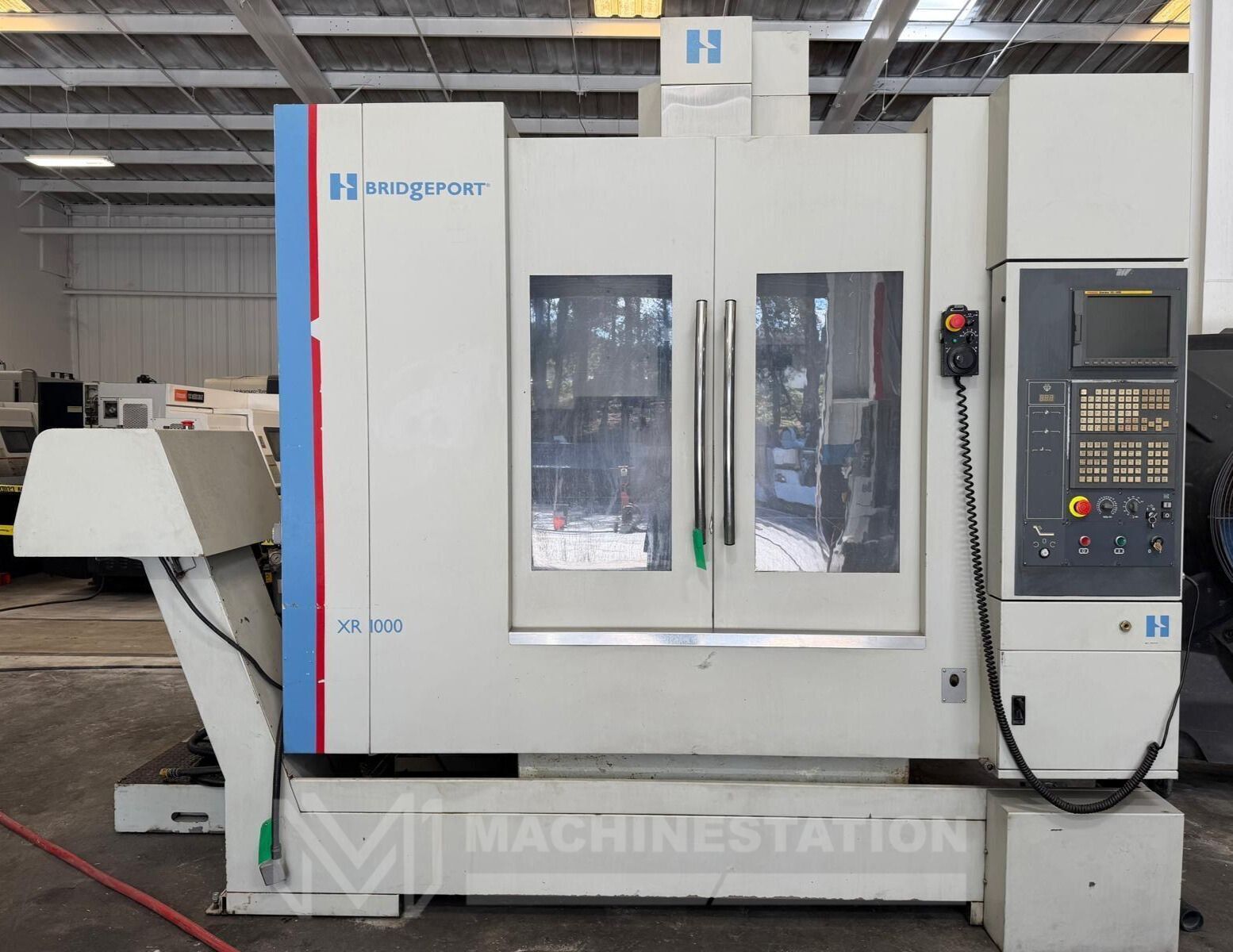

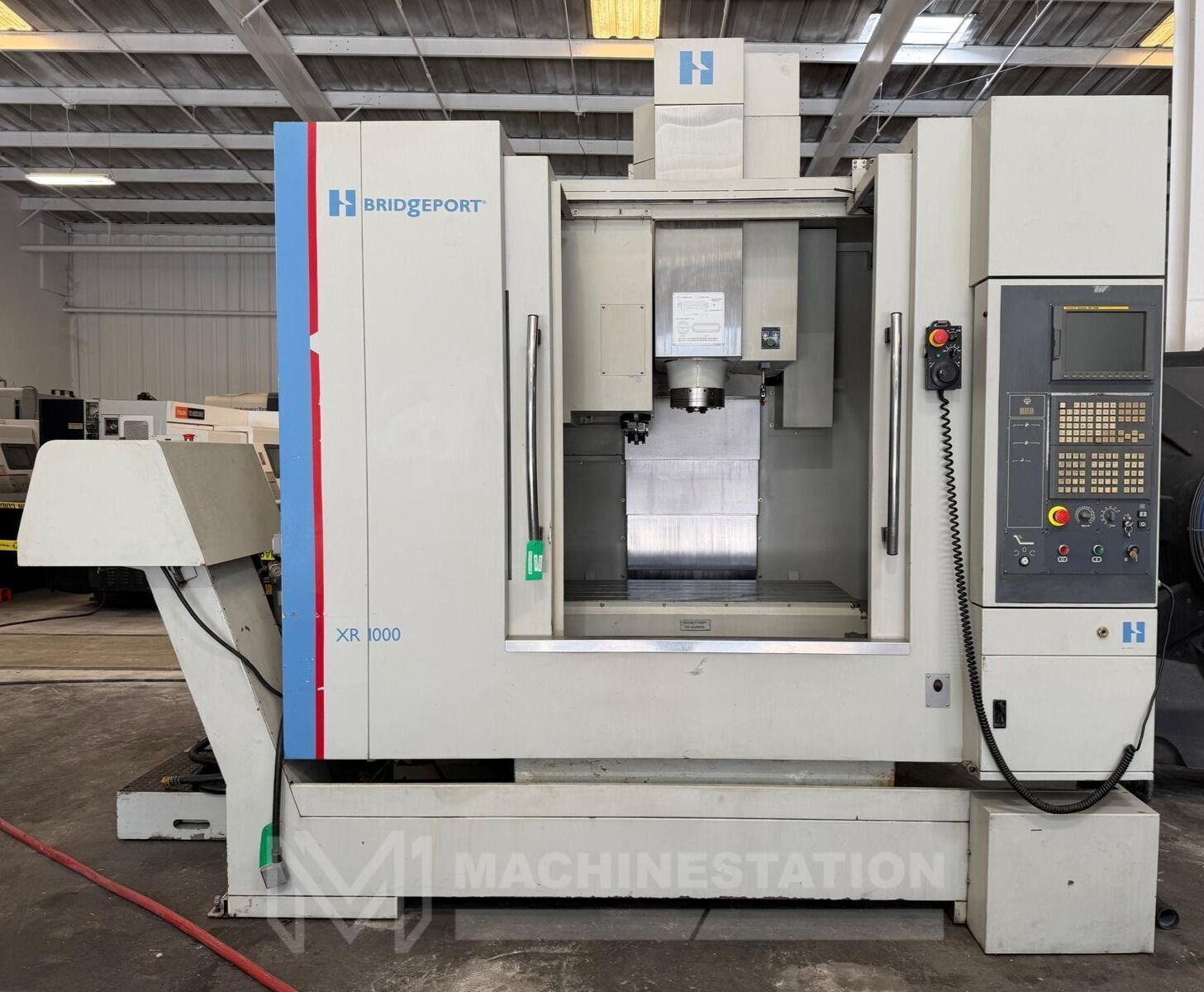

| Make: | Hardinge Bridgeport |

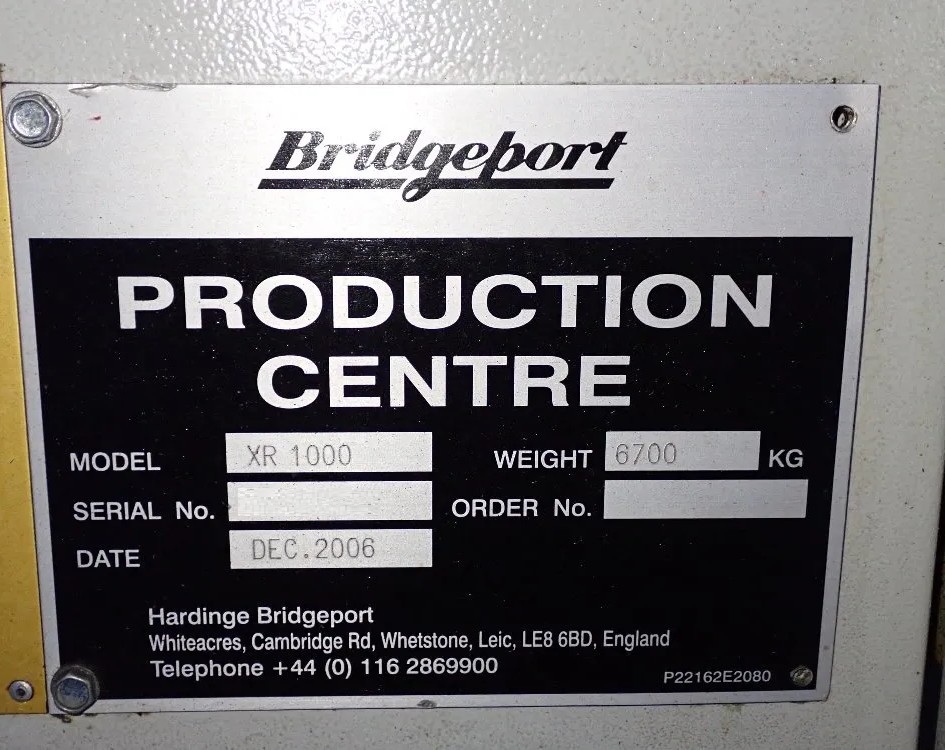

| Model: | XR 1000 |
| Year: | 2006 (Installed in 2007) |
| Condition: | Used – Good |
| Features: |
|---|

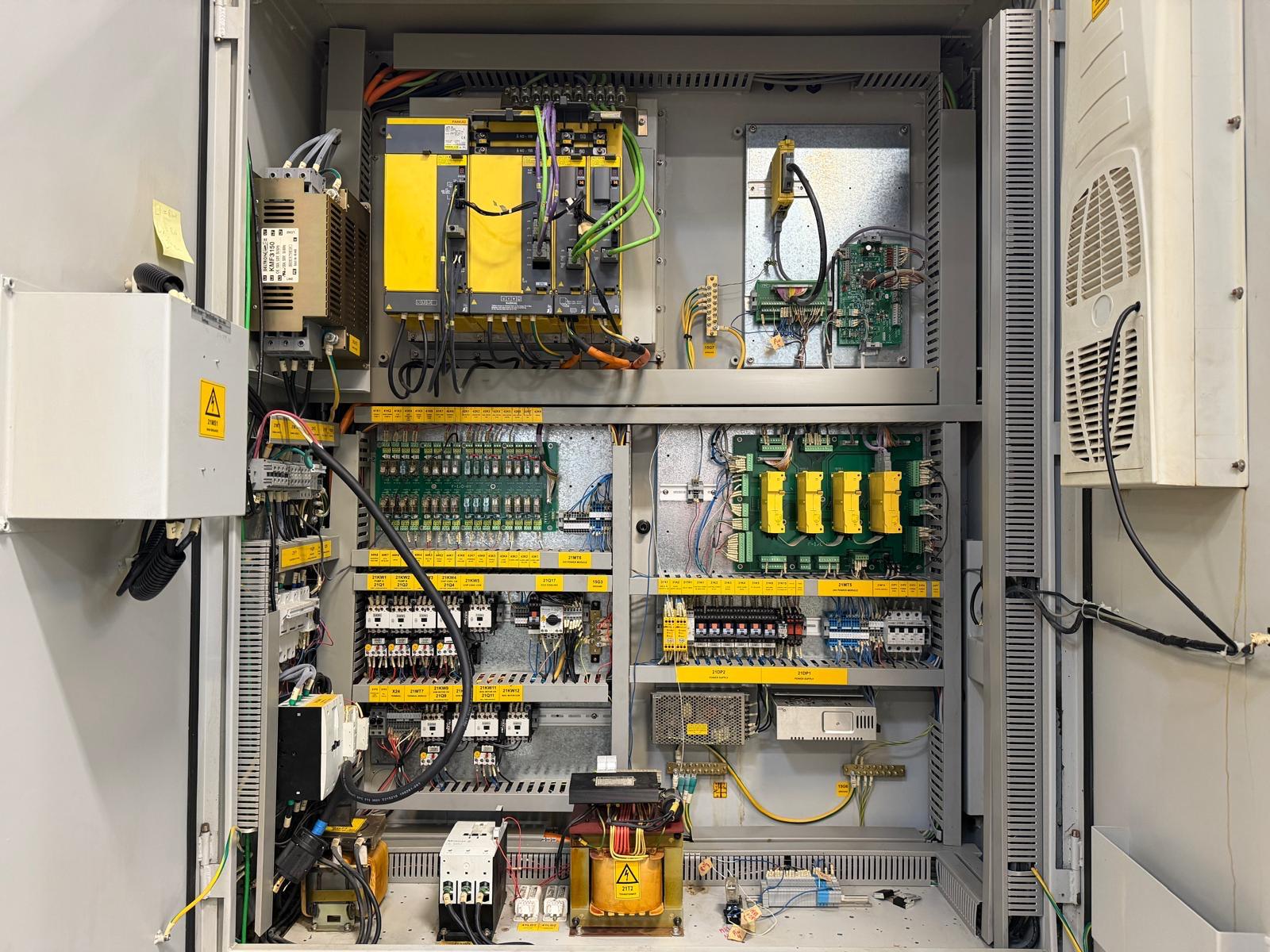

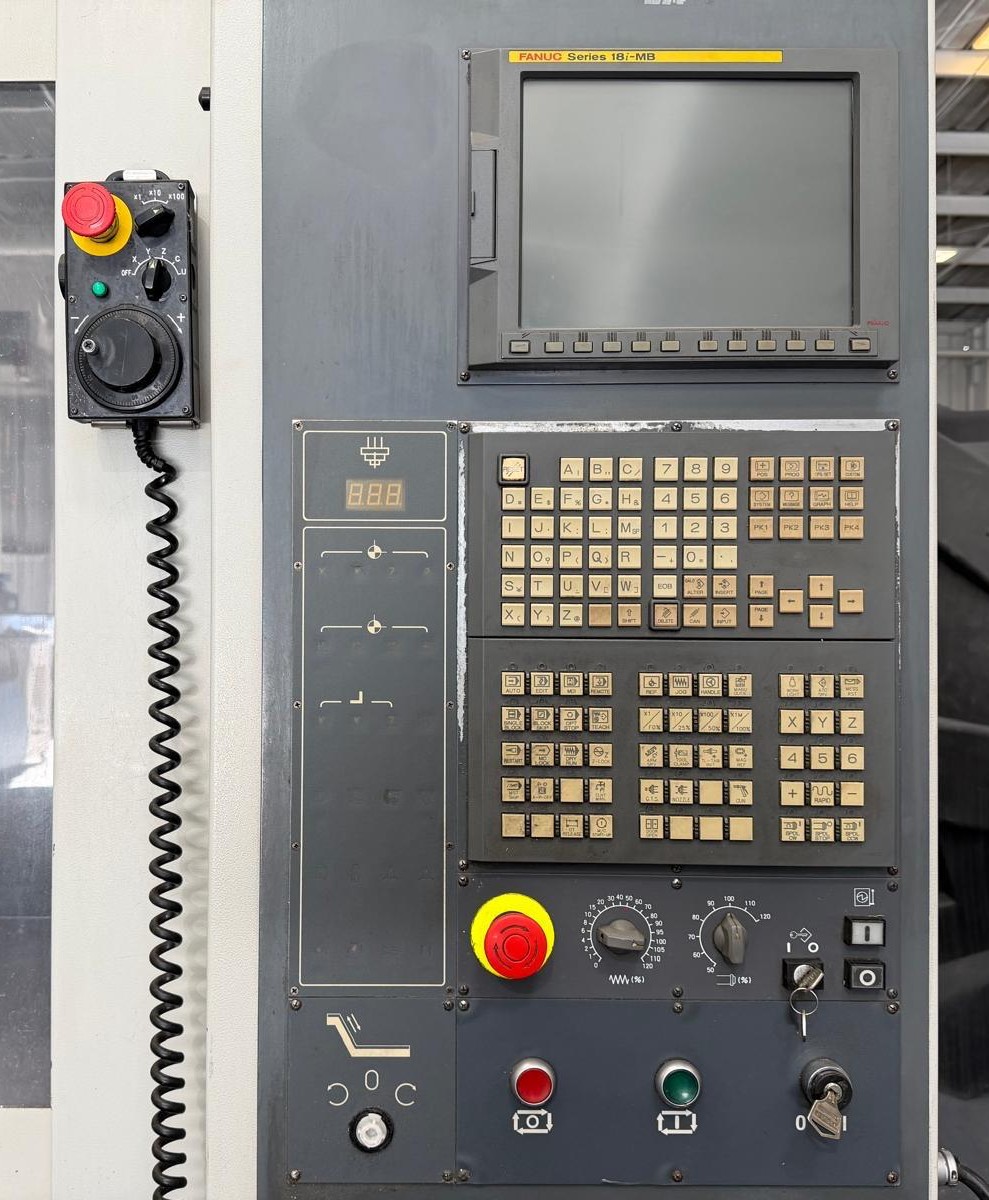

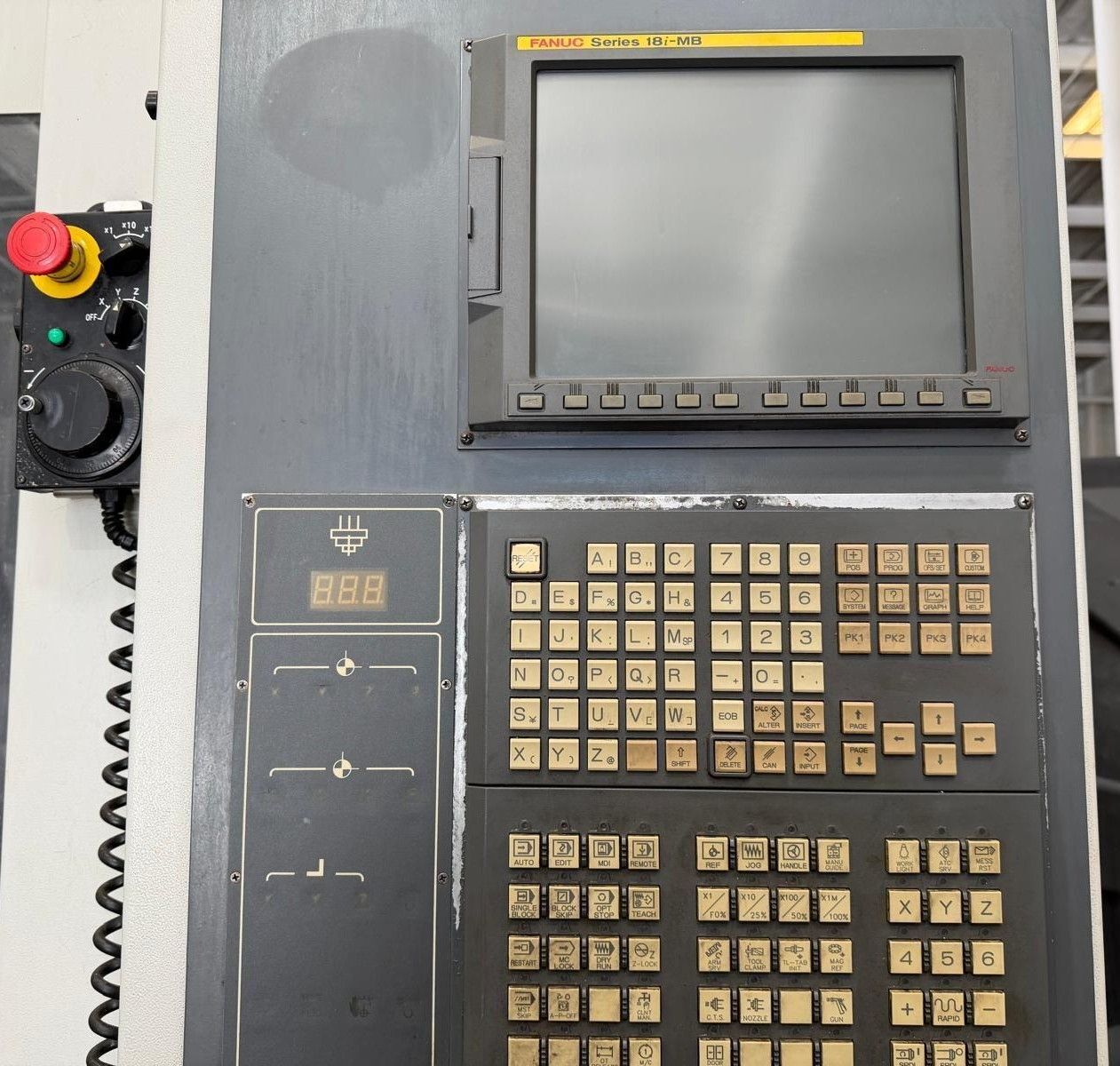

| Fanuc 18i-MB Series CNC Control |
| Linear Ways Construction |
| 12000 RPM High Precision Spindle |
| 30 Station Side Mounted Automatic Tool changer |

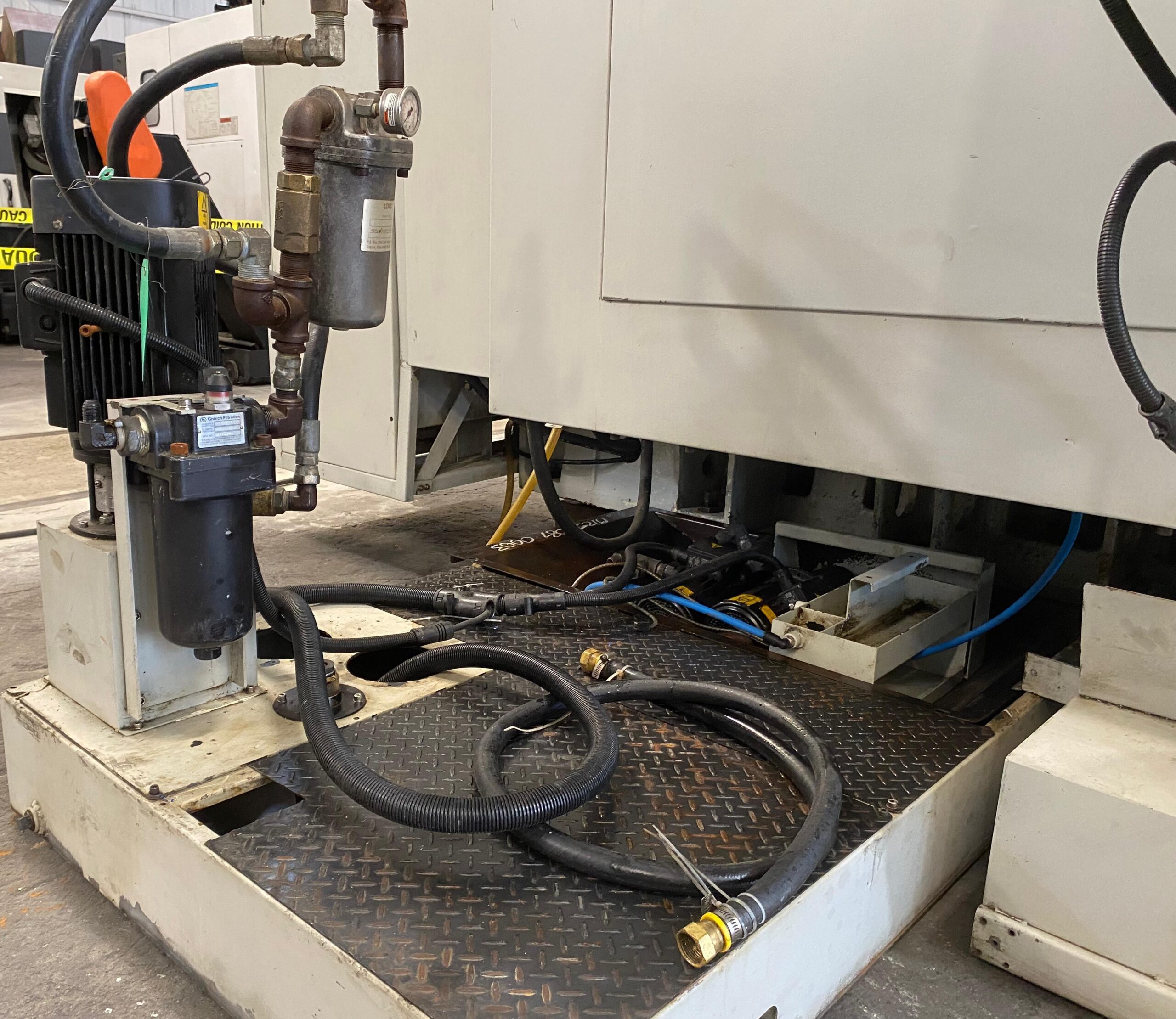

| Through Spindle Coolant |
| PCMCIA Card Slot |
| RS-232 Port |
| Rigid Tapping |

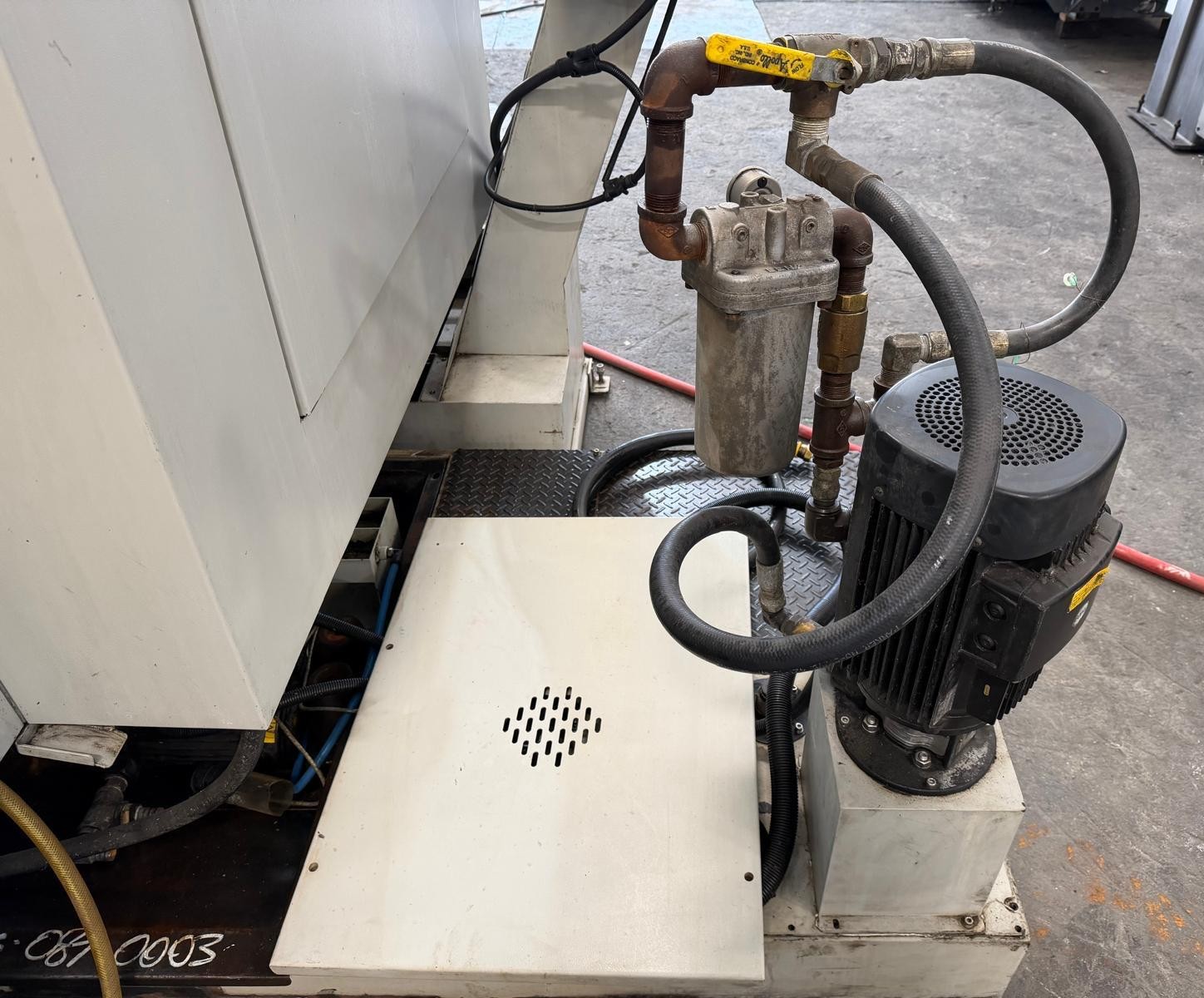

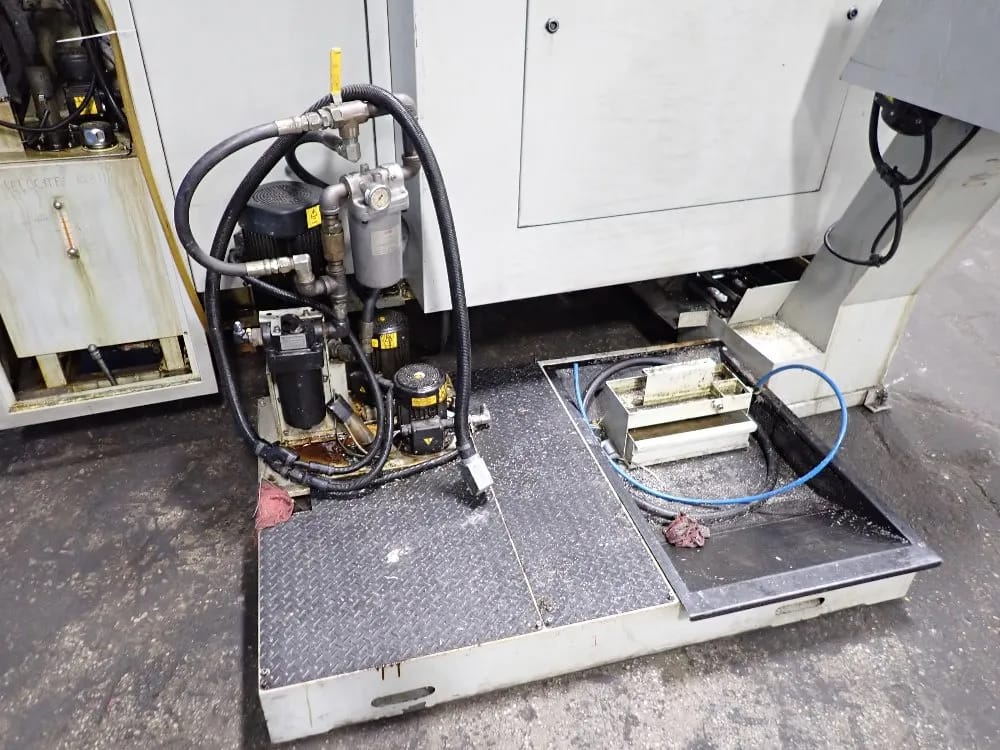

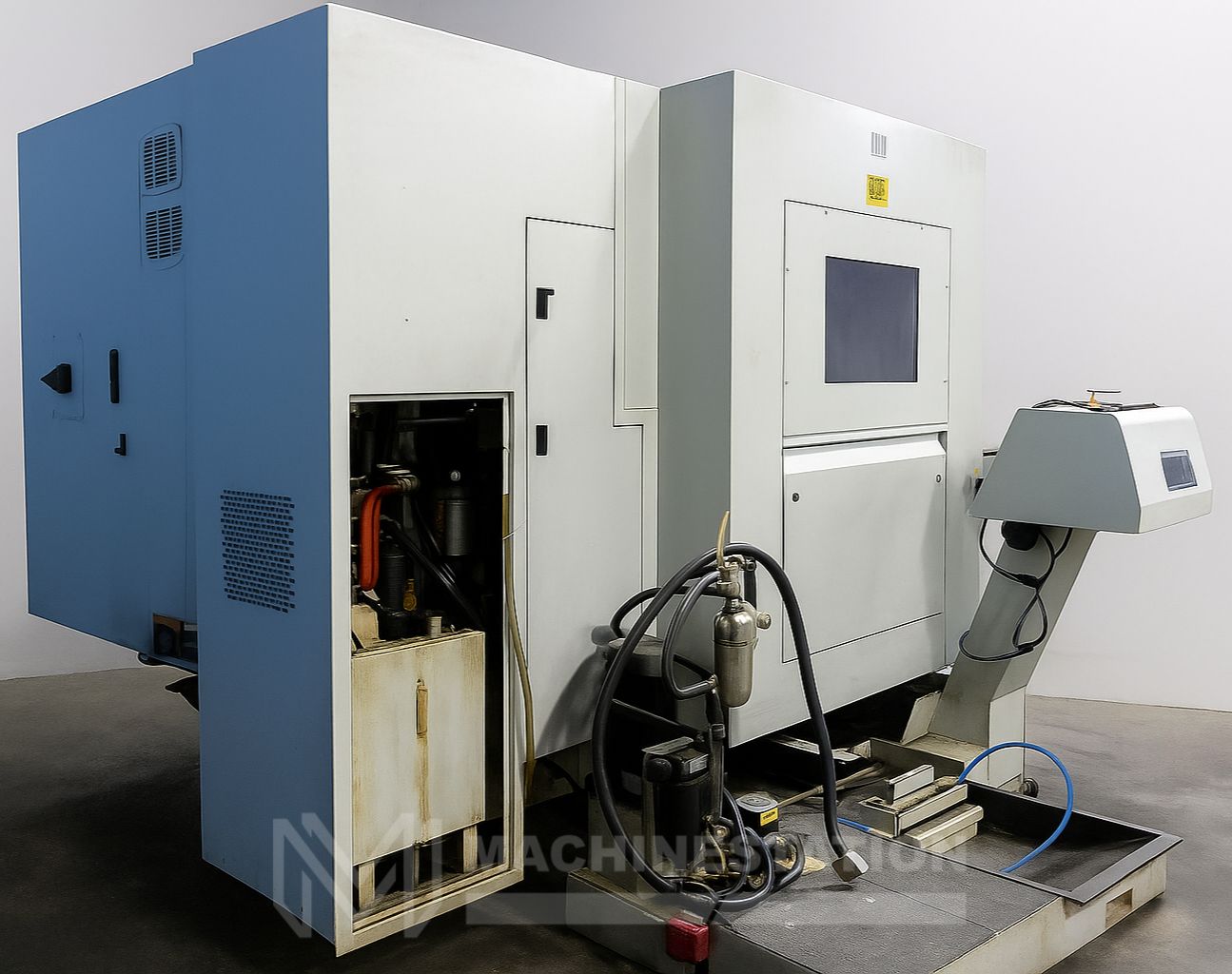

| Coolant System |
| Chip Conveyor |

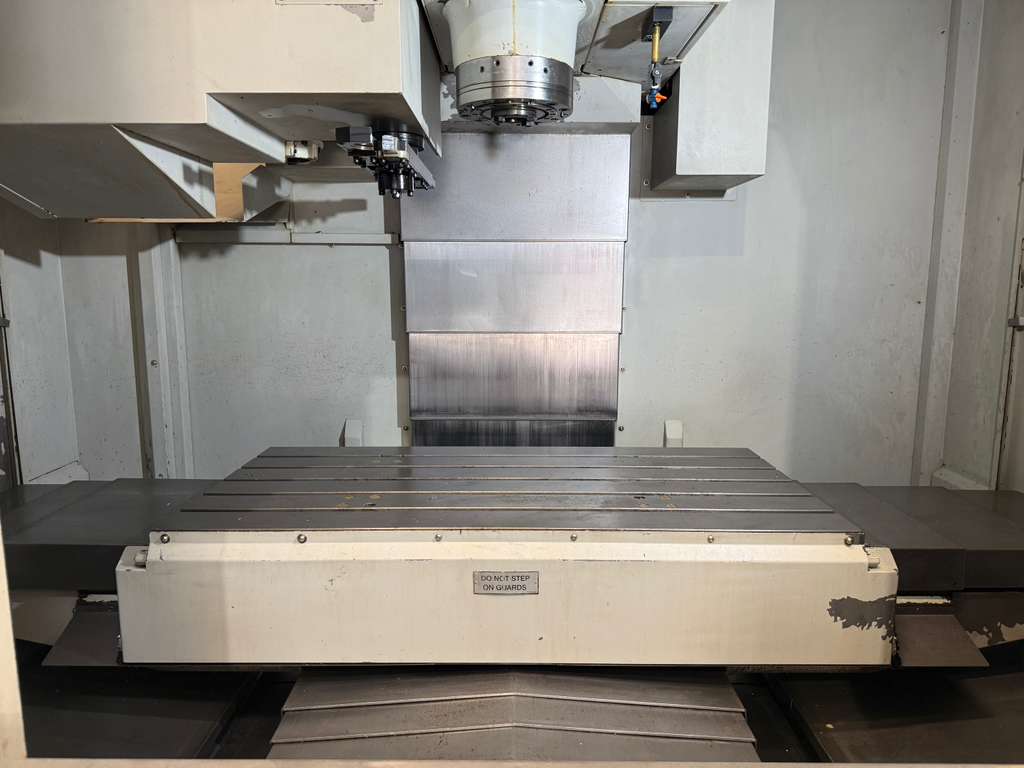

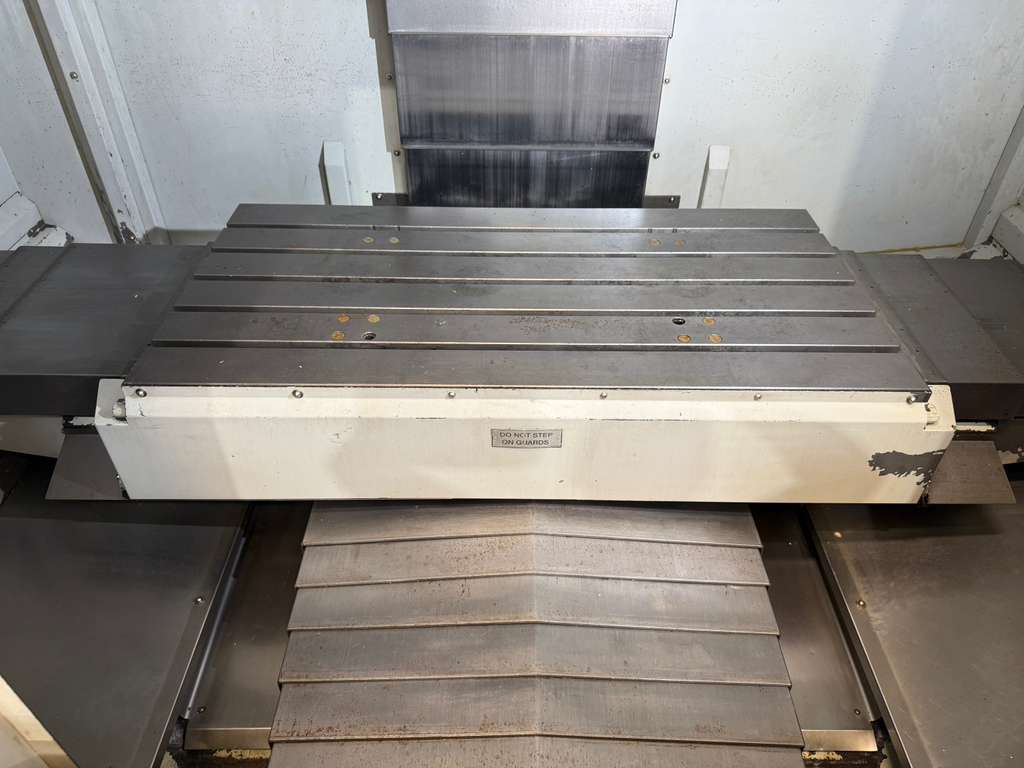

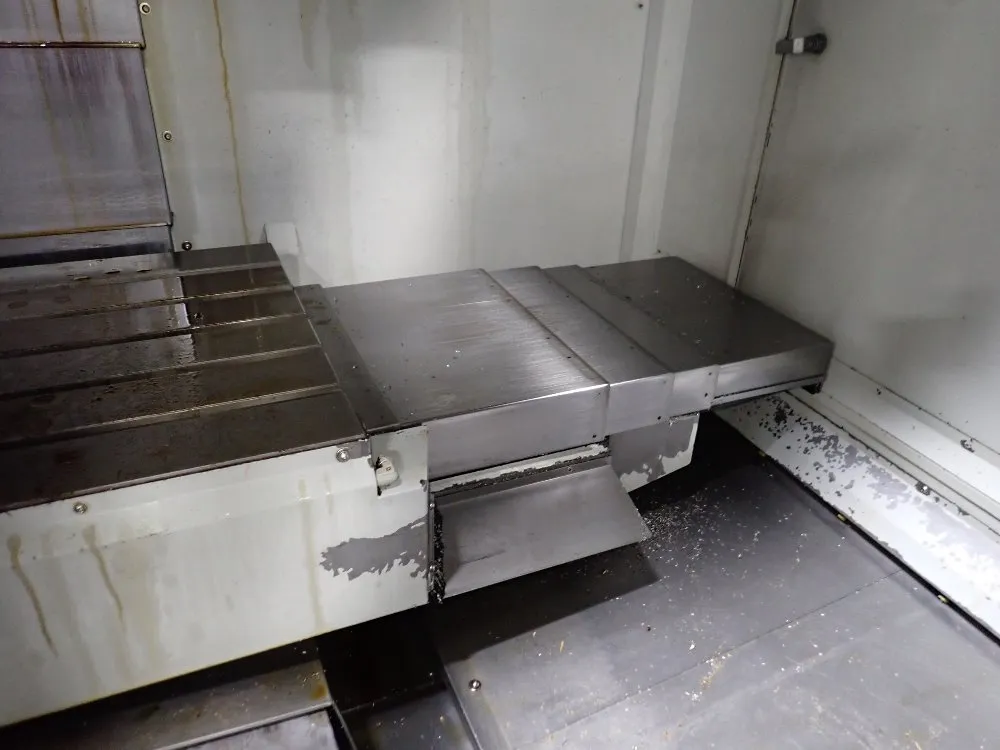

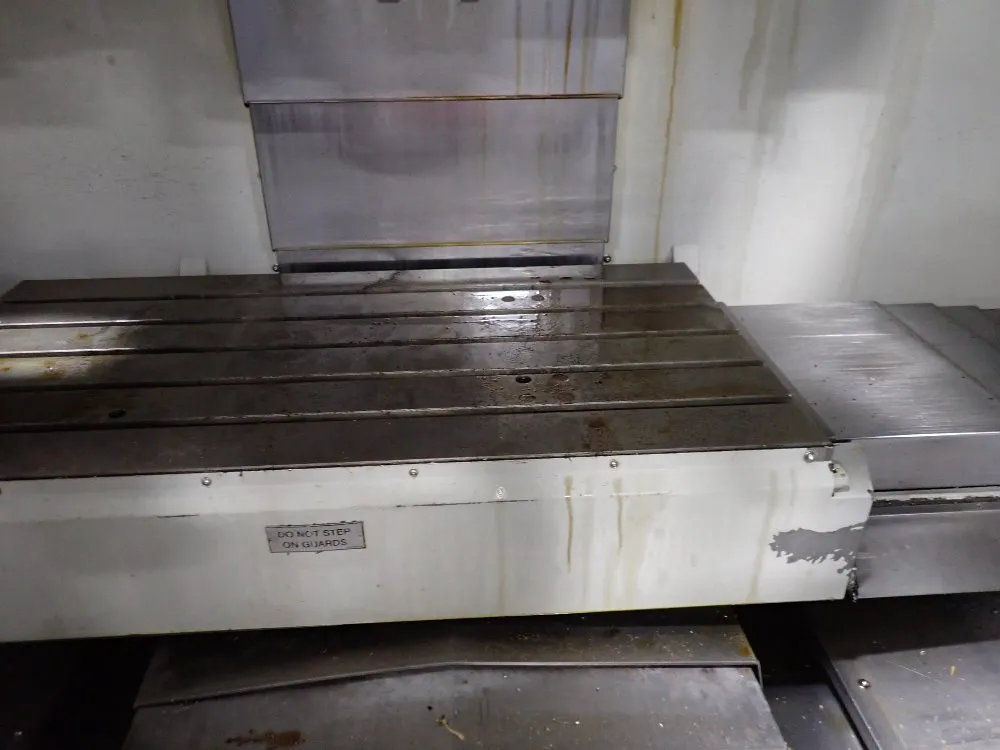

| Table: |
|---|
| Length: 47.2″ |
| Width: 23.6″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 0.70″ X 3.93″ |
| Max Weight on Table: 2000 lbs |
| Travels: |
|---|
| X-Axis: 40″ |
| Y-Axis: 24″ |
| Z-Axis: 24″ |
| Rapid Traverse Rates X & Y Axis: 1692 IPM |
| Rapid Traverse Rates Z Axis: 1417 IPM |
| Cutting Feed Rates: 787 IPM |
| Spindle Nose to Table (Min.- Max.): 3.94″ – 27.95″ |

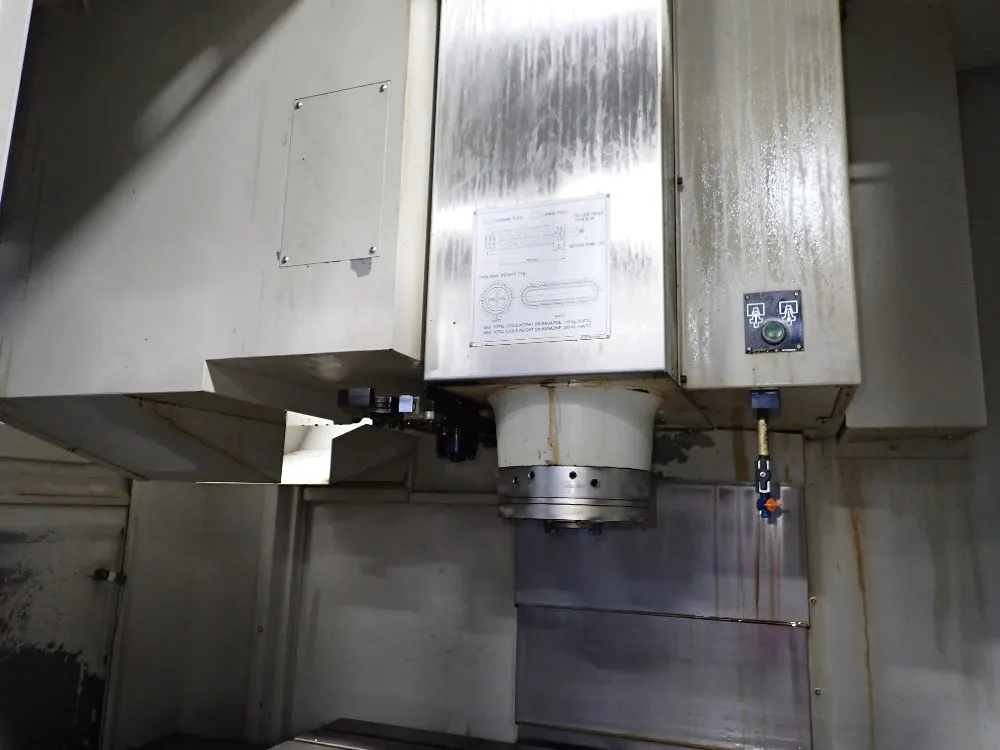

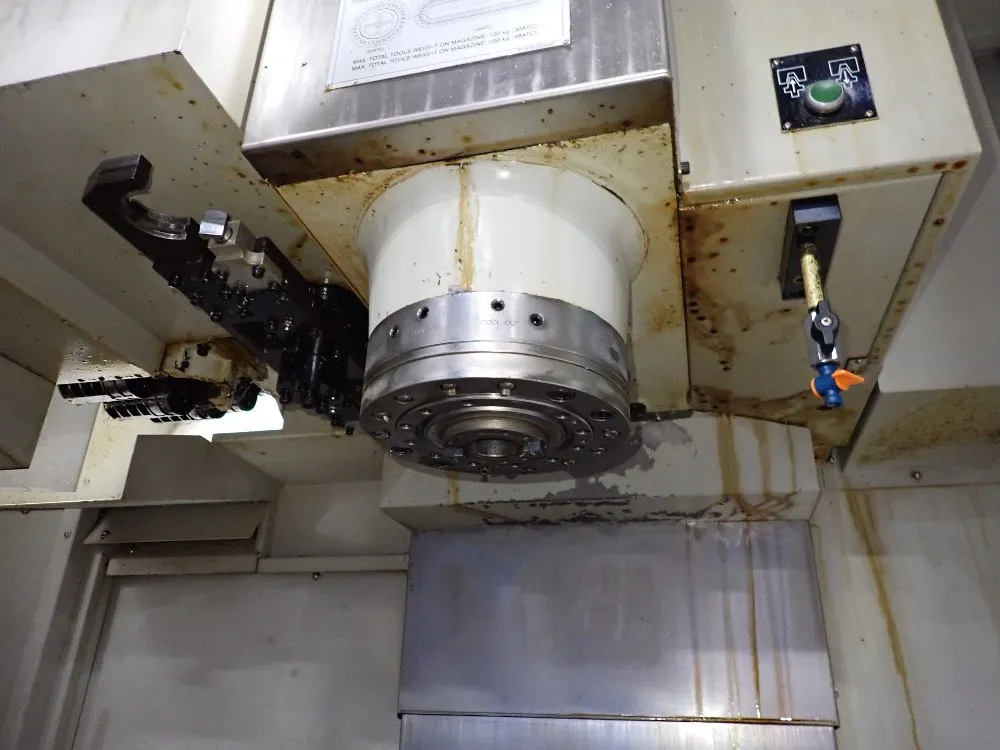

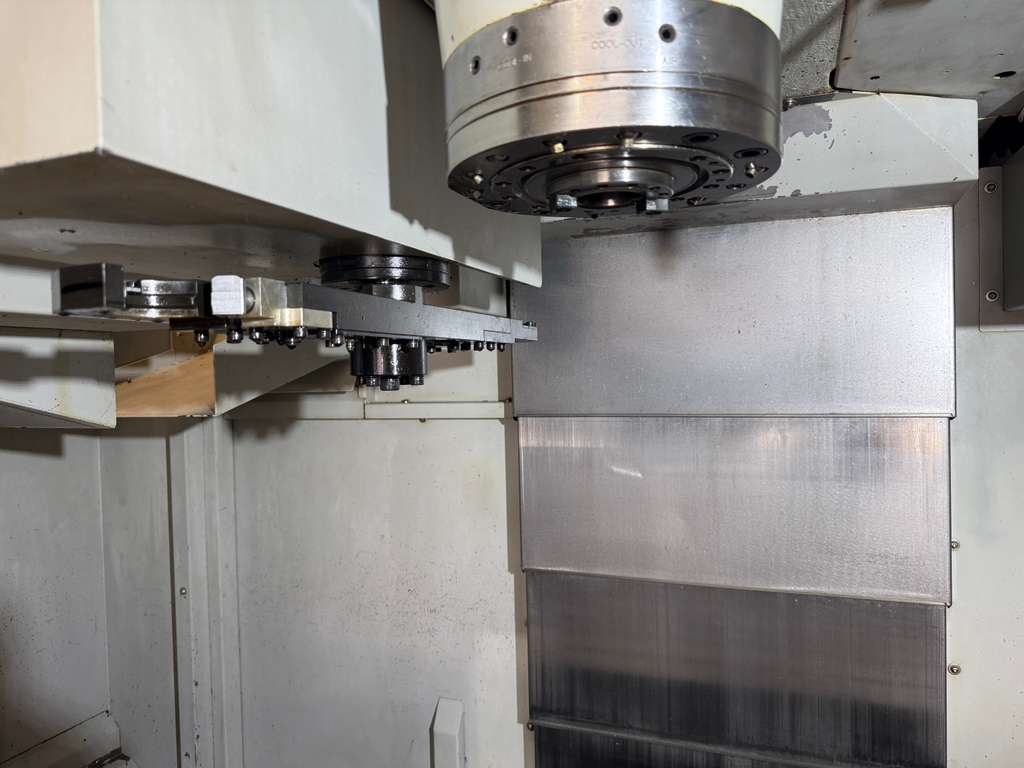

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 15.43 lbs |
| Max Tool Dia: 3.35″ – 4.92″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time (Chip to Chip): 4 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 30 kva / 3-Phase |
| Overall Dimensions: 118″ x 99″ x 115″ High |
| Weight: 14,770 lbs |
