*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

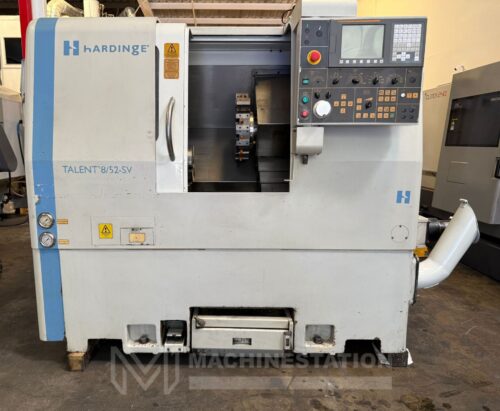

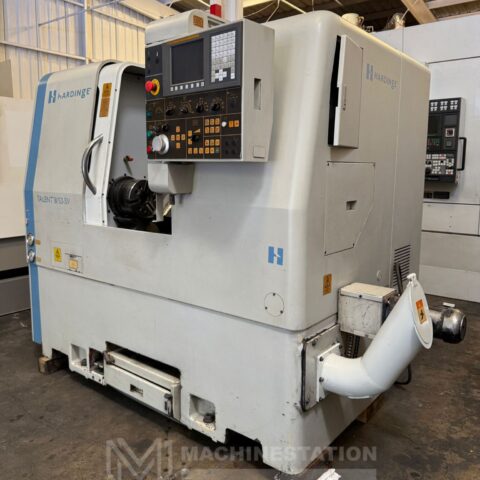

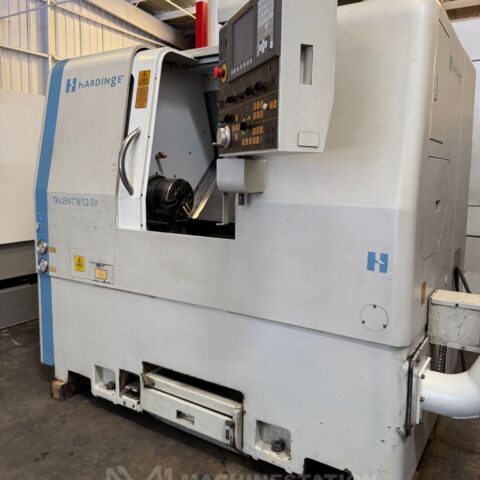

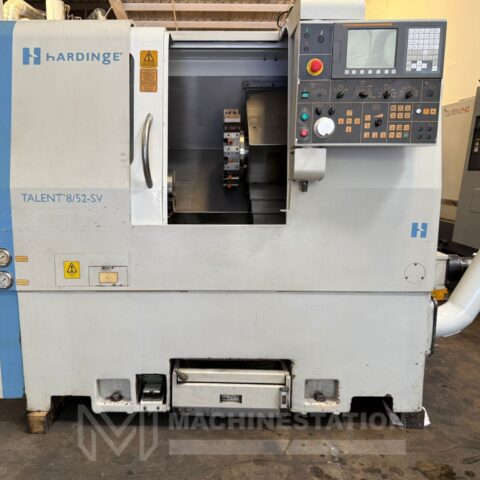

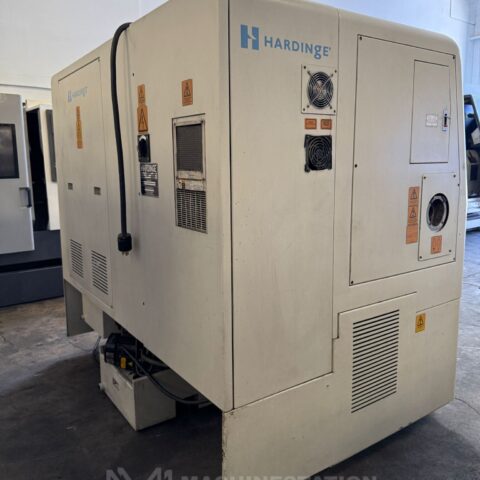

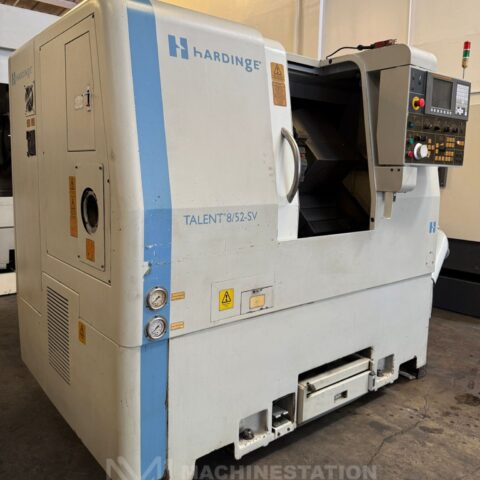

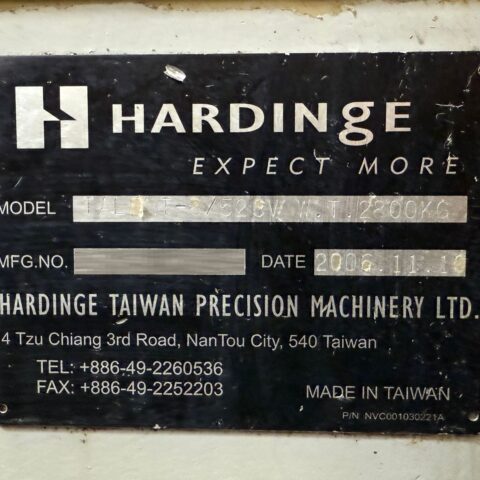

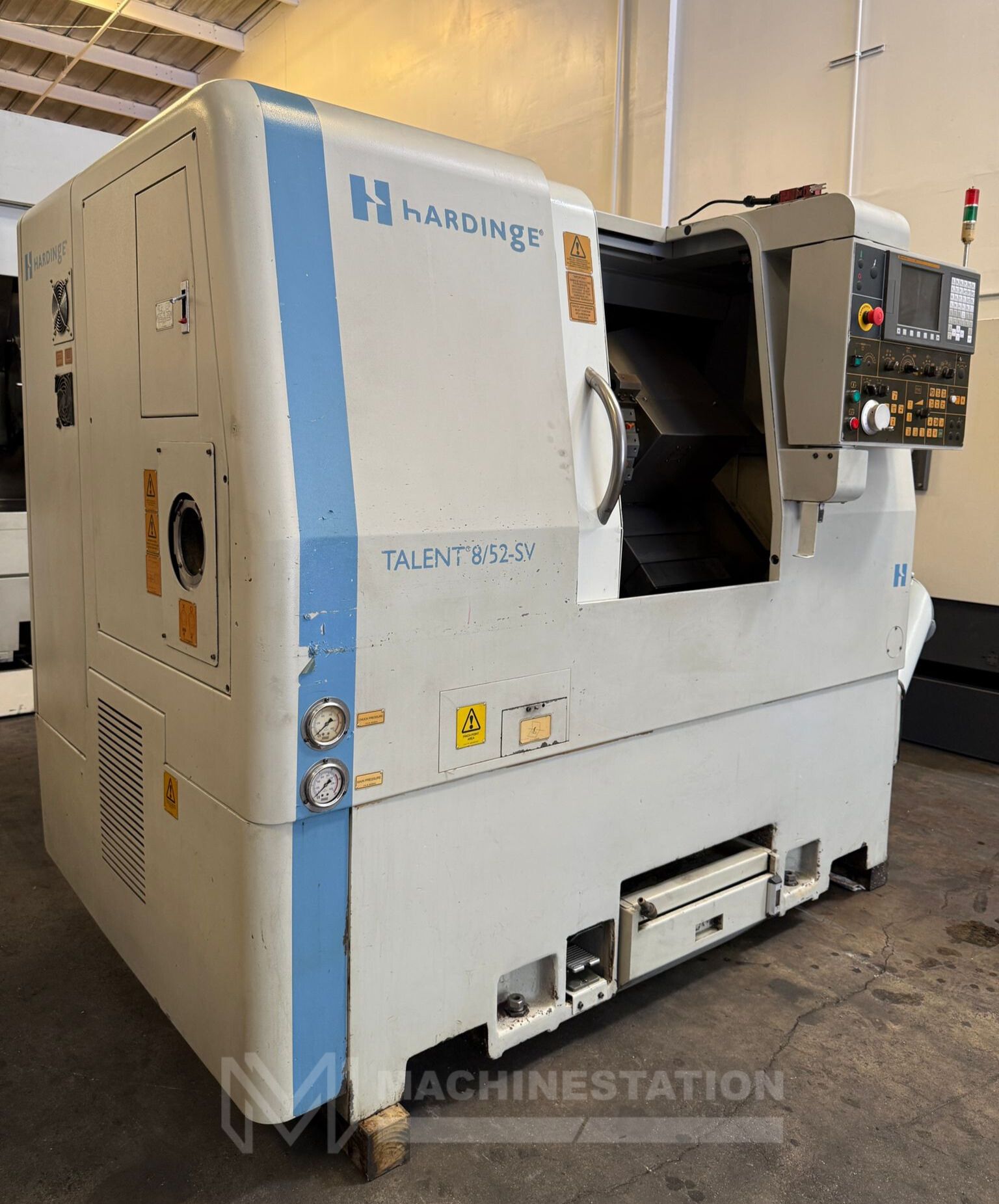

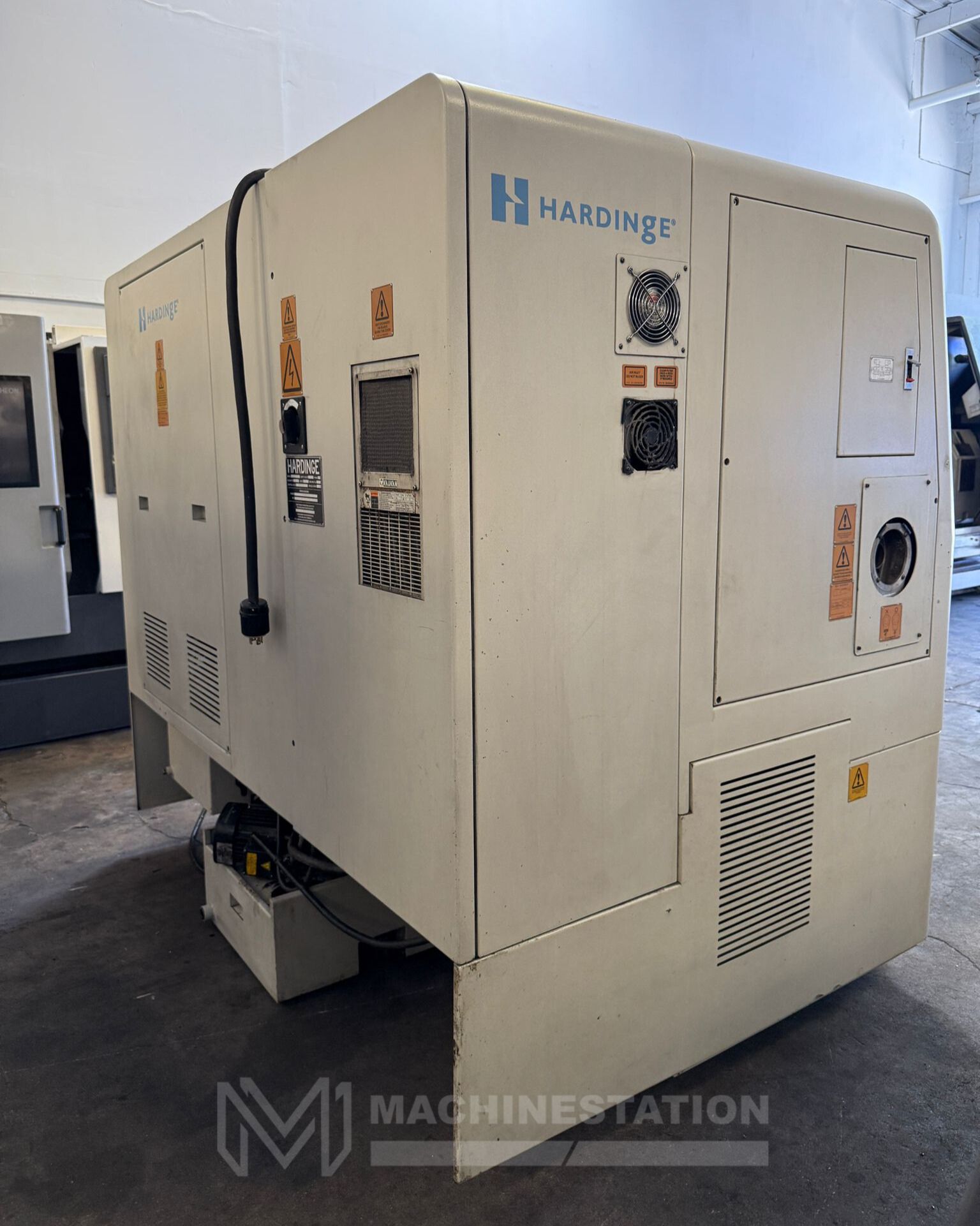

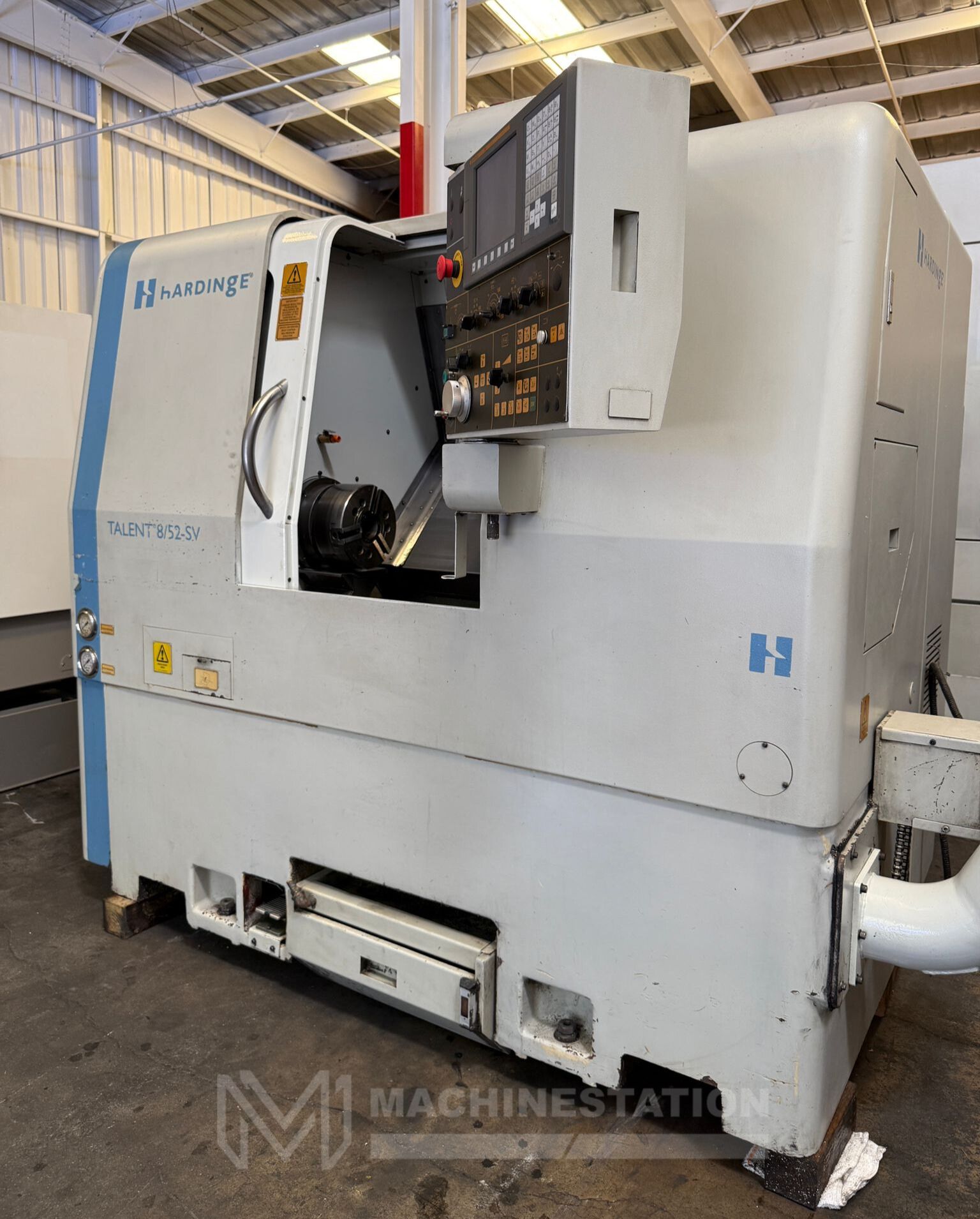

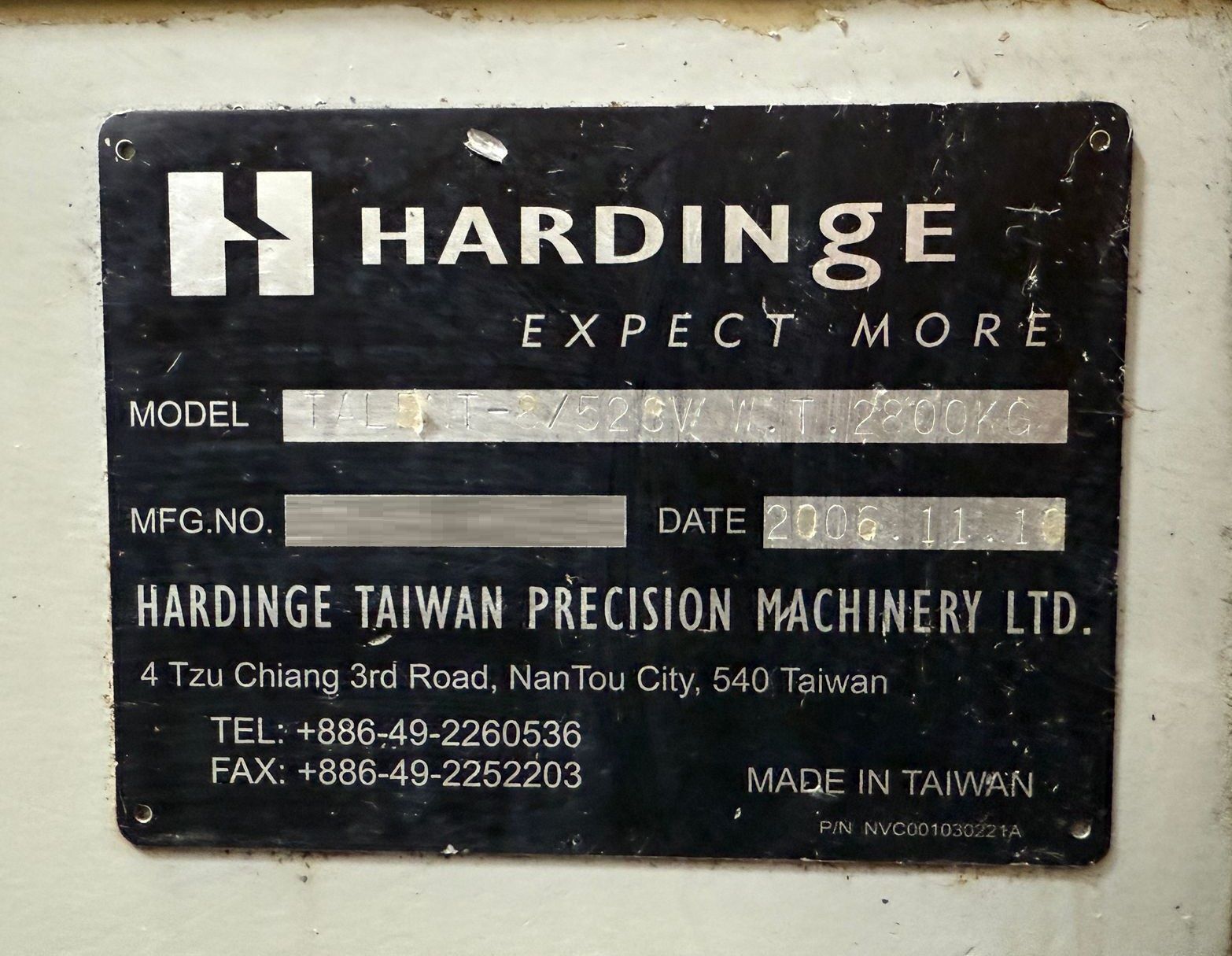

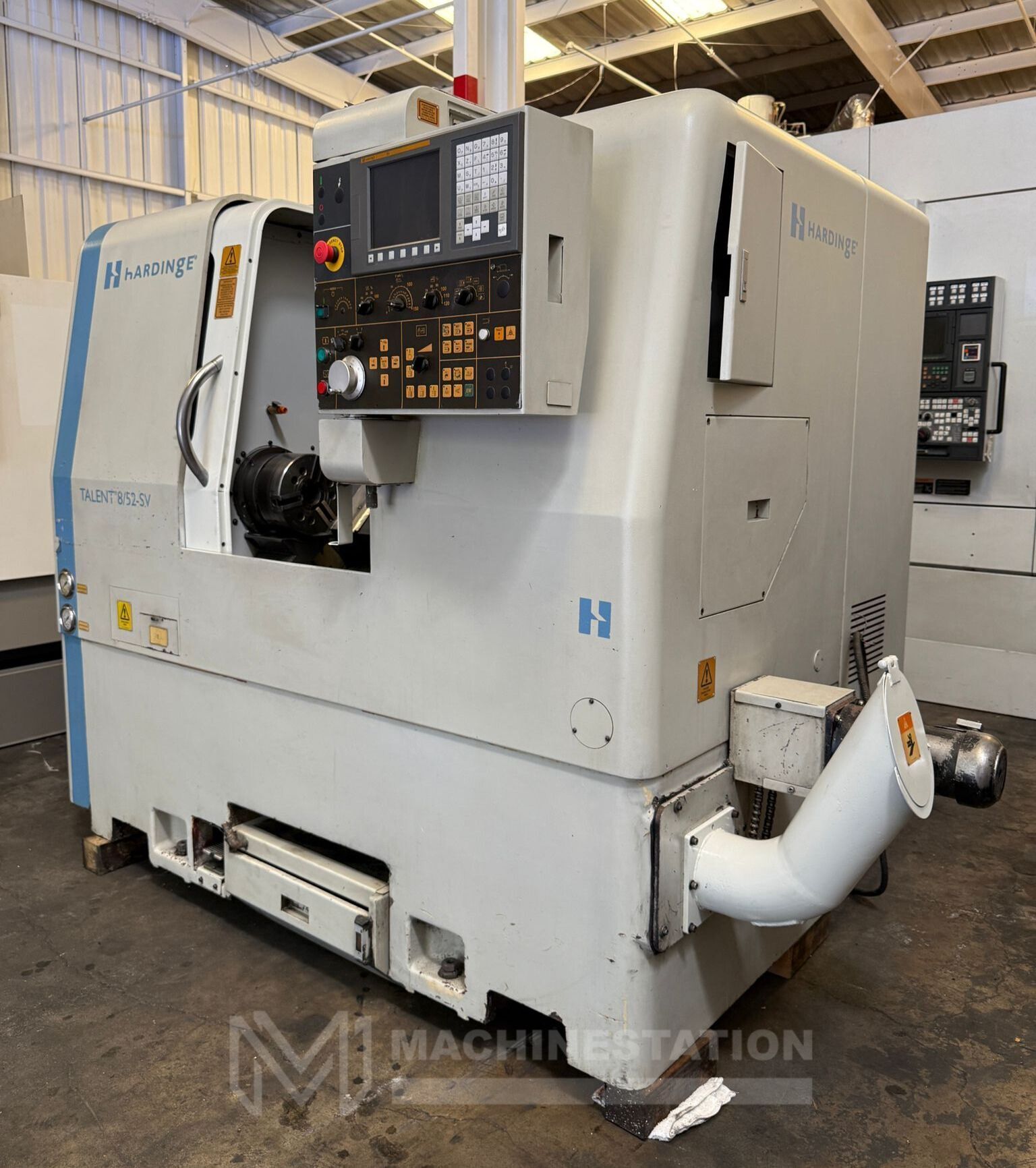

| Make: | Hardinge |
| Model: | Talent 8/52-SV |
| Year: | 2006 (Installed in 2007) |
| Equipped With: |
|---|

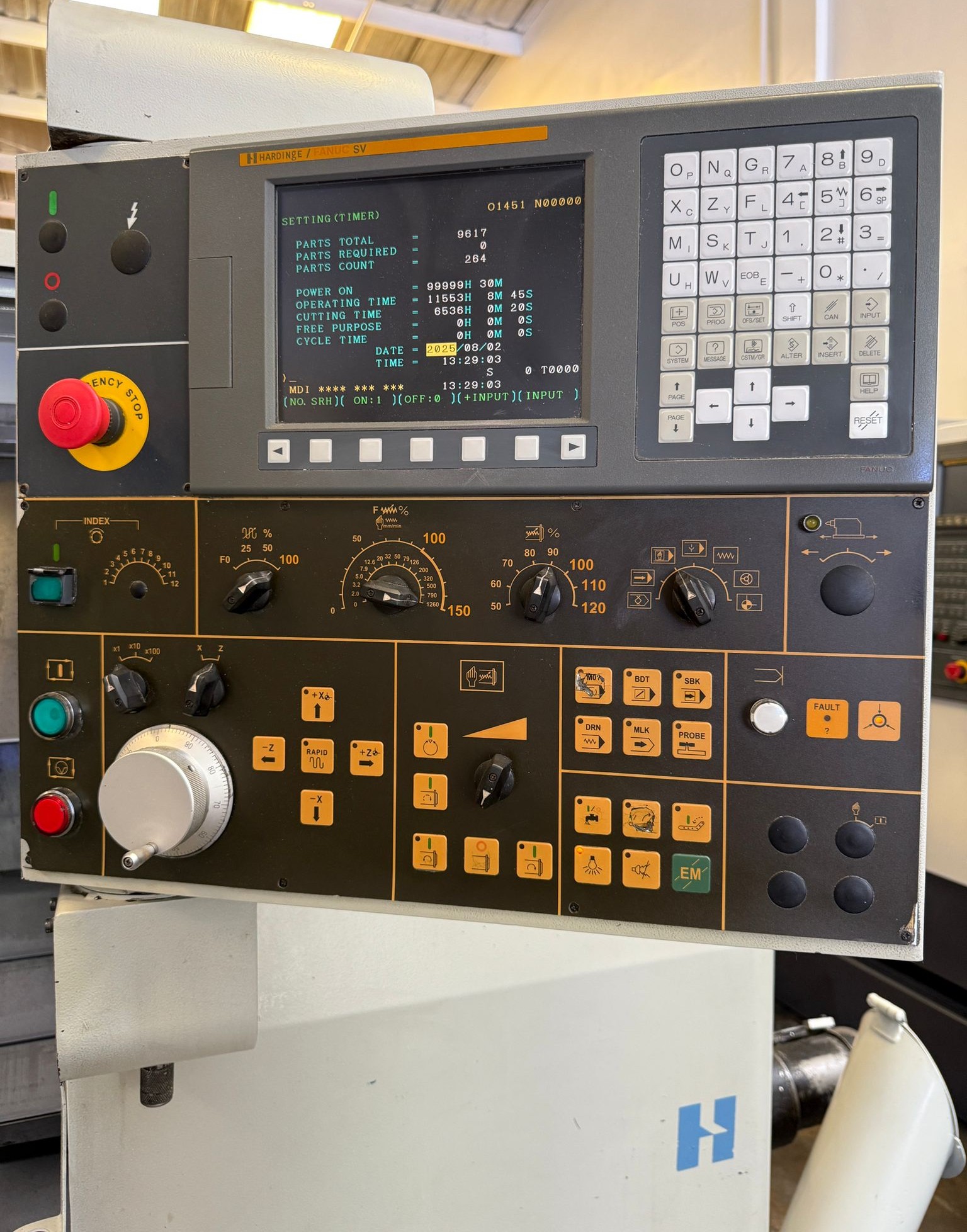

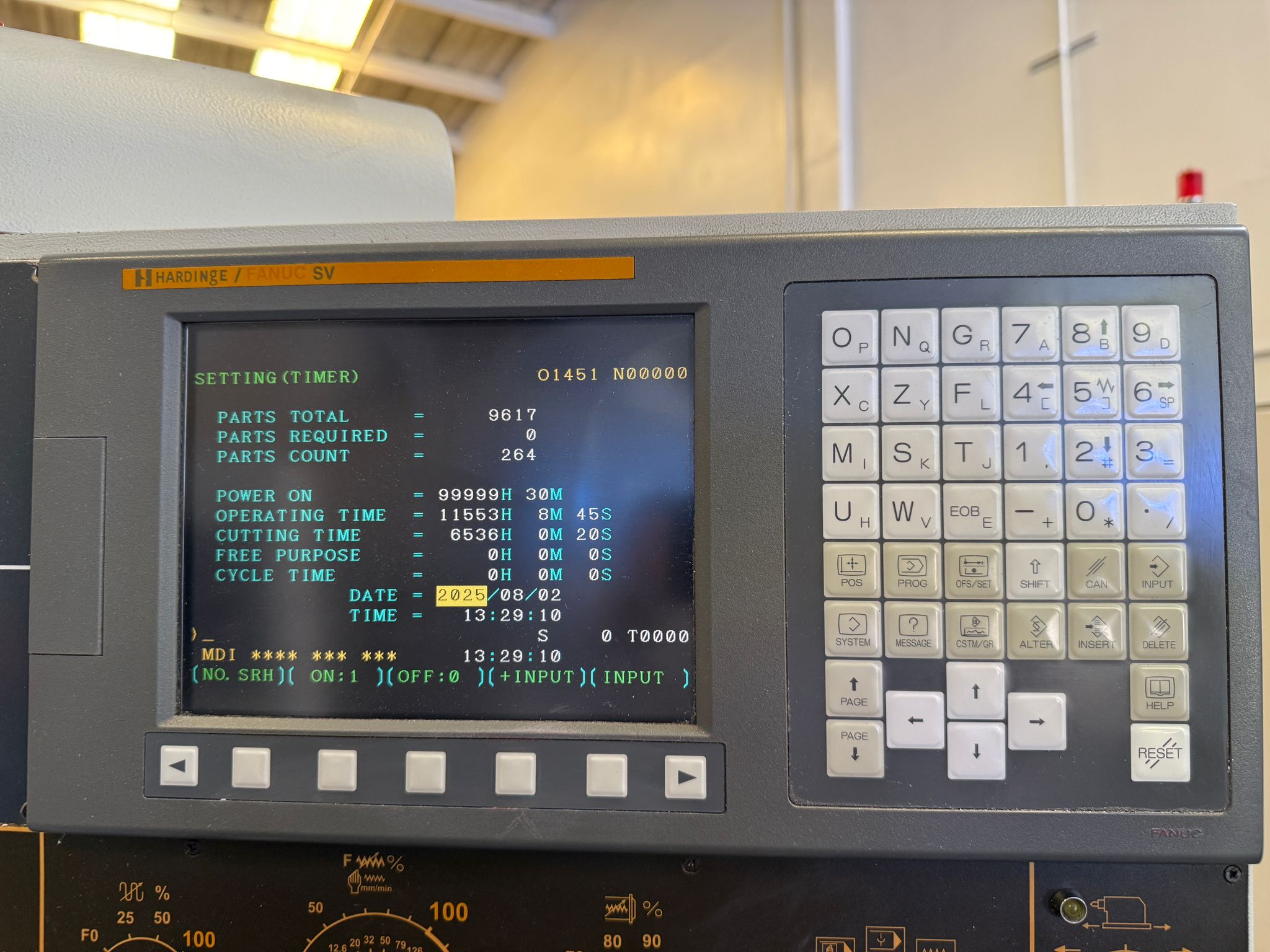

| Fanuc Oi-TC CNC Control |
| Linear Ways Contruction |

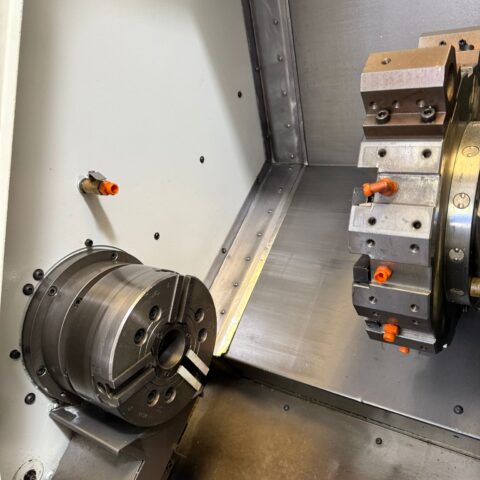

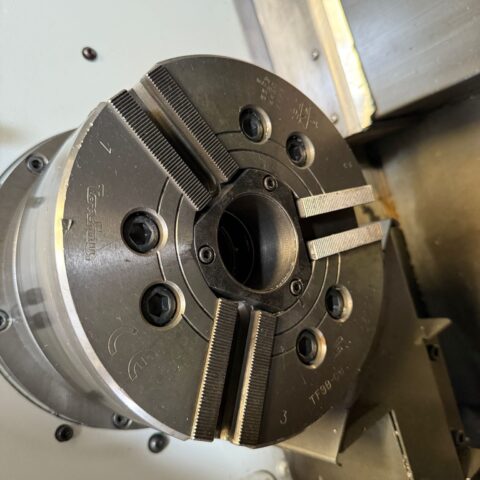

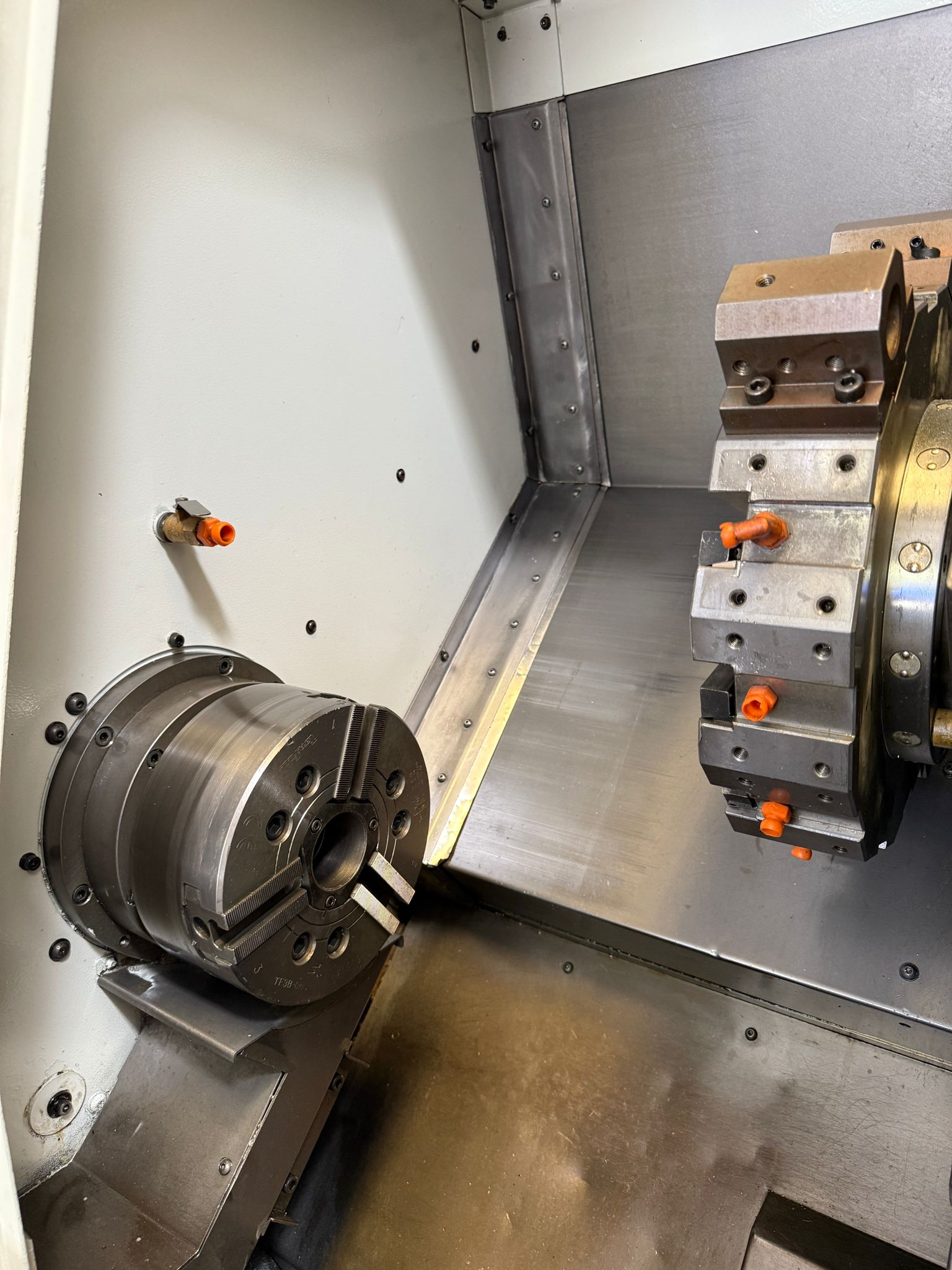

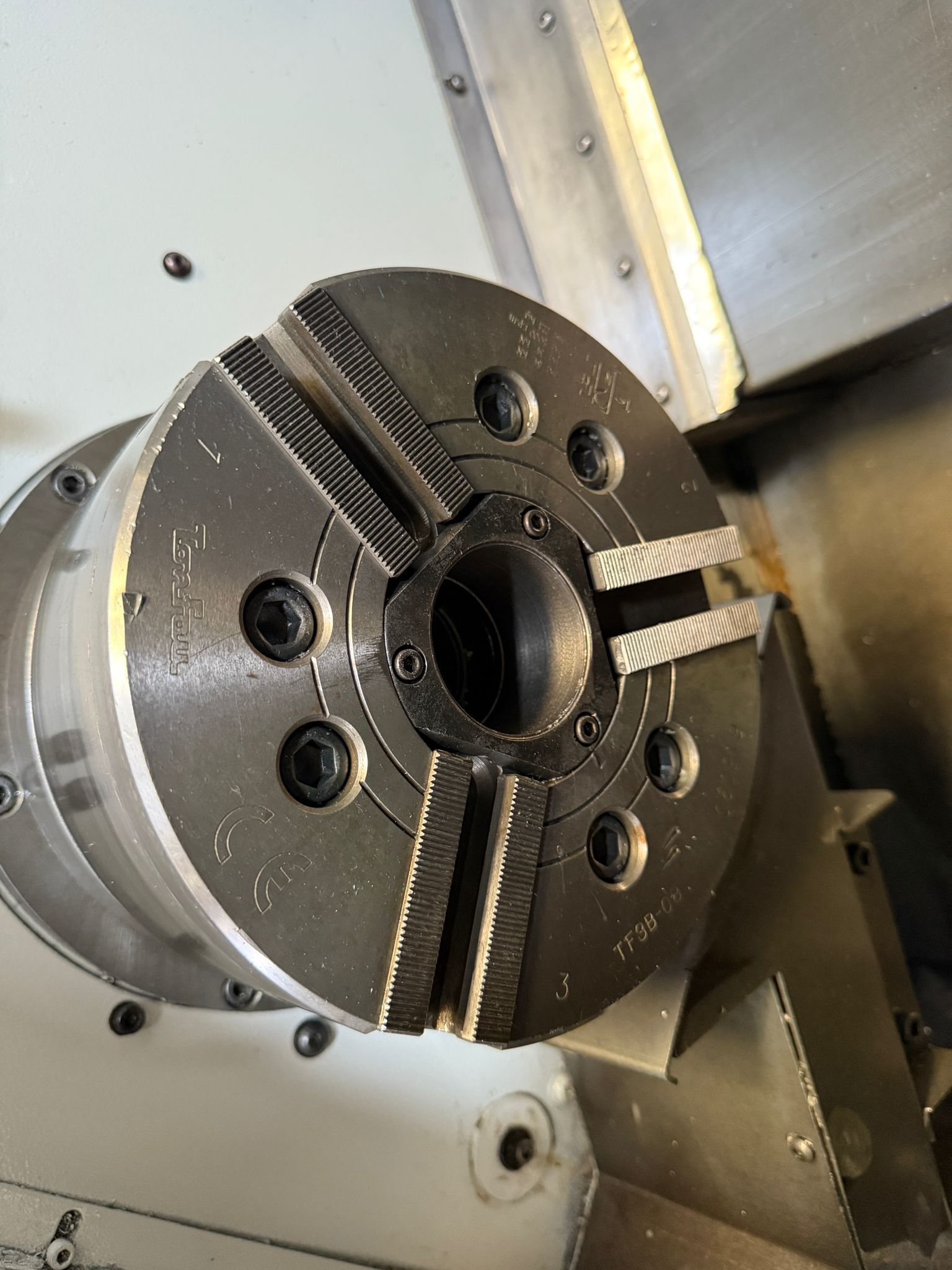

| 8″ 3- Jaw Hydraulic Chuck |
| A2-6, 5000 RPM Spindle |

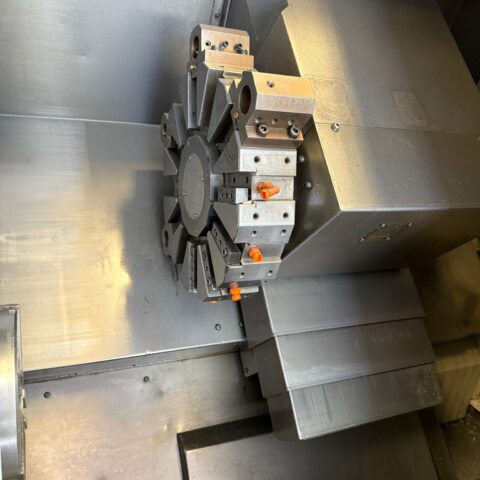

| 12 Station Automatic Turret |
| PCMCIA Card Interface |
| Foot Switch |
| Coolant Tank |
| Chip Auger |

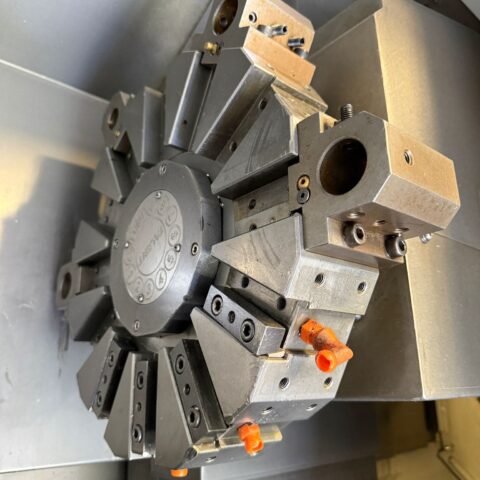

| (4) Boring Tool Holders Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 11.00″ |
| Max Turning Length: 15.00″ |
| Max Swing Over Bed: 18.00″ |
| Max Bar Capacity: 2.05″ |
| Travels: |
|---|
| X Axis Travel: 9.00″ |
| Z Axis Travel: 16.00″ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.56″ |
| Spindle Speed: 5000 RPM |
| Spindle Motor: 20 HP |

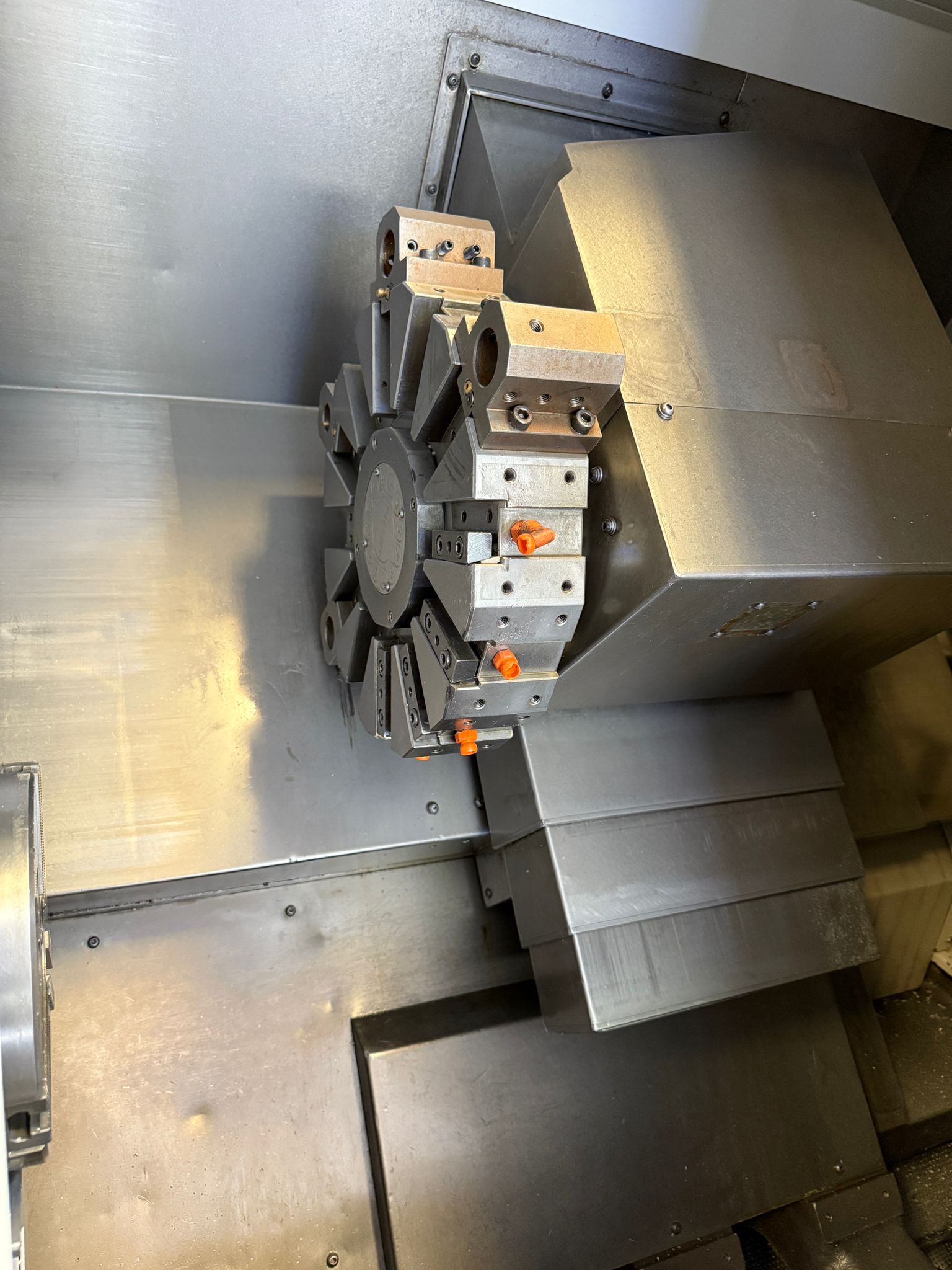

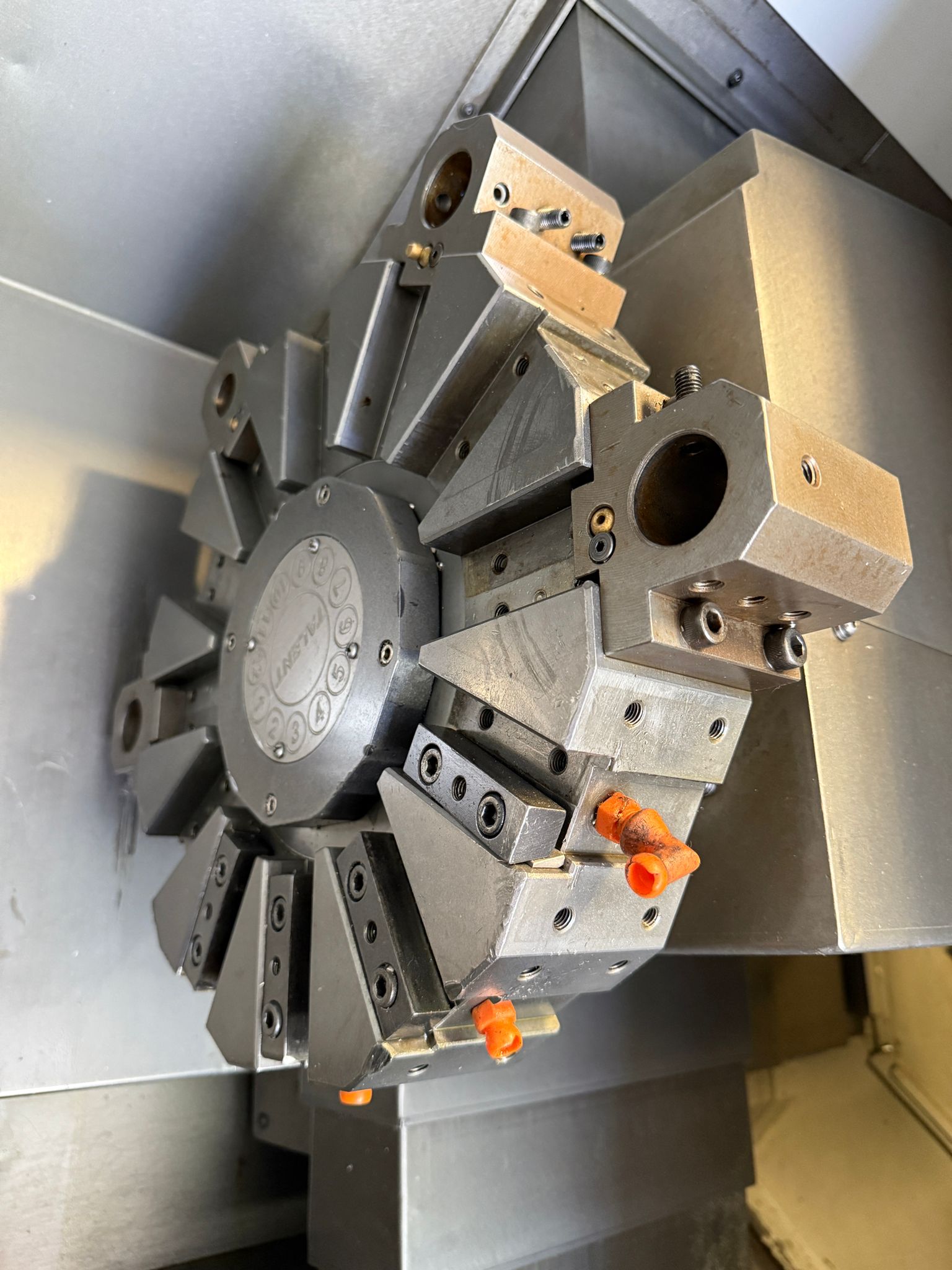

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.78 Second |
| Tool Size: 1″ |
| Tool Holders Type: BMT |
| General: |
|---|

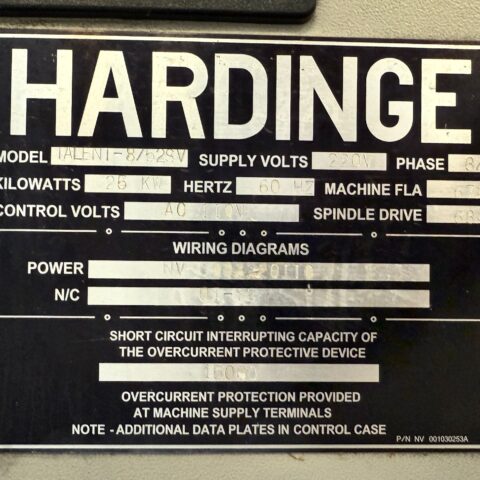

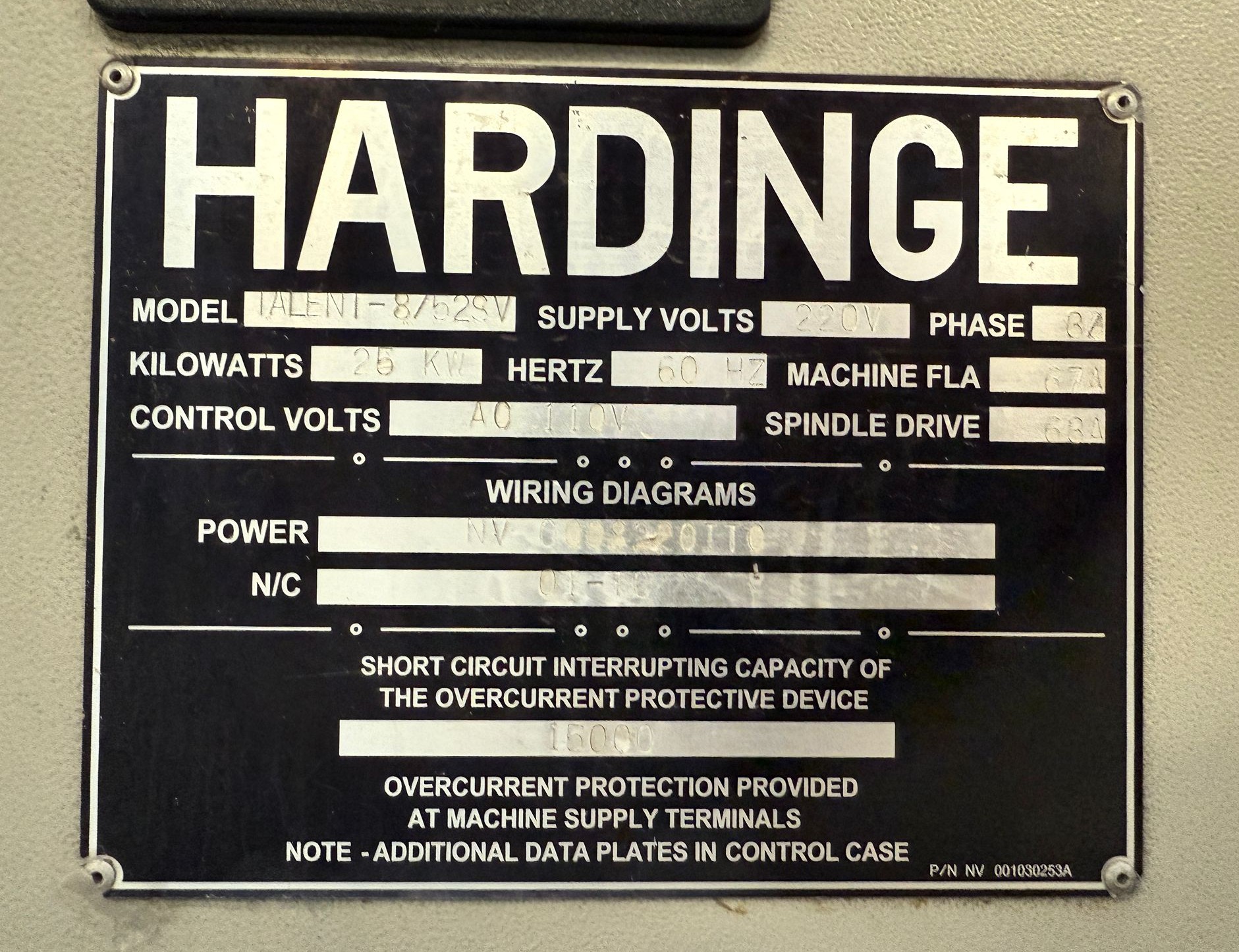

| Power: 50/60 HZ / 220v / 3-Phase / 25 kw |
| Overall Dimensions: 80″ x 65″ x 70″ High Approx. |
| Weight: 6,200 lbs Approx. |
