Hardinge Talent 6/45 CNC Chucker – 2006, Fanuc Oi-TC, 12 Station Turret, 6,000 RPM
Out of stock
| SKU: | 11260 |
| Make/Model: | Hardinge Talent 6/45 |
| Year: | 2006 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hardinge |
| Model: | Talent 6/45 |
| Year of Manufacture: | 2006 |
| Condition: | Used |
| Machine Type: | CNC Turning Center |
| CNC Control: | Fanuc Oi-TC |
| Country of Origin: | USA |
| Equipped With: |
|---|
| Fanuc Oi-TC CNC Control |

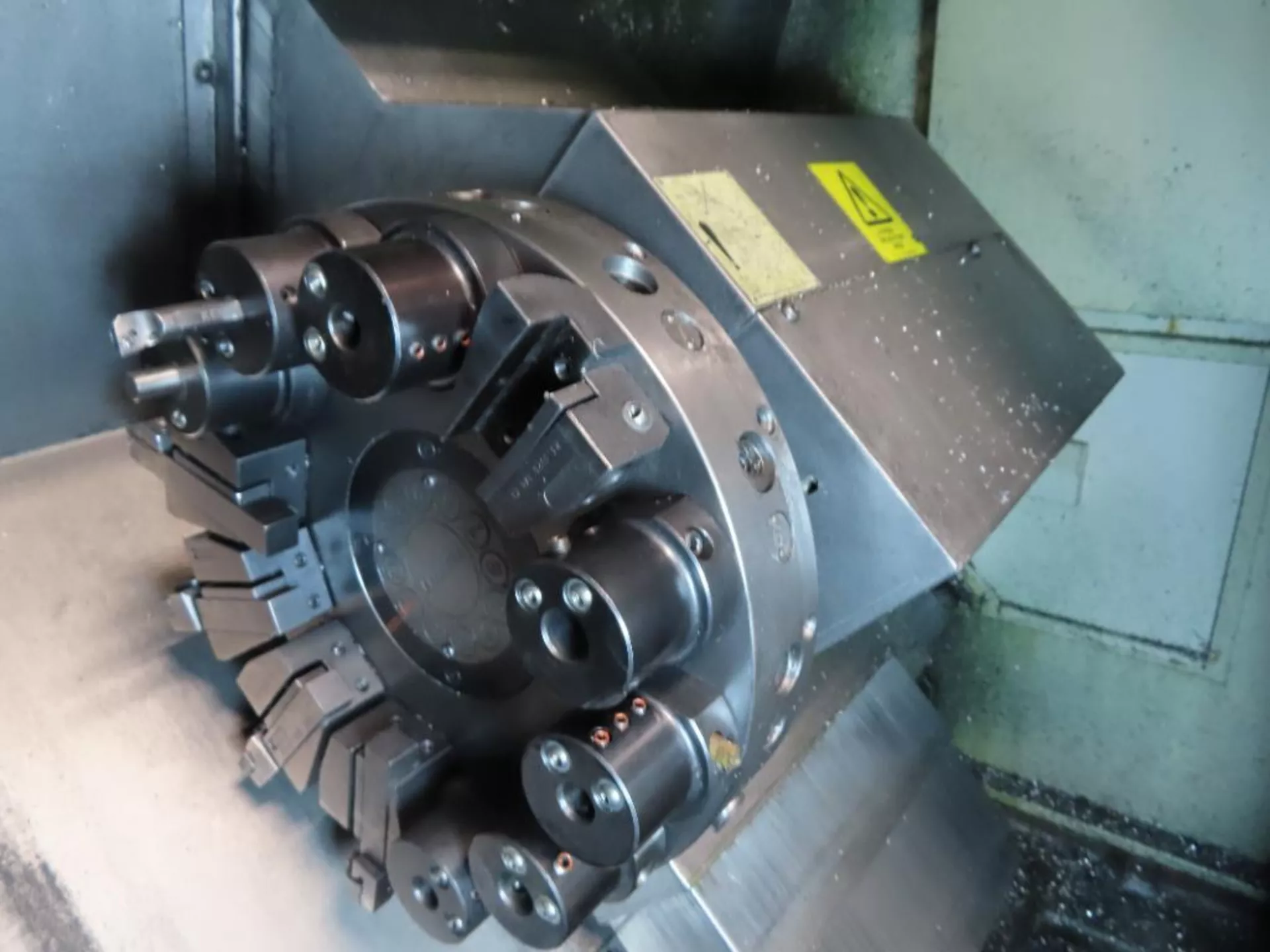

| 12-Station Turret |
| Programmable Tailstock |

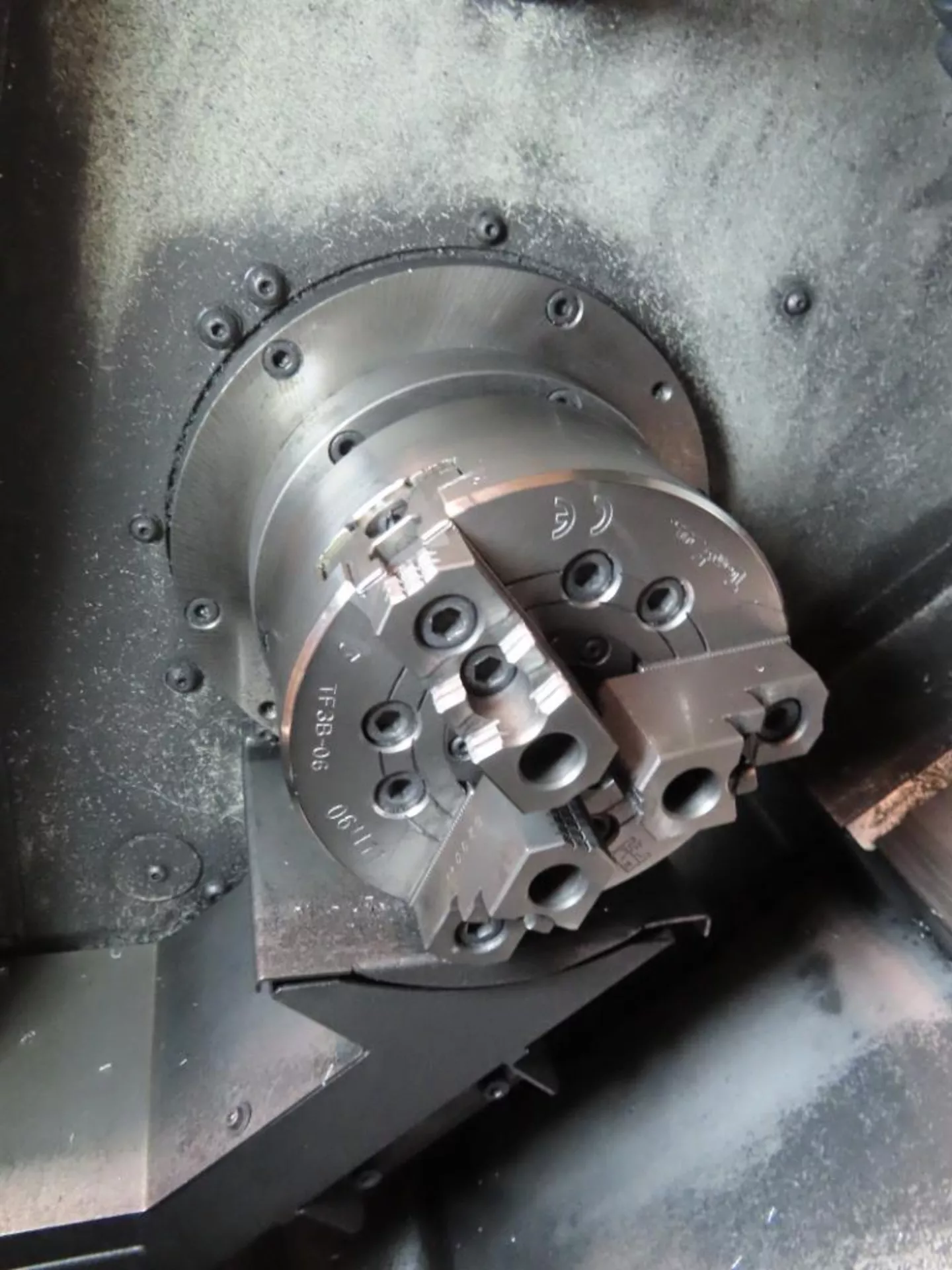

| 6″ Hydraulic Chuck |
| 5C Collet Capability |
| Coolant System with Tank & Pump |
| High-Speed 6,000 RPM Spindle |
| Compact Chucker Design |
| Rigid Tapping Capability |
| Fast Indexing Turret (0.73 sec) |
| High Rapid Traverse Rates |
| Chip Management System |
| Capacity: |
|---|
| Swing Over Bed: 18″ (457 mm) |
| Max Turning Diameter: 11.1″ (281 mm) |
| Max Turning Length: 15″ (381 mm) |
| Bar Capacity: 1.77″ (45 mm) |
| Spindle: |
|---|
| Spindle Speed: 6,000 RPM |
| Spindle Motor: ~17.4 HP (13 kW) |
| Spindle Nose: A2-5 |
| Chuck Size: 6″ Hydraulic Chuck |
| Travels: |
|---|
| X-Axis Travel: 9″ (228 mm) |
| Z-Axis Travel: 16″ (406 mm) |
| Rapid Traverse Rate: Up to 1,181 IPM |
| Turret: |
|---|
| Turret Capacity: 12 Station |
| Turret Index Time: 0.73 sec (adjacent) |
| Tailstock: |
|---|
| Type: Programmable Tailstock |
| Quill Taper: MT #4 |
| Electrical: |
|---|
| Power Requirement: 220V / 3 Phase |
| General: |
|---|
| Machine Weight: ~8,500 lbs |
| Floor Space: ~82″ × 70″ × 89″ |
| Categories | CNC Lathes & Turning Centers |
|---|---|
| Make | |
| Model | Talent 6/45 |
