*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

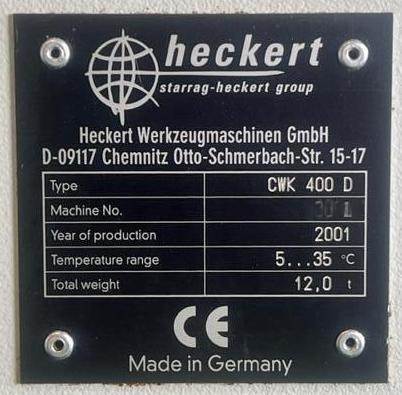

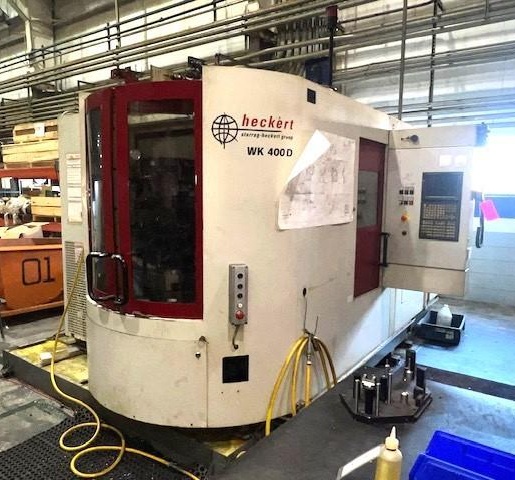

| Make: | Heckert |
| Model: | CWK 400D |
| Year: | 2001 |
| Machine Type: | CNC Horizontal Machining Center |

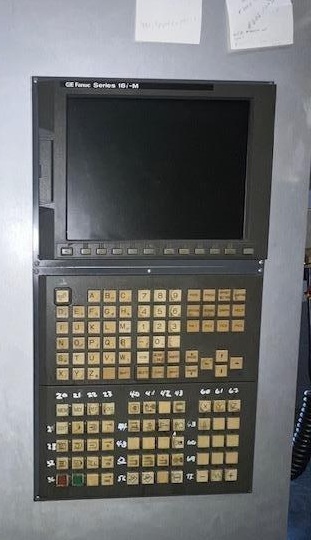

| Control: | Fanuc 16i-M CNC Control |
| Features: |
|---|
| 2-Pallet Automatic Pallet Changer |
| NC Rotary Table |
| 60-Position Tool Changer |
| Chip Conveyor |
| Through-Spindle Coolant |
| Coolant System |
| Spindle Cooling |
| Capacity: |
|---|
| Pallet Size: 15.7″ × 15.7″ |
| Maximum Table Load: 882 lbs. |
| Travels: |
|---|
| X-Axis Travel: 25.6″ |
| Y-Axis Travel: 25.6″ |
| Z-Axis Travel: 25.6″ |
| Spindle: |
|---|
| Spindle Taper: HSK-A63 |
| Spindle Speed Range: 50–10,000 RPM |
| Spindle Motor: Approx. 42 HP |
| Maximum Spindle Torque: Approx. 147 ft-lbs |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 60 Positions |
| Tool Holder: HSK-A63 |
| Maximum Tool Diameter: 6.3″ |
| Maximum Tool Length: 13.8″ |
| Maximum Tool Weight: 22 lbs. |
| Feeds: |
|---|
| Rapid Traverse X/Y/Z: 1,312 IPM |
| Feed Rate: Up to 1,312 IPM |
| General: |
|---|
| Power Source: 400V / 3-Phase / 50 Hz |
| Machine Weight (Approx.): 28,220 lbs. |
| Machine Dimensions (Approx.): 177″ × 142″ × 126″ |
