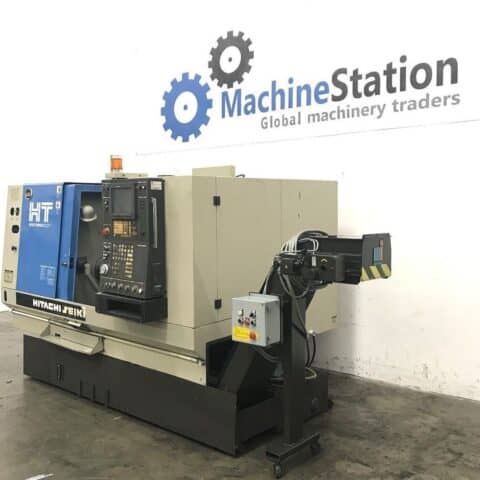

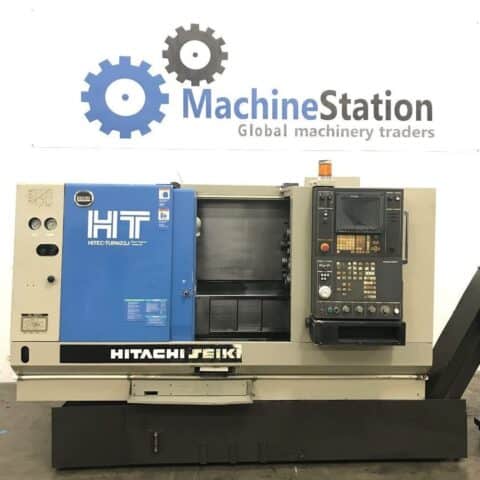

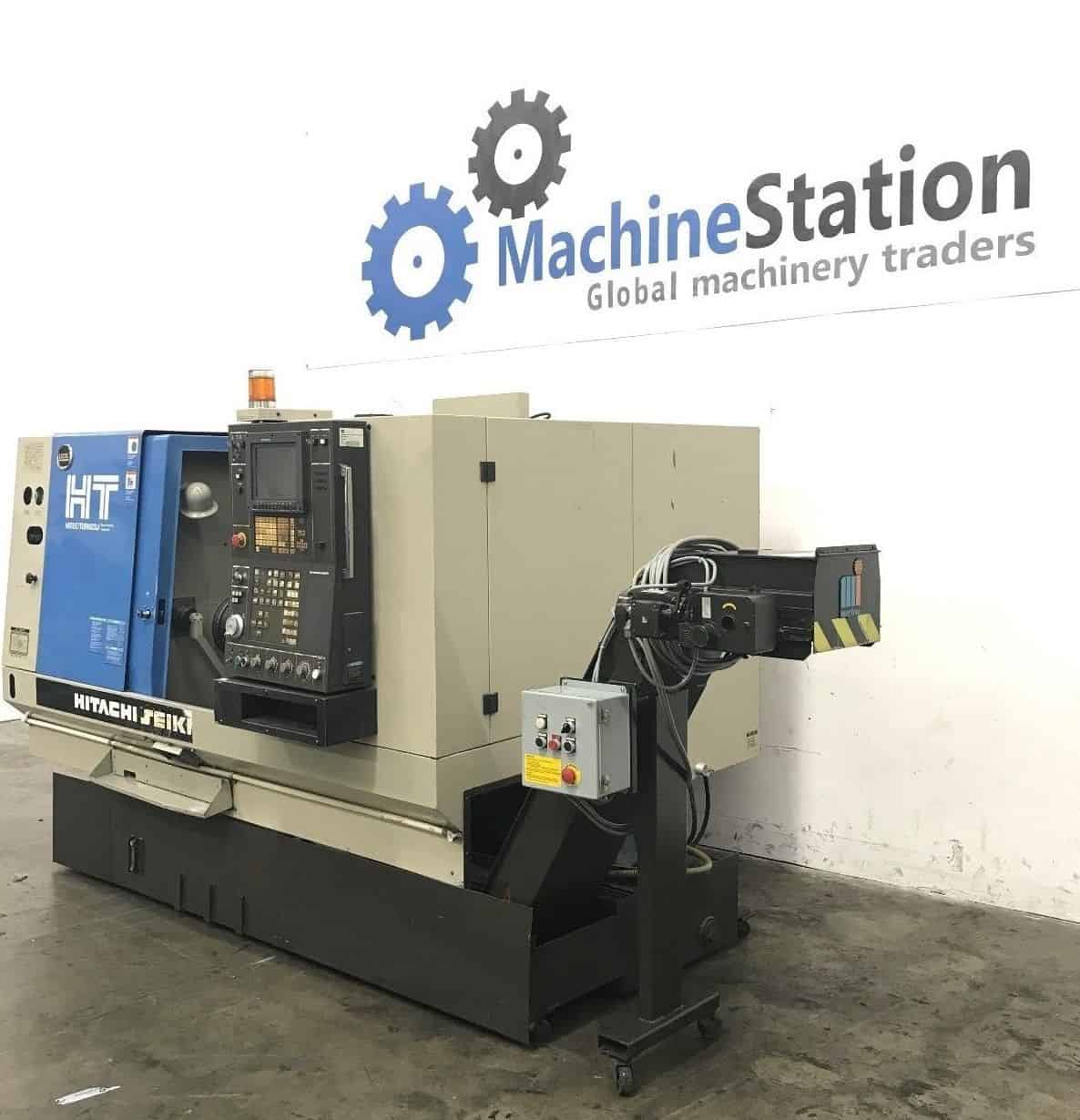

Hitachi Seiki HT-23J CNC Turning Center

This One Owner Machine has low cutting hours. Its a Heavy Duty machine equipped with 10″ Chuck, 3.00″ Spindle Bore, Hydraulic Tailstock & Chip Conveyor. On Our Floor now, Fully powered / tested & is in Great working condition.”

Out of stock

Product Description

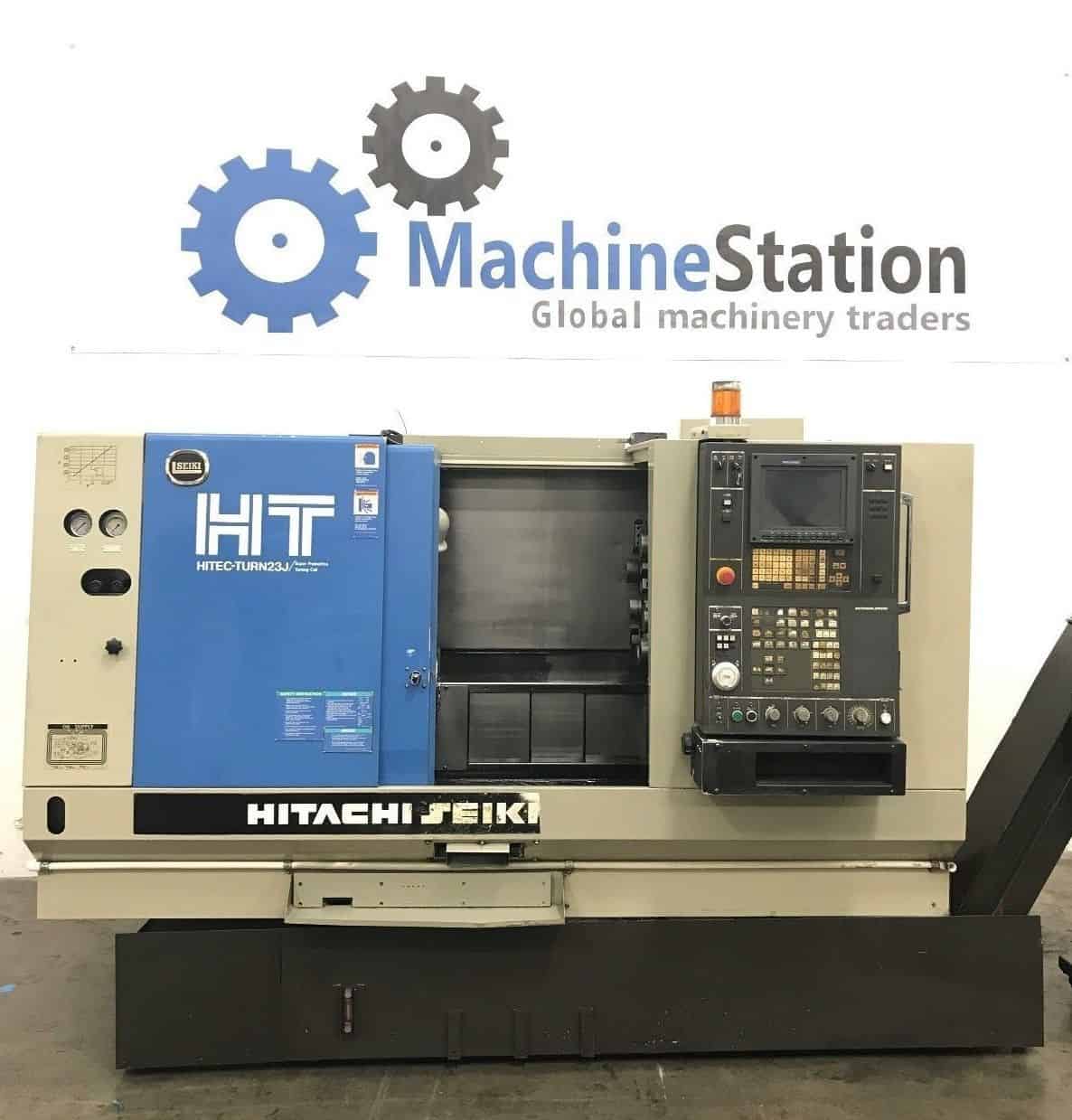

HITACHI SEIKI HT-23J CNC TURNING CENTER

Make: Hitachi Seiki
Model No.: HT-23J

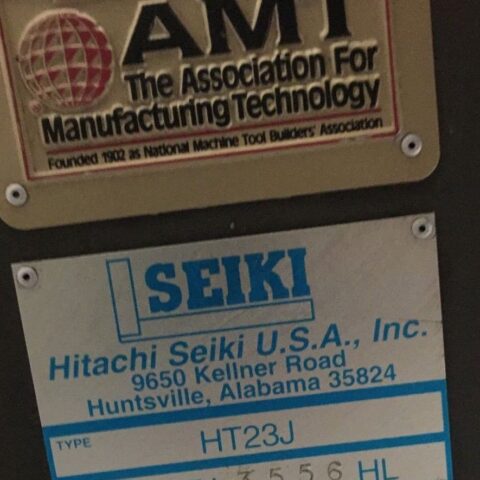

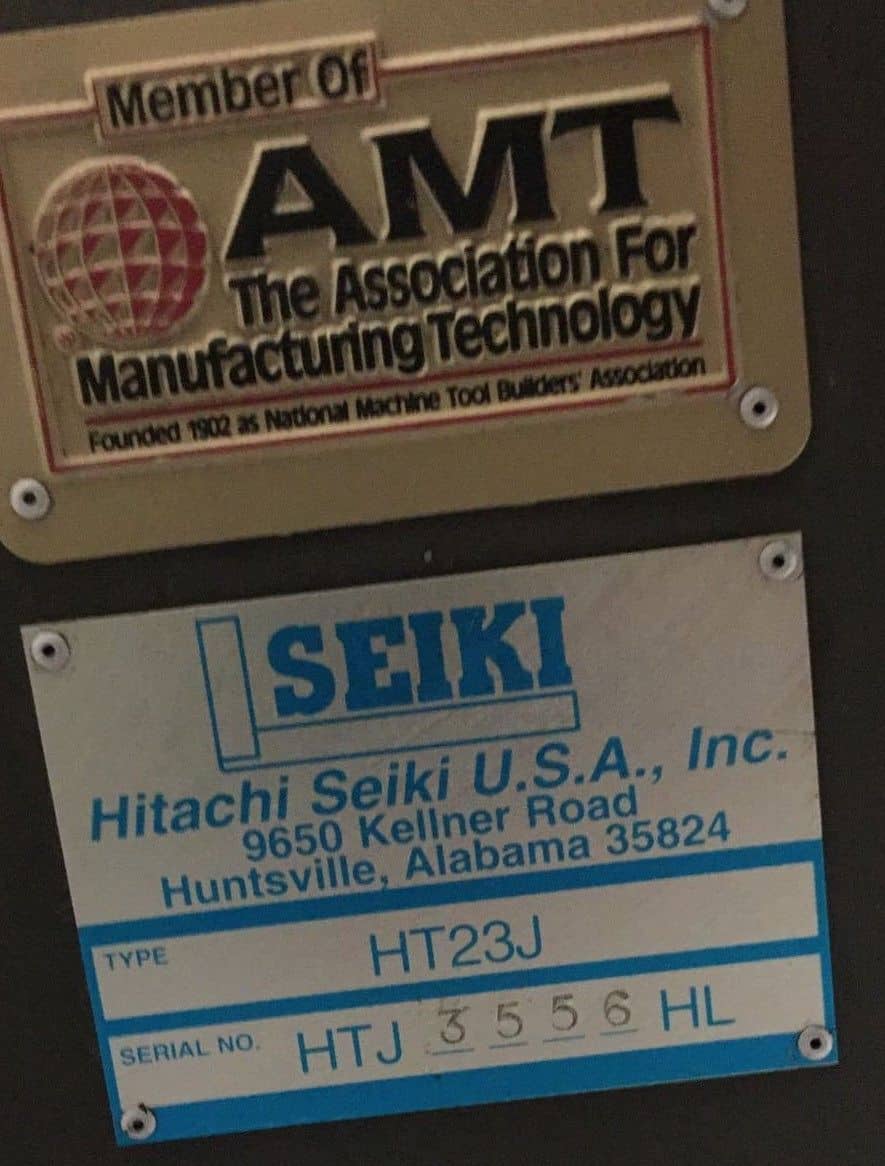

Serial No.: HTJ 3556 HL
Condition: Very Good

Comes with 10″ Chuck, Tool Holders, Manuals and Chip Conveyor.

All specifications are approximations, and are subject to verification.

This One Owner Machine has low cutting hours. Its a Heavy Duty machine equipped with 10″ Chuck, 3.00″ Spindle Bore, Hydraulic Tailstock & Chip Conveyor. On Our Floor now, Fully powered / tested & is in Great working condition.”

——————————————————-
HITACHI SEIKI HT-23J Equipped With:

Seicos J300L CNC Control

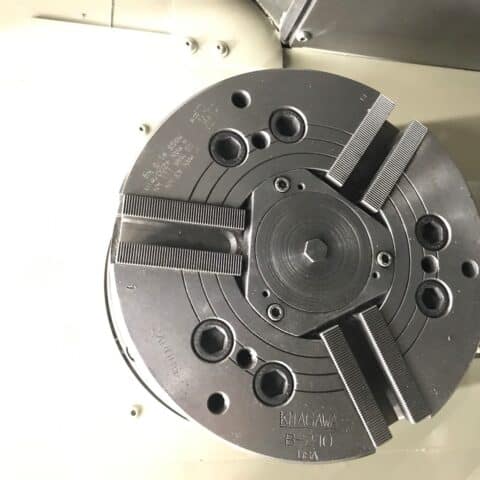

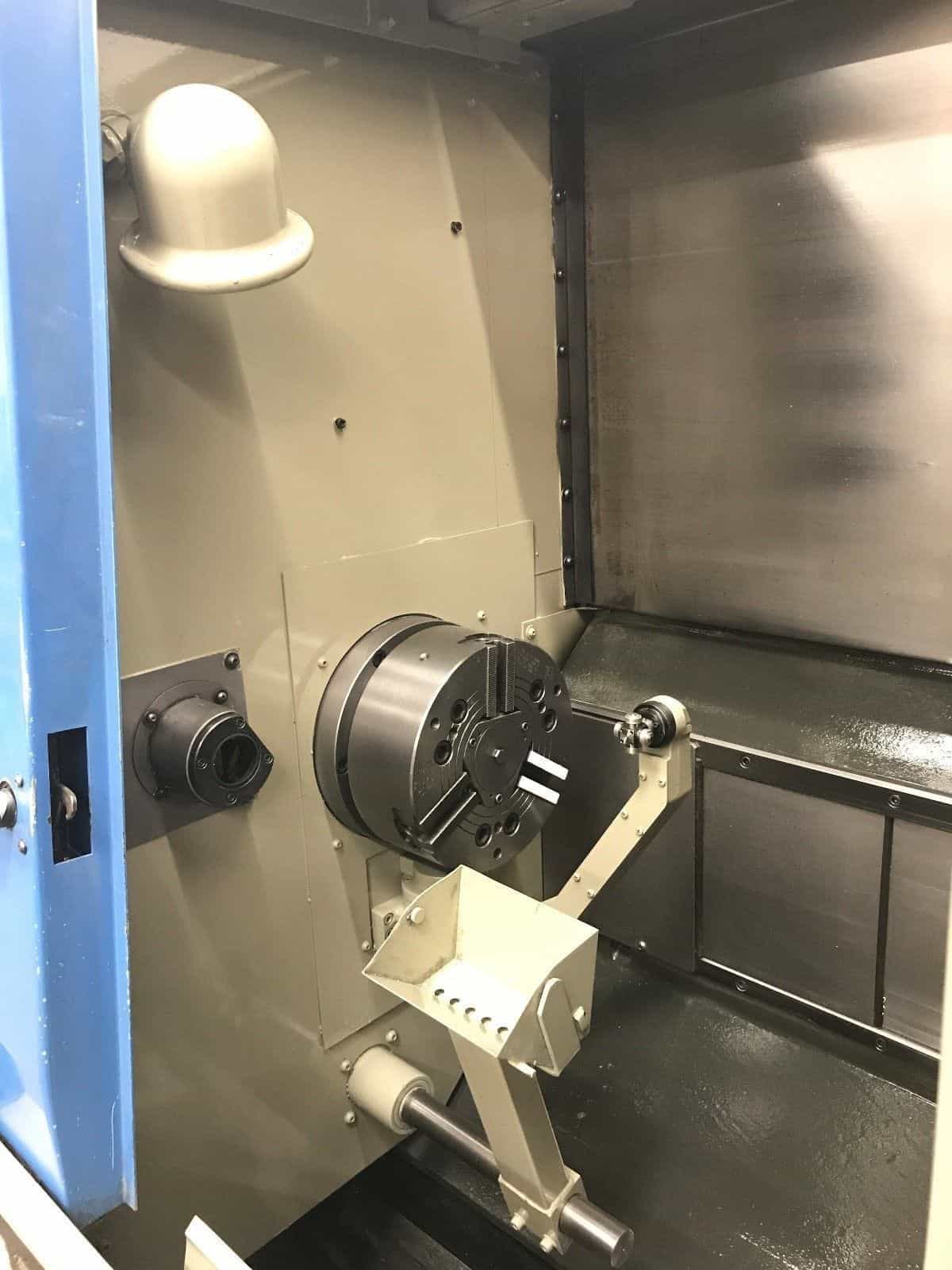

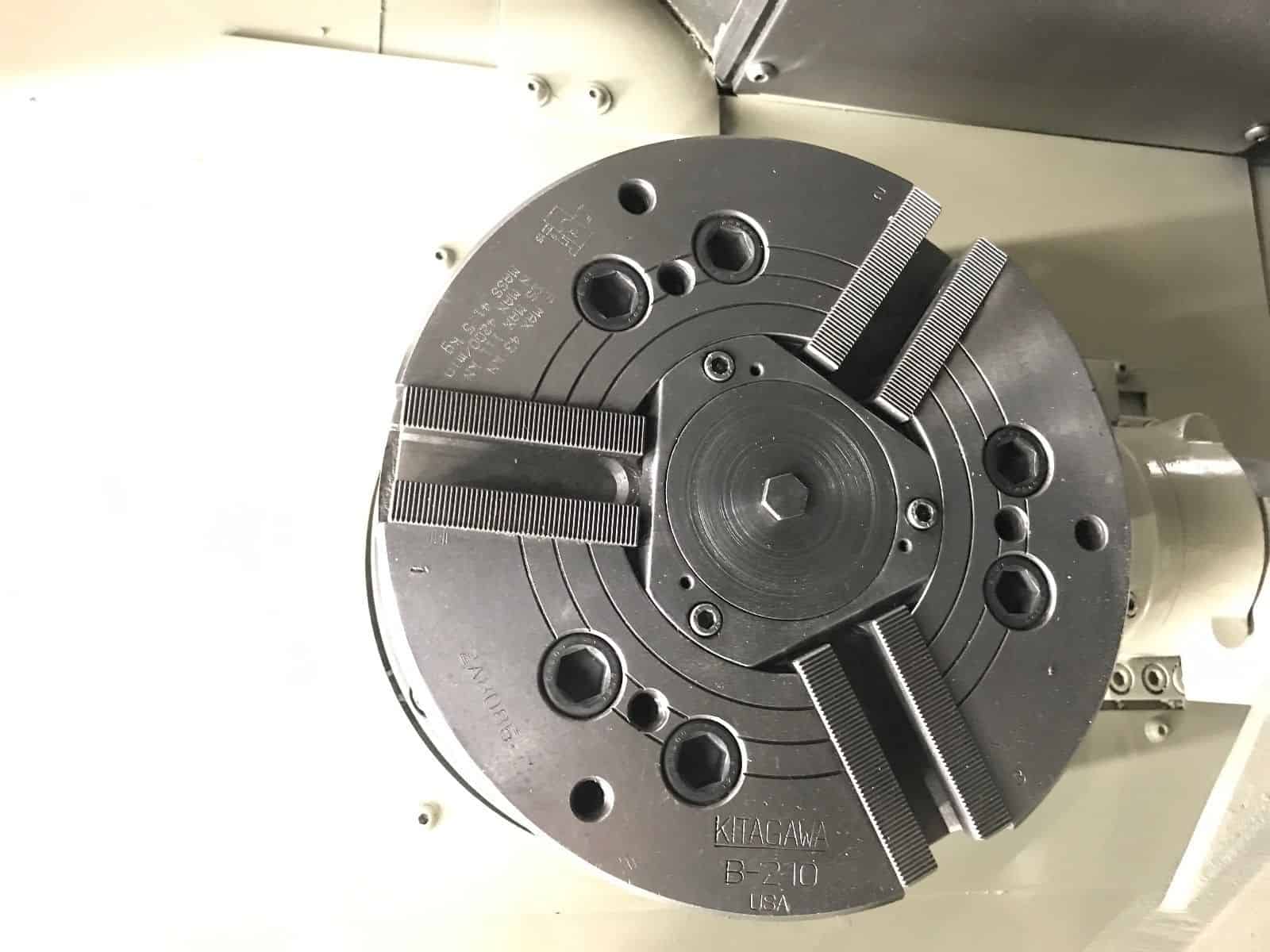

10″ 3 Jaw Kitagawa Hydraulic Chuck
Tool Presetter
Hydraulic Tailstock
Coolant System
Barfeed Interface
RS-232 ports

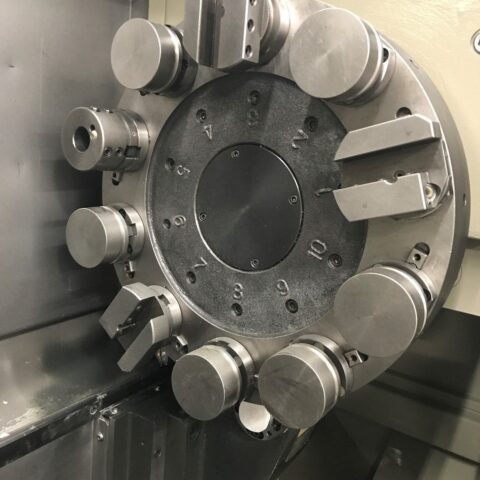

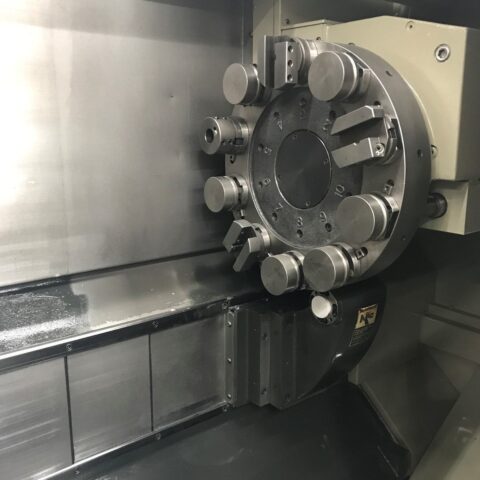

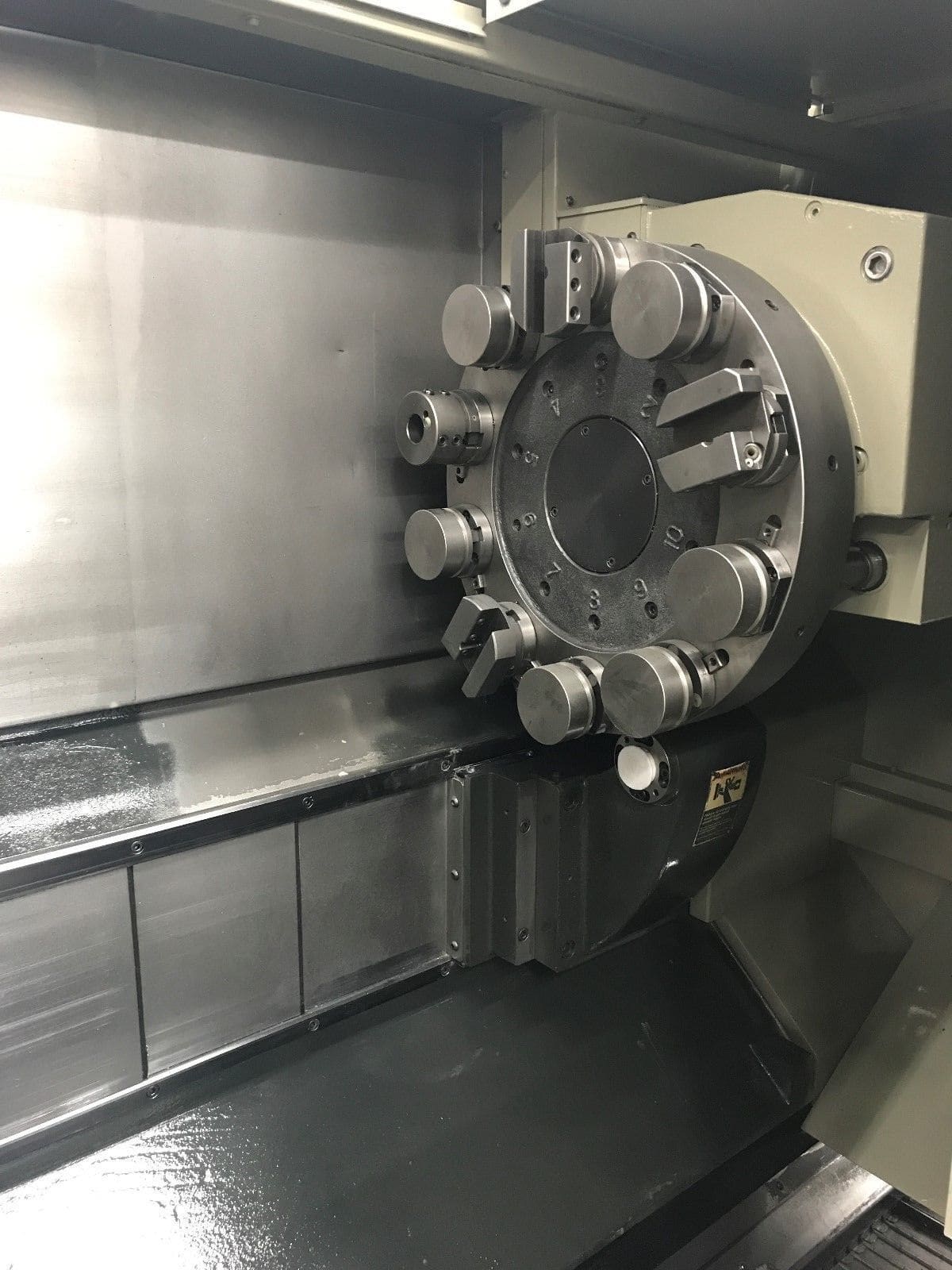

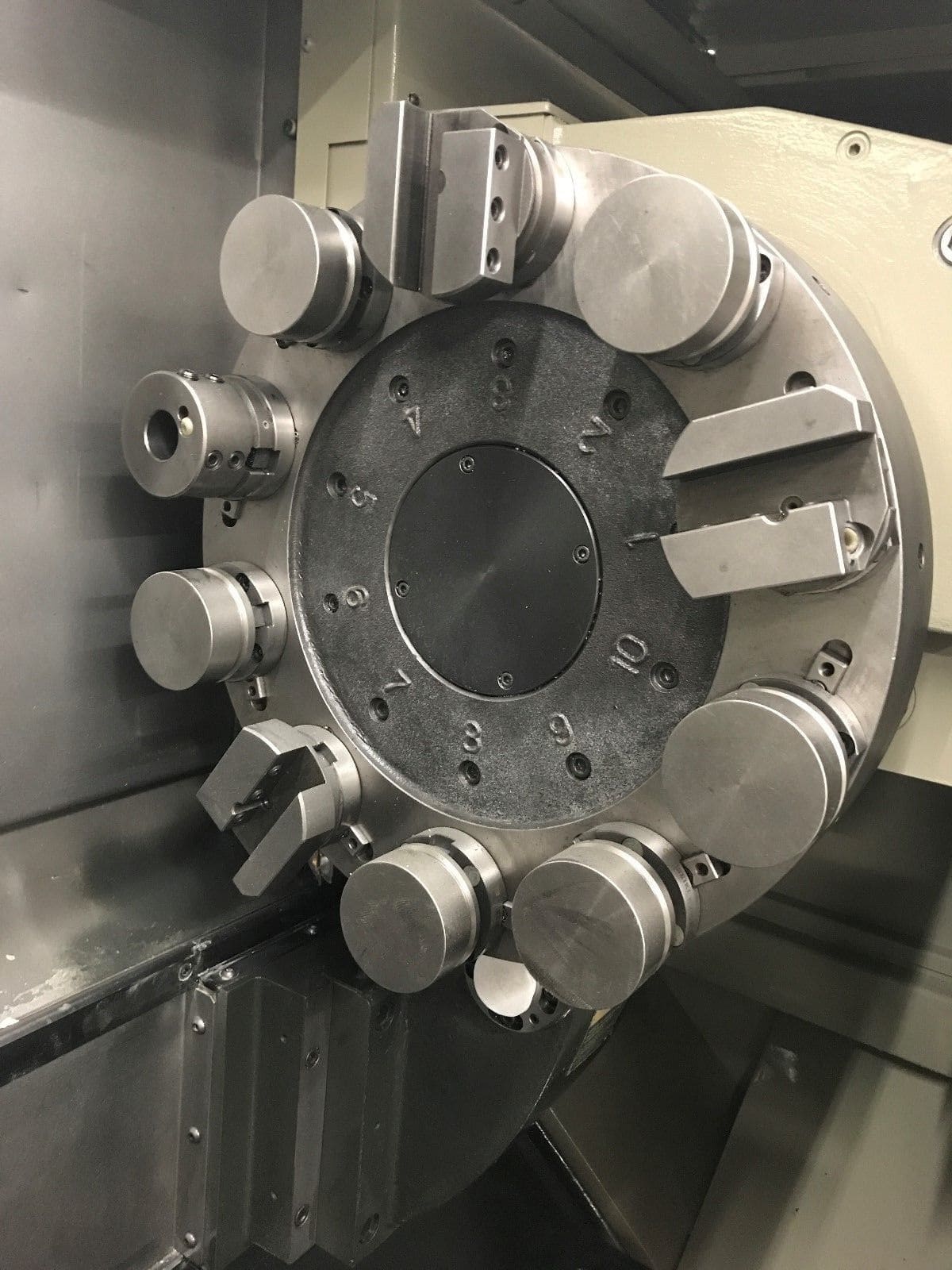

10 Station Automatic Turret
Chip Conveyor

HITACHI SEIKI HT-23J Specifications:

Capacity:
Max Turning Diameter: 13.38″
Max Turning Length: 23.6″
Max Bar Capacity: 2.6″
Swing Over Bed: 17.7″

X Axis Travel: 9.0″
Z Axis Travel: 24.83″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM

Spindle Nose: A2-8
Spindle Bore: 3.0″
Spindle Speed: 35 – 4000 RPM
Spindle Motor: 20 HP

Turret Capacity: 10 Stations
Turret Index Time: 0.1 Second

Tailstock Taper: MT-5
Tailstock Travel: 20.4″
Tailstock Quill Dia.: 2.95″
Tailstock Quill Travel: 3.15″

General:
Power: 220v / 3-Phase
Overall Dimensions: 110″ x 64″ x 69″ High
Weight: 10500 lbs

HITACHI SEIKI HT-23J Comes as shown in pictures..
