All specifications are approximations and are subject to verification.
Comes with 6.5″ Chuck, Tool Presetter, Tailstock & Original Manuals.

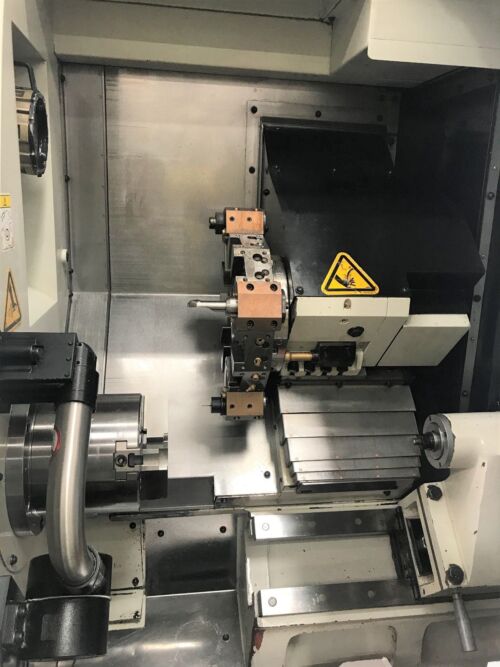

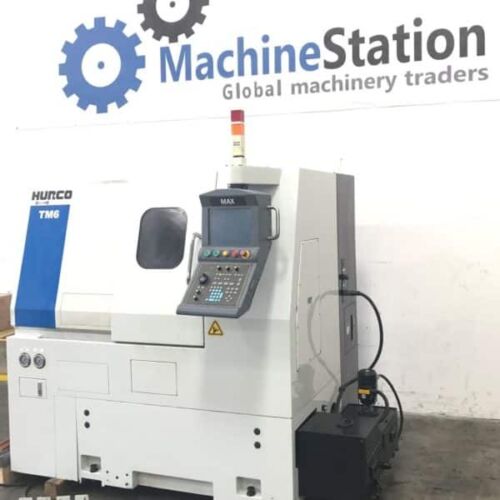

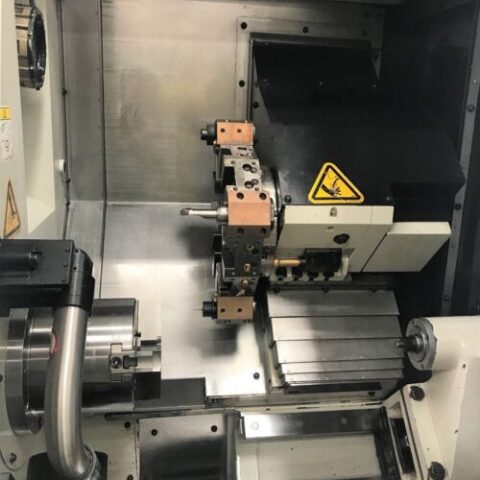

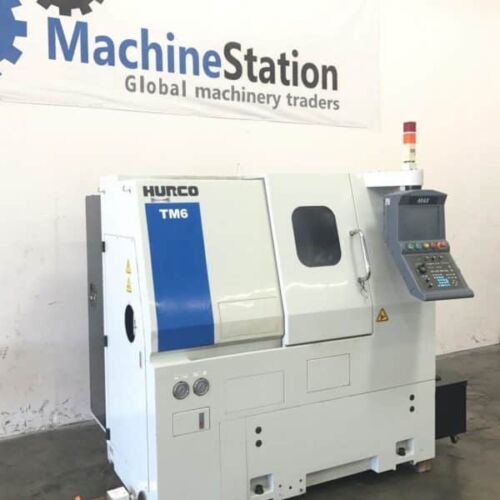

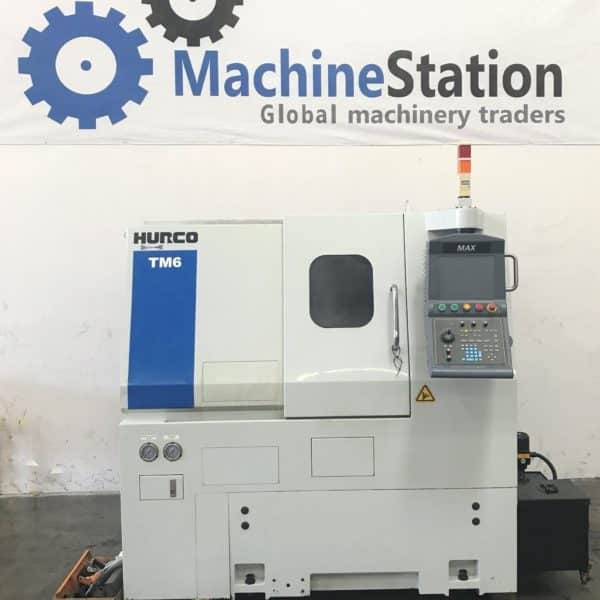

“This One Owner machine is in Original Paint, very low usage on it. It is equipped with 6.5″ Chuck, Tool Setter, Tailstock. On Our Floor fully powered / tested & is in Great working condition. Compact design ideal for Garage, small shops.”
“This One Owner machine is in Original Paint, very low usage on it. It is equipped with 6.5″ Chuck, Tool Setter, Tailstock. On Our Floor fully powered / tested & is in Great working condition. Compact design ideal for Garage, small shops.”
-
HURCO TM6 Equipped With:

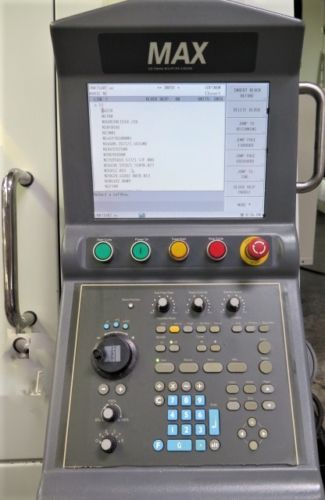

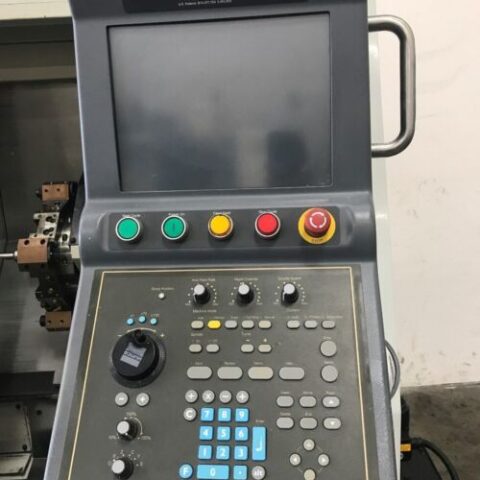

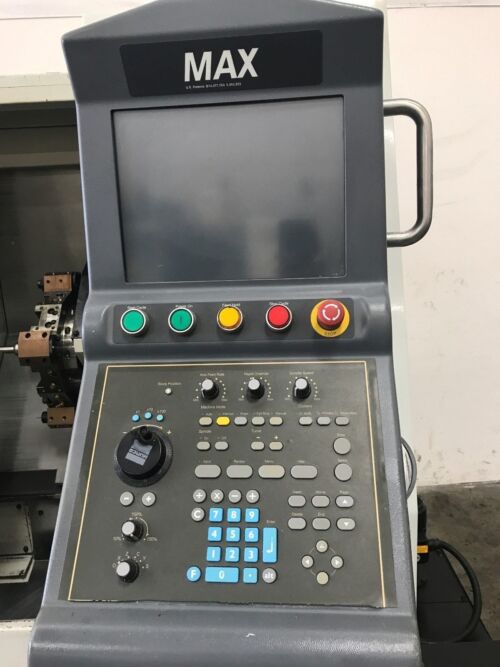

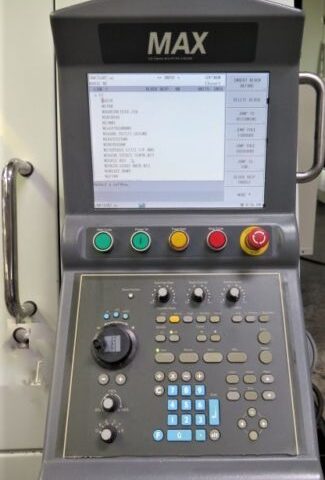

- Hurco Max CNC Control
- 12″ LCD Screen

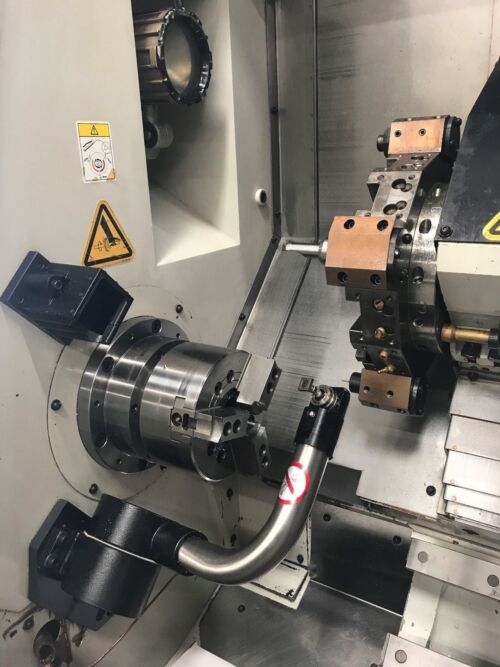

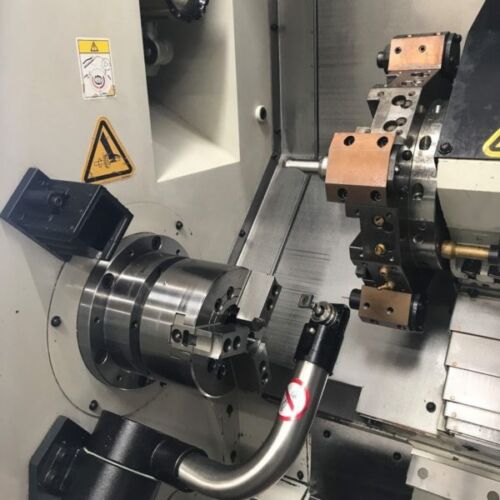

- 6.5″ 3 Jaw Hydraulic Chuck
- Tool Presetter
- Hydraulic Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports

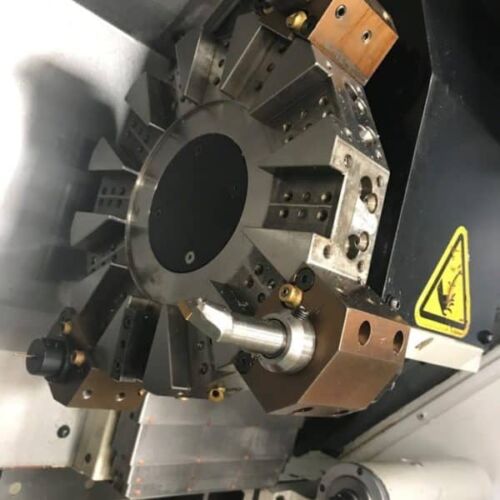

- 12 Station Automatic Turret
- Foot Switch
-
HURCO TM6 Specifications:
- Capacity:
- Max Turning Diameter: 12.4″
- Max Turning Length: 13.2″
- Max Bar Capacity: 1.77″
- Swing Over Bed: 15.3″
- Distance Between Centers: 15.8″
- X Axis Travel: 7″
- Z Axis Travel: 14″
- Rapid Traverse X Axis: 750 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-5
- Spindle Bore: 2.0″
- Spindle Speed: 0 – 6000 RPM
- Spindle Motor: 15 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.5 Second
-
General:

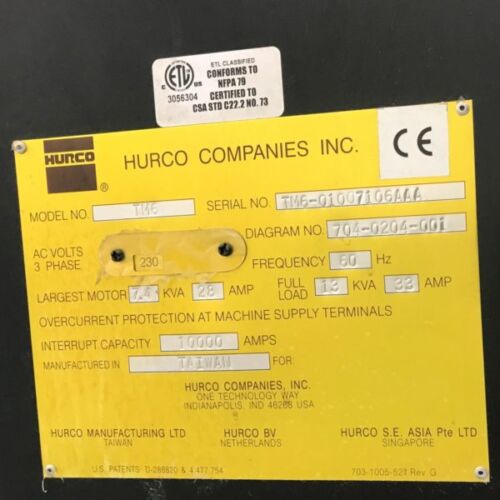

- Power: 21 kva, 220v / 3-Phase
- Overall Dimensions: 82″ x 60″ x 77″ High
- Weight: 6000 lbs
