*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hwacheon |
| Model: | Vesta 1000+ |
| Year: | 2018 |
| Machine Type: | 3-Axis CNC Vertical Machining Center |
| Control: | FANUC 0i-MF |
| Equipped With: |
|---|
| FANUC 0i-MF CNC Control |
| 12,000 RPM Spindle |
| 30-Position Automatic Tool Changer |
| Renishaw Probe System — Probe Missing |
| Coolant Through Spindle |
| High-Pressure Coolant |
| Coolant System |
| Air Dryer |
| 4th Axis Ready |
| Travels: |
|---|
| X-Axis Travel: 39.37″ |
| Y-Axis Travel: 21.65″ |
| Z-Axis Travel: 19.69″ |
| Table: |
|---|
| Table Size: 43.31″ × 19.76″ |
| Table Loading Capacity: 1,543 lbs. |
| T-Slots: 0.71″ × 3.15″ / 5 Slots |
| Feedrate: |
|---|
| Rapid Traverse X/Y/Z: 1,417 / 1,417 / 1,181 IPM |
| Cutting Feed Rate: 0.04 – 945 IPM |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 25 HP / 15 HP |
| Spindle Taper: BT-40 |
| Spindle Bearing Diameter: 2.76″ |
| Automatic Tool Changer: |
|---|
| Tool Magazine Capacity: 30 Stations |
| Tool Shank: BT-40 |
| Max. Tool Diameter with Adjacent Tools: 2.95″ |
| Max. Tool Diameter without Adjacent Tools: 5.91″ |
| Max. Tool Length: 11.81″ |
| Max. Tool Weight: 17.64 lbs. |
| Pull Stud: MAS P40T-1 |

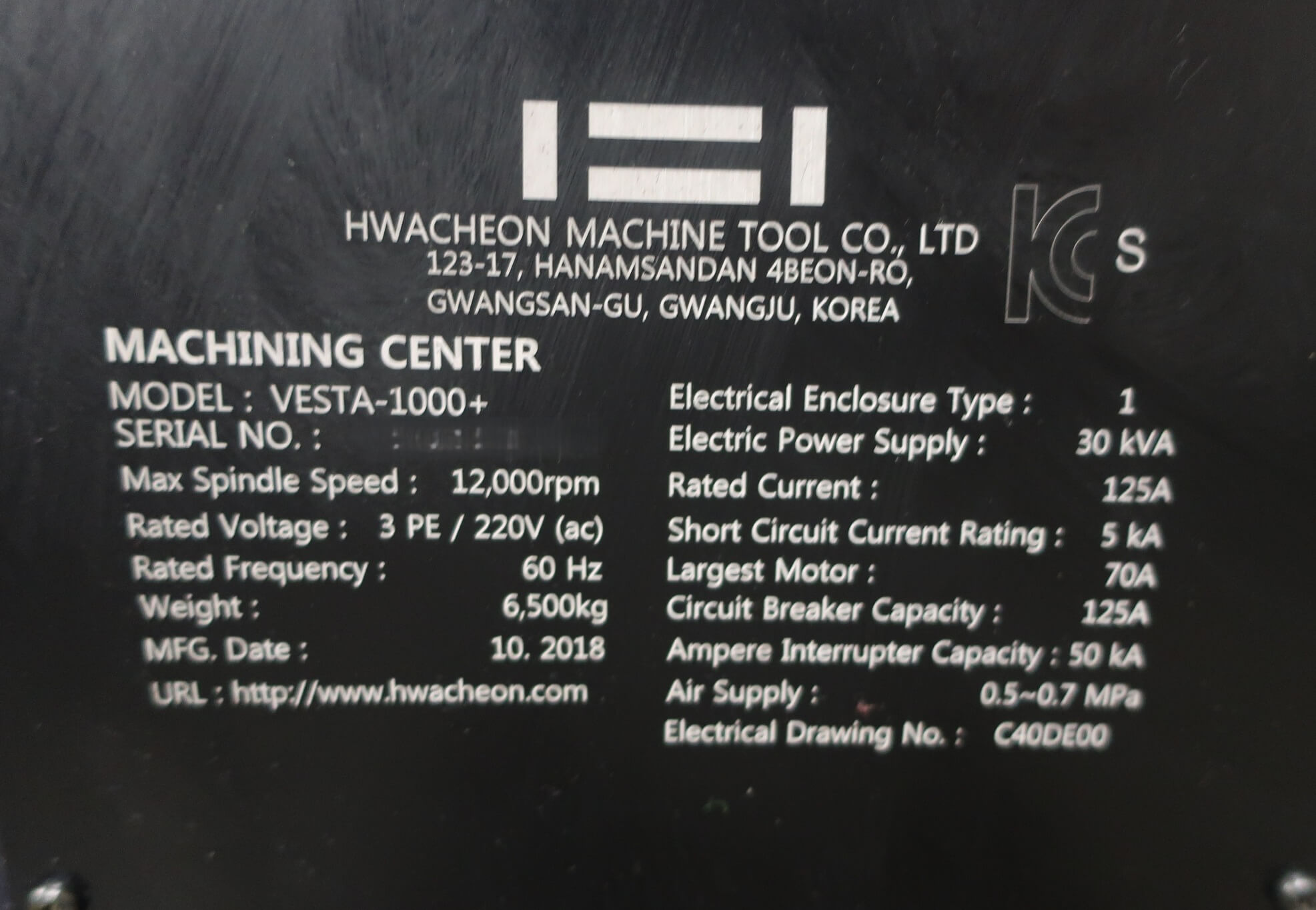

| Electrical: |
|---|
| Electric Power Supply: 30 kVA |
| Rated Voltage: 3 PE / 220 VAC |
| Rated Frequency: 60 Hz |
| Air Supply: |
|---|
| Air Supply Pressure: 0.5 – 0.7 MPa |
| Air Supply: 72.5 – 101.5 PSI |
| General: |
|---|
| Cutting Time: 5,311 Hours |
| Machine Weight: 14,330 lbs. |
| Machine Dimensions: 112.20″ L × 89.76″ W × 104.02″ H |
