*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hwacheon |
| Model: | CUTEX 240B SMC |
| Year: | 2013 |
| Equipped With: |
|---|

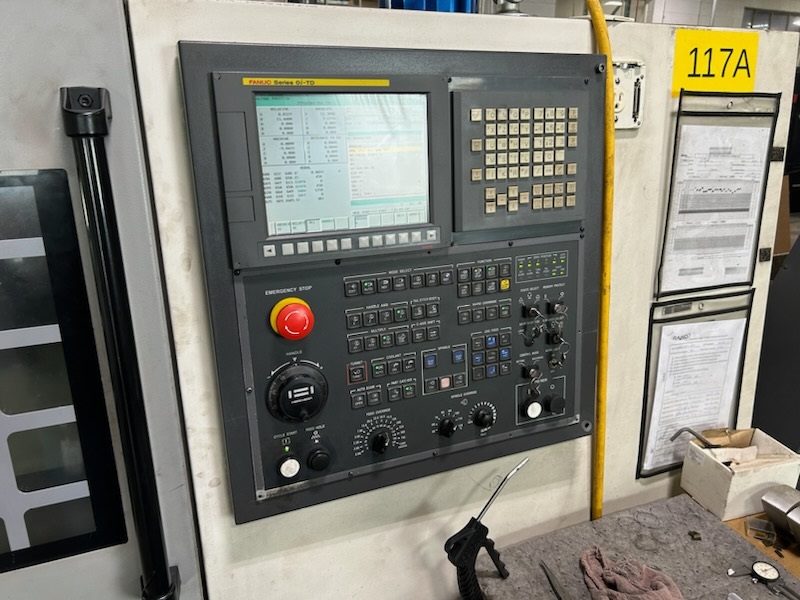

| Fanuc Series 0i-TD CNC Control |
| Live Milling / Driven Tooling |
| Sub-Spindle |
| 8″ Main Spindle Chuck |
| 6″ Sub-Spindle Chuck |
| 12-Station Turret |
| Parts Catcher |
| Chip Conveyor |
| Coolant System |
| Fully Enclosed Work Area |
| Capacity: |
|---|
| Swing Over Bed: 22.84″ |
| Maximum Cutting Diameter: 13.98″ |
| Standard Cutting Diameter: 8.47″ |
| Maximum Cutting Length: 21.91″ |
| Travels: |
|---|
| X-Axis Travel: 8.47″ |
| Z-Axis Travel: 26.18″ |
| B-Axis Travel: 25.59″ |
| Main Spindle: |
|---|
| Chuck Size: 8″ |
| Maximum Spindle Speed: 5,000 RPM |
| Spindle Through-Hole Diameter: 2.95″ |
| Sub-Spindle: |
|---|
| Chuck Size: 6″ |
| Maximum Spindle Speed: 6,000 RPM |
| Spindle Through-Hole Diameter: 2.17″ |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Maximum Live Tool Speed: 5,000 RPM |
| Maximum Drill / Tap Size: 0.79″ / M16 |
| General: |
|---|
| Power Source (Approx.): 220/220v / 3-phase / 50/60 Hz |
| Machine Dimensions (Approx.): 126″ L × 75″ W × 79″ H |
| Machine Weight (Approx.): 9,900 lbs |
