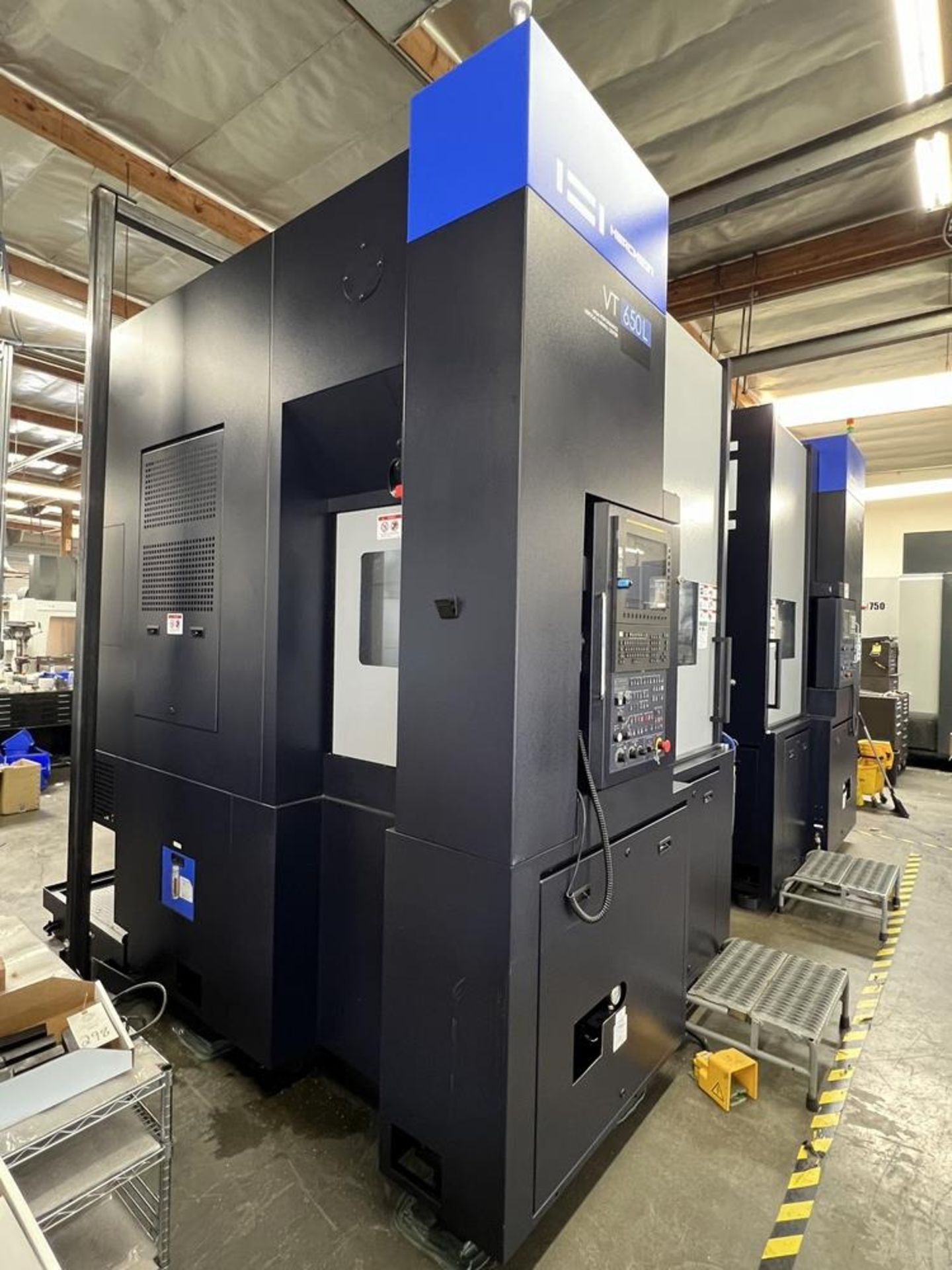

Hwacheon VT-650L CNC Turning Center – 2022

Features:

• Heavy-Duty Vertical Turning Center
• High-Rigidity Vertical Structure
• Large Diameter Chuck Capacity
• High-Torque Built-In Spindle
• Rigid Tapping Capability
• Thermally Stable Machine Design
• Automatic Central Lubrication System
• Fully Enclosed Machining Area
• Optimized for Heavy & Precision Turning

Travels:

• X-Axis Travel: 17.7″
• Z-Axis Travel: 31.5″
• Headstock Height: 40.3″

Table / Chuck:

• Chuck Size: 24″
• Max Working Diameter: Ø31.5″
• Max Working Height: 29.5″

Spindle:

• Spindle Type: Vertical
• Max Spindle Speed: 1,500 RPM
• Max Chuck Speed: 1,760 RPM
• High-Torque Spindle Design

Feedrates & Dynamics:

• High-Torque Servo Drives
• Precision Ballscrew Drive System
• Designed for Heavy-Duty Cutting

Turret:

• Turret Type: CNC Turret
• Tool Stations: 12 Stations

Coolant System:

• Flood Coolant System
• Coolant Nozzles at Cutting Area

Chip Management:

• Integrated Chip Conveyor
• Fully Enclosed Chip Protection

CNC Control:

• Fanuc CNC Control (Typical Configuration)
• Color LCD Display
• Advanced Turning Cycles
• USB & Ethernet Connectivity

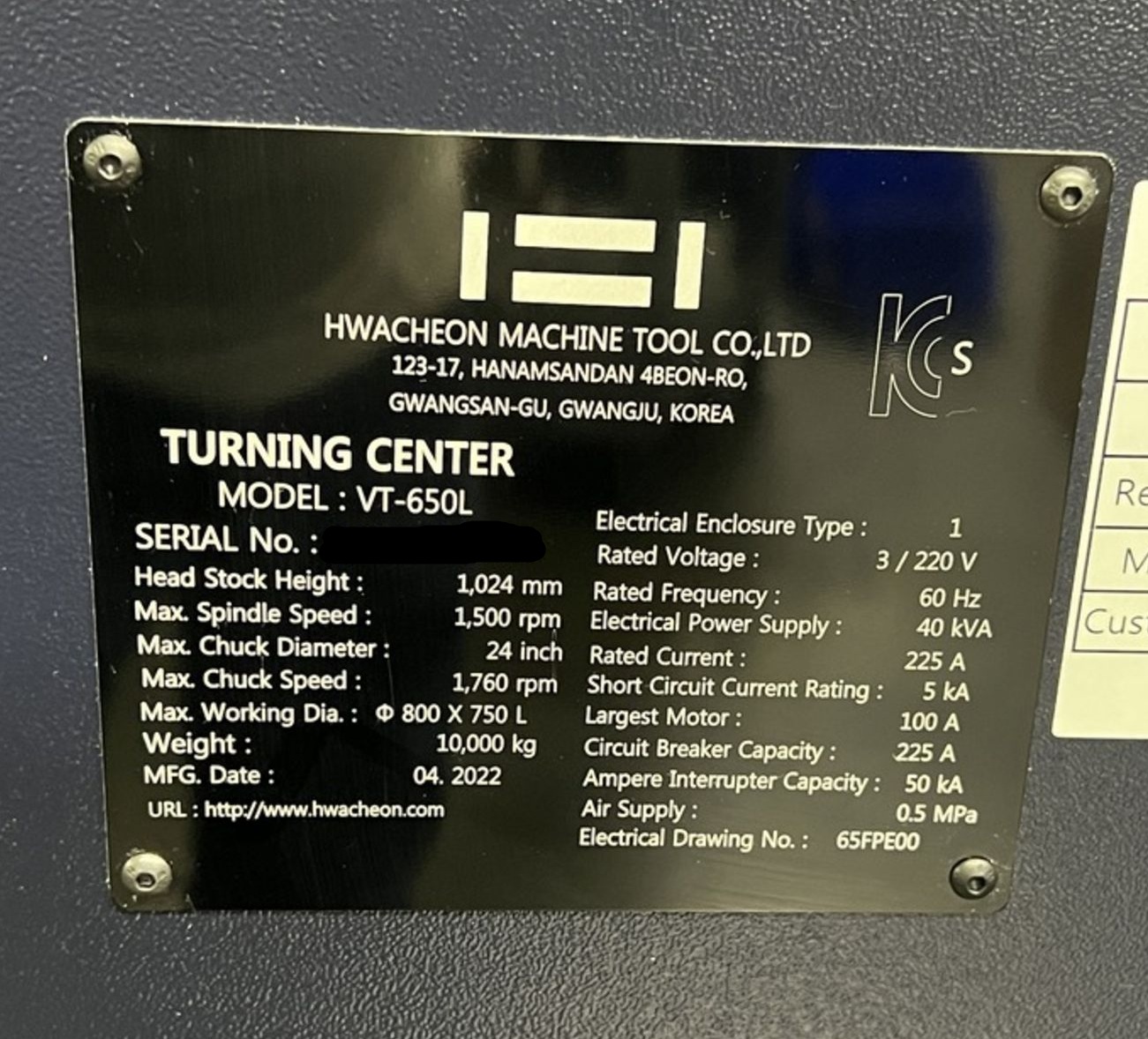

Electrical & General:

• Power Supply: AC 220V / 3-Phase / 60 Hz
• Electrical Power Supply: 40 kVA
• Rated Current: 225 Amps
• Largest Motor: 100 Amps
• Air Supply Requirement: 0.5 MPa
• Machine Weight: Approx. 22,050 lbs
