*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

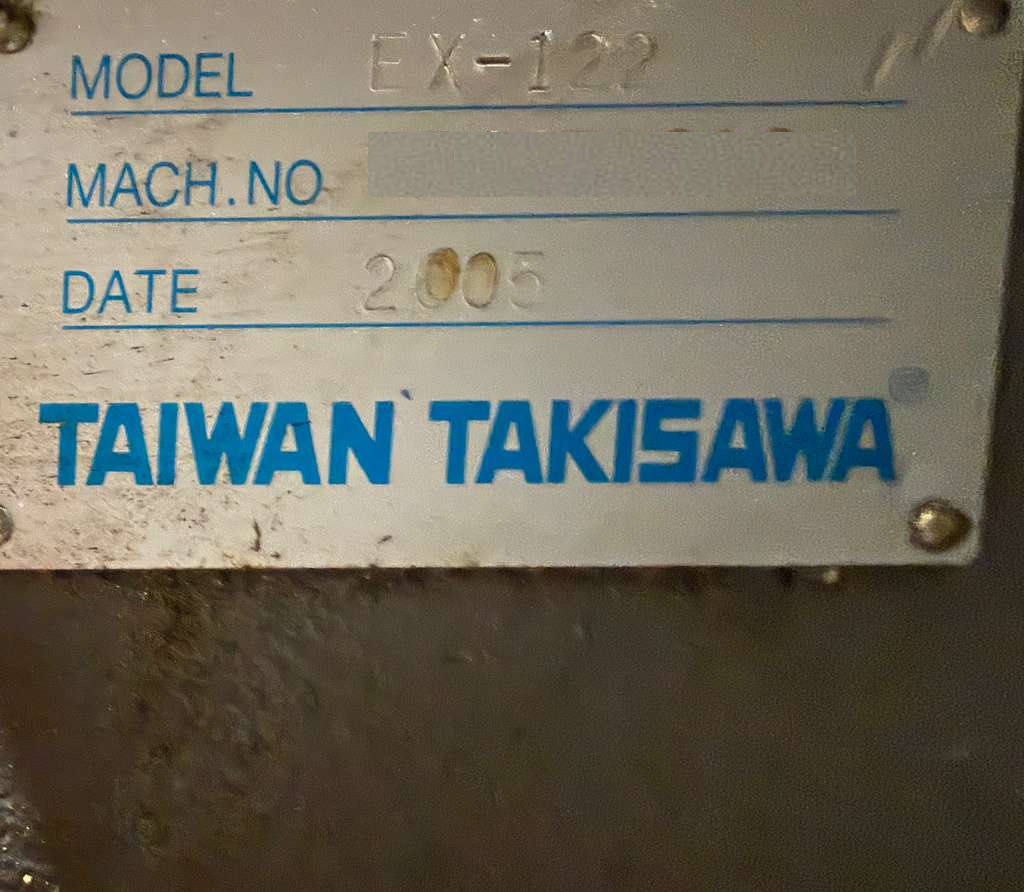

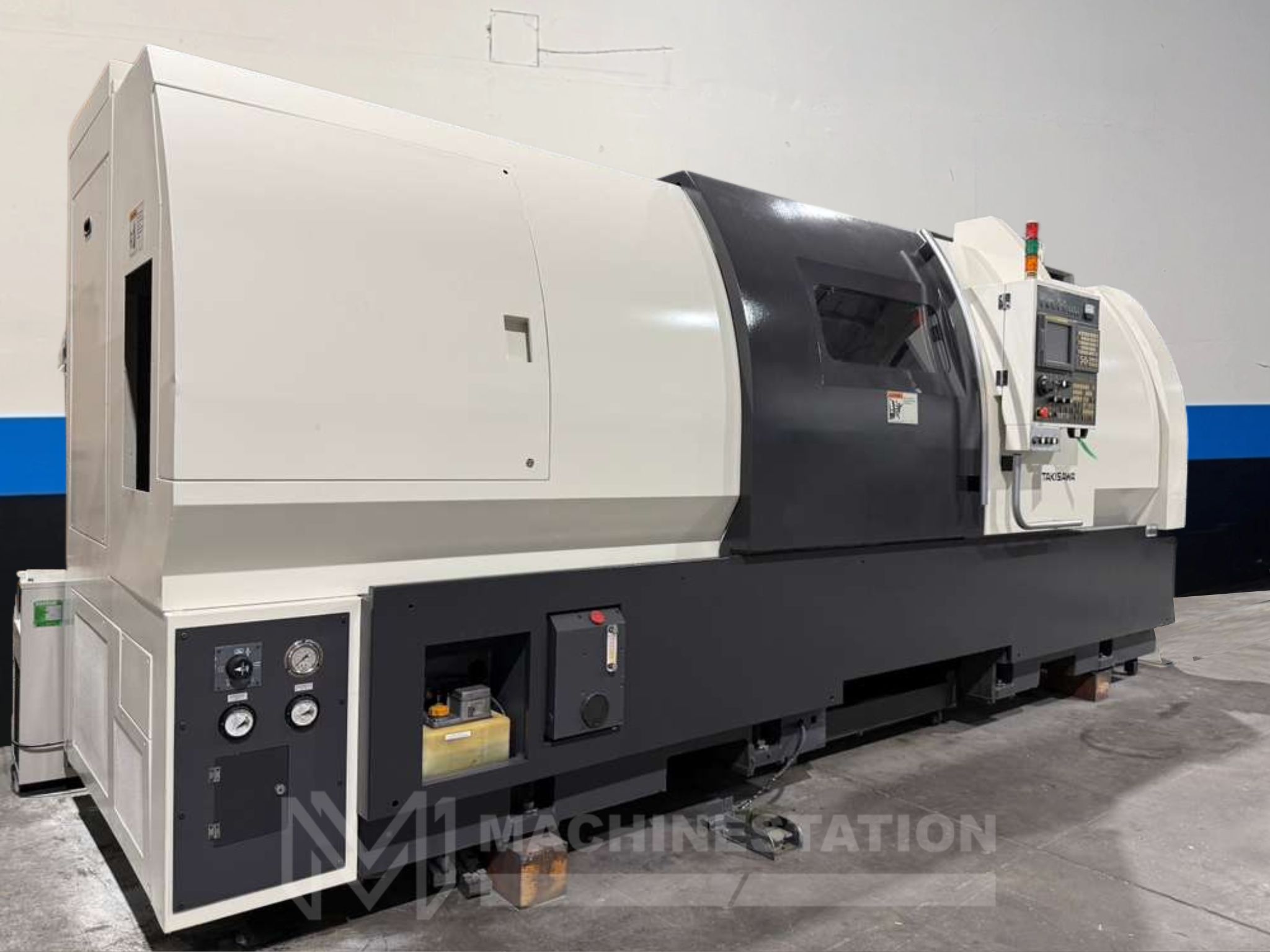

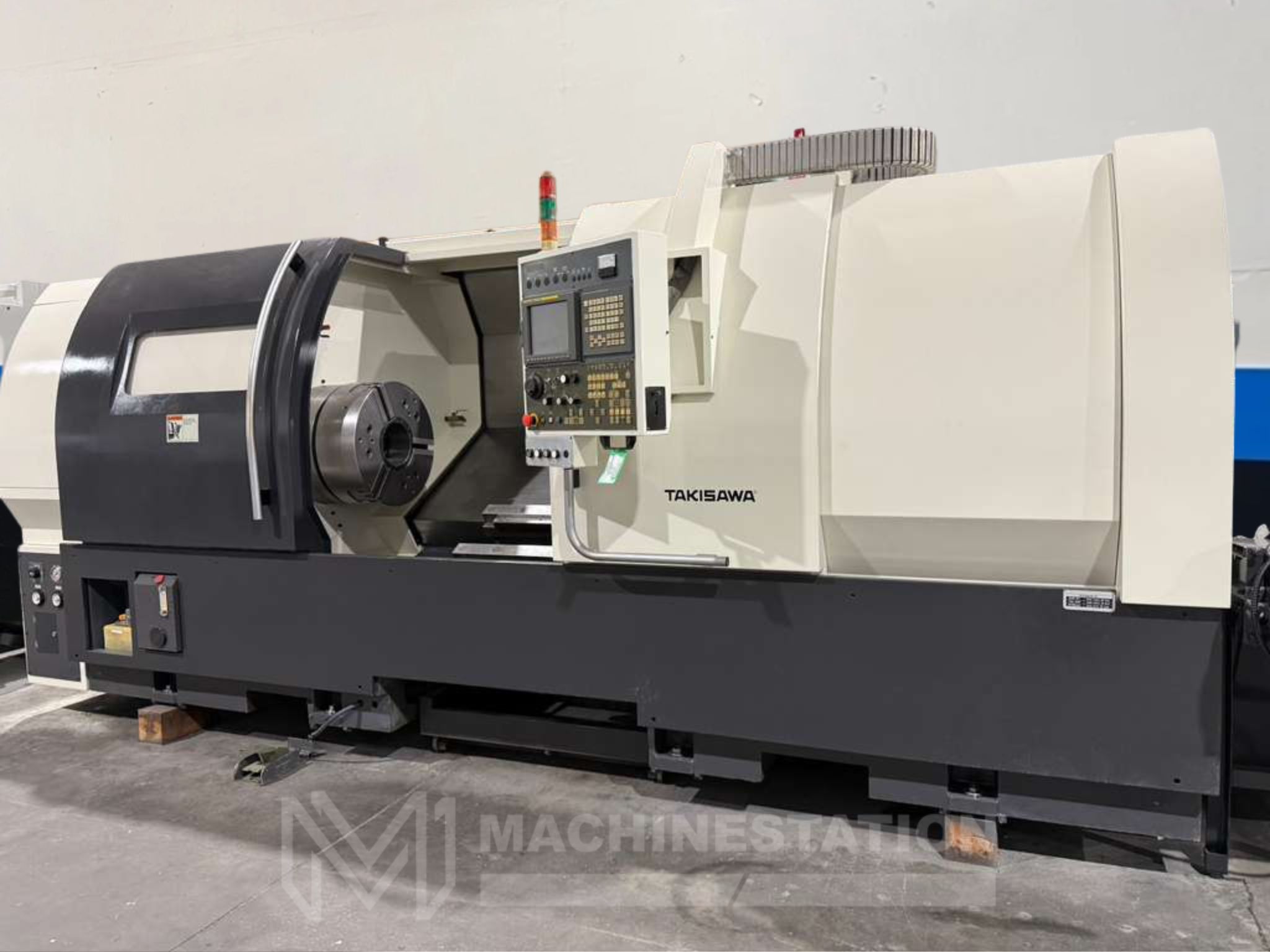

| Make: | Takisawa |
| Model: | EX-122 |
| Year: | 2005 |
| Equipped With: |
|---|

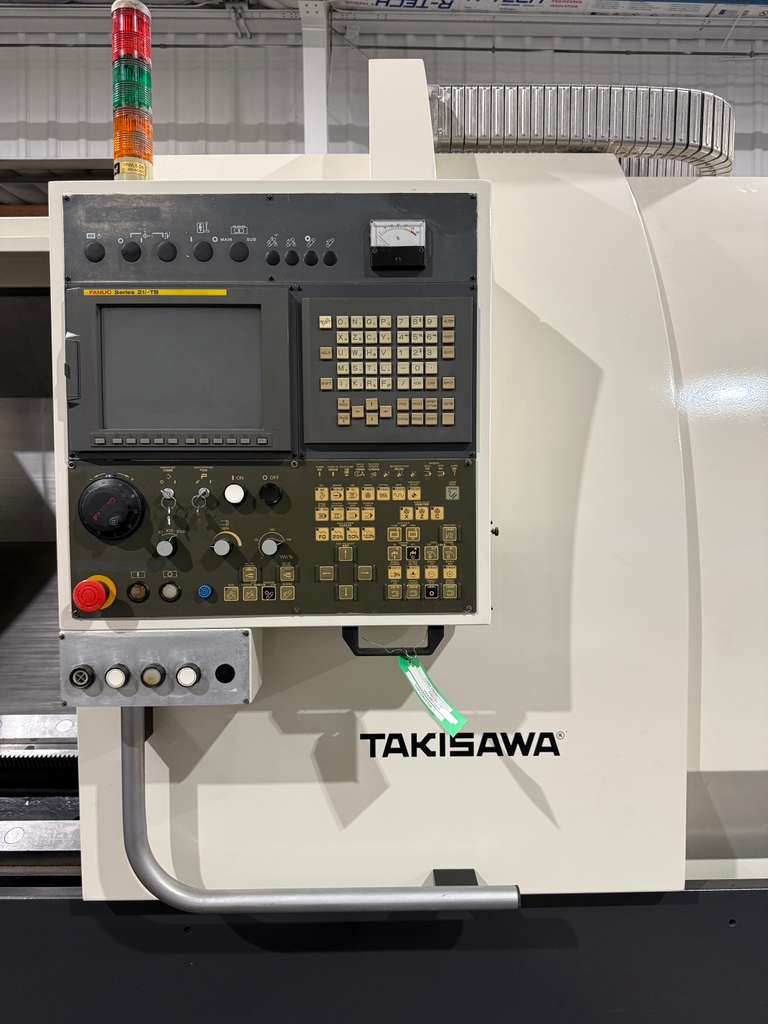

| Fanuc 21i-TB CNC Control |
| Long Bed Box Way Machine |

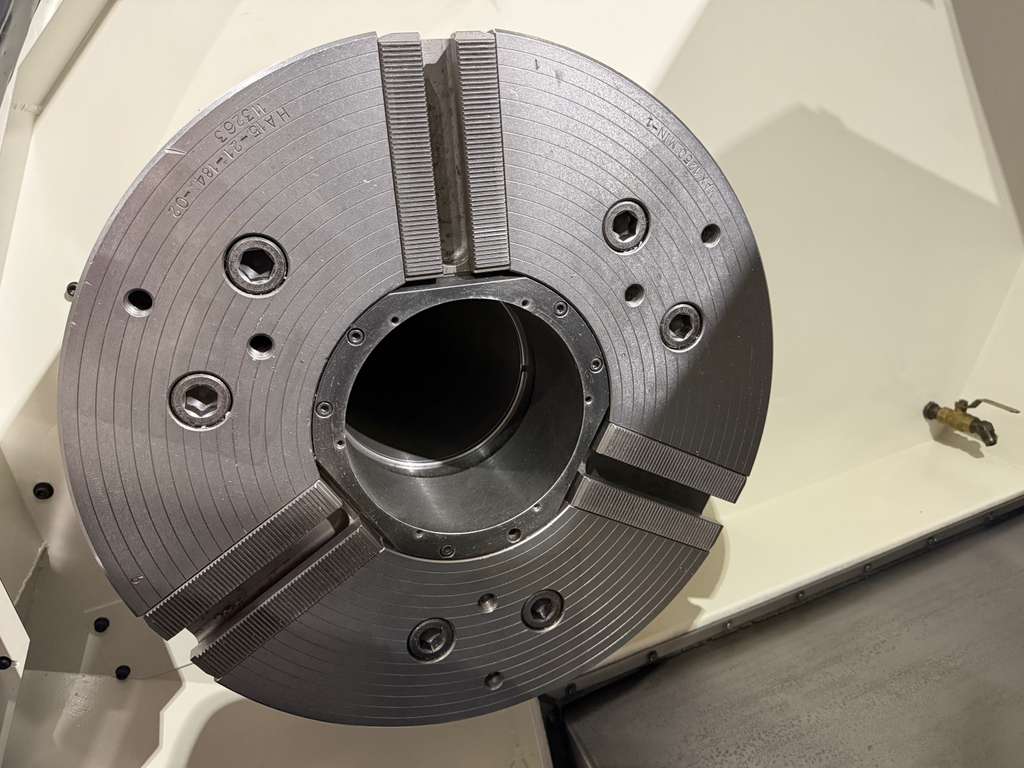

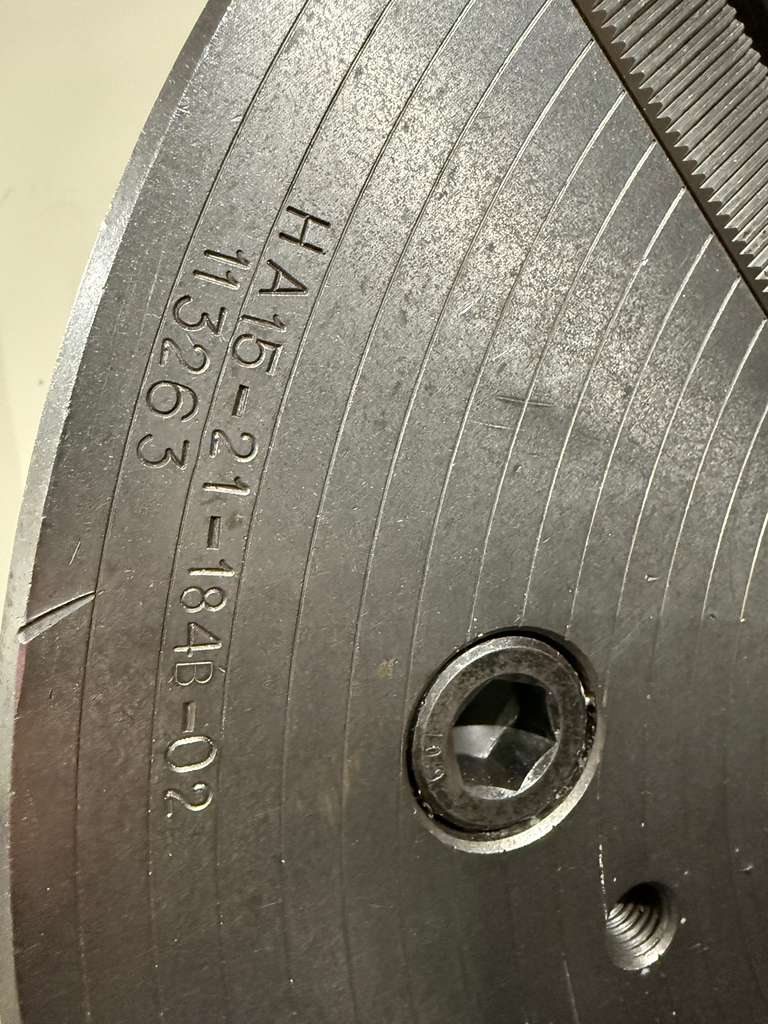

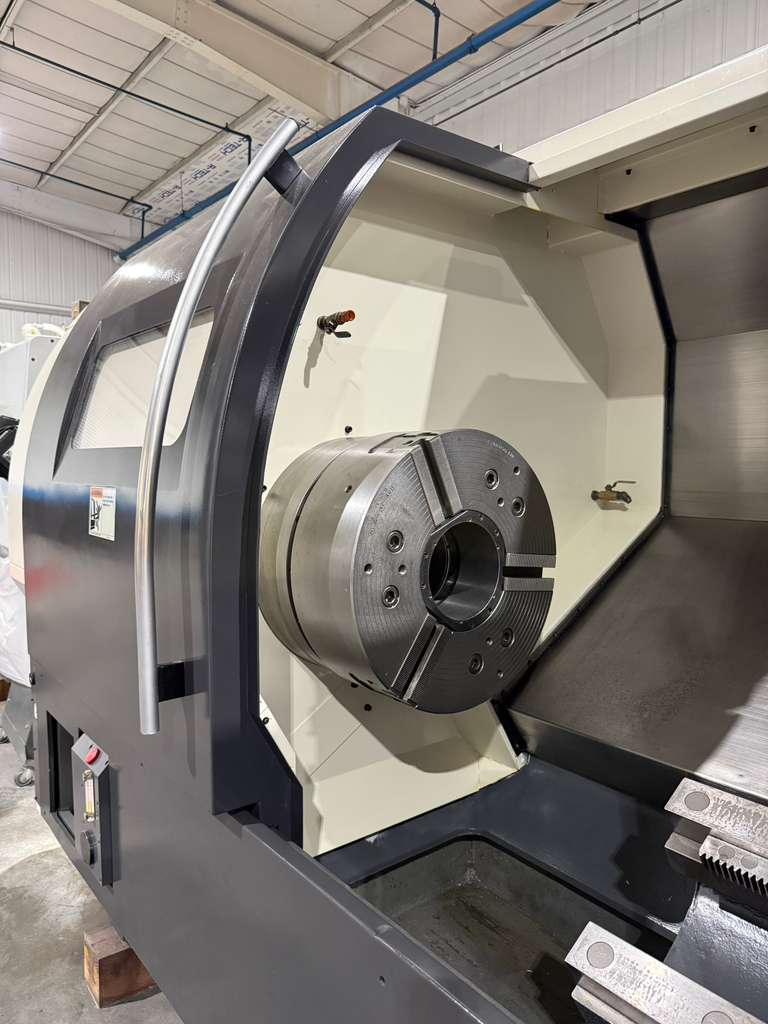

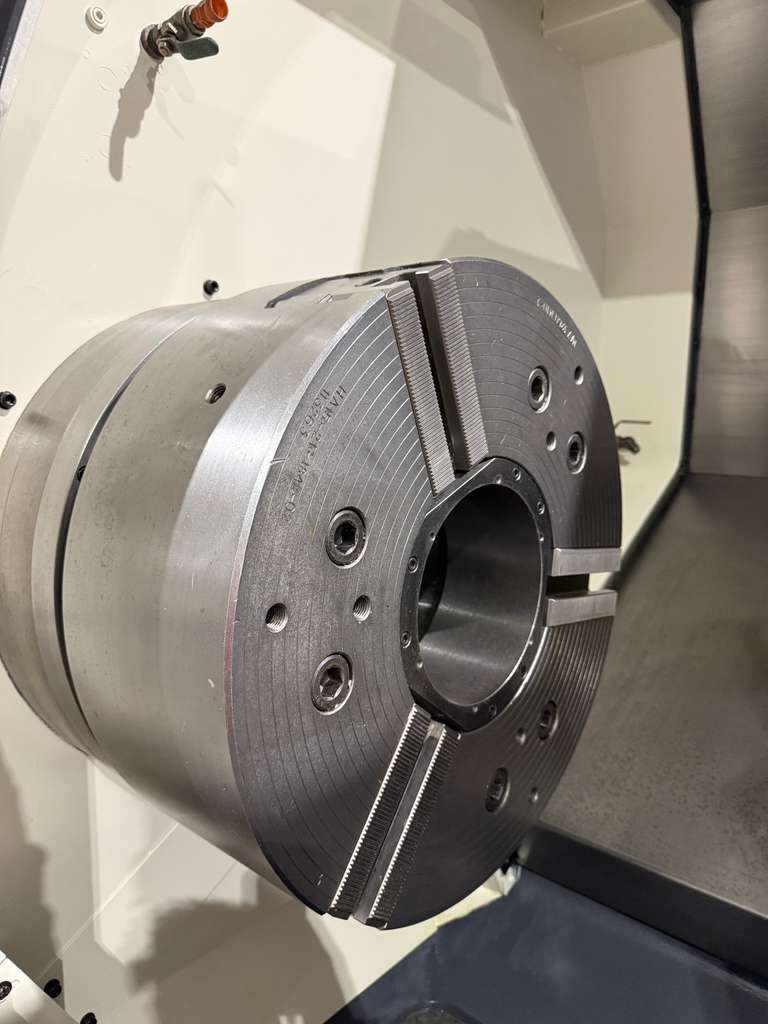

| 21″ 3-Jaw Hydraulic Chuck |
| 7.87″ Big Bore, A2-15 Spindle |

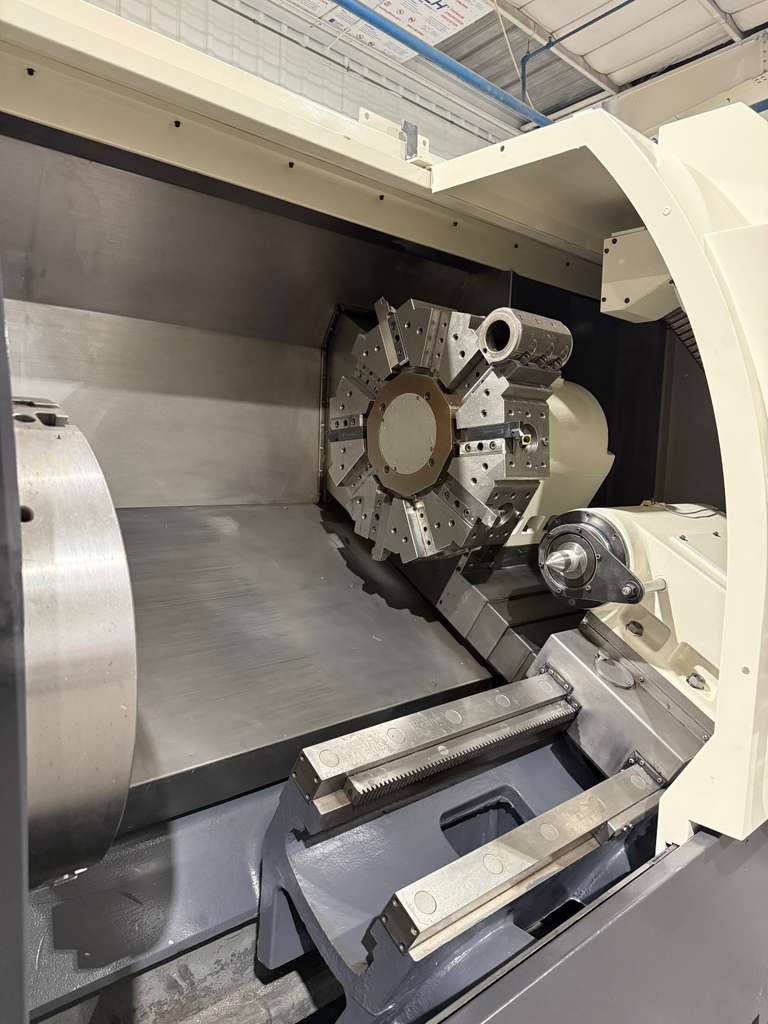

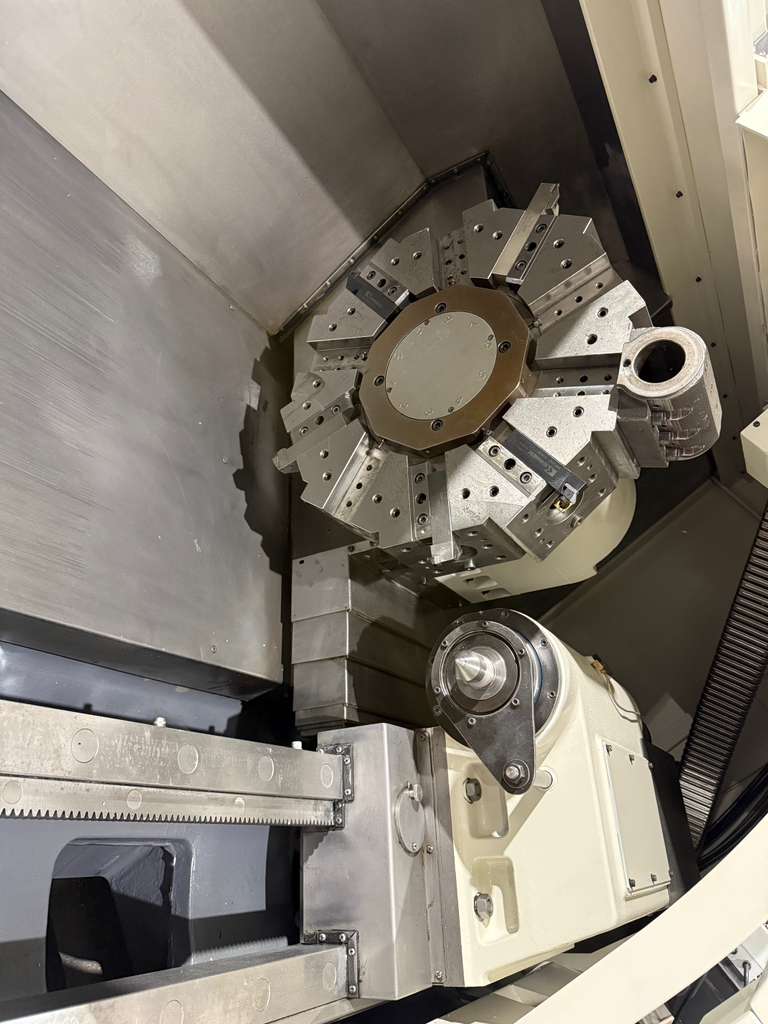

| 10 Station Automatic Turret |
| 35 HP High Torque Spindle |
| High Precision Geared Head Spindle for powerful Torque |
| Hydraulic Tailstock and Power Quill |
| PCMCIA Card Interface |

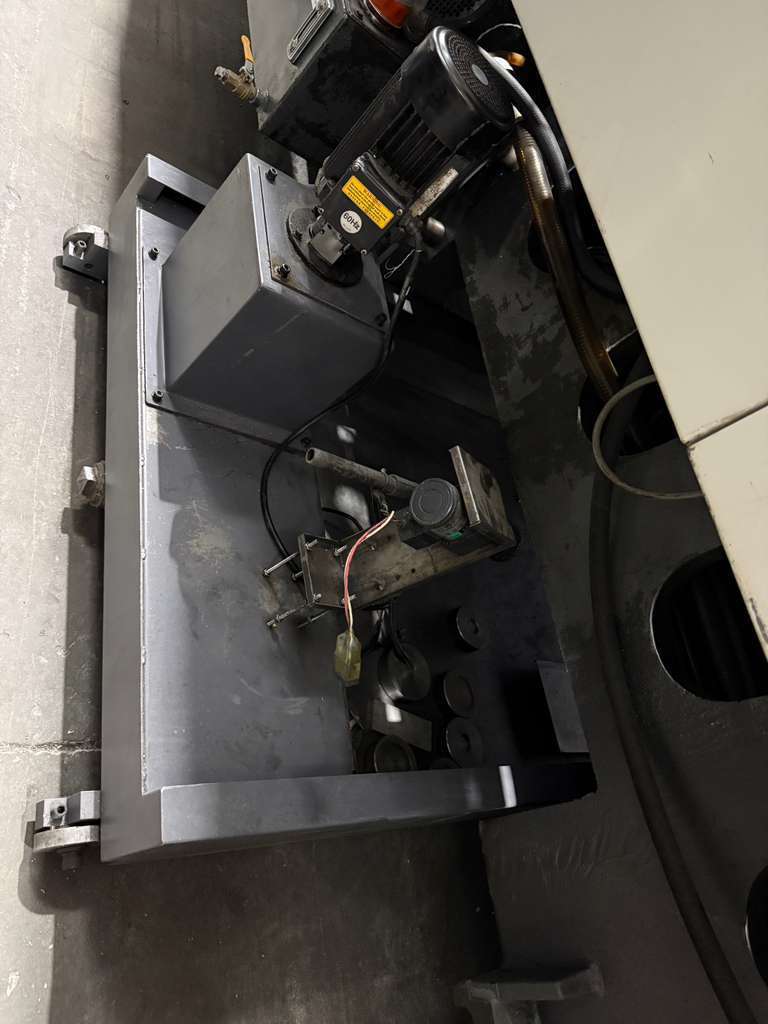

| Coolant Tank |

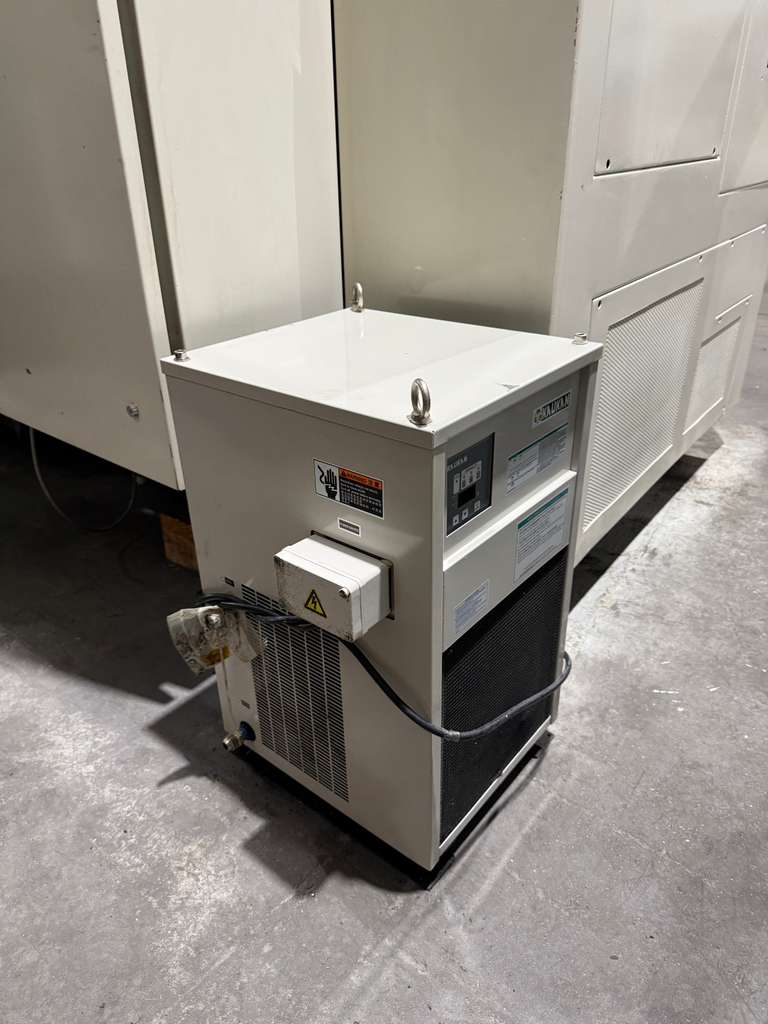

| Spindle Chiller Unit |

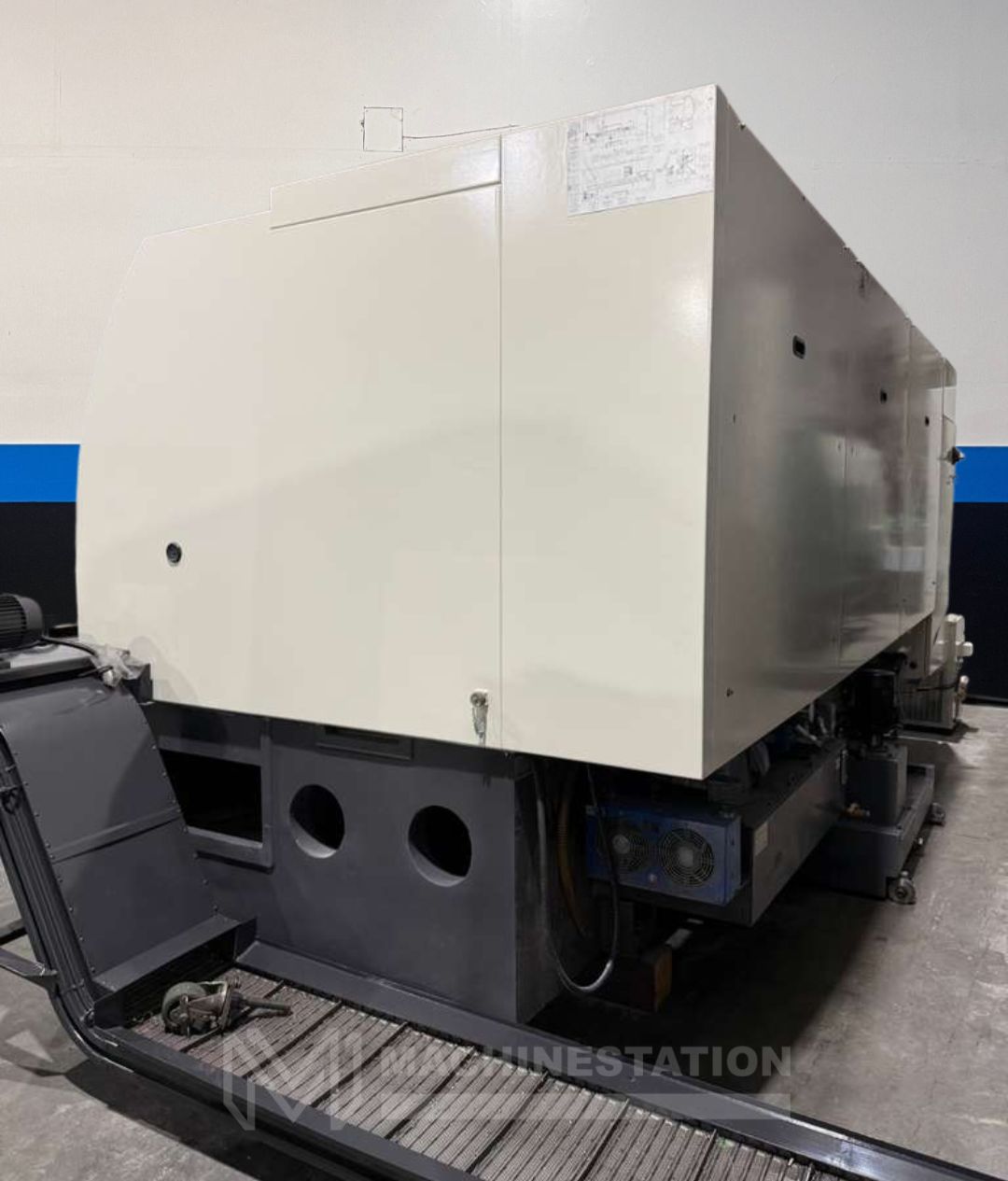

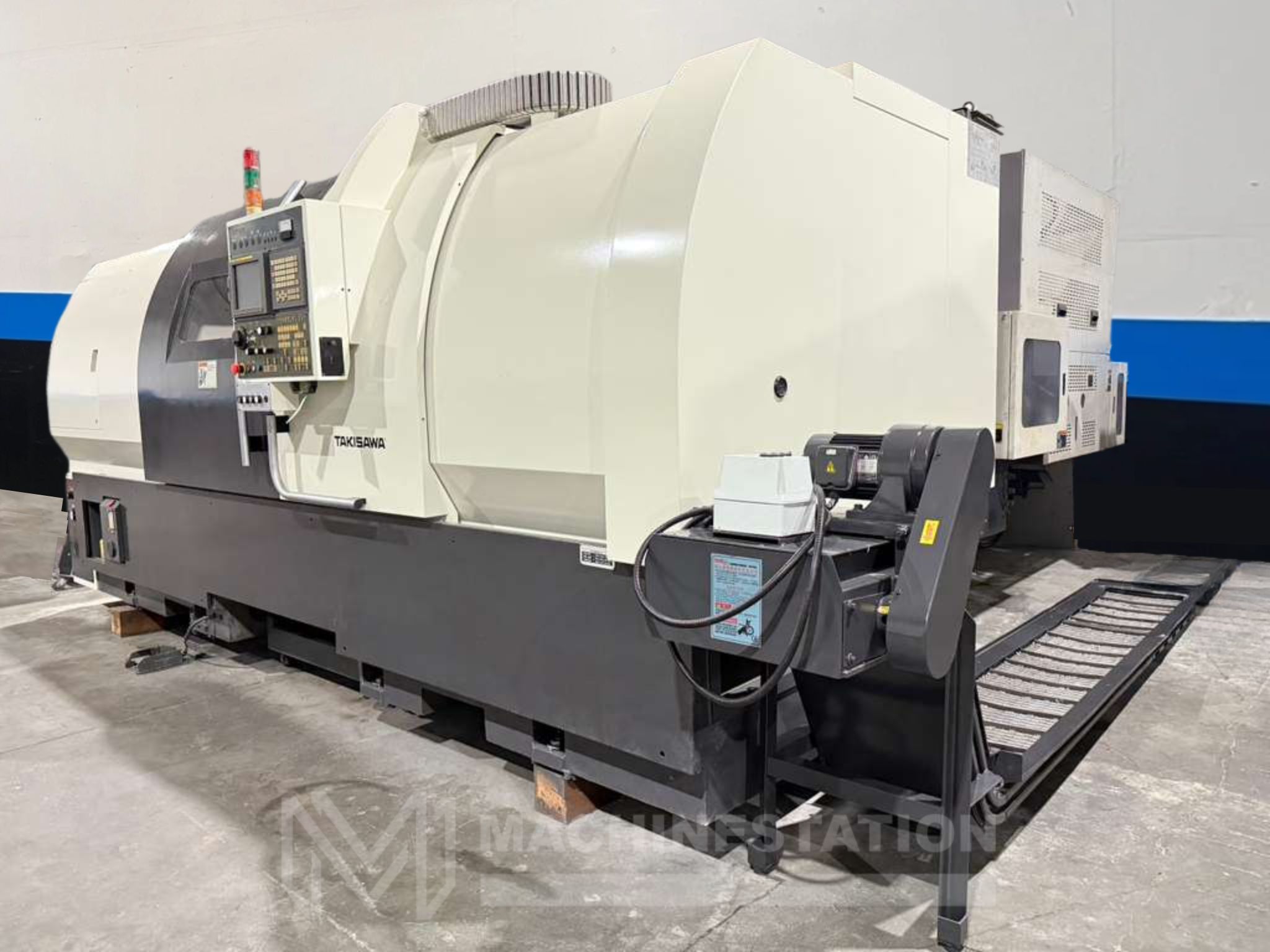

| Chip conveyor |

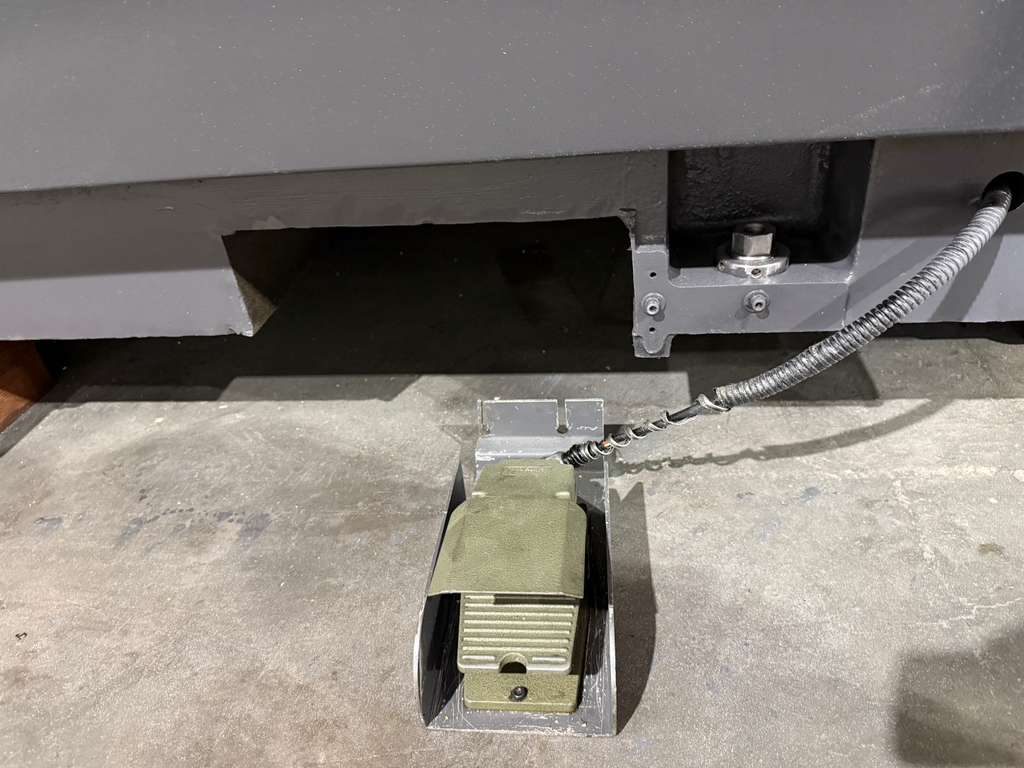

| Foot Switch |
| Levelling Pads |
| Capacity: |
|---|
| Max Turning Diameter: 24.0″ |
| Max Turning Length: 60.0″ |
| Max Bar Capacity: 7.25″ |
| Max Swing Over Bed: 36.0″ |
| Travel: |
|---|
| X Axis Travel: 13.38″ |
| Z Axis Travel: 60.00″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 944 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-15 |
| Spindle Bore: 7.87″ |
| Spindle Speed: 12 – 1200 RPM |
| Spindle Motor: 35 HP |
| Turret: |
|---|
| Capacity: 10 Stations |
| Turning Tool Size: 1.26″ |
| Boring Tool Diameter: 2.56″ |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Quill Stroke.: 7.87″ |
| Tailstock Body Travel: 55.11″ |
| General: |
|---|
| Power: 220v / 54 kva / 3-Phase |
| Overall Dimensions: 186.6″ x 83.86″ x 82.28″ High Approx. |
| Weight: 24,200 lbs. Approx. |
