*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

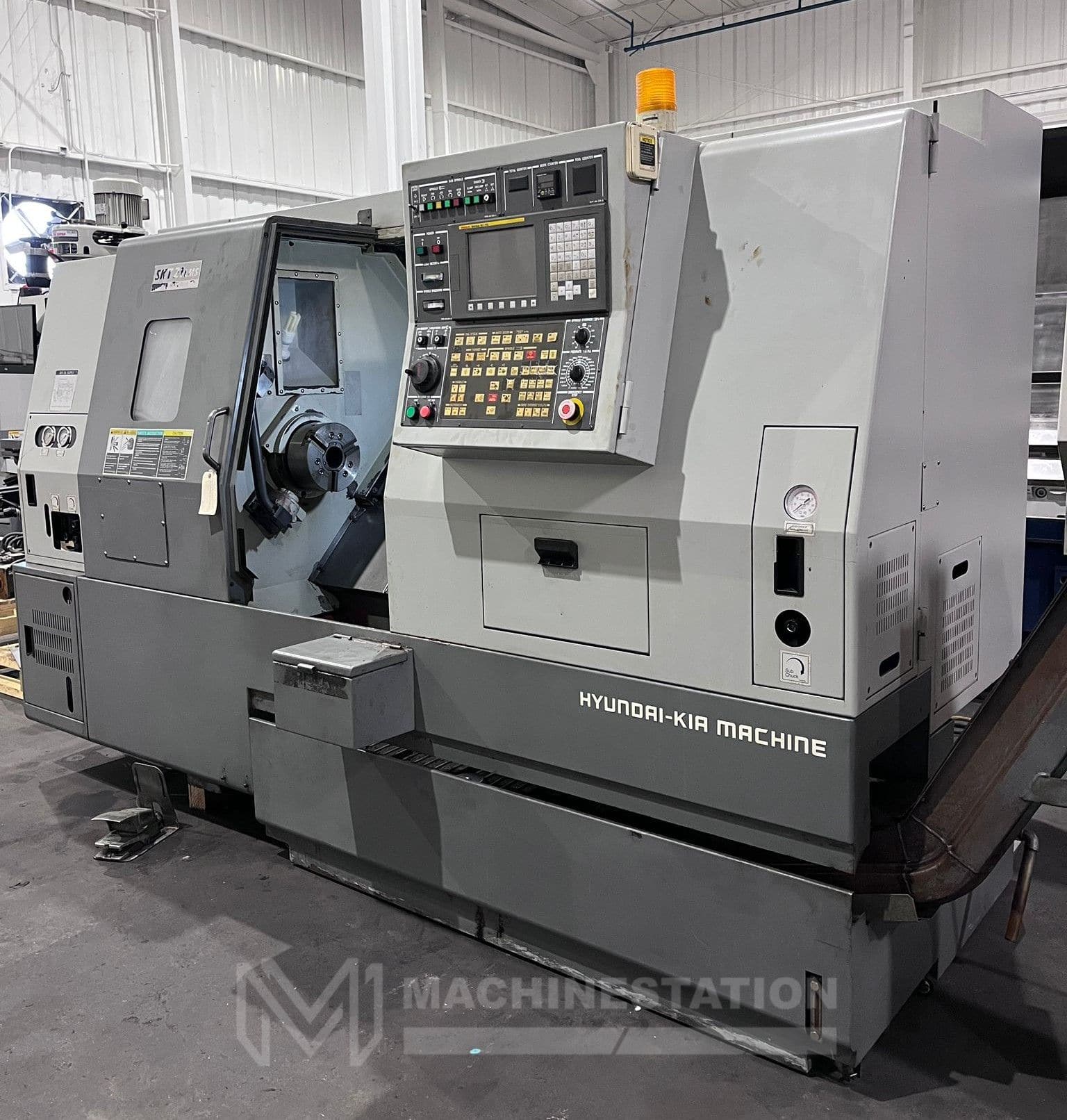

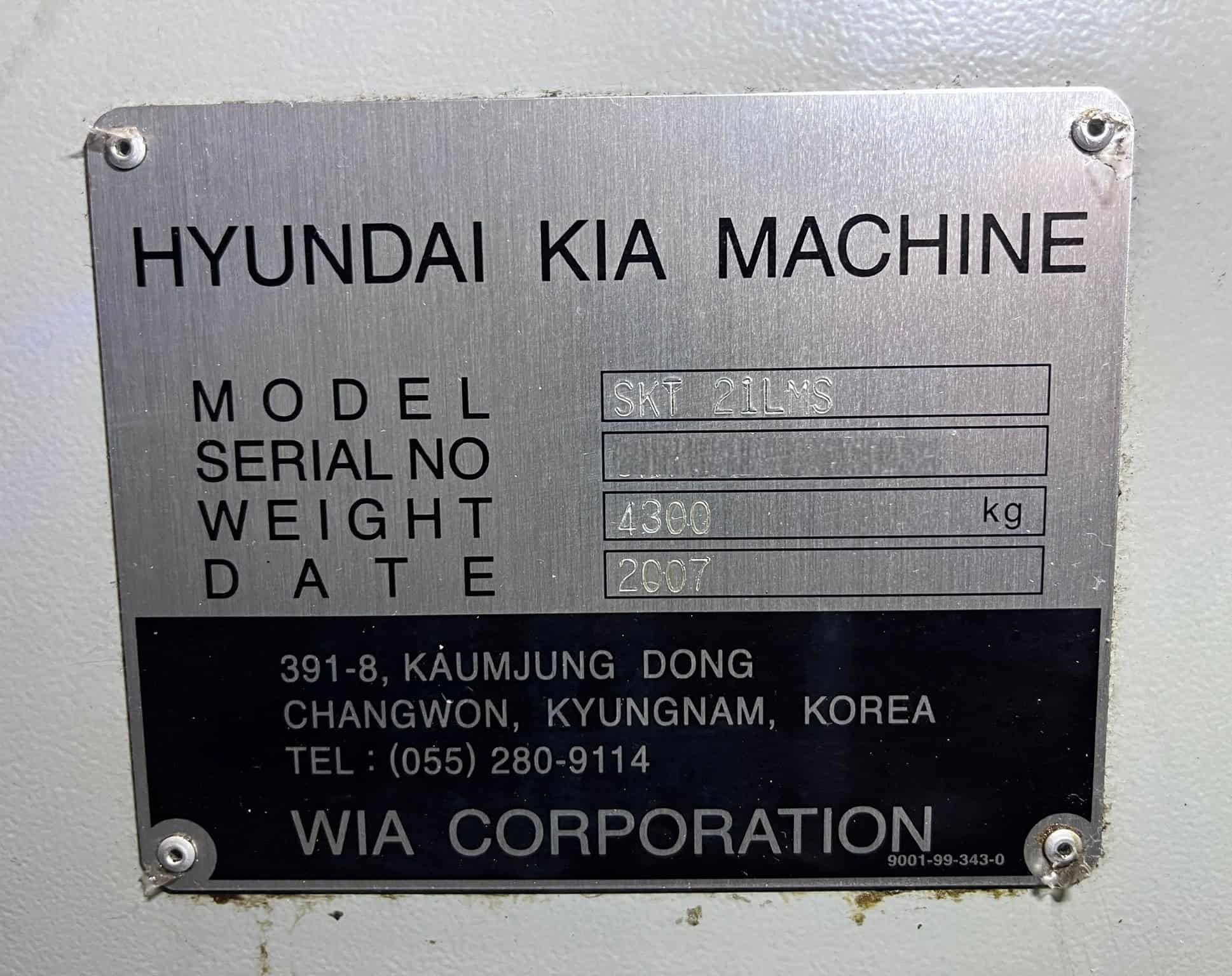

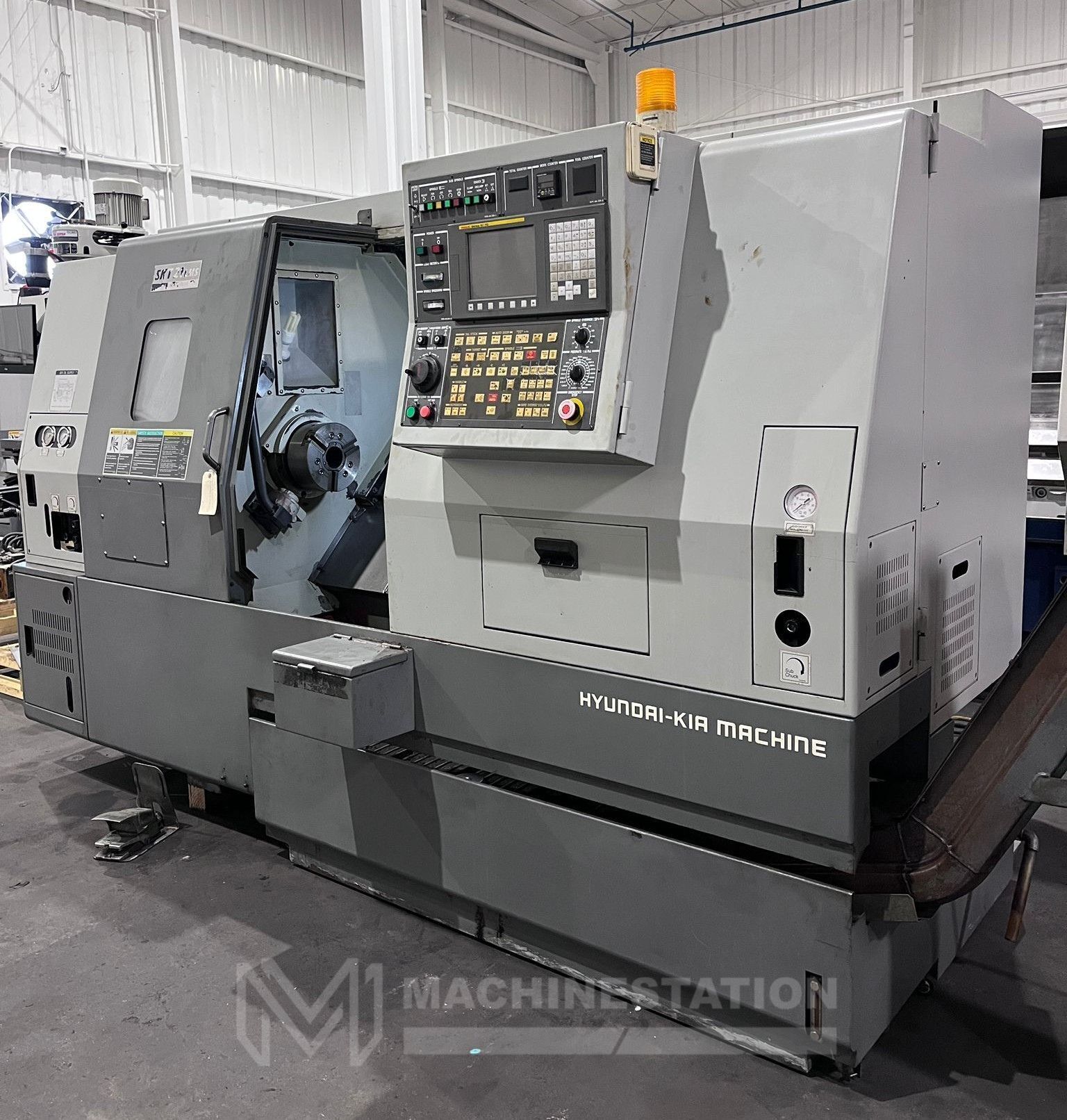

| Make: | Hyundai Kia |
| Model: | SKT21LMS |
| Year: | 2007 |
| Condition: | Used – Good |
| Equipped With: |
|---|

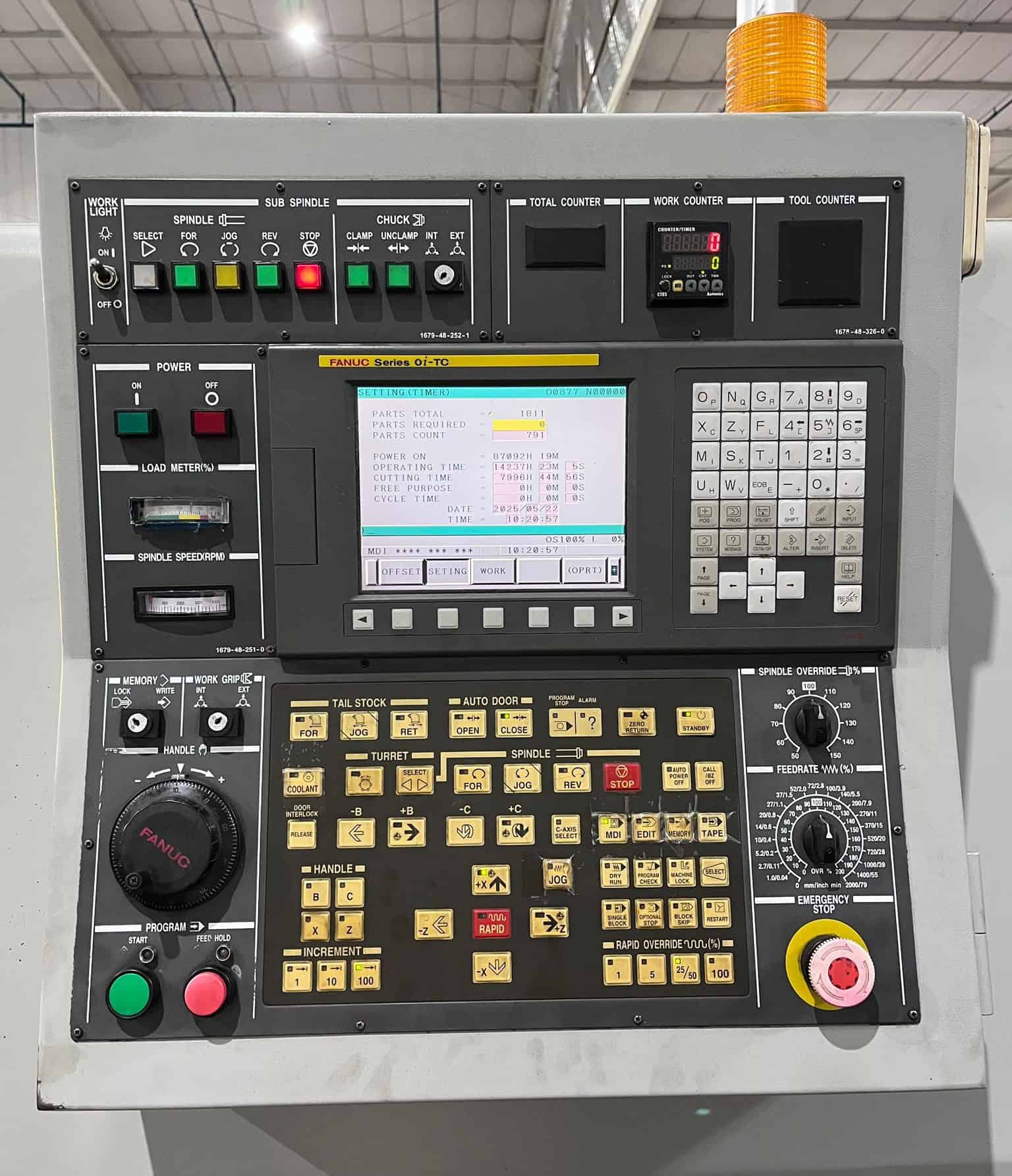

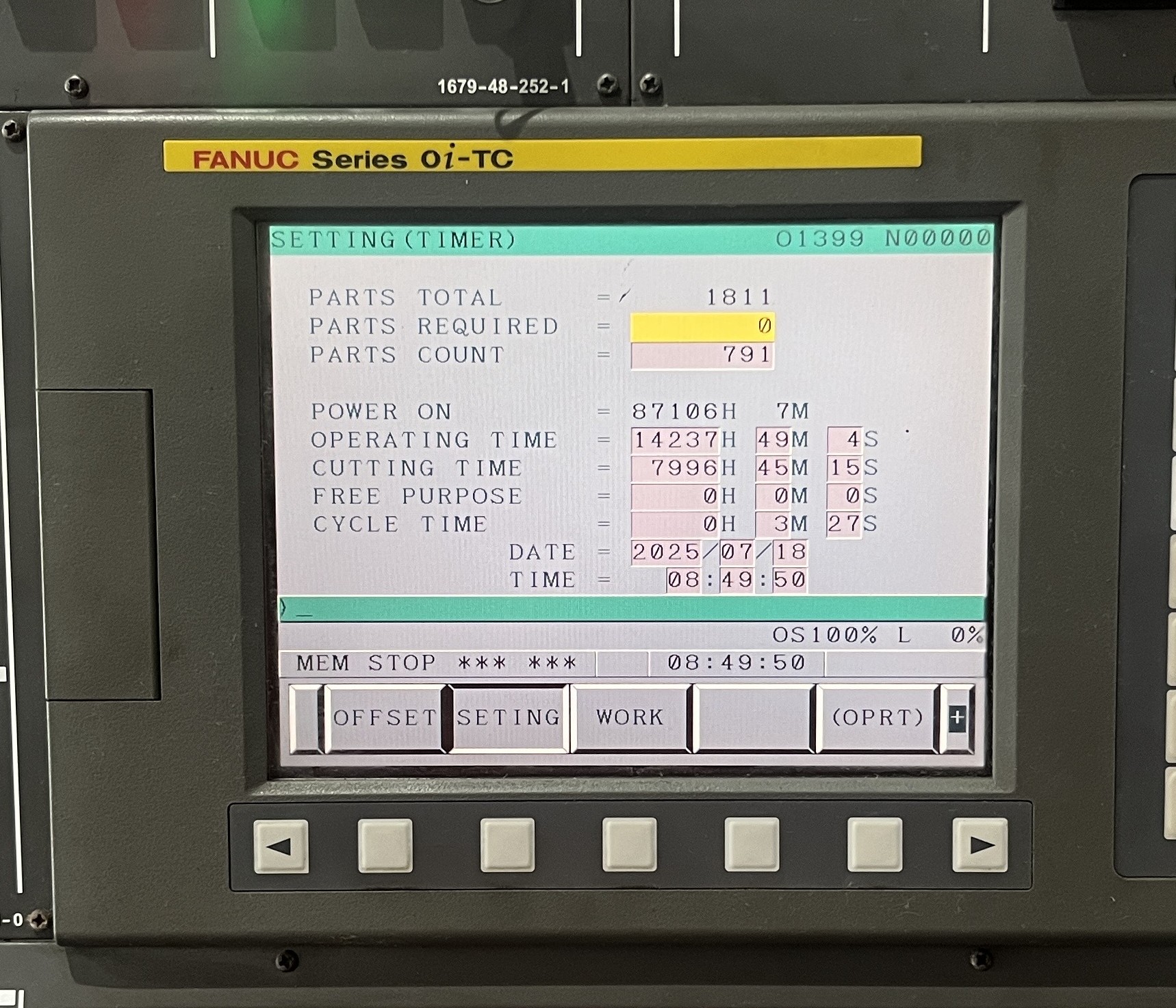

| Fanuc 0i-TC CNC Control |

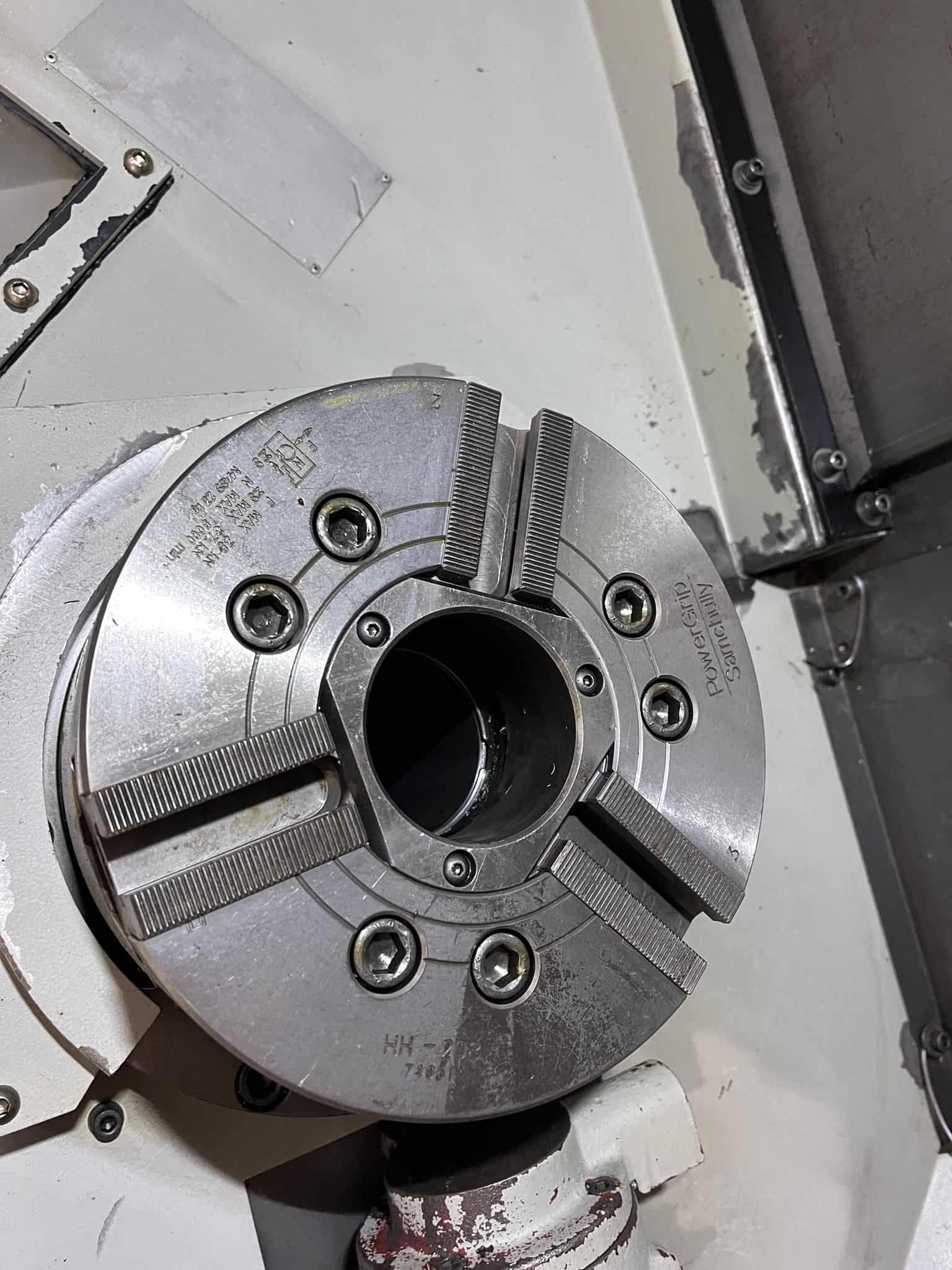

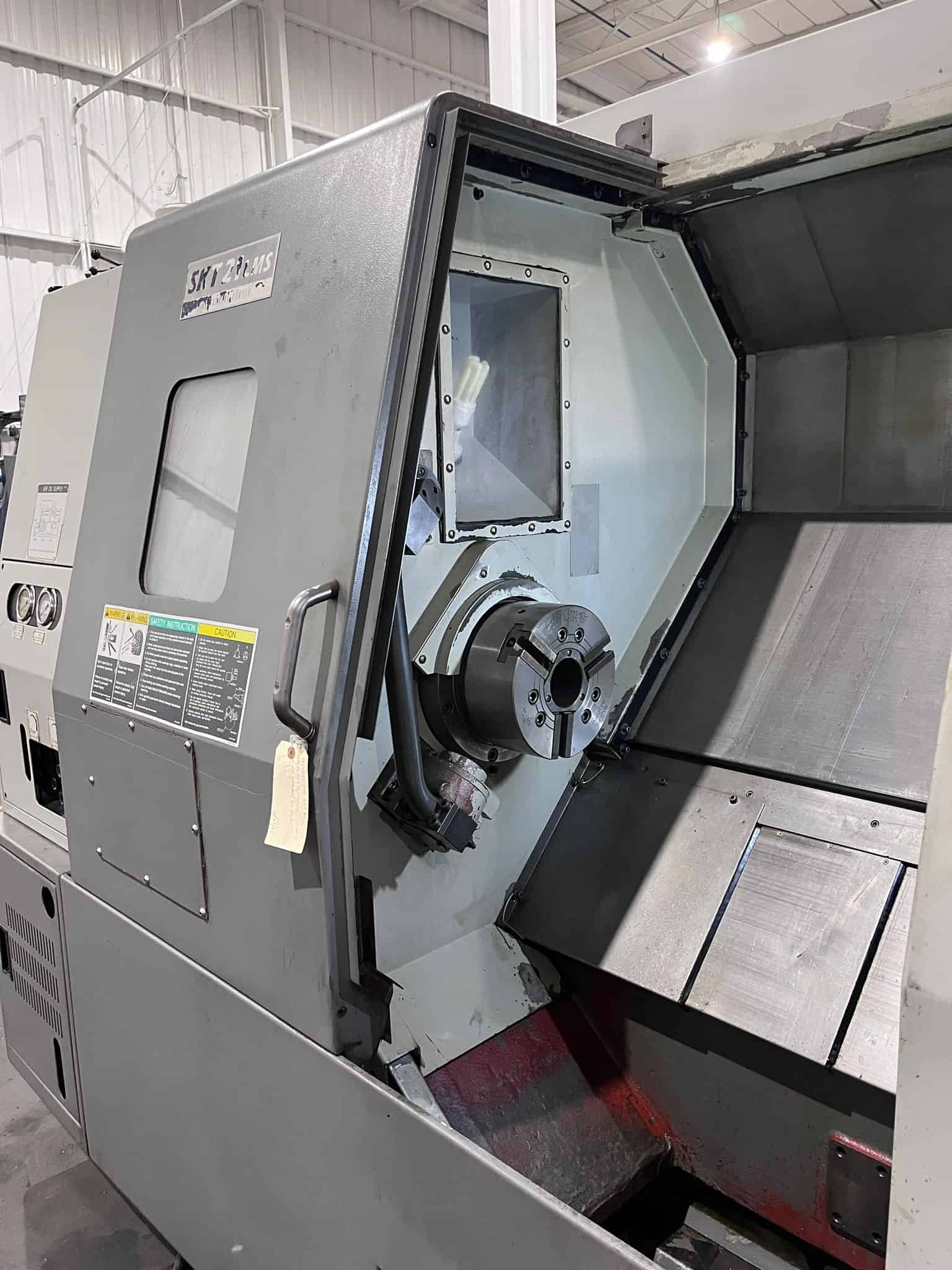

| 8″ 3-Jaw Chuck on Main Spindle |

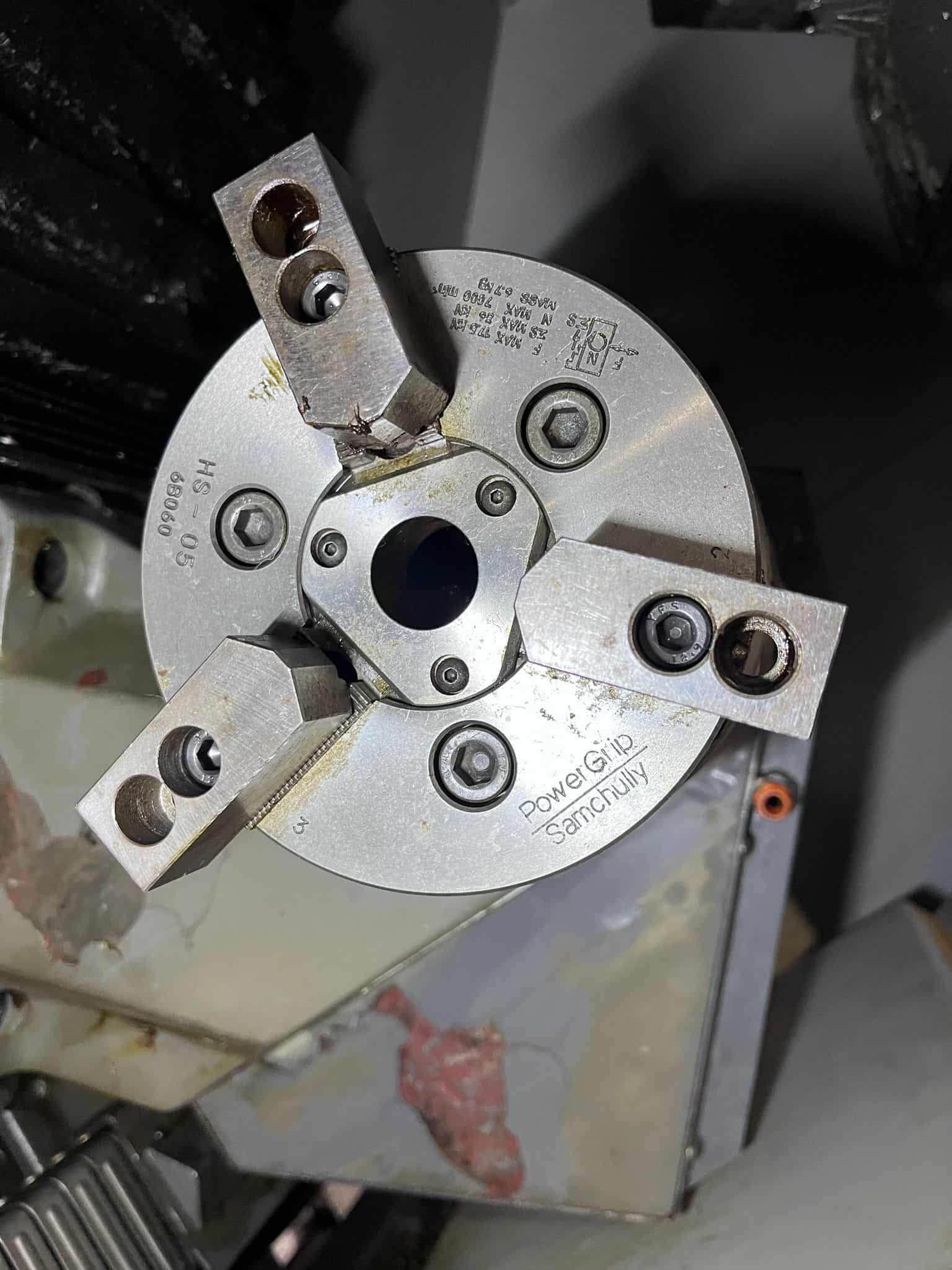

| 5″ 3-Jaw Chuck on Sub Spindle |
| Servo Controlled C Axis on Both Spindles |
| Sub Spindle |

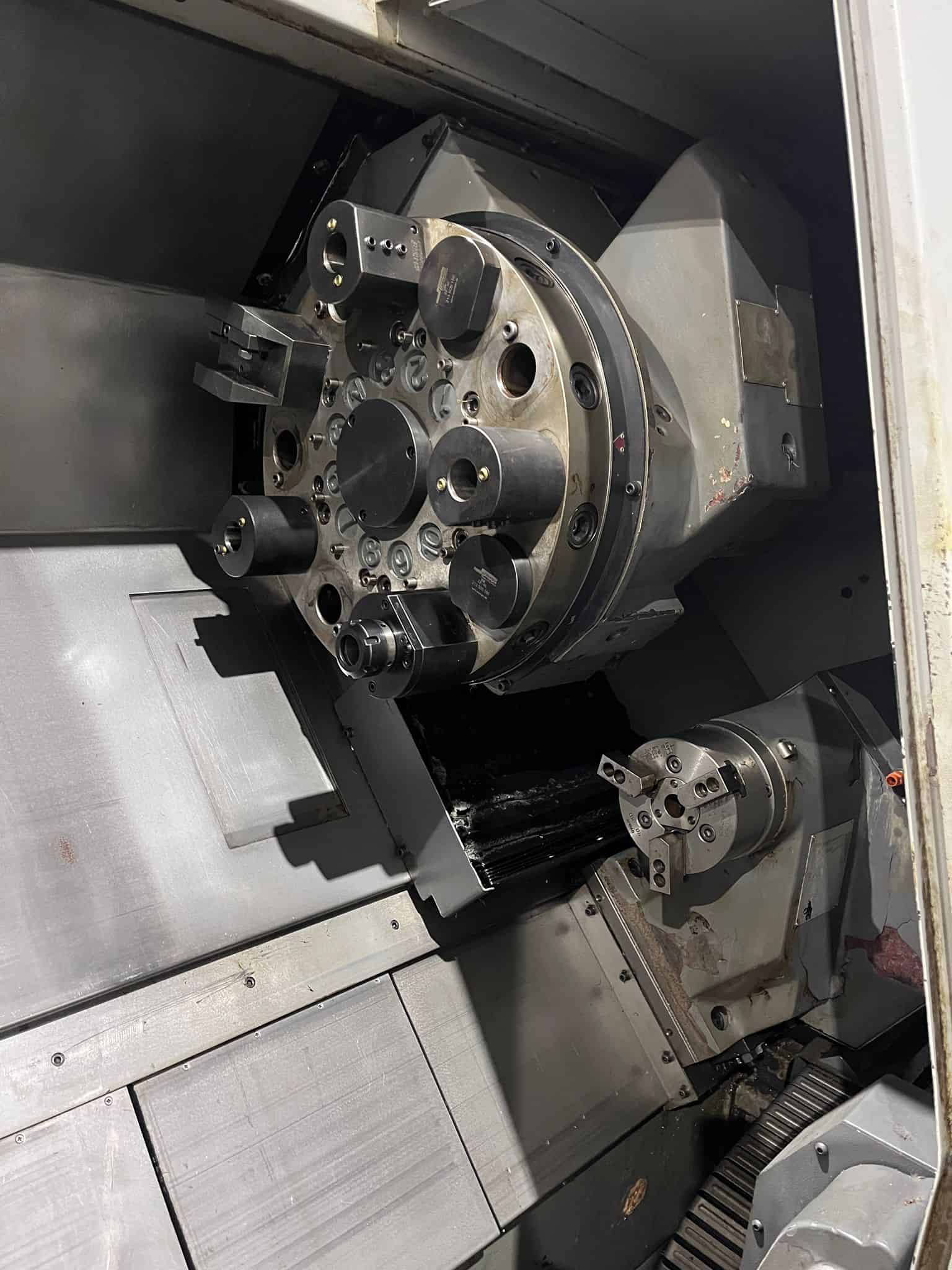

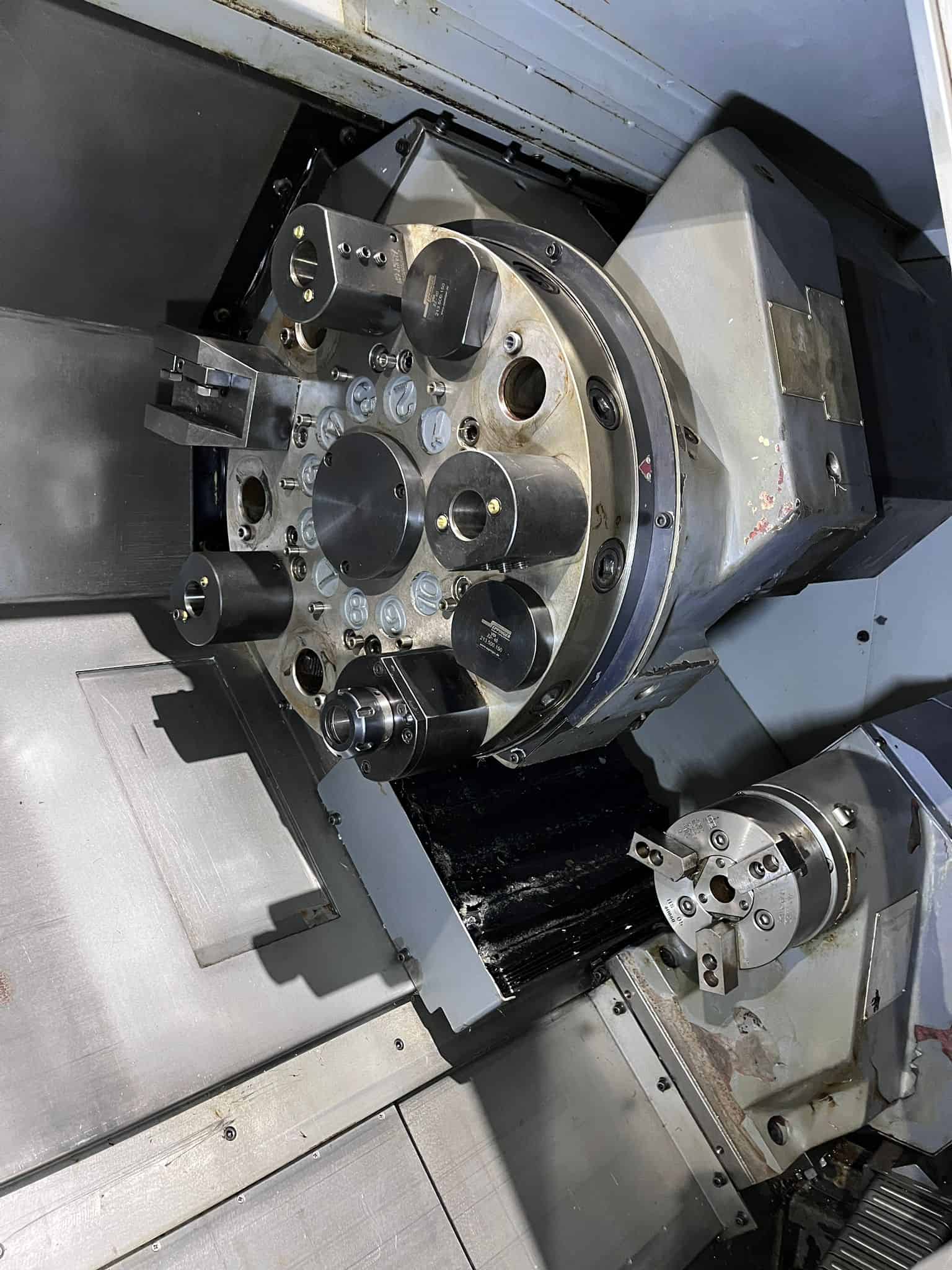

| 12 Station Live Tool Turret |
| Tool Presetter |
| Part Catcher |
| PCMCIA Card Interface |
| RS-232 Port |
| USB Port |

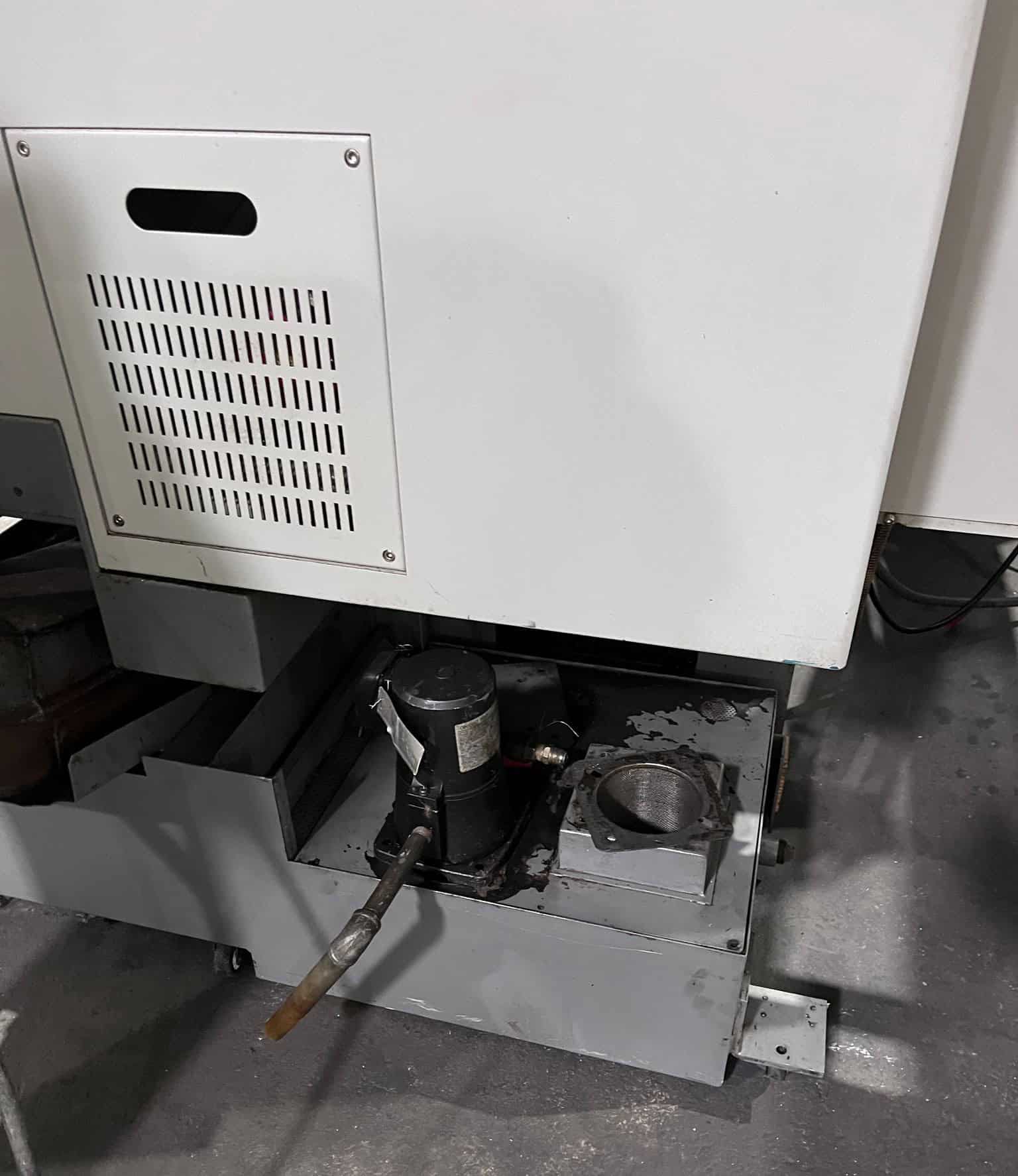

| Coolant System |
| Chip Conveyor |
| Levelling Pads |
| Foot Switch |

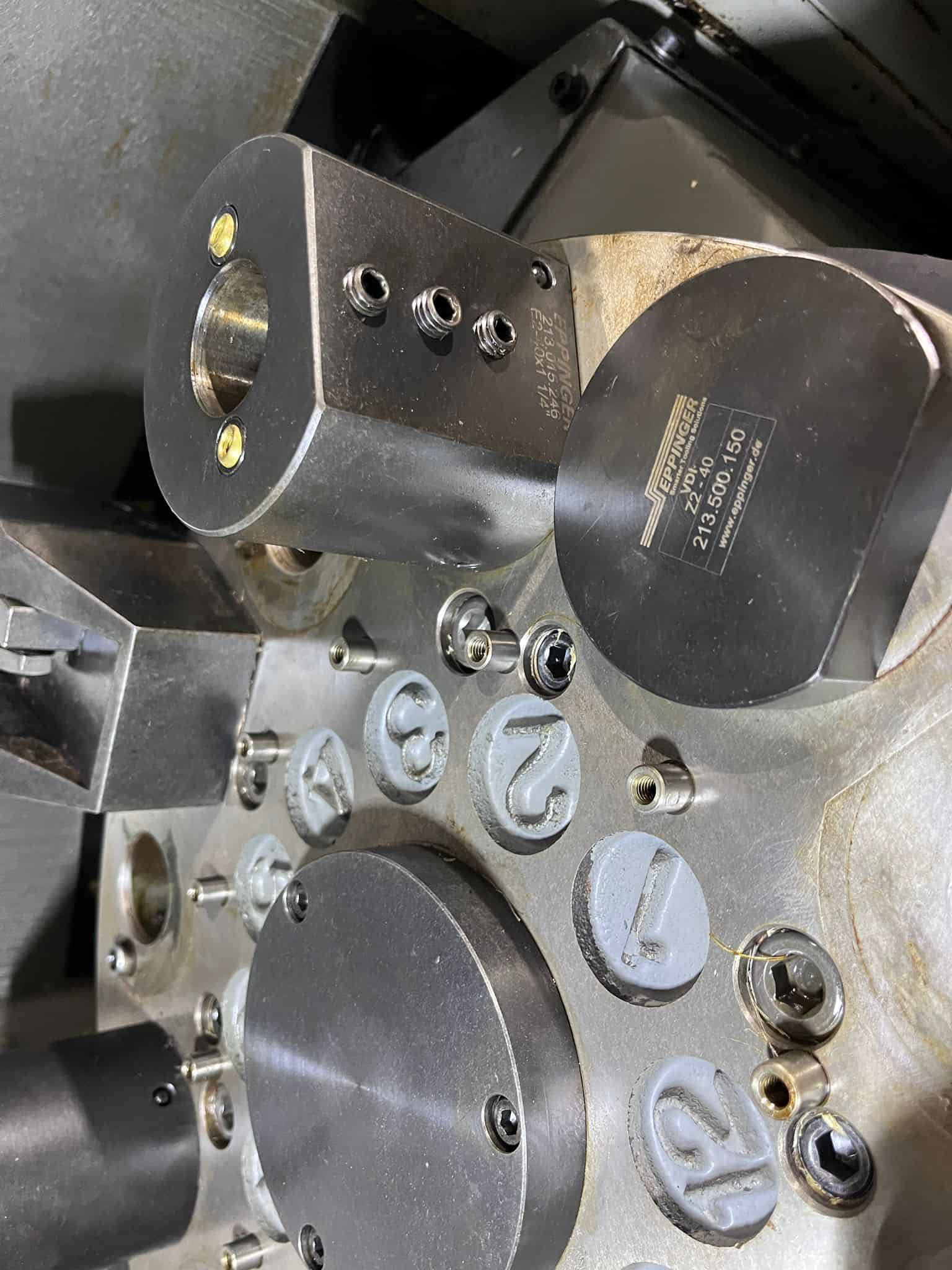

| (1) Live Tool Holder (4) Statics Tool Holders Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 10.0″ |
| Max Turning Length: 20.9″ |
| Max Swing Over Bed: 21.7″ |
| Max Swing Over Cross Slide: 13.8″ |
| Max Bar Capacity: 2.56″ |
| Travels: |
|---|
| X Axis Travel: 8.3″ |
| Z Axis Travel: 21.7″ |
| B Axis Travel (Sub Spindle): 29.5″ |
| C Axis Indexing: 360 Degree (0.001) |
| Rapid Traverse Rate X & Z Axis: 1417 IPM |
| Rapid Traverse Rate B Axis: 1181 IPM |
| Main Spindle: |
|---|
| Main Spindle Nose: A2-6 |
| Main Spindle Bore: 3.07″ |
| Main Spindle Bar Capacity: 2.56″ |
| Main Spindle Speed: 4000 RPM |
| Man Spindle Motor: 20 HP |
| Sub Spindle: |
|---|
| Sub Spindle Nose: Flat (115) |
| Sub Spindle Bore: 1.69″ |
| Sub Spindle Bar Capacity: 1.3″ |
| Sub Spindle Speed: 6000 RPM |
| Sub Spindle Motor: 5 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.2 Second |
| Rotary Tool Speed: 4,000 RPM |
| Rotary Tool Motor: 5 HP |
| Tool Holders Type: VDI-40 |
| General: |
|---|

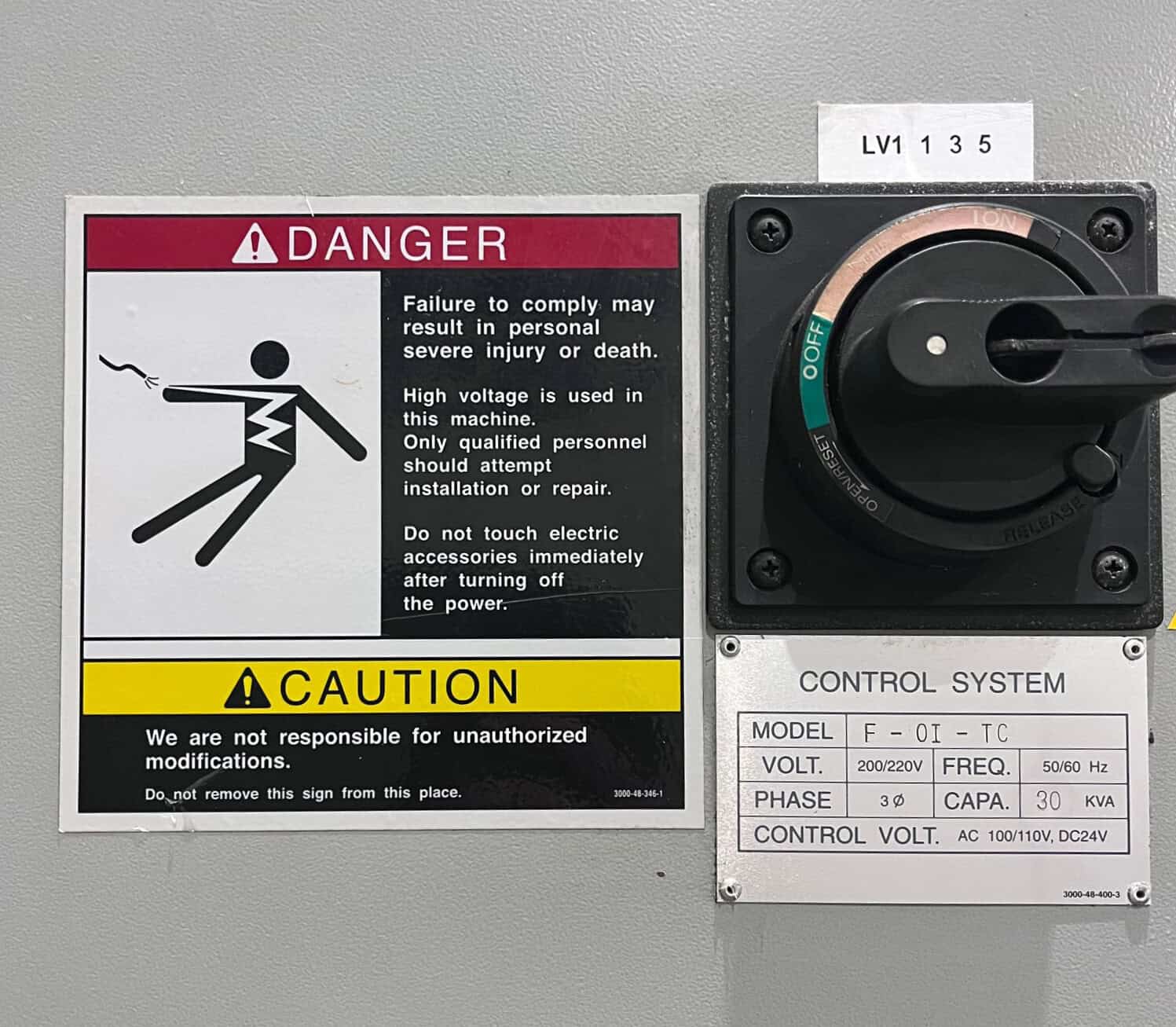

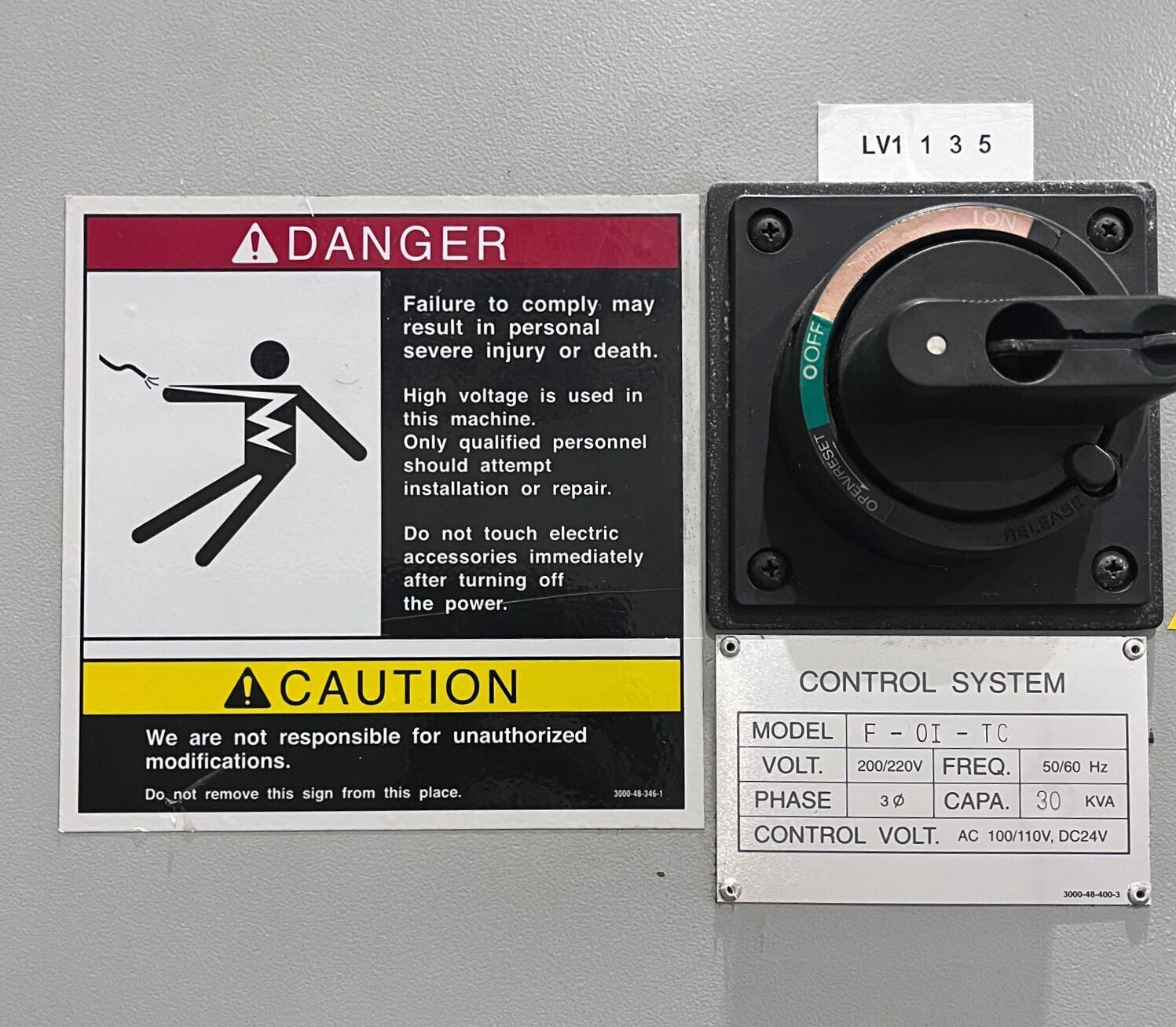

| Power Source: AC 220 V / Three Phase / 60 Hz |
| Power Requirement: 30 kva |
| Overall Dimensions: 120″ x 65″ x 83″ High Approx. |
| Weight : 9,500 bs Approx. |
