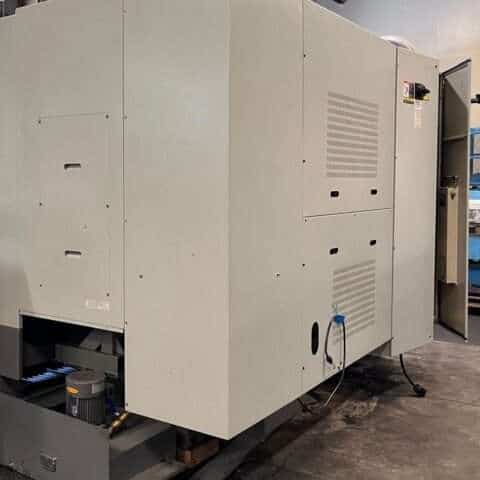

Hyundai Kia SKT-250Y CNC Turn Mill Center - Y Axis Lathe 12

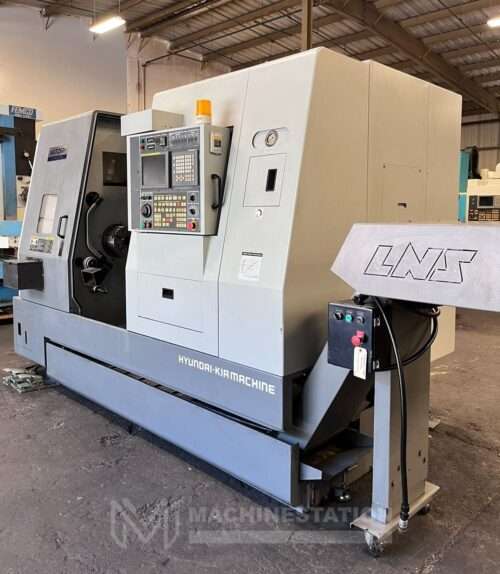

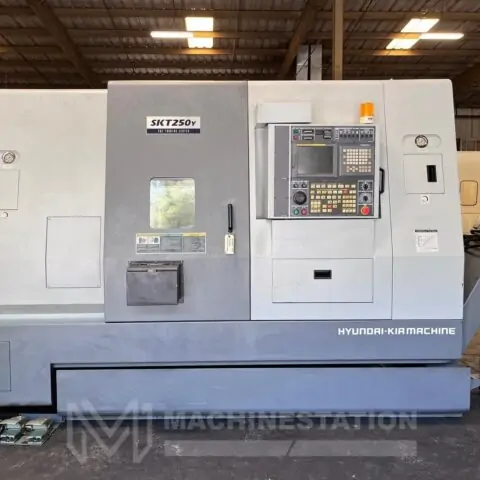

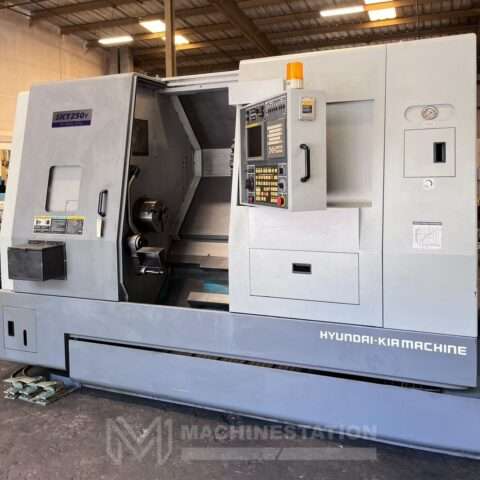

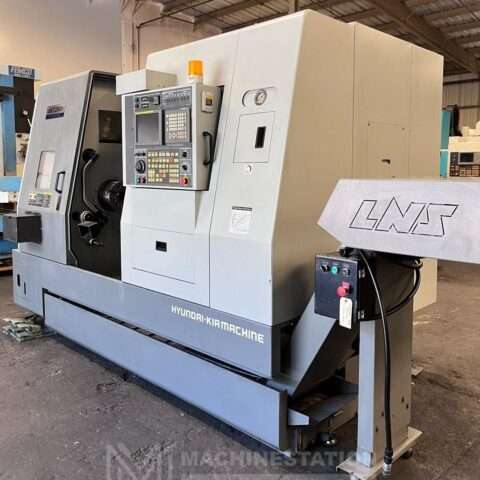

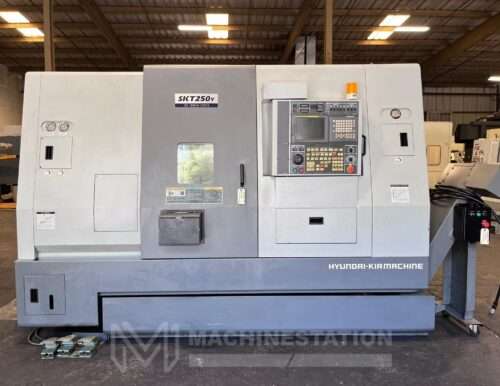

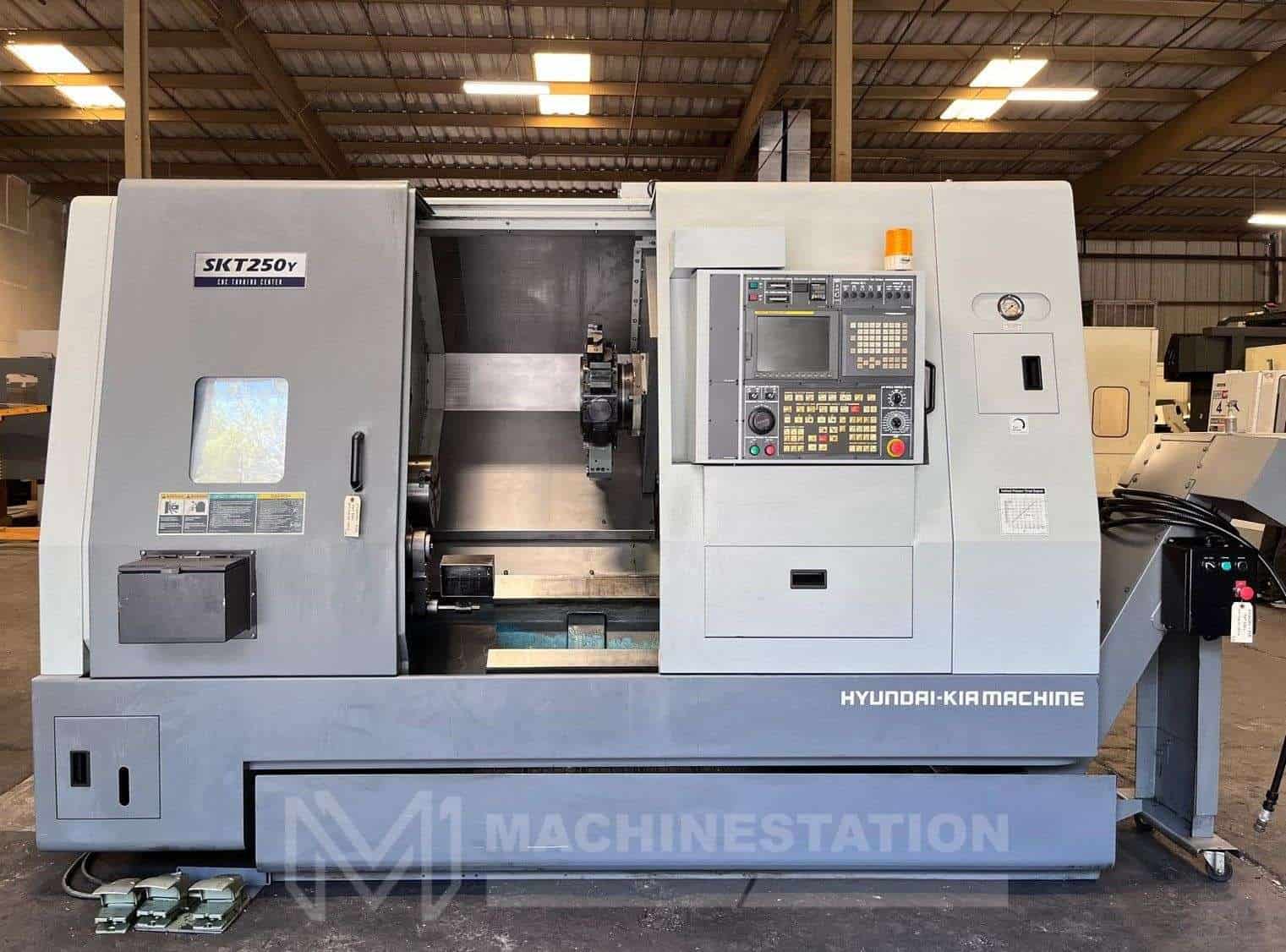

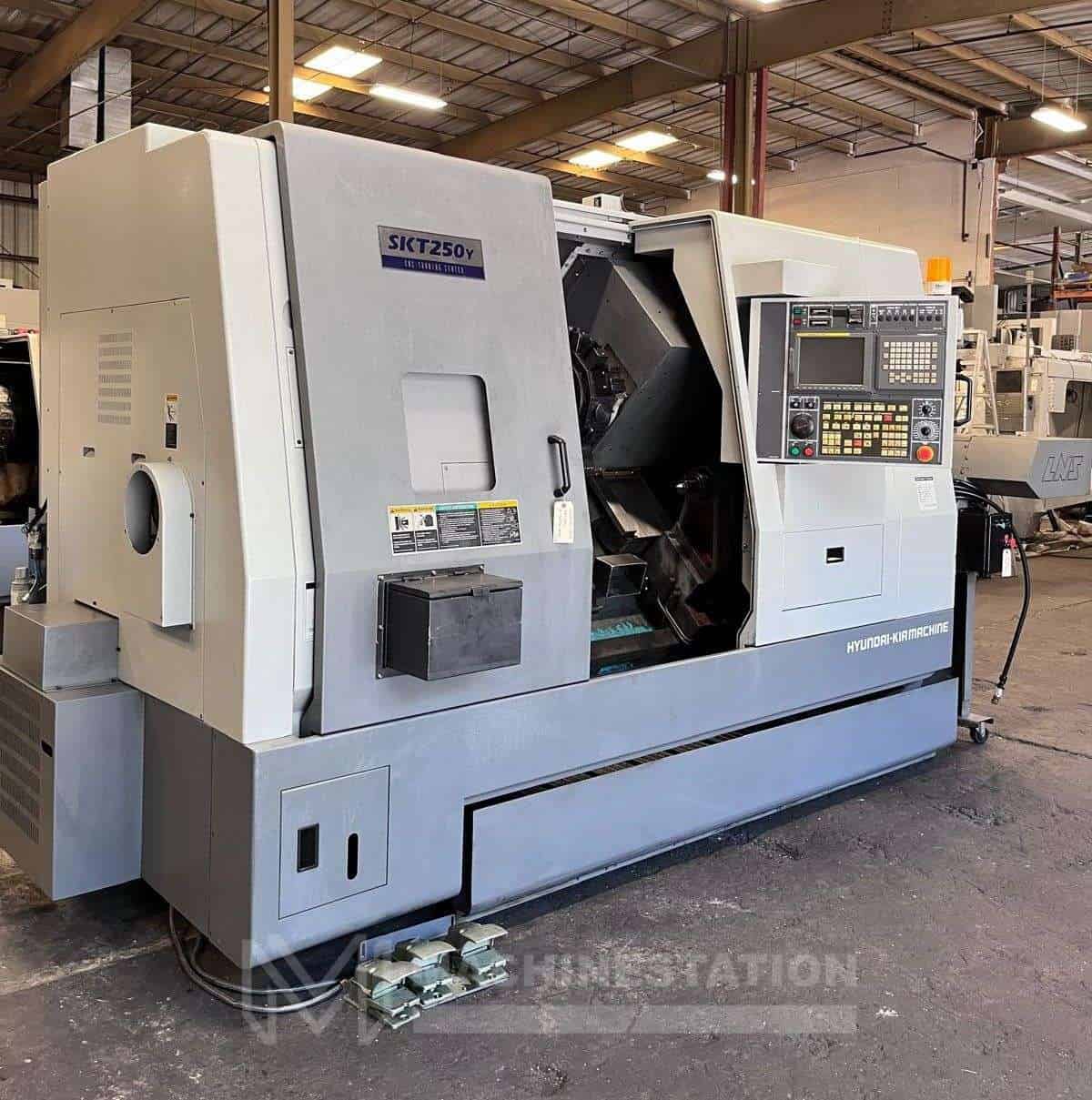

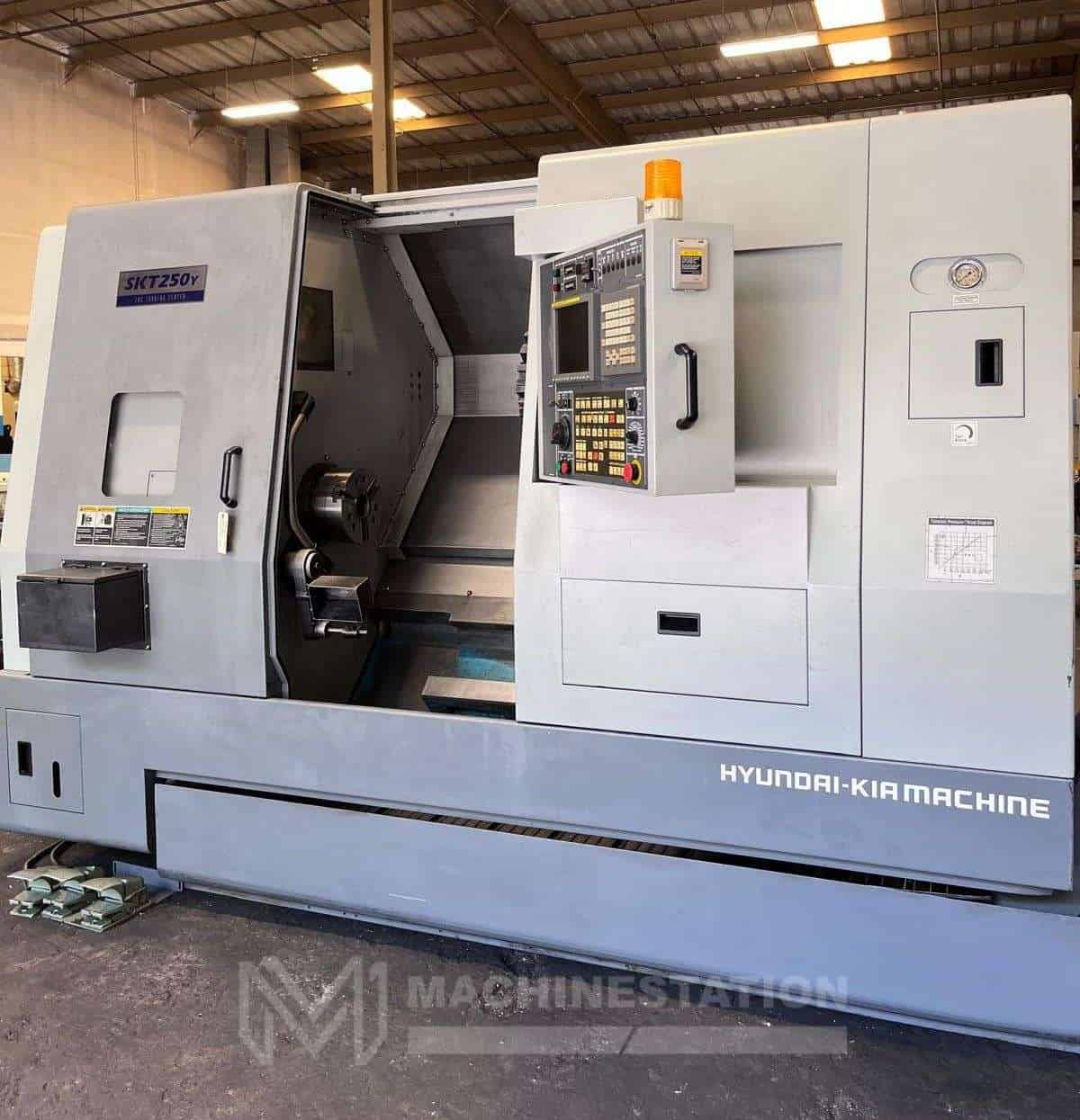

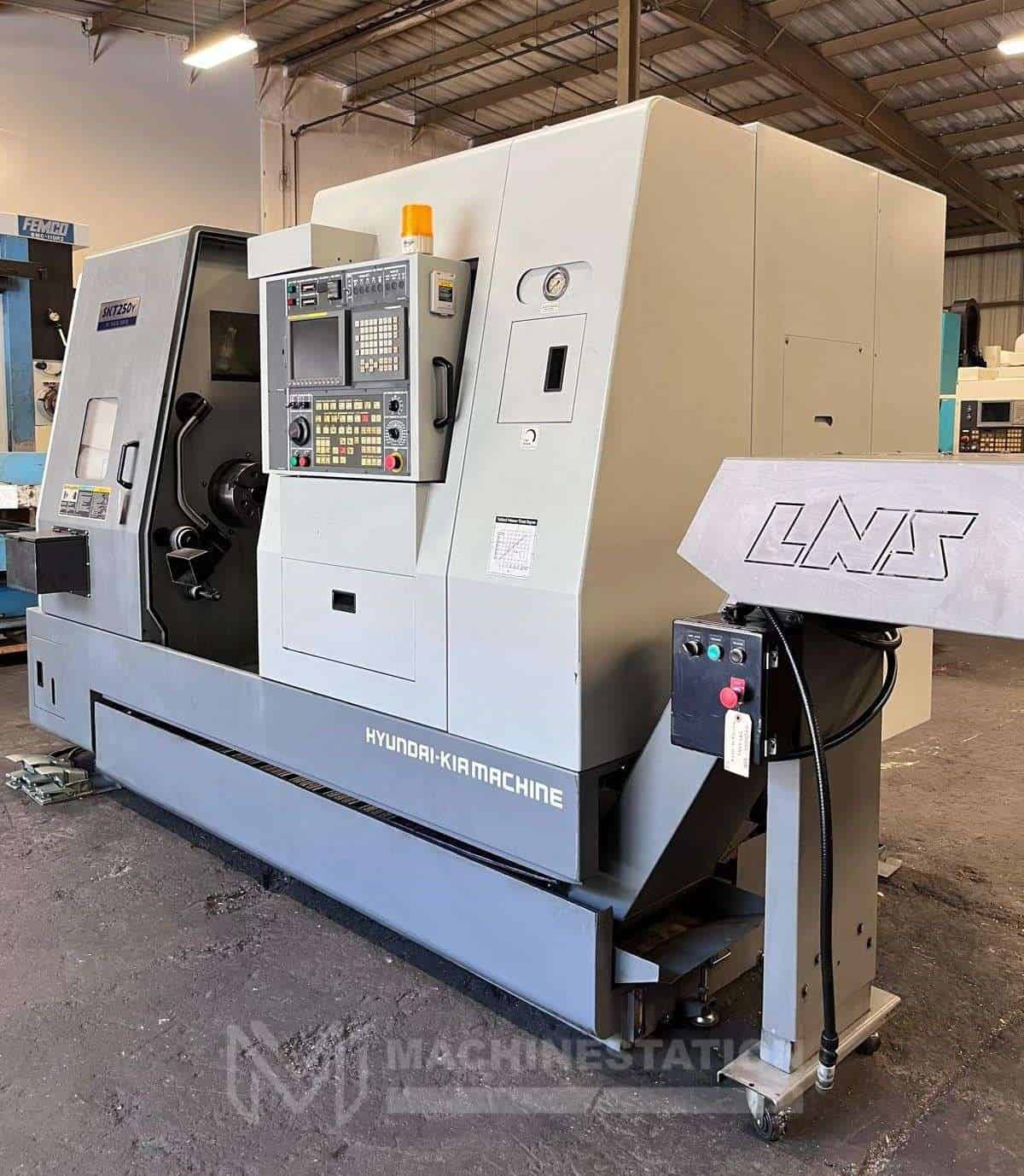

Hyundai Kia SKT-250Y CNC Turn Mill Center – Y Axis Lathe

Location Fontana, CA
SKU 112345
Make HYUNDAI KIA
Model SKT-250Y
Year 2006
Cutting Time 4,880 Hours
Video On Request
Out of stock
Location: Fontana, CA
SKU: 112345
Make: HYUNDAI KIA
Model: SKT-250Y
Year: 2006
Cutting Time: 4,880 Hours
Video: On Request
SKU: 112345

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: HYUNDAI KIA
Model: SKT-250Y
Year: 2006
Condition: Used – Good
Equipped With:

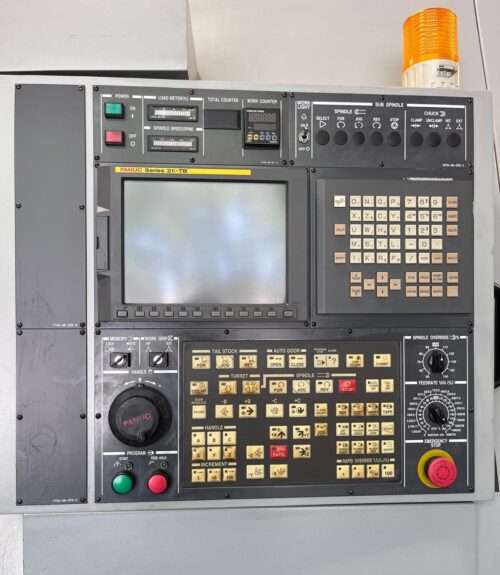

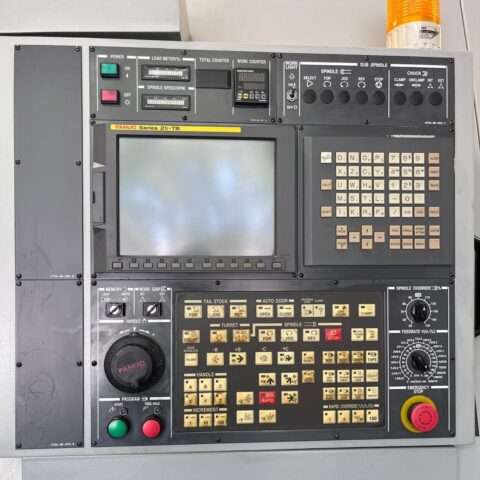

Fanuc 21i-TB CNC Control
C & Y Axis Capability
Servo Controlled Full C-Axis Spindle

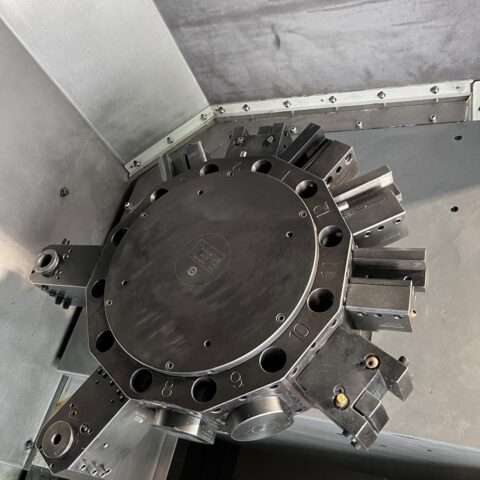

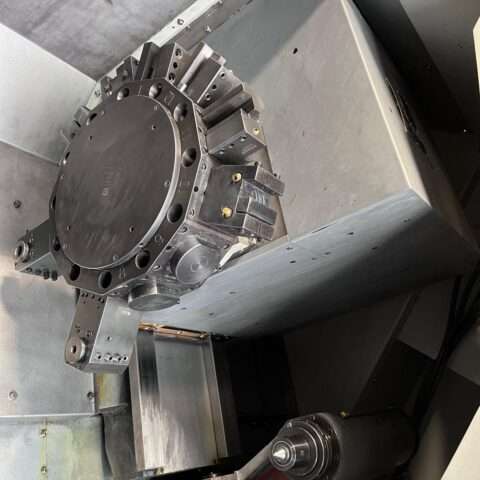

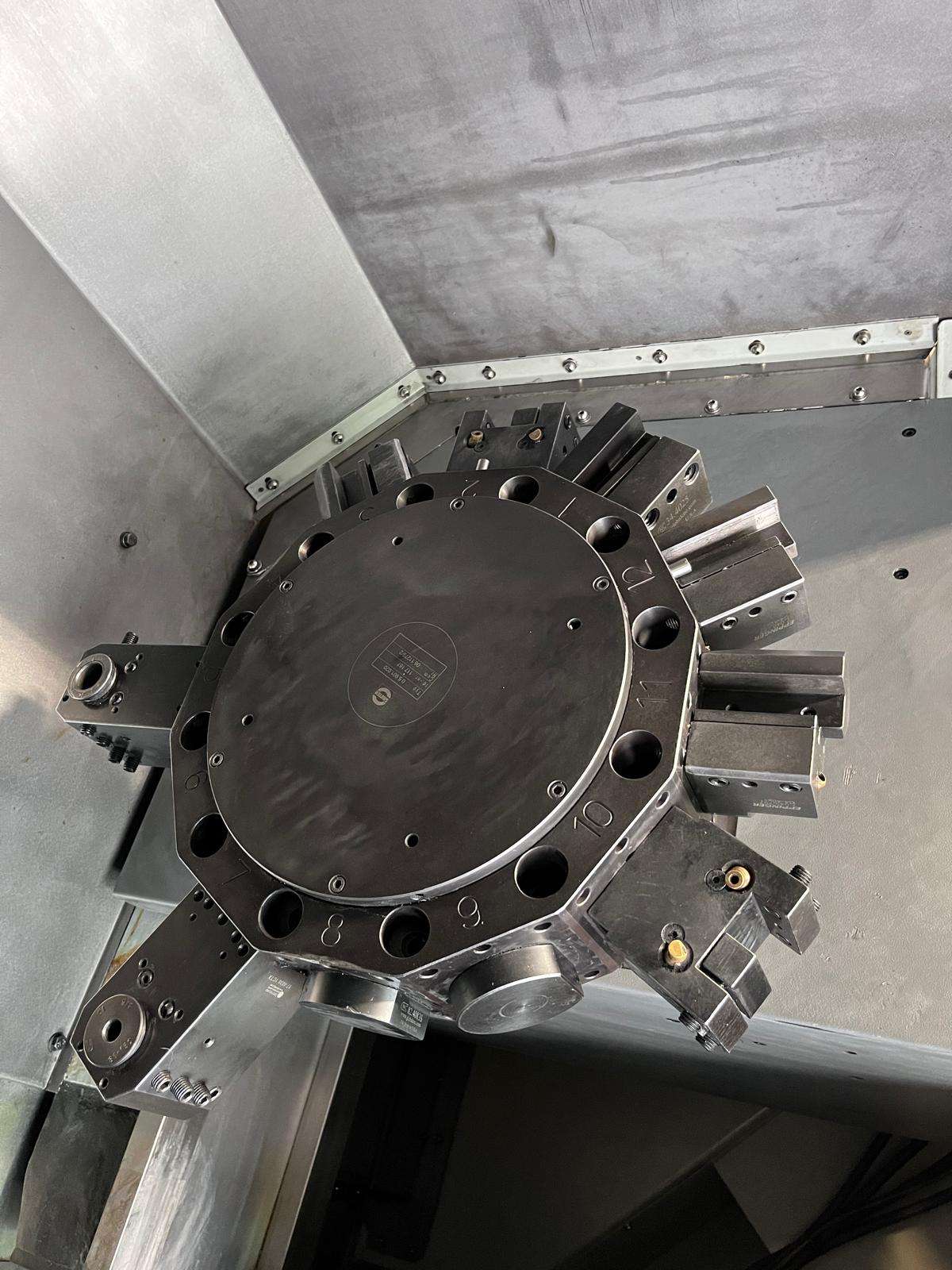

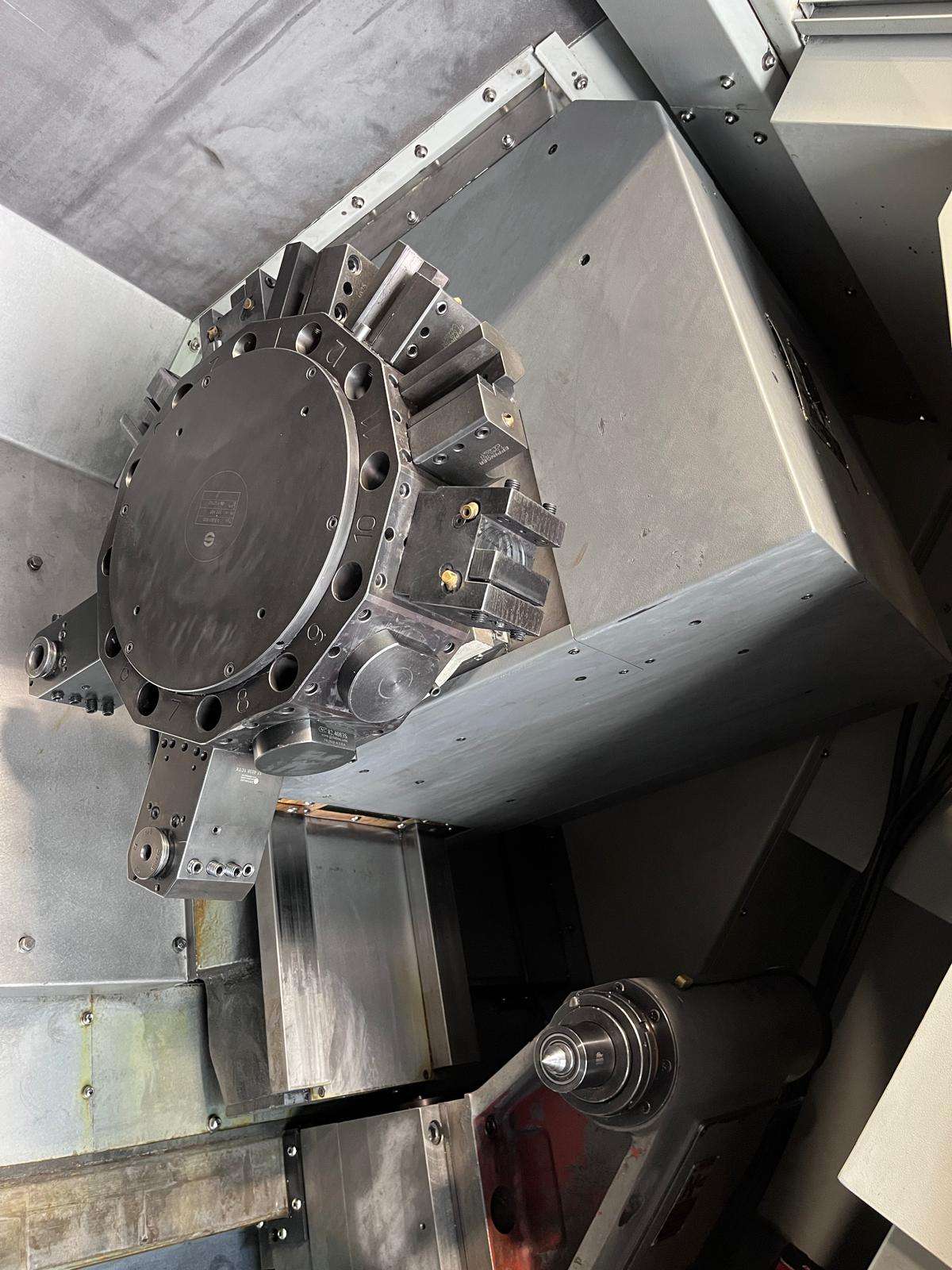

12 Station Live Tool Turret

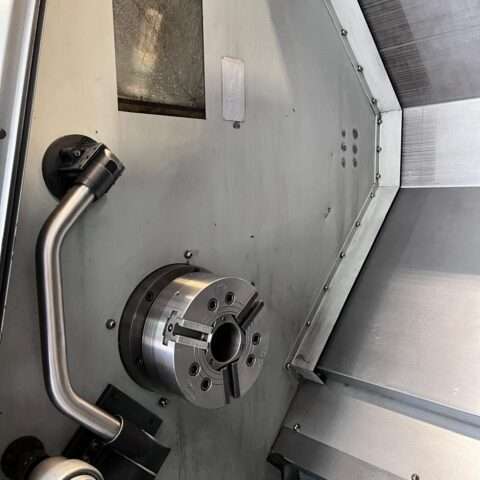

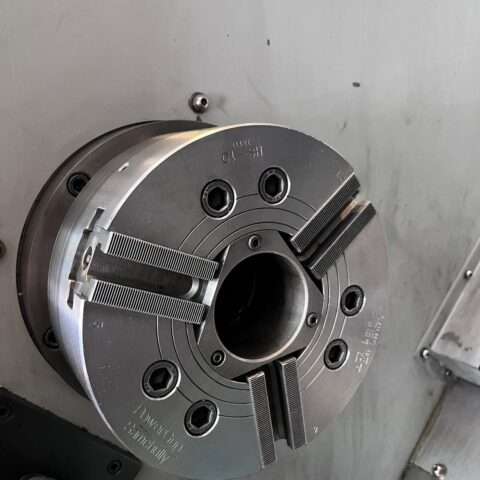

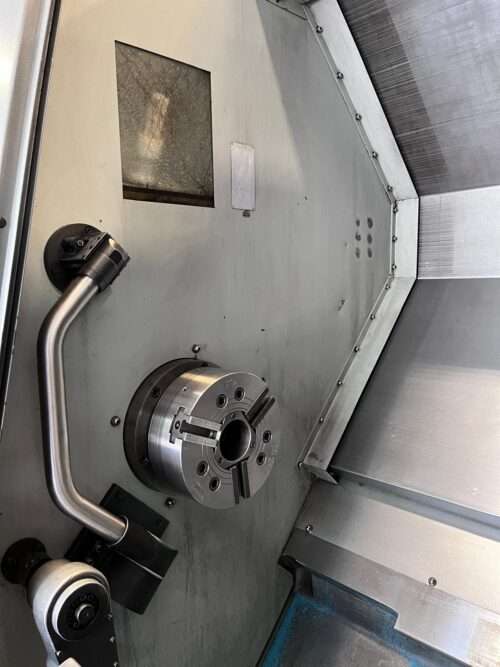

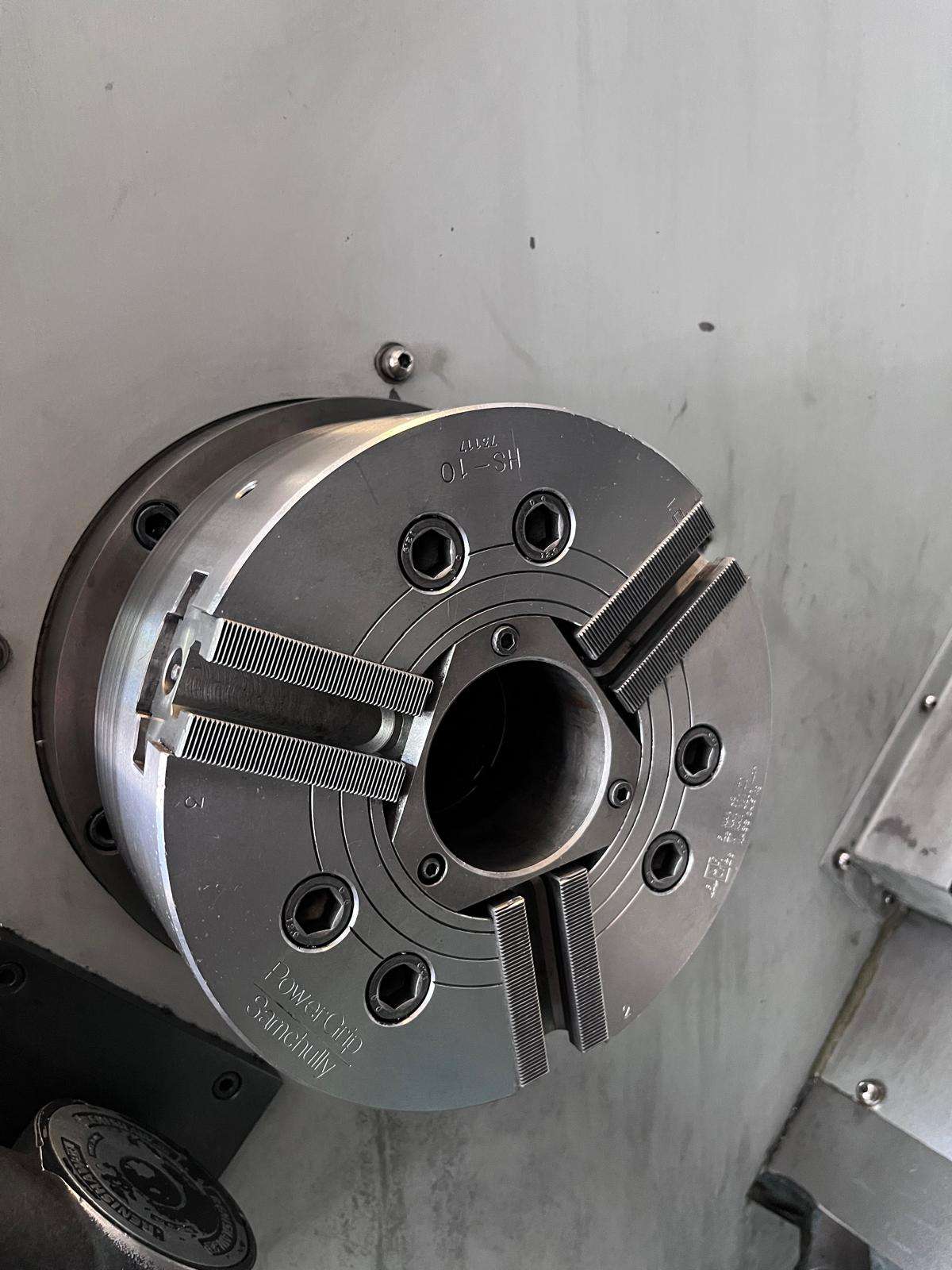

10″ 3 Jaw Power Chuck (12″ Capable)
Rigid Tapping
PCMCIA Interface
Foot Operated Control for Chuck
Programmable Tailstock
Tool Pre-setter
Part Catcher
Coolant System
Chip Conveyor
Tool Holders (Equipped on Turret as shown in the images)
Capacity:
Max Turning Diameter: 16.1″
Max Swing Over Bed: 29.5″
Max Swing Cross Over Slide: 18.9″
Max Turning Length: 26.8″
Max Bar Capacity: 3.1″
Distance Between Centers: 29.5″
Travels:
X Axis Travel : 9.1″
Z Axis Travel : 27.6″
Y Axis Travel: 4.3″( +/- 2.15″)
C Axis: 360° (0.001°)
Feedrate:
X Axis: 787 IPM Rapid Traverse
Z Axis: 945 IPM Rapid Traverse
Y Axis: 787 IPM Rapid Traverse
Spindle:
Spindle Bore: 3.74″
Spindle Nose: A2-8
Spindle Speed: 3500 RPM
Spindle Power: 30 HP
Turret:
Turret Capacity: 12 Stations
Live Tool Speed: 4000 RPM
Live Tool Power: 7.5 HP
Turret Indexing Time: 1 sec
Tool Holders Type: BMT
Tailstock:
Tailstock Quill Dia: 4.33″
Tailstock Quill Stroke: 3.93″
Tailstock Body Travel: 22.5″
Tailstock Taper: MT-5
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Overall Dimensions: 137″ x 77″ x 88″ High Approx.
Weight: 14,330 lbs. Approx.
Equipped With:
Fanuc 21i-TB CNC Control
C & Y Axis Capability
Servo Controlled Full C-Axis Spindle
12 Station Live Tool Turret
254 mm 3 Jaw Power Chuck (305 mm Capable)
Rigid Tapping
PCMCIA Interface
Foot Operated Control for Chuck
Programmable Tailstock
Tool Pre-setter
Part Catcher
Coolant System
Chip Conveyor
Tool Holders (Equipped on Turret as shown in the images)
Capacity:
Max Turning Diameter: 409 mm
Max Swing Over Bed: 749 mm
Max Swing Cross Over Slide: 480 mm
Max Turning Length: 681 mm
Max Bar Capacity: 79 mm
Distance Between Centers: 749 mm
Travels:
X Axis Travel : 231 mm
Z Axis Travel : 701 mm
Y Axis Travel: 109 mm( +/- 55 mm)
C Axis: 360° (0.001°)
Feedrate:
X Axis: 787 IPM Rapid Traverse
Z Axis: 945 IPM Rapid Traverse
Y Axis: 787 IPM Rapid Traverse
Spindle:
Spindle Bore: 95 mm
Spindle Nose: A2-8
Spindle Speed: 3500 RPM
Spindle Power: 30 HP
Turret:
Turret Capacity: 12 Stations
Live Tool Speed: 4000 RPM
Live Tool Power: 7.5 HP
Turret Indexing Time: 1 sec
Tool Holders Type: BMT
Tailstock:
Tailstock Quill Dia: 110 mm
Tailstock Quill Stroke: 100 mm
Tailstock Body Travel: 572 mm
Tailstock Taper: MT-5
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Overall Dimensions: 3,480 mm x 1,956 mm x 2,235 mm High Approx.
Weight: 14,330 lbs. Approx.
