All specifications are approximations and are subject to verification.
Condition: Very Good, Original Paint Machine. Replacement Cost $4,50,000.00
“24.8″ X 24.8″ Pallet size Original Paint, Equipped with Fanuc 18iM, 50 Taper 8000rpm, 120 tool side mount tool changer, Through Spindle Coolant, Expanded Memory. Approx. Replacement Cost 450k. On our Floor now, fully powered / tested & is in Great working condition.”
“24.8″ X 24.8″ Pallet size Original Paint, Equipped with Fanuc 18iM, 50 Taper 8000rpm, 120 tool side mount tool changer, Through Spindle Coolant, Expanded Memory. Approx. Replacement Cost 450k. On our Floor now, fully powered / tested & is in Great working condition.”
-

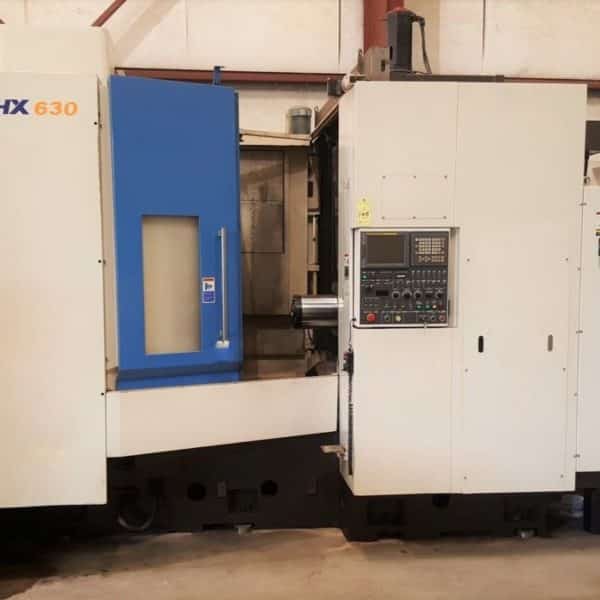

HYUNDAI KIA HX630 Features:

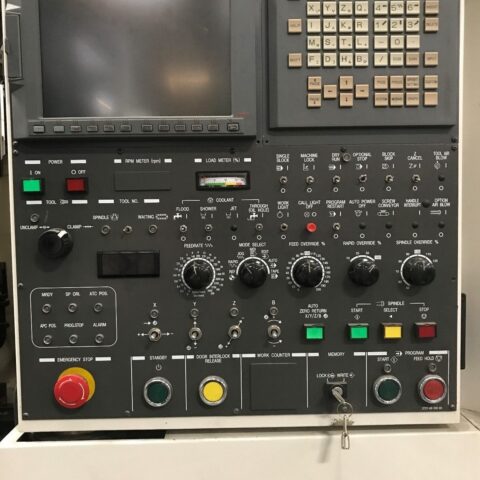

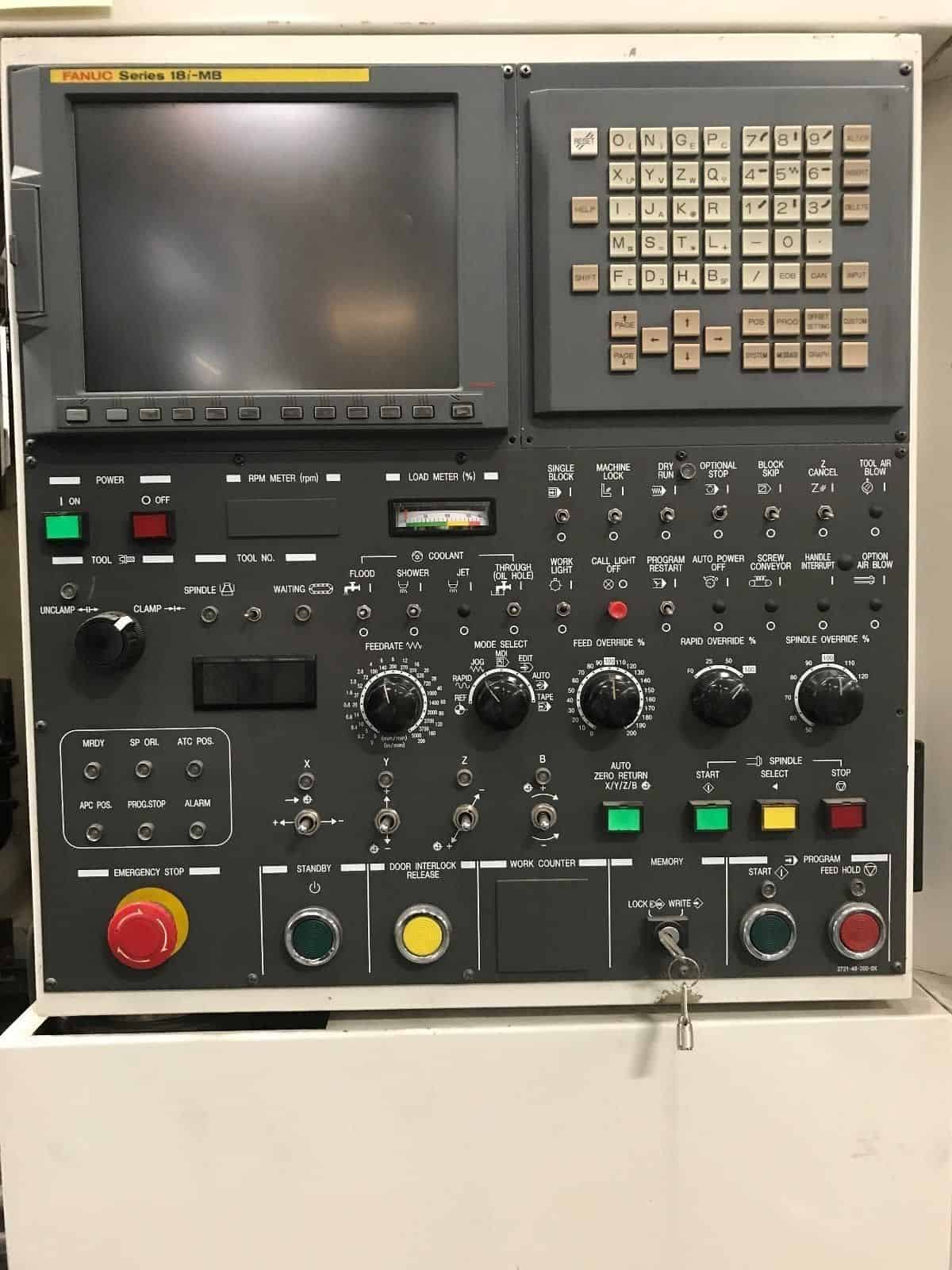

- Fanuc 18iM CNC Control

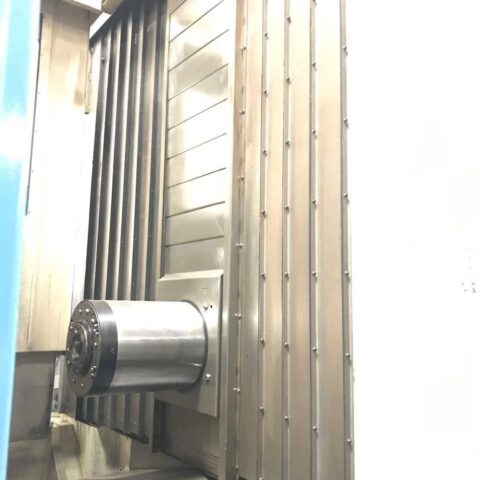

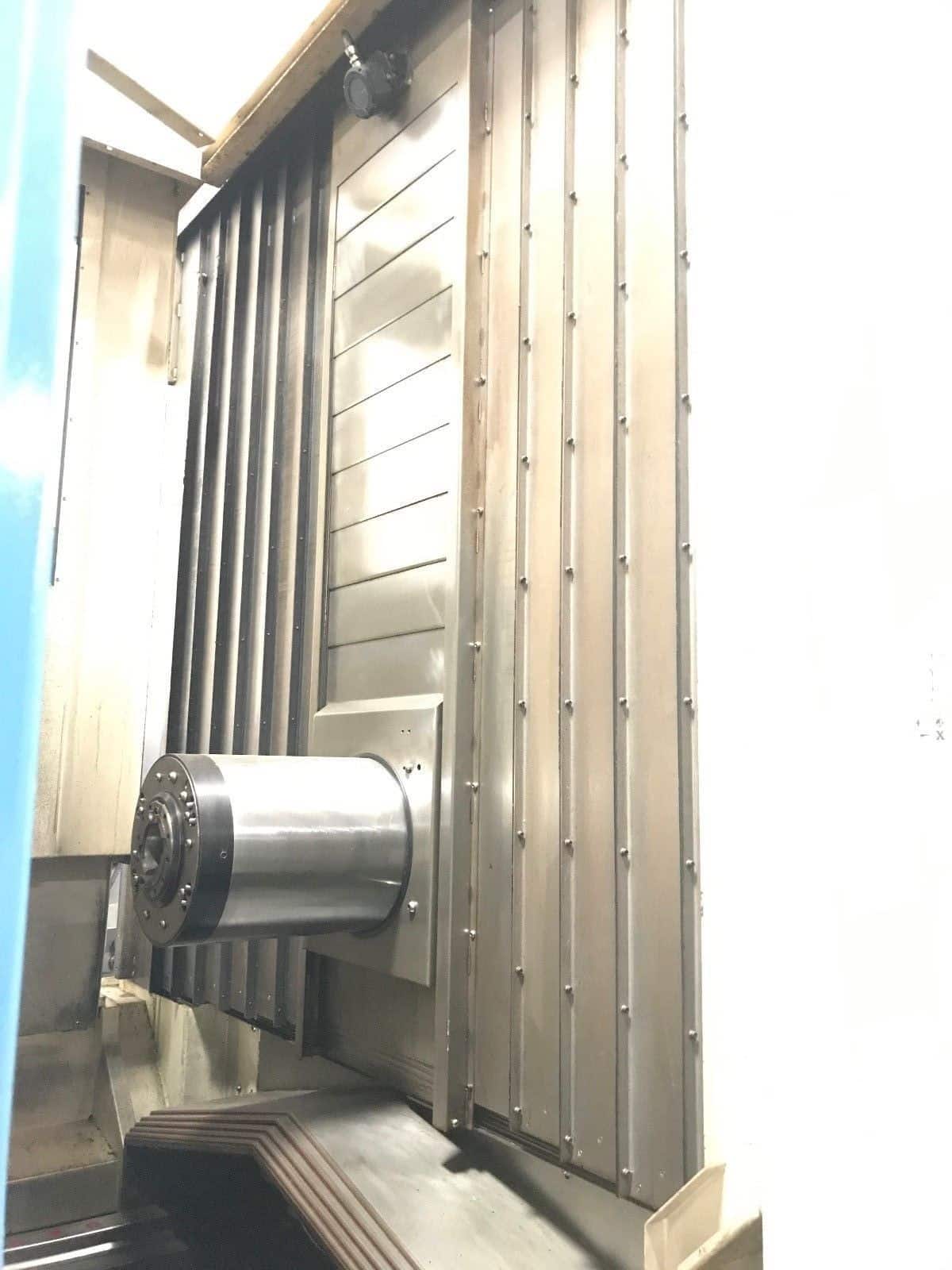

- 8000 RPM Geared Head Spindle
- Through Spindle Coolant
- 4.33″ Spindle Diameter
- 1 Degree Indexing

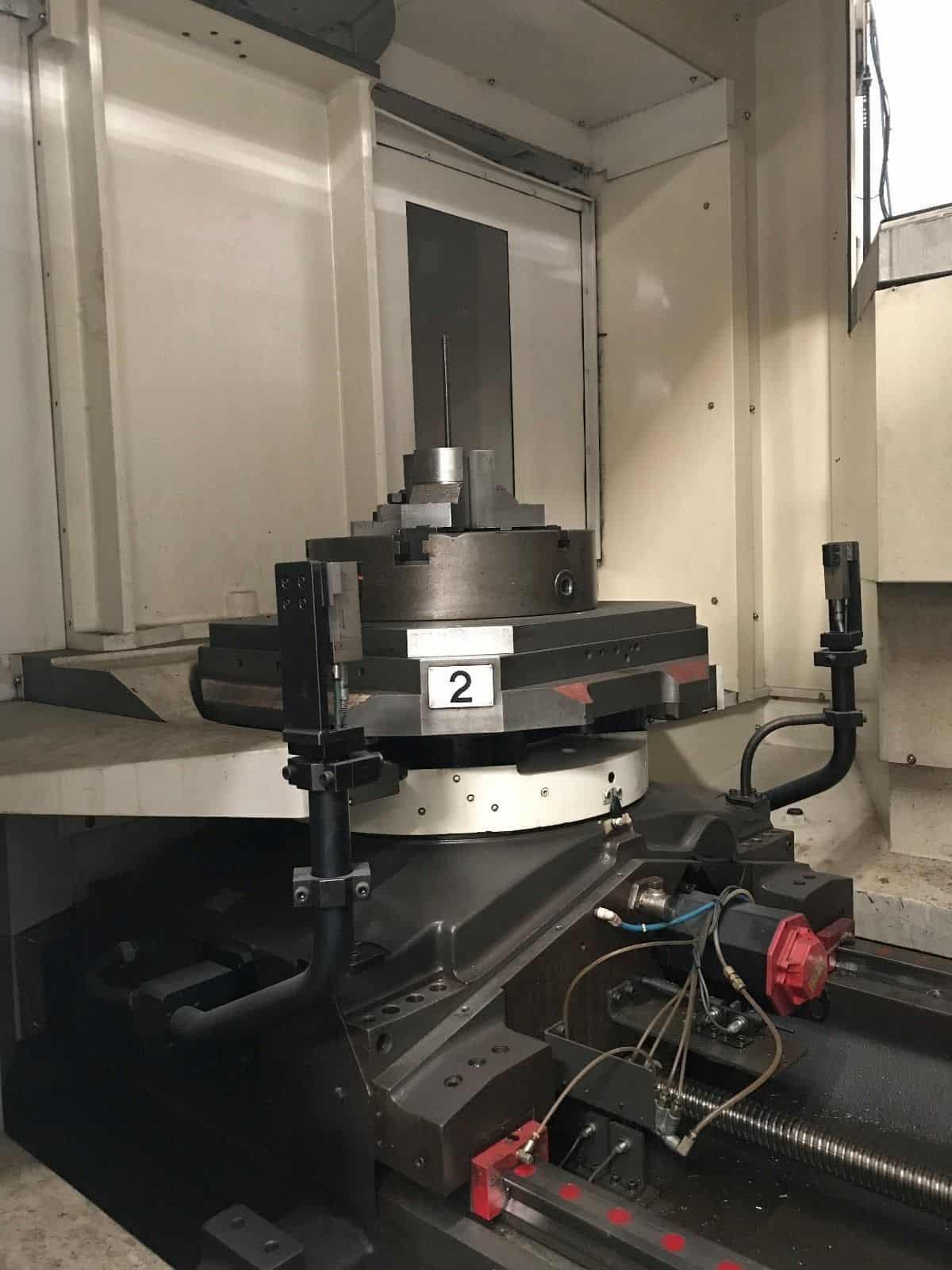

- 24.8″ Twin Pallet ( comes with 2 extra pallets )
- CAT 50 Taper Spindle

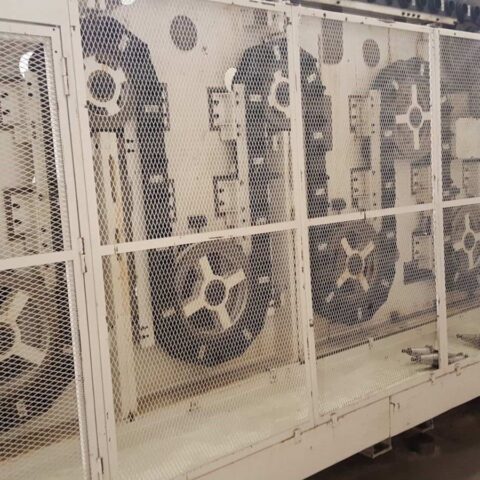

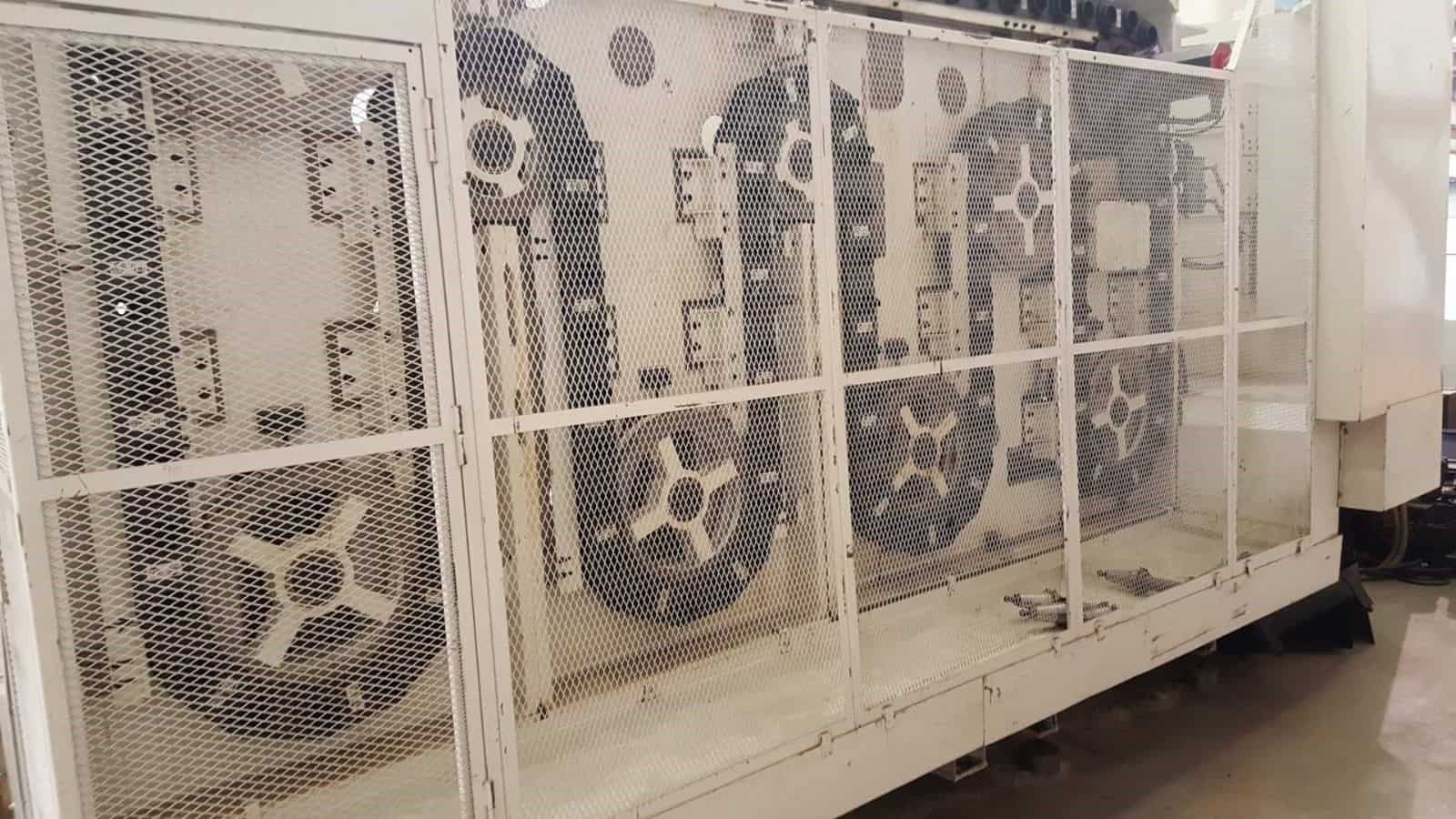

- 120 Tools Side Mount Tool Changer
- Remote Jog Handle
- Rigid Tapping
- PCMCIA Card Slot

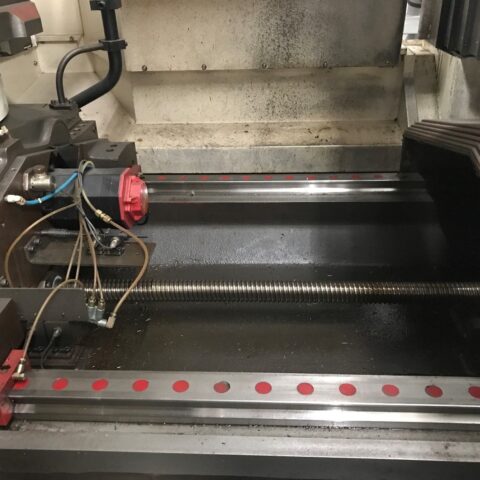

- Telescopic way covers
- Chip Conveyor
- High Pressure Coolant system
- Marposs Tool Eye
-
HYUNDAI KIA HX630 Specifications:
- Travels:
- X-Axis: 41.33″
- Y-Axis: 34.4″
- Z-Axis: 34.4″
- Rapid Traverse Rates: 1969 Inch Per Minute
- Cutting Feed Rates: 1969 Inch Per Minute
-

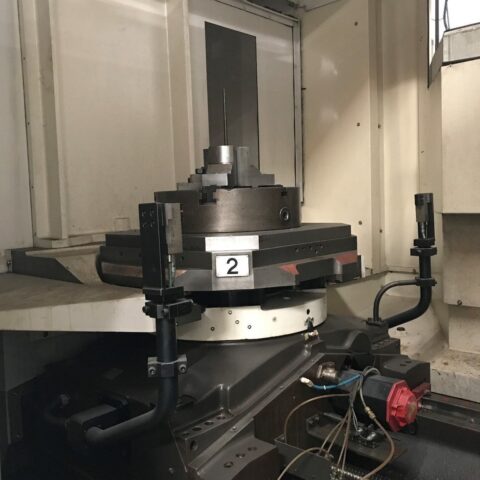

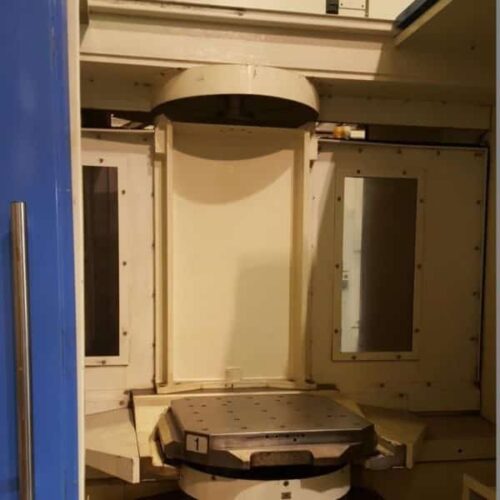

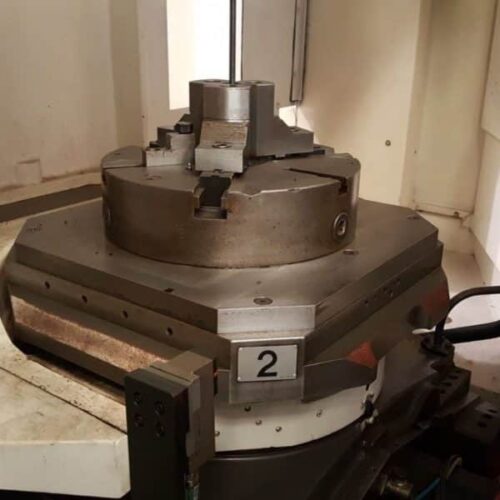

Pallet:
- Dual Pallet Changer (Comes with 2 Extra Pallets)
- Pallet Size: 24.8″ X 24.8″
- Pallet Change Time: 11 Seconds
- Weight on Table: 2650 lbs
-
Spindle:
- Taper Size: CAT 50
- Speed Range: 0 – 8000 RPM
- Spindle Power: 30 HP
- Max Torque: 90ft-lb @ 2000RPM
-
Automatic Tool Changer:
- Capacity: 120
- Max Tool Weight: 55 lbs
- Max Tool Dia: 9.6″
- Max Tool Length: 19.7″
- Tool Changing Time: 6.5 Seconds
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Shipping Dimensions: 300″ x 142″ x 140″ High ( Machine )
- Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
- Weight: 55,000 lbs
