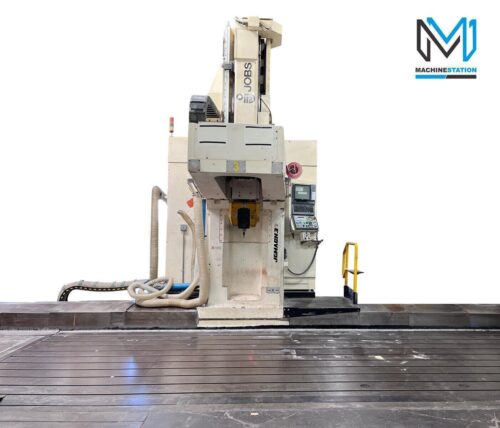

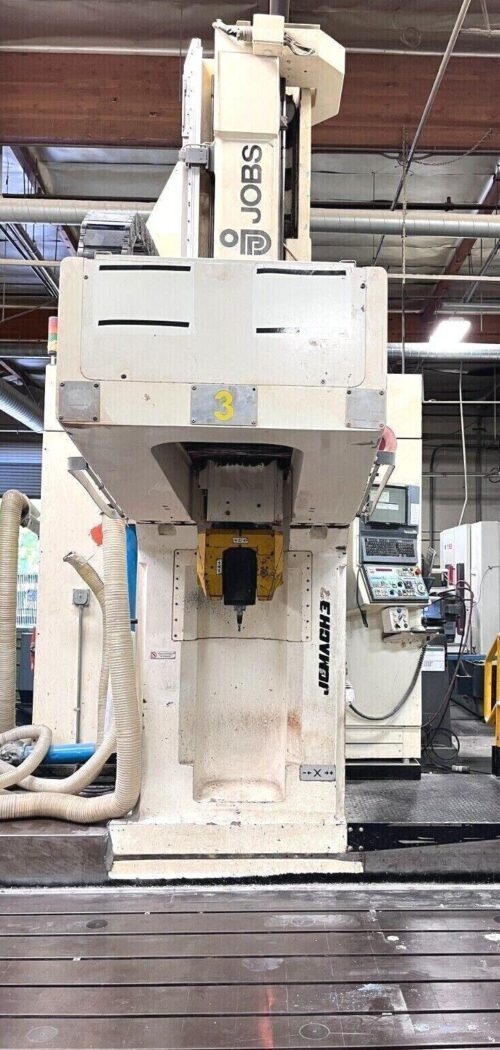

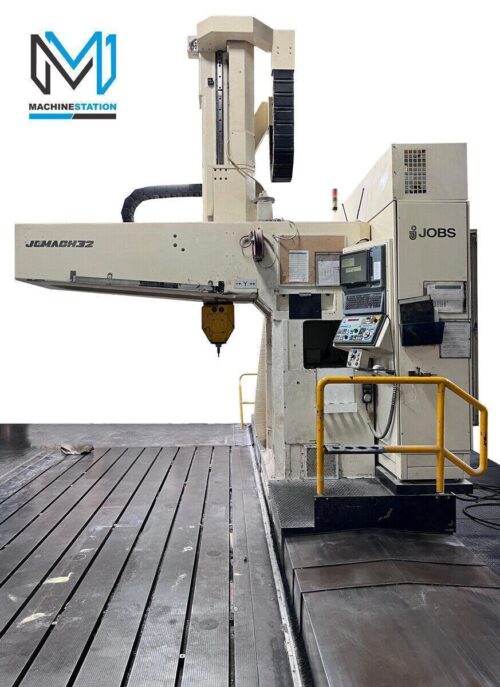

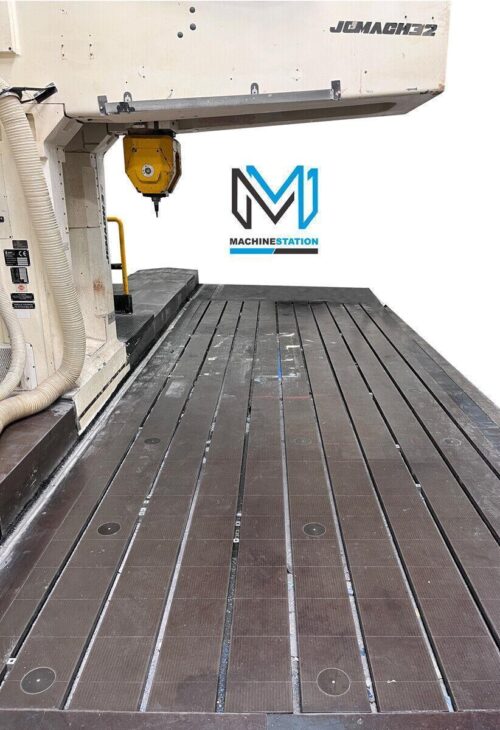

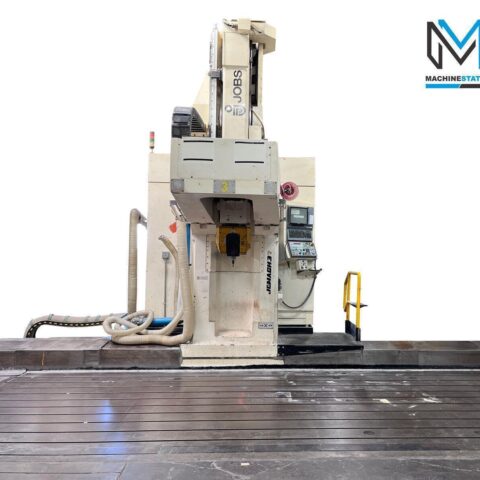

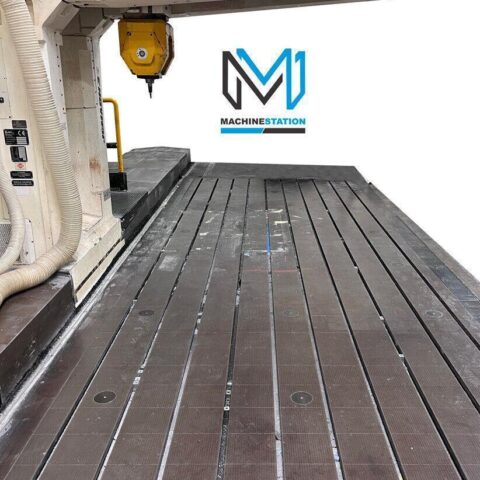

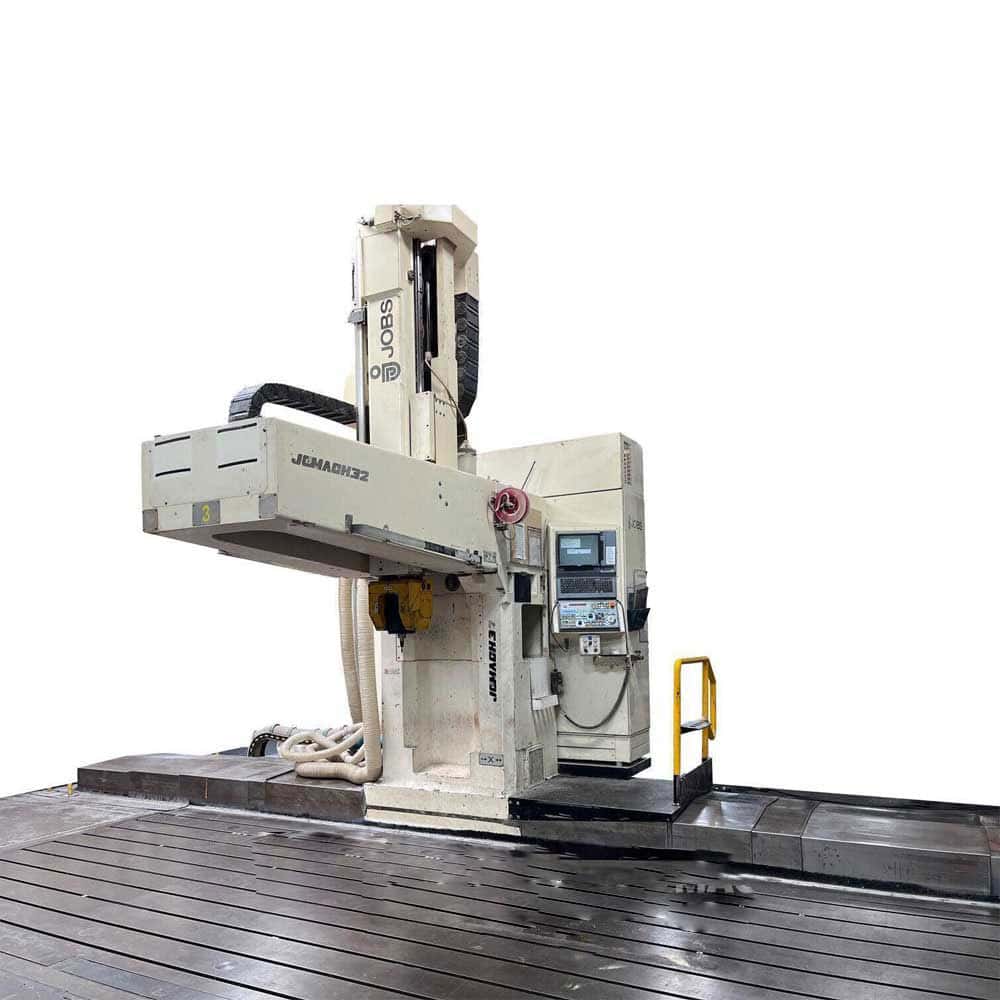

Used Jobs Jomach 32 5-Axis CNC Router (1997) | Hi-Speed Vertical Floor Mill

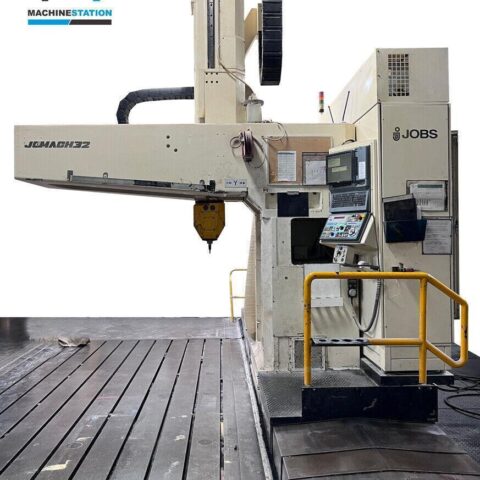

Jobs Jomach 32 5 Axis CNC Router Profiler Vertical Floor Mill

Location Lake Elsinore, CA

SKU 112366

Make/Model JOBS JOMACH 32

Video No Video

Out of stock

Used Jobs Jomach 32 5 Axis CNC Router Profiler Vertical Floor Mill For Sale

Location:	Lake Elsinore, CA
SKU:	112366
Make/Model:	JOBS JOMACH 32
Video:	No Video

SKU: 112366

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	JOBS
Model:	JOMACH 32
Year:	1997
Condition:	Used – Good

Features:

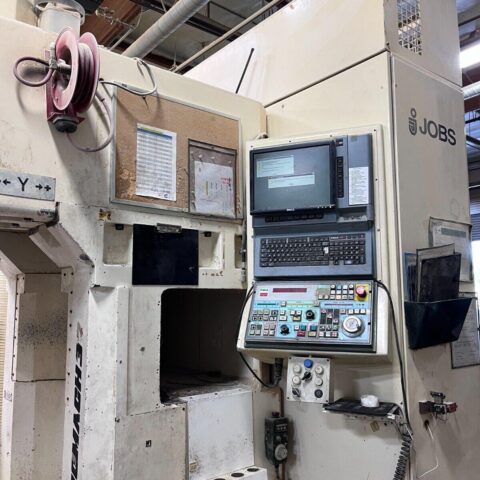

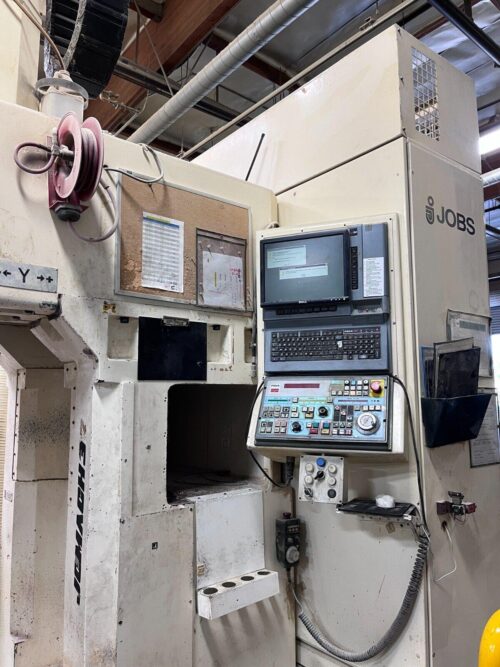

C-20 Series CNC Control
Simultaneous 5 Axis Cutting

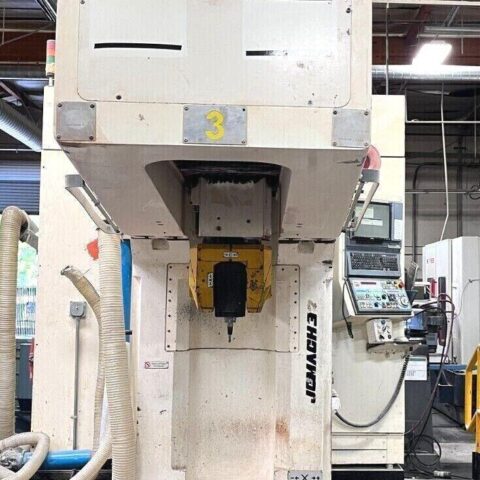

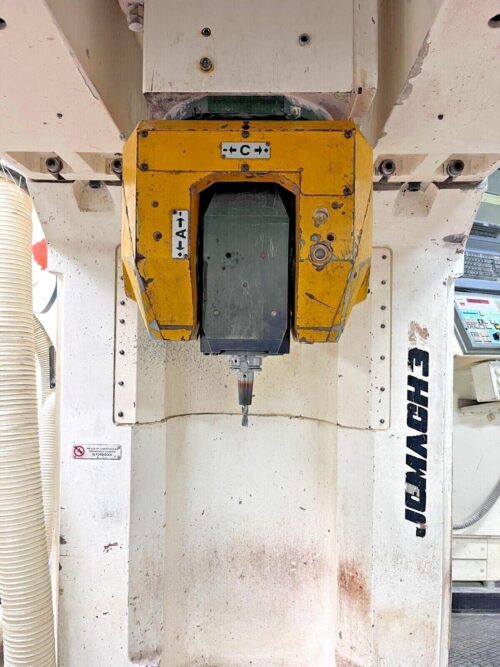

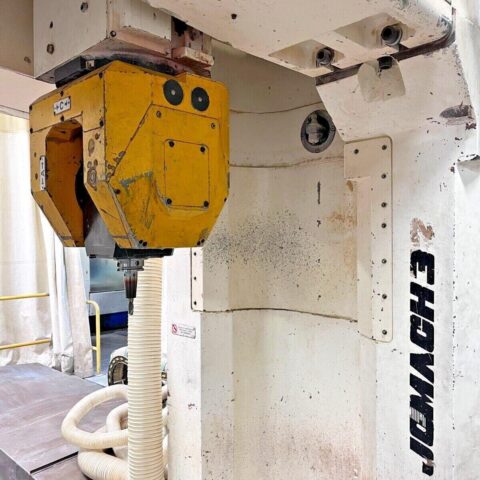

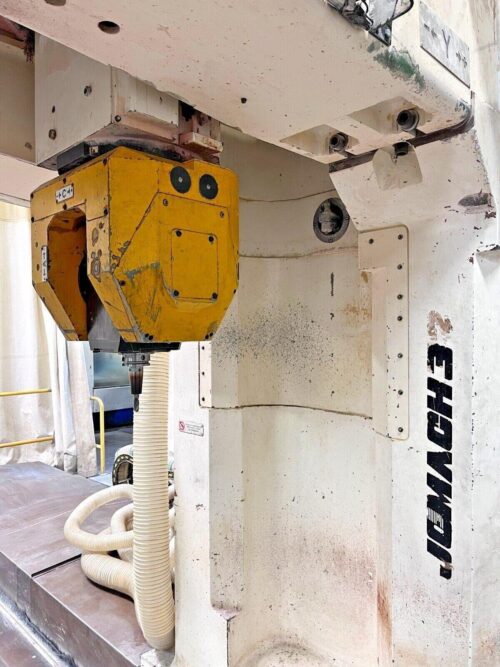

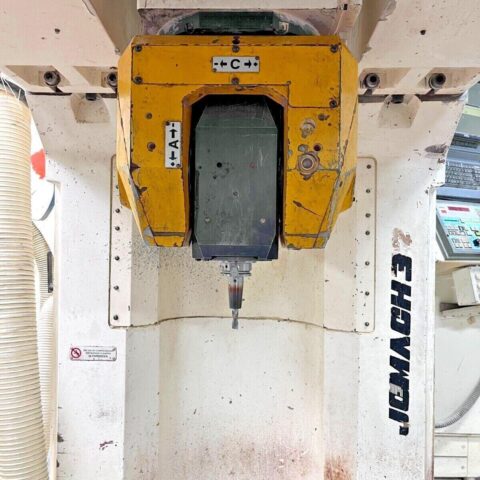

Swivel Milling Head (A & C Axis)
Three-Dimensional Milling
Three-Dimensional Measuring System
24000 RPM High Speed Spindle
” X ” Floor Plate
Fast Rapid Traverse Rate
Hand Wheel MPG Control
Spindle Orientation
Helical Interpolation
Rigid Tapping
Telescopic Way Covers
Books & Manuals

Travels:
X Axis: 256″
Y Axis: 70″
Z Axis: 55″
A Axis: +100˚/ -100˚ (Swivelable)
C Axis: +200° / – 200° (Rotate)
Min. Increment: 0.001°

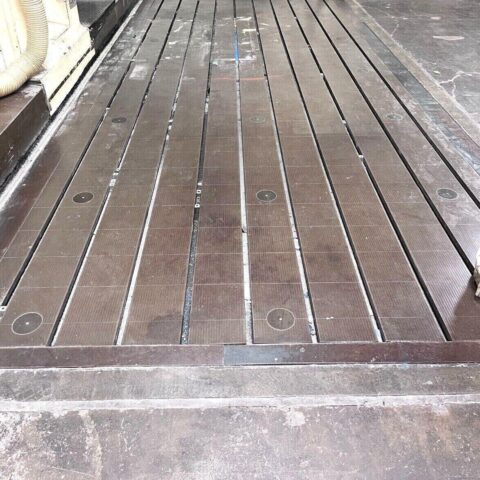

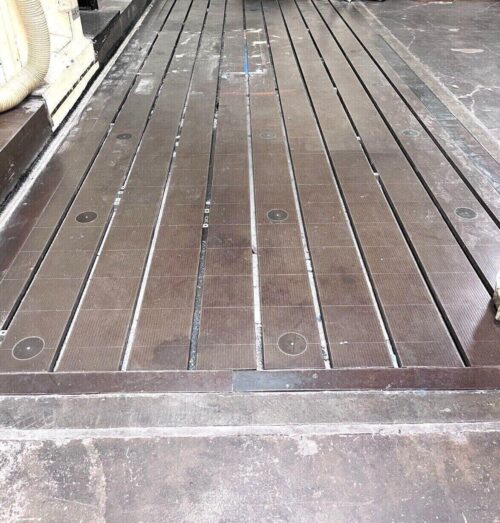

Table:
Length: 157.5″?
Width: 59.05″
Number of Std T-Slots: 14
T-Slot Width: 5″/8″
Max Weight on Table: lbs
Table to Spindle Nose: 3.9″ – 57.82″

Spindle:
Taper Size: HSK 63A
Speed Range: 24000 RPM?
Spindle Power: 15 HP

Feed rates:
Rapid X Y Z Axis: 1181 IPM
Rapid A: 3.240˚ / min
Rapid C: 3.240˚ / min
Cutting Feed rate: 394 IPM

General:
Air Required: 80 psi 4 scfm
Power: 70 kva /480v / 3-Phase
Overall Dimensions: ” x ” x ″ High
Weight: 48501 lbs

“No Charges for loading at list Price”

Travels:
X Axis: 6,502 mm
Y Axis: 1,778 mm
Z Axis: 1,397 mm
A Axis: +100˚/ -100˚ (Swivelable)
C Axis: +200° / - 200° (Rotate)
Min. Increment: 0.001°

Table:
Length: 4,001 mm?
Width: 1,500 mm
Number of Std T-Slots: 14
T-Slot Width: 127 mm/203 mm
Max Weight on Table: lbs
Table to Spindle Nose: 99 mm – 1,469 mm

Spindle:
Taper Size: HSK 63A
Speed Range: 24000 RPM?
Spindle Power: 15 HP

Feed rates:
Rapid X Y Z Axis: 1181 IPM
Rapid A: 3.240˚ / min
Rapid C: 3.240˚ / min
Cutting Feed rate: 394 IPM

General:
Air Required: 80 psi 4 scfm
Power: 70 kva /480v / 3-Phase
Overall Dimensions: ” x ” x ″ High
Weight: 48501 lbs

Make	JOBS
Model	JOMACH 32
Categories	CNC Multi Axis Machining Center

C-20 Series CNC Control
Simultaneous 5 Axis Cutting
Swivel Milling Head (A & C Axis)
Three-Dimensional Milling
Three-Dimensional Measuring System
24000 RPM High Speed Spindle
" X " Floor Plate
Fast Rapid Traverse Rate
Hand Wheel MPG Control
Spindle Orientation
Helical Interpolation
Rigid Tapping
Telescopic Way Covers
Books & Manuals
