*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Johnford |
| Model: | SV-40 |
| Year: | 2020 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | FANUC 0i CNC Control |
| Features: |
|---|
| FANUC 0i CNC Control |
| 4th/5th Axis Trunnion Table |
| TJR FHR-255C CNC Tilting Rotary Table |
| 24-Position Side-Mount Automatic Tool Changer |
| 10,000 RPM Spindle |
| 14.75 HP Spindle Motor |
| 40-Taper Spindle |
| Chip Conveyor |
| Chiller |

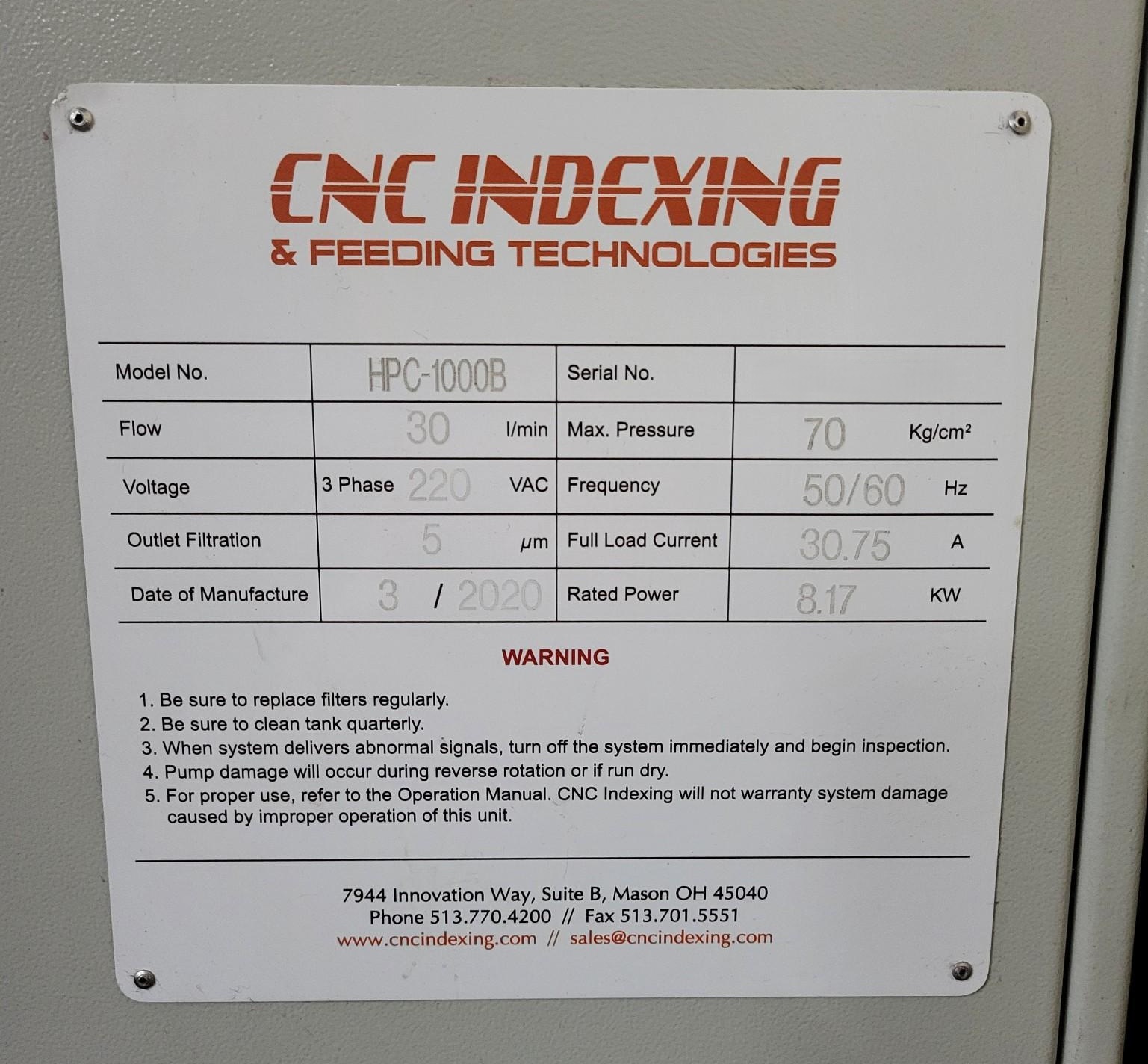

| High-Pressure Coolant System |
| Fully Enclosed Work Area |
| Table: |
|---|
| Table Size: 19.7″ × 47.2″ |
| Maximum Table Load: 880 lbs. |
| Travels: |
|---|
| X-Axis Travel: 41″ |
| Y-Axis Travel: 20″ |
| Z-Axis Travel: 24″ |
| Rapid Traverse: |
|---|
| X-Axis Rapid: 1,181 IPM |
| Y-Axis Rapid: 1,181 IPM |
| Z-Axis Rapid: 787 IPM |
| Spindle: |
|---|
| Spindle Speed: 10,000 RPM |
| Spindle Motor: 14.75 HP |
| Spindle Taper: 40 |
| Spindle Configuration: Vertical |
| Automatic Tool Changer: |
|---|
| Type: Side-Mount Automatic Tool Changer |
| Capacity: 24 Positions |
| Tooling: 40-Taper |
| General: |
|---|
| Power Source: 220V / 3-Phase / 50–60 Hz |
| Machine Dimensions (Approx.): 115″ L × 126″ W × 106.2″ H |
| Machine Weight (Approx.): 13,200 lbs. |
